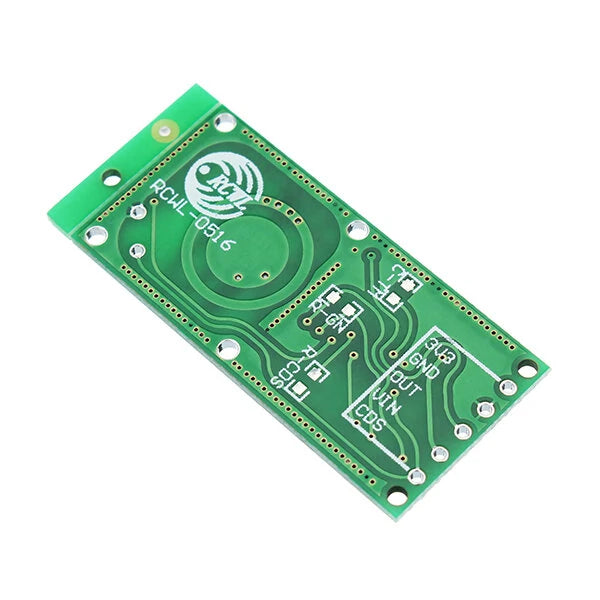

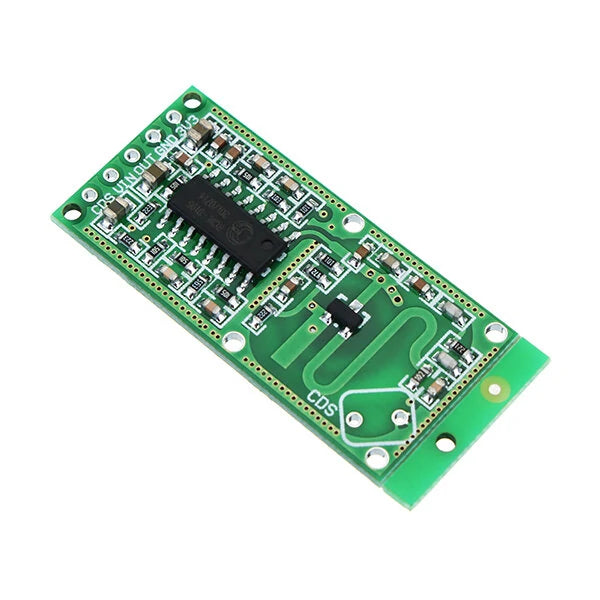

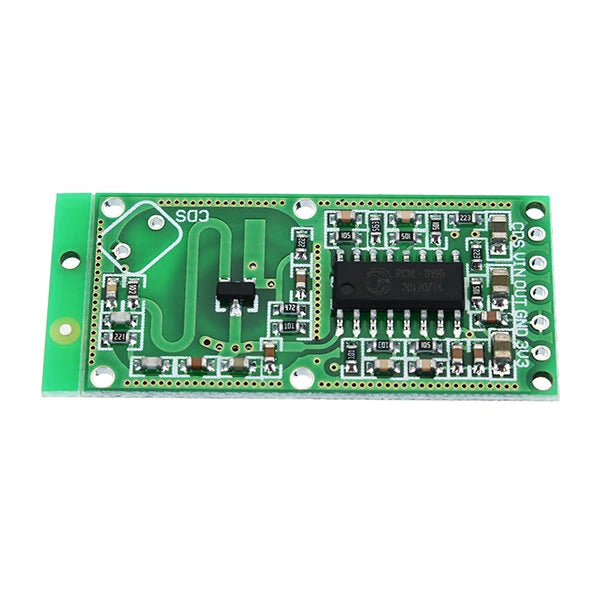

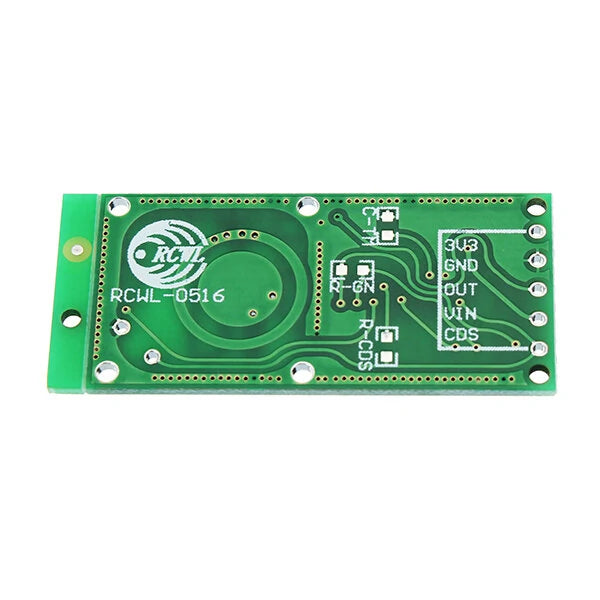

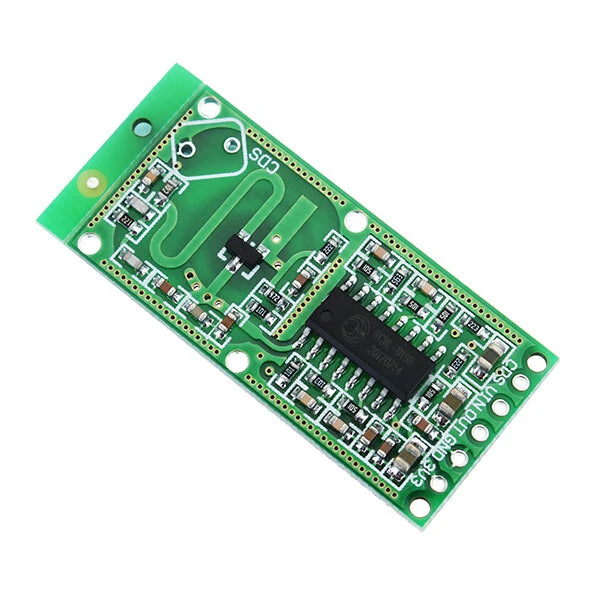

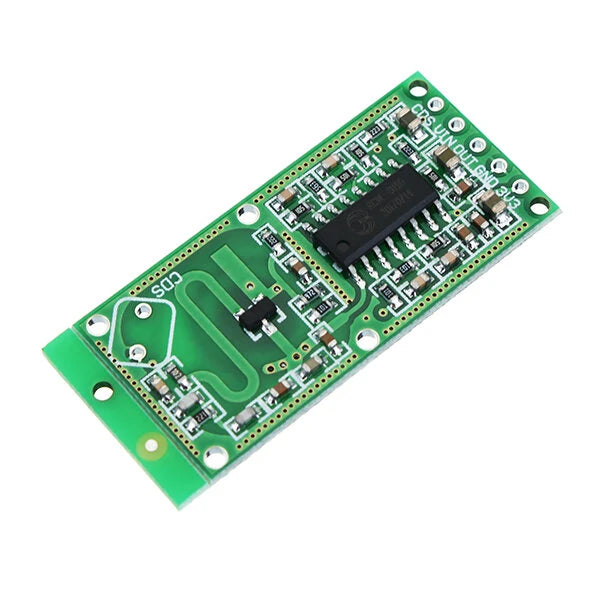

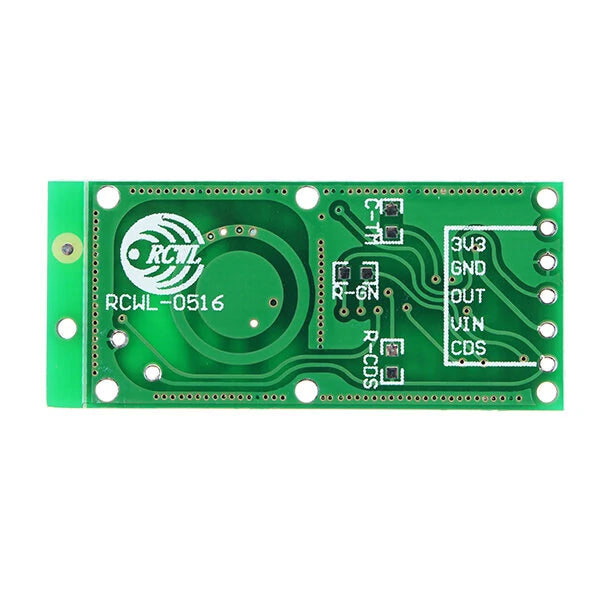

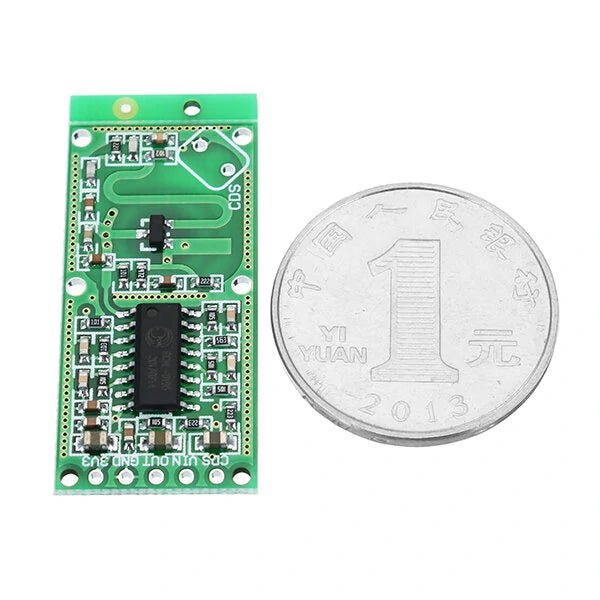

RCWL-0516 Microwave Radar Human Body Sensor Module Induction Switch

RCWL-0516 Microwave Radar Human Body Sensor Module Induction Switch

Regular price $0.99 USD
Regular price $0.00 USD Sale price $0.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Product Details

Enhance your projects with our advanced Microwave Radar Sensor Module featuring the RCWL-9196 signal processing control chip. This sensor provides superior performance with its penetrating detection capabilities and is a versatile addition to various applications.

Key Features

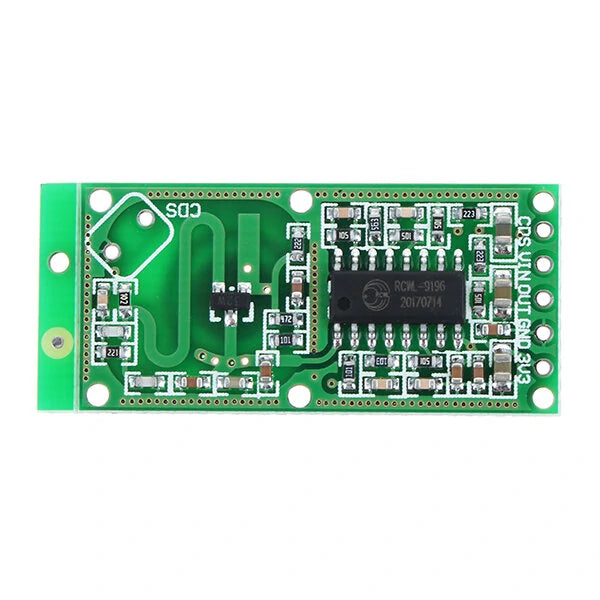

  • Transmission signal processing control chip: RCWL-9196
  • Wide operating voltage range: 4.0V - 28.0V
  • Penetrating detection capability compared to traditional infrared PIR sensors
  • Adjustable block time and detection distance
  • 3.3V power output
  • Compact board dimensions: 35.9mm x 17.3mm

Application Design Notes

  1. Ensure the sensing face is unobstructed in front of the gold area.
  2. Maintain a clearance of more than 1cm for the front and rear sensing surfaces.
  3. Install the module on a flat carrier plane.
  4. Plan your application within an effective detection area.
  5. The component side is the positive sensing face, whereas the opposite side is less effective.
  6. Avoid large-scale applications in the same area to prevent mutual interference. Maintain a distance of over 1 meter between individual units.

Package Includes

  • 1 x Microwave Radar Sensor Module
