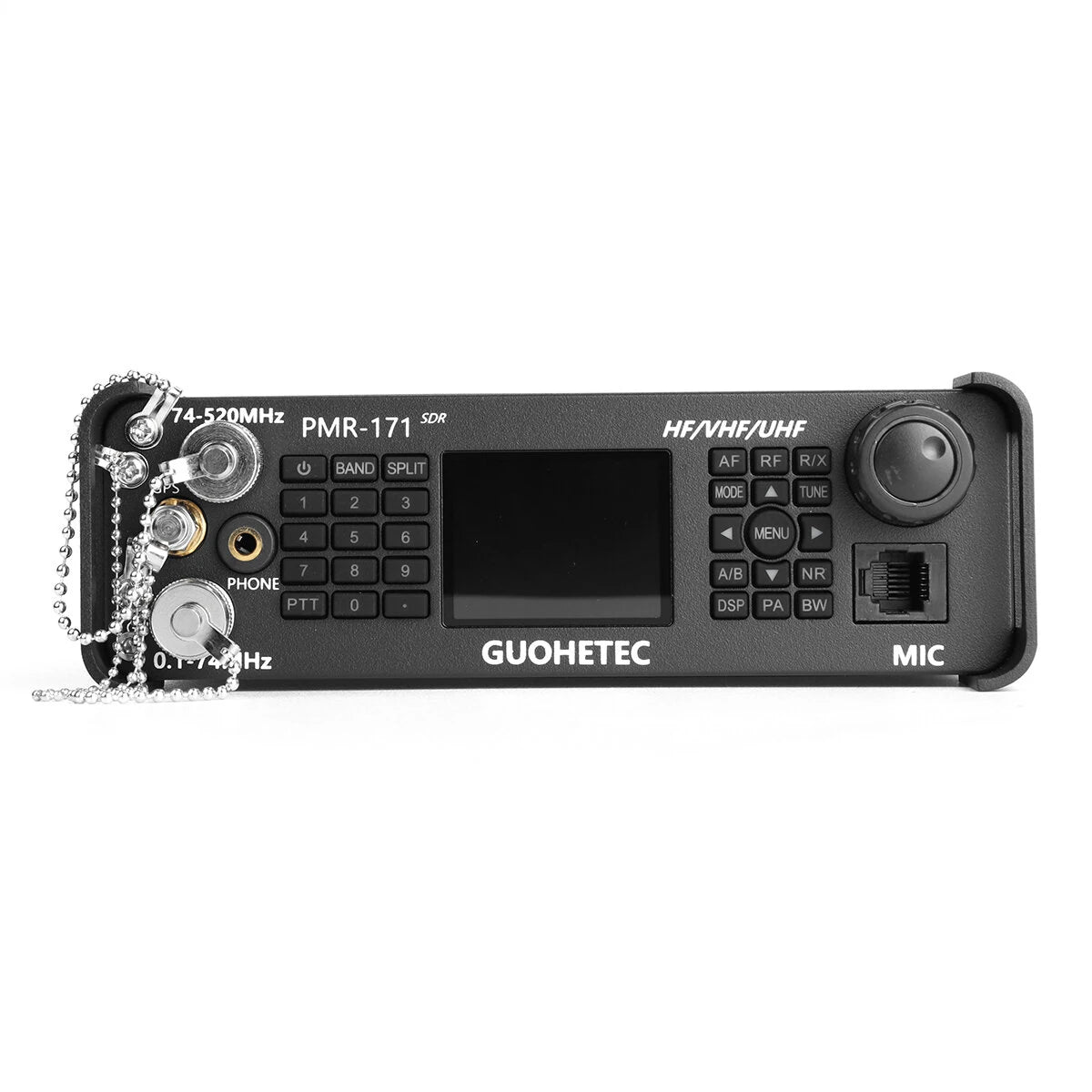

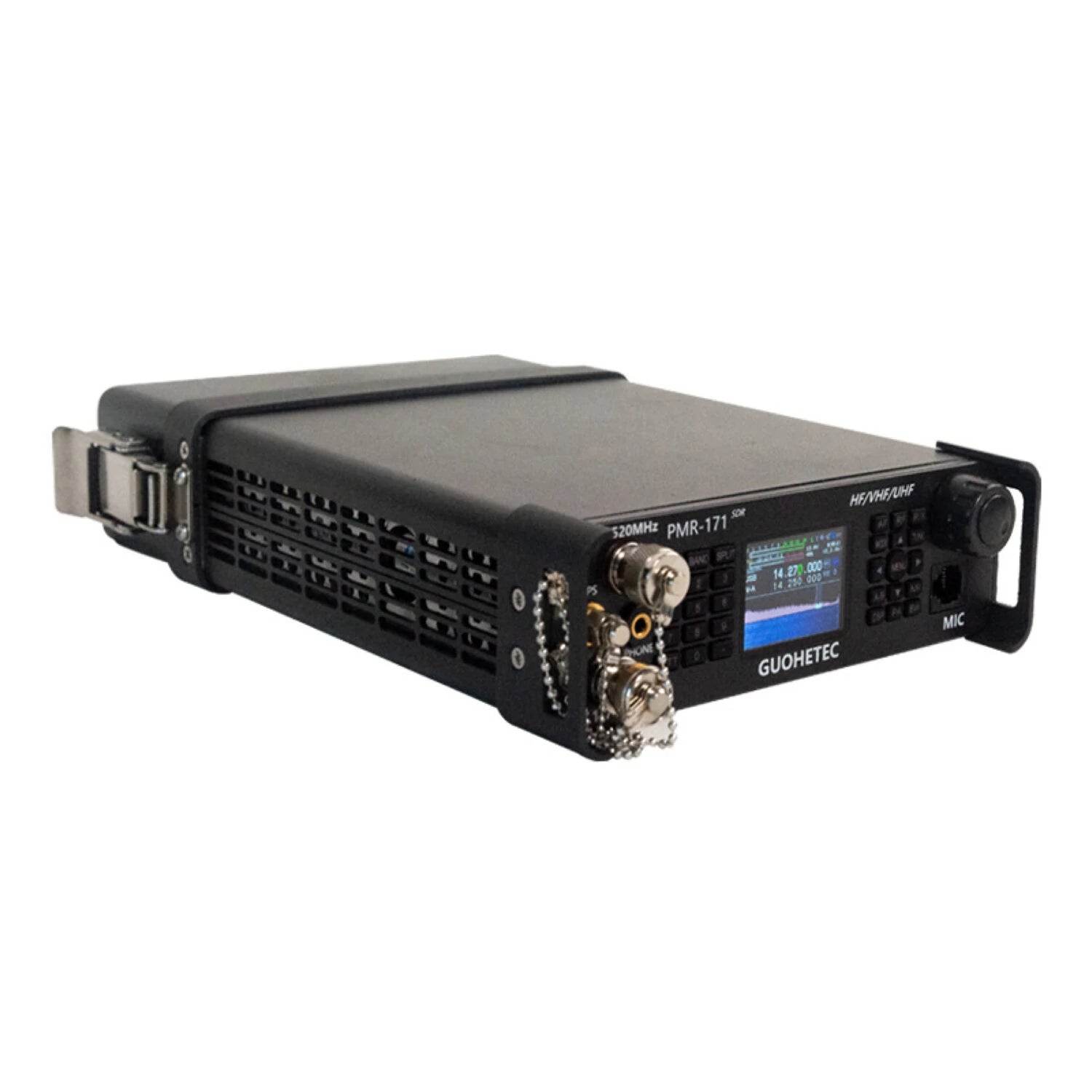

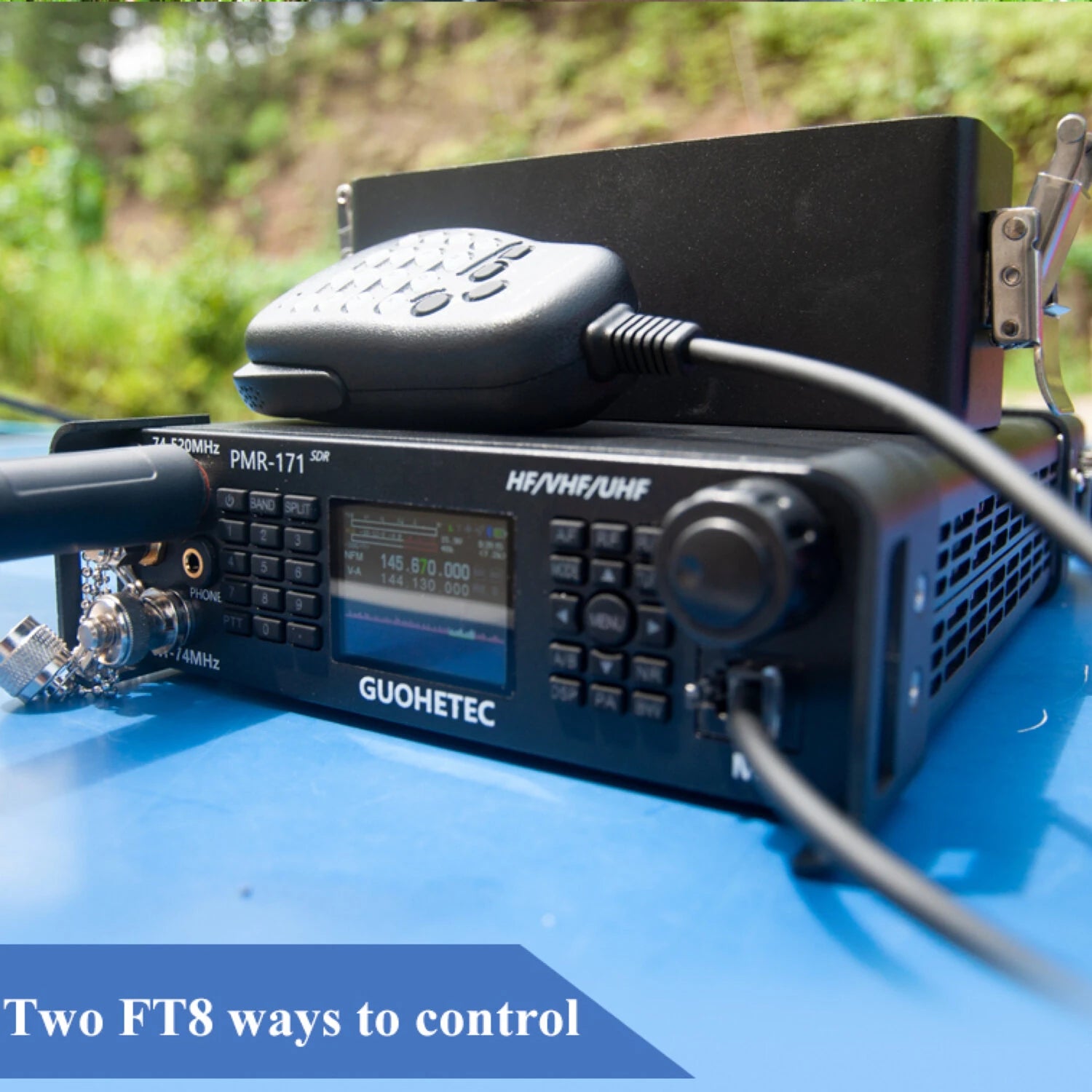

PMR-171 20W SDR Transceiver 100KHz-2GHz VHF UHF HF CW AM SW Military Mobile Radio

Product Description:

Experience Next-Generation Communication with the PMR-171

The PMR-171 is an ultra-portable, multi-mode SDR radio that covers all bands from 100kHz to 2GHz. Crafted with precision by Hamgeek, this versatile radio supports FT8, USB, LSB, CW, AM, FM, RTTY, DMR (optional), and WFM (receive only). The PMR-171's advanced features make it the ideal companion for field operations and QRP enthusiasts.

This radio stands out with its dual VFO modes for split-frequency operation, intermediate frequency shift, noise suppression, AGC speed selection, RF gain, squelch controls, and integrated AM/FM receivers. Enjoy prolonged battery life with its modular 5AH battery-carrier and low power consumption design. It seamlessly adapts to various environments with its 9VDC-18VDC power input, ensuring reliable performance in both stationary and mobile settings.

Thanks to its high-resolution LCD display and adjustable backlighting, the PMR-171 ensures clarity, even under bright sunlight. Enhanced usability through the QRadioBLE mobile app allows for Bluetooth-based wireless control, reducing wired interference. For direct connections, use the single USB cable for sound card and serial interface access, compatible with a range of amateur radio software.

Unmatched Features for Enthusiasts:

The PMR-171 integrates features commonly found in larger base-station radios, including:

• Real-time spectrum and waterfall display
• Doppler frequency tracking
• Advanced digital signal processing and noise reduction
• Built-in automatic antenna tuner and programmable CW keyer
• External battery compartment and USB TYPE-C interface
• Wide voltage range and reverse connection protection
• Optional GPS/BeiDou, compass, and accelerometer features
• Ultra-lightweight and compact design

Perfect for a Range of Applications:

• Emergency Communications
• Remote Spectrum Monitoring
• Radio Direction Finding
• Amateur Radio

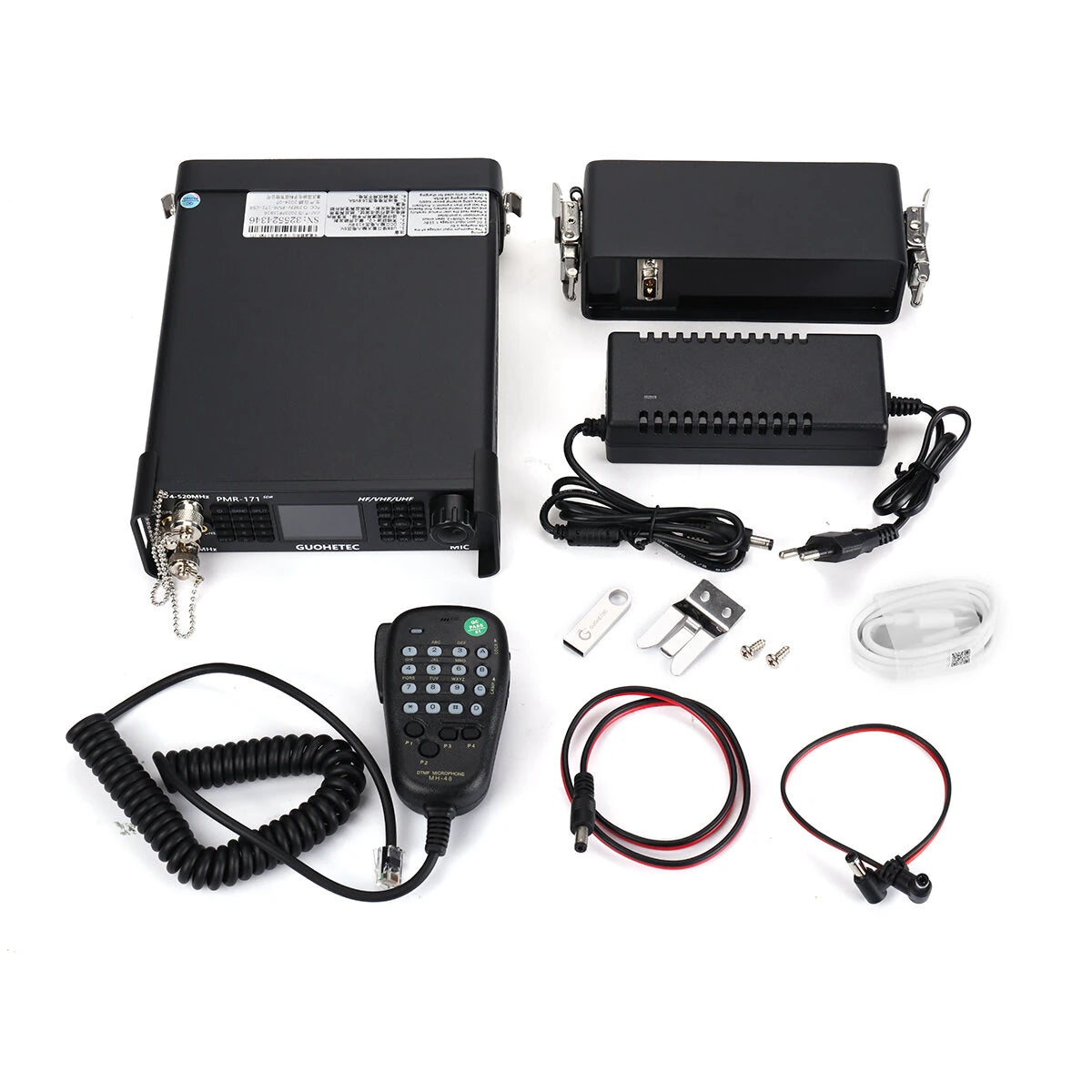

Please note that the PMR-171 is available in both US and European specifications. The package includes:

• 1 x PMR-171 SW radio (optional)
• 1 x Lithium battery

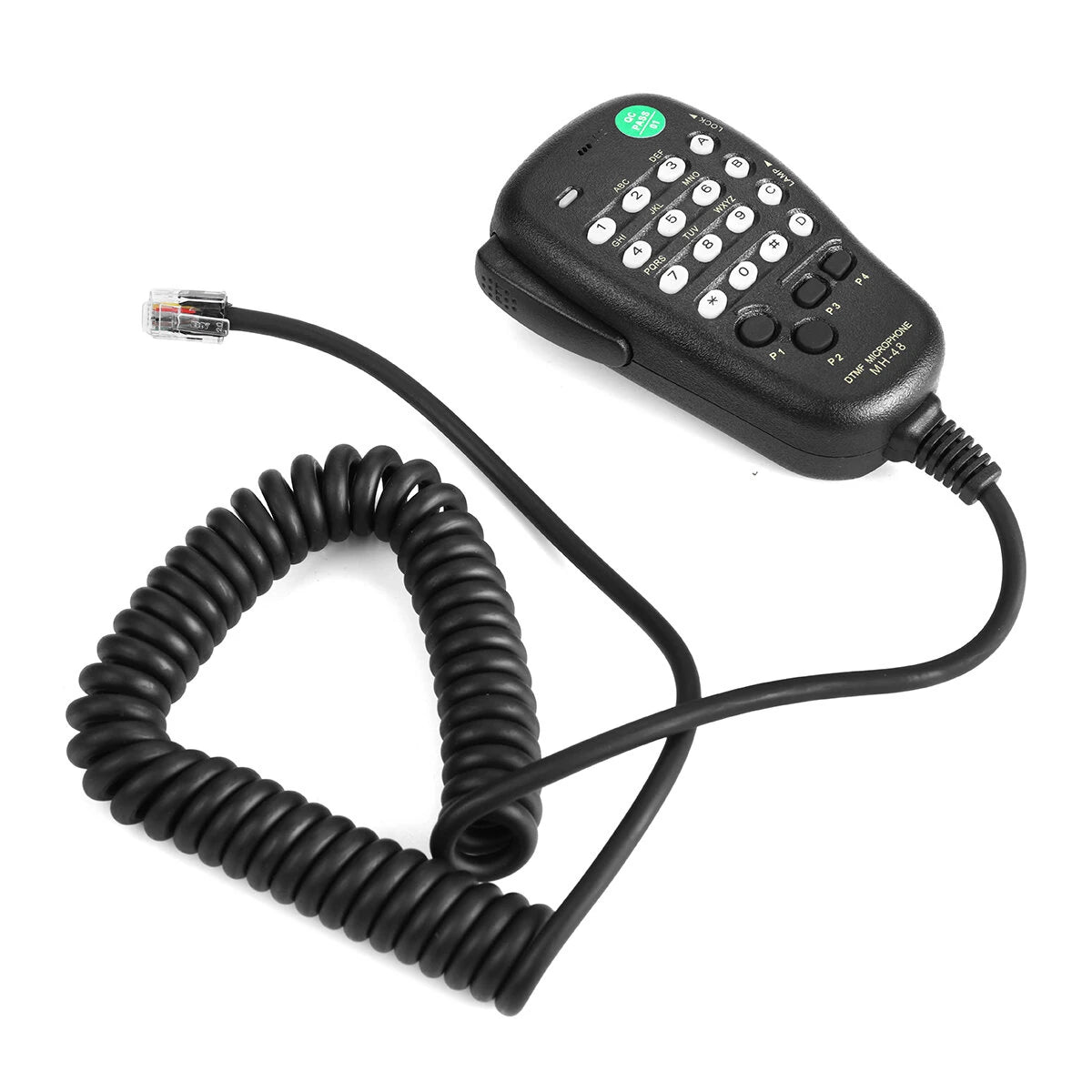

• 1 x Handheld microphone

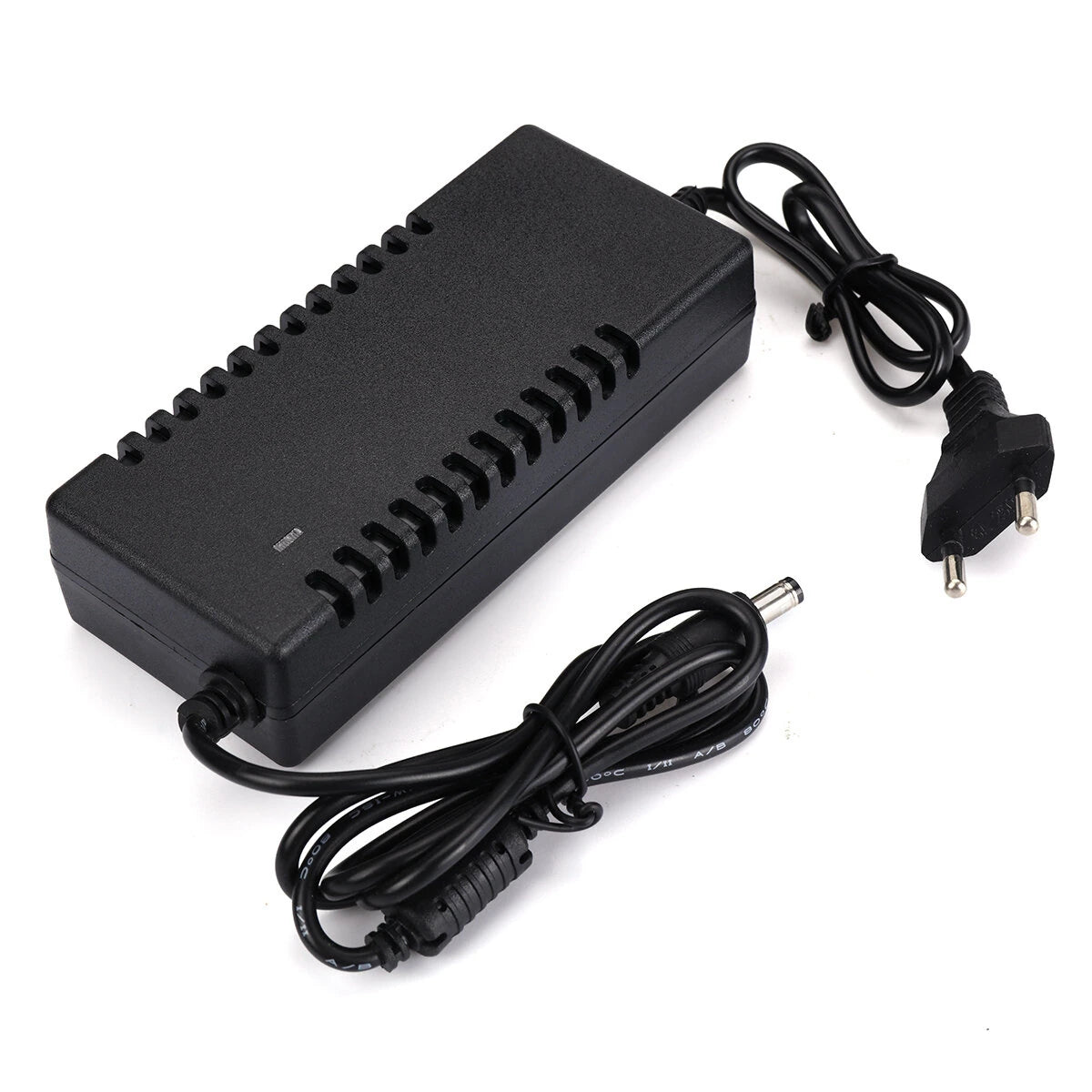

• 1 x Single-head power supply
• 1 x Dual-head power supply
• 1 x USB disk
• 1 x USB cable

Note: Other items in photos are for demonstration purposes only.
