High-Power 775 Motor, DC 12V-36V, 3500-9000 RPM, Large Torque

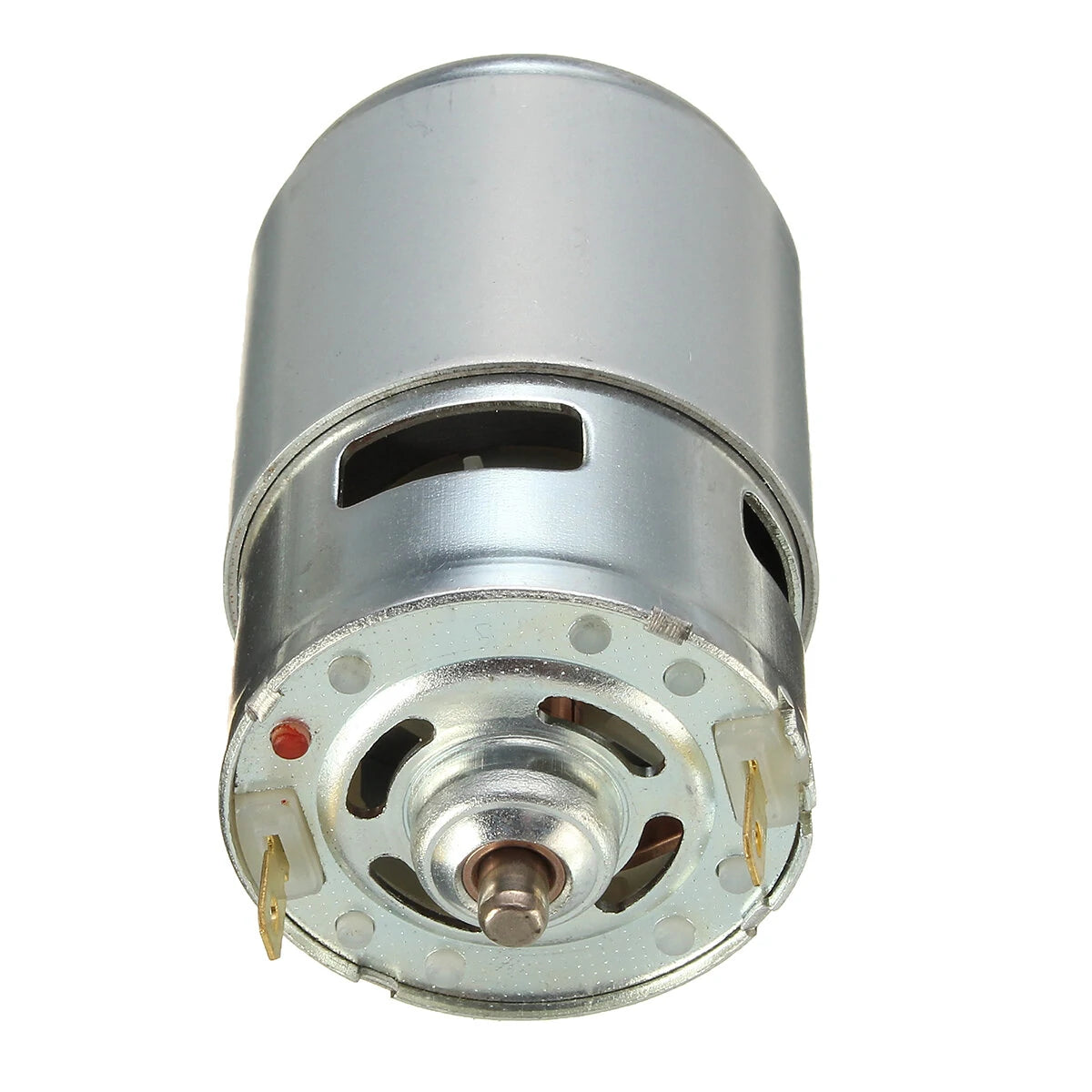

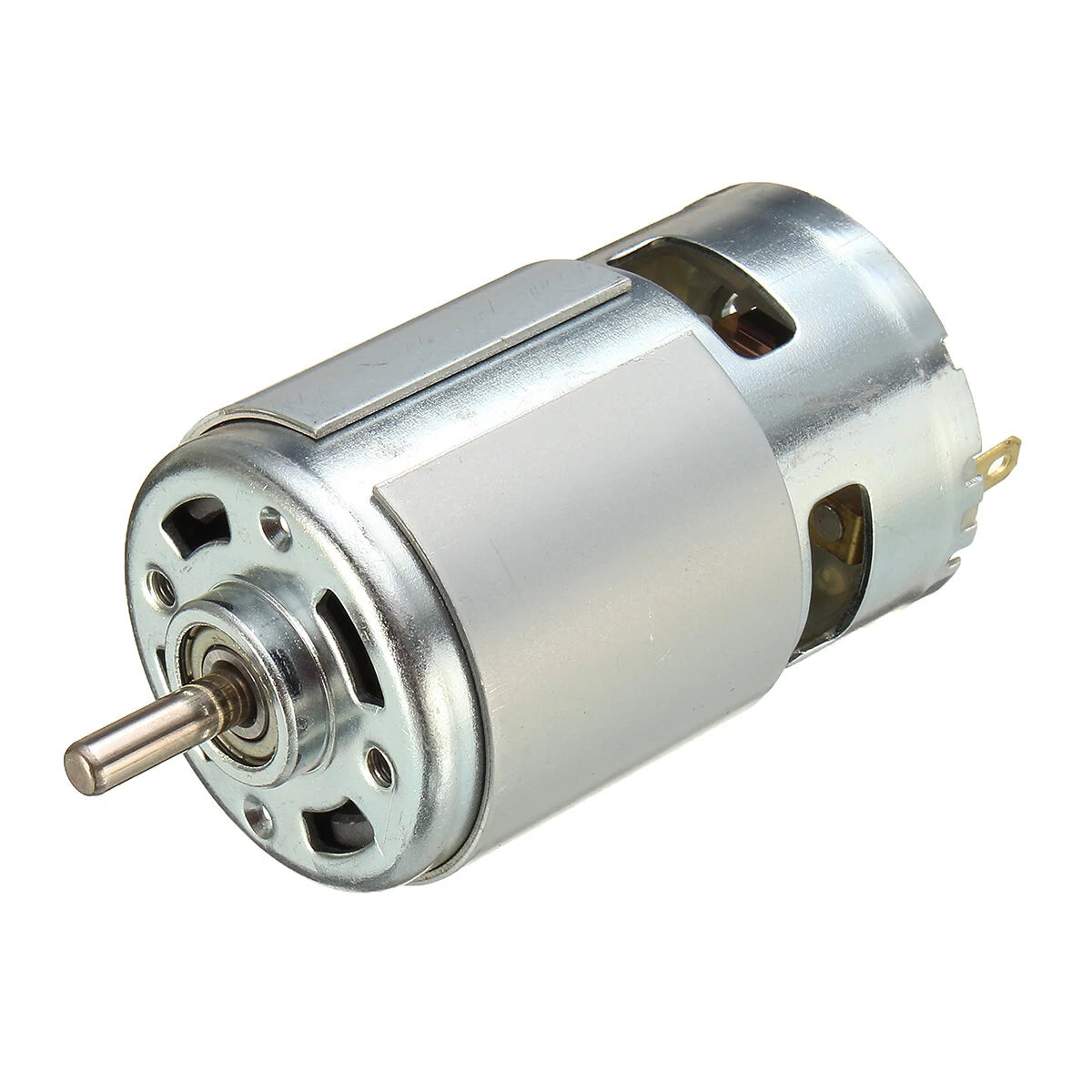

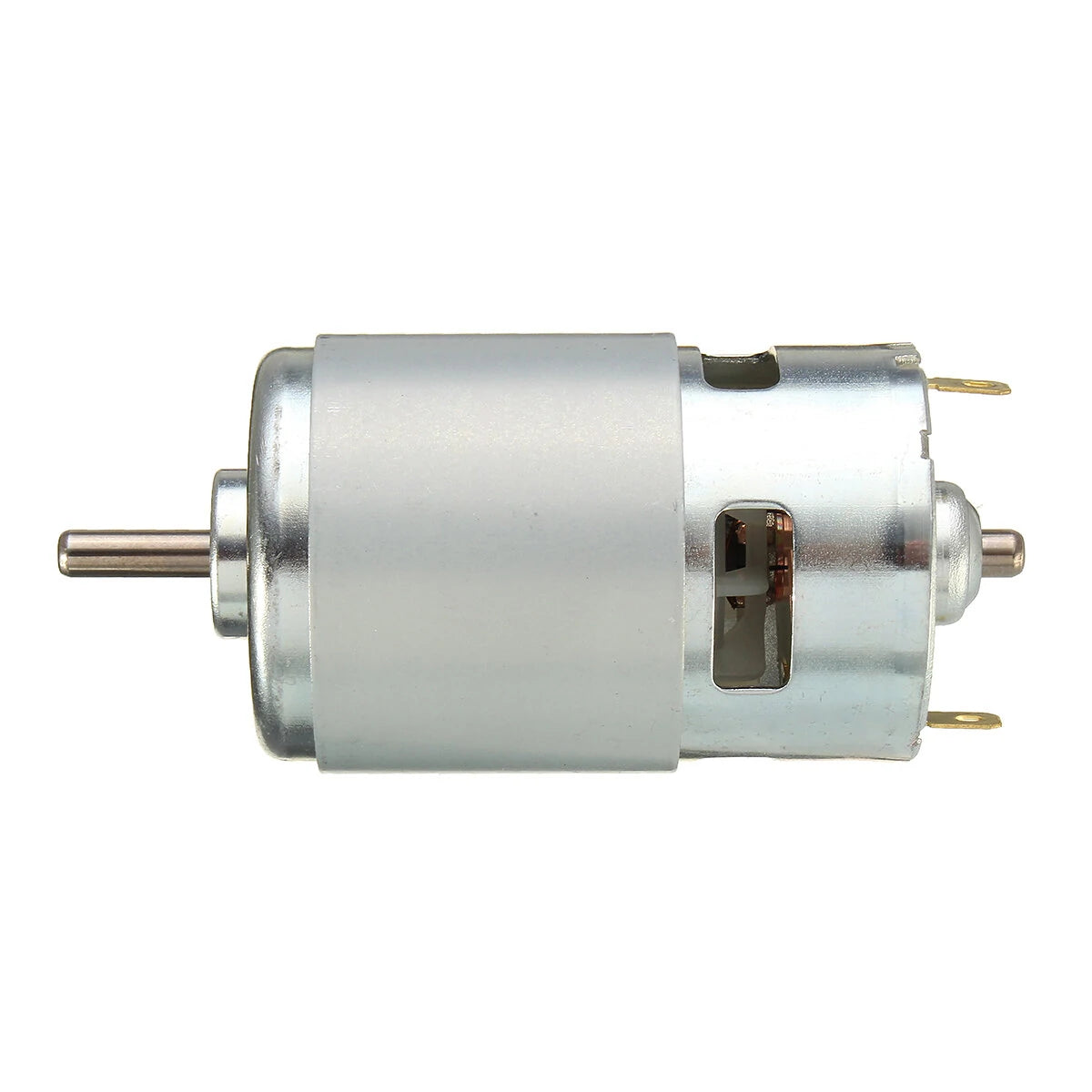

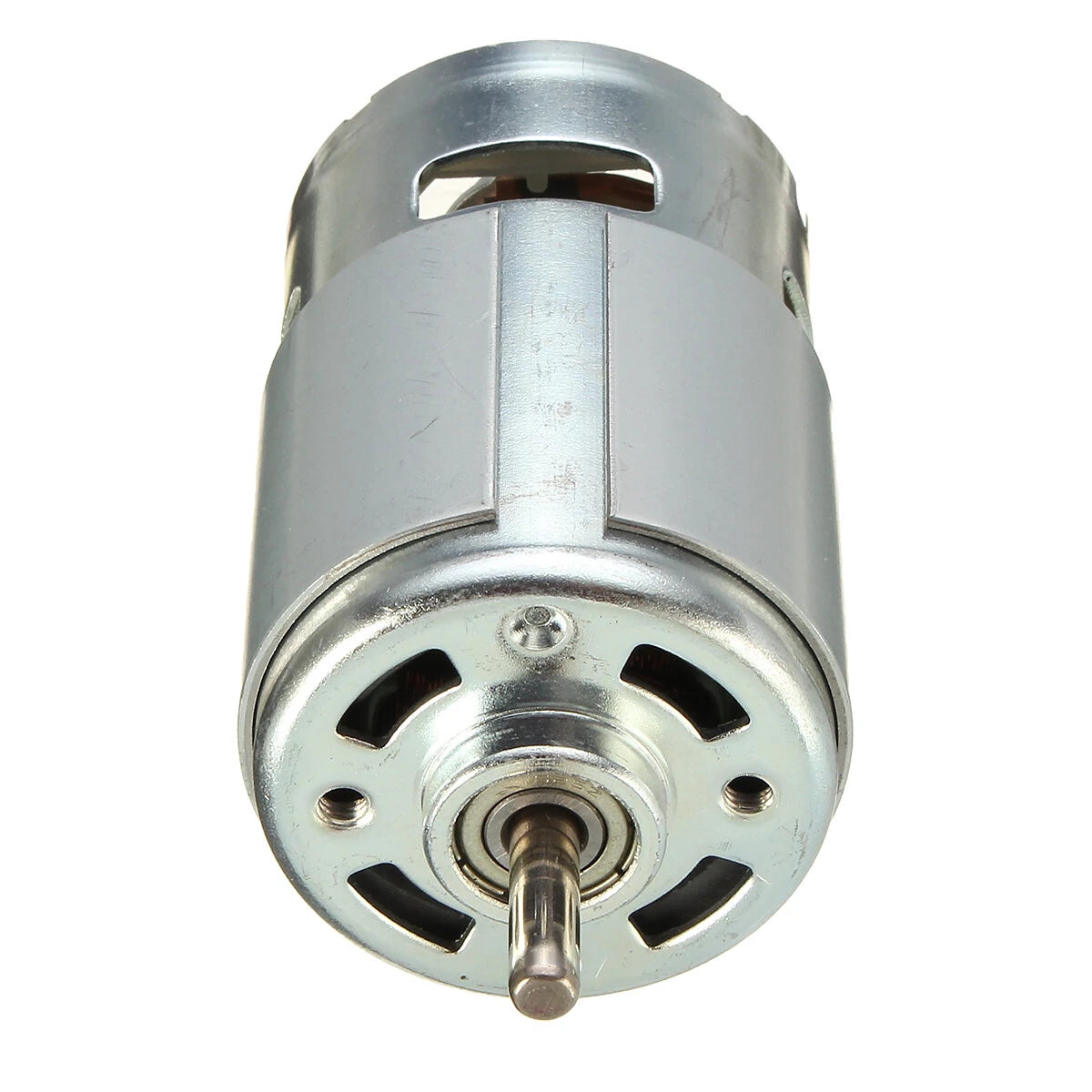

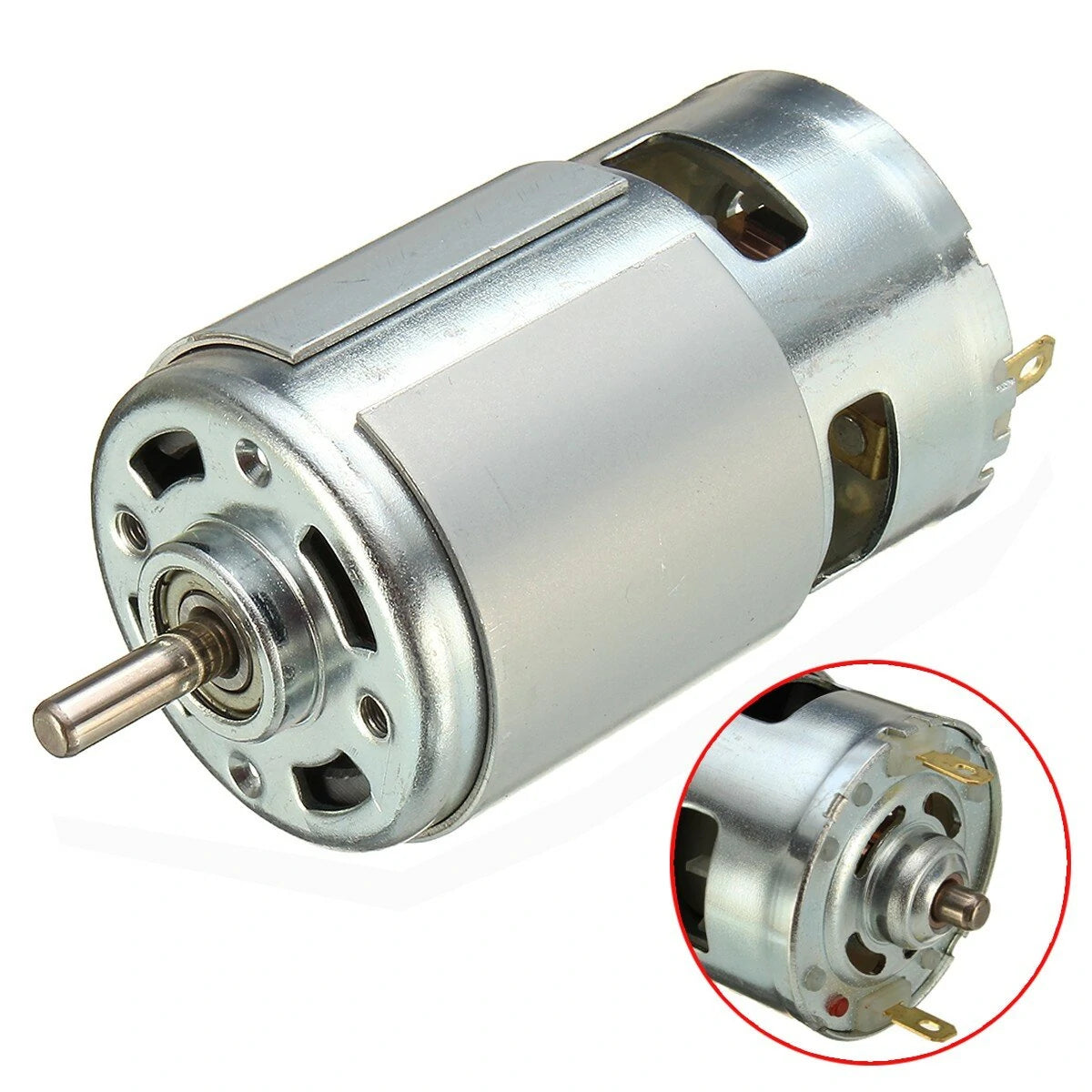

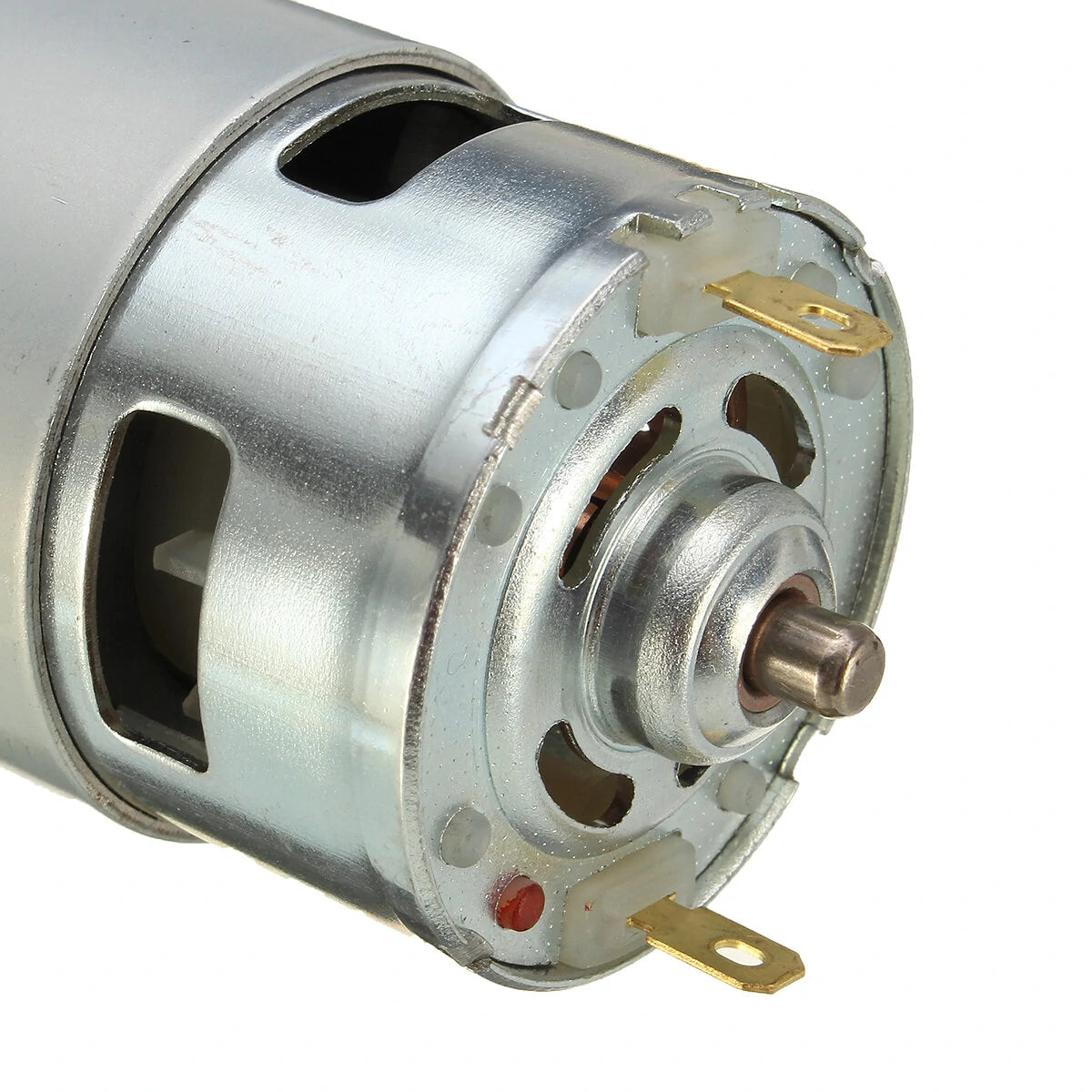

775 DC Motor

Introducing the powerful and versatile 775 DC Motor, ideal for a variety of applications. Designed with precision and featuring a ball bearing with a cooling fan for optimal performance.

Specifications:

• Model: 775 Motor
• Shaft Diameter: 5 mm
• Shaft Length: 17 mm
• Body Length: 66.7 mm
• Front Steps Diameter: 17.4 mm
• Former High Level: 4.7 mm
• Body Diameter: 42 mm
• Motor Overall Length: 98 mm
• Diagonal Installation Pitch: 28.8 mm
• Mounting Hole Size: M4
• Number of Mounting Holes: 2
• Torque: 2 kg.cm or 0.2 N.M
• Quantity: 1 Piece

Performance:

Voltage (V)	Current (A)	Speed (RPM)
12	0.14	3500
18	0.15	4500
24	0.16	7000
30	0.17	8100
36	0.20	9000

Features:

• Ball bearing design ensures smooth operation.
• Equipped with a cooling fan for enhanced durability.
• High-power motor suitable for electric tools and DIY projects.
• Offers large torque at 24V with minimal noise.

Package Includes:

1 x 775 DC Motor

Notice:

1. Please allow a 1-3 mm error due to manual measurement. Ensure compatibility with your project needs.
2. Color may vary slightly due to display differences.
