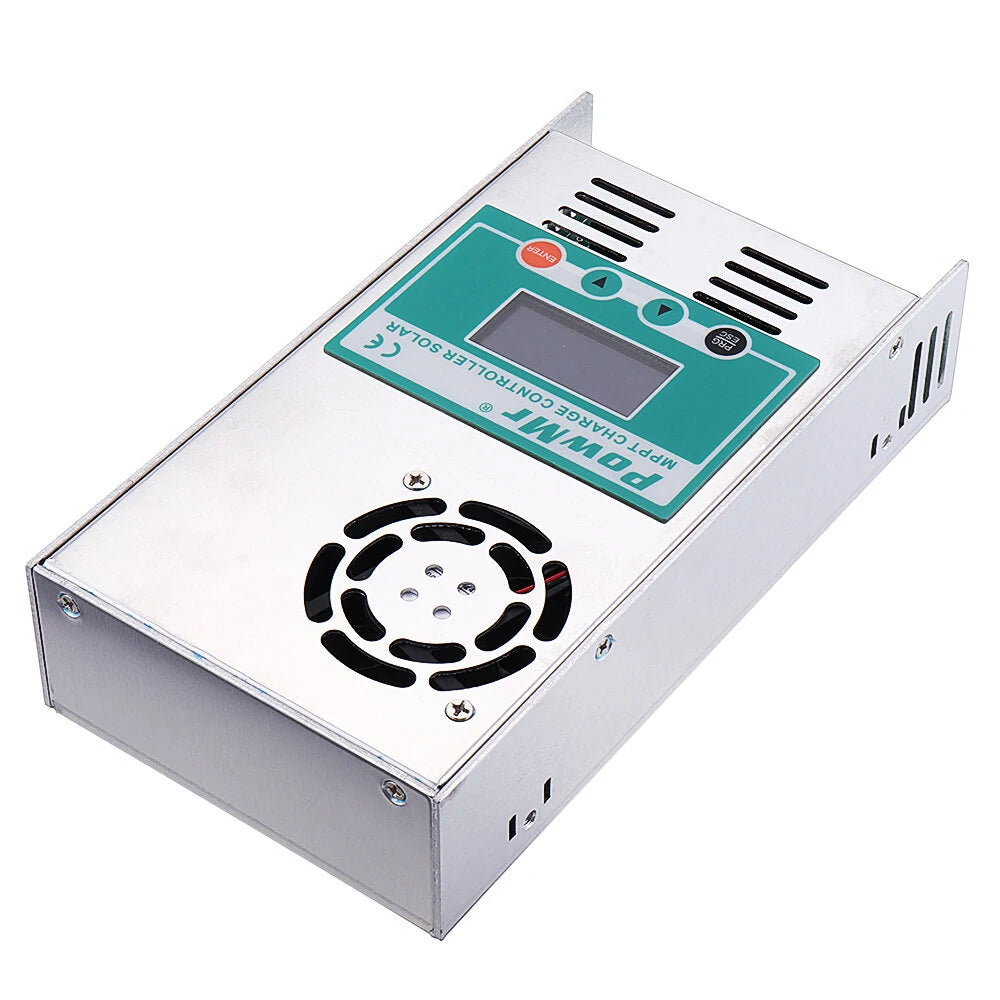

PowMr 60A MPPT Solar Charge & Discharge Controller | 12V-48V Auto | Max 190VDC PV | Lead Acid & Lithium Battery Compatible
PowMr 60A MPPT Solar Charge & Discharge Controller | 12V-48V Auto | Max 190VDC PV | Lead Acid & Lithium Battery Compatible
Estimated Delivery: -
Couldn't load pickup availability
MPPT Solar Controller - Reliable and Efficient
Unlock peak efficiency with our advanced MPPT Solar Controllers. Ideal for maximizing your solar setup.
Specifications
| Model Name | MPPT-30A, MPPT-40A, MPPT-50A, MPPT-60A |
|---|---|
| Charging Mode | MPPT Maximum Power Point Tracking (Auto) |
| Charging | 3-stage: Constant Current (MPPT), Constant Voltage (Absorption Voltage), Floating Charge |
| System Type | DC 12V/24V/36V/48V (Automatic Recognition) |
| System Voltage Automatic Recognition |
|
| Soft Start Time | ≤ 1s |
| Dynamic Response and Recovery Time | ≥ 98.1% (Best Efficiency when Voc is 1.5 or 2 times battery voltage) |
| PV Utilization | ≥ 99% |
| Input Specification |
|
| Maximum Input Voltage (Voc) | DC 190V (Avoid long-term exposure) |
| Maximum Input Power |
|
Output Specification
Selectable Battery Type: Vented / Sealed / Gel / NiCd / Lithium (User-Defined Voltage)
Absorption Charging Voltage: Refer to Batteries Charging Reference
Floating Charging Voltage: Refer to Batteries Charging Reference
Overcharging Protection Voltage: 12V (15V), 24V (30V), 36V (45V), 48V (60V)
Rated Output Current: 60A
Temperature Coefficient: ±0.02%/°C
Automatic Temperature Compensation: 14.2V - (Max Temperature - 25°C) * 0.3
Output Voltage Ripple-Peak: 100mV
Output Voltage Accuracy: ≤ ±1%
Input Anti-Intrusion Protection: Yes
Temperature Protection: 75°C
Temperature Management: Power reduces over 70°C, normalizes below 55°C
Fan Operation: On >40°C
Acoustic Noise: ≤ 40dB

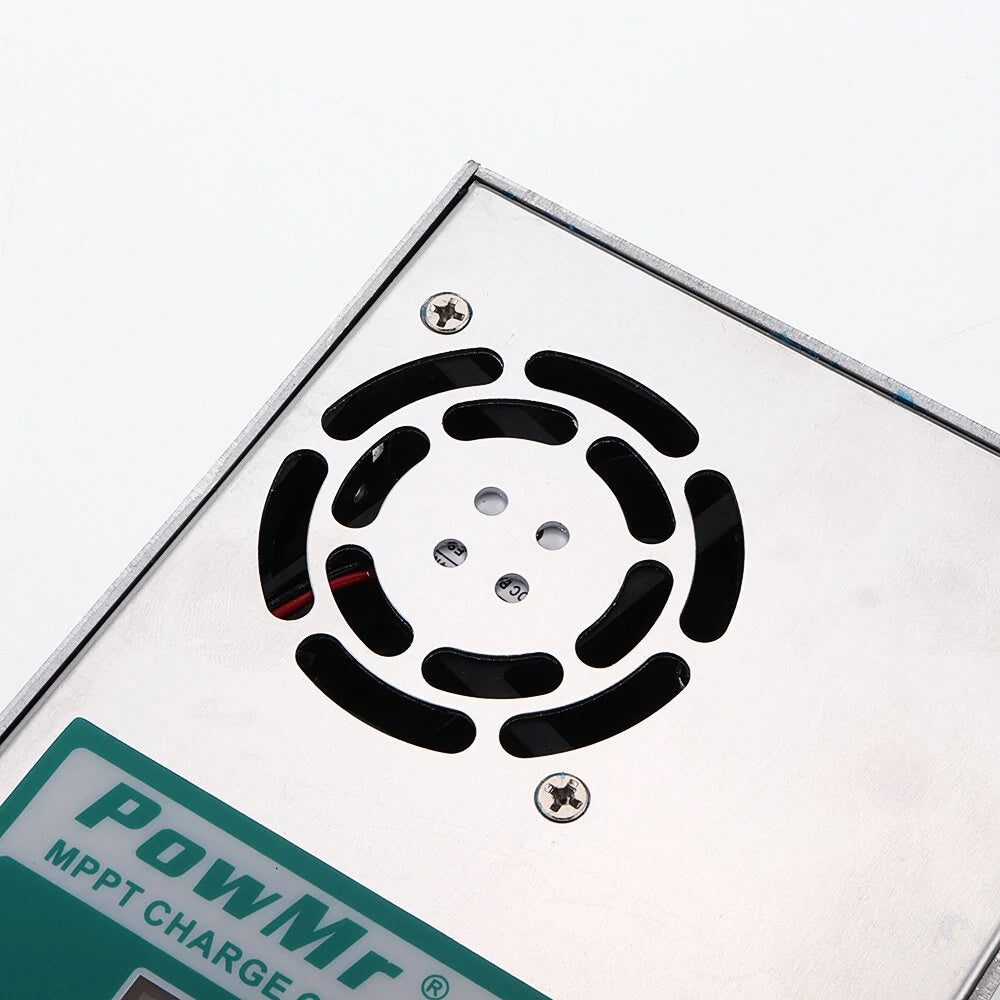

Cooling Method: Forced Air Cooling
Components: Imported, EU Standard, Industrial Grade
Environmental Requirements: Meets 2002/95/EC; No Cadmium, Hydrides, Fluorides
Security Level: CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility: EN61000, EN55022, EN55024
Enclosure Protection: IP21
Net Weight: 1.1 Kg
Gross Weight: 1.2 Kg
Features
- Intelligent Maximum Power Point Tracking Technology
- Built-in DSP Controller with High Performance
- Automatic Battery Voltage Detection: 12V/24V/36V/48V
- Three-Stage Charging for Optimal Battery Performance

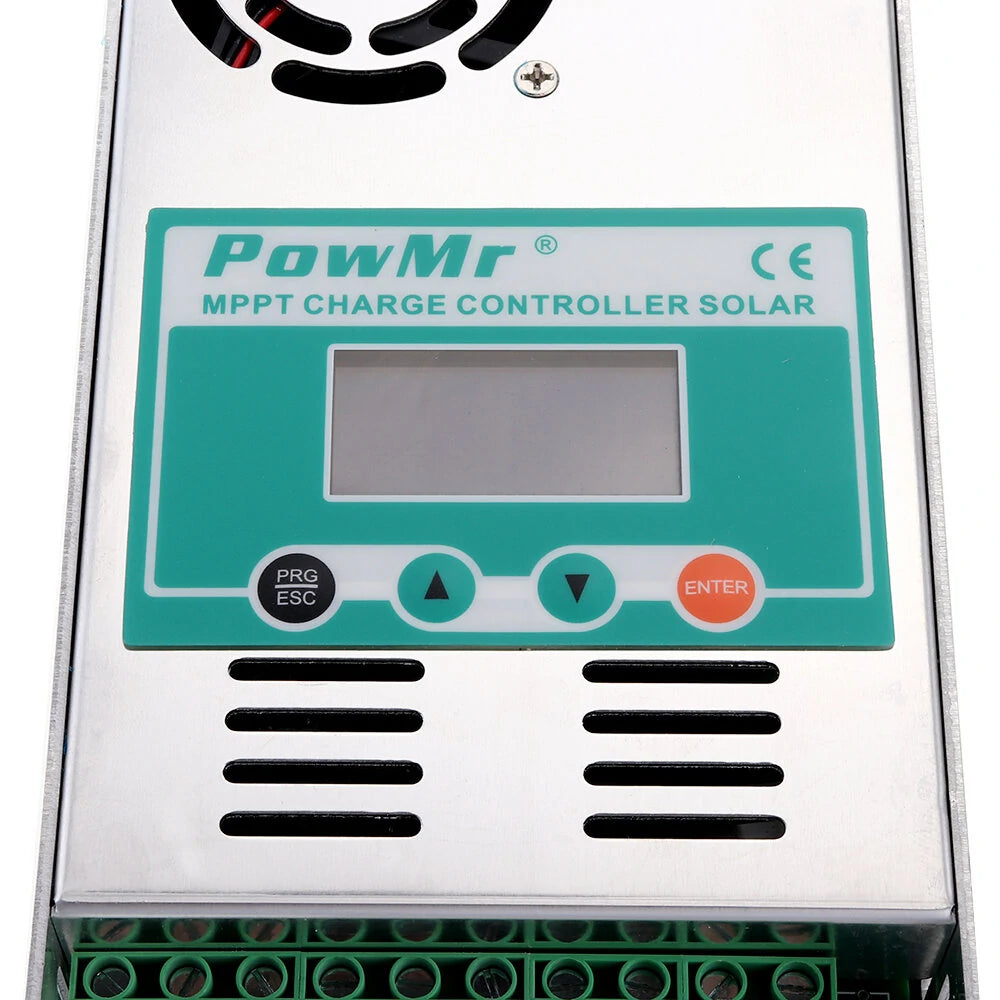

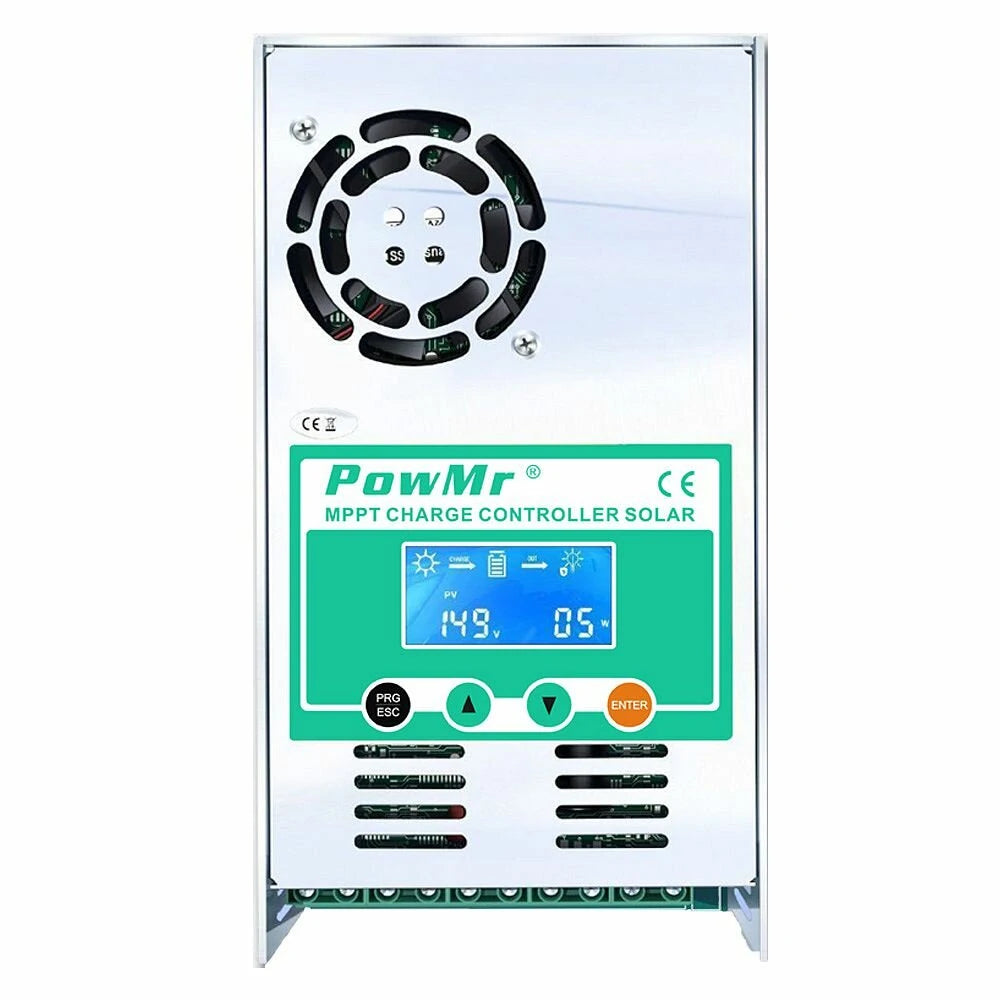

- Multi-Function LCD Display
- Reverse Polarity Protection for Solar Panels
- Overcharge Protection
- Compatible with Sealed Lead Acid, Vented Gel, and Lithium Batteries
Notes

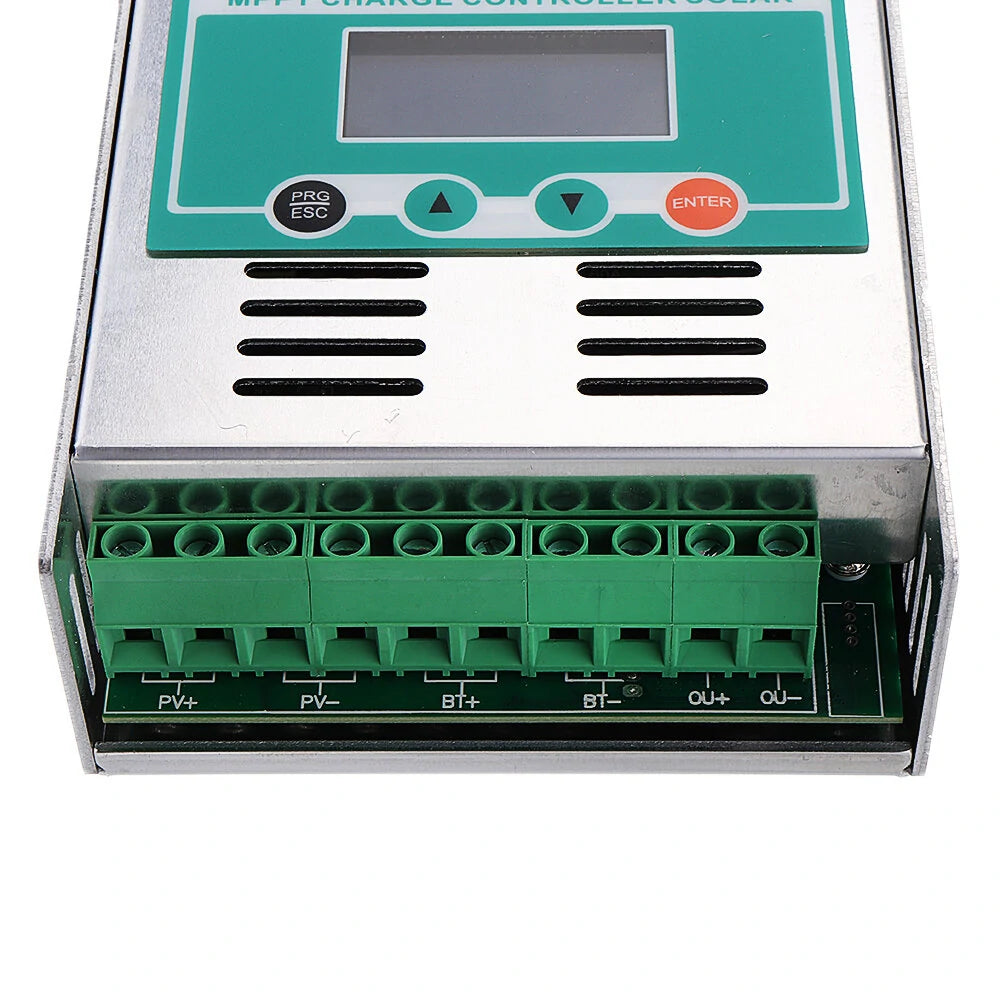

1. The output terminal is designed for lamps only: 12V system (≤ 60W); 24V/36V/48V system (≤ 100W). Using other loads may cause damage. No polarity reverse protection for battery output.

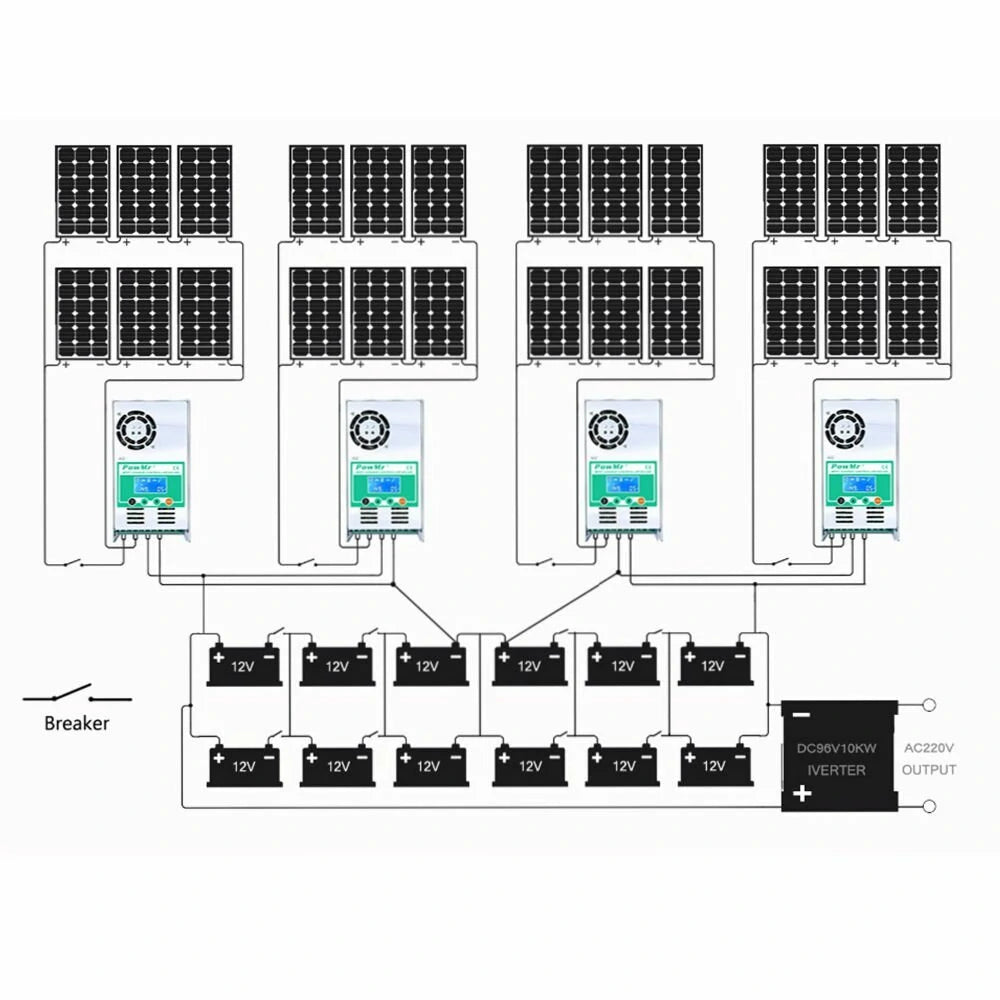

2. Two 60A units can be connected in parallel for a total of MPPT 120A.

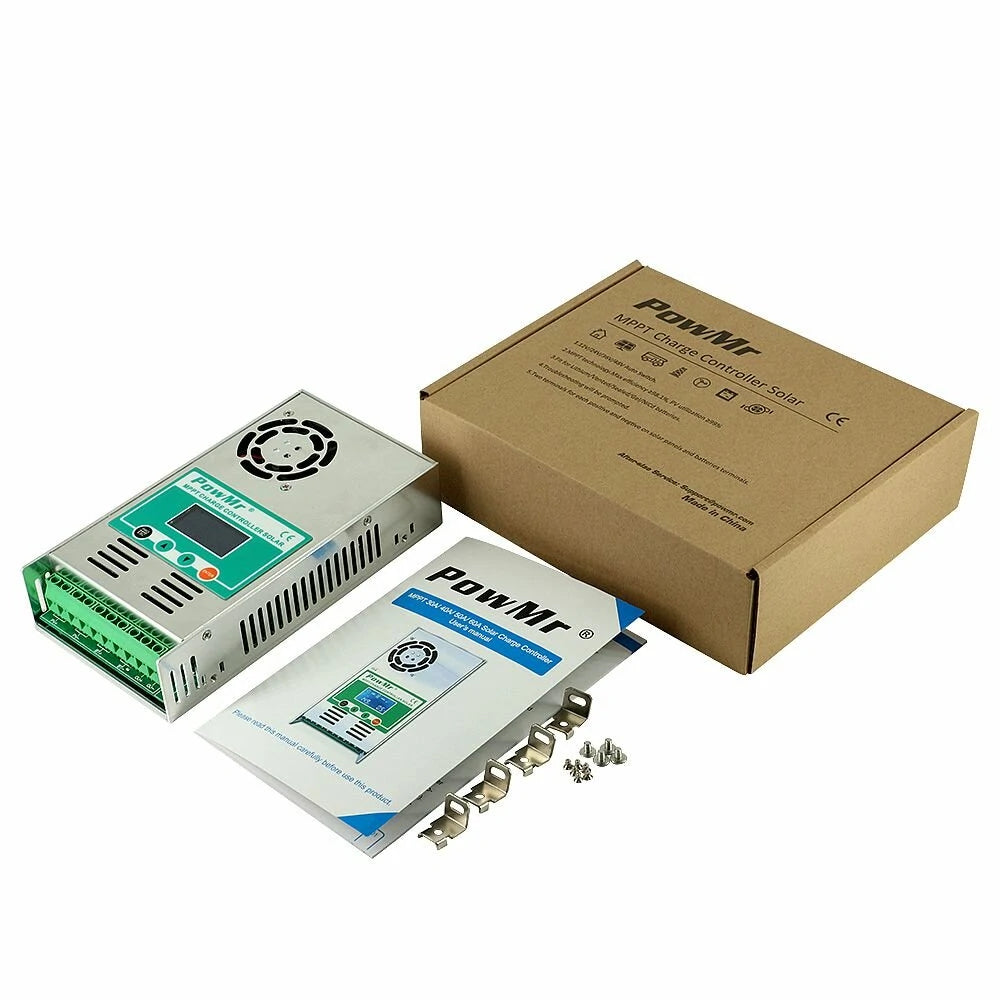

Package Included
- 1 x MPPT-60A Solar Controllers
- 1 x User Manual (English)
