Multi-function Oscilloscope Pen

Features:

• Oscilloscope Functionality: Achieve precise frequency measurement with ±1% accuracy and a 400KHz bandwidth. The one-key AUTO display waveform feature simplifies usage, while a storage depth of 4Kbit ensures reliable data recording.
• Precise Voltage Measurement: Measure voltage with ±1.5% accuracy and a resolution of 0.1V. Supports up to 24V input and includes an integrated voltage alarm for improved safety.
• Comprehensive Resistance Measurement: Offers resistance measurement from 10Ω to 5MΩ with ±2% accuracy, suitable for diverse electronic applications.

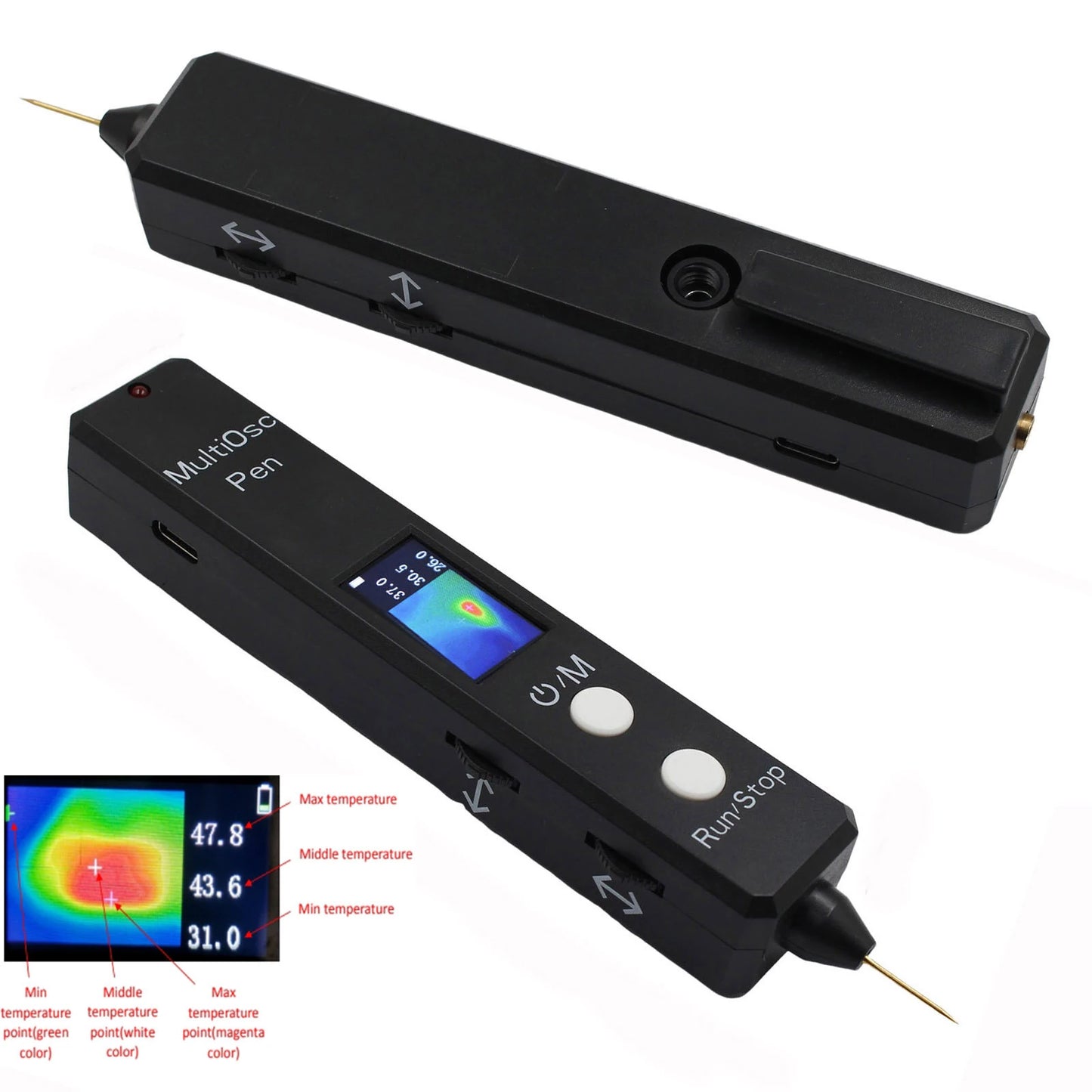

• Integrated Thermal Imager: Measures temperatures ranging from -40°C to 300°C, displaying middle, maximum, and minimum temperatures with a resolution of 32x24 and a refresh rate of 4Hz.
• Diode and On/Off Testing: Simplifies diode testing and includes an on/off measure functionality, enhancing usability for troubleshooting and diagnostics in electrical and electronic circuits.

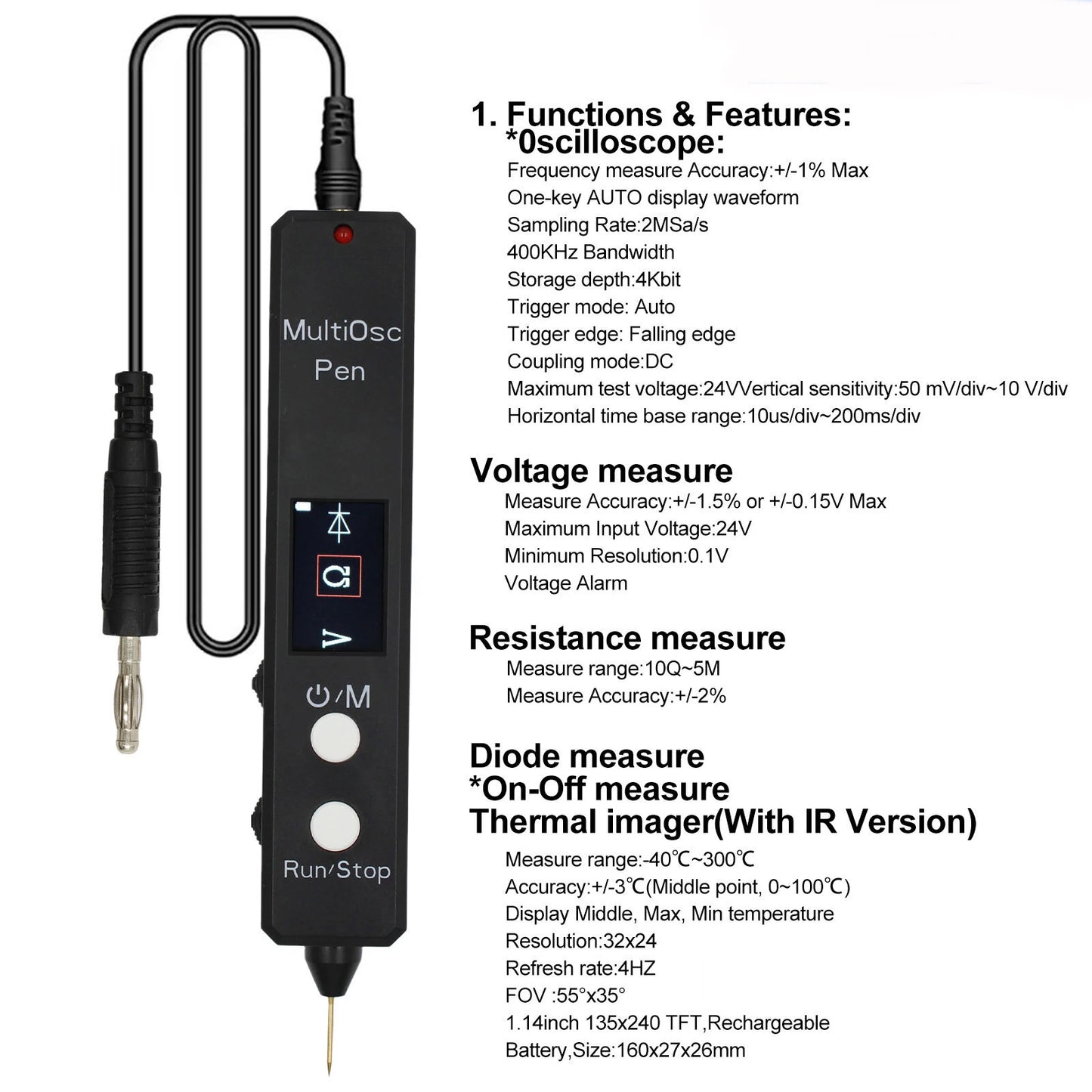

Specifications:

• Oscilloscope Frequency Accuracy: ±1% Max
• Sampling Rate: 2MSa/s
• Oscilloscope Bandwidth: 400KHz
• Storage Depth: 4Kbit
• Voltage Measurement Range: Up to 24V
• Voltage Resolution: 0.1V
• Resistance Measurement Range: 10Ω to 5MΩ
• Resistance Measurement Accuracy: ±2%

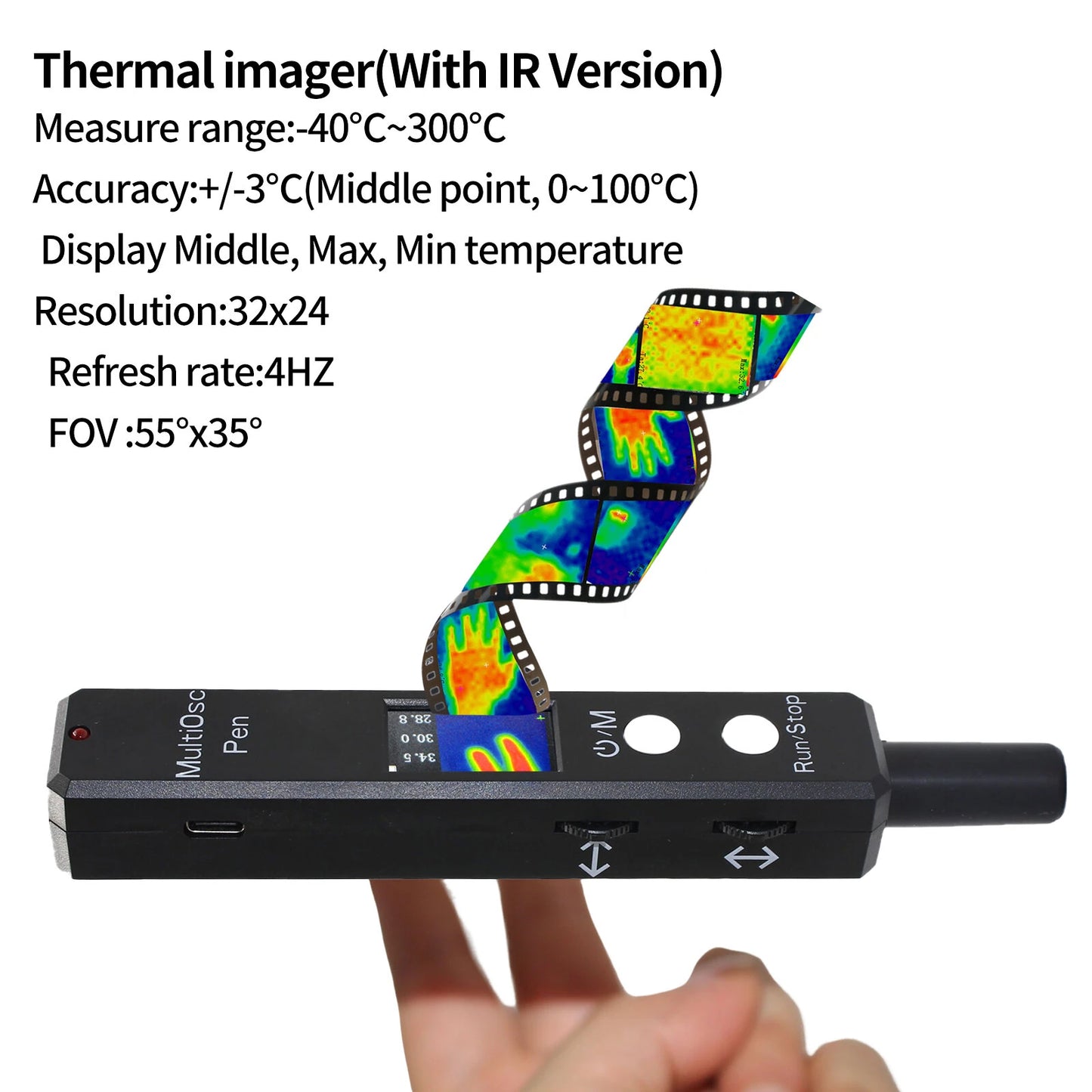

• Thermal Imager Measurement Range: -40°C to 300°C
• Thermal Imager Accuracy: ±3°C (0-100°C range)
• Thermal Imager Resolution: 32x24
• Thermal Imager Refresh Rate: 4Hz
• Display: 1.14 inch 135x240 TFT, Rechargeable
• Battery Size: 160x27x26mm

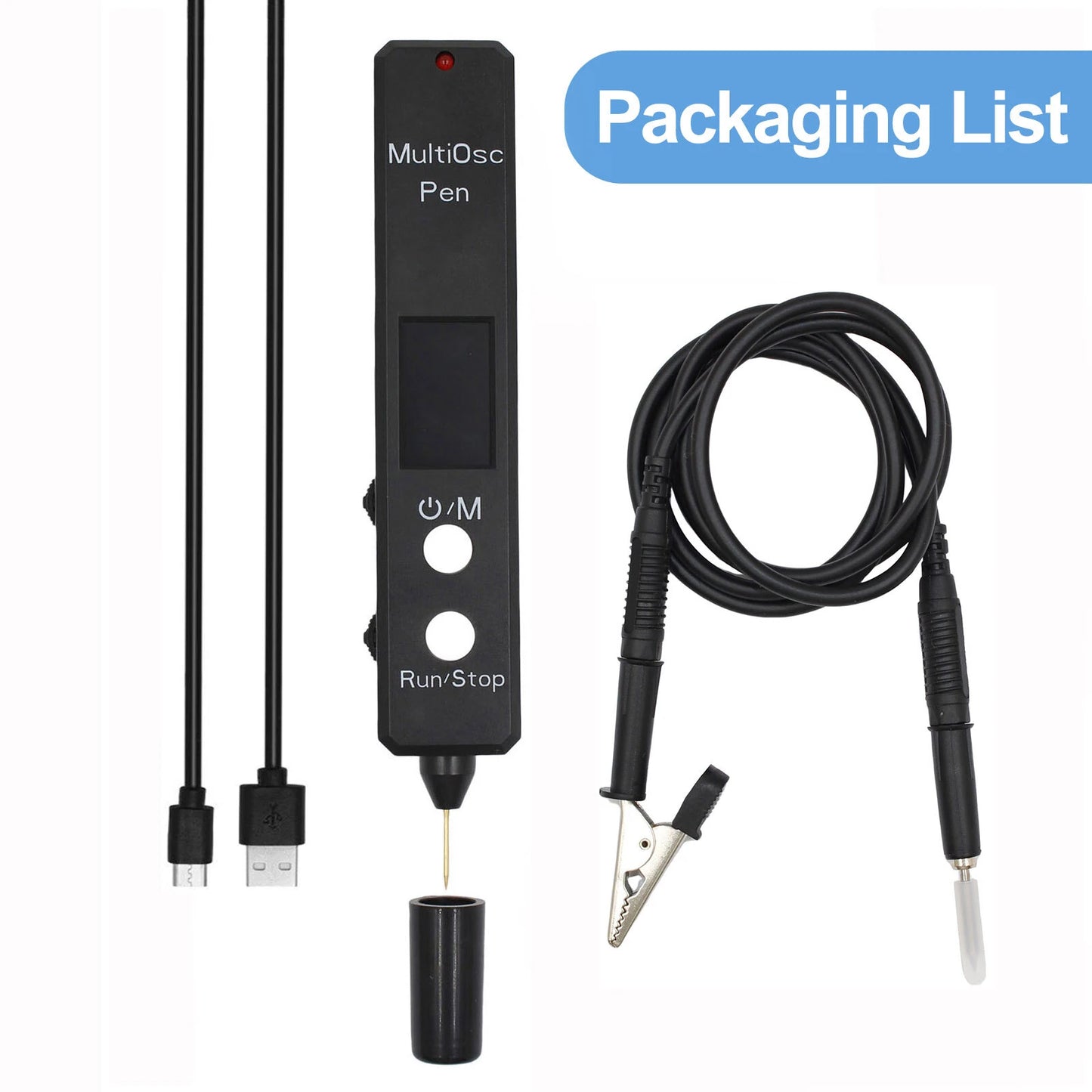

Package Included:

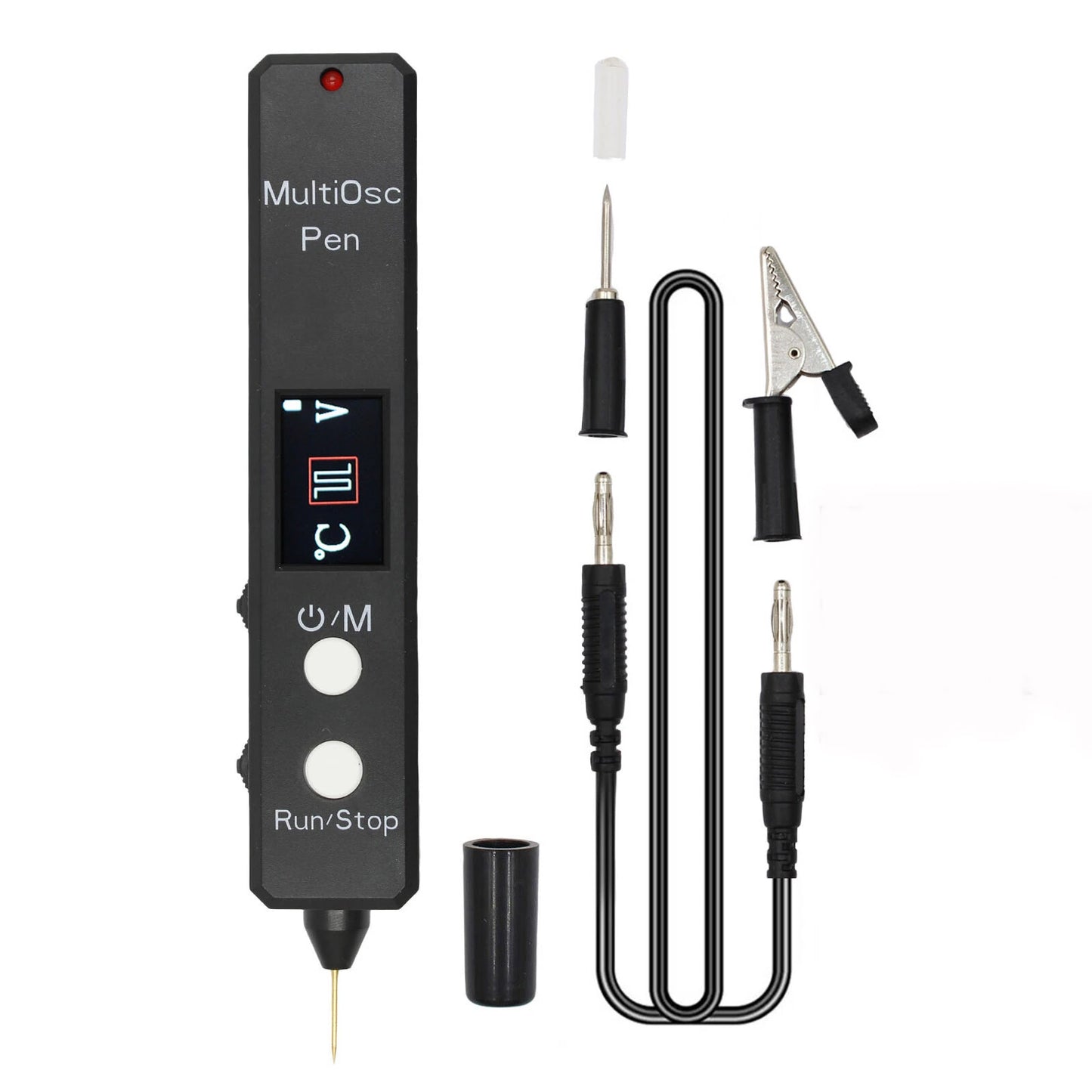

• 1 x Multi-function Oscilloscope Pen
• 1 x Probe Clip
• 1 x USB Charging Cable
• 1 x User Manual
