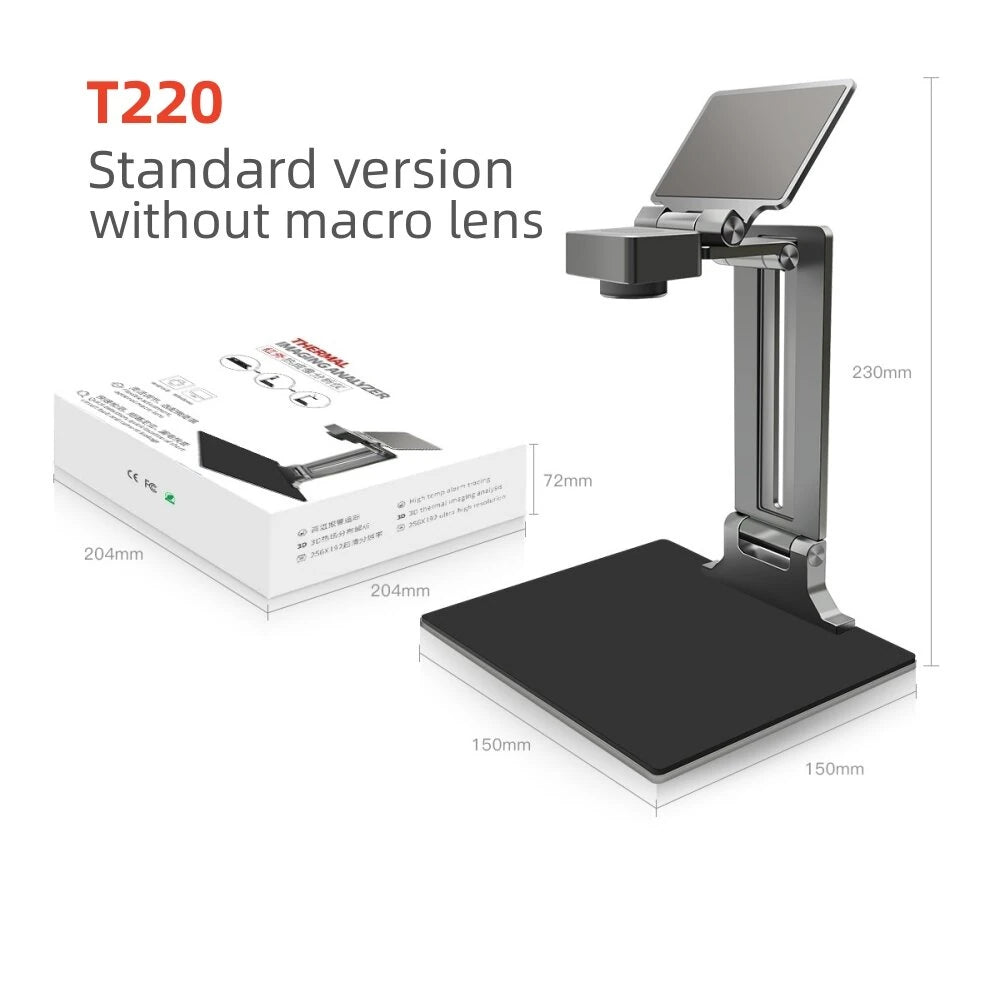

AV TOOLTOP T220/T220PRO 3D Infrared Thermal Camera, 256x192 Resolution, 30mm Macro Lens, -15°C~+600°C, High-Temperature Alarm & Quick Leakage Detection

Description

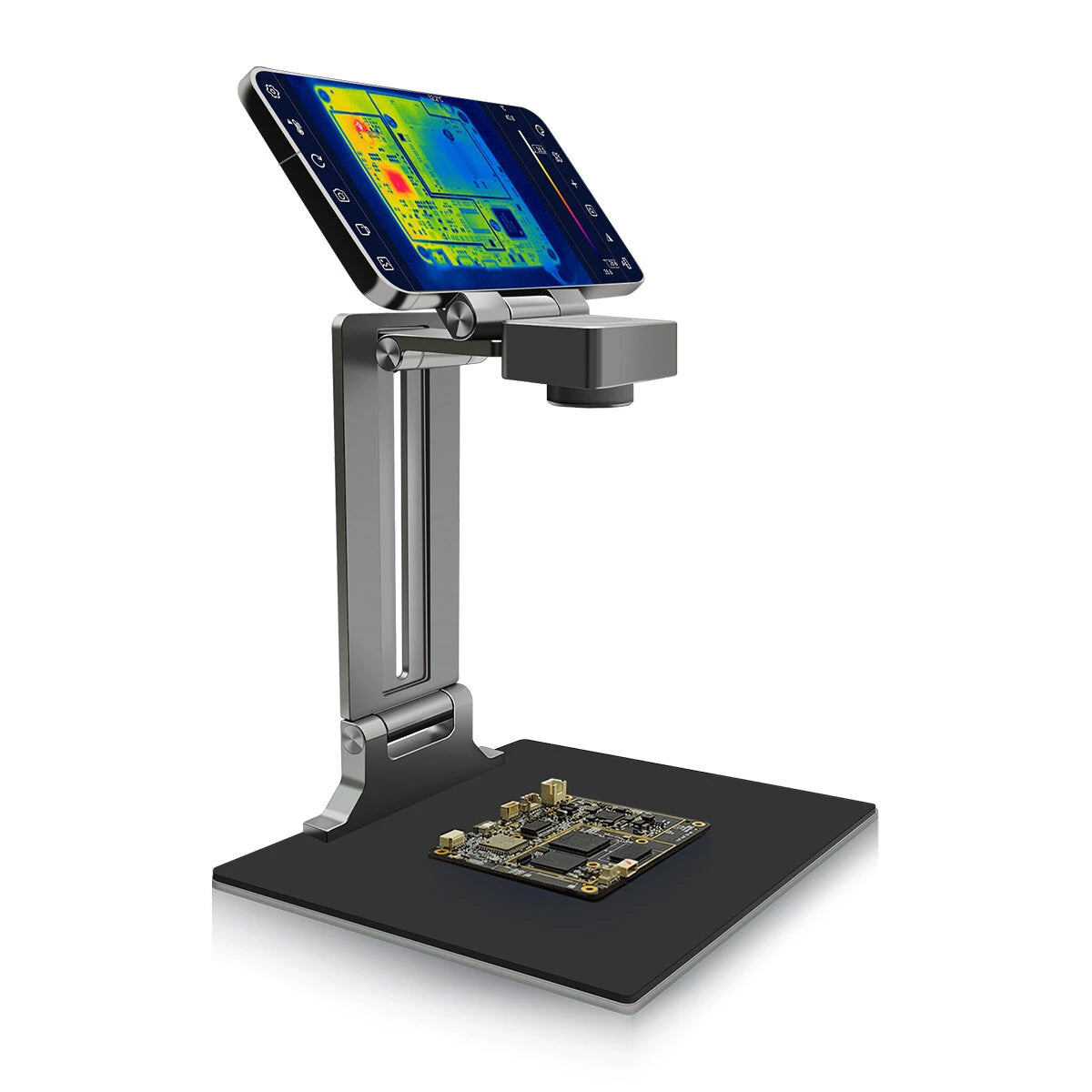

The PCBA Infrared Thermal Imaging Analysis System is a cutting-edge solution for in-depth circuit board analysis. It seamlessly integrates with your computer to identify and analyze circuit board issues, pinpointing short-circuit points and detecting leaks, while assessing the main board's structural integrity.

Software Compatibility

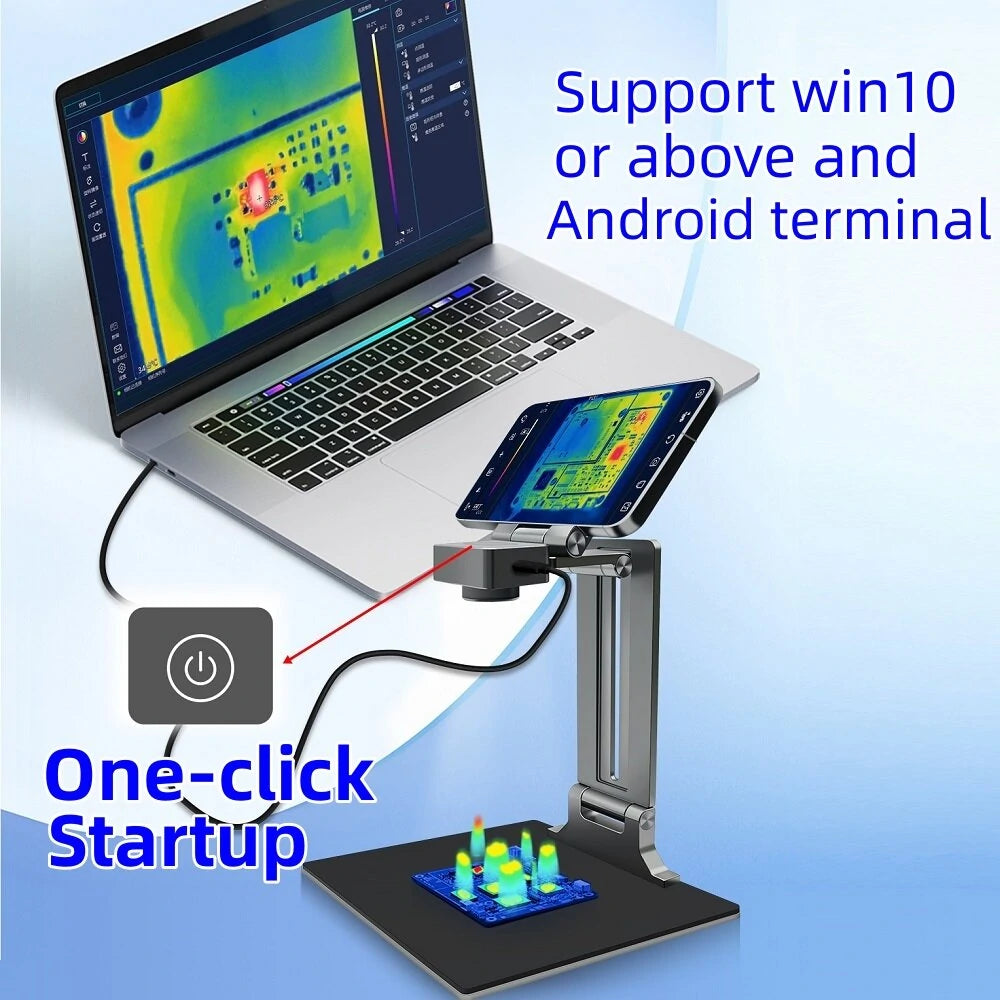

The system is compatible with the Windows operating system. For optimal performance, it is recommended to use Windows 10 or Windows 11. Windows 7 or other systems are not recommended.

Key Features

• Professional Maintenance Software: This professional-grade PC software offers five color palette effects, supports image editing, and allows photo and video capture. Analyze temperature data through charts, which can be stored and accessed in Excel.
• Fast PCB Fault Location: Quickly inspect leakage currents as low as 6mA and identify high-temperature areas or components with abnormal temperature rises.

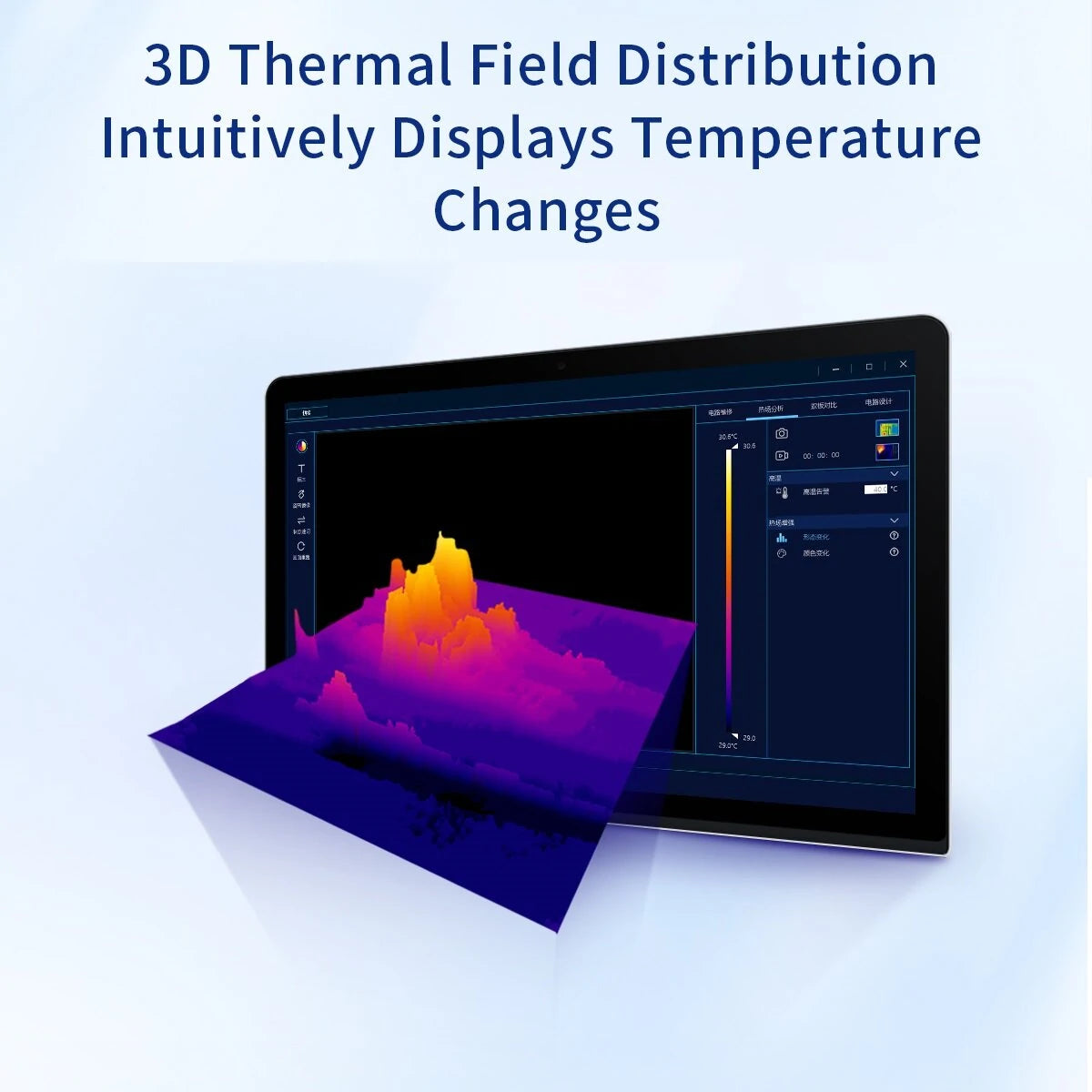

• Intuitive 3D Imaging: View main boards in 3D mode for a more intuitive look at minor current changes. This provides clear three-dimensional thermal field distribution, ideal for industry and electronics.
• Rectangular Analysis Mode: Conduct detailed image color change comparisons and inspections. Display the temperature curve within a frame to easily view historical temperature data.

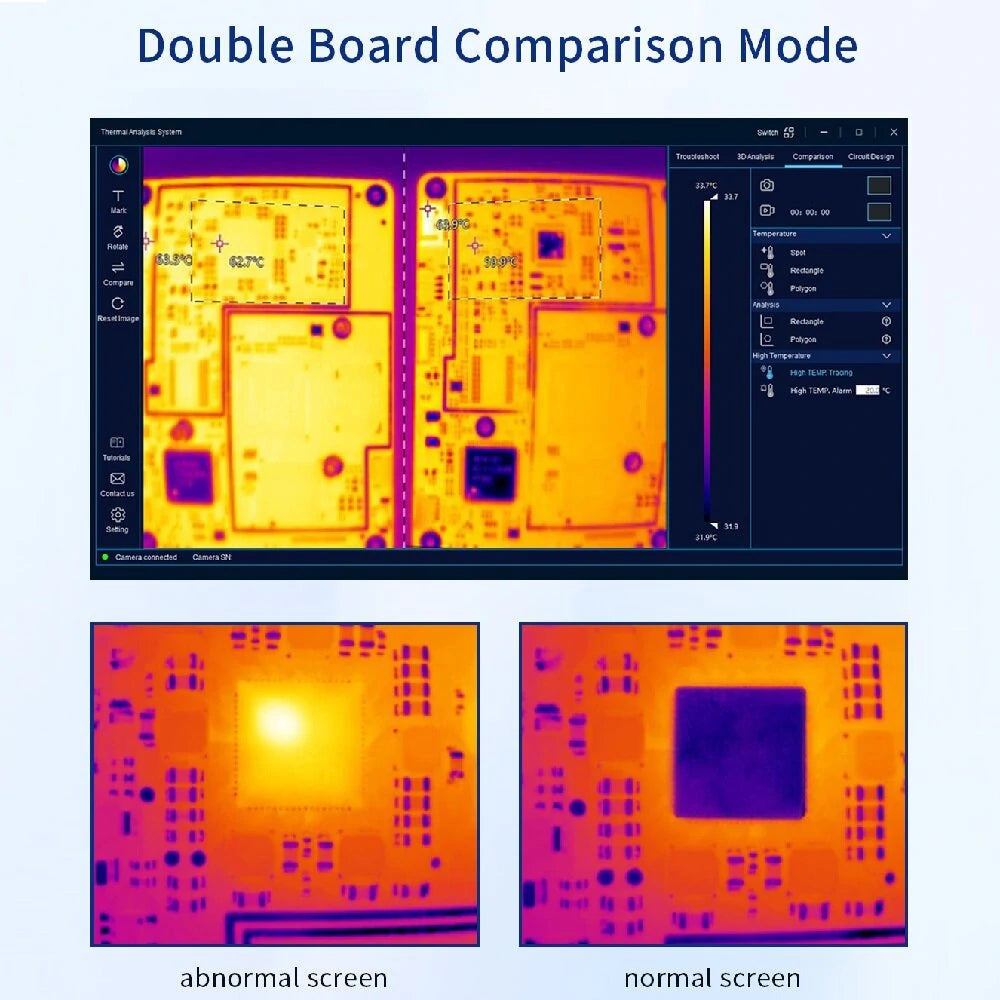

• Double-Board Comparison Mode: Place and compare good and defective boards side by side for precise analysis under consistent conditions, facilitating quick identification of faulty boards.

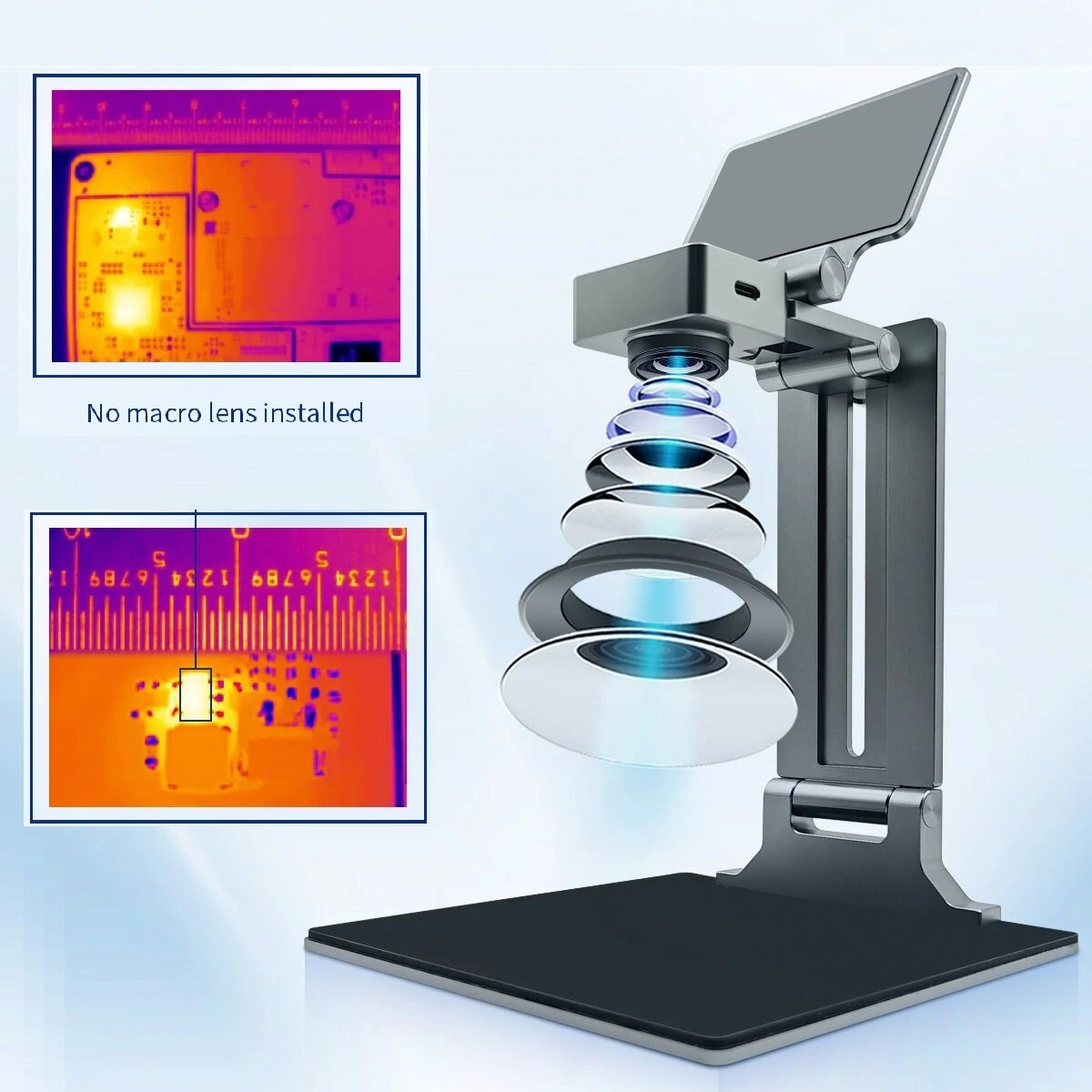

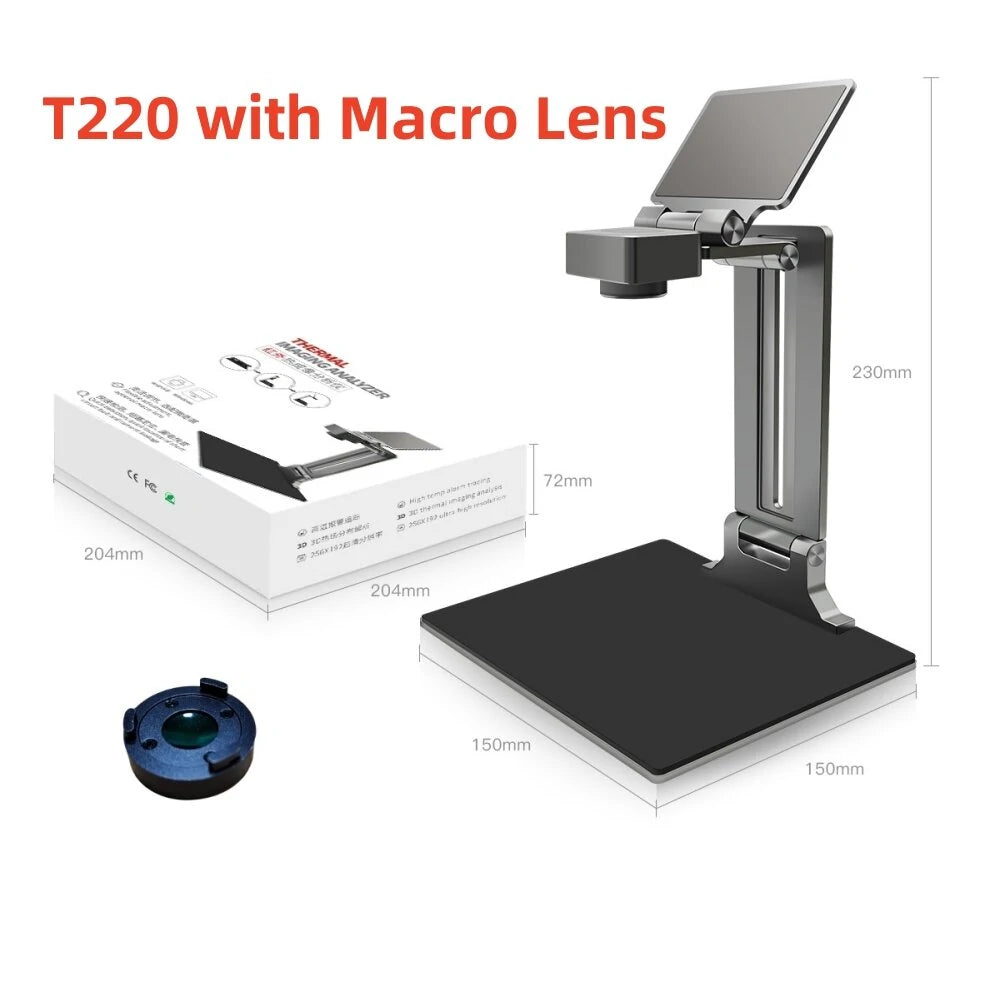

• Macro Lens (Optional): An optional high-definition 30mm macro lens enhances the clarity of small object details, distinguishing 0.3mm devices or pins easily.
• Temperature Measurement: Measures temperatures ranging from -15°C to +600°C (5°F to +1112°F) with customizable high-temperature alarms.

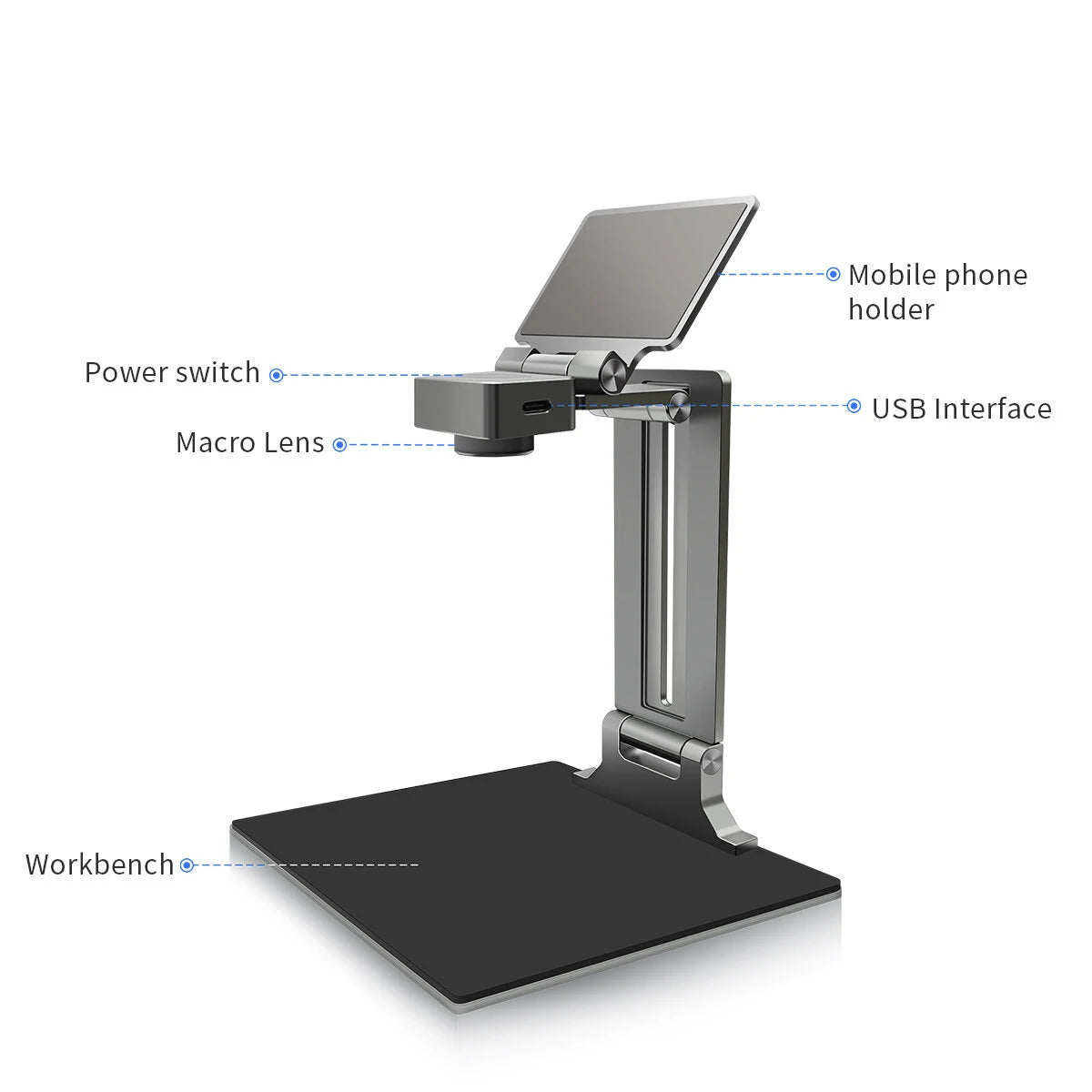

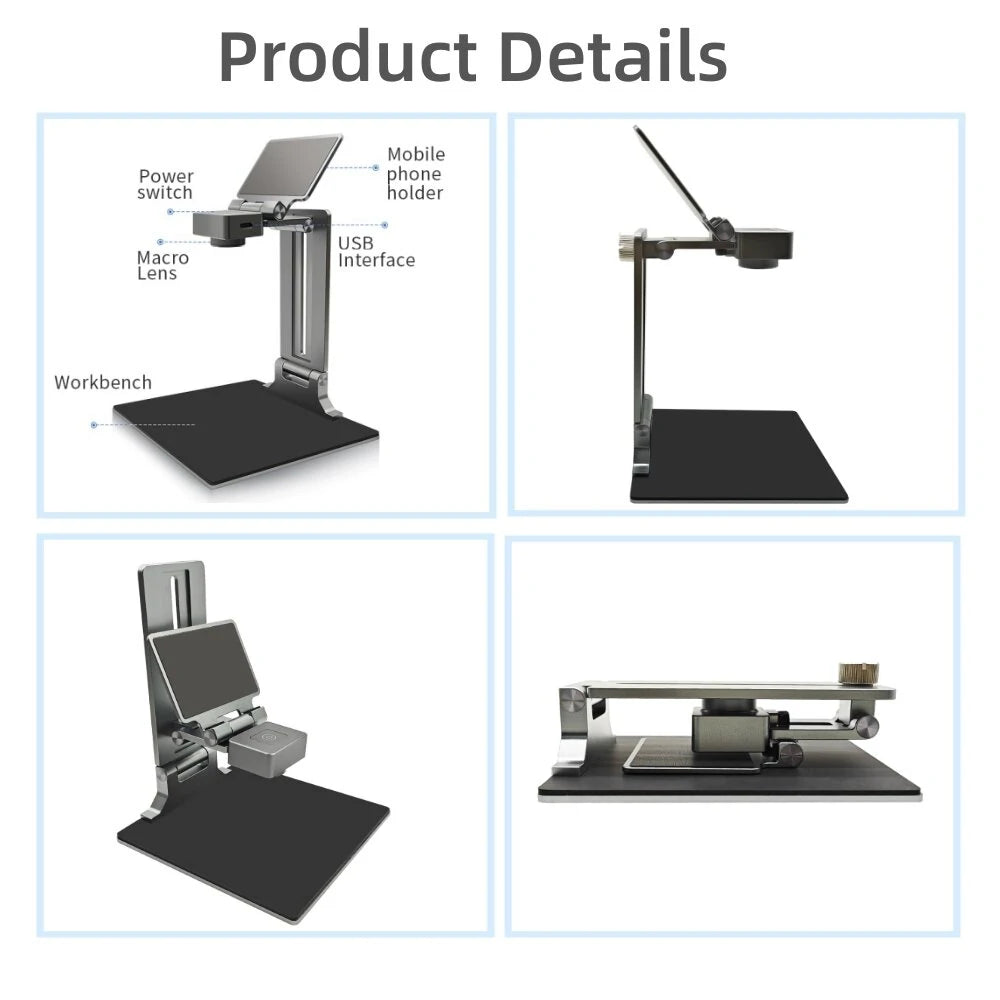

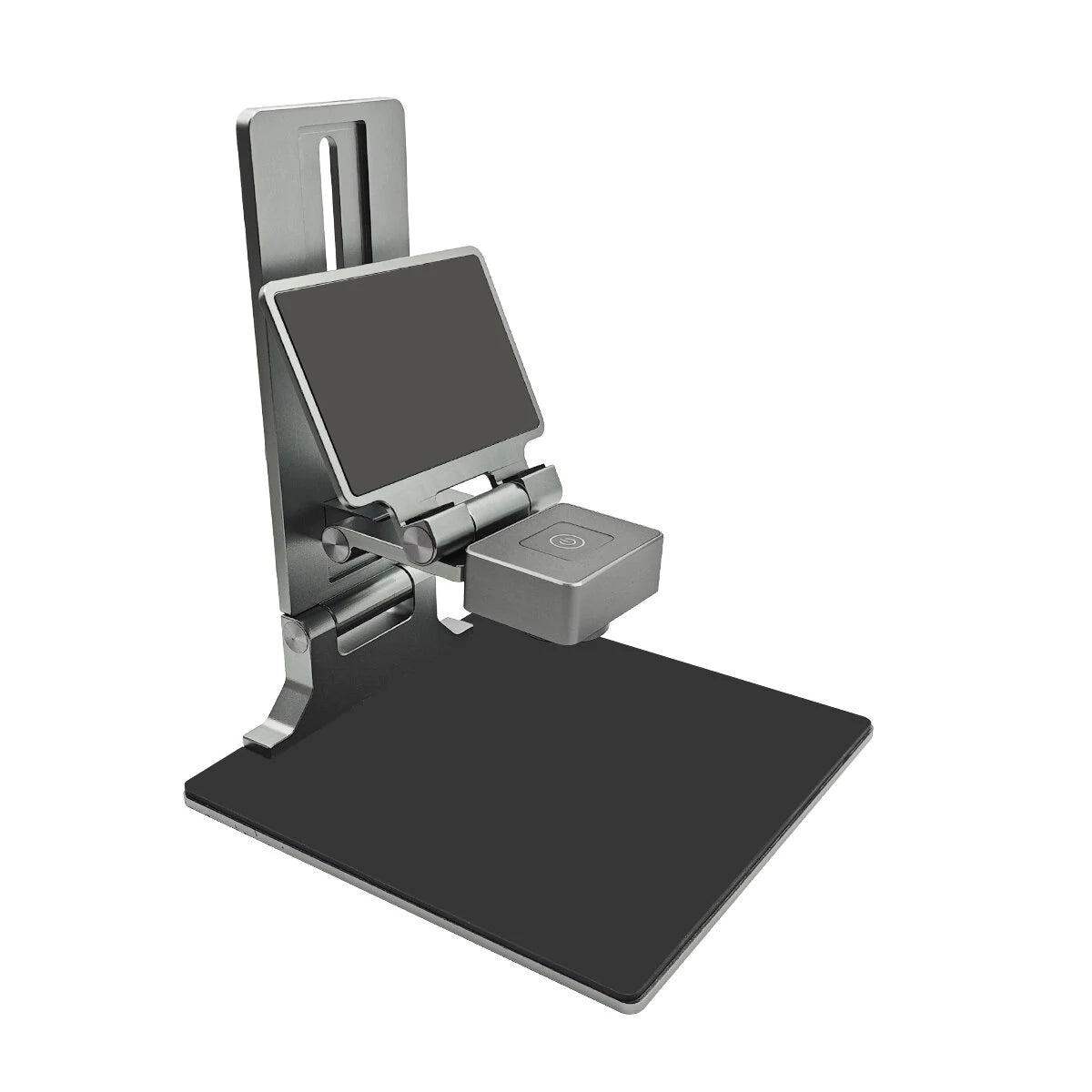

• Adjustable Stand: A robust metal stand with a high-temperature resistant workbench, easy to assemble, with flexible adjustment and rotation capabilities. Fine-tune the measuring distance with ease.

Specifications

• Resolution: 256x192 pixels
• Frame Frequency: 25Hz
• Temperature Measurement Range: -15°C to +600°C (5°F to +1112°F)
• Lens View Field Angle: 56° x 42°
• Temperature Measurement Distance: 30mm to 150mm
• Device Interface: USB Type C
• Image Storage Format: JPG
• Video Storage Format: MP4
• Input Voltage: DC 5V
• Storage Temperature Range: -20°C to 60°C
• Working Temperature: 0°C to 50°C
• Humidity: 95% relative humidity

Package Includes

• 1 x Thermal Imager Analyzer
• 1 x Bracket
• 1 x User Manual
• 1 x Data Cable
• 1 x Box
