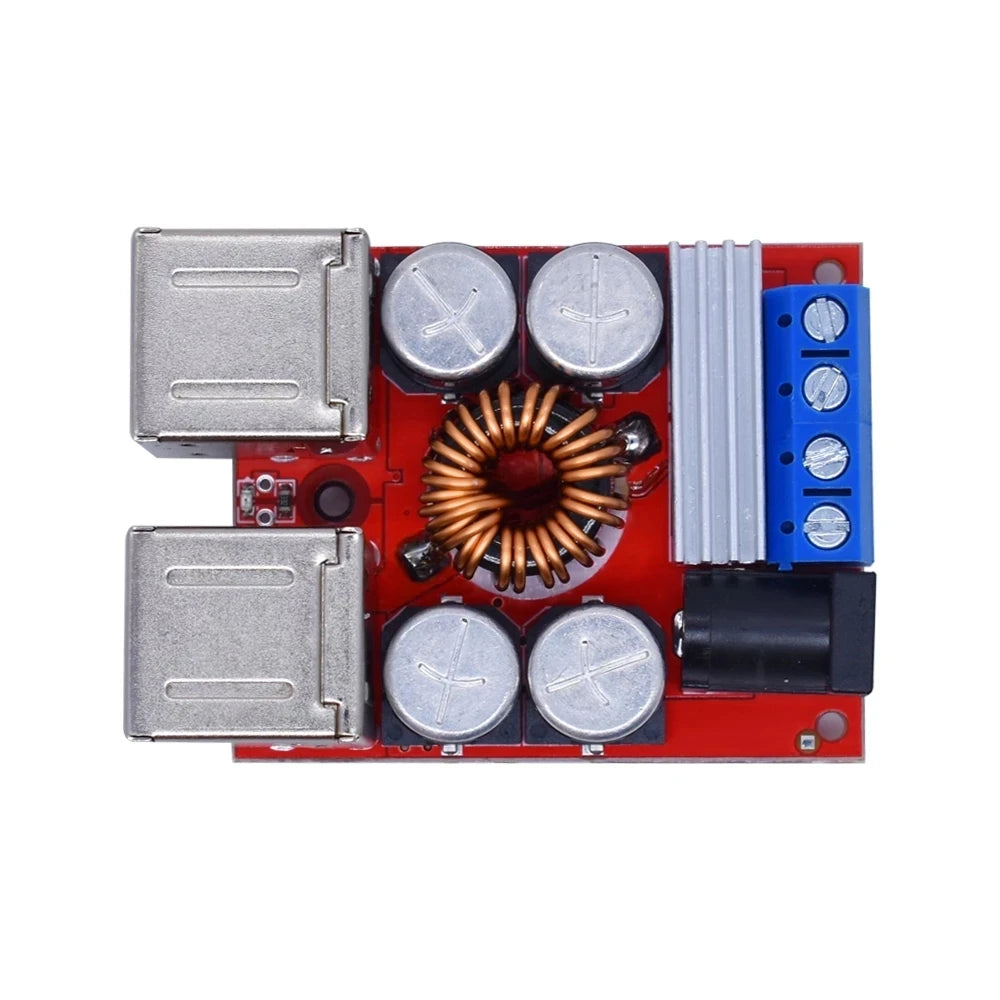

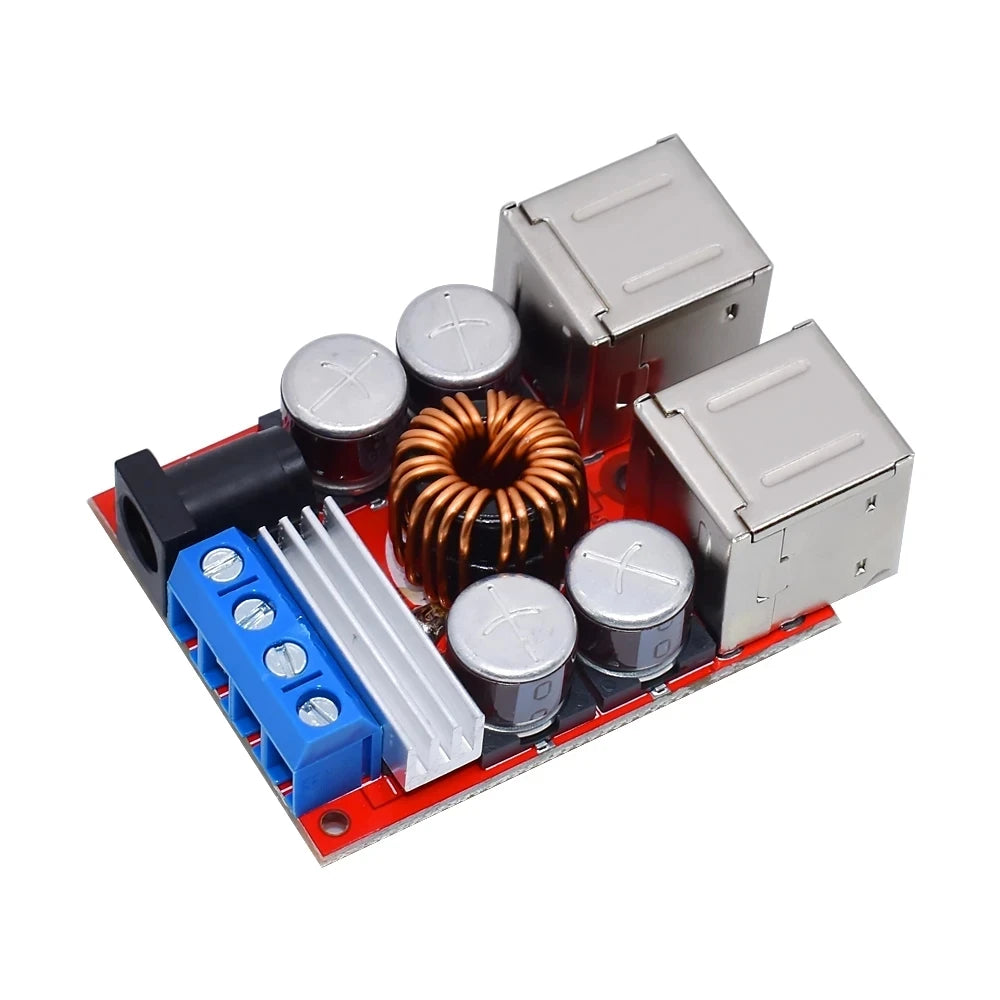

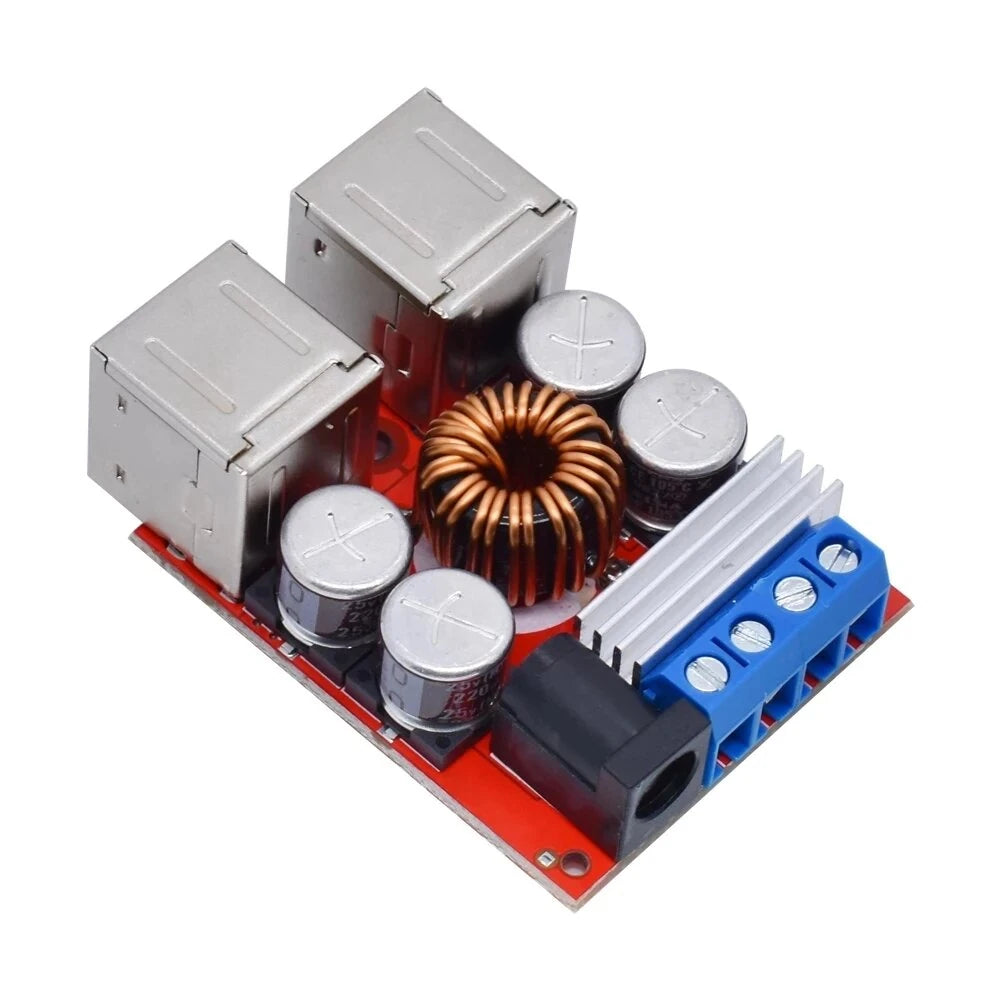

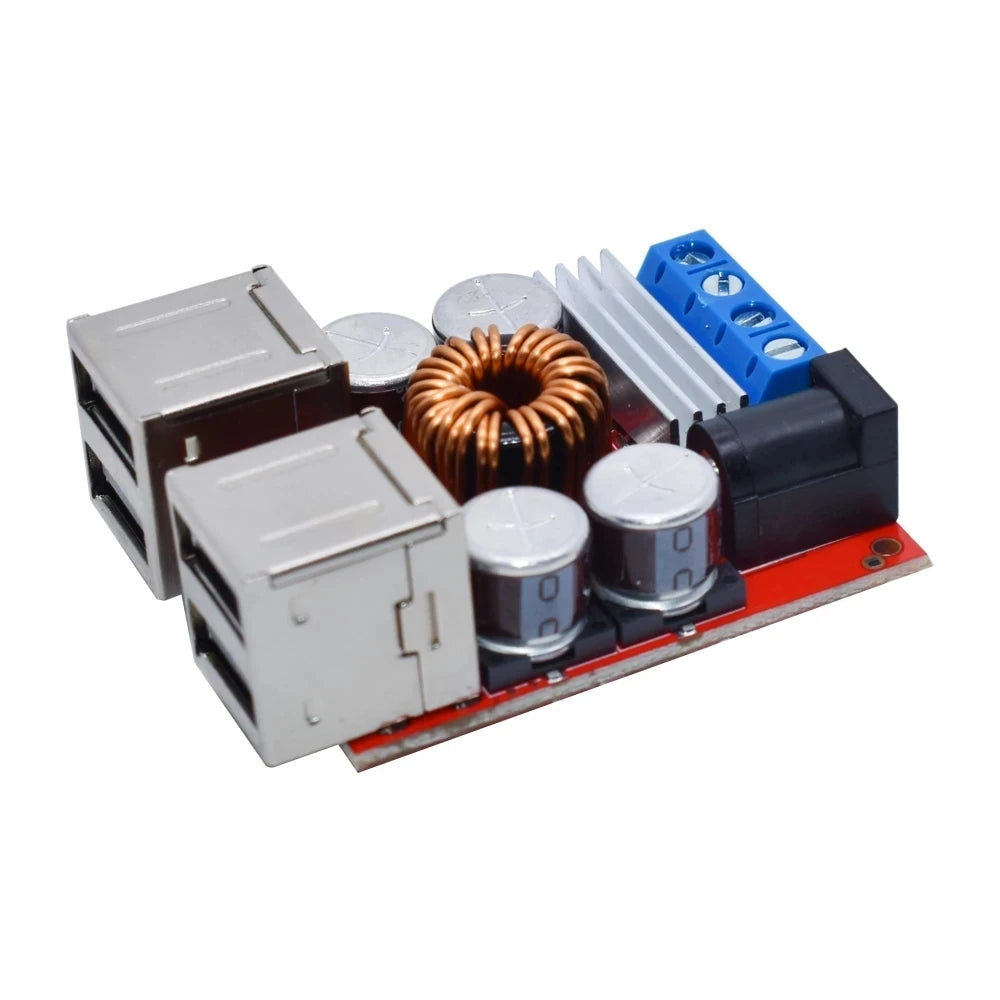

8V-35V to 5V 8A USB Charger Hub Step-Down Module for Android & Car Charging

Specifications:

• Input Voltage: DC 8-35V
• Input Current: 5.5A
• Output Voltage: 5.2V
• Output Current: Total Maximum 8A, Single USB Port up to 2A
• Dynamic Response Speed: 300µs (load flow change 5%)
• Conversion Efficiency: Up to 95% (12V to 5.2V 3.5A)
• Load Regulation Rate: 0.2-0.3% (10%-50% load at 12V input)
• Ripple & Noise: 120mVP-P (20MHz bandwidth 12V to 5.2V 3A)
• Switching Frequency: 100KHz
• No-load Current: 18mA (at 12V input)
• Wiring Method: Terminal block DC seat
• Fixed Mode: M31 M22
• Net Weight: Approximately 36 grams
• Physical Dimensions: 54 x 39 x 21 mm (including USB port)

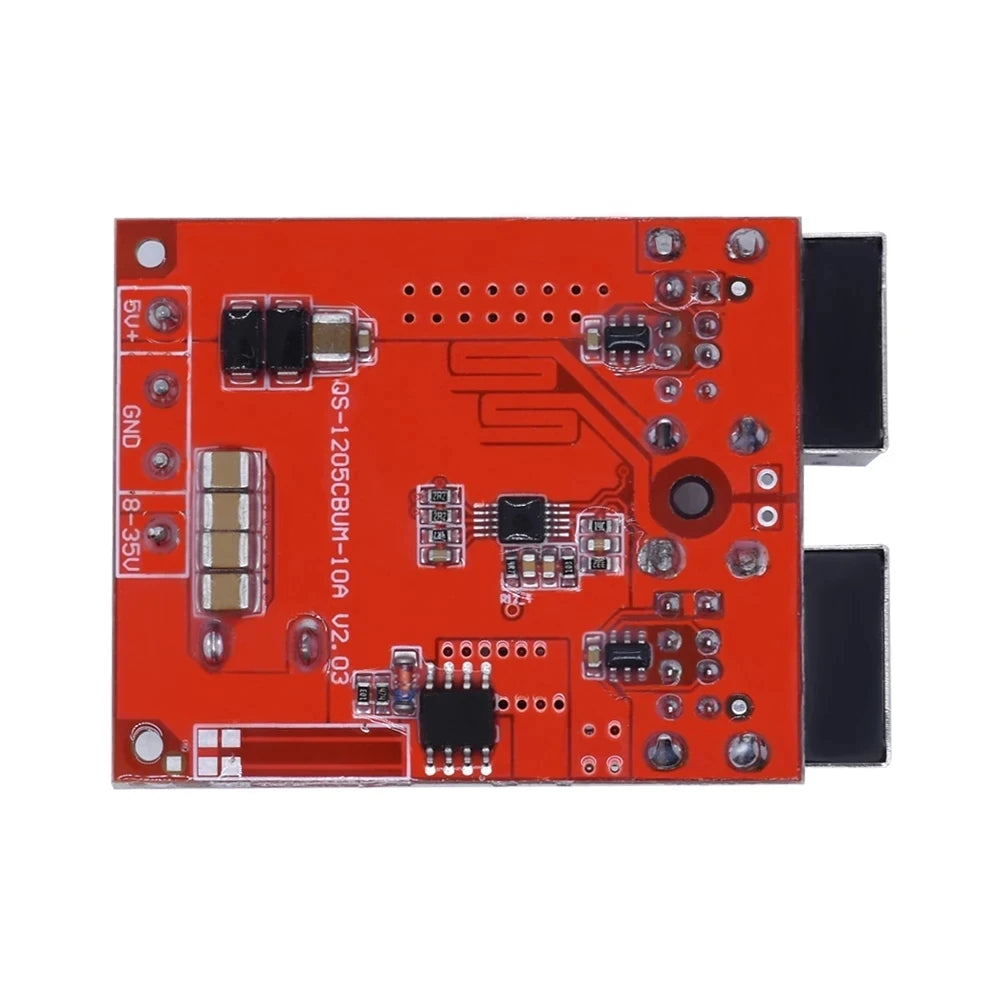

• Pin Mode: VIN+ (input positive), GND (common ground), OUT+ (output positive)

Features:

• Advanced Charging Management: Equipped with 4 independent dedicated charging management ICs, this module supports various mobile phones for maximum current charging, ensuring fast, safe, and reliable charging, ideal for high-demand scenarios.
• Wide Compatibility: With its charging identification IC, this module is compatible with all Apple and Android products, providing the fastest charging speed and versatile options catering to different device requirements.
• High Output Efficiency: Supporting up to 4 USB channels with each port providing up to 2A, the total output current can reach up to 8A. Its synchronous rectification scheme significantly reduces heat generation, improving overall efficiency to up to 96%.
• Robust Protection Features: The input adopts MOS tube reverse connection protection to maximize conversion efficiency and reduce loss. The output features over-voltage protection, ensuring safety and longevity of connected devices.
• Versatile Input Voltage Range: Supports an ultra-wide input voltage range of 8-35V, compatible with 12V and 24V car systems, allowing easy integration into various power setups and enhancing usability in diverse applications.

Package Included:

• 1 x 8V 35V To 5V 8A Power Supply Step-down Module
