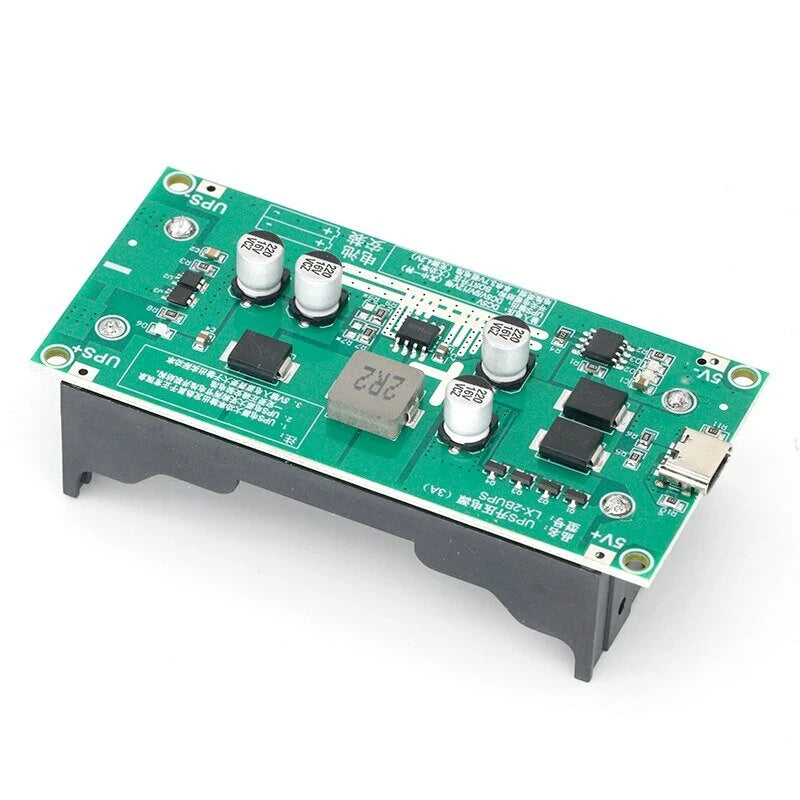

Fast Charge UPS 18650 Lithium Battery Charger Module: 5V/9V/12V Type-C 15W 3A DC-DC Booster Board

Specifications:

• Function: Uninterruptible Power Supply (UPS)
• Power Supply: Directly supplies power to the load via the booster circuit when connected to the main power supply
• Battery Charging: Charges the lithium battery and supplies power concurrently when the power supply is on
• Battery Backup: Automatically activates the battery to power the load when the main power is cut off
• Boost Circuit: BOST boost circuit with a peak power of up to 20W and rated power of up to 15W
• MOS: Built-in 12A high-current MOS for efficient power delivery
• Efficiency: Up to 96% for optimal power utilization
• Output Options: Optional 5V, 9V, and 12V outputs for versatile compatibility

Output Ratings:

• Output 5V: Current 3A
• Output 9V: Current 1.6A
• Output 12V: Current 1.2A

Load Recommendation: Recommended load less than 15W under normal conditions

Features:

1. Uninterrupted Power Supply (UPS): Ensures continuous power during outages, preventing data loss or disruption in sensitive electronics.
2. Efficient Boost Circuit: High-current MOS with up to 96% efficiency ensures reliable power delivery.
3. Lithium Battery Protection: Safeguards against over-charge, over-discharge, over-temperature, and over-current conditions for enhanced battery safety and longevity.
4. Versatile Output Options: Selectable outputs (5V, 9V, 12V) accommodate various devices' power needs.
5. Compact Design: The compact size of 89×42×22.4mm allows easy installation in diverse setups.

Package Includes:

• 1× Power Supply Module
