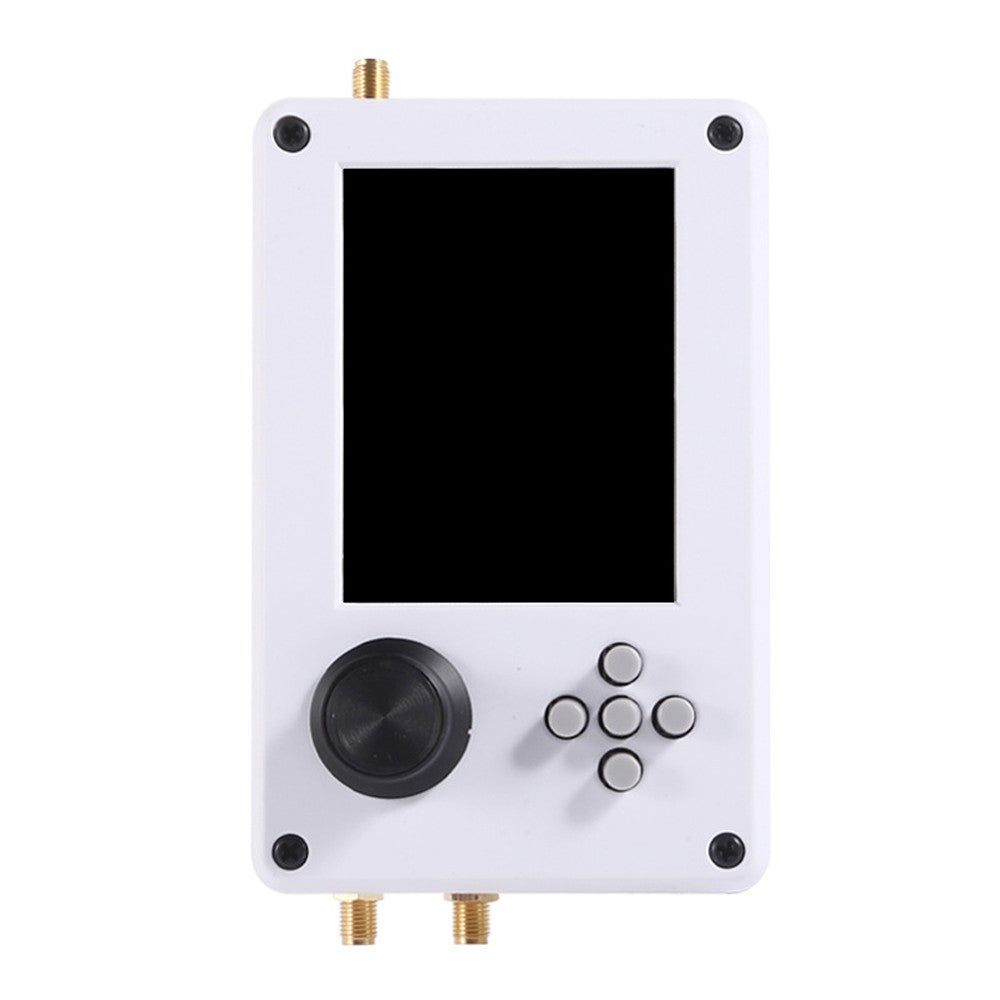

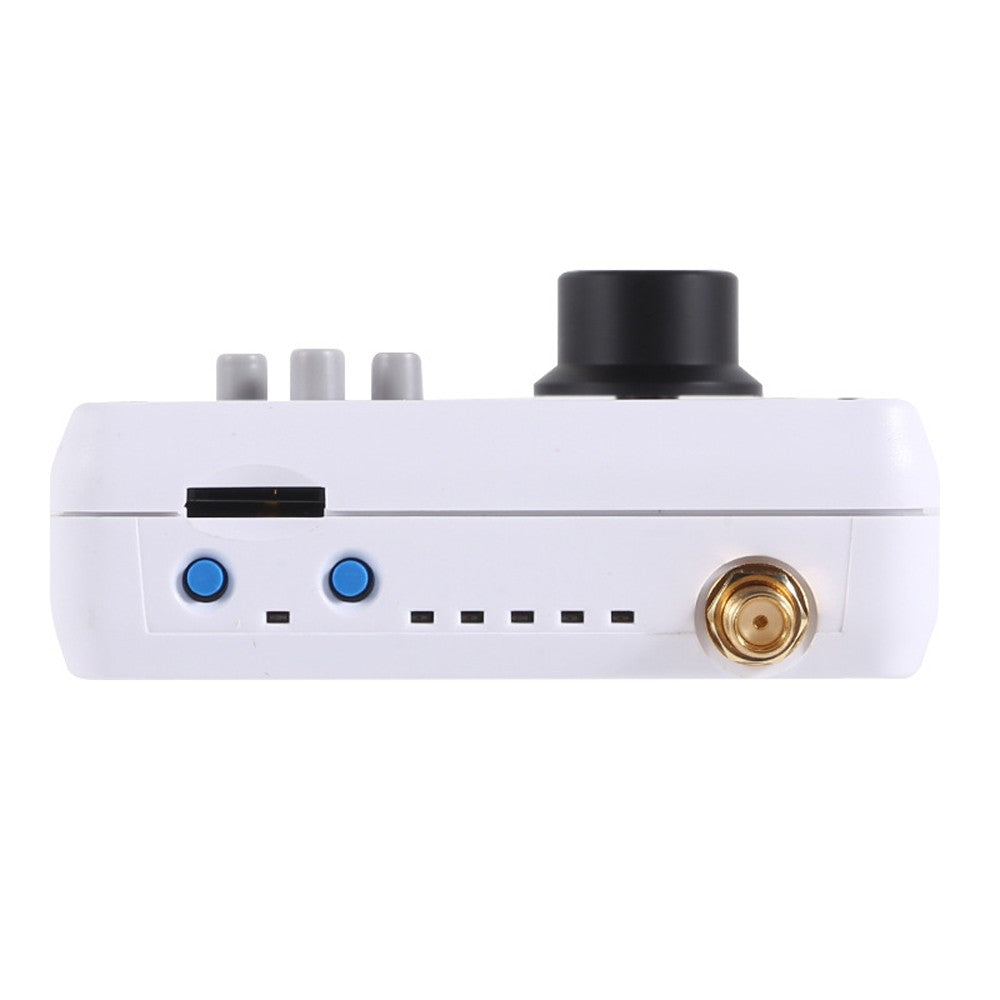

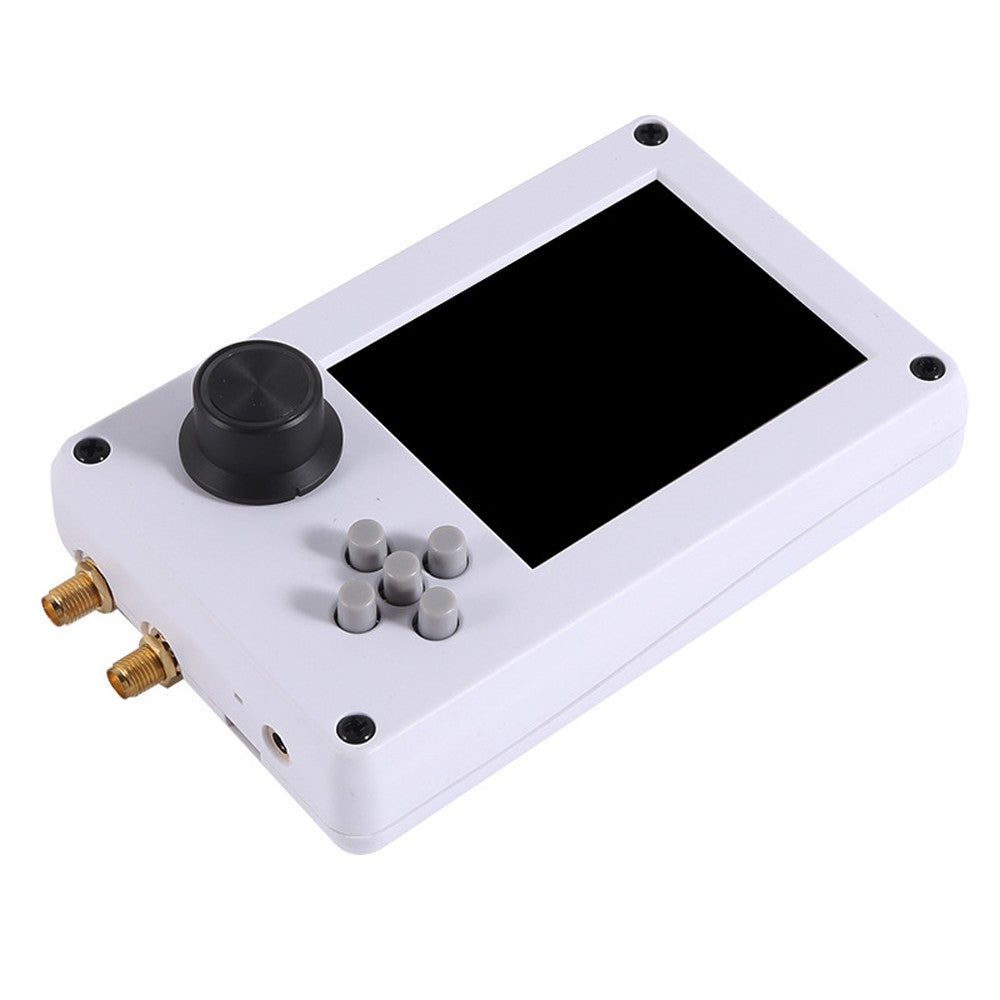

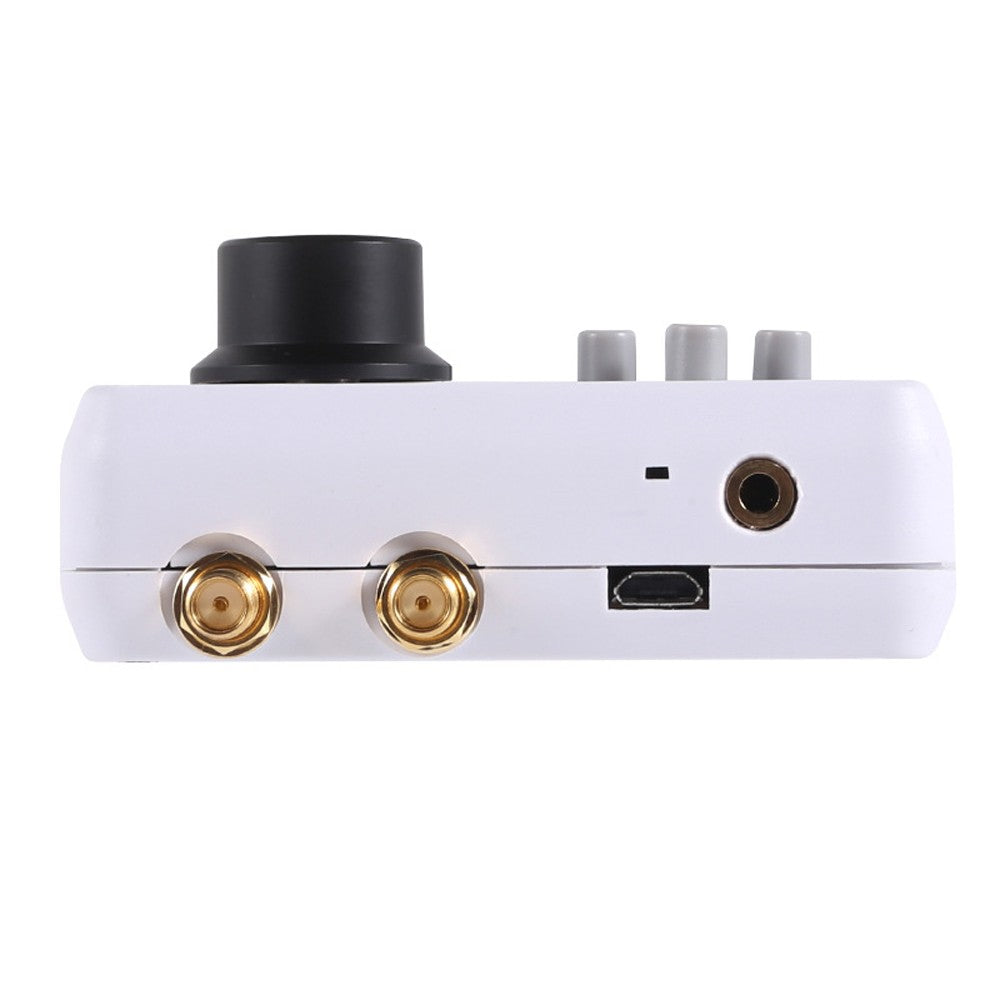

Portapack H2 - Software Defined Radio Peripheral

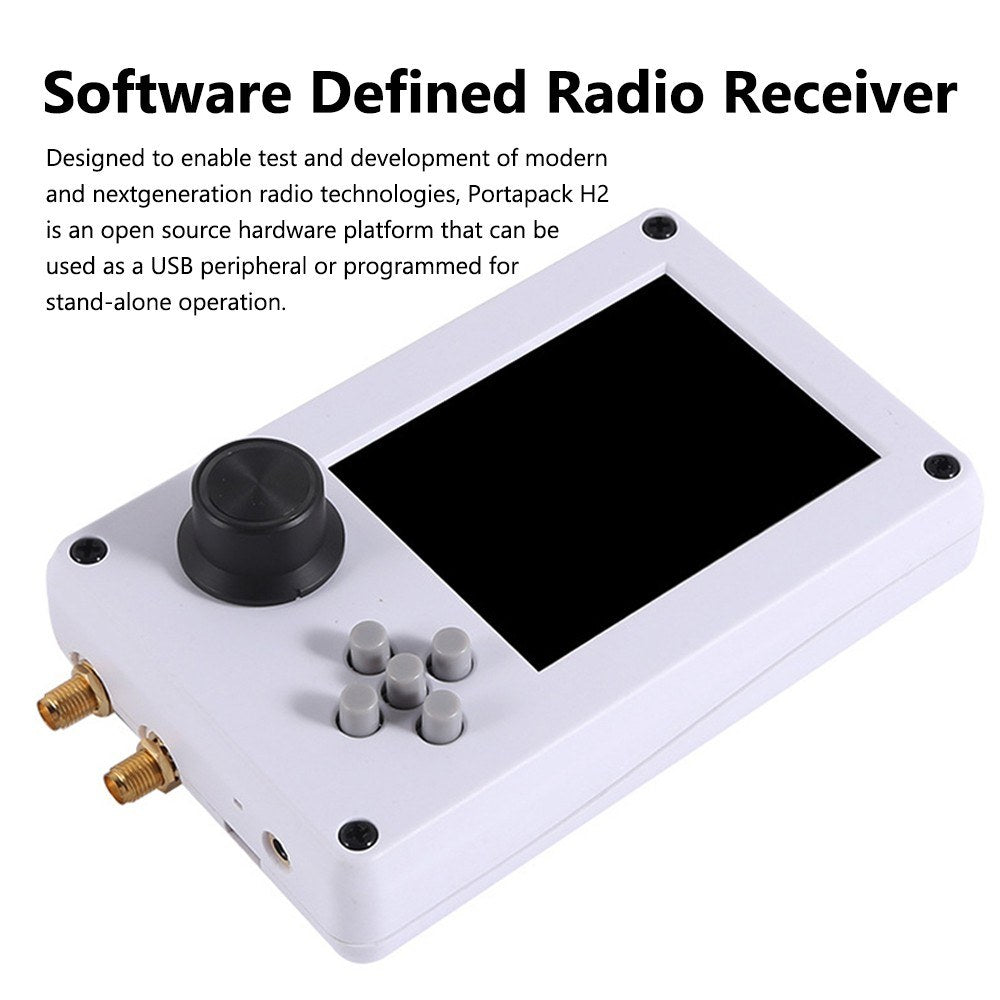

The Portapack H2 is a versatile Software Defined Radio (SDR) peripheral designed for the transmission and reception of radio signals ranging from 1MHz to 6GHz. It serves as an ideal platform for testing and developing modern and future radio technologies. As an open-source hardware platform, it can be utilized as both a USB peripheral and as a stand-alone device.

Features

• 3.2-inch LCD screen (240 x 320) with a responsive resistive touch panel.
• Intuitive control with four-way arrow keys, a rotary jog wheel, and a select button.
• Memory card slot available for data and code storage.
• Supports SSB, AM, narrowband FM, and wideband FM audio reception, complete with a spectrum waterfall.
• Offers wideband (18MHz) spectrum analysis and waterfall display.
• Capable of monitoring signals from boat, automobile, and utility meter transponders.
• Features PM calibration for enhanced tuning accuracy.
• Power-saving sleep mode that turns off the display when not in use.

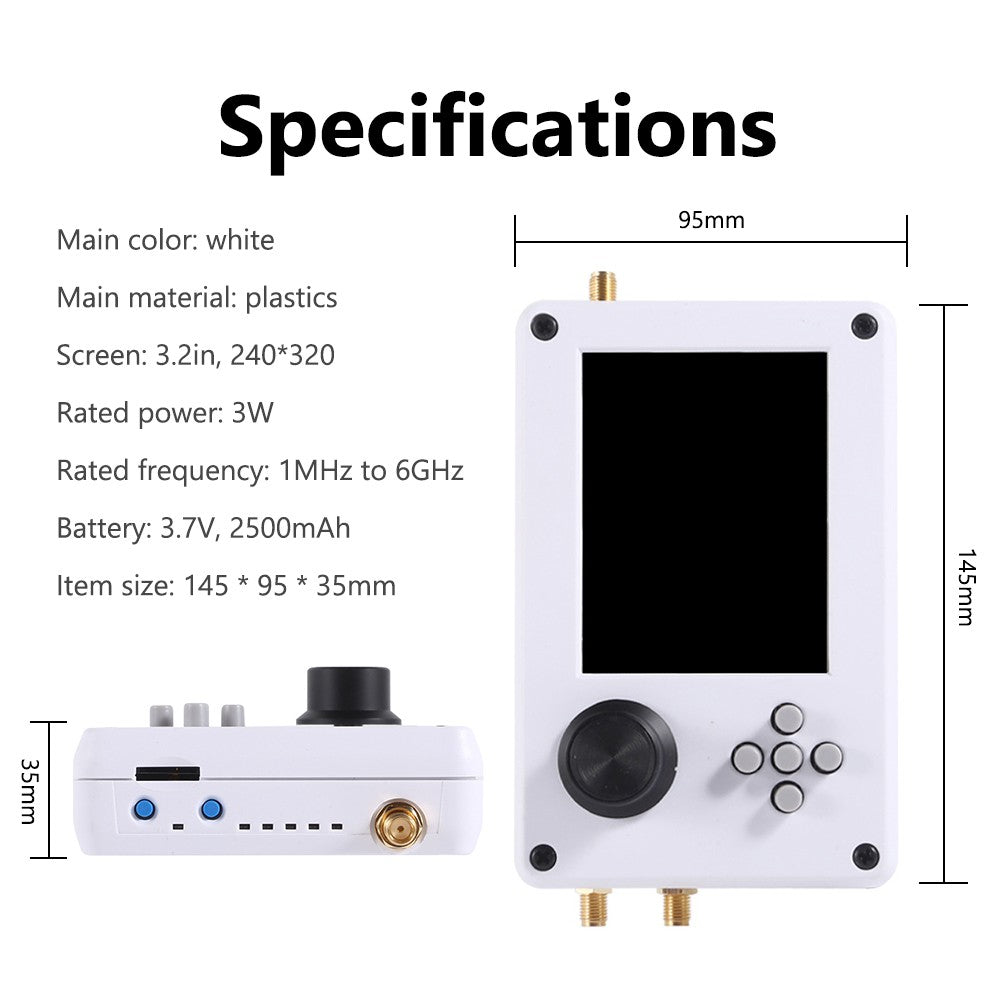

Specifications

• Main Color: White
• Main Material: Plastic
• Screen: 3.2 inches, 240 x 320 resolution
• Rated Power: 3W
• Frequency Range: 1MHz to 6GHz
• Battery: 3.7V, 2500mAh
• Item Size: 145 x 95 x 35 mm (5.7 x 3.7 x 1.4 in)
• Package Size: 220 x 140 x 50 mm (8.7 x 5.5 x 2.0 in)
• Package Weight: 425g

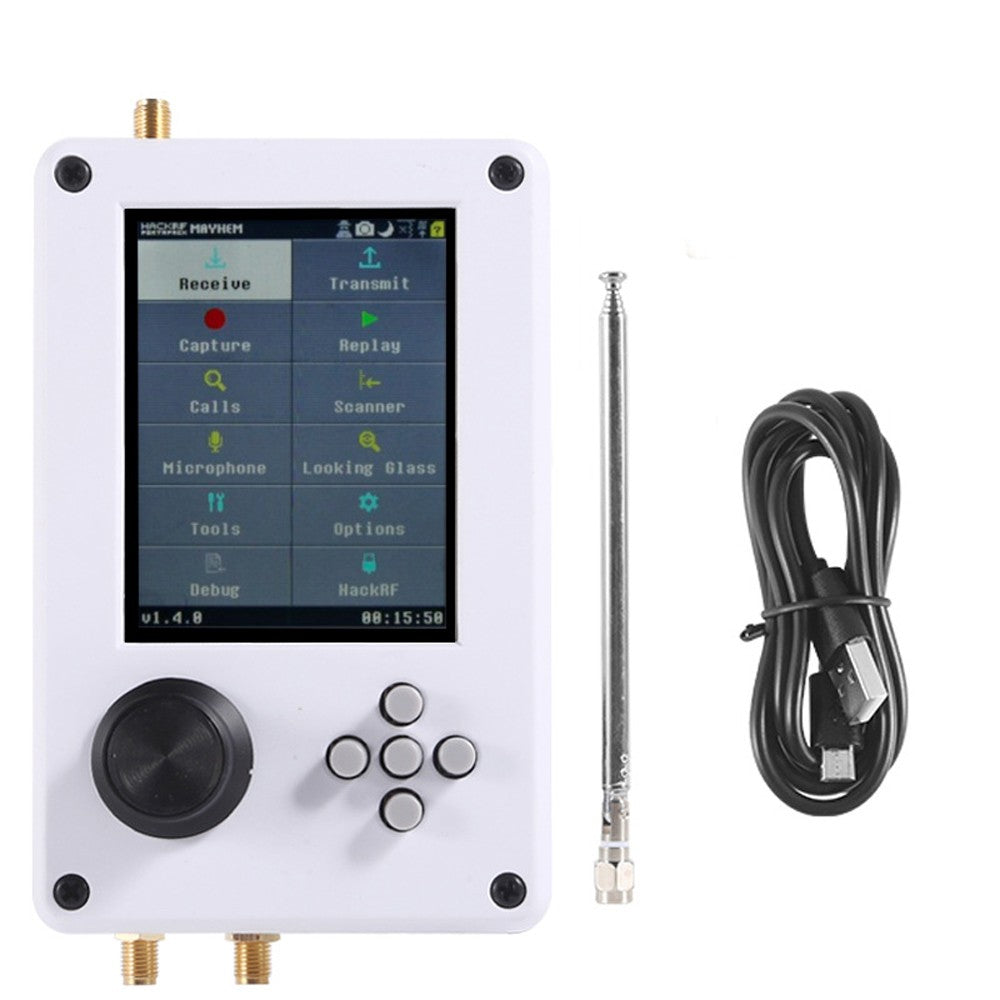

Package Contents

• 1 x Portapack H2 Host
• 1 x 40MHz-6GHz Telescopic Antenna
• 1 x USB Cable
