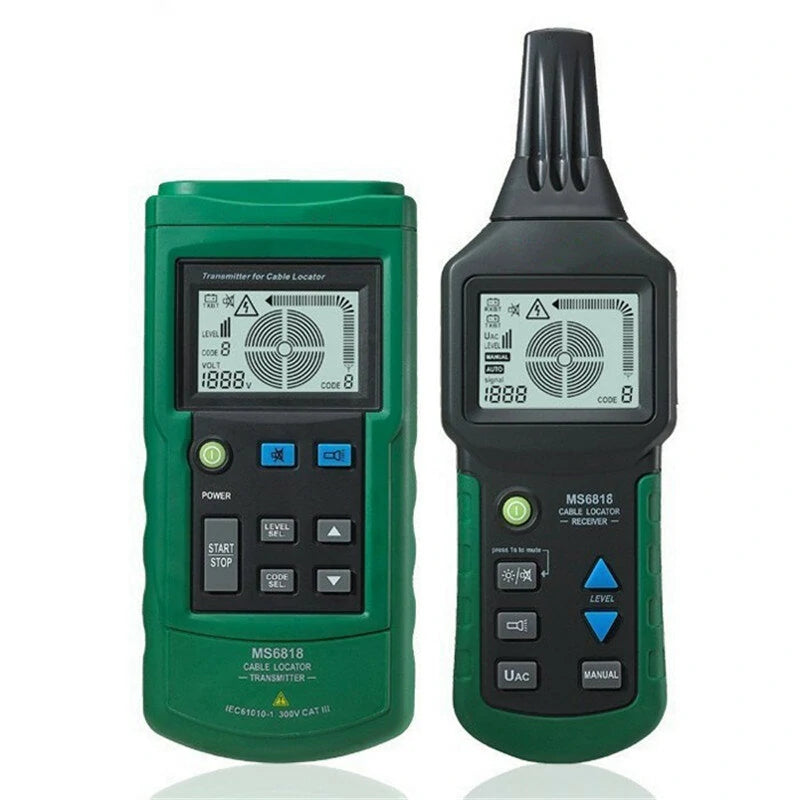

MS6818 Portable 12-400V AC/DC Cable & Network Tester Tracker

Product Description

Model Number: MS6818S (Upgraded from MS6818, functionality unchanged)

Key Features

• Efficiently detects cables, electrical lines, and water/gas supply pipelines buried in walls or earth.
• Capable of identifying interruptions and short circuits in cables and electrical lines.
• Locates fuses and current circuits effortlessly.
• Detects interruptions and short-circuits in floor heating systems.
• Finds sockets and distribution sockets covered by plastering mistakenly.

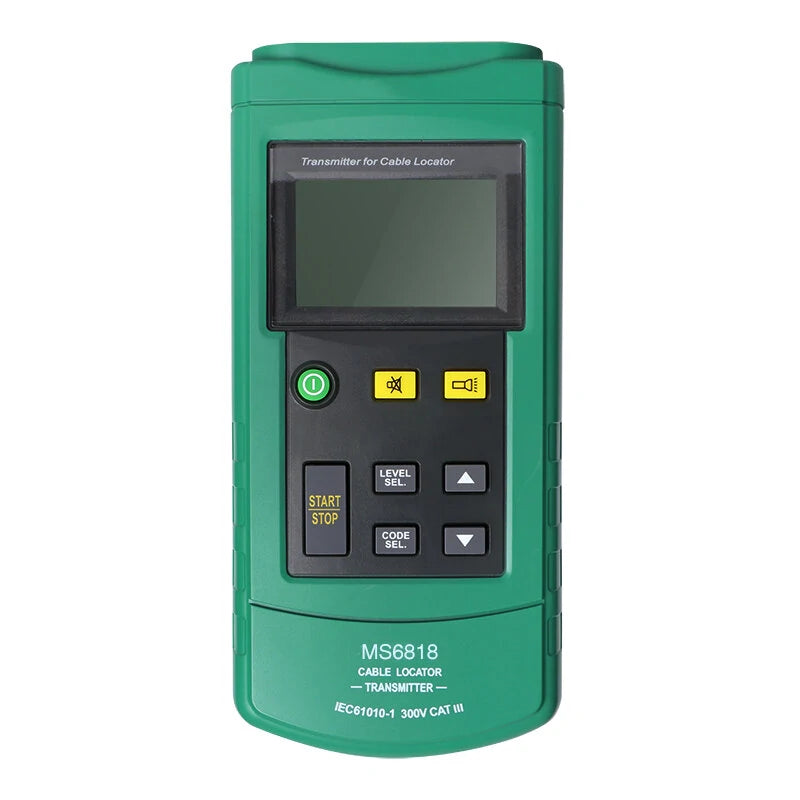

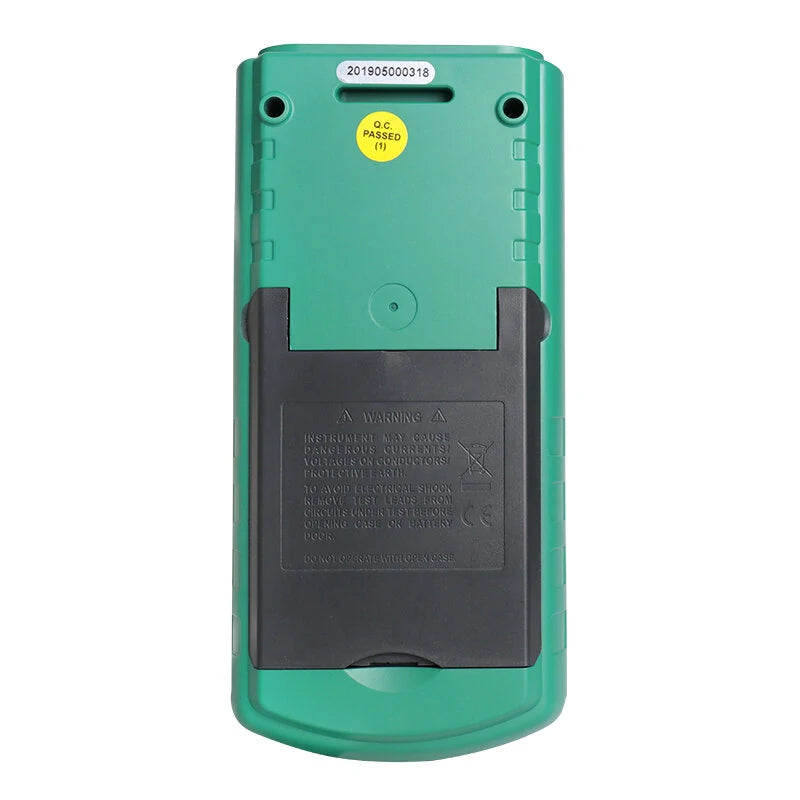

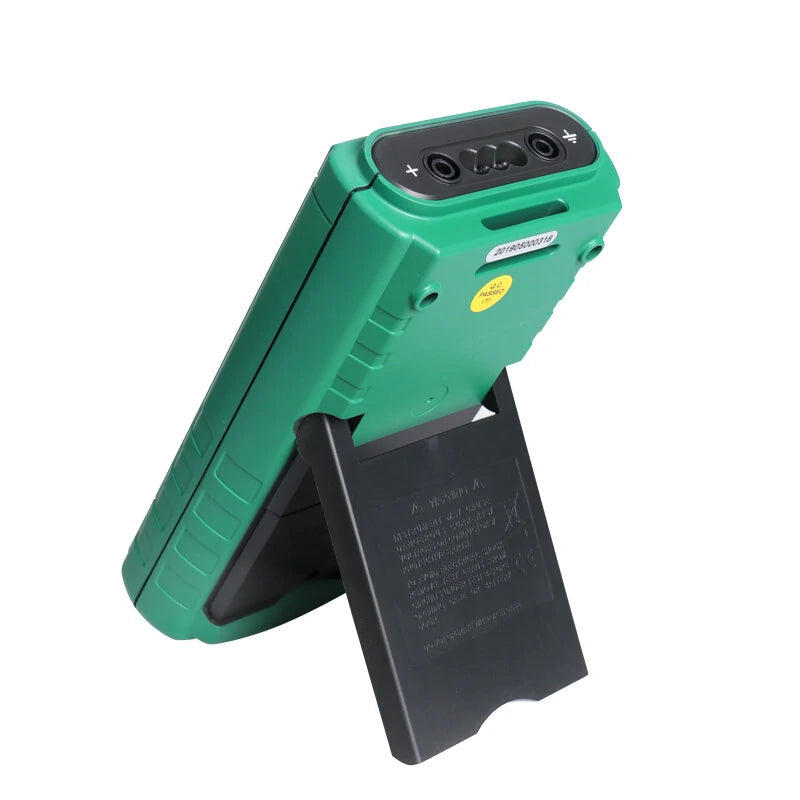

Transmitter Highlights

• Integrates AC/DC voltmeter functionality, measuring 12 to 400V AC/DC systematically.
• Displays preset transmitting power, codes, battery energy, detected voltage, and AC/DC status with voltage warnings on its screen.
• Includes self-inspection capability to display working status on the LCD screen for user reference.

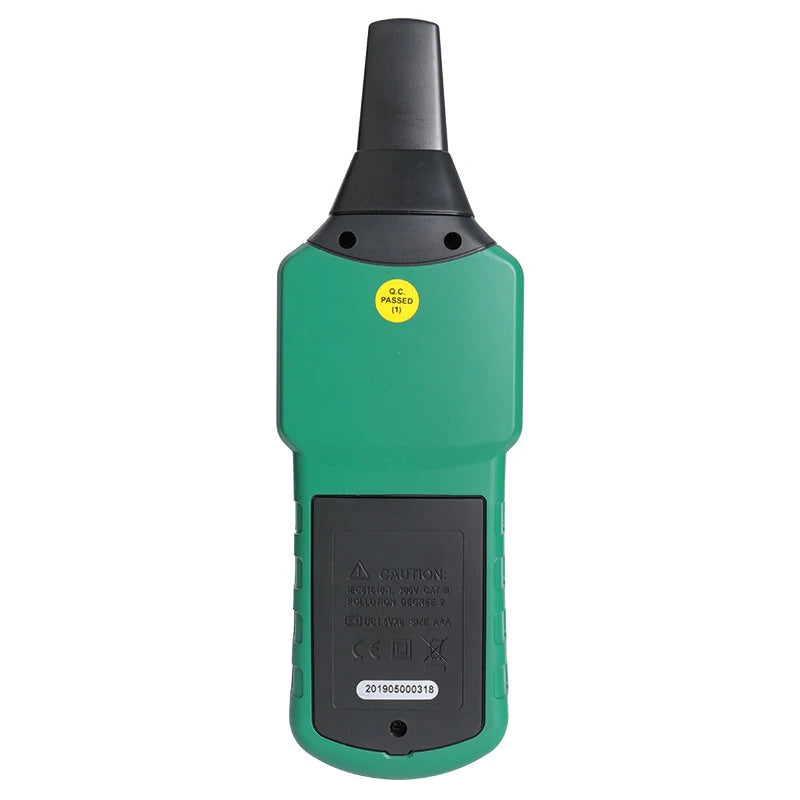

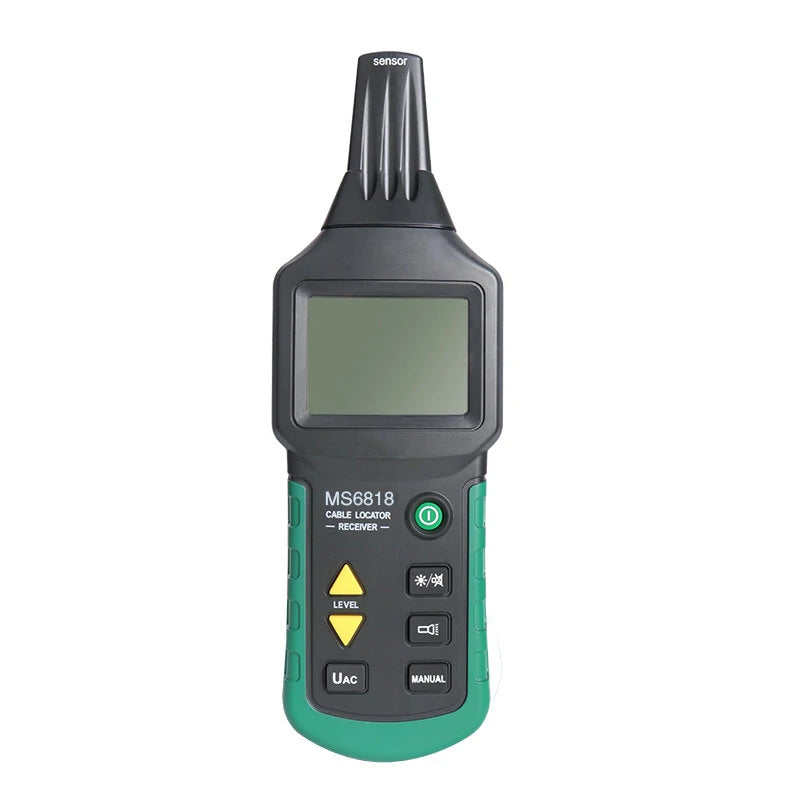

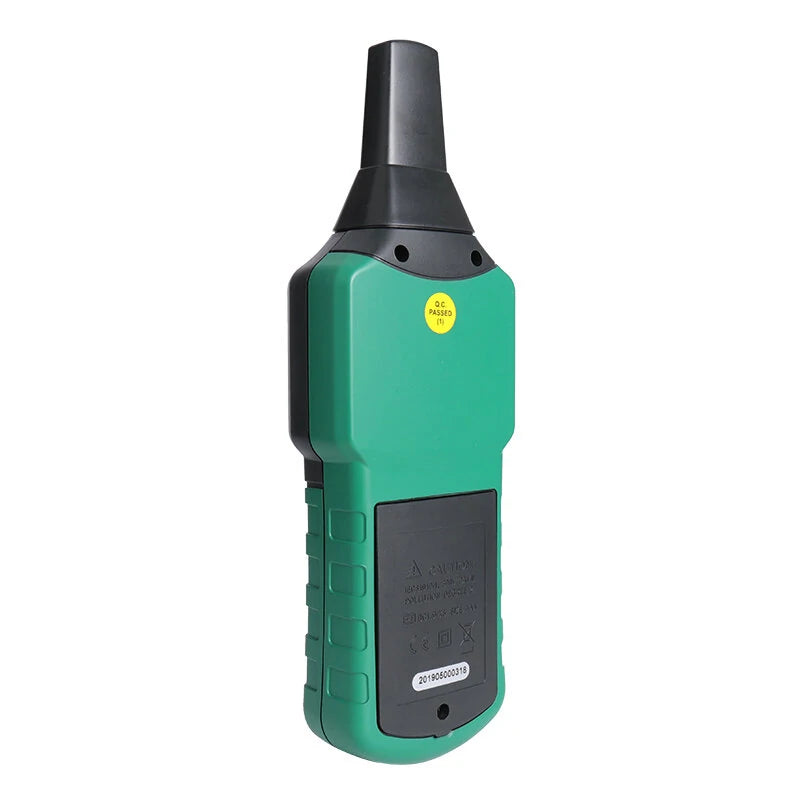

Receiver Features

• Sensitivity adjustable both manually and automatically.
• Automatic frequency sweeping capability, with mute operation possible.
• Expandable with additional transmitters to differentiate multiple signals.

Specifications

Technical Specifications

• Voltage Measurement Range: Transmitter: 12V-400V (AC / DC)
• Output Signal: Transmitter: 125KHz
• Voltage: Transmitter: Maximum 400V (AC / DC)
• Cable Depth Measurement: Receiver 0-2.5 m (wall / underground cable)
• Main Voltage Measurement: Receiver 0-0.4m

Environment Specifications

• Work Environment: Transmitter: 0~40°C; Receiver: 0~40°C
• Storage Temperature: Transmitter & Receiver: -20°C~60°C
• Relative Humidity (no condensation): Maximum 80%
• Measuring Height: Maximum 2000m
• Battery: 6 x 1.5V AAA Battery (NOT included), 1 x 9V Battery (NOT included)

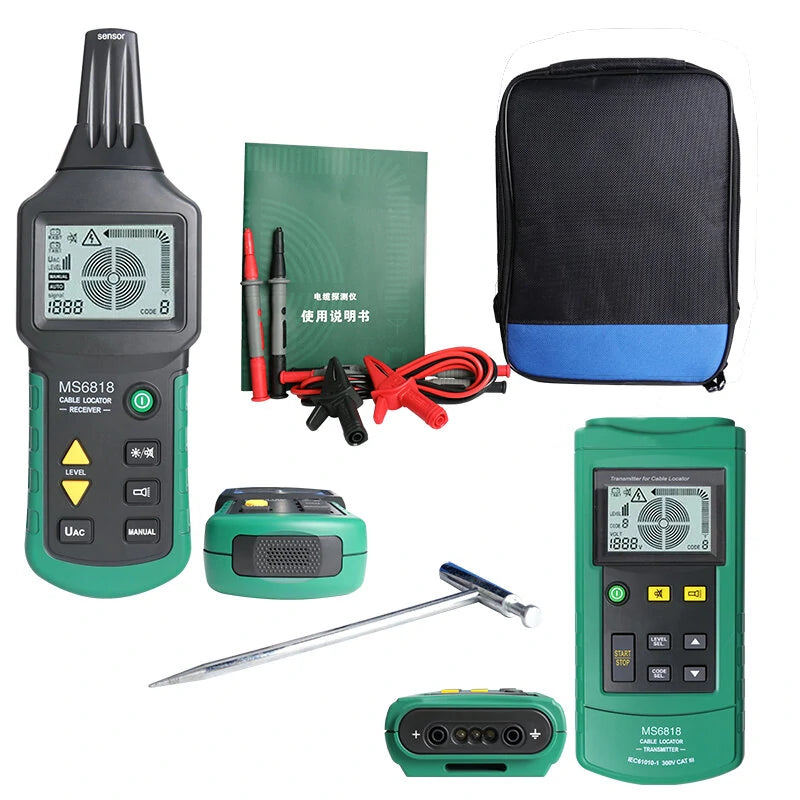

Package Includes

• 1 x MS6818 Receiver
• 1 x Transmitter
• 1 x Test Leads (Black & Red)
• 1 x Test Probe (Black & Red)
• 1 x Crocodile Clamps (Black & Red)
• 1 x Grounding Rod
• 1 x User Manual
