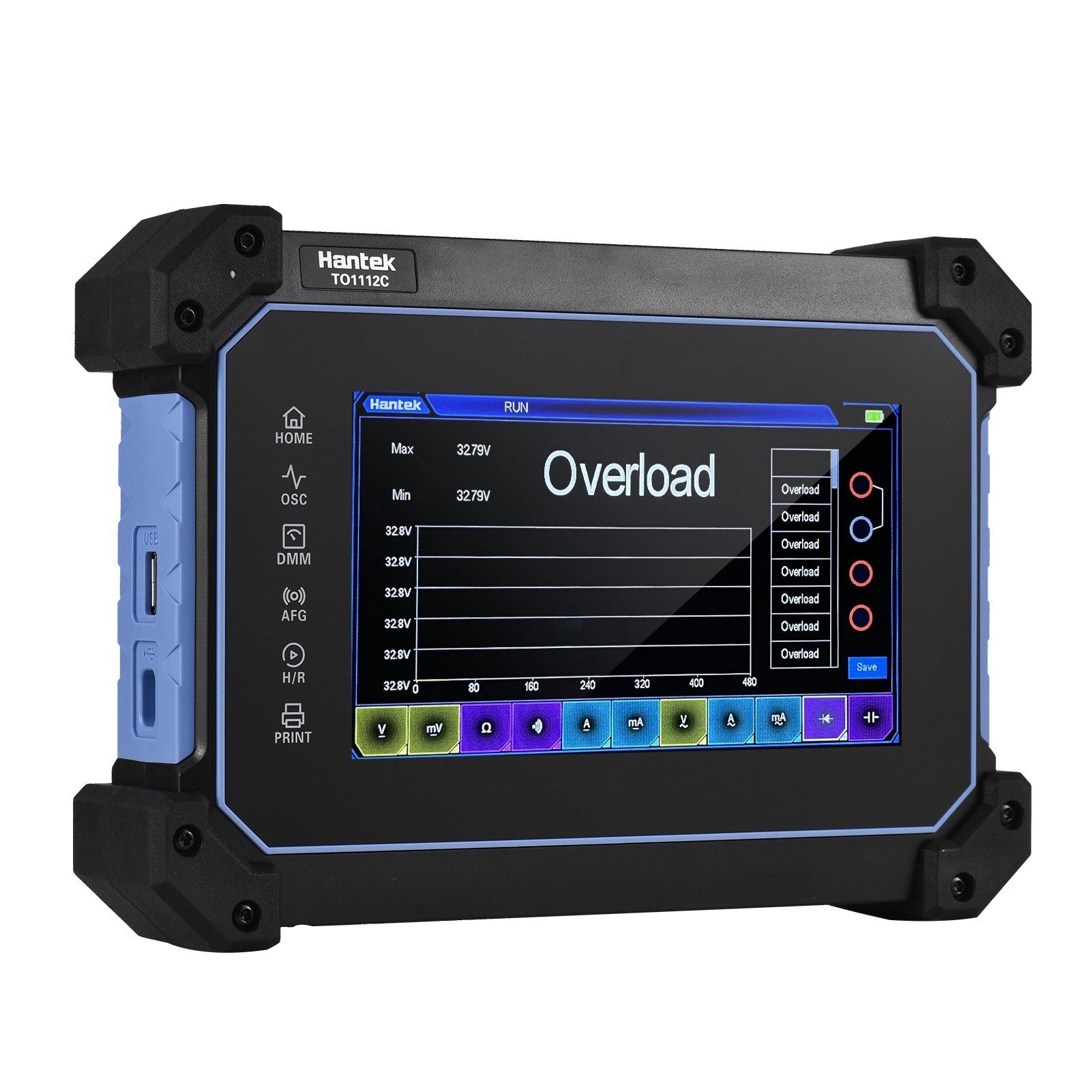

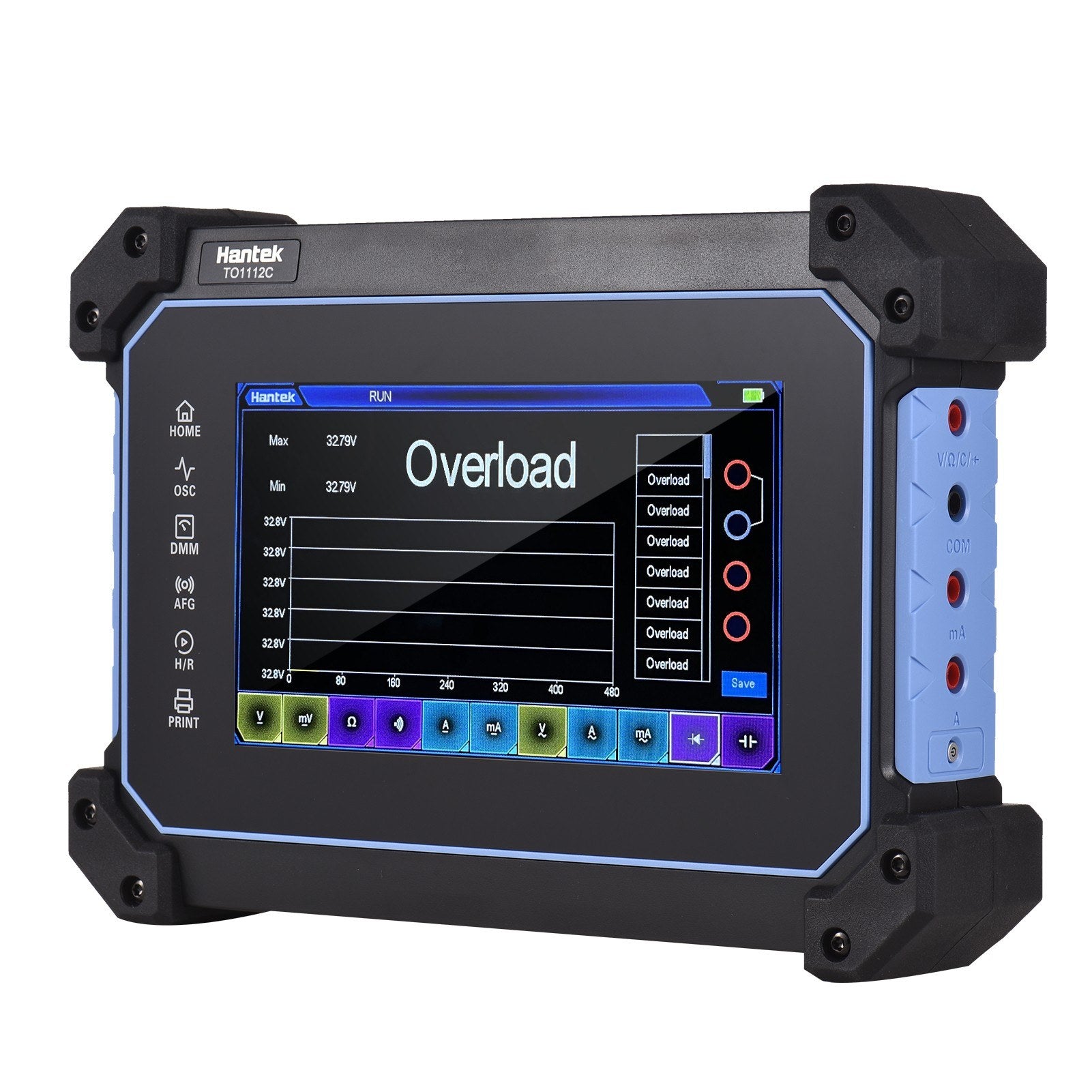

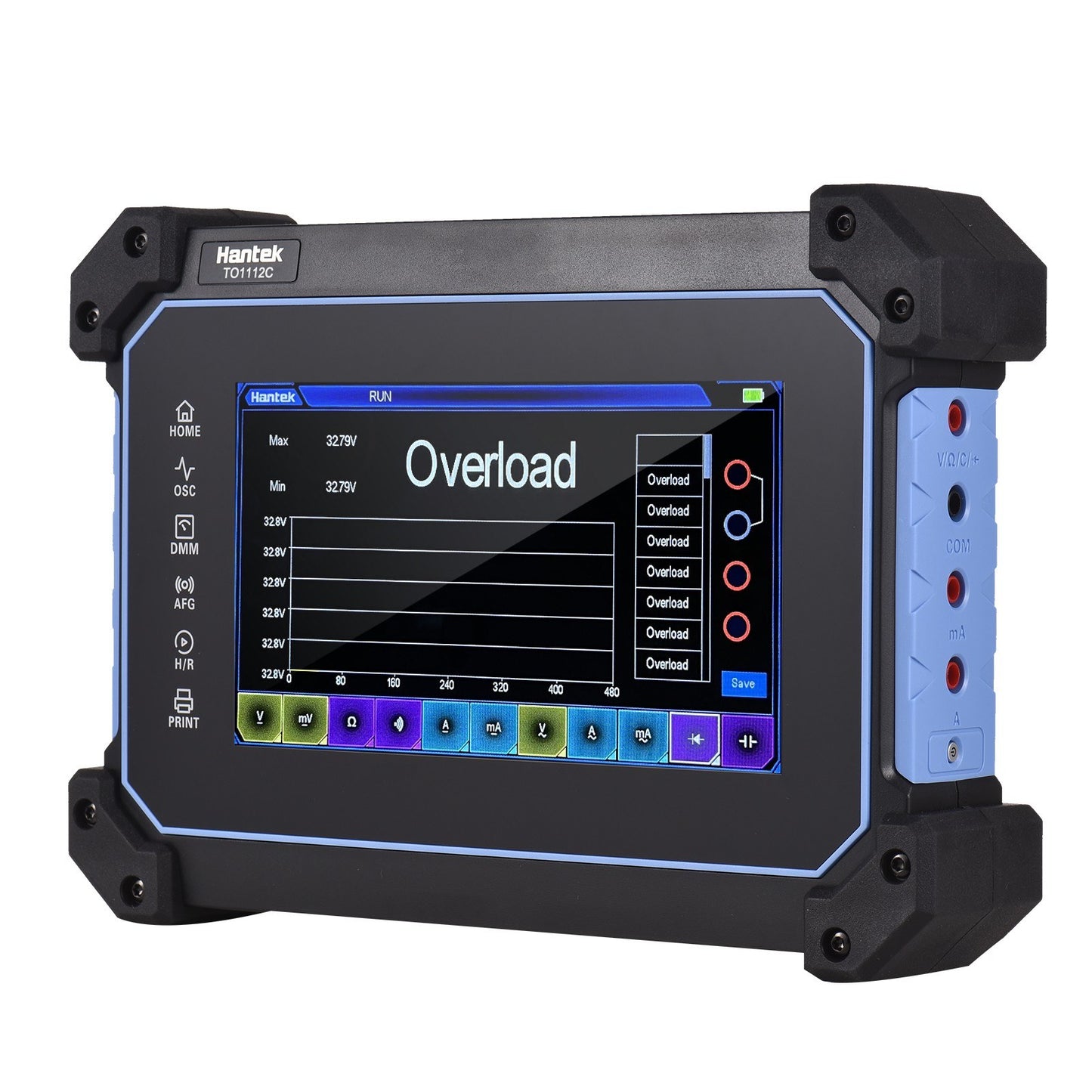

Rechargeable Hantek TO1112C 2-Channel Oscilloscope Multimeter, 110MHz Bandwidth, 250MSa/S Sampling, 8M Depth, 7-inch LCD, Waveform Generator with Tool Bag

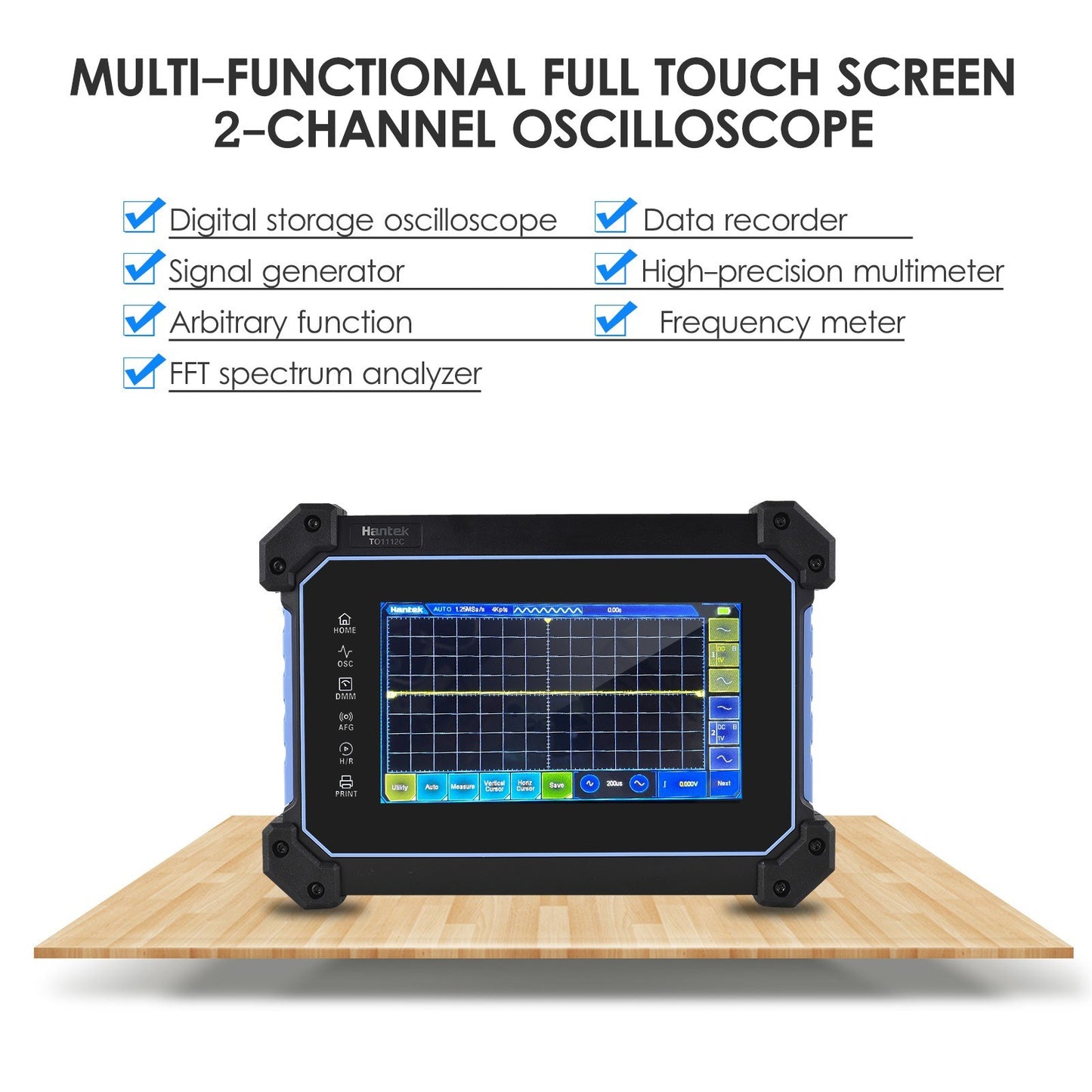

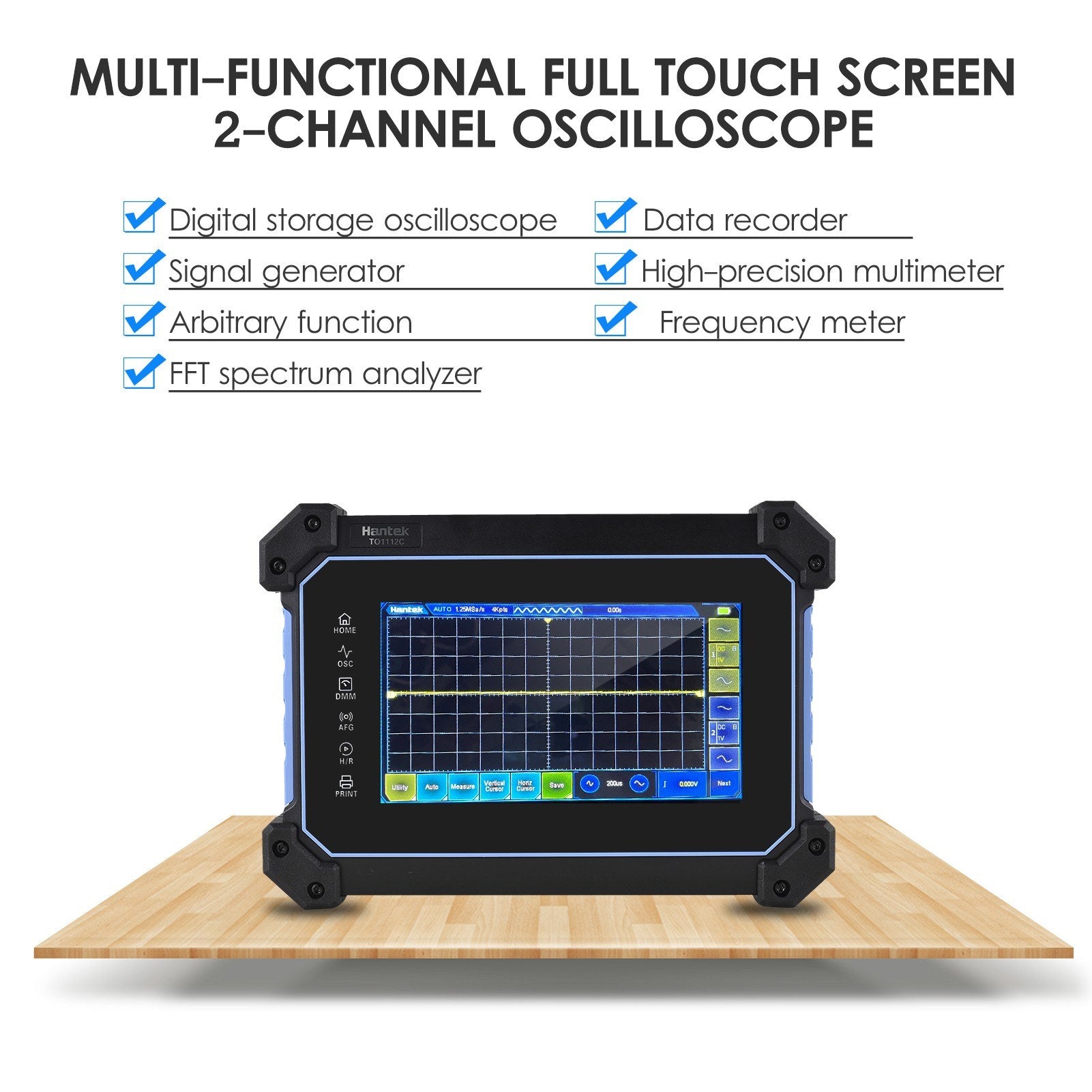

The multi-functional full touch screen oscilloscope is innovatively designed for ease and efficiency. Its slim and lightweight profile makes it incredibly portable, perfect for on-the-go use.

Key Features:

• Multi-Functional Integration: Combines a digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, and FFT spectrum analyzer for a comprehensive toolkit.

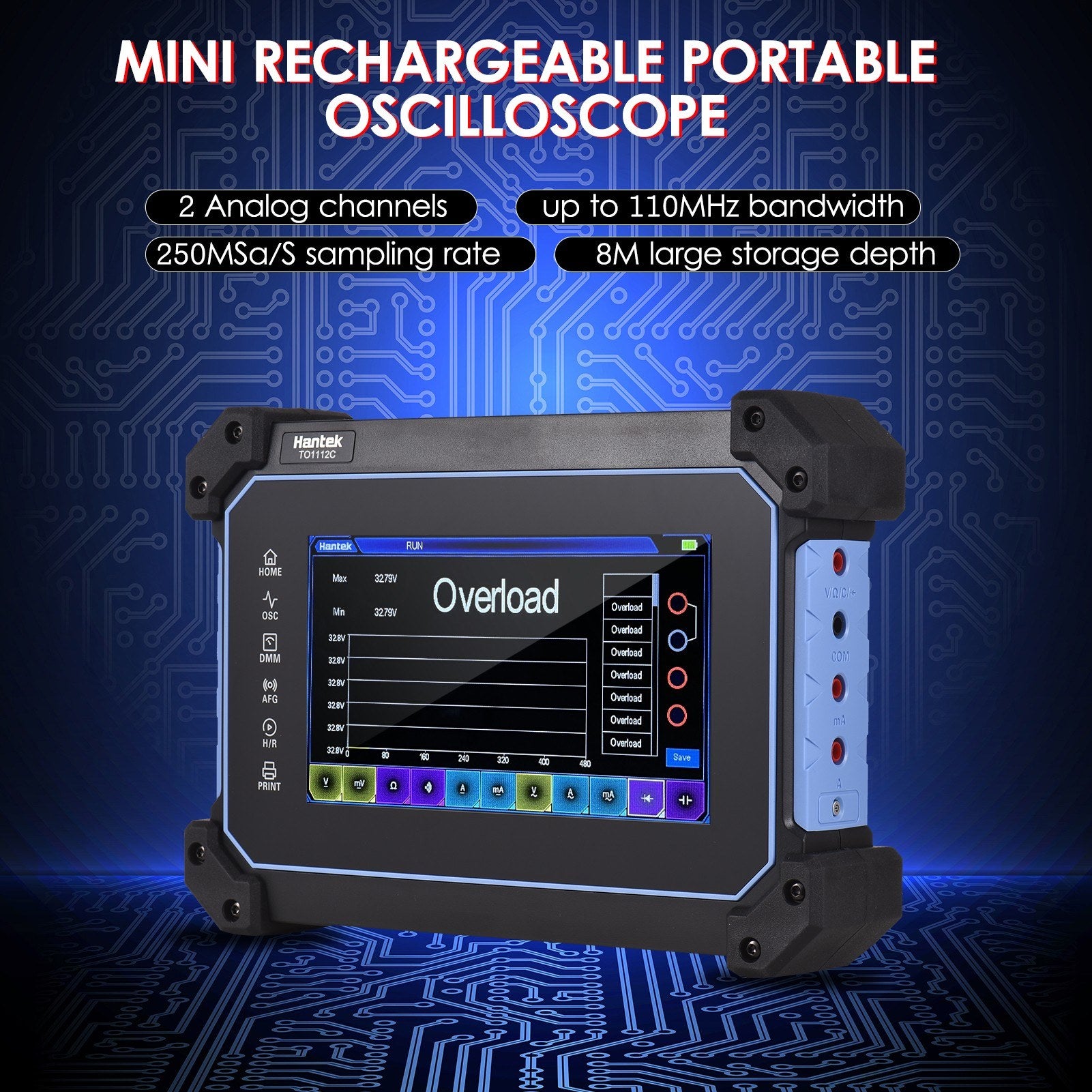

• 2-Channel Digital Storage Oscilloscope: Offers up to 110MHz bandwidth with a 250MSa/s high sampling rate and 8M storage depth. Provides edge, slope, pulse width, video, timeout triggers, and 42 measurement functions.

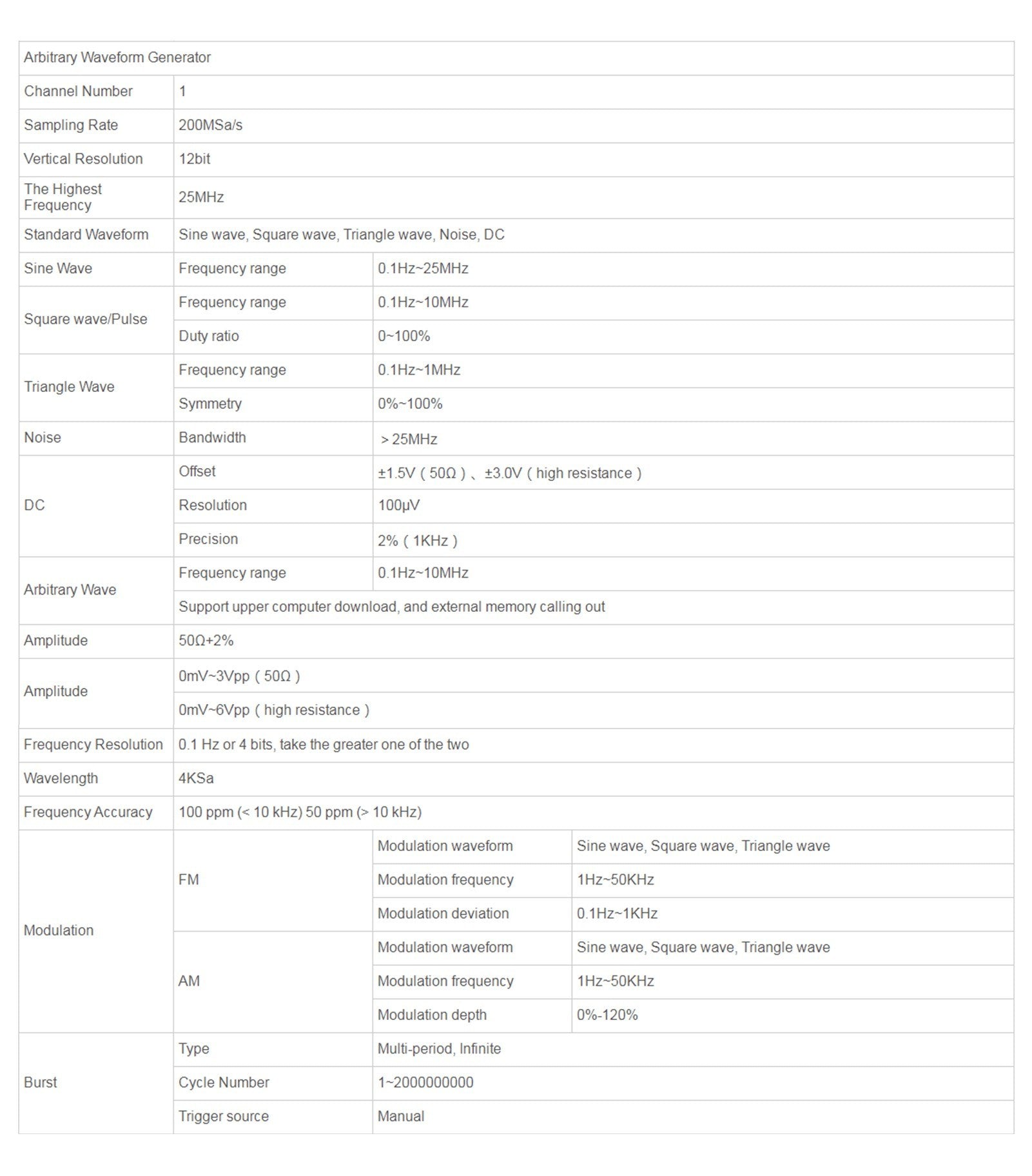

• Arbitrary Function Signal Generator: Delivers up to 25MHz output frequency and 12-bit high resolution with a 200MSa/s sampling rate. Includes multiple arbitrary waves and supports AM/FM modulation.

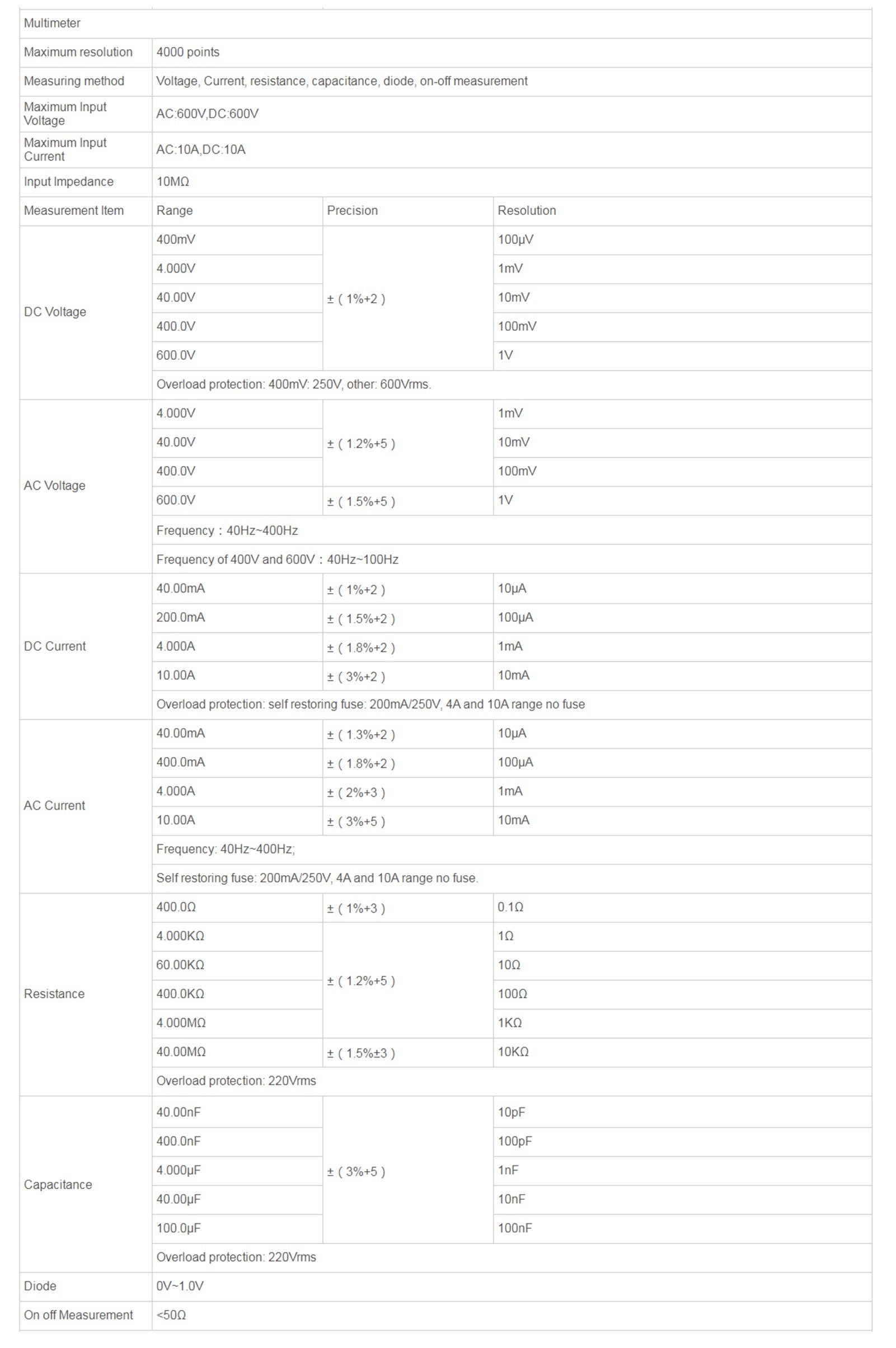

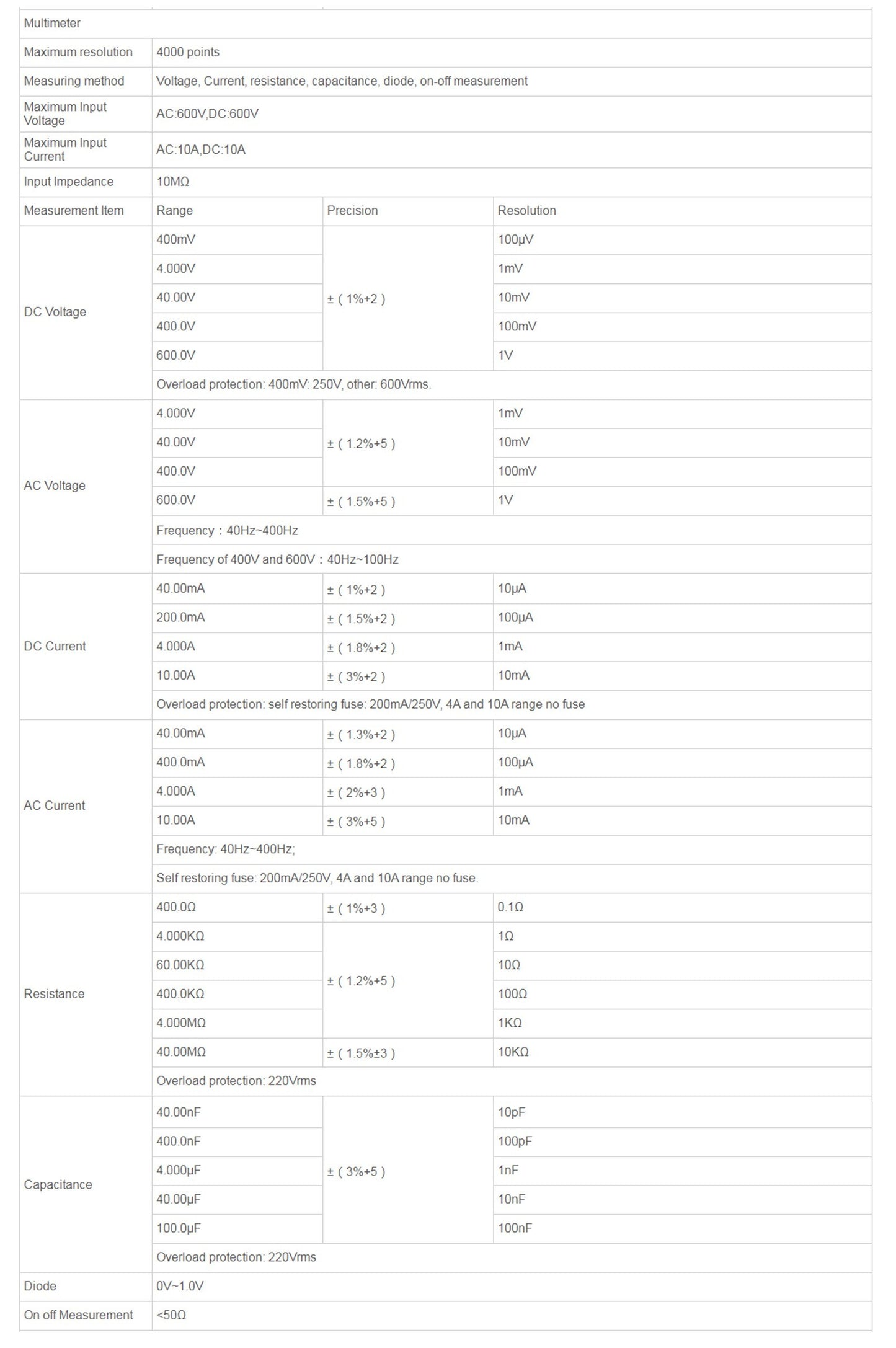

• High-Performance Digital Multimeter: Measures AC/DC voltage, current, resistance, capacitance, and diodes. Features data recording for long-term monitoring and trend chart generation.

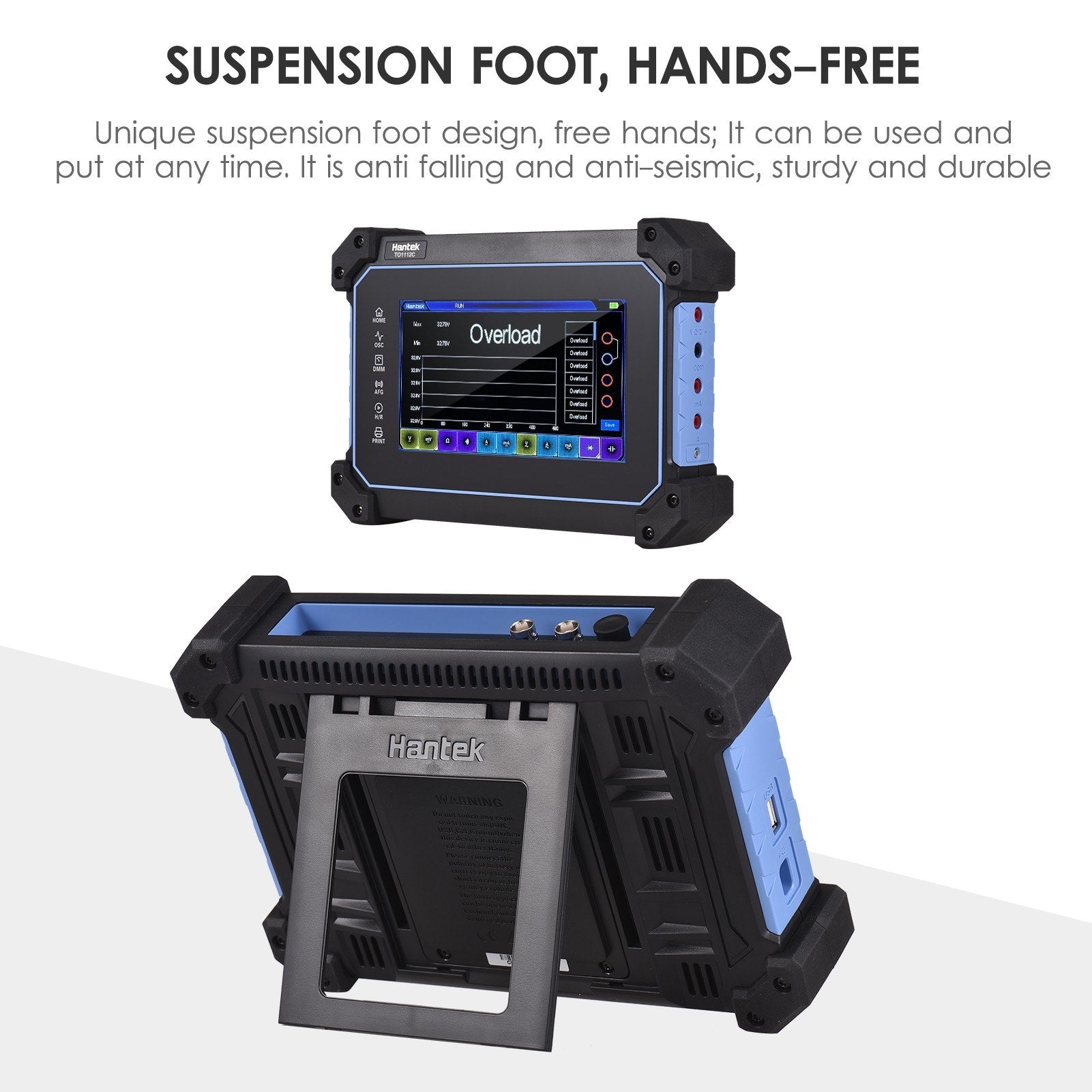

• Unique Hands-Free Design: The suspension foot design allows for convenient hands-free use. It is anti-falling and anti-seismic, ensuring durability.

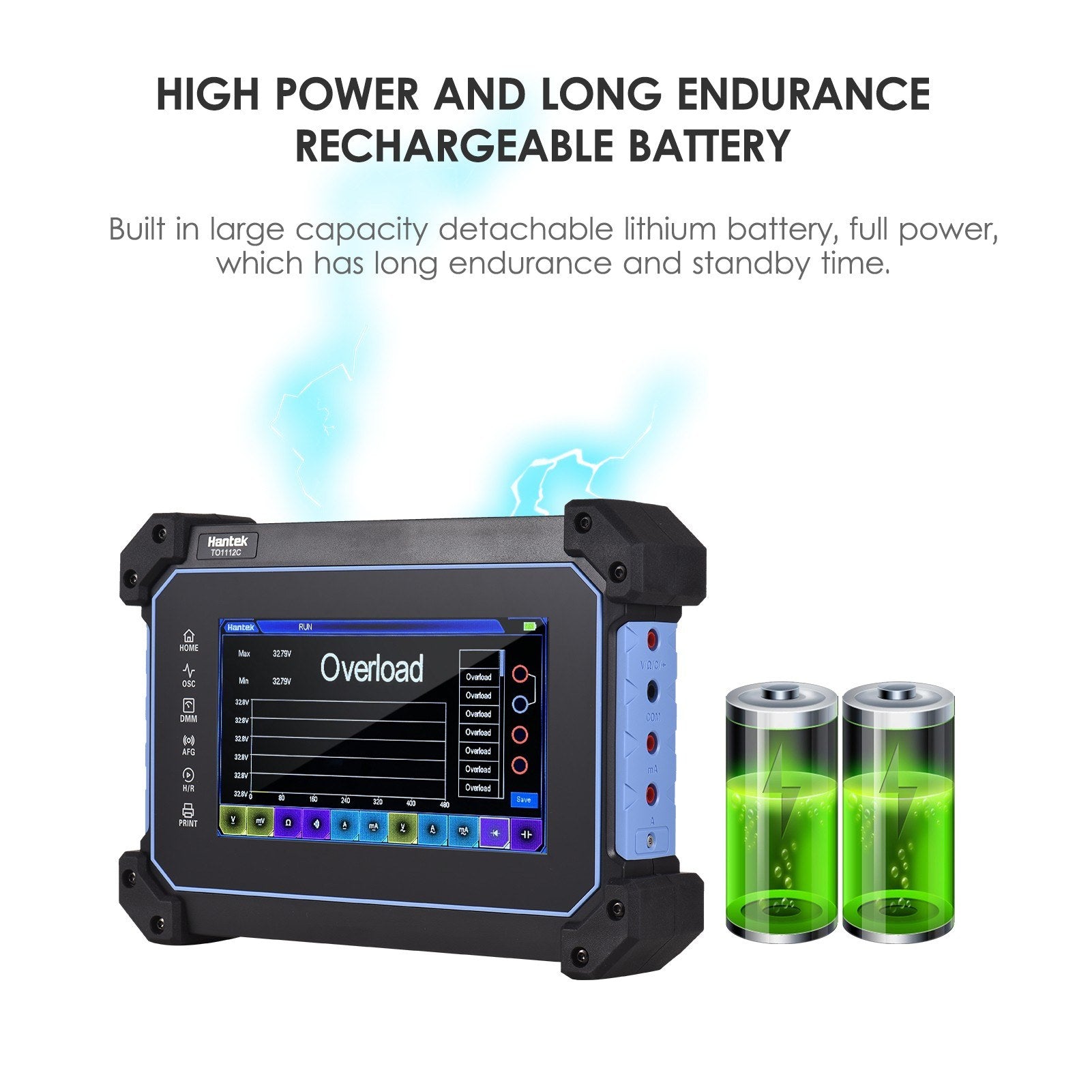

• Long-Lasting Power: Equipped with a detachable high-capacity lithium battery, providing extended operation time. Supports multiple fast charging protocols with a standard 18W charger via a type-C interface.

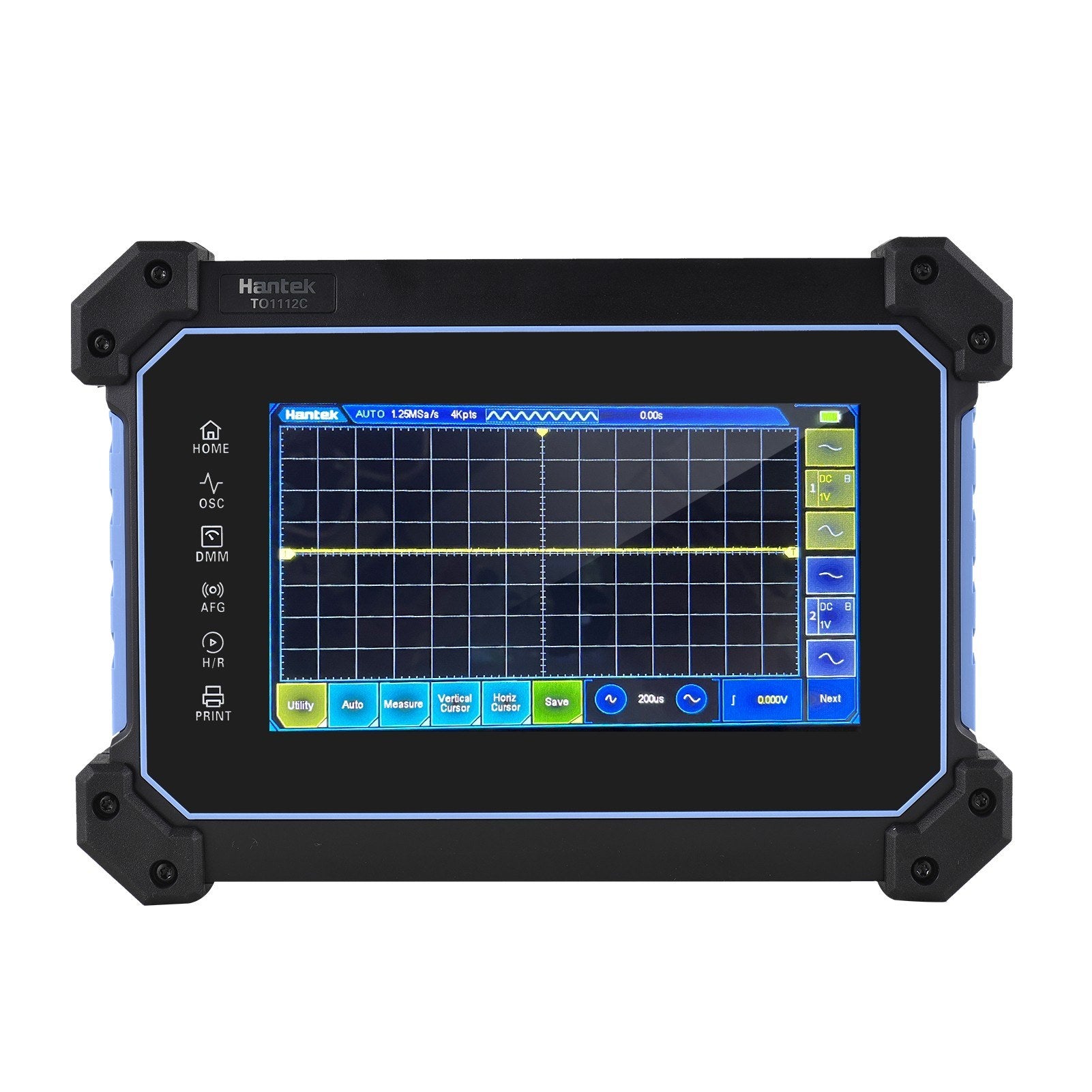

• 7" TFT LCD Touch Screen: Features a large, interactive display with an 800x480 resolution for an enhanced user experience.

Specifications:

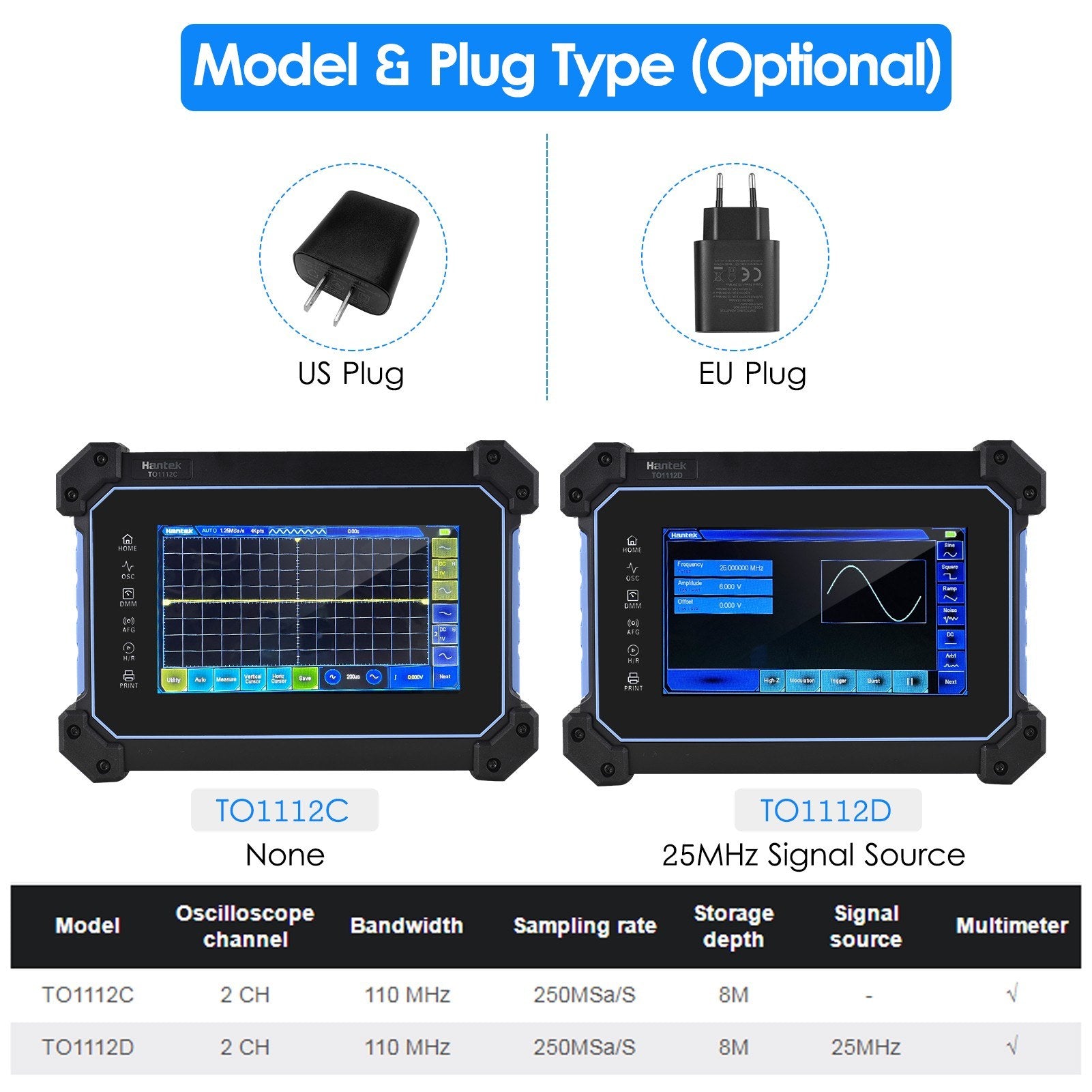

• Plug Type: EU / US (optional)
• Model: TO1112C / TO1112D (optional)
• Channels: 2 Analog channels
• Bandwidth: 110MHz
• Sampling Rate: 250MSa/S
• Storage Depth: 8Mpts

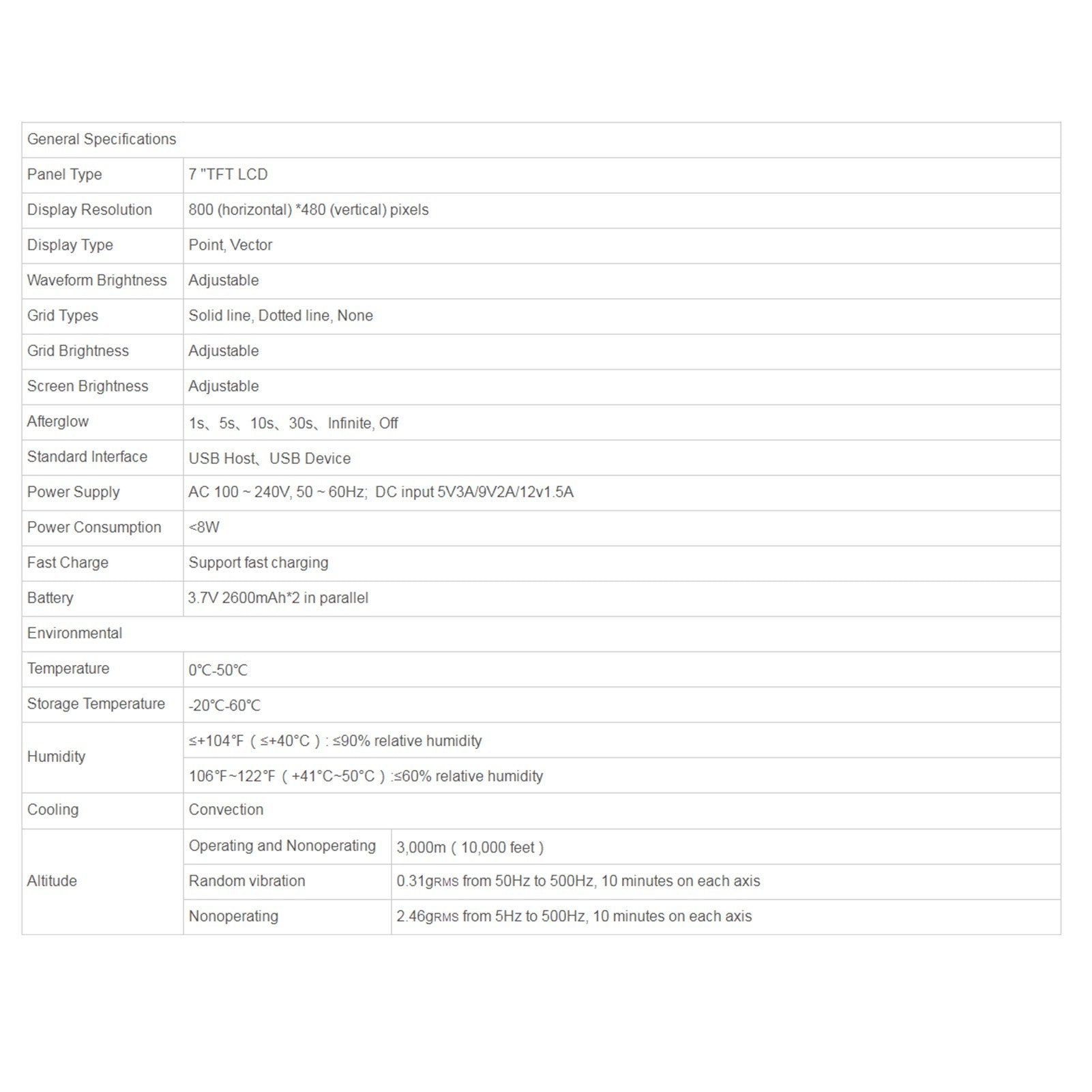

General Specifications:

• Display: 7" TFT LCD, 800x480 resolution, adjustable brightness
• Power Supply: AC 100~240V, 50/60Hz; DC input: 5V3A/9V2A/12V1.5A
• Battery: 3.7V 2600mAh x 2 in parallel

Environmental:

• Temperature Range: 0~50℃ (operating), -20~60℃ (storage)
• Humidity: ≤90% RH at ≤40°C; ≤60% RH at 41~50°C

Item Dimensions:

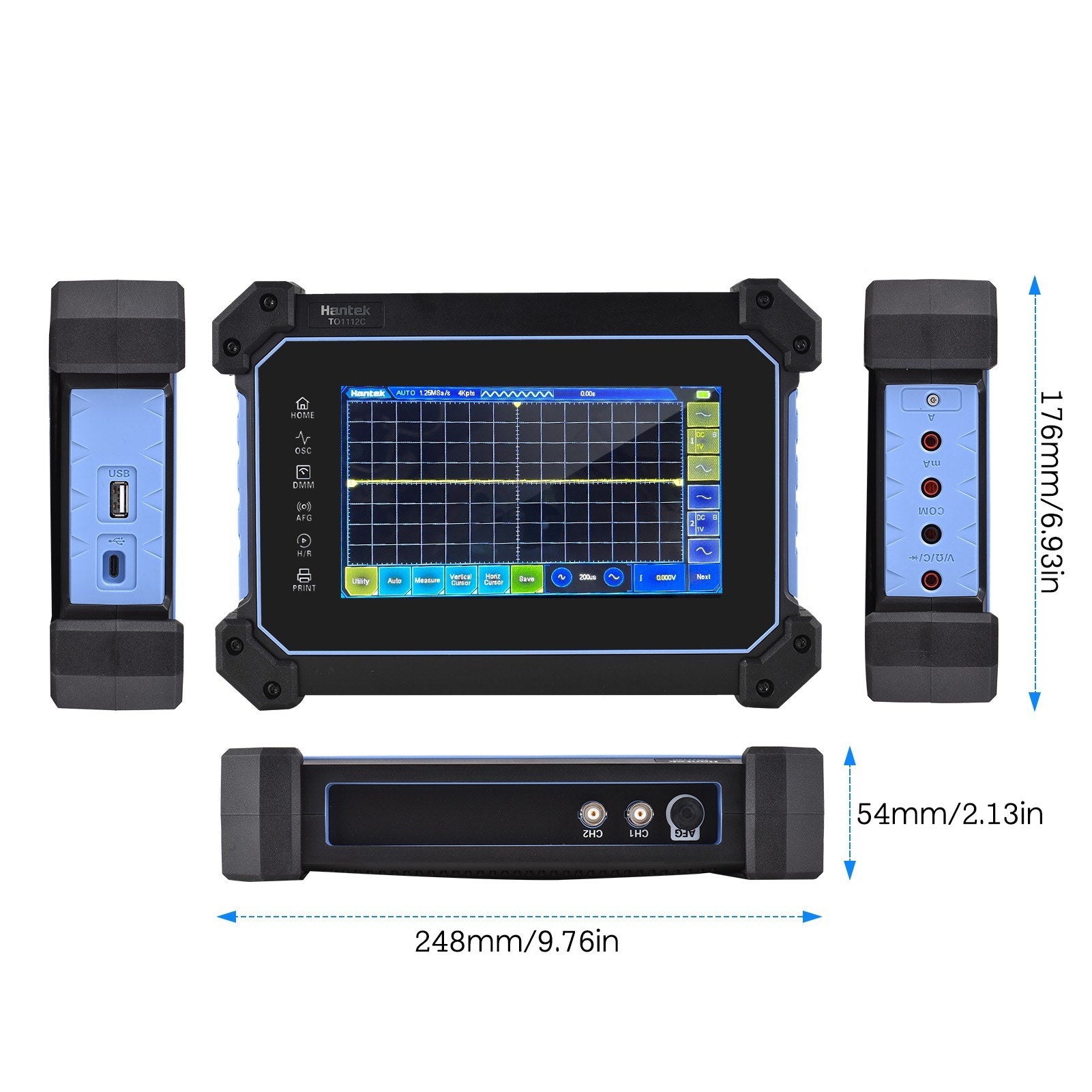

• Size: 248 x 176 x 54mm
• Weight: 1006g

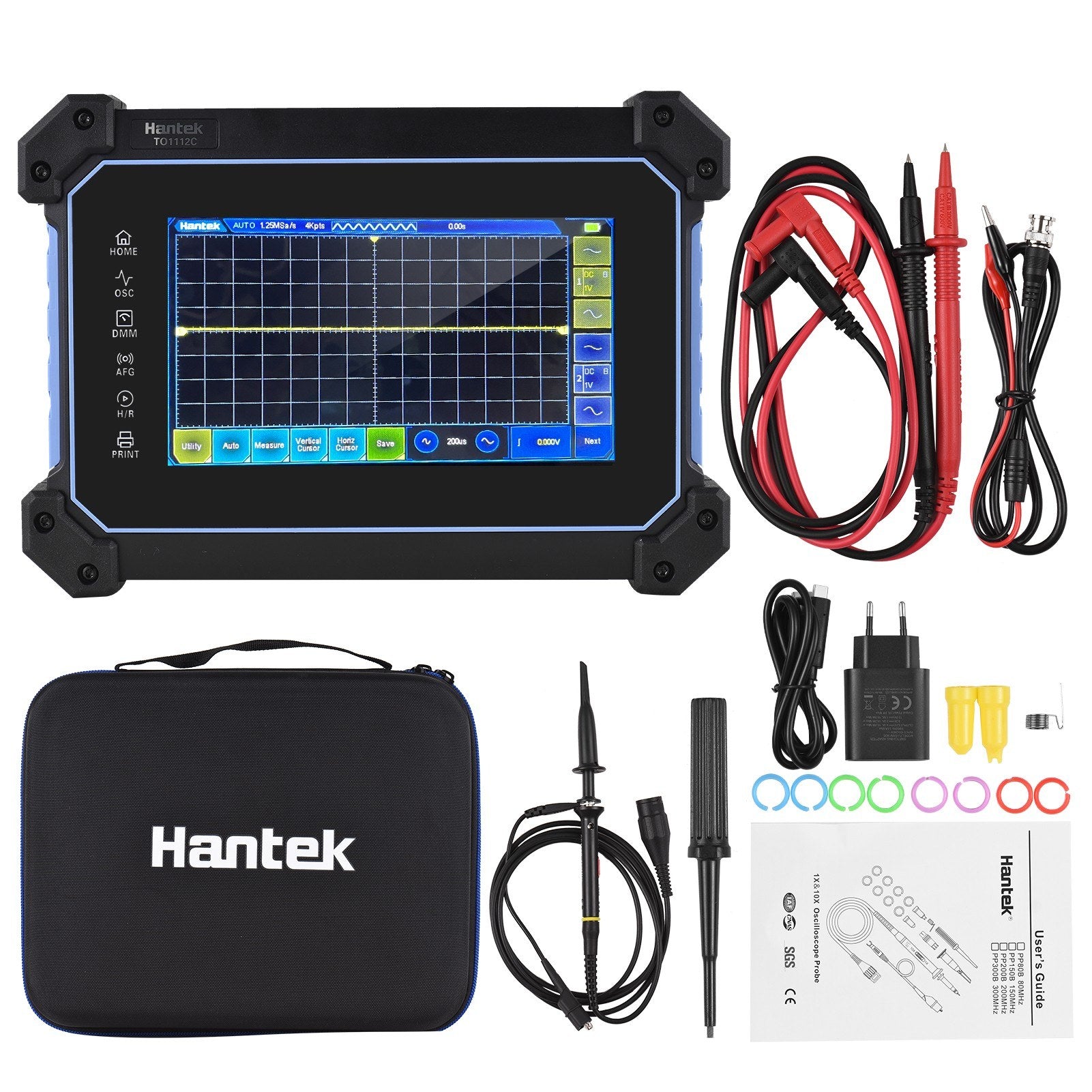

Package Includes:

• 1 x Digital Oscilloscope
• 1 x 1X & 10X Oscilloscope Probe
• 1 x Alligator Clip Line
• 1 x Type-C Cable
• 1 x Plug
• 1 x Package of Accessory
• 2 x Multimeter Probe
• 1 x Zipper Case
