LCR-ST1 Tweezers

Key Features

• Advanced Measurement Capabilities: The LCR-ST1 Tweezers offer advanced measurement for a variety of parameters including capacitance, inductance, resistance, and diode testing. With high-precision measurement ranges from 1mF to 22mF (capacitance), 1pH to 10H (inductance), and 10mΩ to 10MΩ (resistance), it ensures accurate results for professionals and hobbyists alike.
• Portable and Lightweight Design: These tweezers are compact with dimensions of 28×19×150mm and weigh just 41g, making them perfect for on-the-go use or fieldwork. The ergonomic design enhances comfort for extended use.
• High-Resolution Display: A 1.14'' color screen provides clear and detailed readings, even in low light. The intuitive user interface simplifies navigation through measurement modes and settings, boosting workflow efficiency.
• Rechargeable and Eco-friendly: Featuring a built-in 250mAh lithium battery rechargeable via USB Type-C, this device reduces maintenance costs and environmental impact. Enjoy extended operation with a single charge.

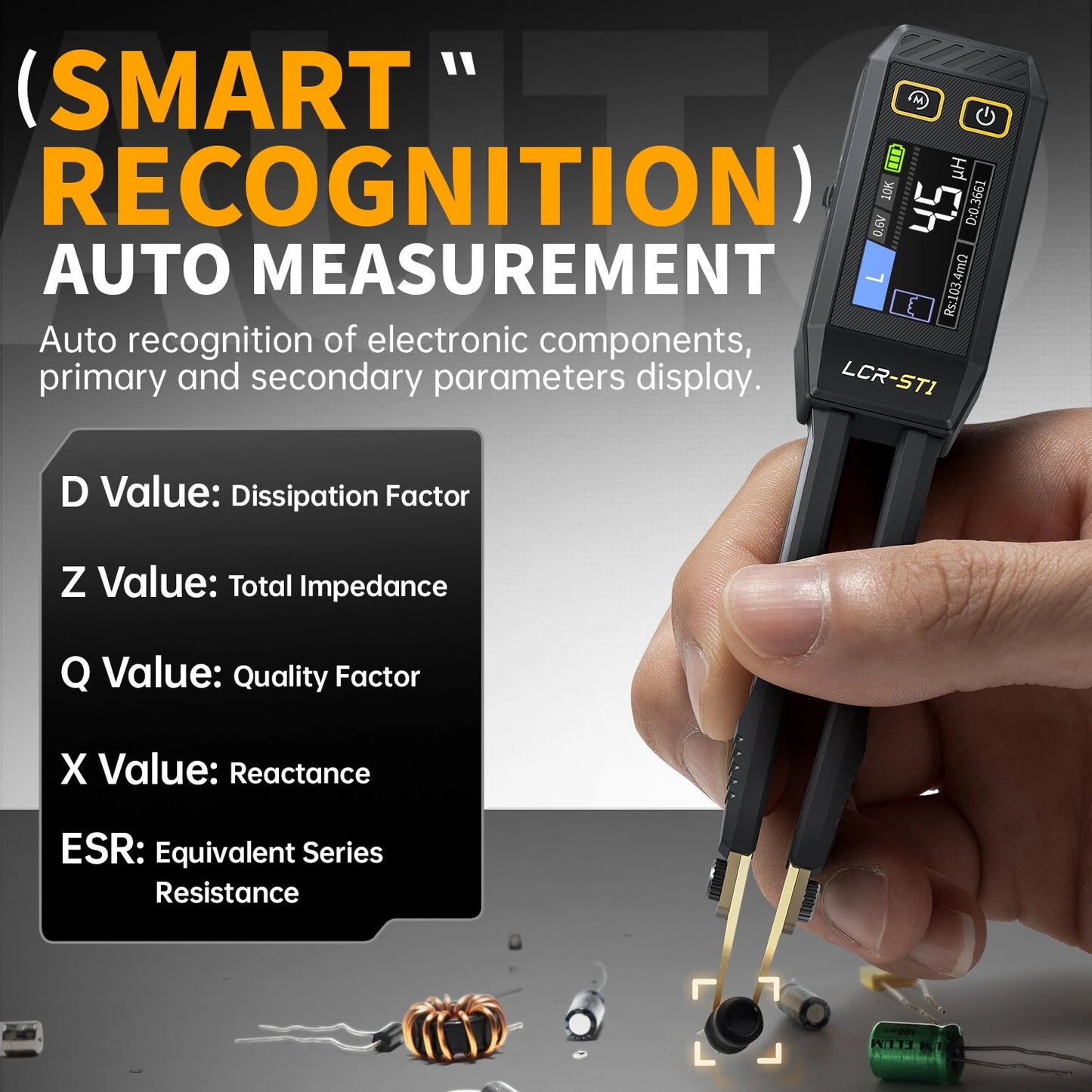

• Smart Auto-range Functionality: Automatically selects the appropriate measurement range for optimal accuracy, simplifying the measurement process and reducing setup time.

Specifications

• Product Model: LCR-ST1
• Display: 1.14'' color screen

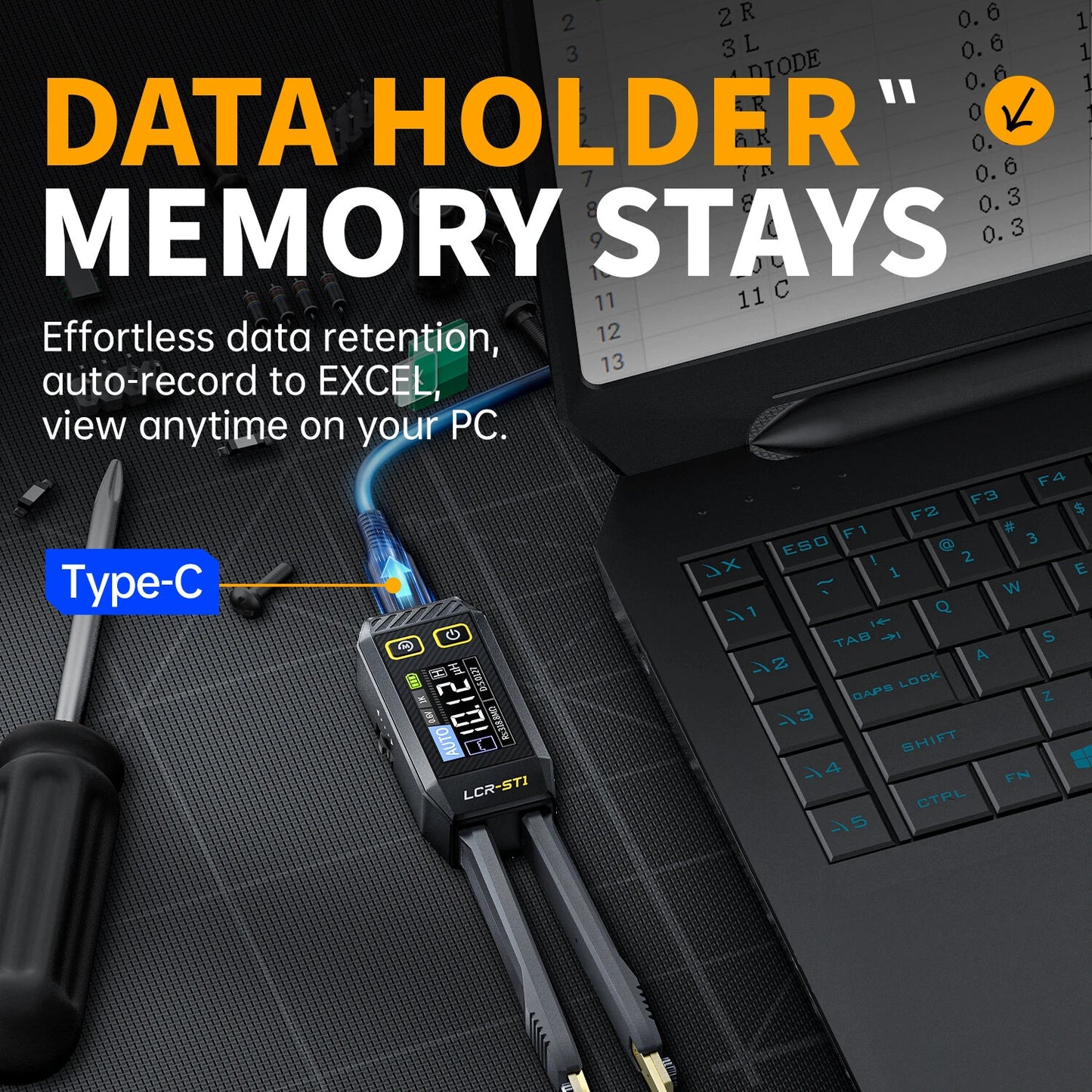

• Charging Interface: USB Type-C, 5V/A
• Power Supply: 250mAh lithium battery
• Dimensions: 28×19×150mm
• Weight: 41g
• Measurement Ranges:
  • Capacitance: 1mF~22mF (5%±3), 1uF~1mF (2%±3), 1nF~1uF (2%±3), 1pF~1nF (2%±3)
  • Inductance: 1H~10H (5%±3), 1mH~1H (2%±3), 10uH~1mH (2%±3), 1uH~10uH (2%±3)
  • Resistance: 1MΩ~10MΩ (5%±3), 1kΩ~1MΩ (1%±3), 1Ω~1kΩ (1%±3), 10mΩ~1Ω (2%±3)
  • Diode: On voltage 0.7V

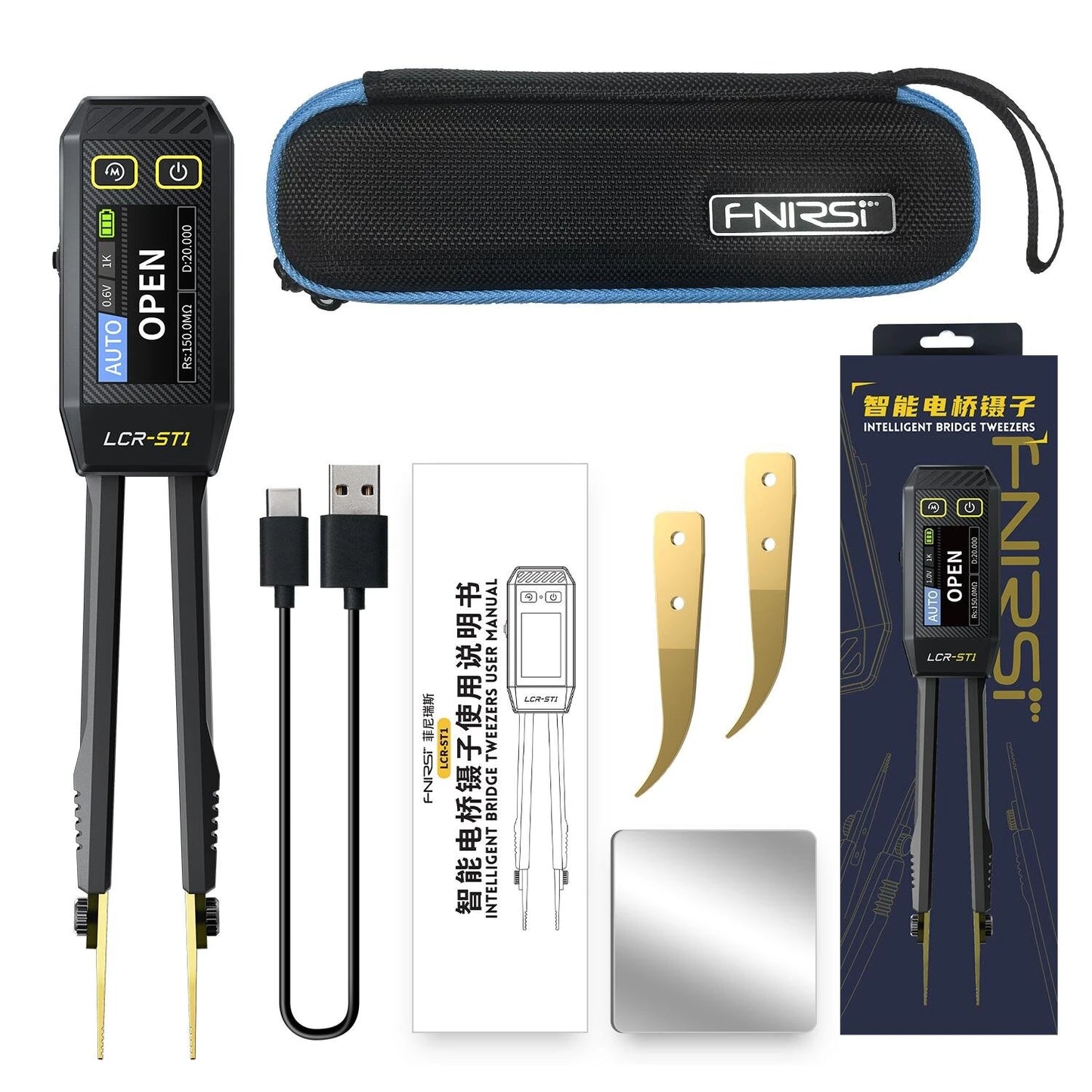

Package Includes

• 1 x LCR-ST1 Tweezers

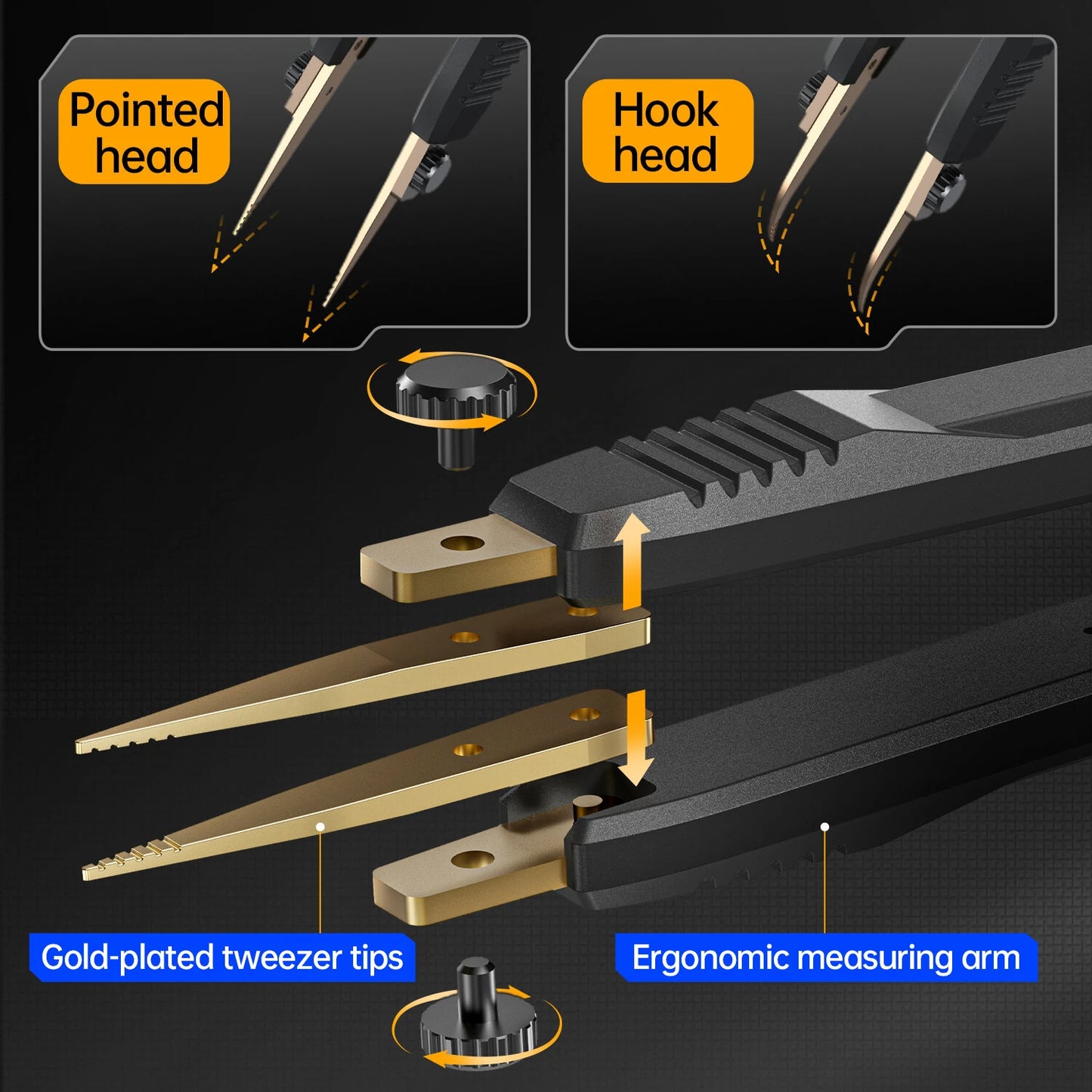

• 2 x Hook head (one pair)
• 1 x Magnetic patch
• 1 x USB data cable
• 1 x User manual
• 1 x Packing box
