WANPTEK 300W Lab Bench Power Supply 30V 10A / 60V 5A Adjustable Digital Voltage Stabilizer

Description:

The WANPTEK Lab Bench Power Supply offers a high-performance 300W Laboratory Switching Power Supply Unit. With adjustable digital source capabilities, it supports up to 30V 10A and includes a voltage stabilizer for 60V 5A configurations. Designed in a sleek black finish, it comes with a convenient EU plug.

Features:

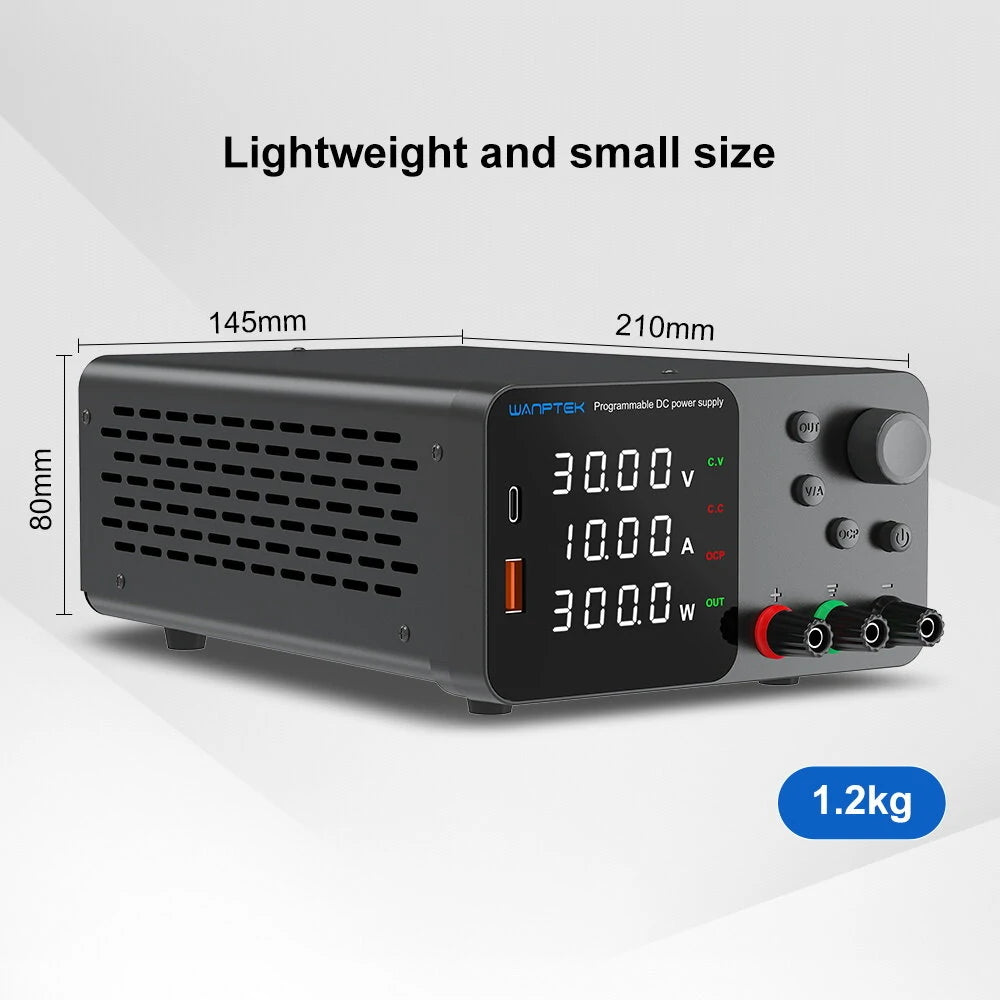

• Compact size and lightweight with high power density.
• Automatic switch between constant voltage and constant current.
• High precision LED display shows voltage, current, and power.
• Voltage and current are continuously adjustable with fine and coarse regulation.
• Equipped with over-voltage, over-current, and over-temperature protection.
• Temperature-controlled fan cooling for low noise and extended lifespan.
• Dual voltage input for flexible operation.
• Continuous adjustment from 0 to rated voltage and current.
• Operates with AC 110V and 220V input.
• Easy voltage and current one-key conversion regulation.
• Built-in cooling fan activates when temperatures exceed 50℃.
• Certified by FCC and CE.

Specifications:

• Output Power: 150W/300W/360W
• Output Voltage: 0~30V/60V/120V
• Output Current: 0~3A/5A/10A
• Input Voltage: AC 230V/115V±10%; 50Hz/60Hz
• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -10℃ to 70℃
• Voltage Stability: 0.1%±3mV with load stability at 0.2%±3mV
• Ripple Voltage: ≤0.5% Vp-p
• Current Stability: 0.1%±3mA with load stability at 0.2%±3mA
• Ripple Current: ≤0.5% Vp-p
• Recovery Time: ≤500μS
• Temperature Coefficient: ≤100ppm/℃

Display:

• High-resolution LED digital display
• Display accuracy of 0.5%±digits
• Display resolution: Voltage 0.01V, Current 0.001A
• Four-digit precision: 0.01 V/0.001 A

Included Models:

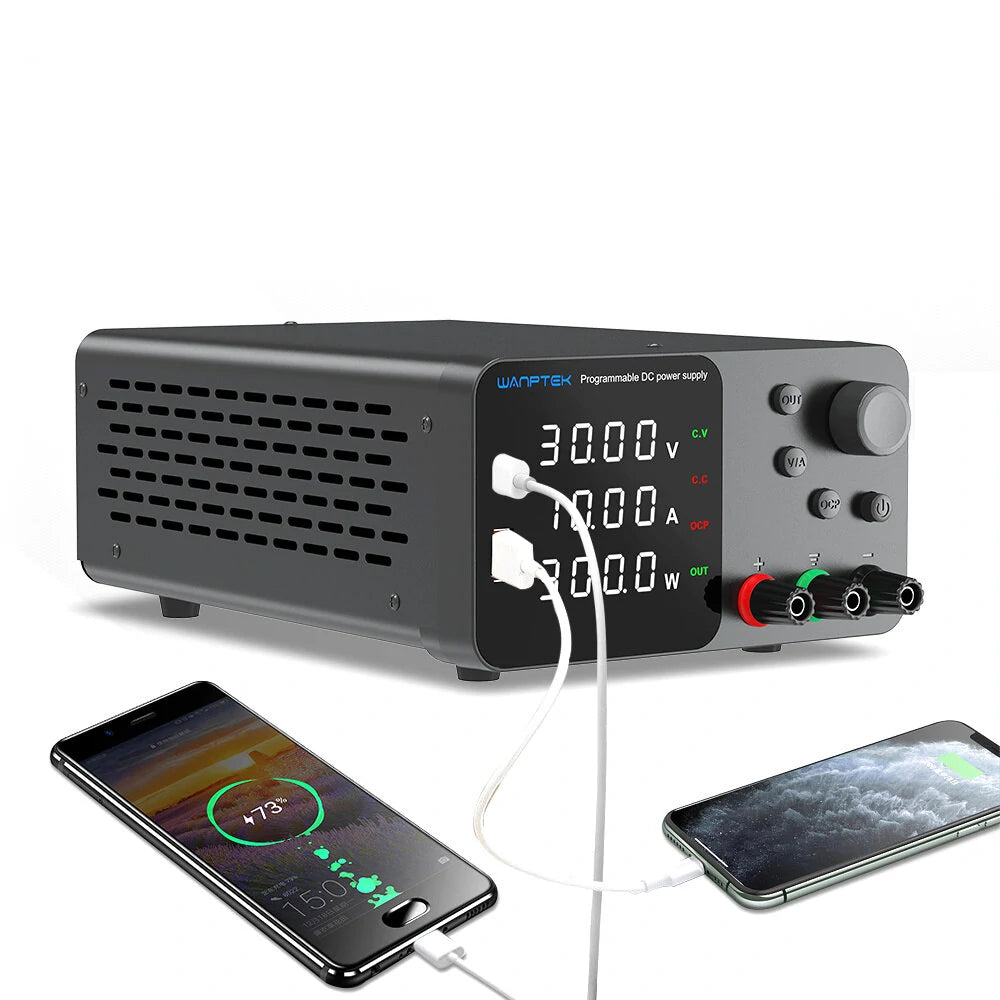

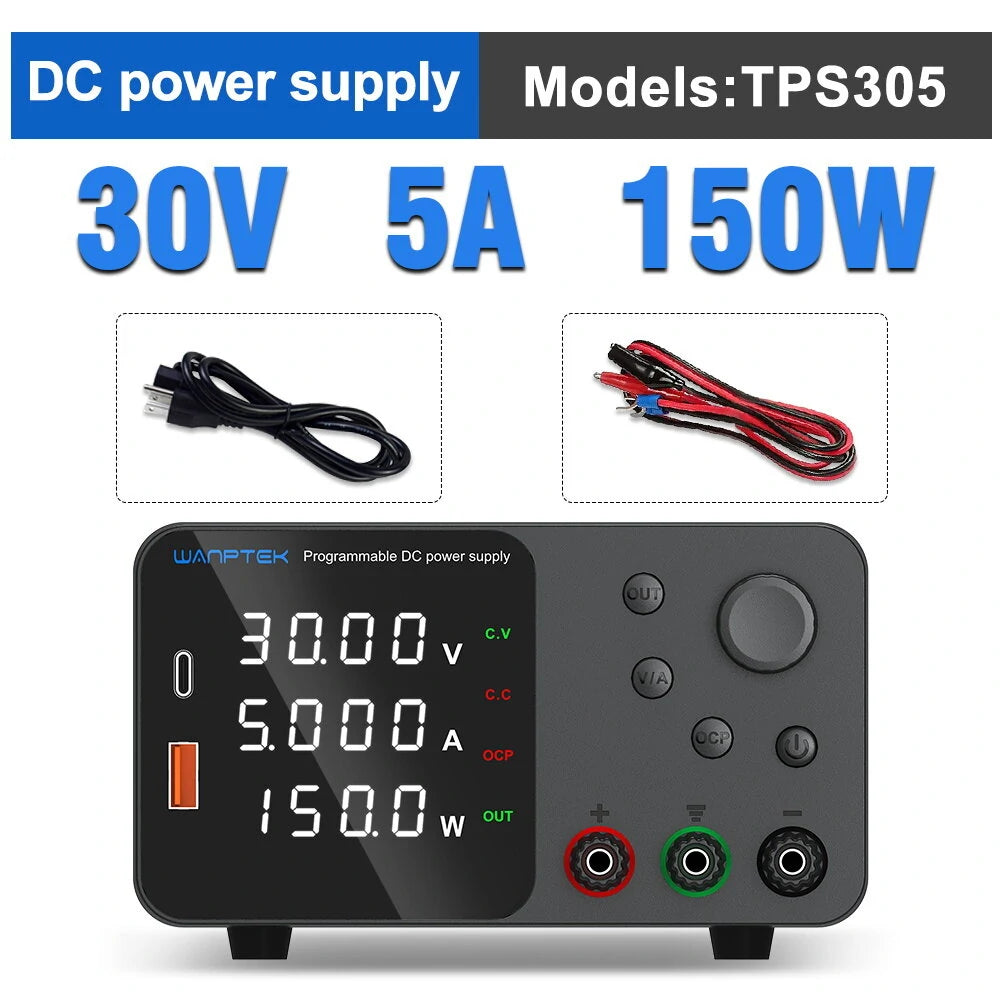

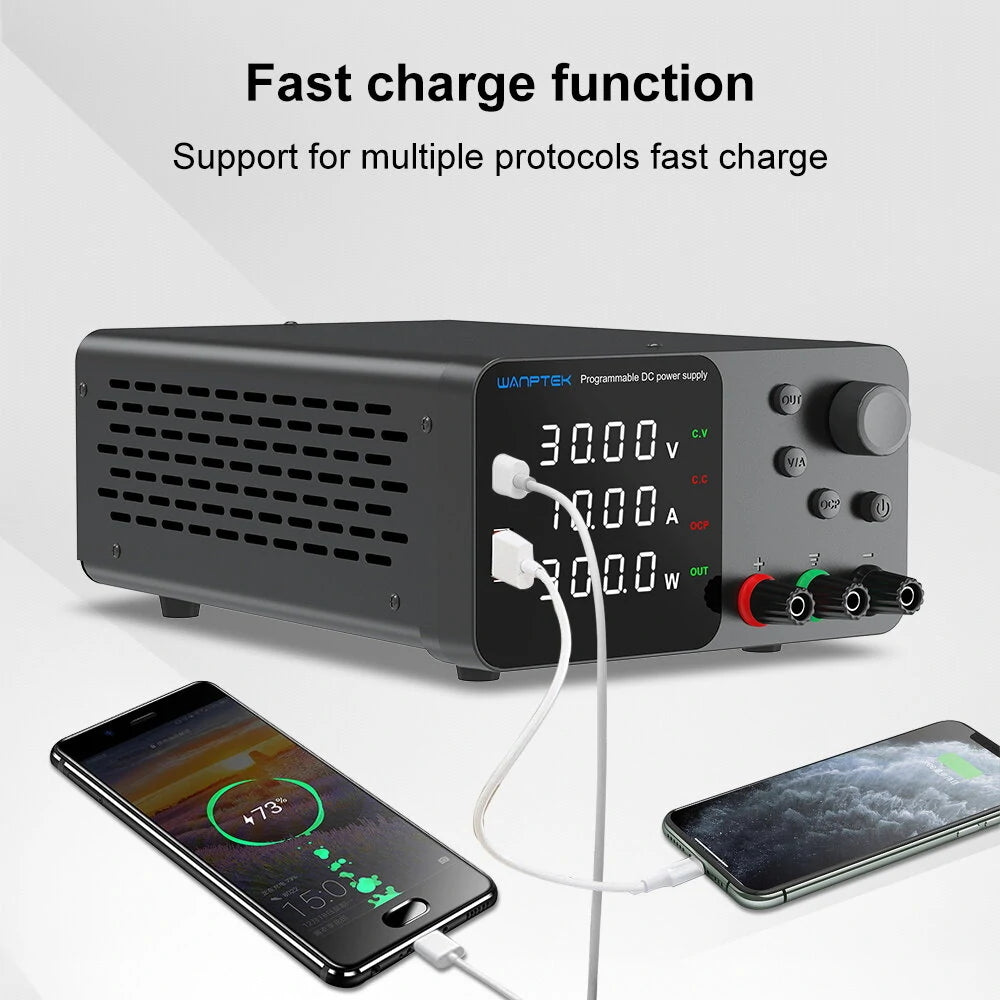

• USB-A/USB TYPE-C TPS305 Encoder adjustment DC power supply

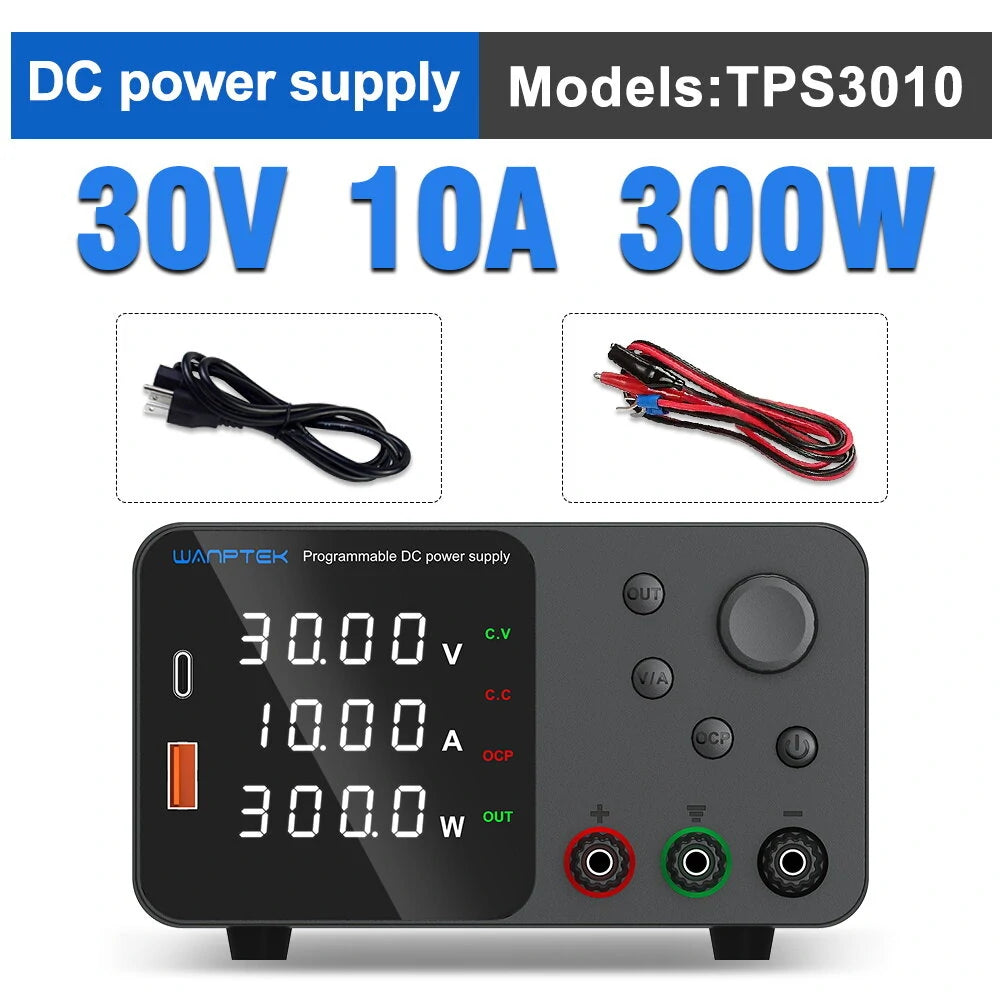

• USB-A/USB TYPE-C TPS3010 Encoder adjustment DC power supply

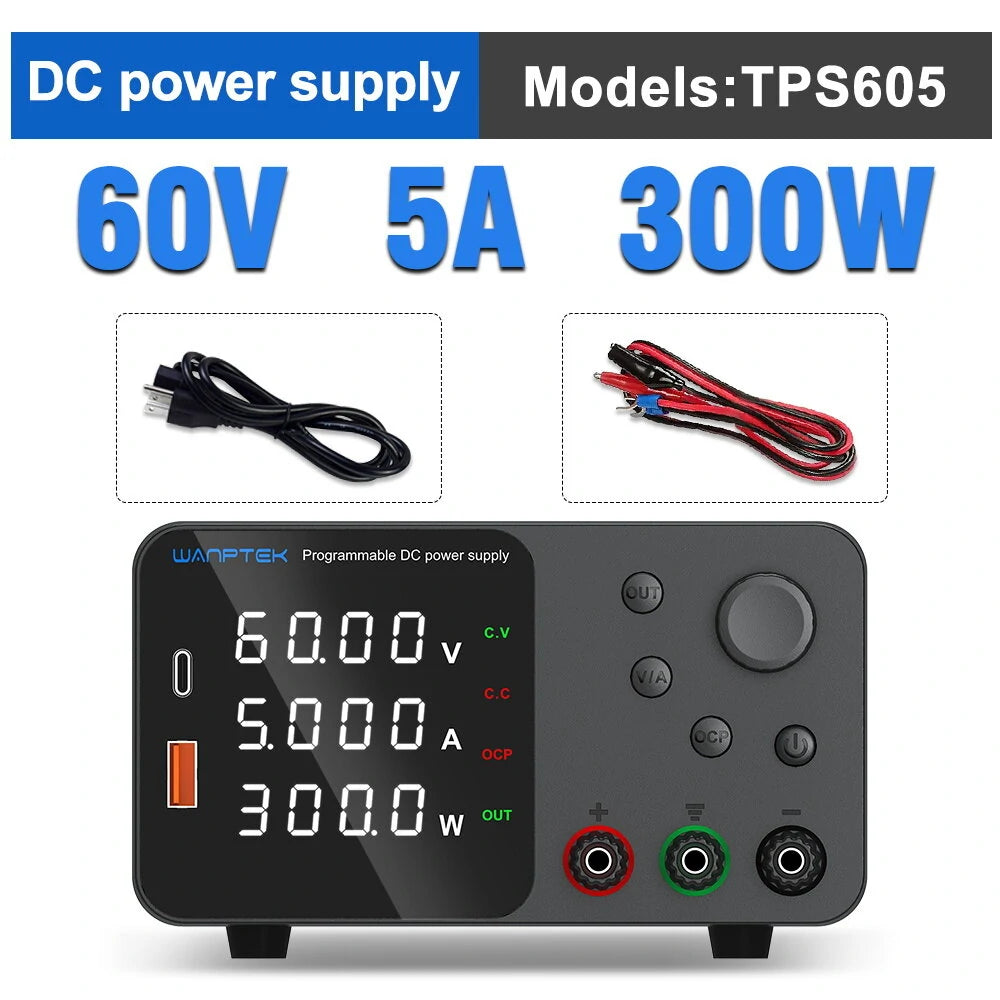

• USB-A/USB TYPE-C TPS605 Encoder adjustment DC power supply

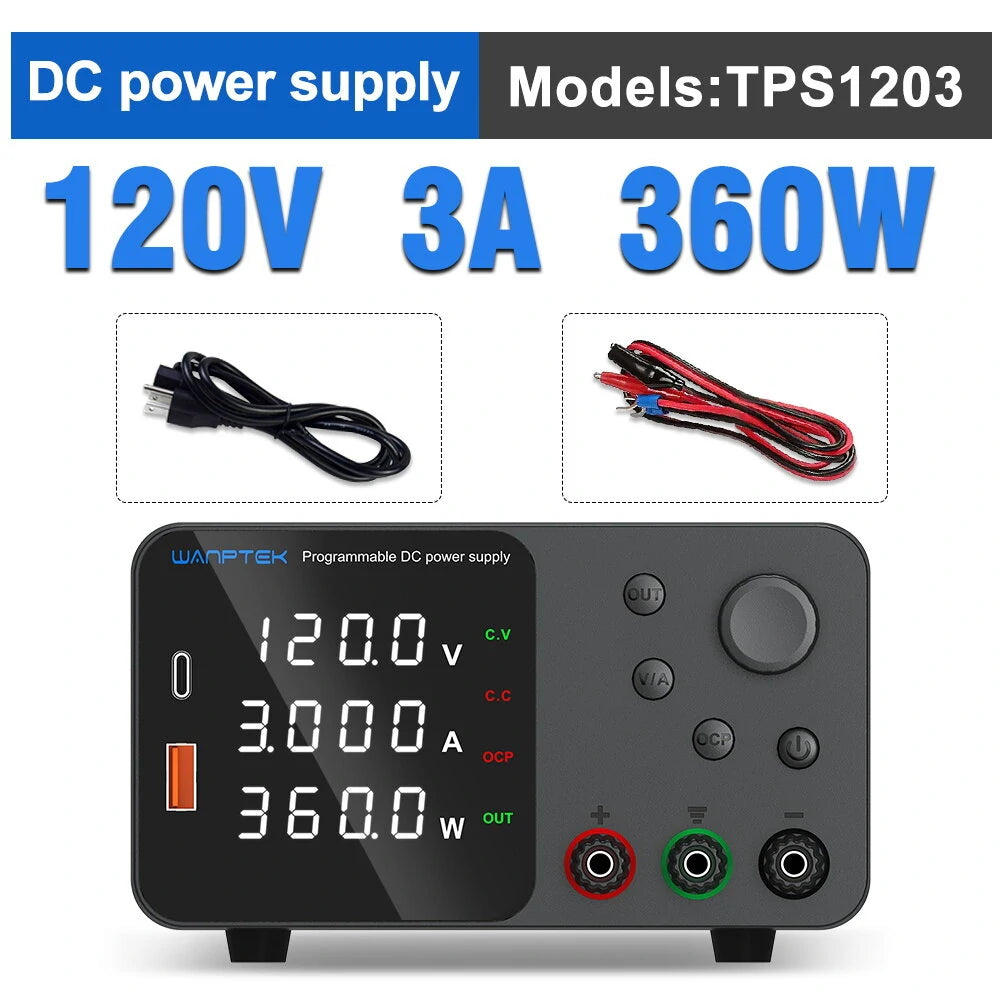

• USB-A/USB TYPE-C TPS1203 Encoder adjustment DC power supply

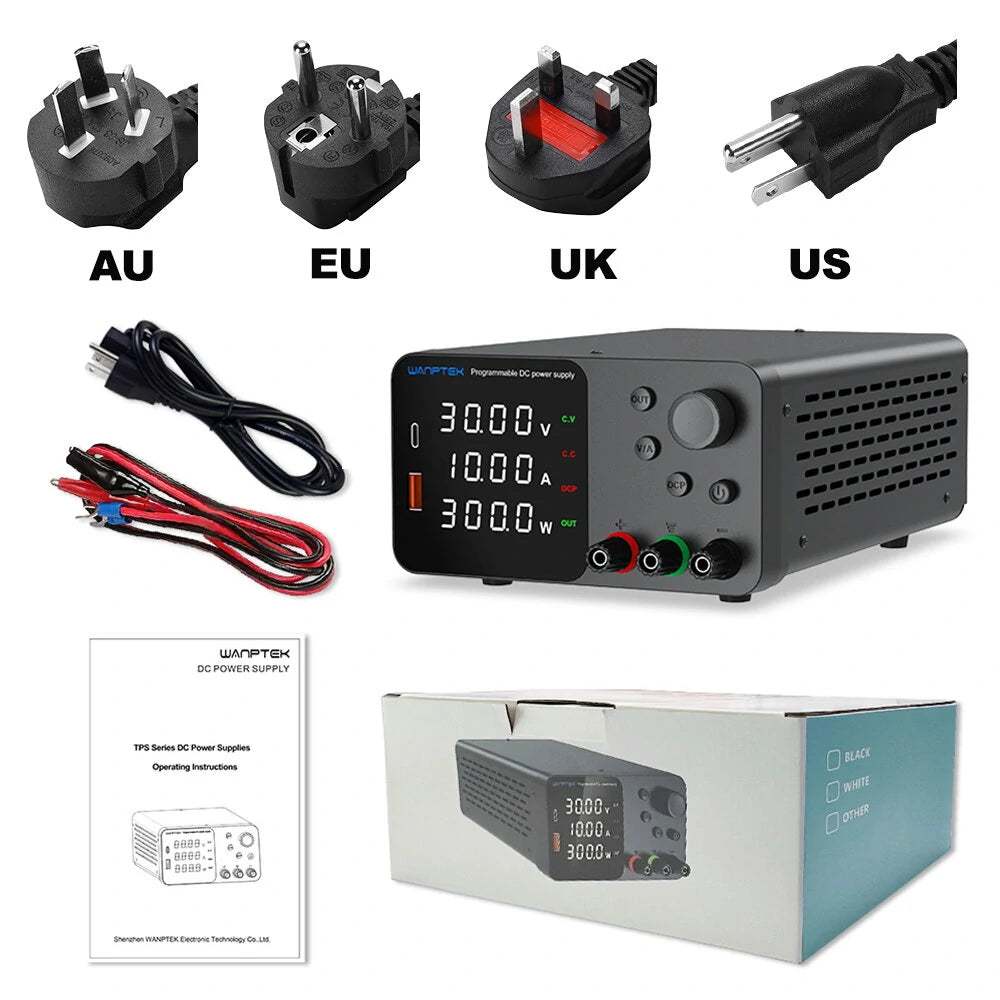

Package Includes:

• 1x DC power supply (model as selected)
• 1x Power cord
• 1x Test line
• 1x Instruction manual
