NanoVNA-H Vector Network Analyzer 50kHz–1.5GHz 2.8" LCD Antenna Analyzer Kit

NanoVNA-H Portable Vector Network Analyzer – 50kHz to 1.5GHz

The NanoVNA-H is a compact, rechargeable vector network analyzer designed for RF testing, antenna tuning, impedance measurement, and electronic engineering applications. Featuring a 2.8-inch color touchscreen, dual SMA ports, and a measurement range of 50kHz to 1.5GHz, this portable VNA provides essential network analysis functions in a convenient handheld design.

With an integrated 400mAh rechargeable battery, USB Type-C connectivity, MicroSD support, and an included SMA calibration kit, it is suitable for amateur radio enthusiasts, electronics technicians, RF experimenters, and educational laboratories.

Key Features

• Wide Frequency Coverage: 50kHz to 1.5GHz measurement range for a variety of RF applications.
• 2.8-Inch Color Touchscreen: 320 × 240 TFT display for viewing measurement traces and Smith charts.

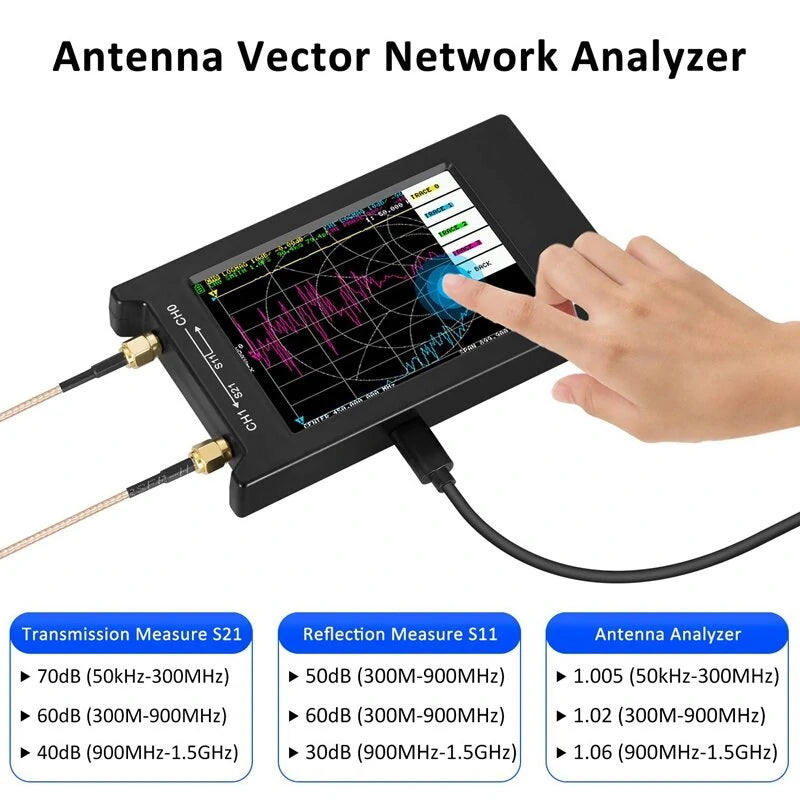

• Dual-Port RF Analysis: Measure S11 and S21 parameters for antenna and network testing.
• Antenna & SWR Testing: Evaluate antenna matching, reflection characteristics, and standing wave ratio.
• Smith Chart Display: Visualize complex impedance and matching behavior.
• Built-In Rechargeable Battery: Integrated 400mAh battery for portable operation.
• USB Type-C Connection: Supports charging and USB CDC serial communication.
• MicroSD Support: Supports MicroSD cards up to 32GB in SPI mode for storing measurement data.
• RTC Support: Includes real-time clock functionality.
• Complete Calibration Accessories: Includes SMA open, short, and load calibration standards.

Technical Specifications

Applications

• Amateur radio antenna tuning and SWR measurement
• RF cable and transmission line testing
• Impedance matching and Smith chart analysis
• RF filter and passive component characterization
• Electronics education and laboratory experiments
• Portable RF troubleshooting and field measurements

Package Includes

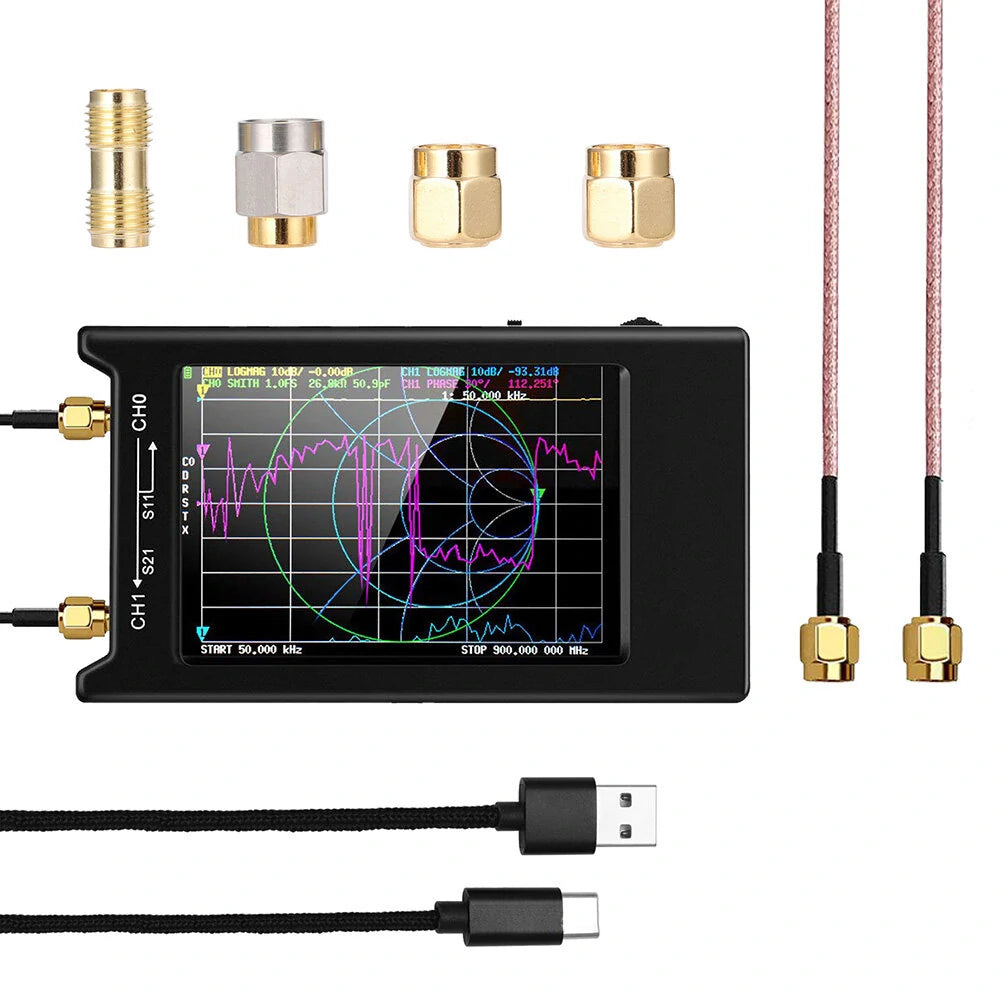

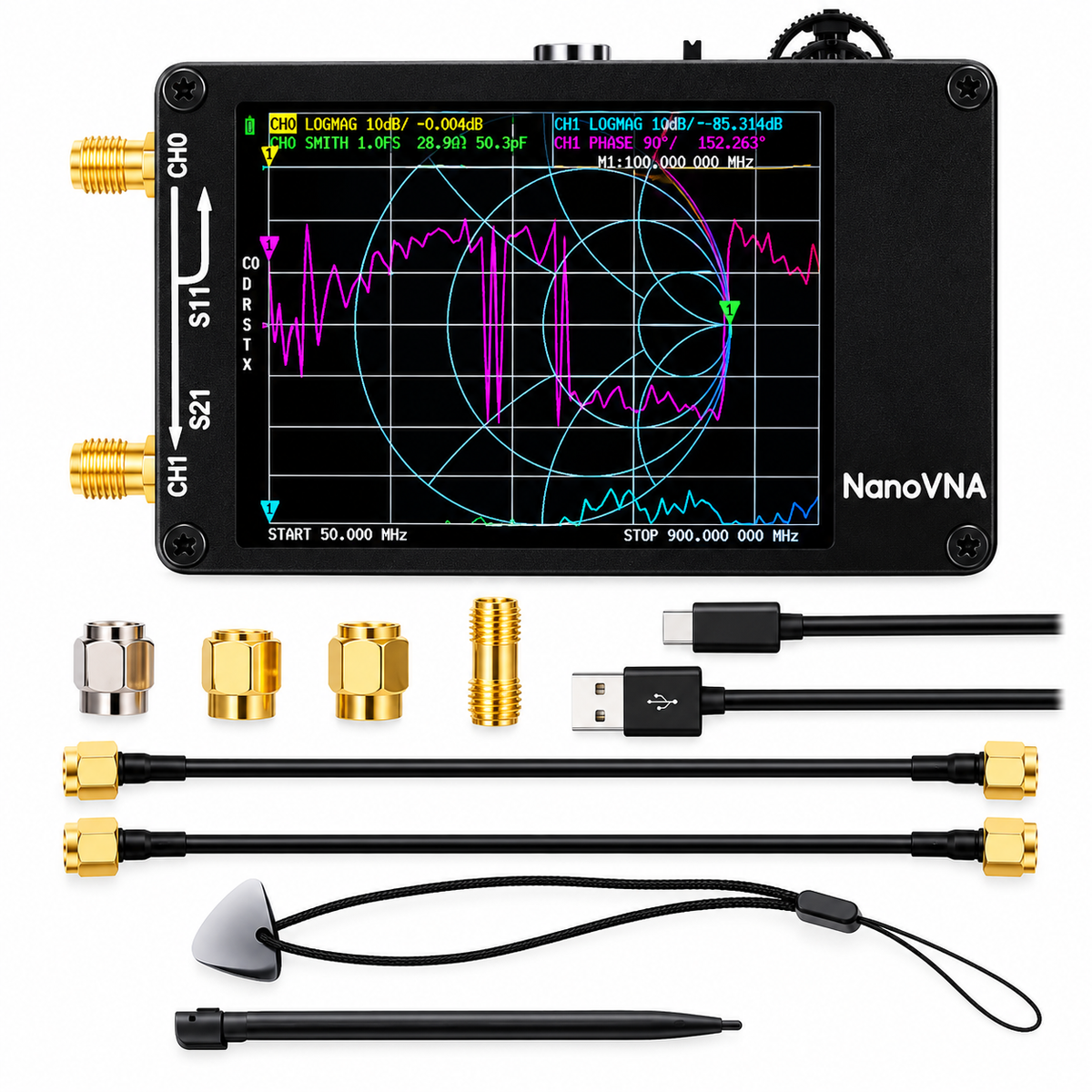

• 1 × NanoVNA-H Vector Network Analyzer
• 2 × 20cm SMA Male-to-Male RG174 RF Cables
• 1 × USB Type-C Data Cable
• 1 × SMA Calibration Load Standard
• 1 × SMA Calibration Open Standard
• 1 × SMA Calibration Short Standard
• 1 × SMA Female-to-Female Adapter
• 1 × Touchscreen Stylus
• 1 × Wrist Strap
• 1 × User Manual

Important Note: The frequency range and performance figures are based on the supplier's specifications. Measurement accuracy and dynamic range may vary with operating frequency, calibration, and test conditions. For best results, perform the appropriate calibration before measurement.
