Rechargeable Handheld IR Thermal Camera, 120x90 Resolution, 2.8 LCD, 50Hz, 32GB SD, 2m Drop Proof

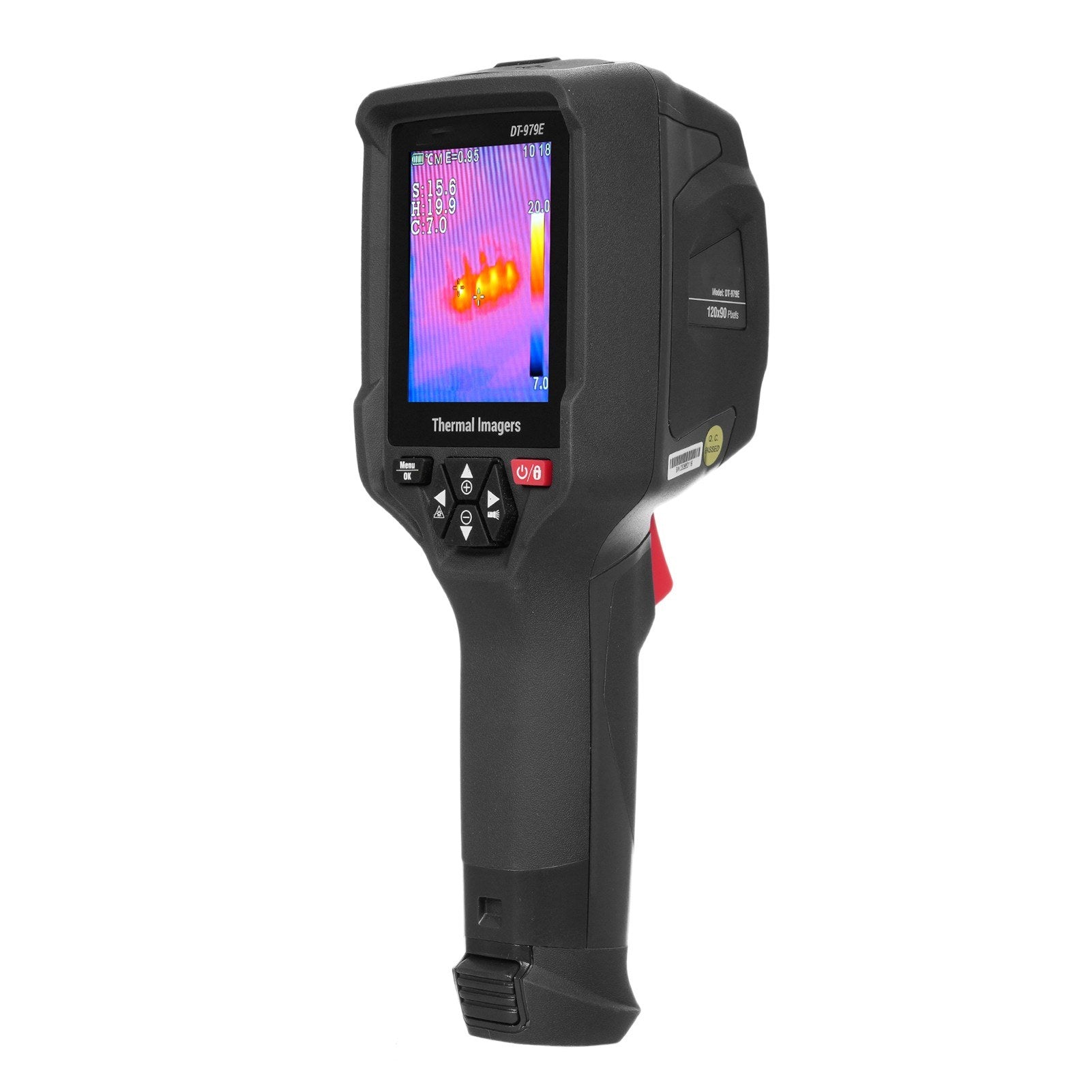

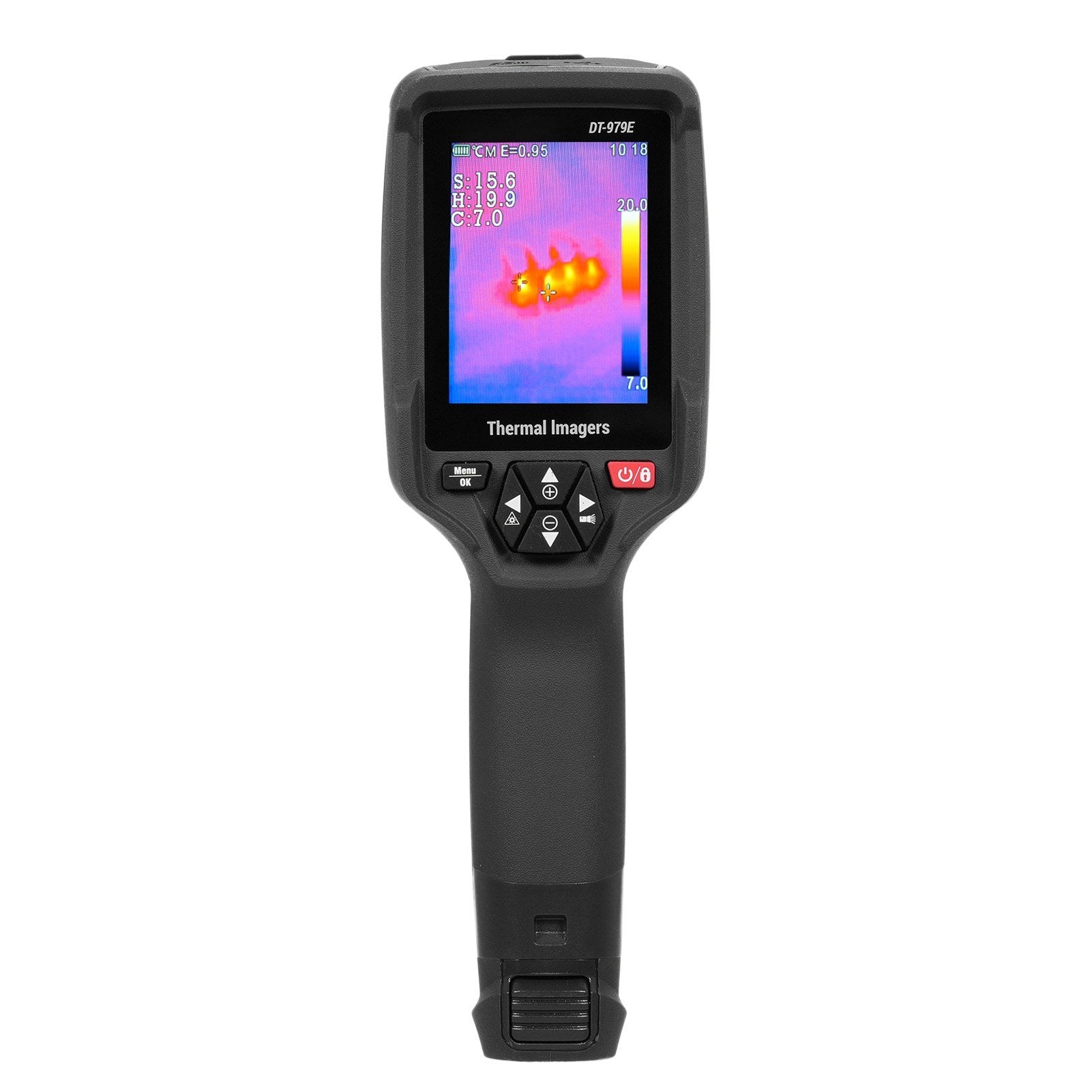

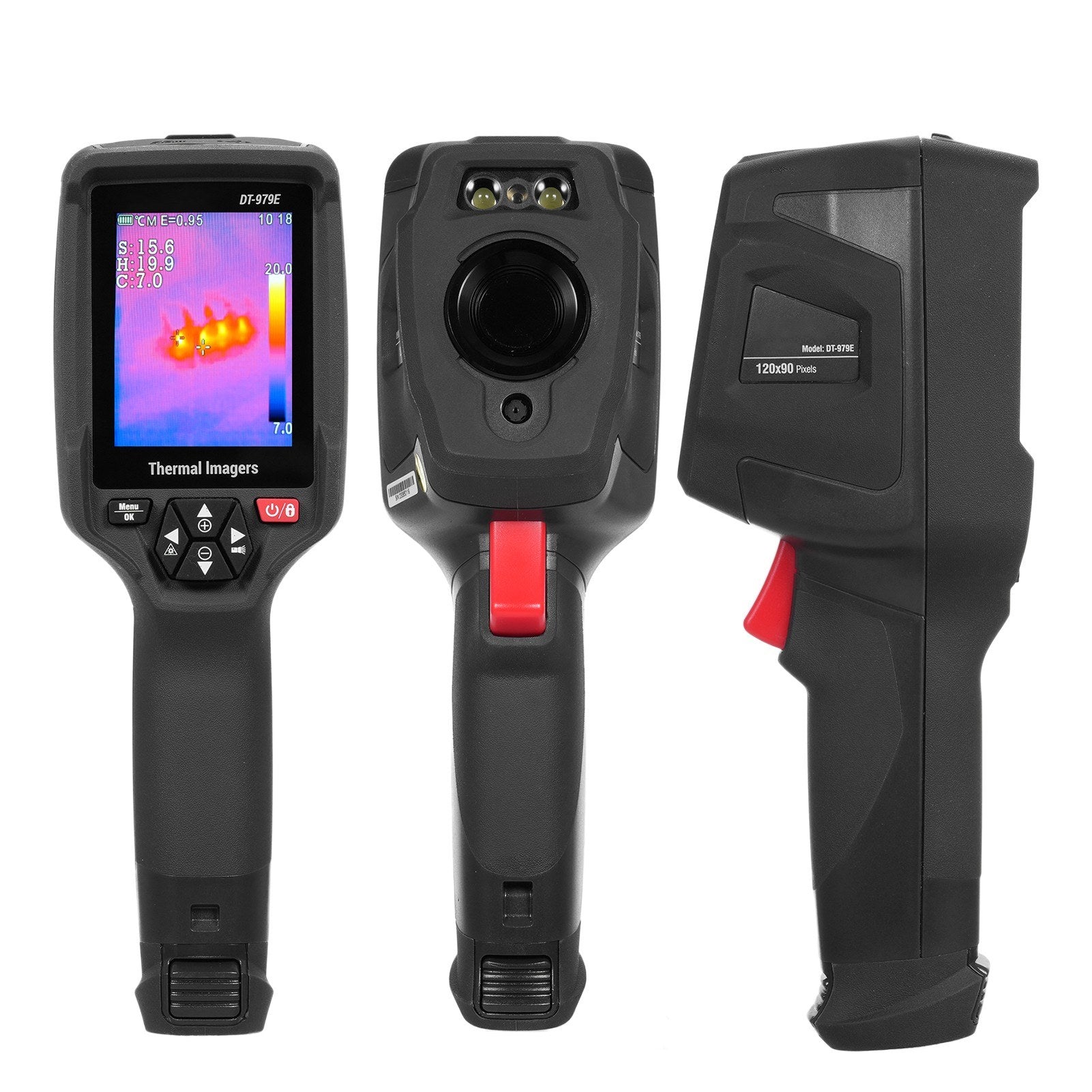

Handheld Infrared Thermal Imager

Our handheld infrared thermal imager is an essential tool for predictive maintenance, equipment troubleshooting, and confirming equipment functionality. View both infrared and visible images on the LCD screen and save your images on an SD card for easy transfer to a computer or smart device using the "ThermoviewPro" app. Additionally, record and play functionality enhances versatility.

Key Features

• Automatic Calibration: Experience precise infrared thermal imaging with automatic temperature tracking for the highest, lowest, and center temperatures.
• Image Fusion Alignment: Adjust the field of view for enhanced image clarity and accuracy.

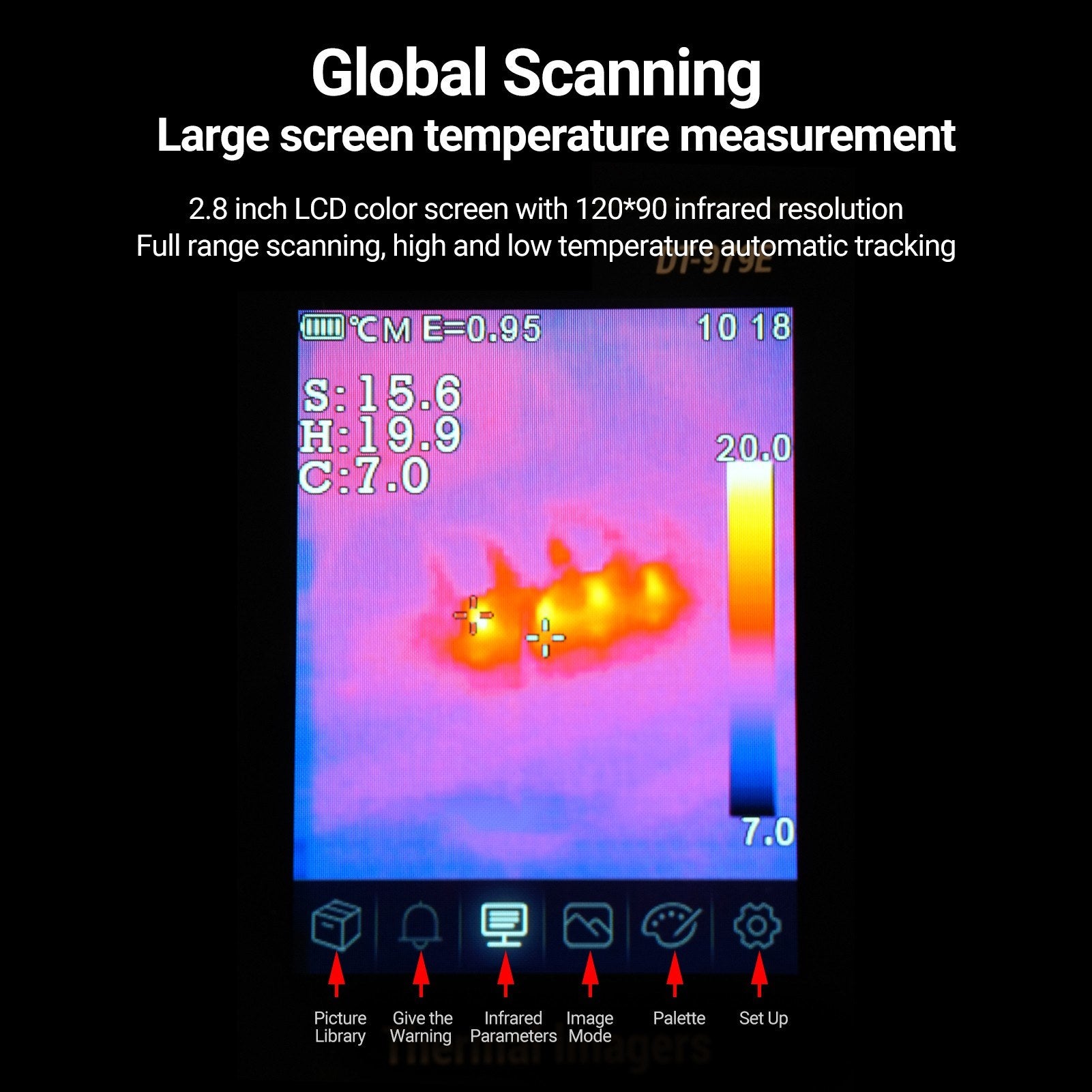

• Global Scanning Large Screen Temperature Measurement: Equipped with a 2.8-inch LCD color screen and 120x90 infrared resolution for comprehensive scanning and temperature tracking.
• 8 Color Palettes Switch: Customize imaging with 8 pseudo color palettes to suit various scenarios or user preferences.

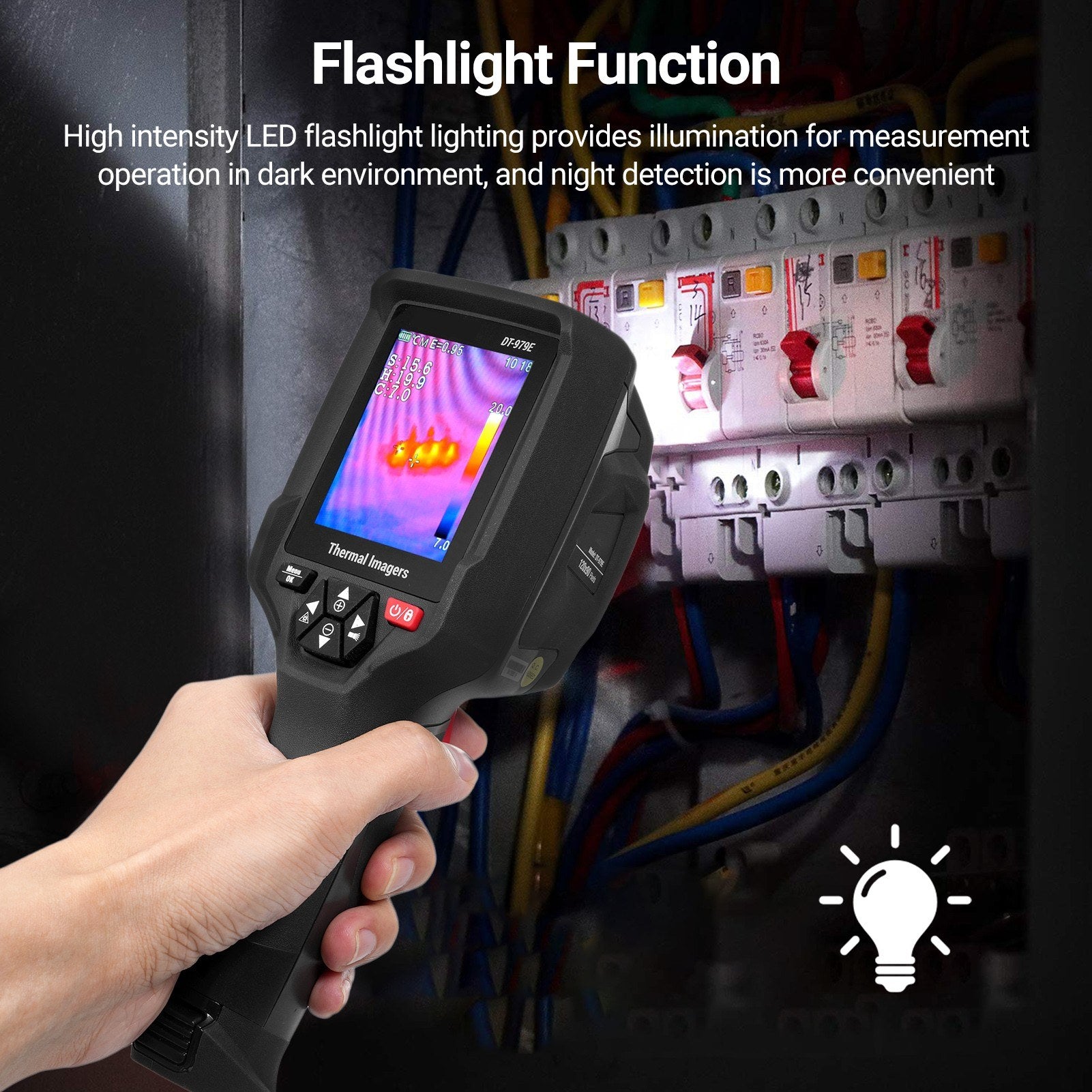

• Flashlight Function: High-intensity LED flashlight for effective operation in dark or nighttime conditions.

Application Scenarios

The infrared thermal imager is perfect for predictive maintenance, equipment troubleshooting, and ensuring proper equipment operation.

Specifications

• Model: DT-979E
• Material: ABS
• Optical Parameters: 50°x37° field angle, 0.5m minimum focus distance
• Thermal Sensitivity: <0.05℃@+30℃(+86℉) / 50mK
• Image Frame Rate: 50Hz
• Focus Mode: Manual
• Detector Type / Wavelength: Uncooled microbolometer / 8-14μm
• Infrared Resolution: 120x90 pixels
• LCD Display: 2.8 inch color LCD, 240x320 pixels
• Image Modes: Infrared light, visible light, fusion
• Color Palettes: Iron red, rainbow, white heat, black heat, brown heat, blue-red, hot-cold, feather

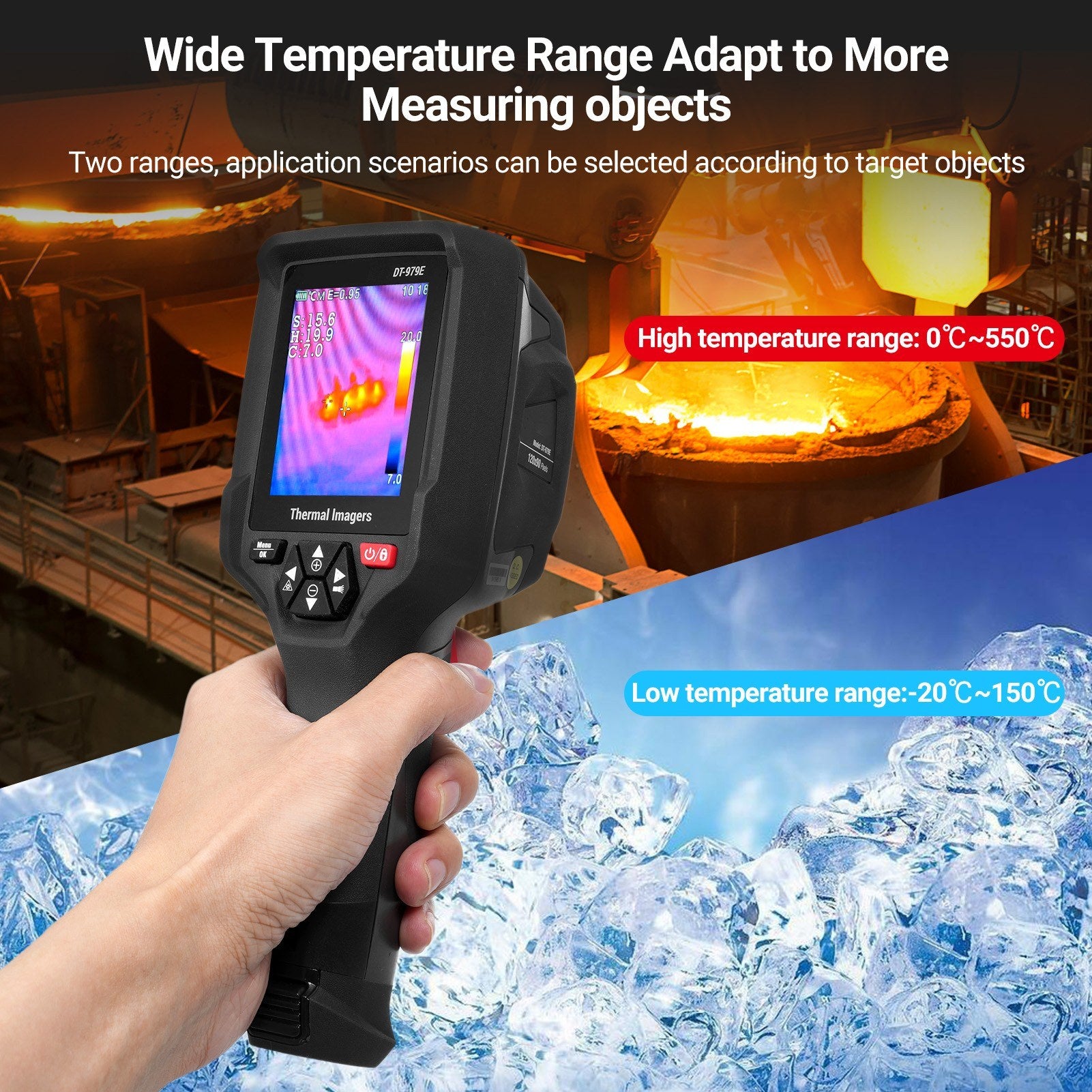

• Temperature Measurement Range: -20℃~150℃ (-4℉~302℉) and 0℃~550℃ (32℉~1022℉)
• Accuracy: ±2℃(±3.6℉) or 2% of reading (10℃~35℃ ambient, object >0℃)
• Storage Medium: 8GB Micro SD card, 3.4GB internal EMMC
• Video Format: MPEG-4, 240x320@30fps, over 60 minutes
• Image File Format: JPEG or HIR, with measurement data for over 6,000 pictures
• Built-in Digital Camera: 2 megapixels
• Data Communication: USB Type-C, WiFi 802.11
• Battery: Rechargeable lithium, up to 4-hour duration
• Operating Temperature Range: -15℃~50℃ (5℉~122℉)
• Dimensions: 230*70*100mm / 9.05*2.75*3.94in
• Weight: 421g / 0.93lb

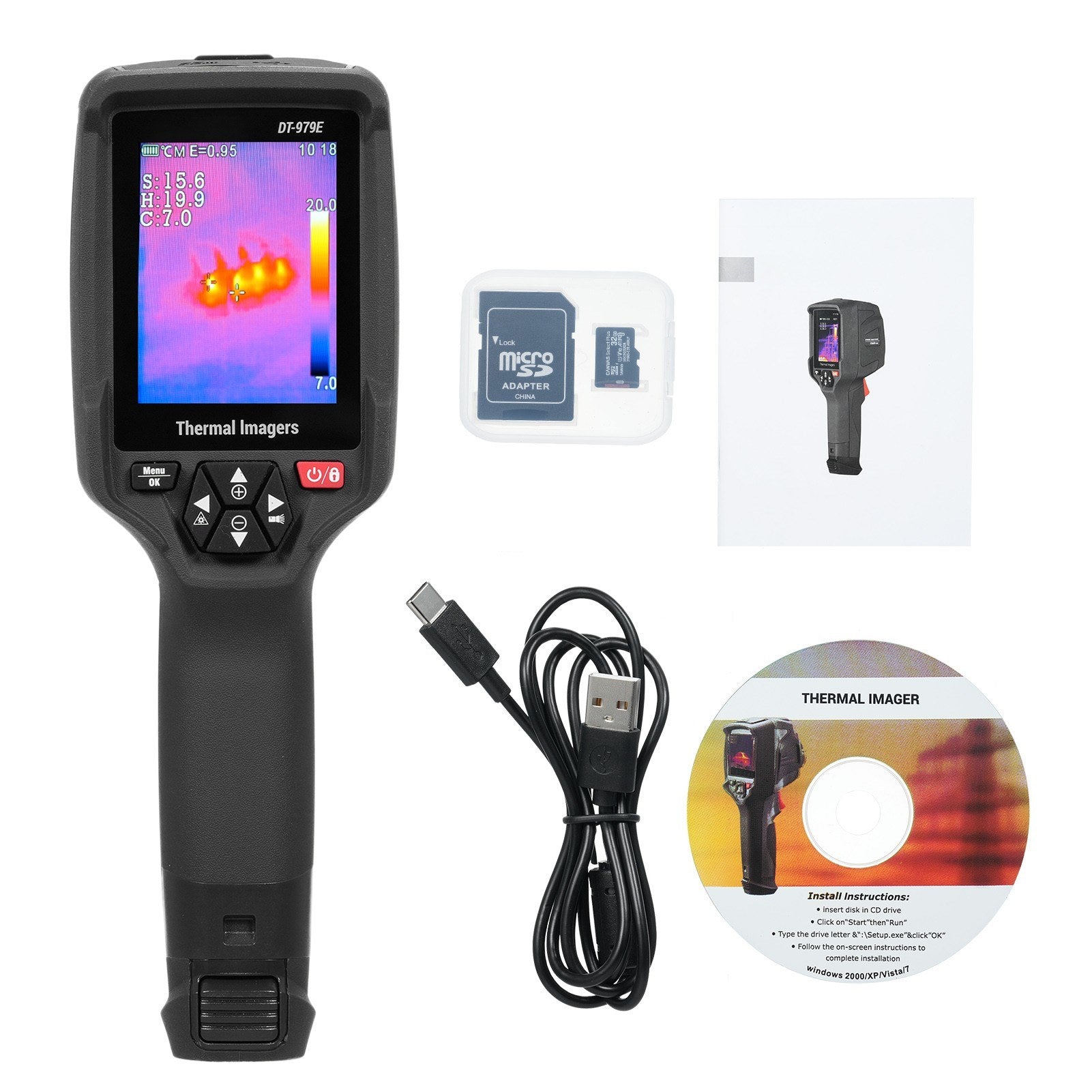

Package Includes

• 1 x Thermal Imager
• 1 x Type-C USB Cable
• 2 x SD Cards
• 1 x CD
• 1 x User Manual (English)
