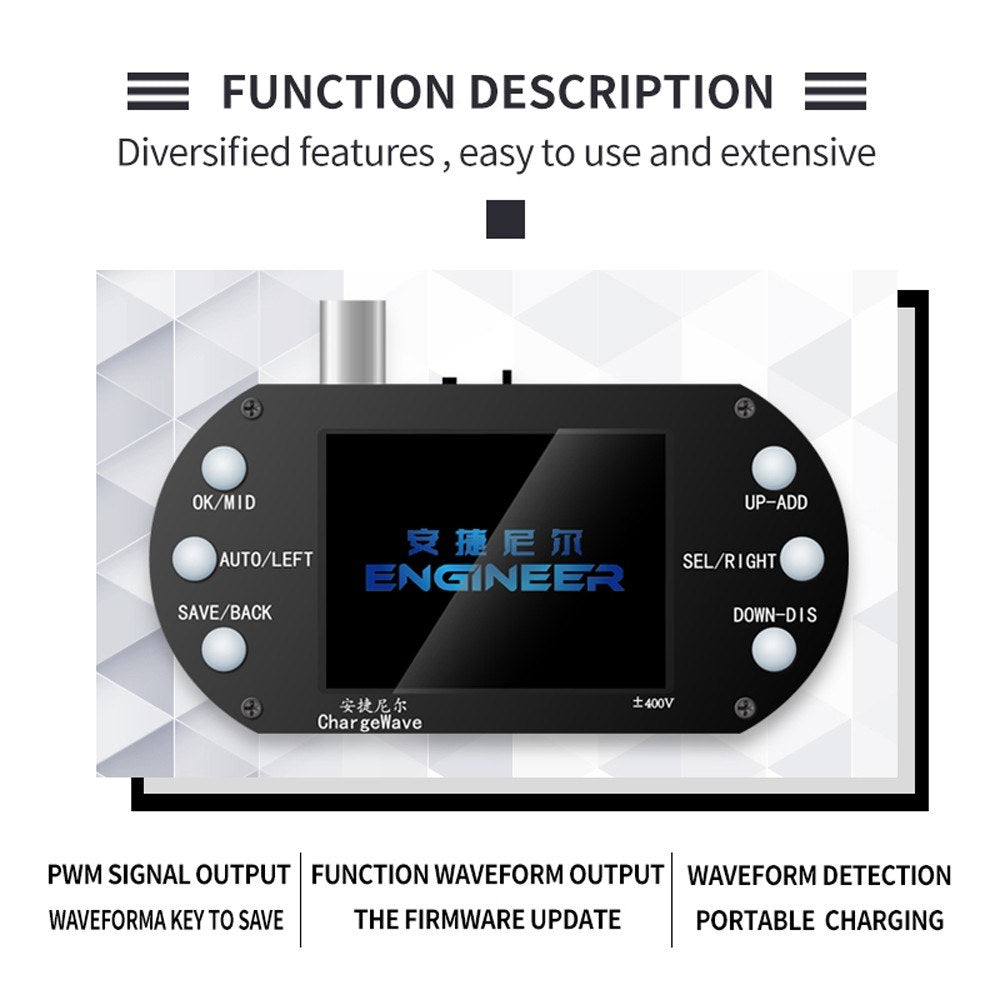

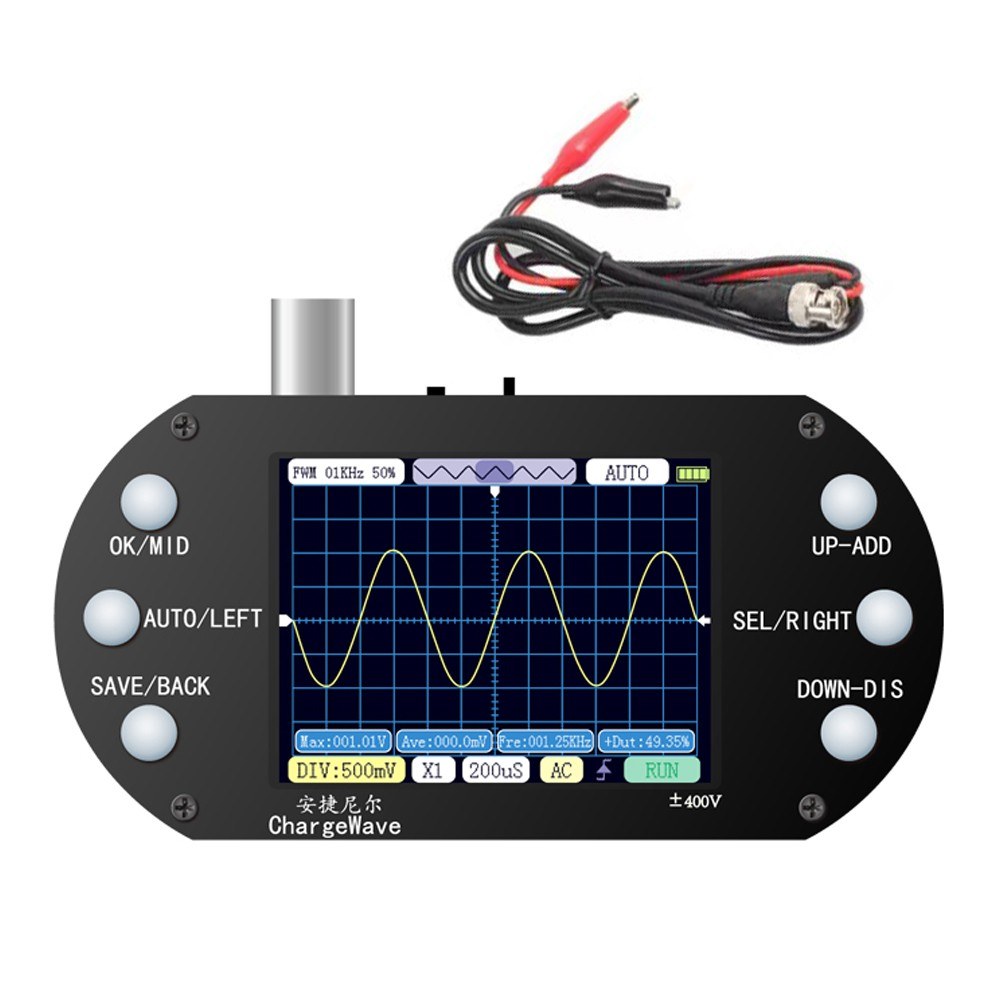

Portable Handheld Oscilloscope - 2.4 TFT Display, 320x240 Resolution, 2.5MHz Sample Rate, 500KHz Bandwidth

Discover the power of precision with our Handheld Oscilloscope. Perfect for both professionals and enthusiasts, this device boasts advanced features designed for versatility and ease of use.

Key Features:

• 2.4-Inch TFT Display: Enjoy crisp visuals and easily view measurement data with a 320x240 resolution screen.
• Wide Sample Rate: Capture accurate waveforms with a 2.5MHz sample rate, 200kHz actual bandwidth, and 500kHz analog bandwidth for sinewaves.
• Versatile Trigger Functions: Utilize single, normal, and automatic triggers to handle both periodic analog and non-periodic digital signals.
• High Voltage Measurement: Measure voltage signals up to ±400V safely and effectively.
• One-Click AUTO Function: Automatically display measured waveforms without tedious adjustments.

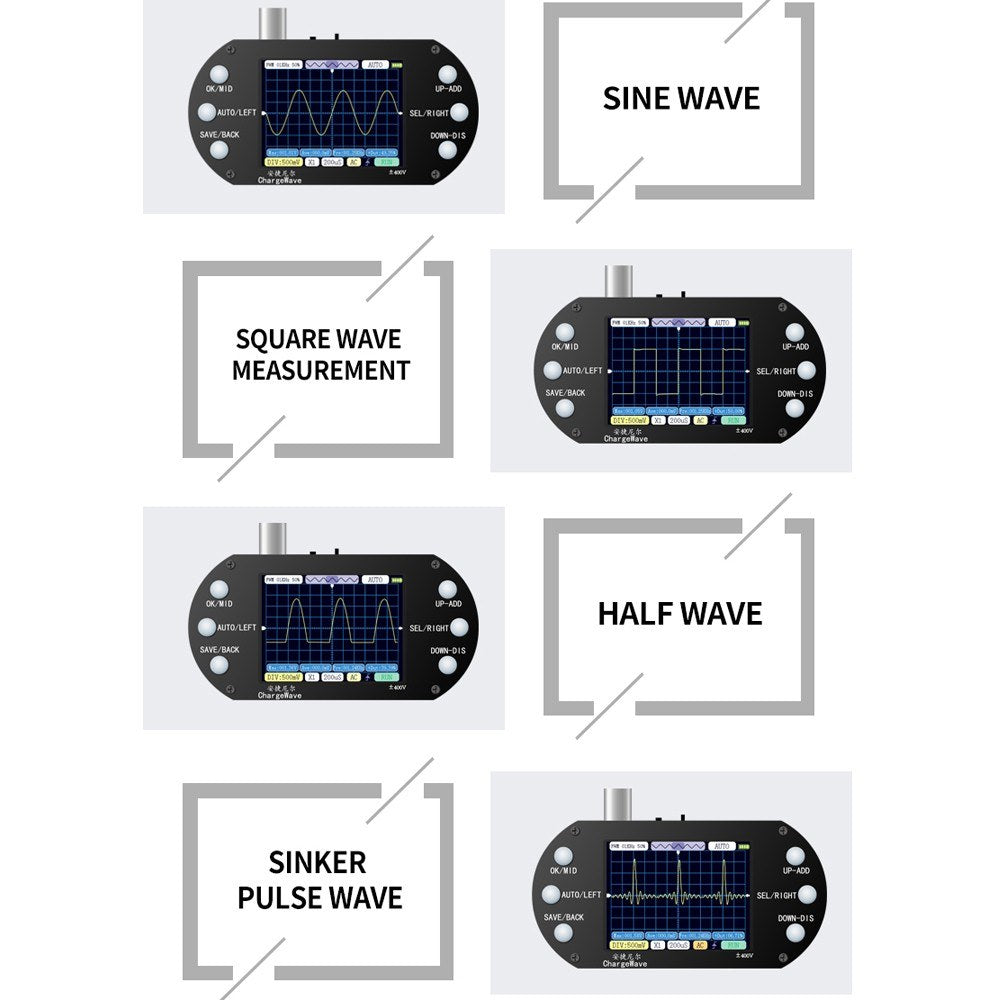

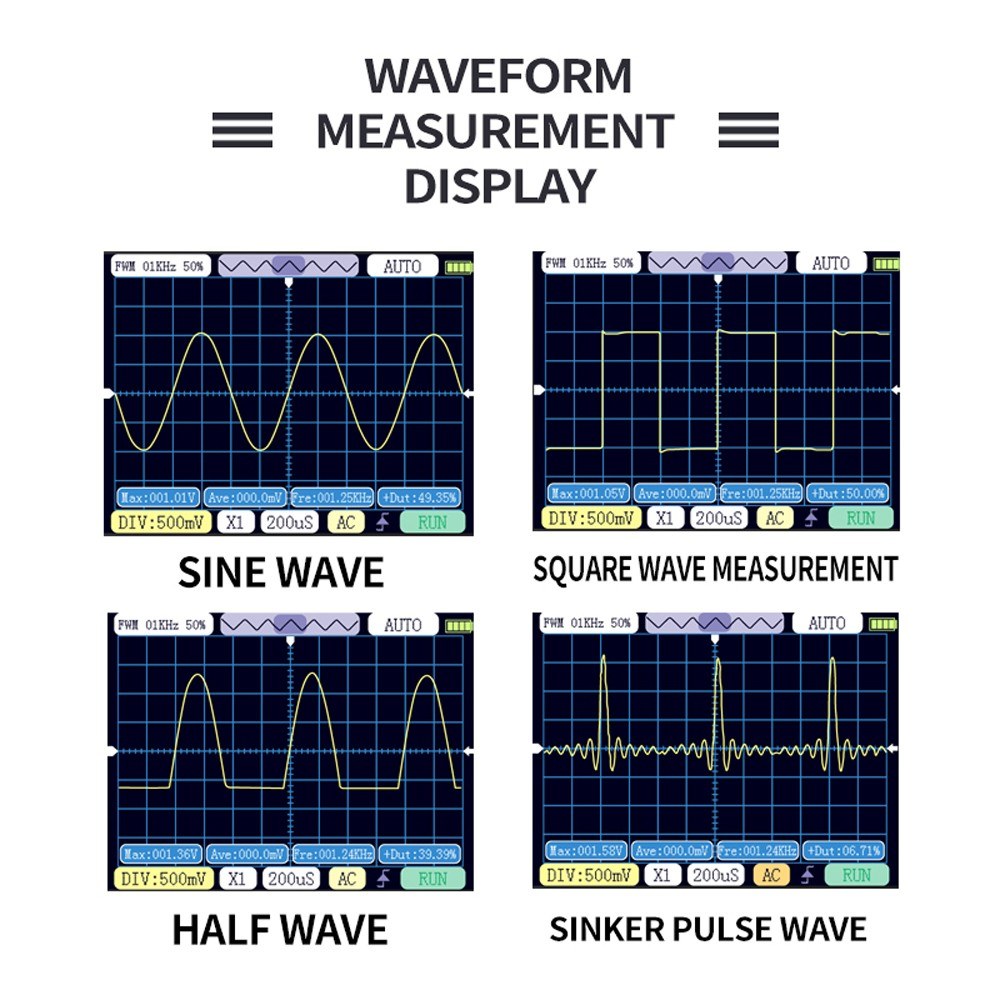

• Comprehensive Waveform Detection: Detect sinewaves, square waves, half-waves, sink pulse waves, and more.

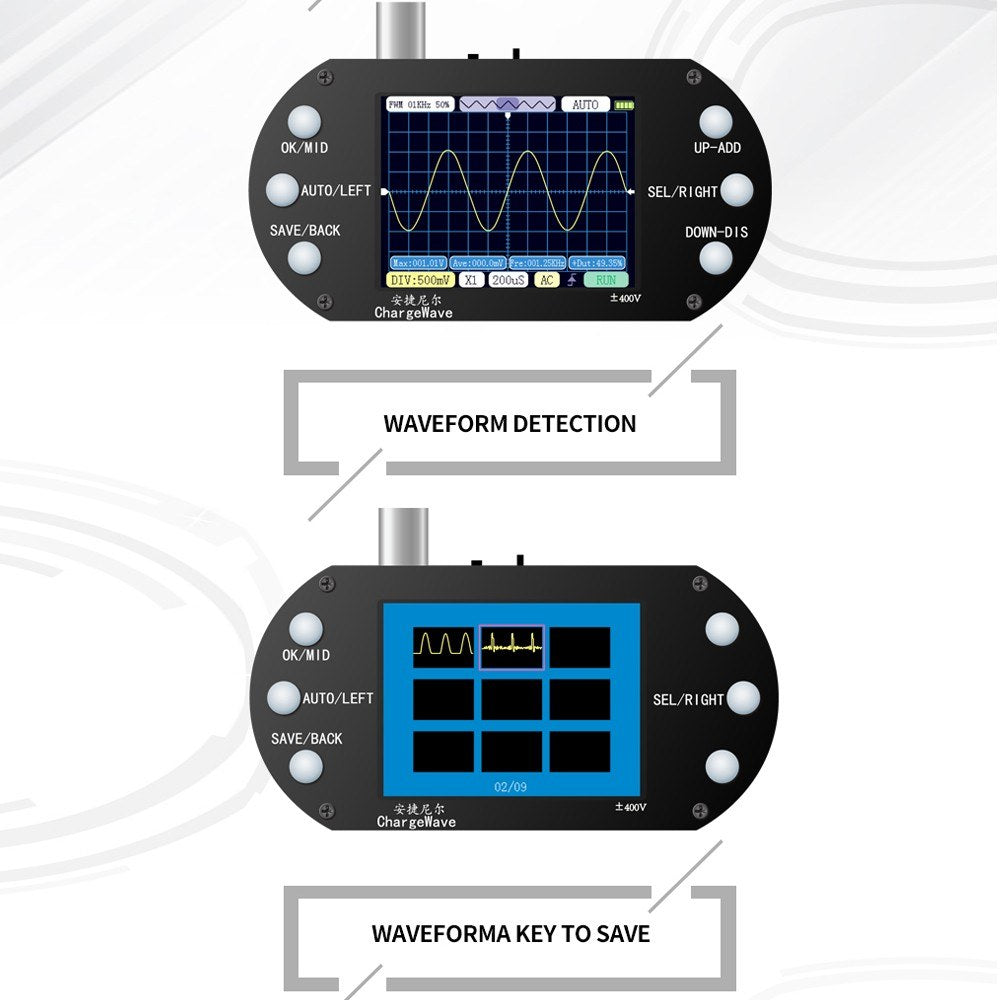

• Convenient Waveform Saving: Save the waveform currently displayed with just one button.
• Wide Application: Ideal for automotive maintenance, appliance repair, teaching, and research.

Important Notes:

• Certain signals may require manual adjustment and may not be captured correctly with AUTO.

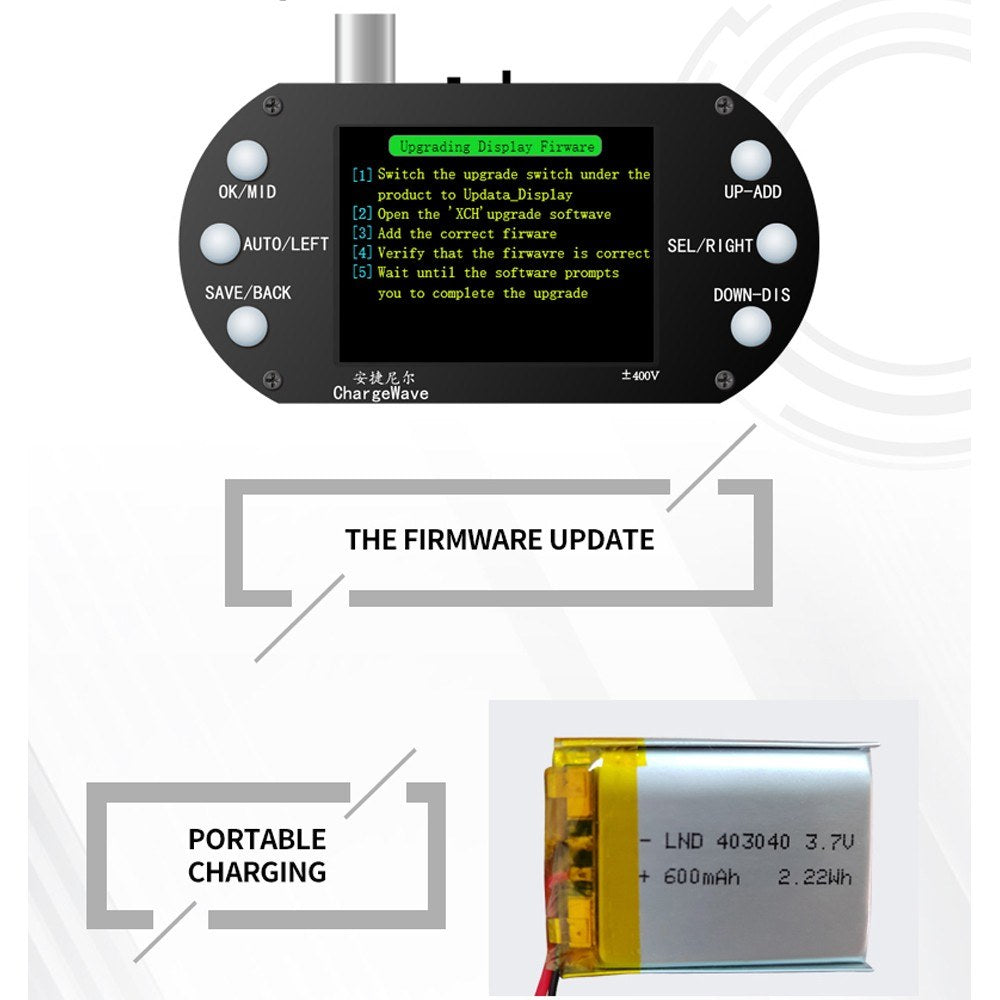

• For firmware upgrades, use the following method:
  • Press OK when turning on the device to upgrade the display part.
  • Press SAVE when turning on the device to upgrade the bottom part.

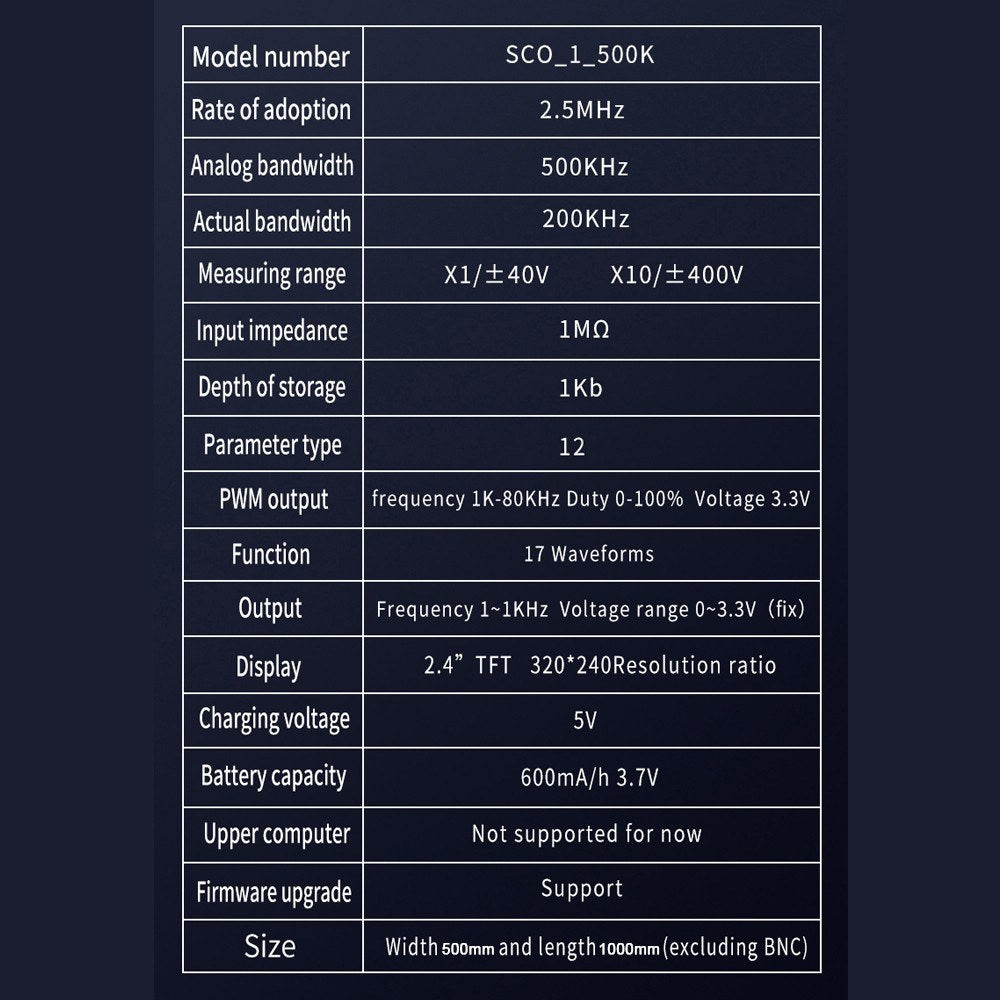

Specifications:

• Name: Handheld Oscilloscope
• Material: Plastics
• Model Number: SCO_1_500K
• Configuration Options: Standard and High Configuration
• Rate of Adoption: 2.5MHz
• Analog Bandwidth: 500kHz
• Actual Bandwidth: 200kHz
• Measuring Ranges: X1/土40V; X10/土400V
• Input Impedance: ΙΜΩ
• Depth of Storage: 1Kb
• Parameter Type: 12

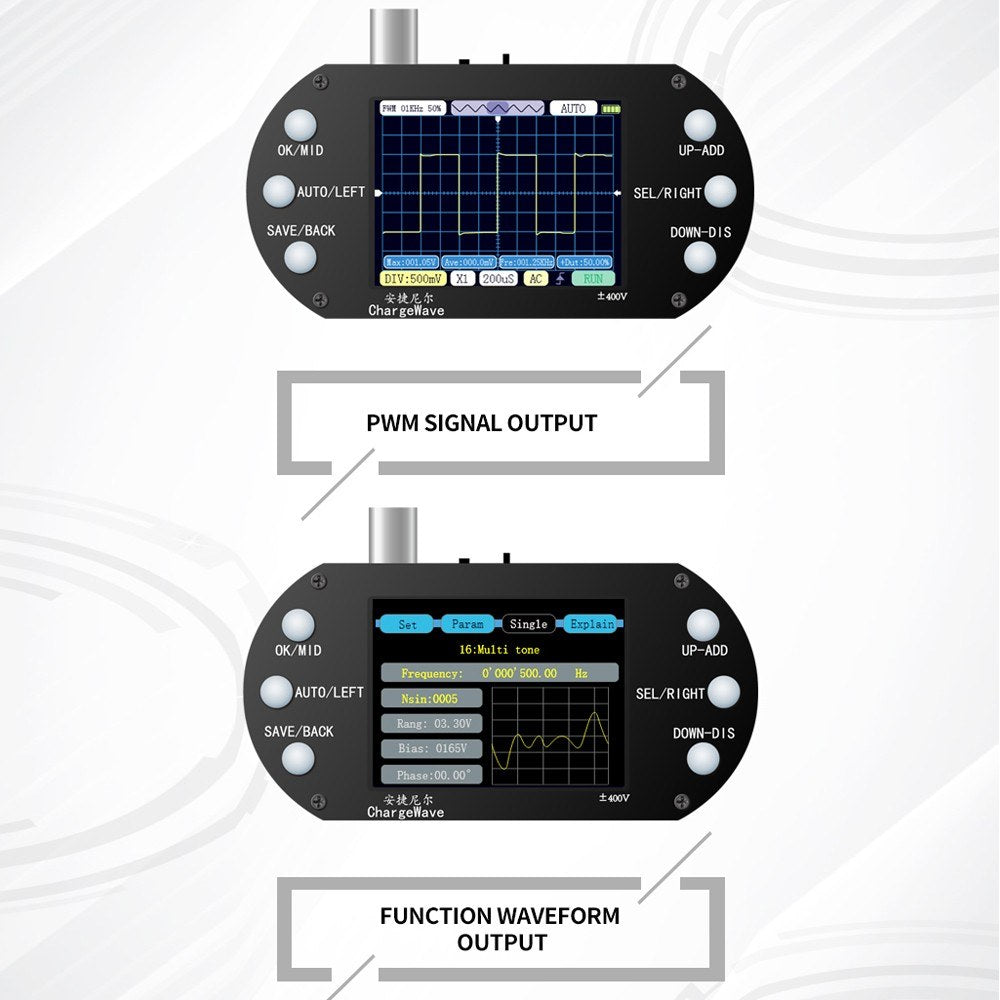

• PWM Output Frequency: 1K-80kHz
• PWM Duty: 0-100%
• PWM Voltage: 3.3V
• Functionality: 17 waveforms
• Output Frequency: 1-1kHz
• Output Voltage Range: 0-3.3V (Fixed)
• Display: 2.4" TFT, 320x240 resolution
• Charging Voltage: 5V
• Battery Capacity: 1 x 3.7V, 600mAh (Included)
• Upper Computer: Not supported for now
• Firmware Upgrade: Supported
• Item Size: 50 x 100mm / 1.97 x 3.94in
• Package Size:
  • Standard Configuration: 135 x 102 x 30mm / 5.31 x 4.02 x 1.18in
  • High Configuration: 105 x 155 x 40mm / 4.13 x 6.10 x 1.57in
• Package Weight:
  • Standard Configuration: 200g / 7.05 ounce
  • High Configuration: 250g / 8.82 ounce

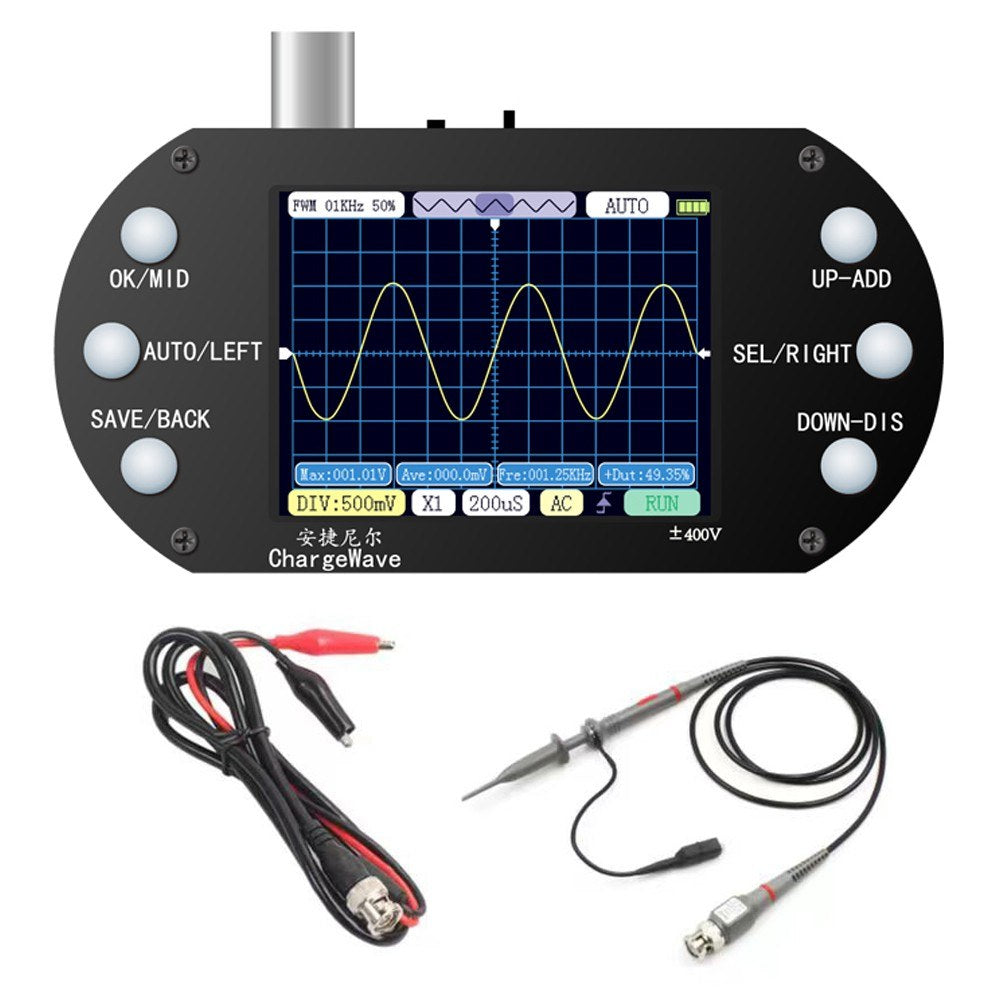

Packing List:

Standard Configuration (±40V):

• 1 x Handheld Oscilloscope
• 1 x Clip

High Configuration (±400V):

• 1 x Handheld Oscilloscope
• 1 x Probe
• 1 x Clip
