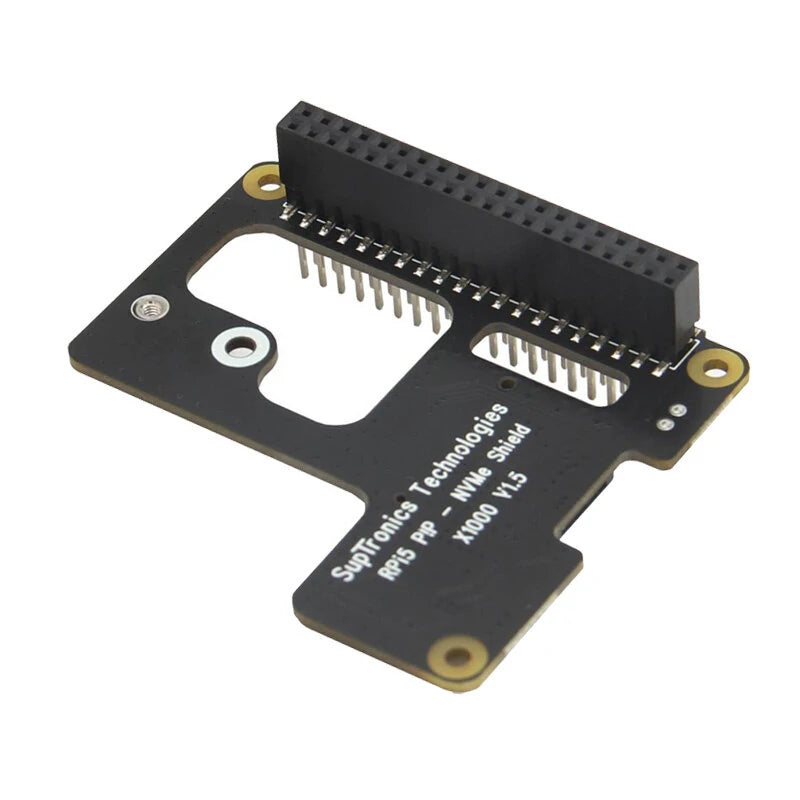

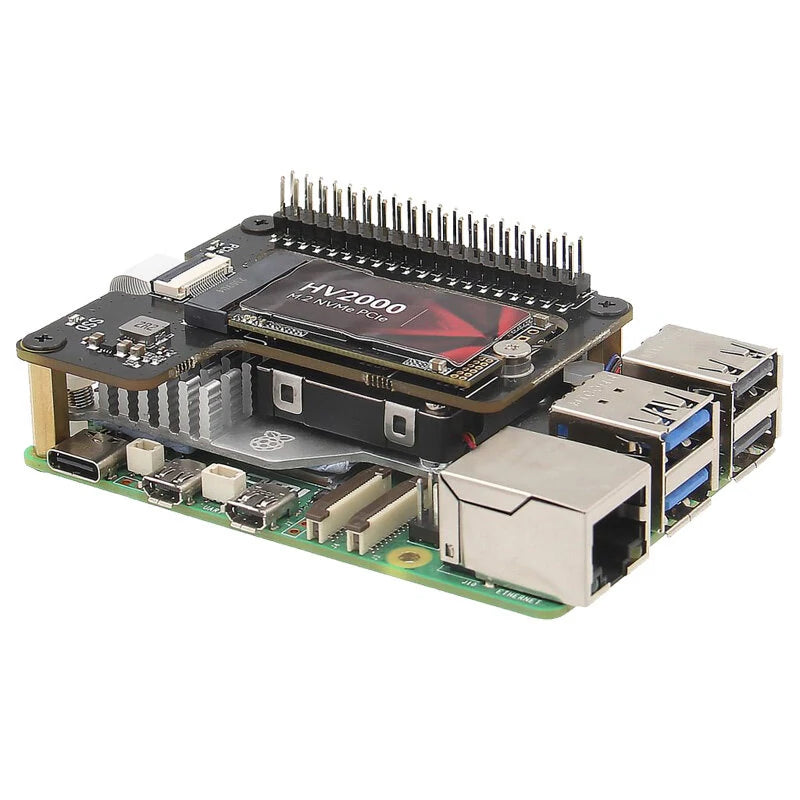

X1000 PCIe to M.2 NVMe SSD Adapter HAT for Raspberry Pi 5 (2242/2230)

Description:

• The X1000 is a PCIe M.2 NVMe protocol solid-state drive expansion board, expertly designed for Raspberry Pi 5. It supports high-speed data transfer with NVMe protocol M.2 interface hard drives.
• The X1000 hardware imposes no restrictions on NVMe SSD capacity, which is determined by the Raspberry Pi operating system.

Features:

• Compatible with various HAT expansion boards for enhanced versatility.
• Equipped with a 30mm FFC cable for compact integration.
• Supports both official and third-party active radiators for effective cooling.

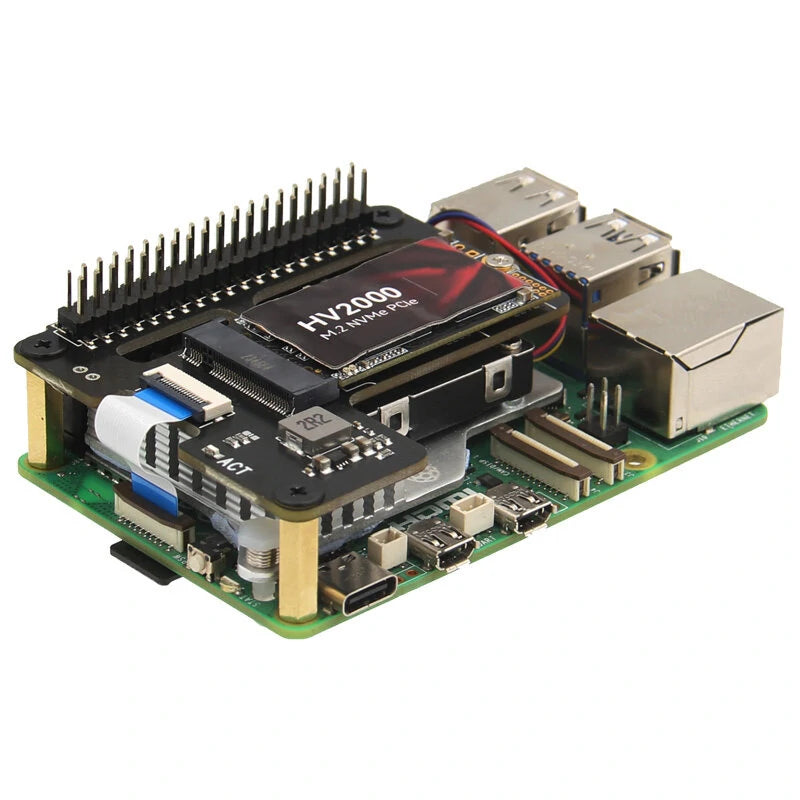

• Includes an ACT LED indicator: steady light for normal power/standby, flashing for read/write activities.
• Designed with space reservation for POE module installation.
• Supports only 2230/2242 NVMe M.2 SSDs. Note: Screws for installing 2230 SSDs are not included.
• The X1000 shield receives direct power from the FFC PCIe strip, offering up to 5W of continuous power.
• Features a 40-pin header that automatically supplies power from GPIO, preventing power shortages for high-capacity SSDs.
• PCIe interface compatible with PI5, enabling connection via FFC cable and direct power from the FFC PCIe strip.

Package Includes:

• 1x X1000 Module Board
• 1x Mounting Kit
• Note: Raspberry Pi and additional items are not included.
