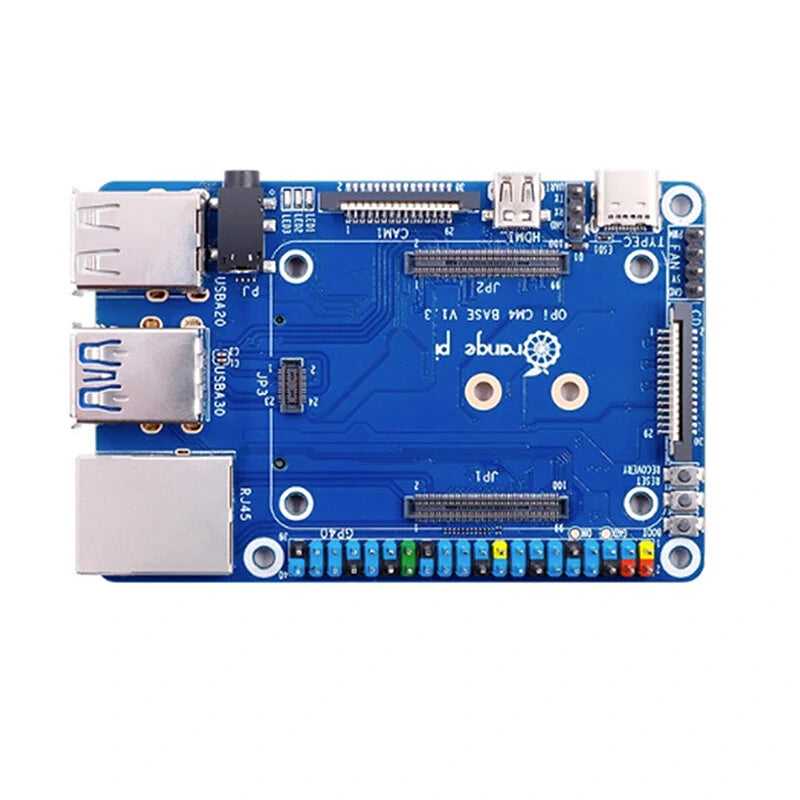

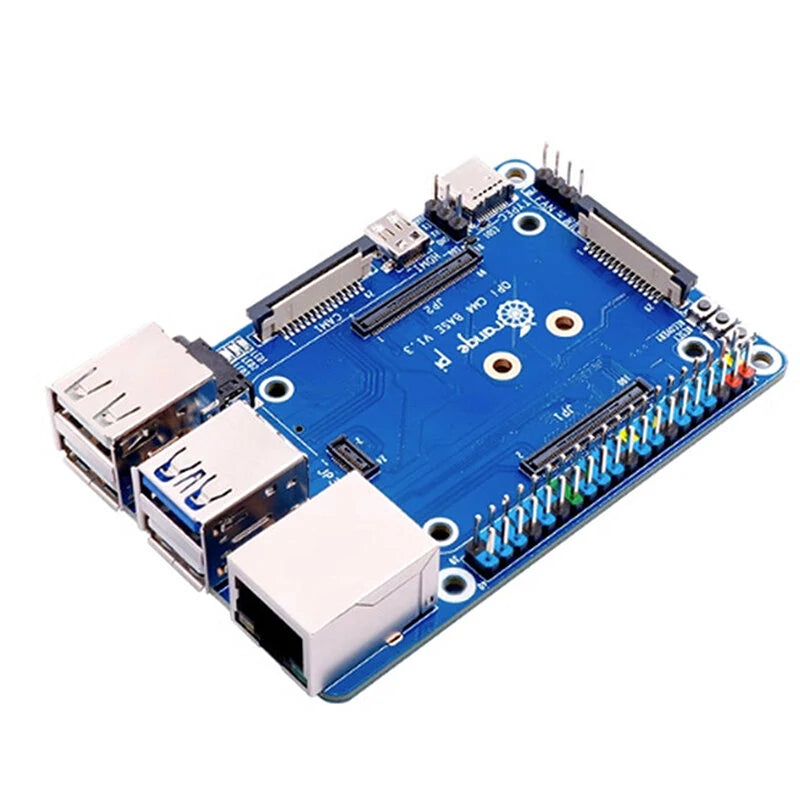

Orange Pi CM4 Base Board

Specifications

• Product Name: C3667 Orange Pi CM4 Base Board
• Memory:
  • M.2 M-KEY Slot: Supports SATA3 or PCIe 2.0 NVME SSDs
  • TF card slot
• Ethernet Interface: 10/100/1000Mbps Ethernet RJ45 socket
• Video Output:
  • 1x Micro HDMI TX 2.0, supports up to 4K@60FPS
  • MIPI DSI 2 Lane
  • eDP 1.3
• Camera: 2x MIPI CSI 2 Lane
• USB:
  • 1x USB 2.0 (Supports Device or Host mode)
  • 1x USB 3.0 Host
  • 2x USB 2.0 Host
• Audio: 3.5mm headphone jack for audio input/output
• Buttons:
  • 1x MaskROM button
  • 1x RECOVERY button
  • 1x Reset button
• Fan: 4-pin 2.54mm specification 5V fan interface
• 40-Pin Interface: Supports GPIO, UART, I2C, SPI, PWM
• Power: Type-C 5V 3A
• Supported OS: Android 11, Ubuntu 22.04/20.04, Debian 11/12, open-source HarmonyOS 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH), based on OpenHarmony and other operating systems.
• PCB Dimensions: 85mm x 56mm
• Weight: 46 grams

Features

1. Storage Options: The base board features an M.2 M-KEY slot that supports both SATA3 and PCIe 2.0 NVME SSDs, providing high-speed storage expansion options.
2. Display Connectivity: Offers versatile display options, including Micro HDMI for 4K@60FPS output, MIPI DSI, and eDP 1.3 support.
3. Camera Support: Equipped with dual MIPI CSI interfaces, making it suitable for camera-related projects and applications.
4. Multiple USB Ports: Provides a variety of USB ports, including USB 2.0 and USB 3.0, for connecting peripherals and external devices.
5. 40-Pin Interface: Features a 40-pin expansion interface supporting GPIO, UART, I2C, SPI, and PWM, enhancing its compatibility with various accessories and sensors.

Package Includes

• 1x Module Board
