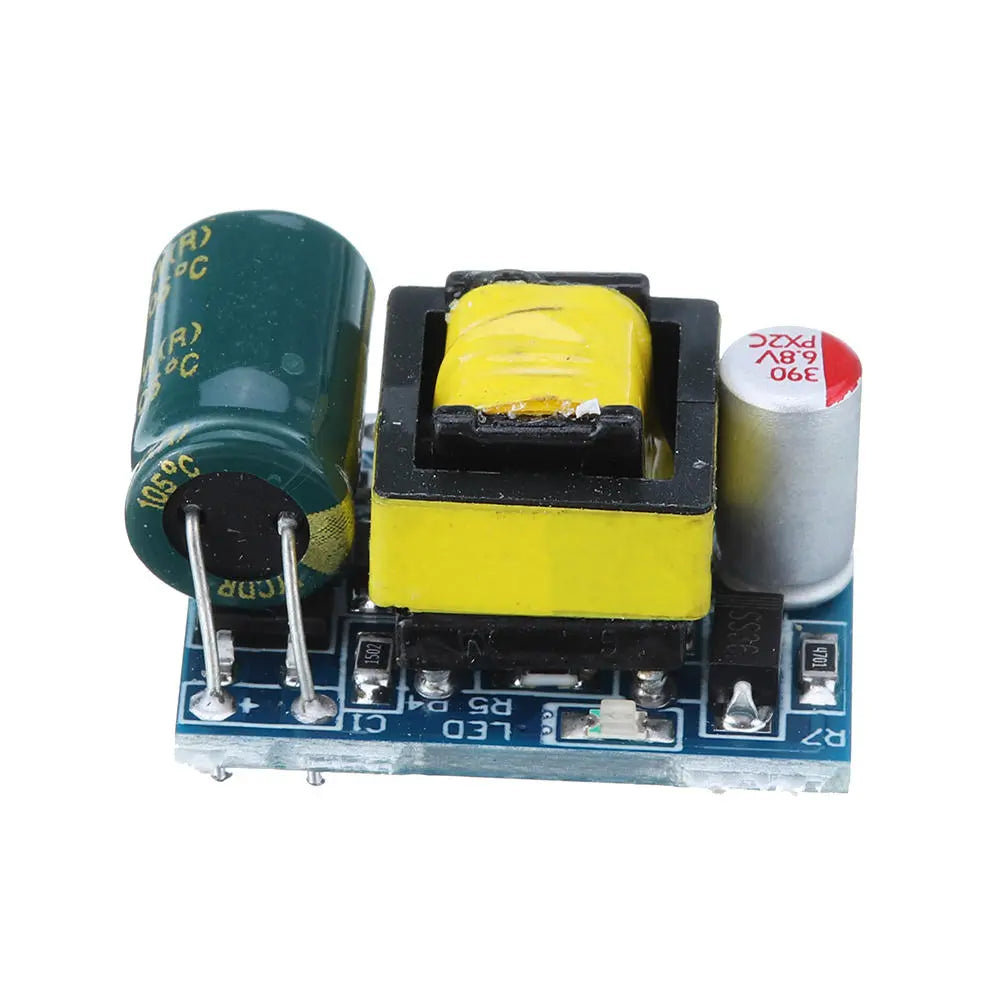

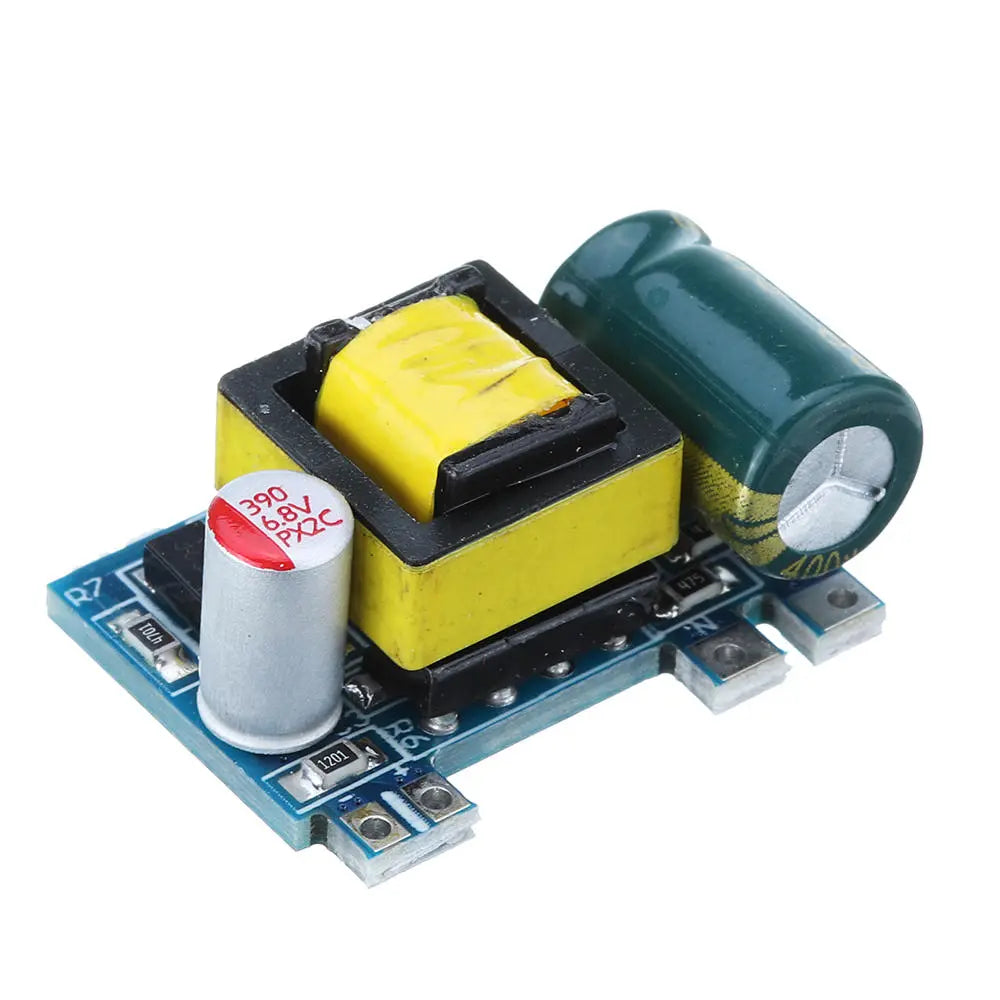

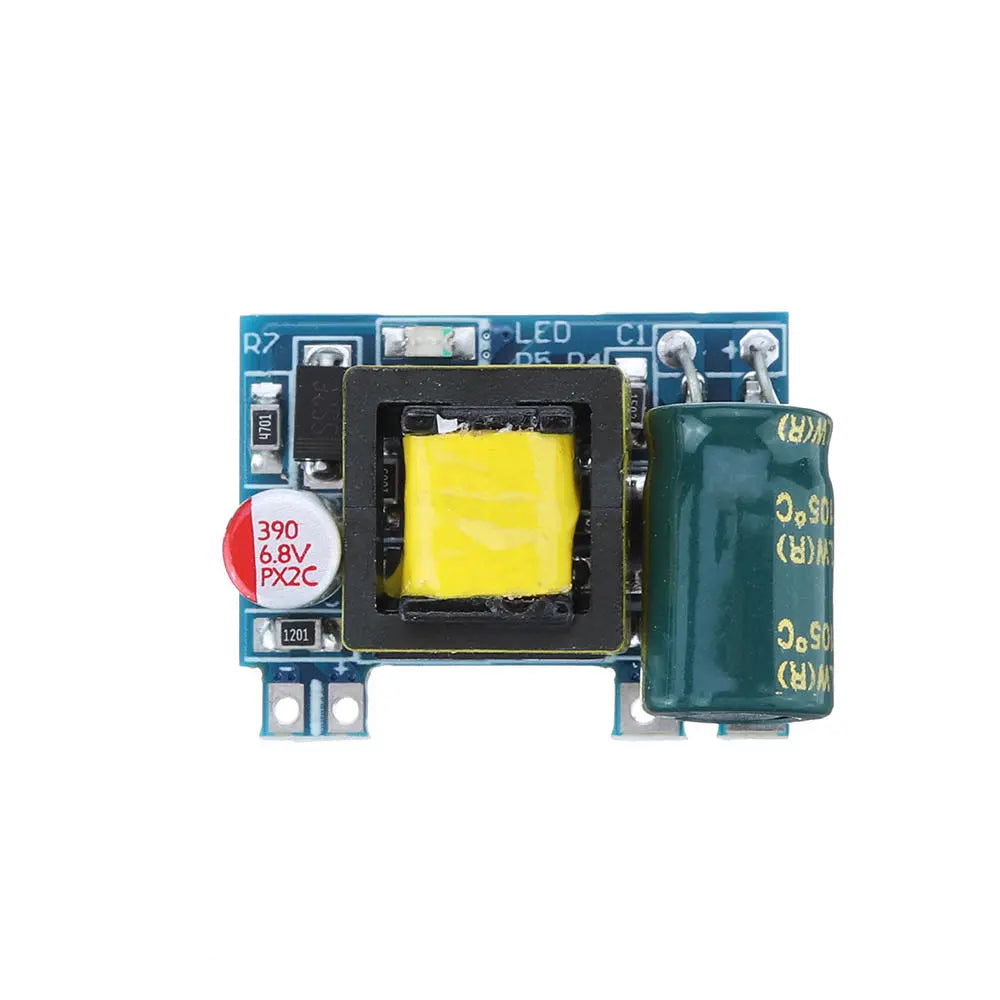

AC-DC 5V 700mA 3.5W Isolated Switching Power Supply Module

Specifications:

• Input Voltage Range: AC 50V-277V / DC 70V-390V
• No-Load Power: [Specify or remove if unnecessary]
• Output Characteristics: Multiple voltage modules can be used in parallel to accommodate large currents in small spaces.
• Output Voltage: 5V ±0.15V at no load and full load; light load decreases by 0.1V with recovery during heavy load; 50% load ripple is 60mV.
• Output Current: 0mA-700mA; enters constant current mode when fully loaded.
• Test Resistance: 7 ohms (4.9V) for 5V output.
• Output Indicator: Green light
• Output Power: 3.5W, with an efficiency of approximately 80%
• Output Protection: Over-voltage, over-current, over-temperature, overload, and short circuit protection.

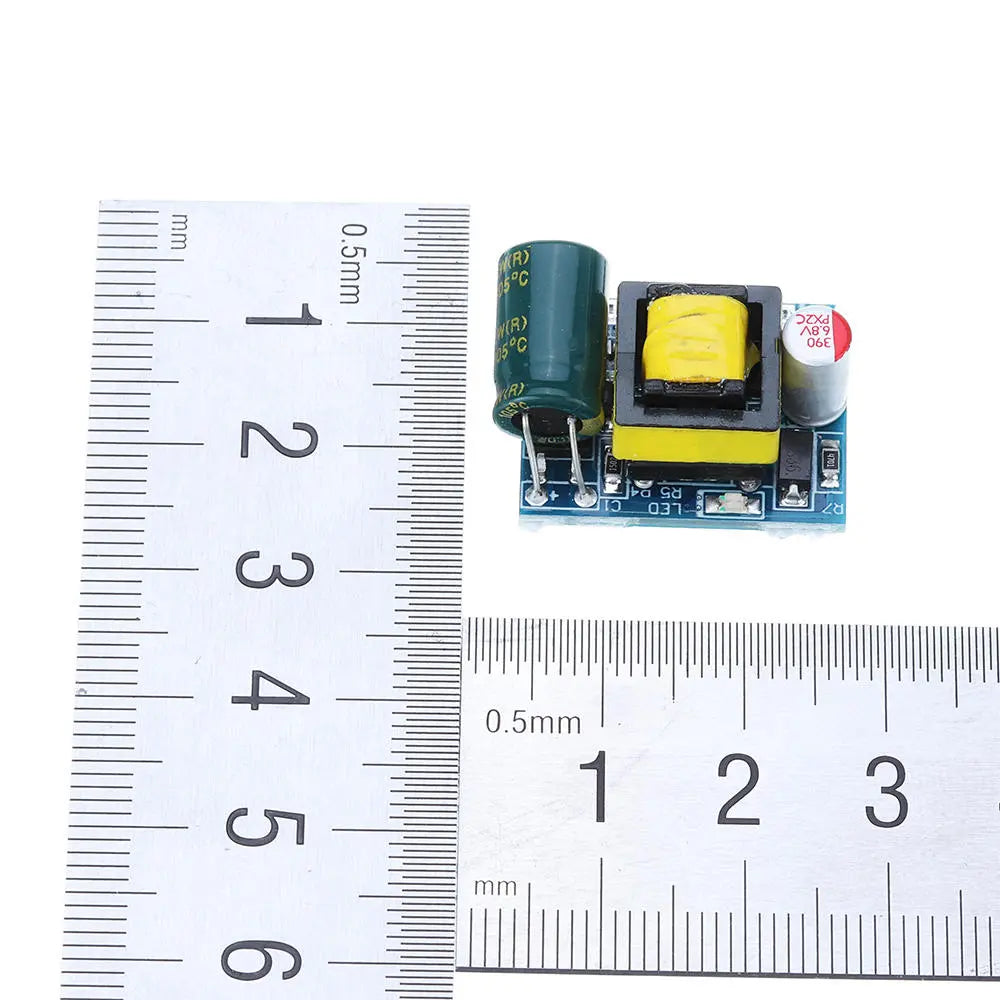

• Overall Height: 13.5mm

Package Includes:

• 5 x AC-DC 5V 700mA 3.5W Isolated Switching Power Supply Module
