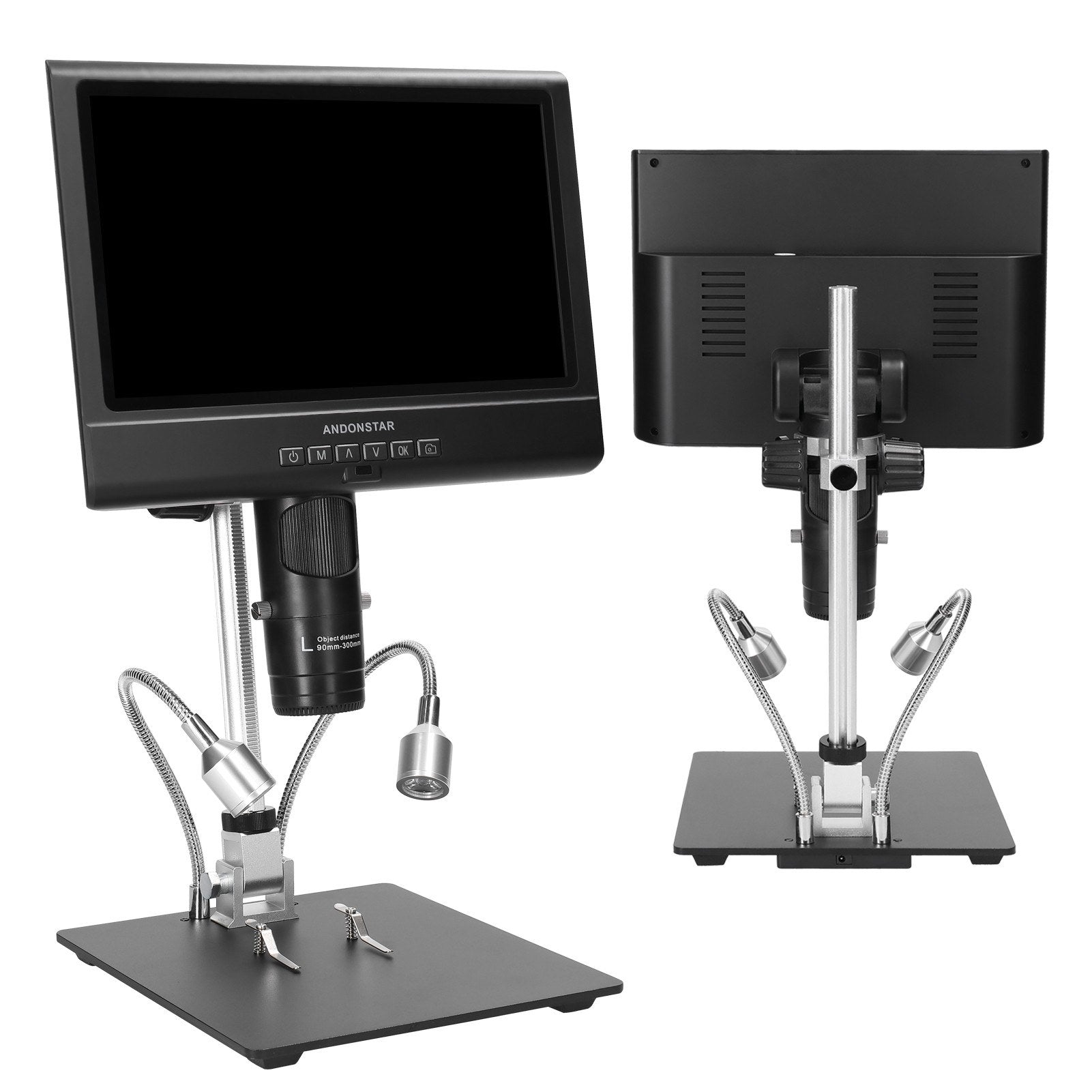

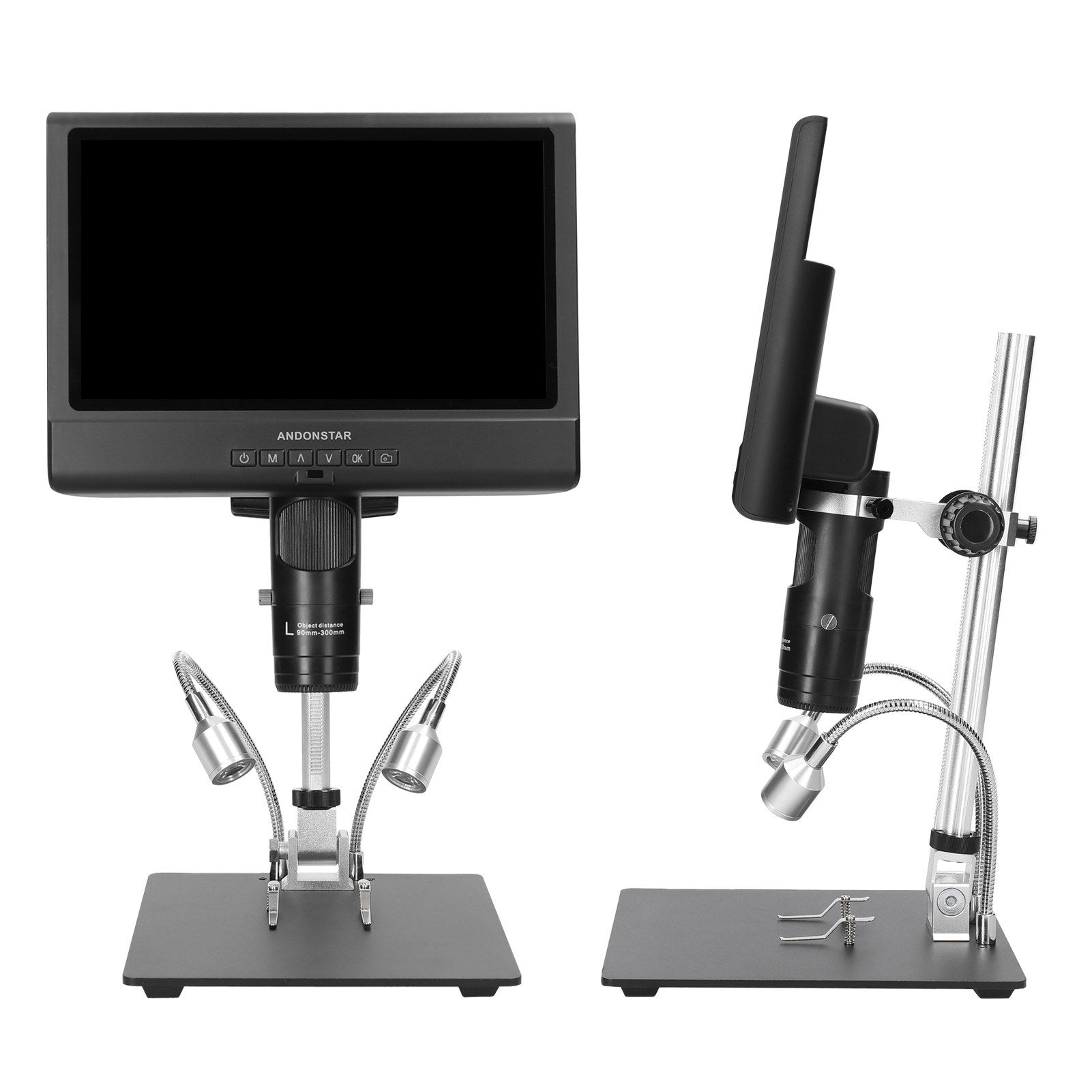

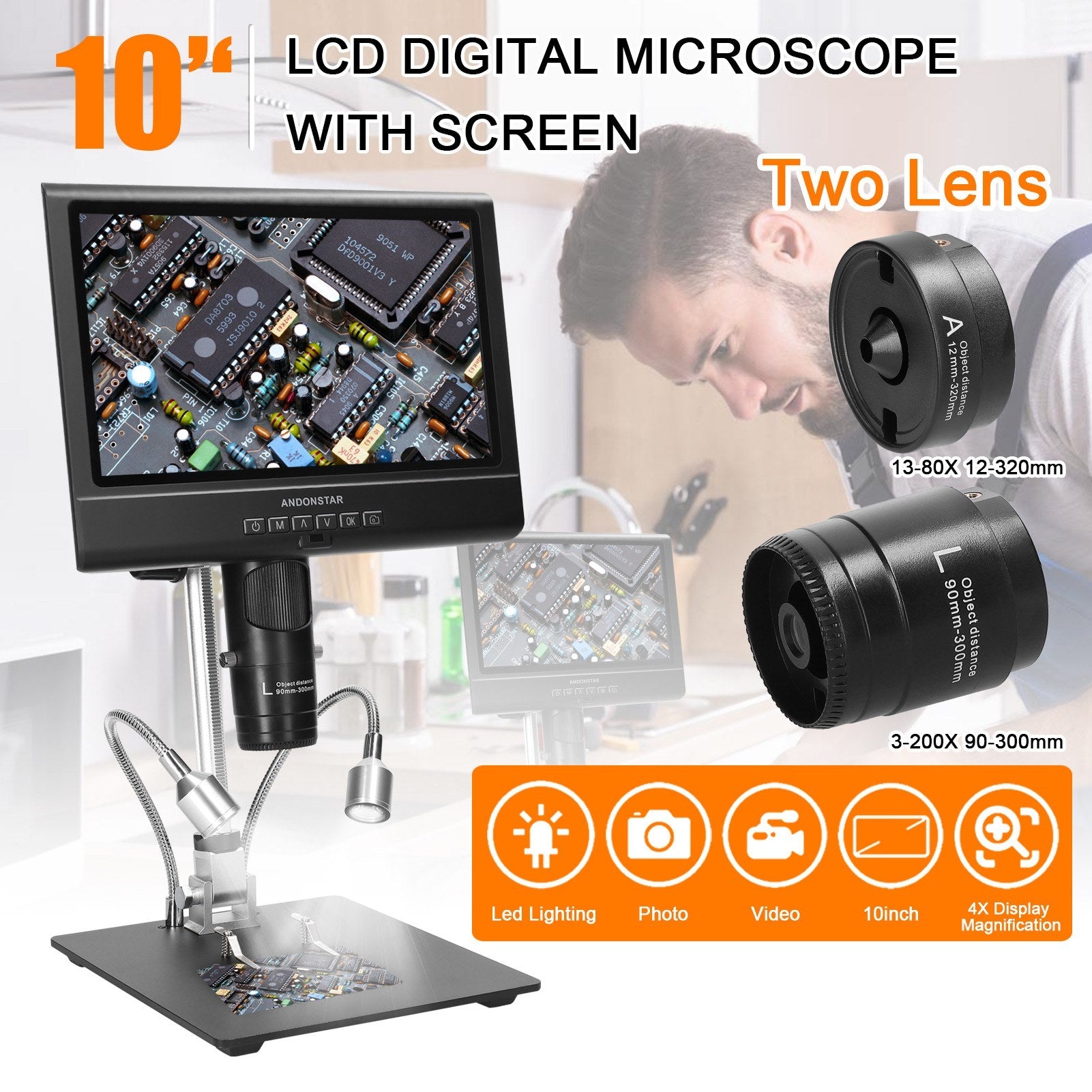

1080P Digital Soldering Microscope with 10-Inch LCD, 4X Magnification, Video & Photo Capture, LED Shadowless Lamp

Industrial-Grade Maintenance Microscope

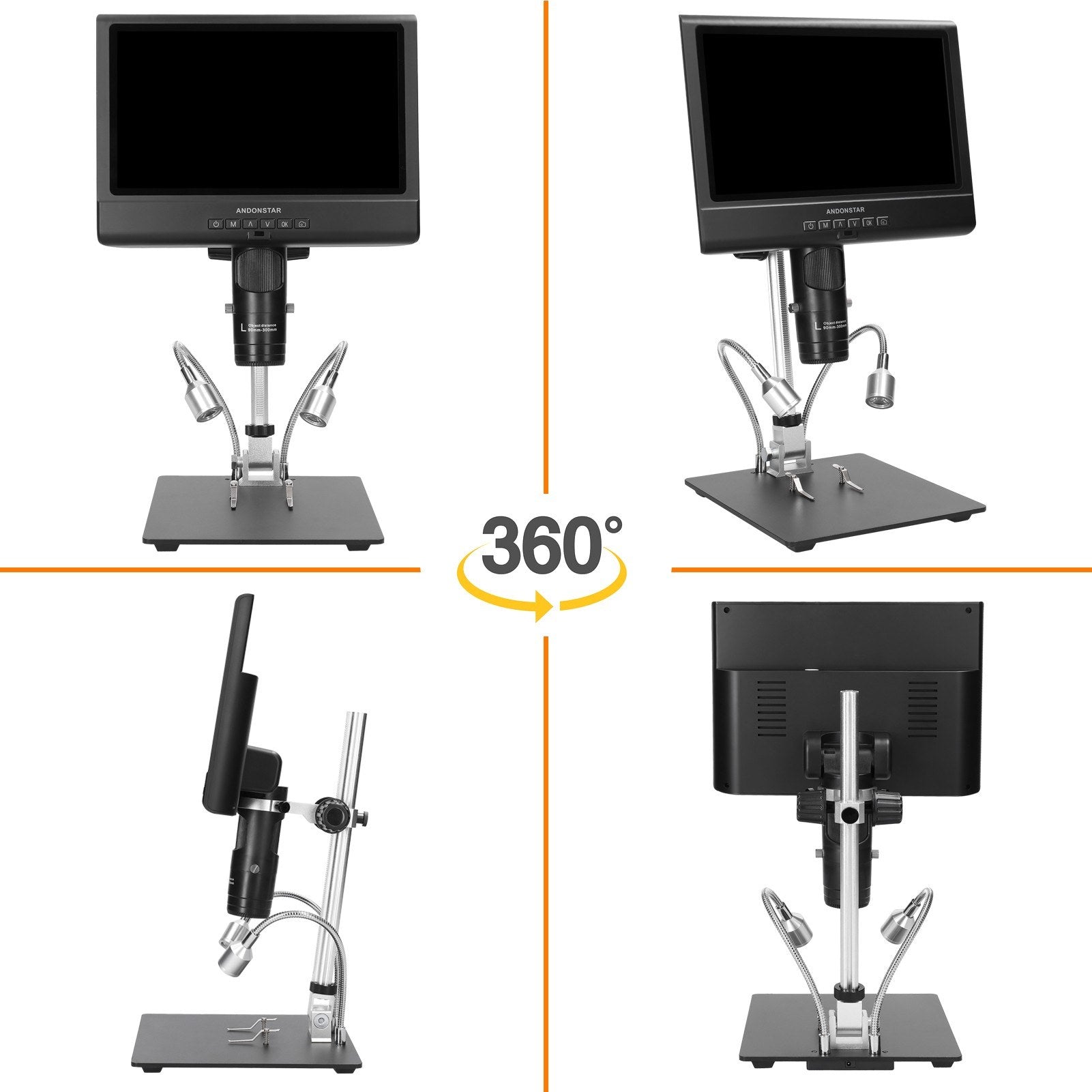

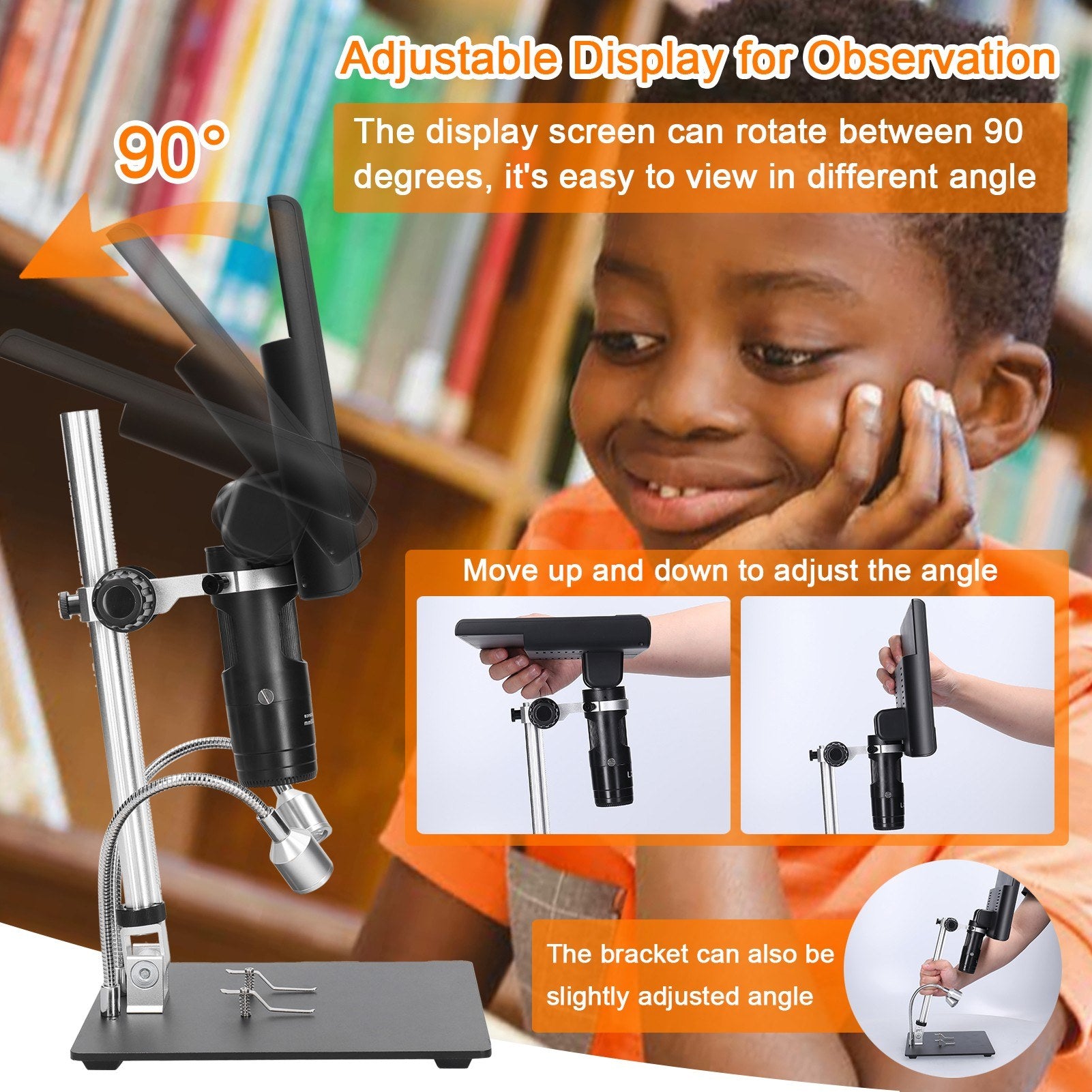

Experience exceptional clarity and performance with our industrial-grade maintenance microscope. Featuring a 10-inch LCD display and an integrated imaging system, this microscope offers crystal-clear image quality. The display can effortlessly be adjusted 180° for multi-angle viewing convenience.

Key Features:

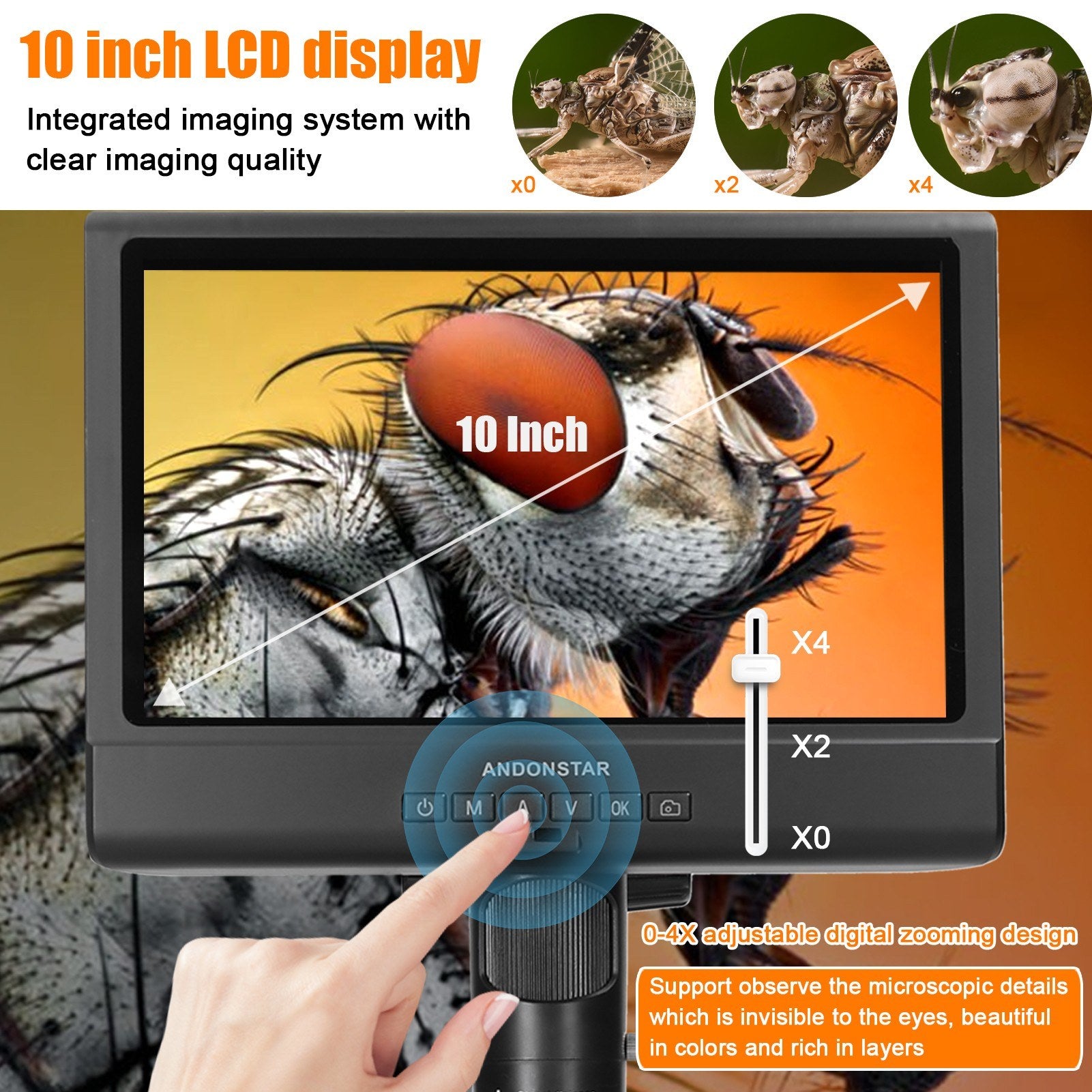

• 10-Inch Display: Equipped with a high-speed, sensitive chip for faster response and greater ease of use. The screen can be adjusted 180° for optimal viewing.

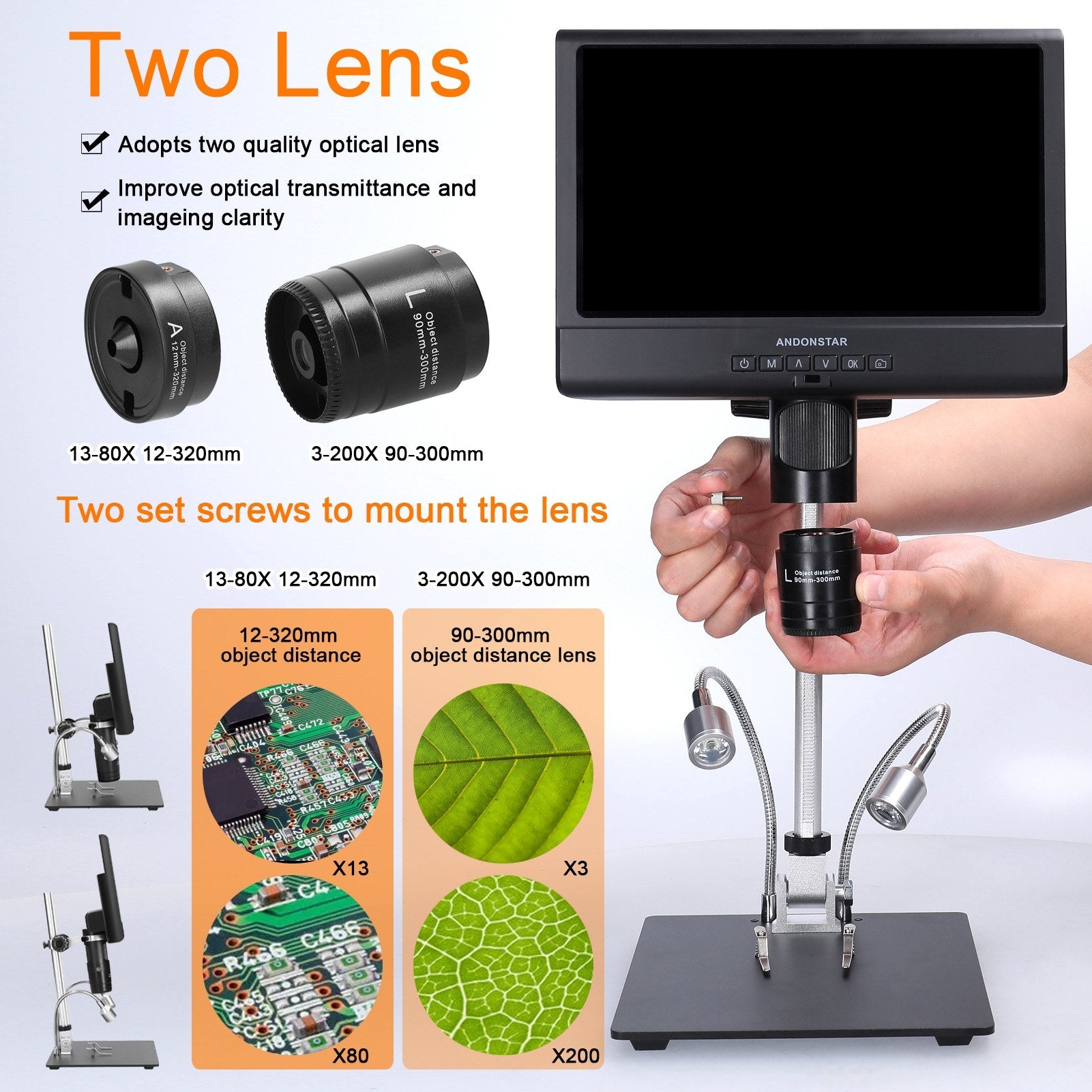

• Dual Optical Lens: Two superb-quality lenses offer magnifications of 3-200X (90-300mm object distance) and 13-80X (12-320mm object distance), minimizing reflection and scattering while enhancing optical transmittance and clarity.
• High Magnification: Enjoy 1080P resolution with 0-4X adjustable digital zoom. Observe intricate details invisible to the naked eye, with vibrant colors and rich depth.

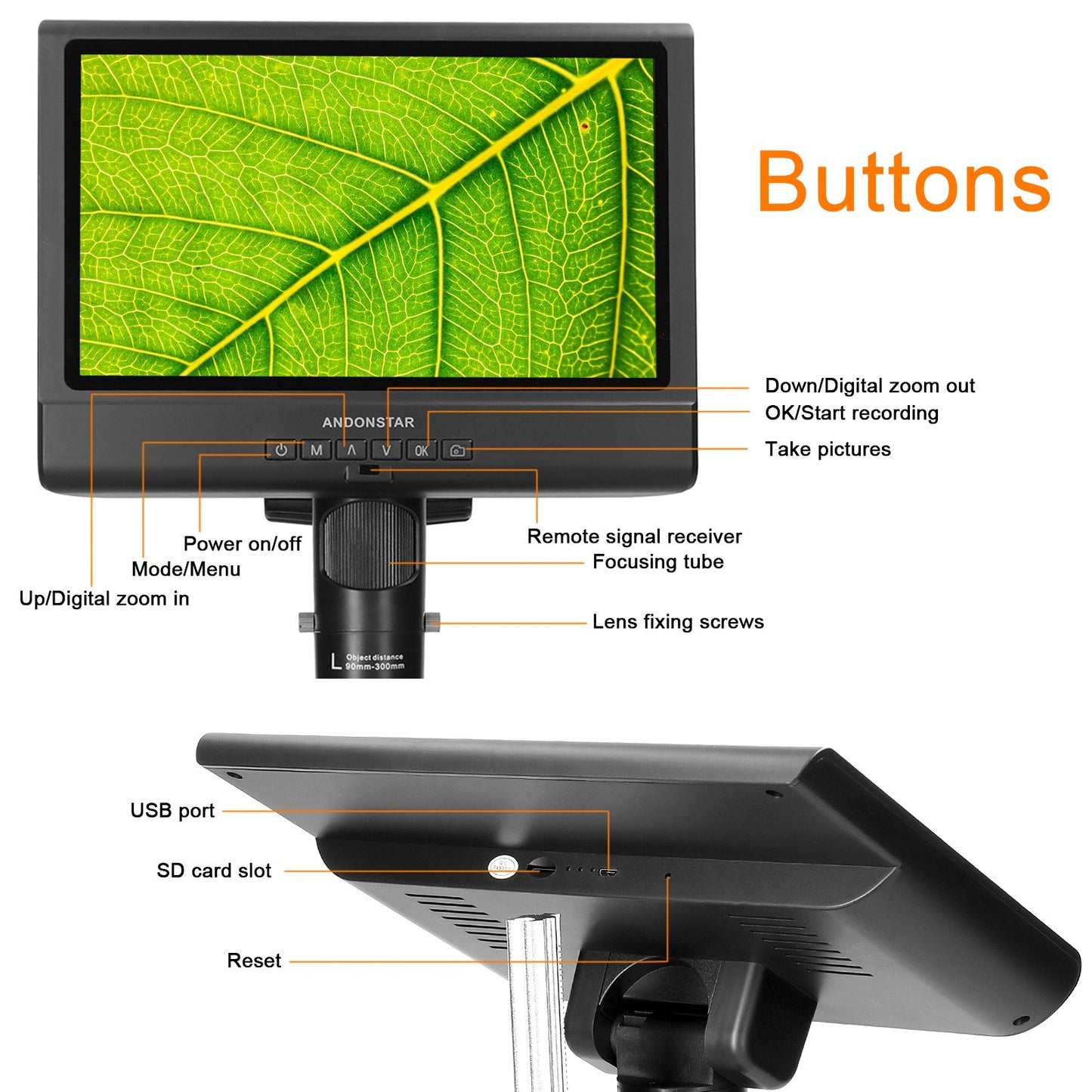

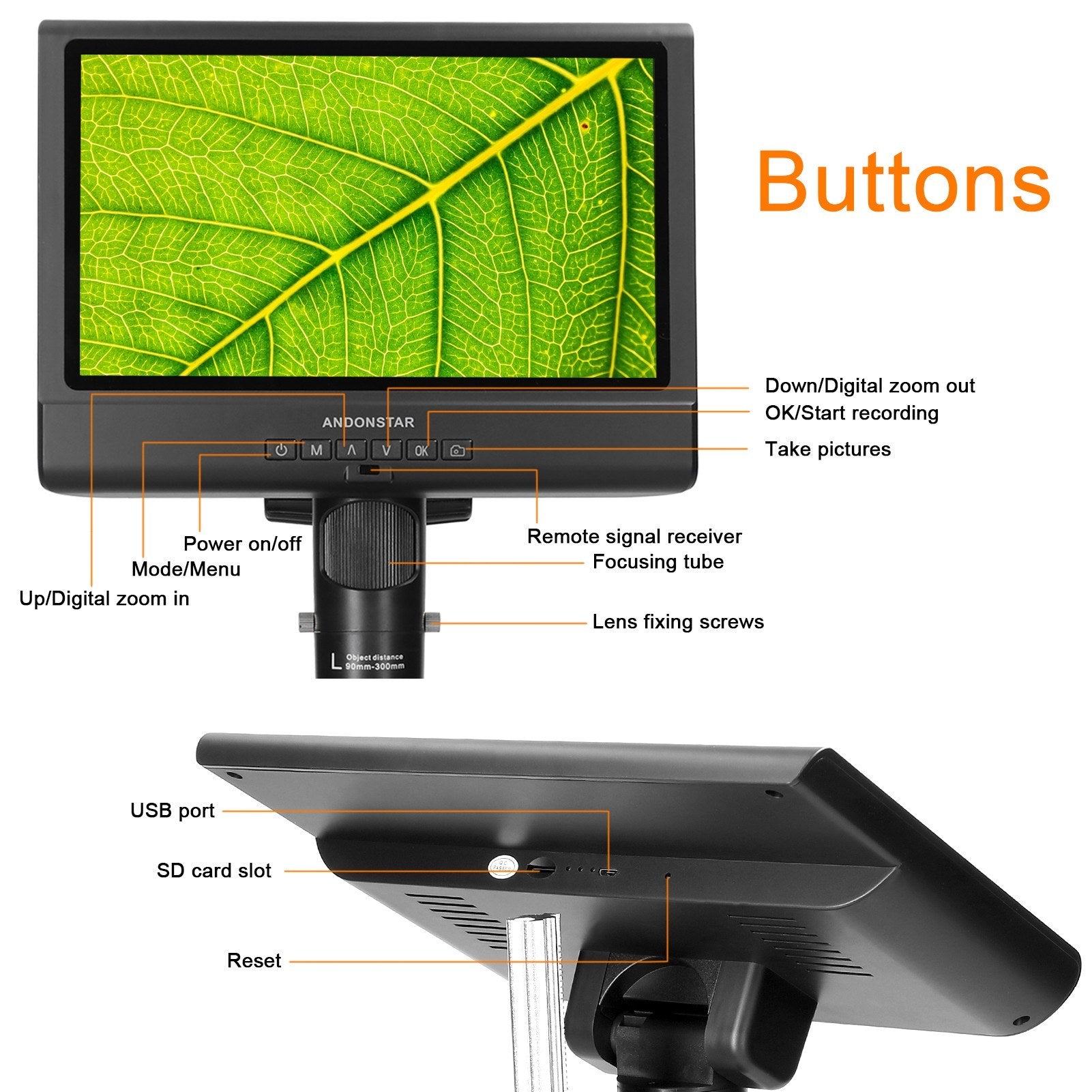

• Multifunctional Design: Features include adjustable resolution, loop recording time, and exposure value; date/time format setting, language selection, format deletion, and default setting functions. Supports memory card video recording and image capturing to enhance usability.

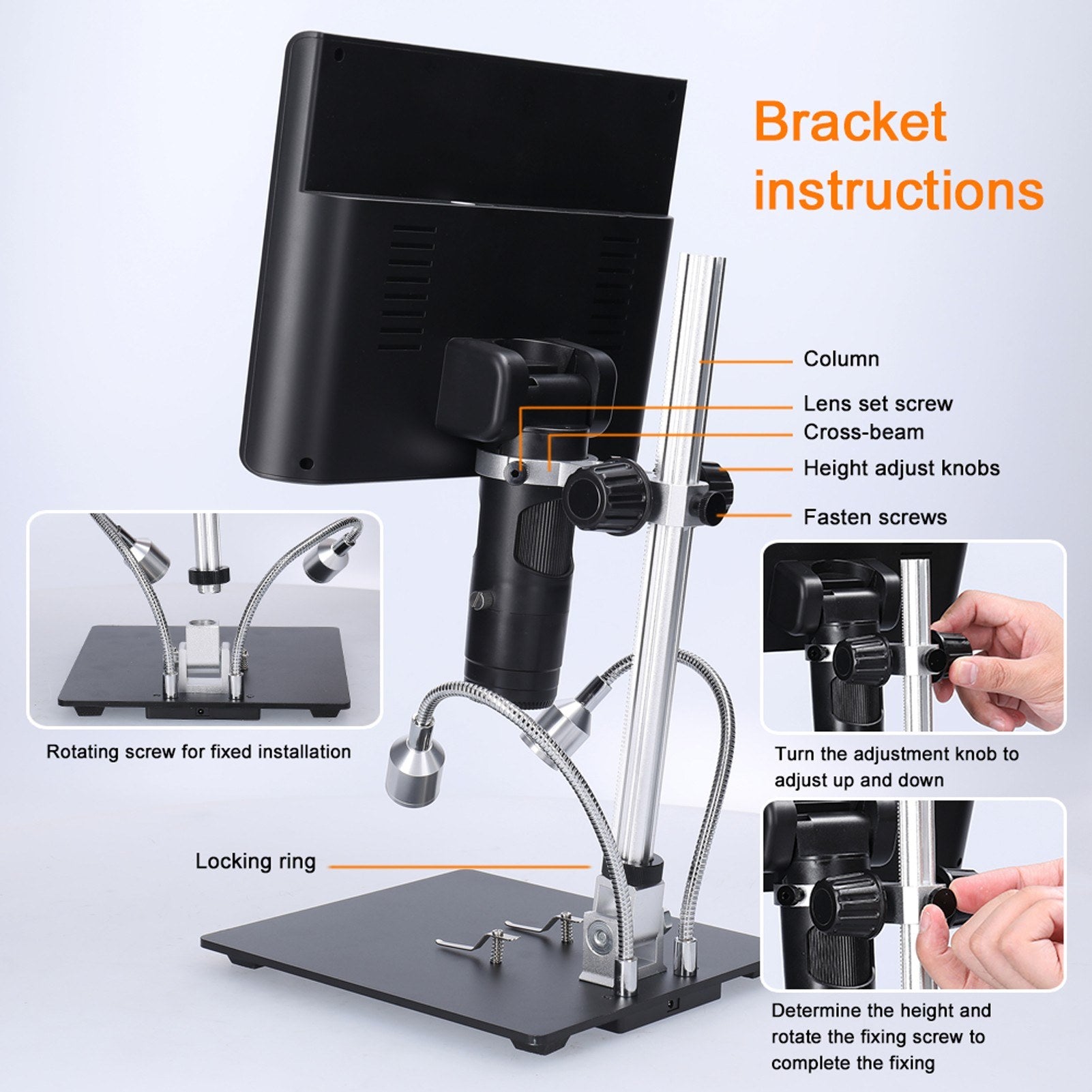

• Metal Base Construction: The adjustable metal stand allows for front-rear and up-down movement of the microscope, providing a 3D visual experience and increased working space.

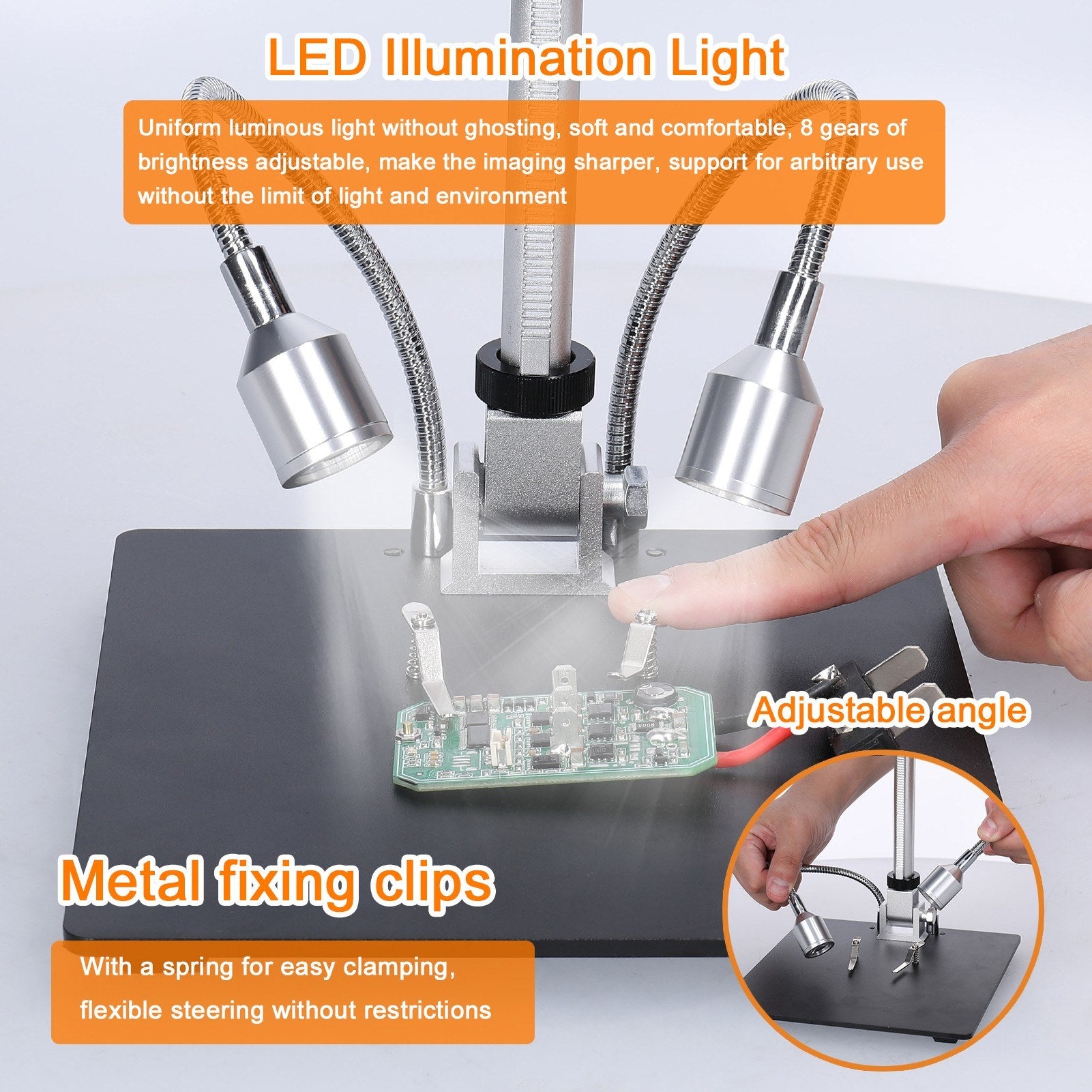

• LED Illumination: Equipped with two high-intensity LED shadowless lights, offering eight adjustable brightness levels. Provides uniform and soft lighting to enhance image sharpness, adaptable to various lighting conditions and environments.

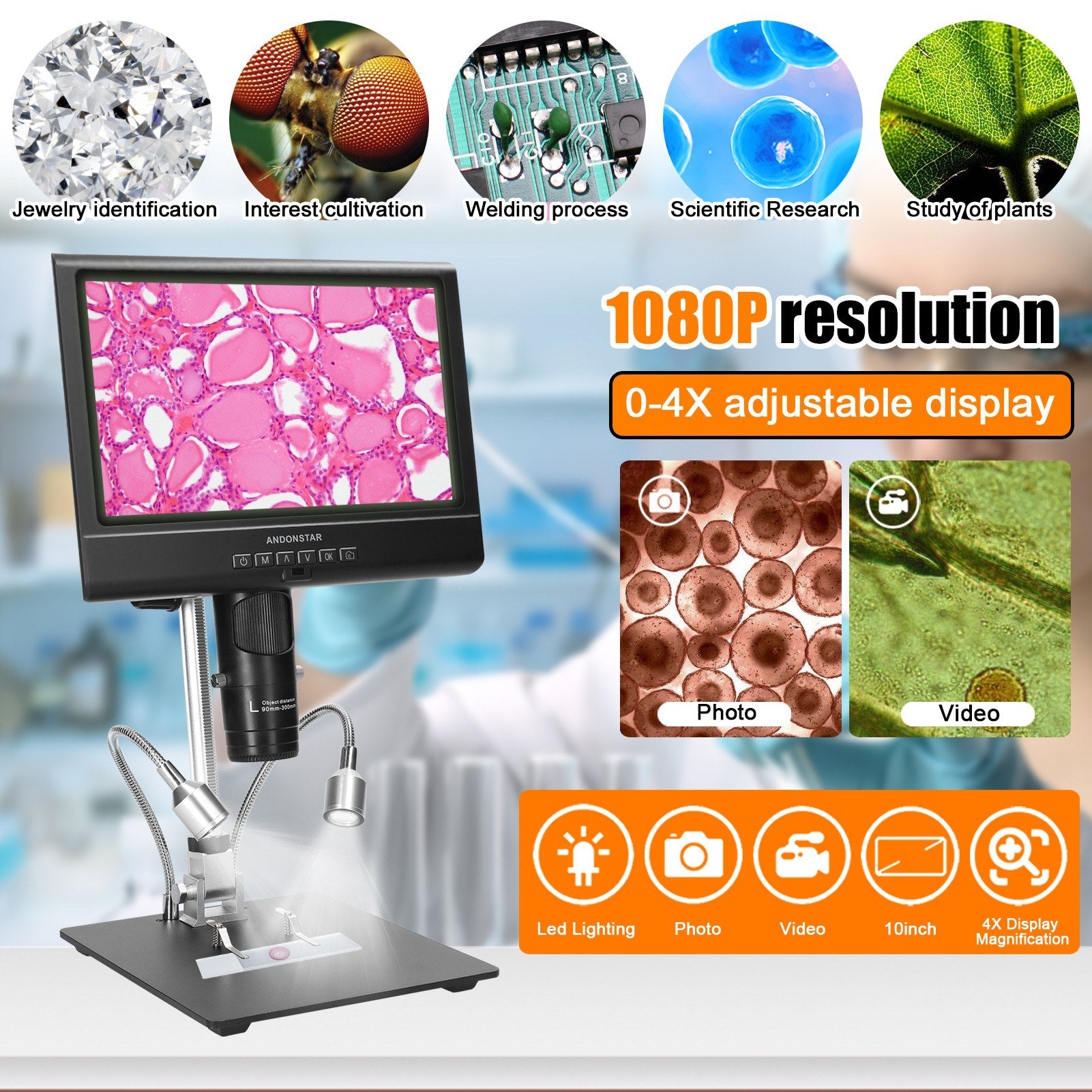

• Wide Applications: Ideal for use in optical and photographic instruments, laser equipment, maintenance work, precision machinery, circuit board inspection, printing, welding, textile analysis, and surface inspection. Also suited for jewelry identification, hobby development, and capturing images or videos of welding processes.

Specifications:

• Name: Digital Microscope
• Material: Metal + Plastics
• Display: 10-inch LCD
• Video Resolution: FHD 1920x1080P 30FPS, 1080P 1440x1080 30FPS, 720P 1280x720 30FPS
• Video Format: AVI
• Frame Rate: Max 30fps
• Picture Resolution: Max 12MP 4032x3024P
• Magnification Ratio: Lens A 3-200X; Lens L 13-80X (with 4X digital zoom)
• Working Distance: Lens A 12-320mm, Lens L 90-300mm
• Input Voltage: 5V, 2A
• Focusing Distance: 30-90mm
• Imaging Format: JPG
• Memory Card: Supports up to 128G (not included)
• Loop Recording: Off, 1 minute, 2 minutes, 3 minutes, 5 minutes
• Exposure: +5/3, +4/3, +2/3, +1/3, +0.0, -1/3, -2/3
• Date/Time Setting: MM/DD/YY, DD/MM/YY, YY/MM/DD
• Language Support: Traditional Chinese, Simplified Chinese, English, Japanese, French, German, Korean, Vietnamese, Portuguese, Russian, Spanish, Thai
• Frequency: 50/60Hz
• Format Setting: Cancel, OK (all data will be deleted)
• Default Setting: Cancel, OK (return to default settings)
• Version: 10" 20220714N90V3.7H
• Item Size: 245 x 198 x 320mm / 9.65 x 7.80 x 12.60in
• Item Weight: 1444g / 3.18lb
• Package Size: 300 x 267 x 145mm / 11.81 x 10.51 x 5.70in
• Package Weight: 1926g / 4.25lb

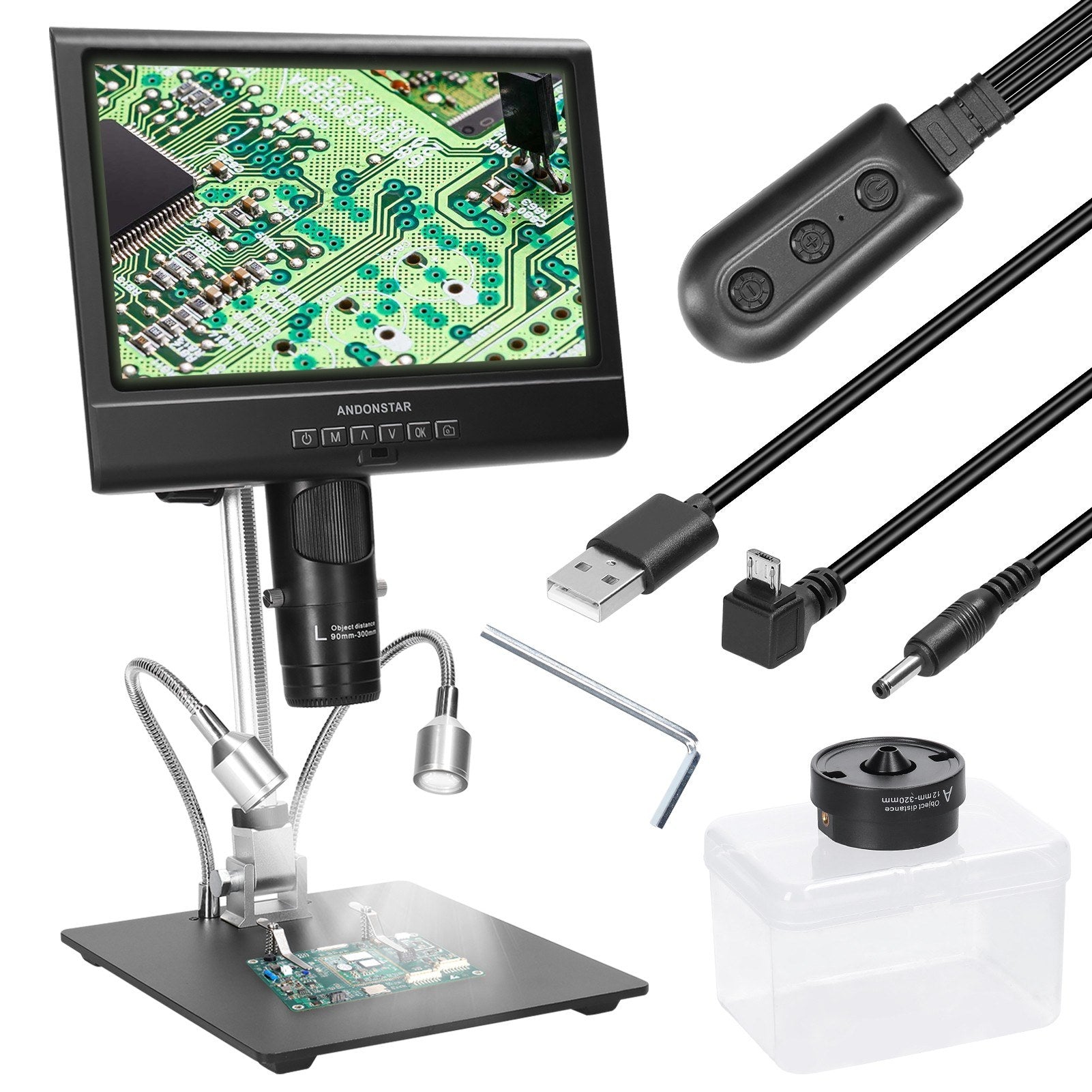

Packing List:

• 1 x Microscope
• 1 x Replacement Lens
• 1 x Metal Stand
• 1 x Dimmer Cable
• 2 x Metal Clips
• 1 x Instructions
