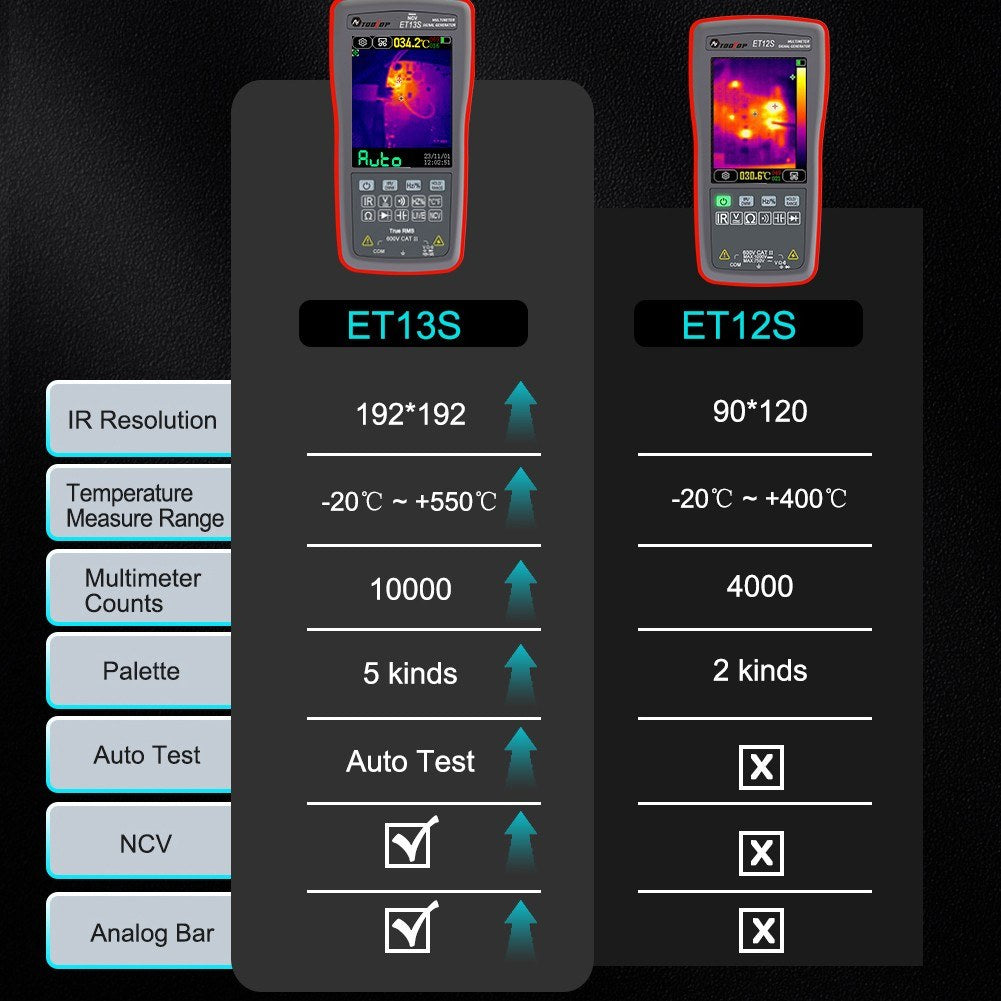

2-in-1 Thermal Imaging Multimeter, 192x192 IR Resolution, 10,000 Counts, 2.8 Touchscreen, -20℃ to 550℃ Temperature Range

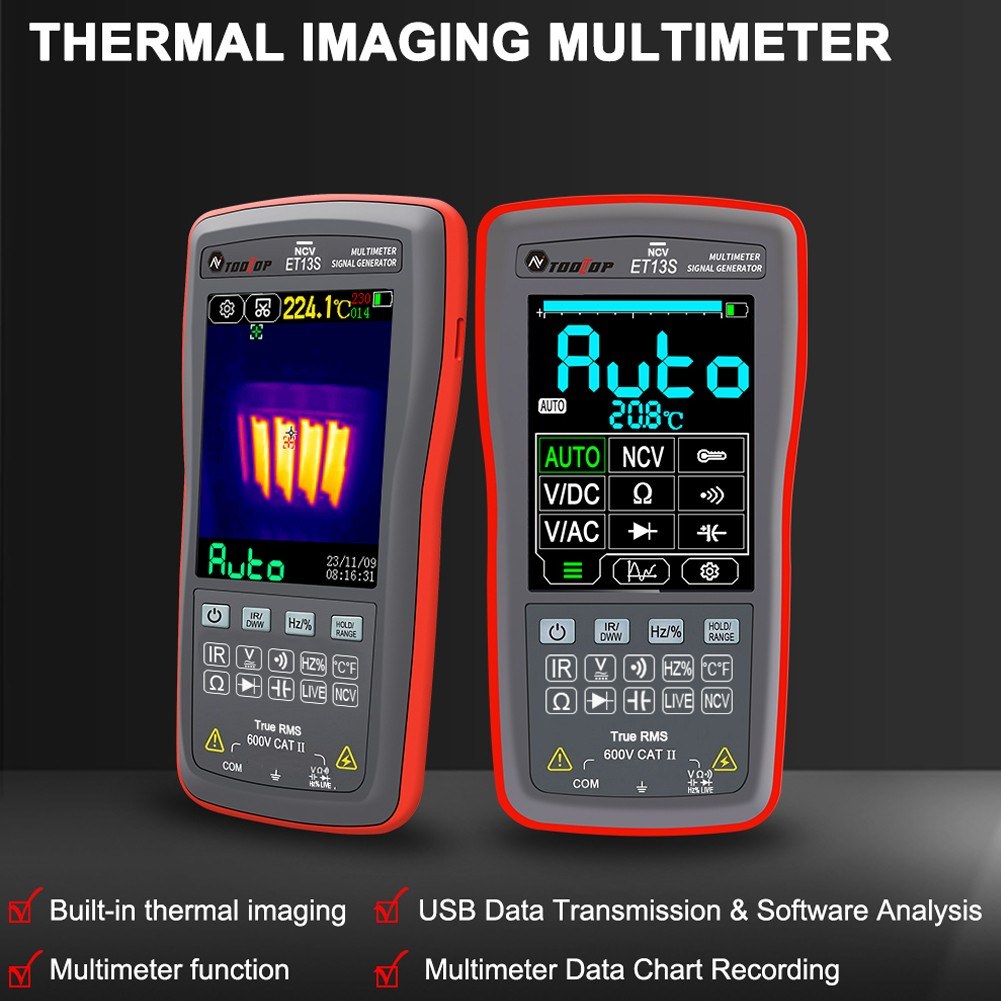

The ET13S Thermal Imager Multimeter is the ultimate tool for professionals, integrating a powerful thermal imaging system with a 10,000-count multimeter. Whether you're in electric power, chemical industries, construction, or firefighting, this device meets all your measurement needs with precision.

Key Features:

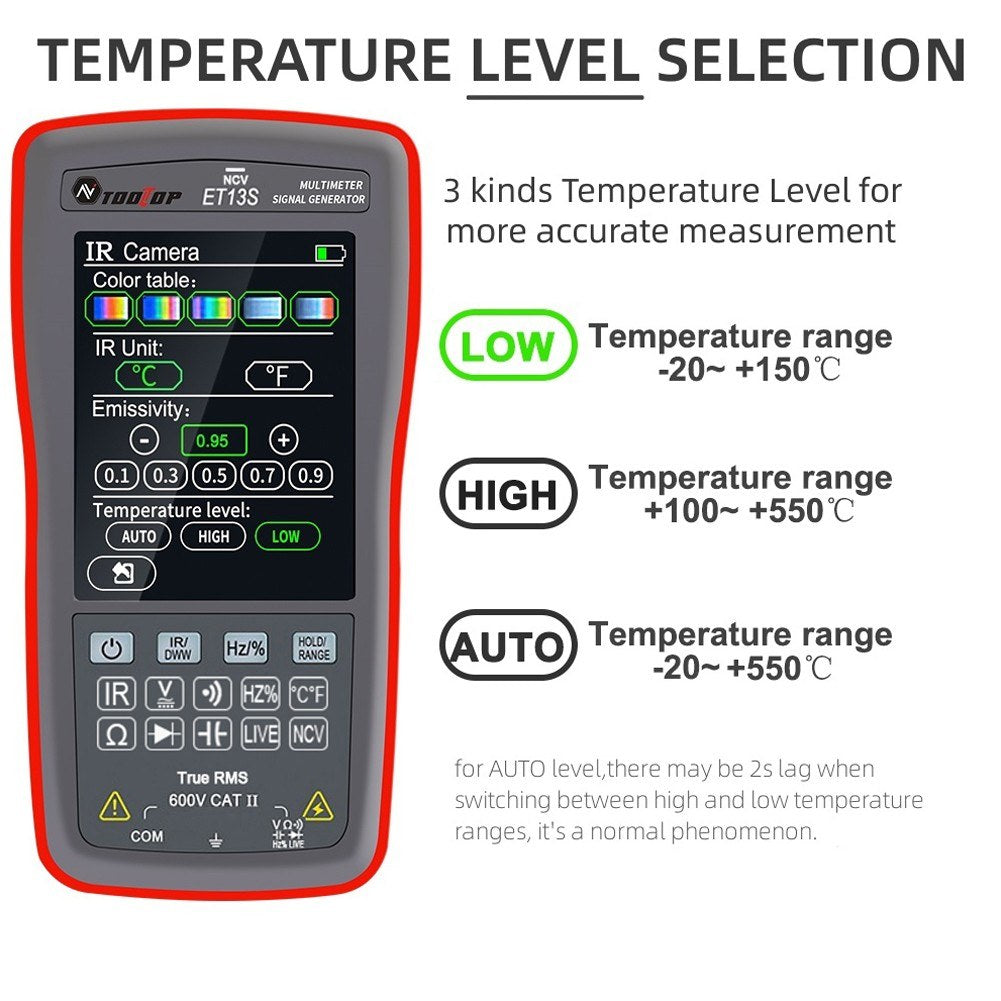

• 2-in-1 Functionality: Combines thermal imaging and multimeter functions to serve a wide array of measurement tasks. Offering temperature measurements from -20℃ to 550℃, it's a comprehensive solution for both temperature and electrical parameter detection.

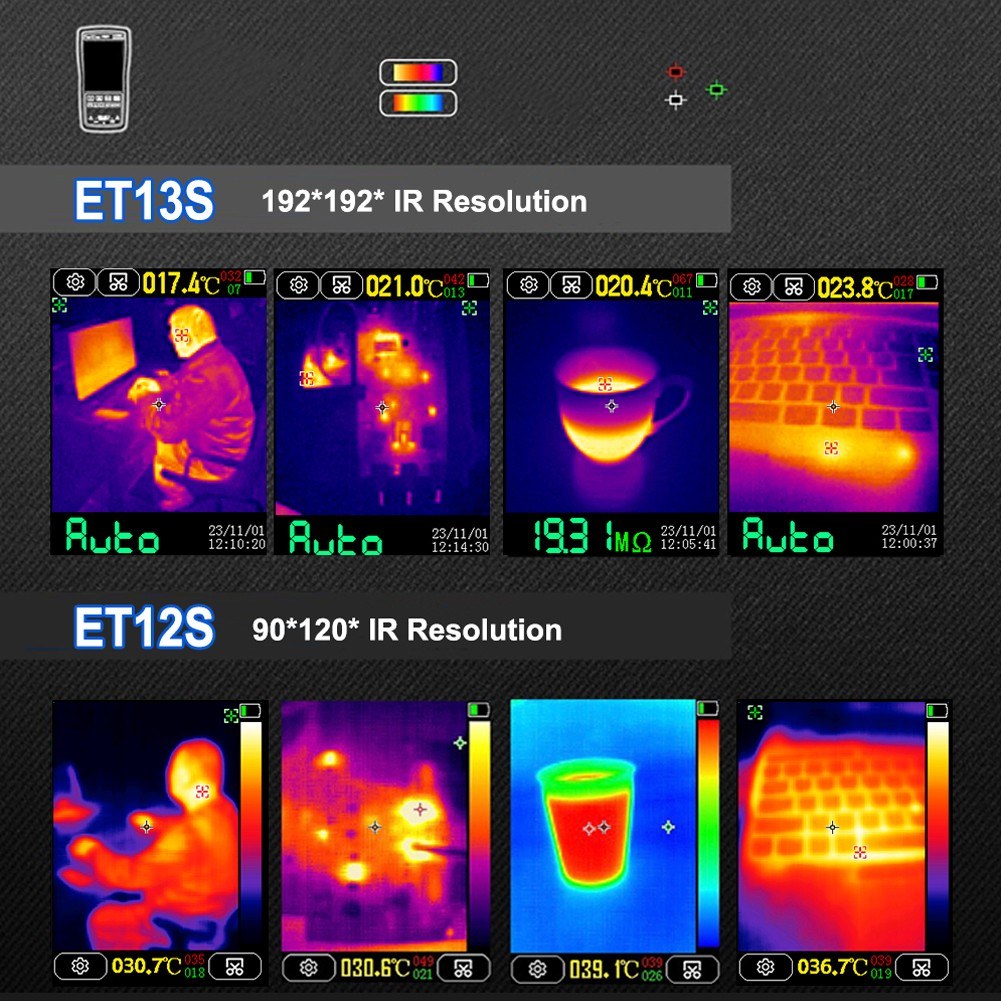

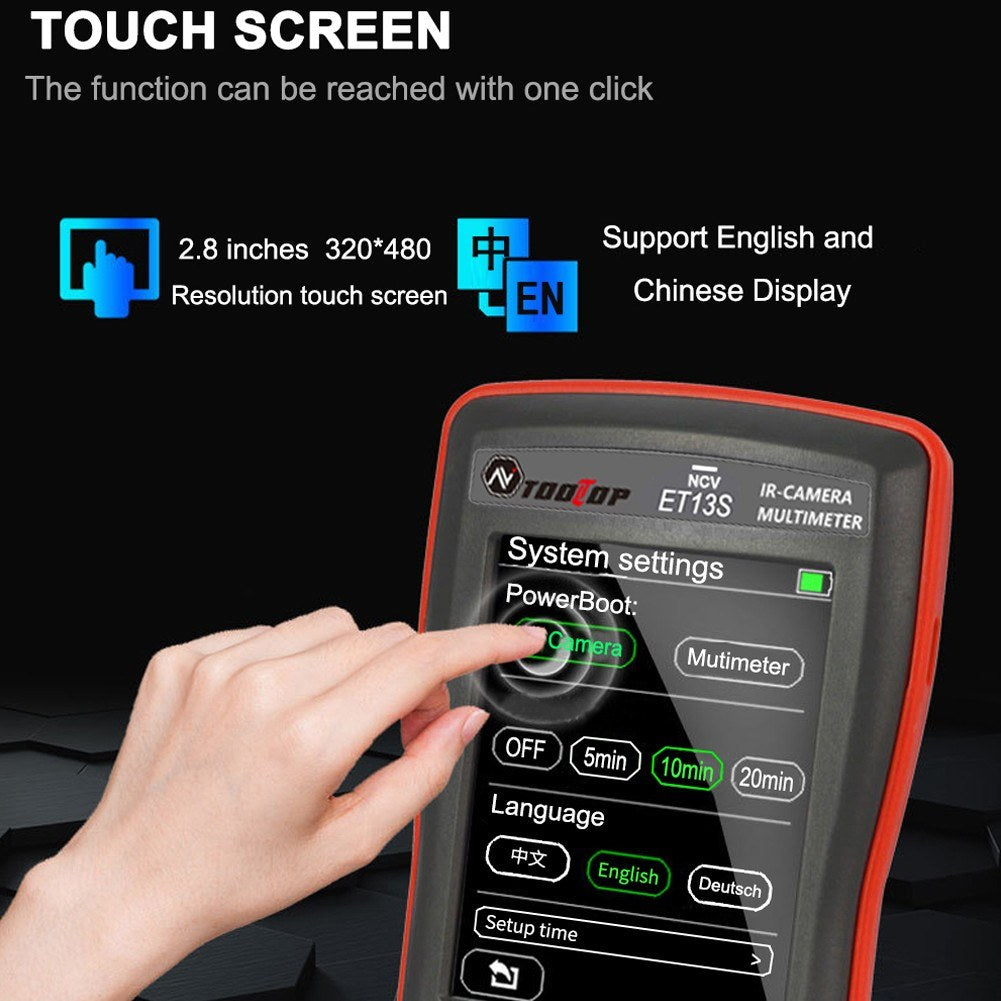

• 2.8-Inch Touchscreen: Features a 192x192 high infrared resolution, ensuring clear, detailed imaging. Operate effortlessly with a simple touch and switch between Chinese and English displays according to preference.

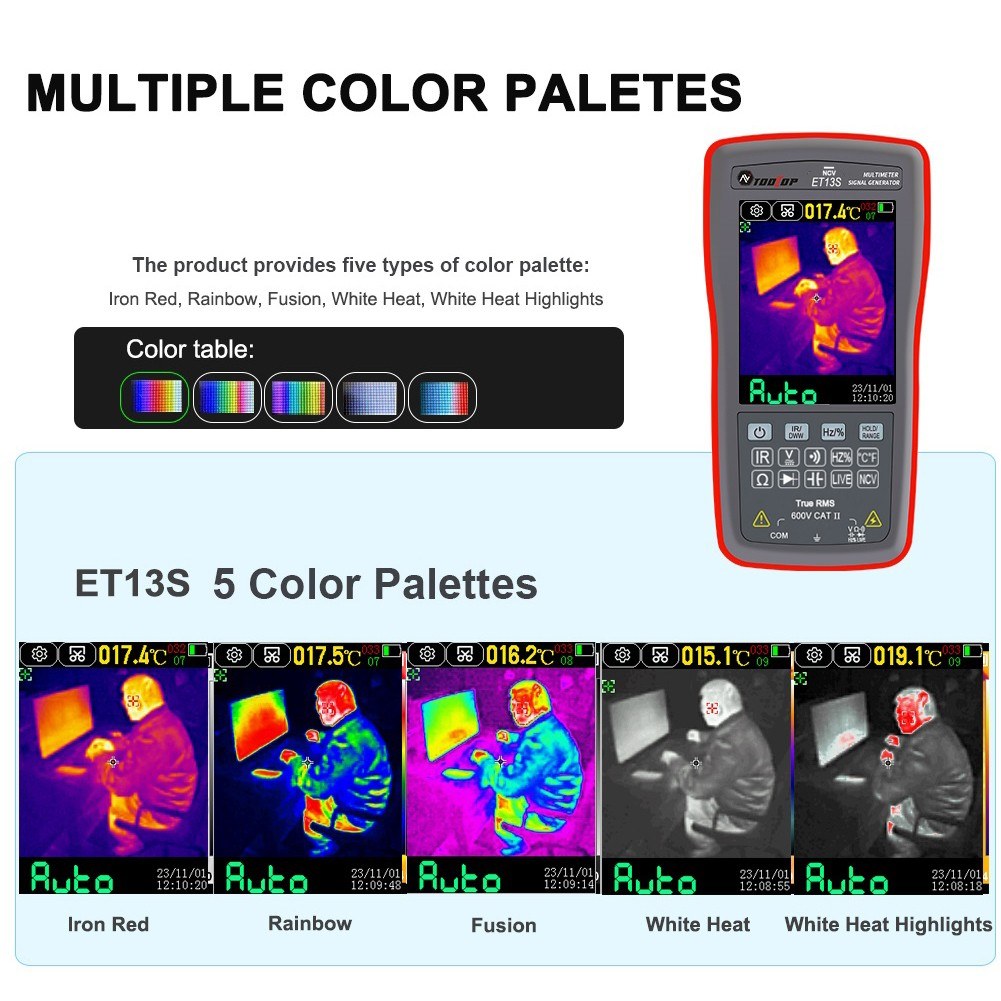

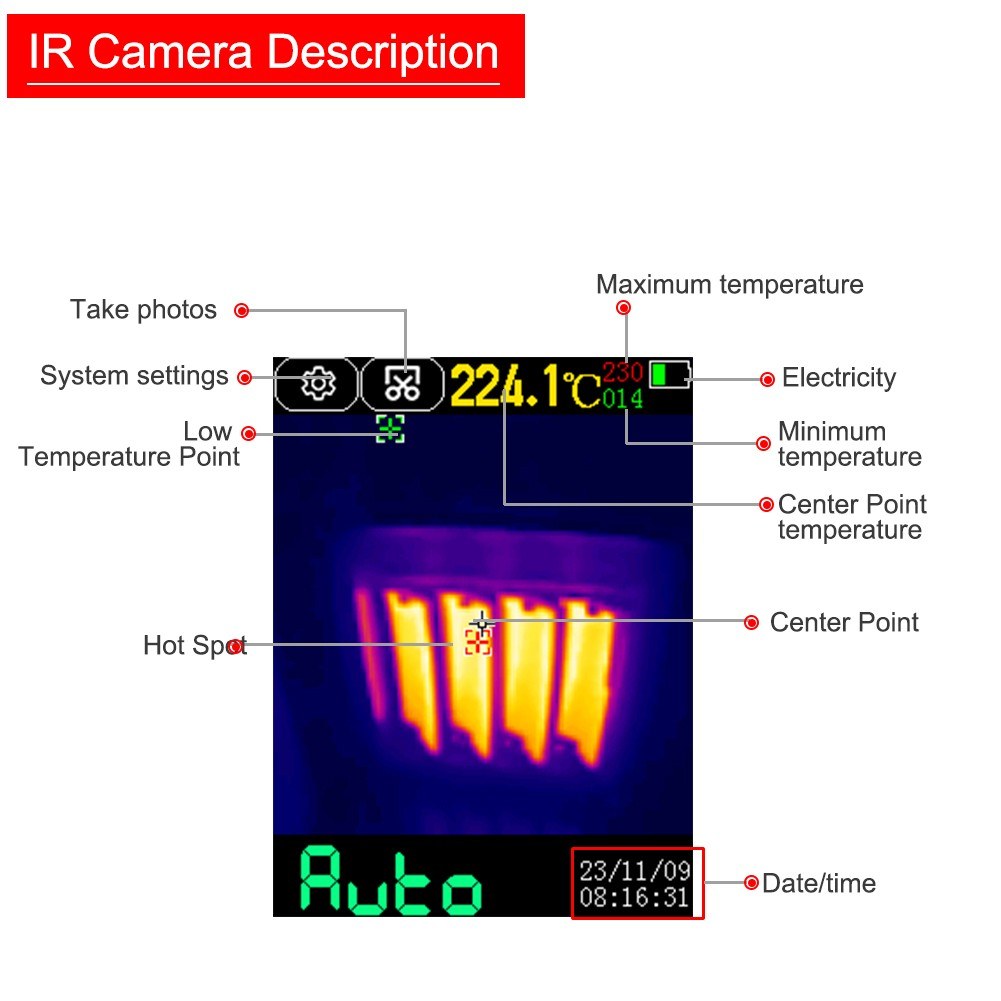

• Advanced Thermal Imaging: Displays maximum, minimum, and center temperatures for a thorough temperature distribution analysis. Choose from five color palettes—Iron Red, Rainbow, Fusion, White Heat—for optimal visualization.

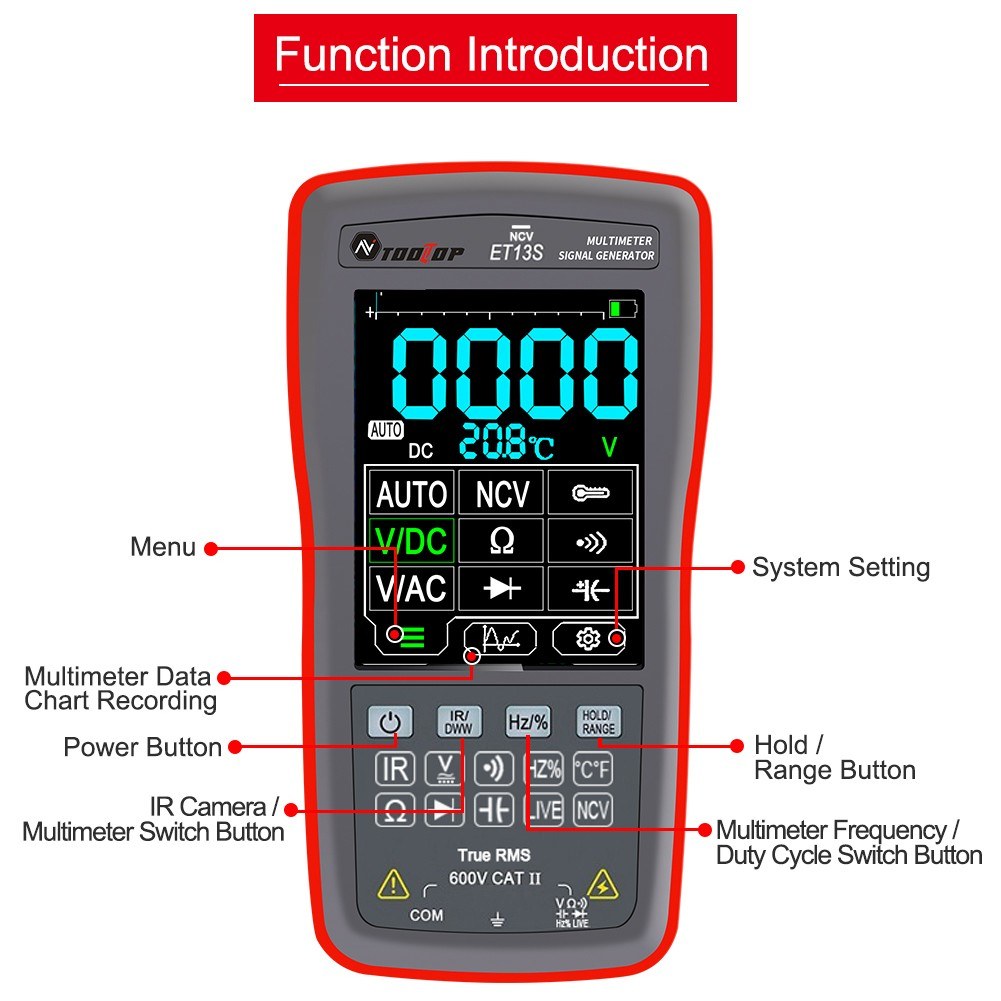

• 10000-Count Multimeter: Supports DC/AC voltage, resistance, diode testing, and more. Equipped with function recording and USB data transfer, the multimeter allows for comprehensive data analysis.

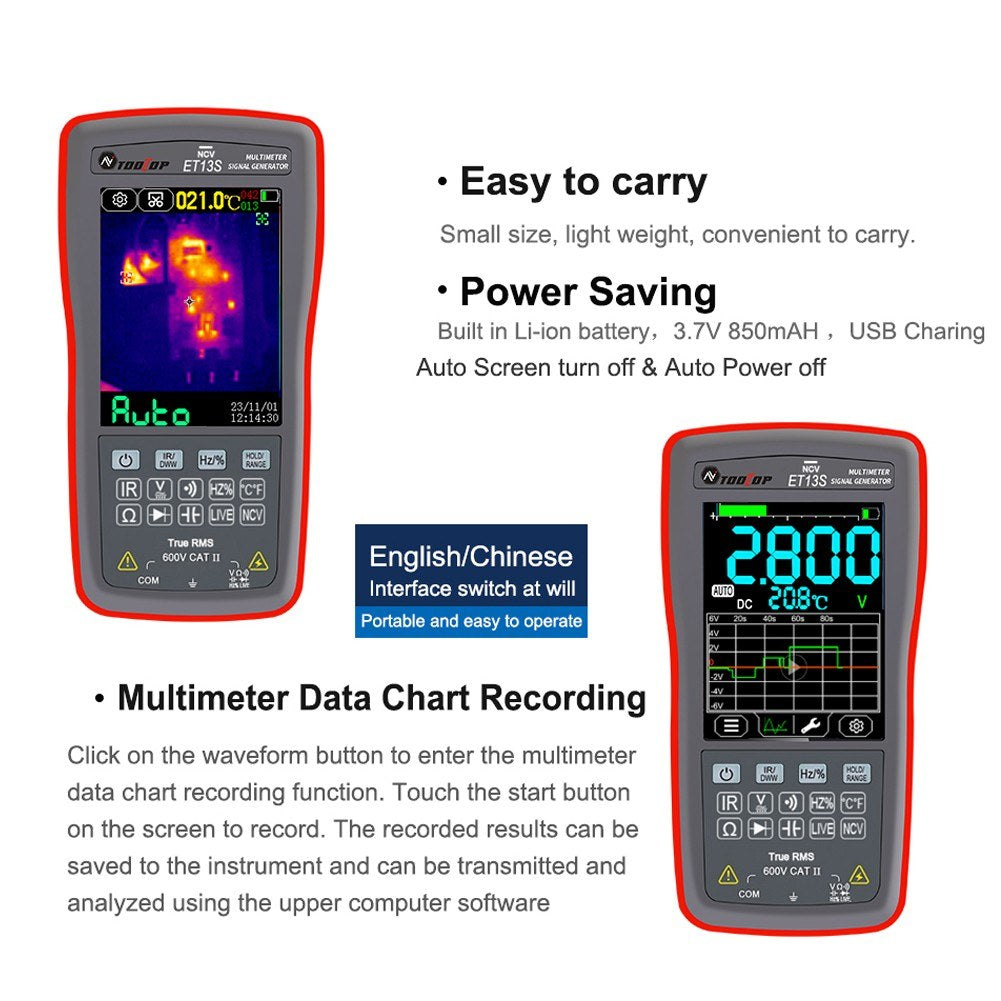

• Smart Power Management: Rechargeable with a 3.7V 850mAh lithium battery, featuring automatic screen shutdown and power-off for extended use. USB Type-C interface supports efficient data transfer and charging.
• Versatile Applications: Ideal for teaching, research, and practical applications across various domains, including energy analysis, environmental testing, and industrial production monitoring.

Specifications:

• Material: Durable plastics
• Thermal Imaging Frequency: 20Hz
• Display Resolution: 240x240
• Field of View (FOV): 50°(H) x 50°(V) / 72.1°(D)

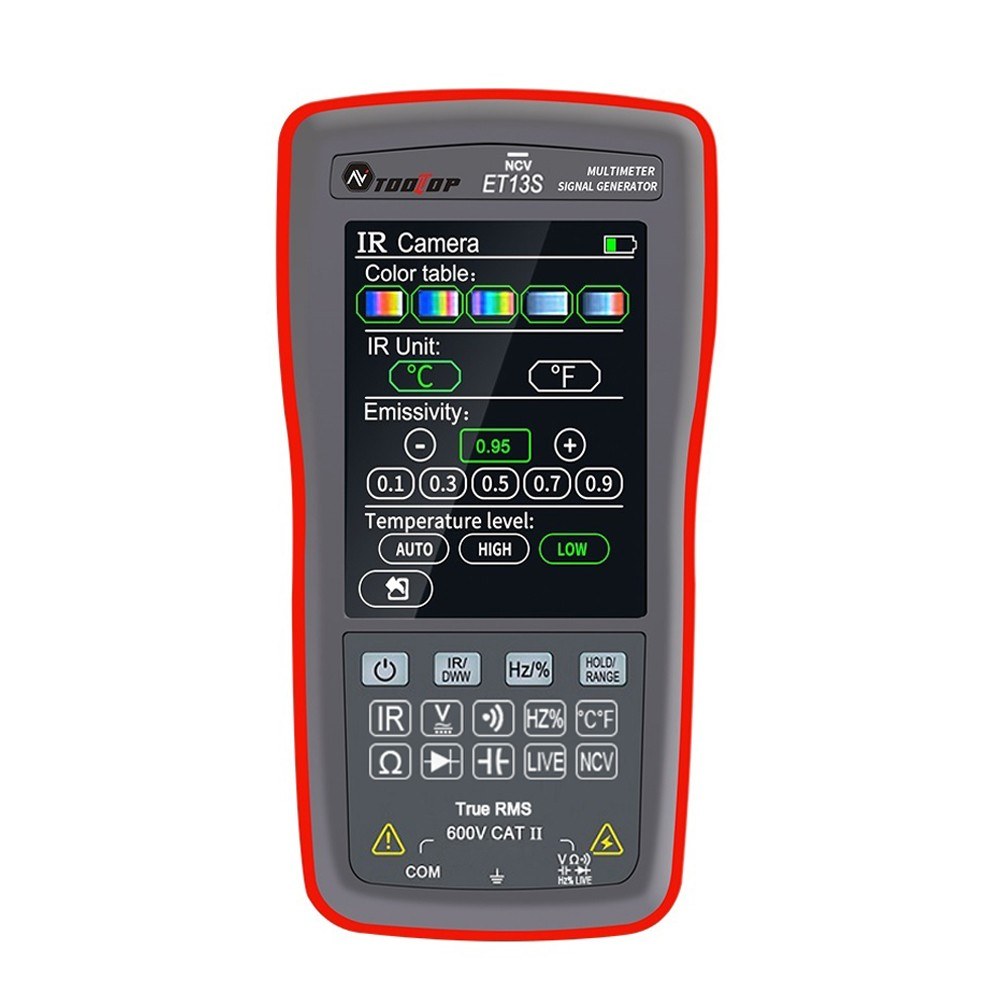

• Emissivity: Adjustable from 0.1 to 0.99 (default 0.95)
• Temperature Measurement Error: >0℃ ±2℃ or ±2%, ≤0℃ ±5℃ or ±5
• Display Temperature Accuracy: 0.1℃/0.1℉

Multimeter Parameters:

• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• Resistance Measurement: Up to 99.9ΜΩ
• Capacitance Measurement: Up to 99.99mF
• Diode Measurement: 0V-3V
• On/off Detection: Maximum resistance 999.9Ω
• Display Count: 9,999 words updated 3 times per second

Overall Device Details:

• Display Screen: 2.8 inches, 320x480 resolution
• Touchscreen Type: Resistive
• USB Interface: Type-C
• Storage Capacity: 3.5MB
• Storage Temperature: -20 to 60℃ (-4 to 140℉)
• Operating Temperature: 0 to 50℃ (32 to 122℉)
• Working Humidity: <85%RH (non-condensing)
• Item Dimensions: 134 x 69 x 25mm / 5.28 x 2.72 x 0.98in
• Item Weight: 130g / 4.59 ounces
• Package Dimensions: 185 x 160 x 40mm / 7.28 x 6.30 x 1.57in
• Package Weight: 305g / 10.76 ounces

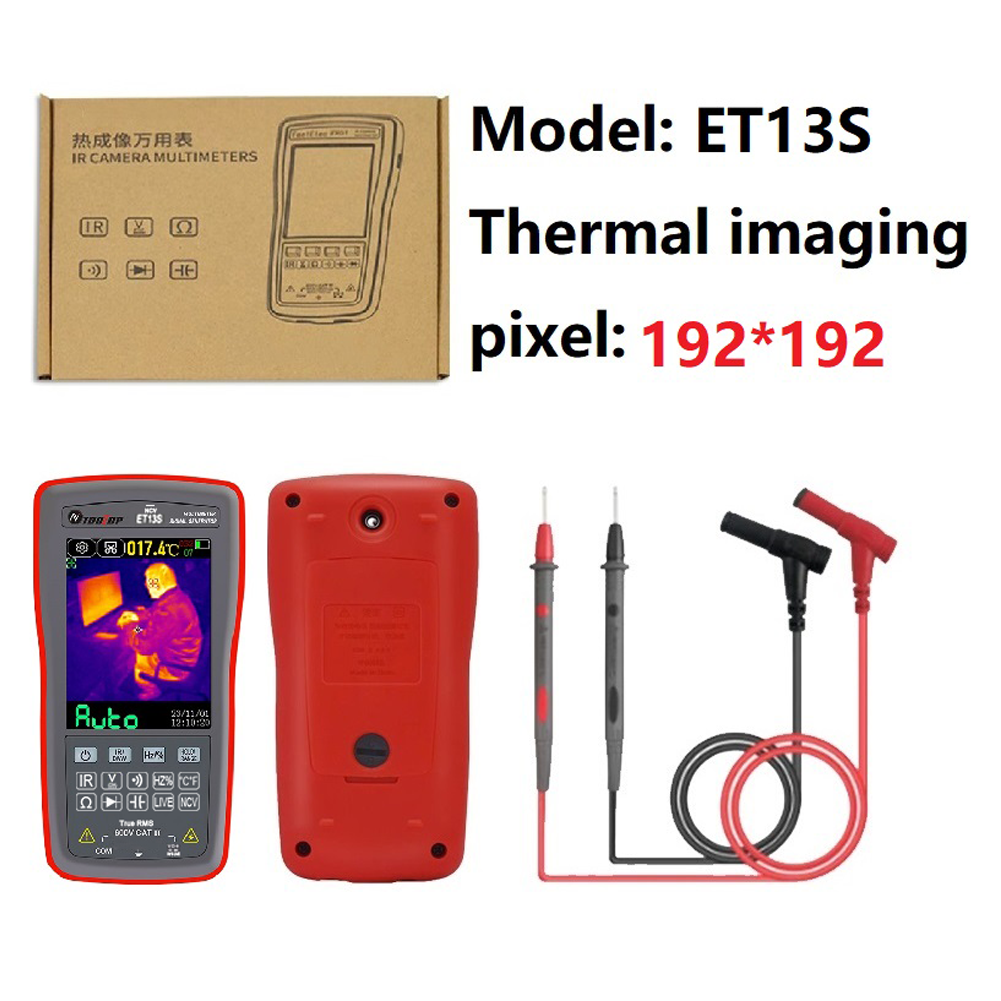

Package Includes:

• 1 x Thermal Imager Multimeter
