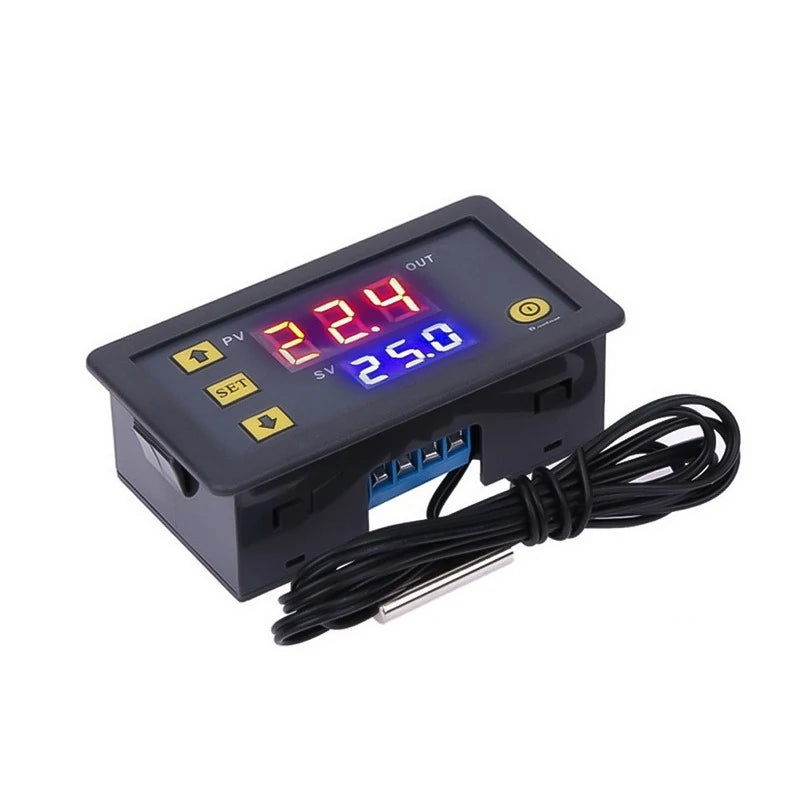

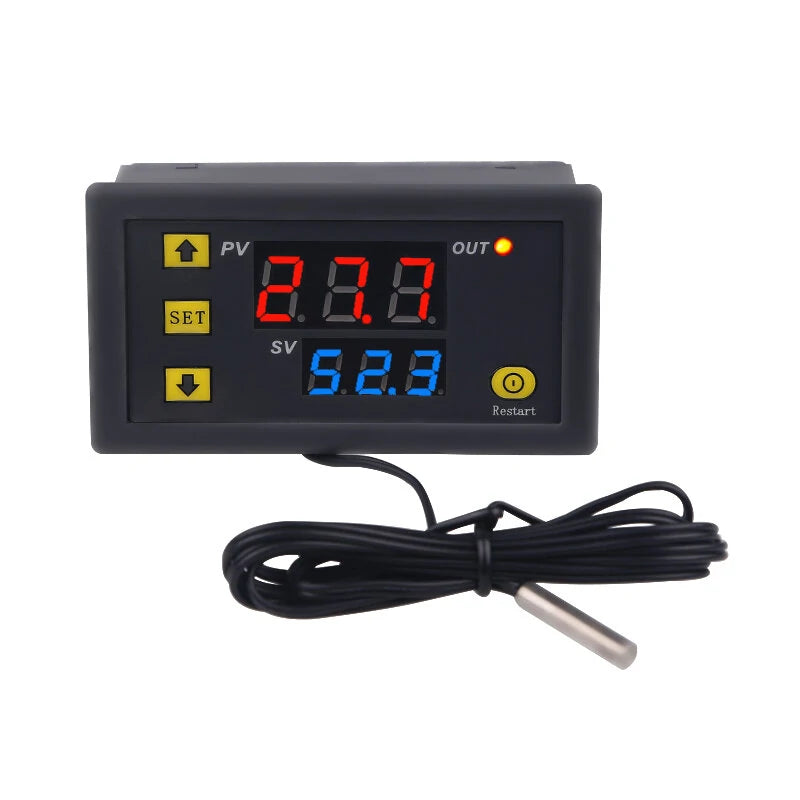

Temperature Controller

Product Specifications:

• Power Supply: DC 12V
• Temperature Control Range: -55°C to 120°C
• Resolution Ratio: 0.1°C (-9.9 to 99.9); 1°C (other ranges)
• Display Color: Red/Blue
• Measurement Accuracy: ±0.1°C
• Control Accuracy: 0.1°C
• Sensor: NTC10K Waterproof Sensor

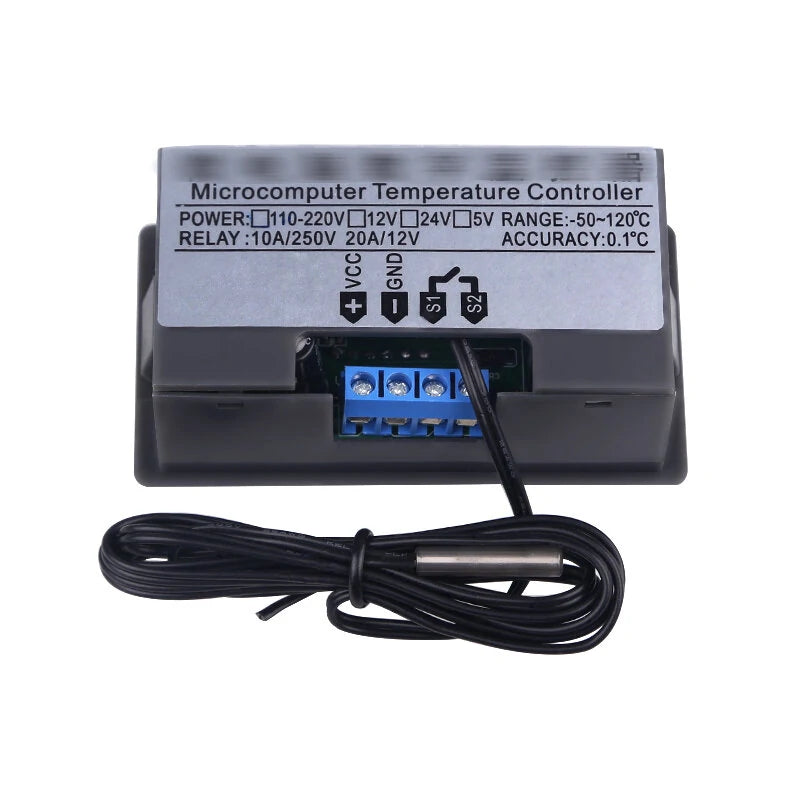

• Output: Relay Contact Capacity 20A 12V / 10A 220V
• Environmental Requirements: -10°C to 60°C, Humidity 20% - 85% RH

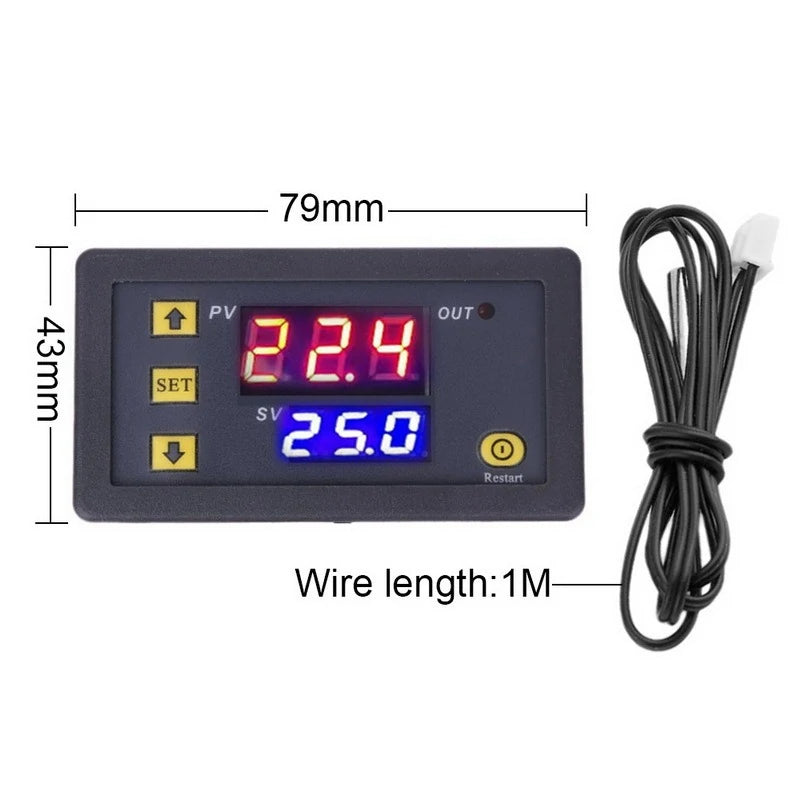

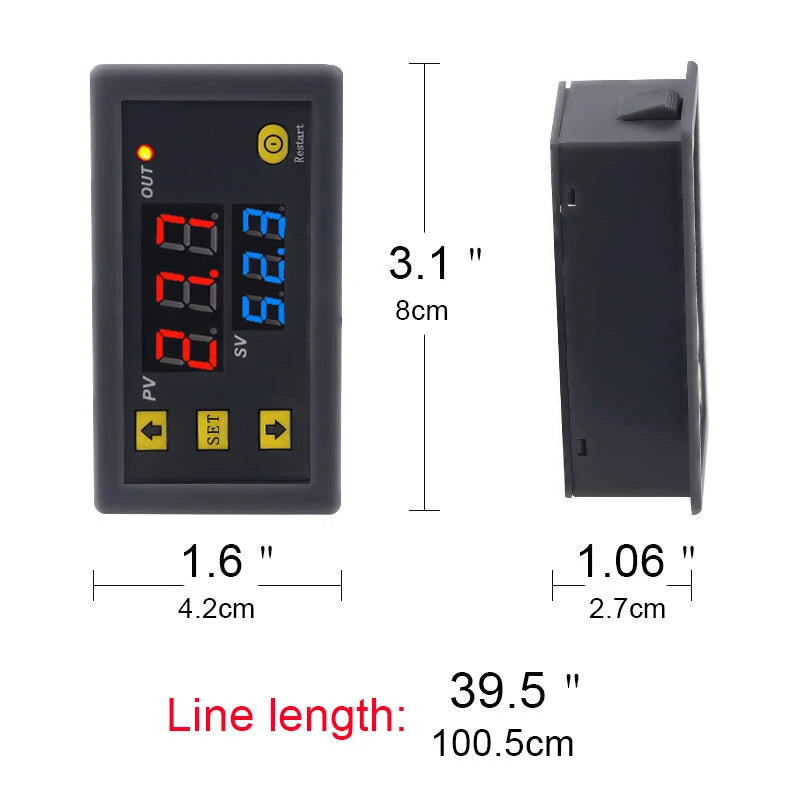

• Dimensions: 79mm x 43mm x 26mm
• Cutting Size: 73mm x 39mm
• Sensor Wire Length: 1 meter

Function Descriptions:

• P0: Refrigeration or Heating Mode
• P1: Return Difference Setting
• P2: Maximum Temperature Setting Upper Limit
• P3: Minimum Temperature Setting Lower Limit
• P4: Temperature Correction
• P5: Delay Start Time (in minutes)

Package Includes:

• 5 x Temperature Controller with NTC10K Waterproof Sensor
