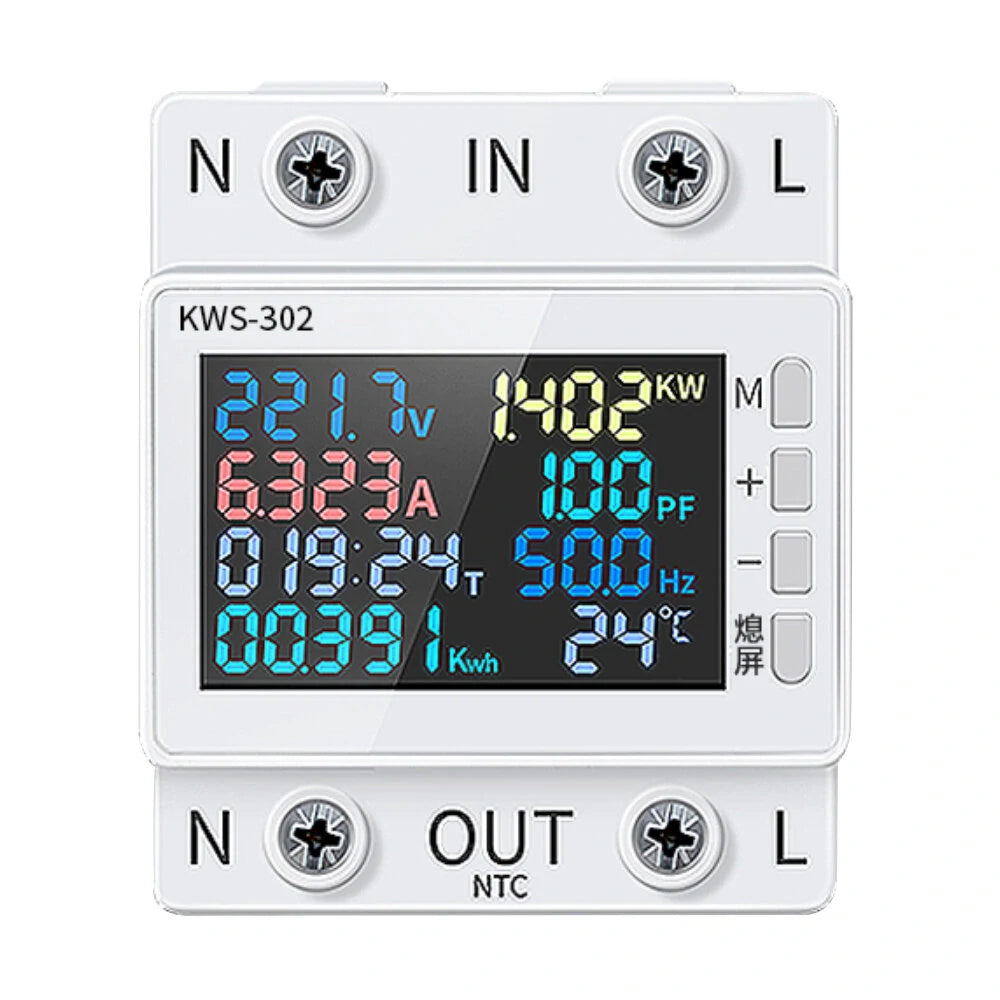

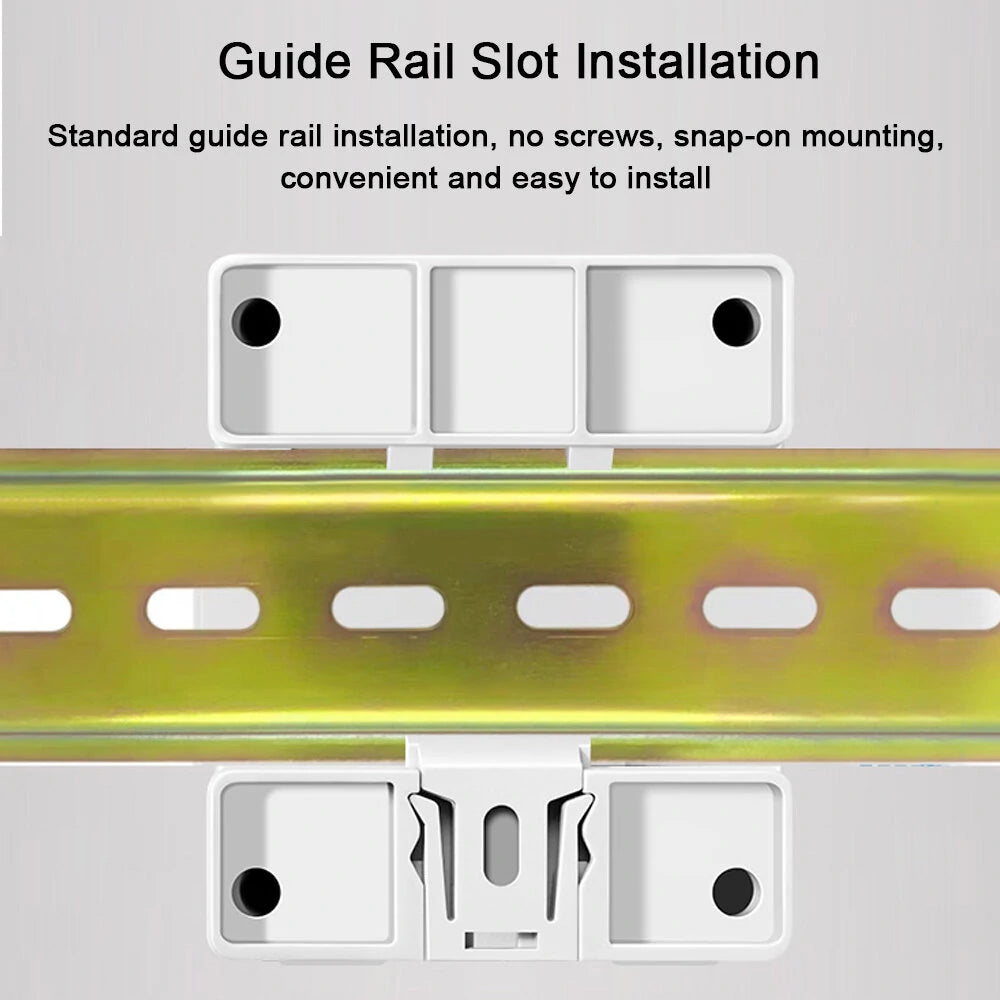

Multi-function 8-in-1 Power Meter: Color Screen, AC Energy Meter (170-270V/63A) with Standard Rail Mounting

8in1 Energy Meter

Features

• Versatile Measurement: Gain comprehensive insights into your energy usage by measuring voltage, current, power, timing, electricity, temperature, and frequency.

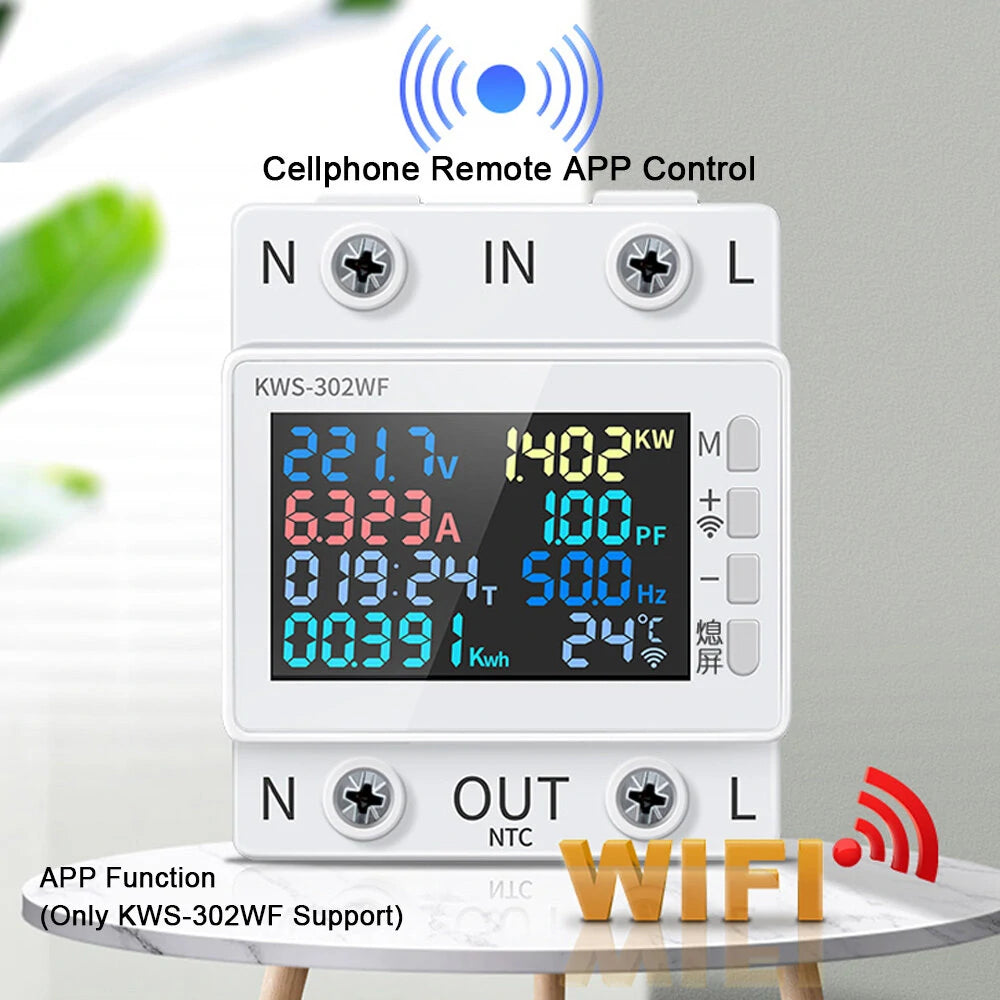

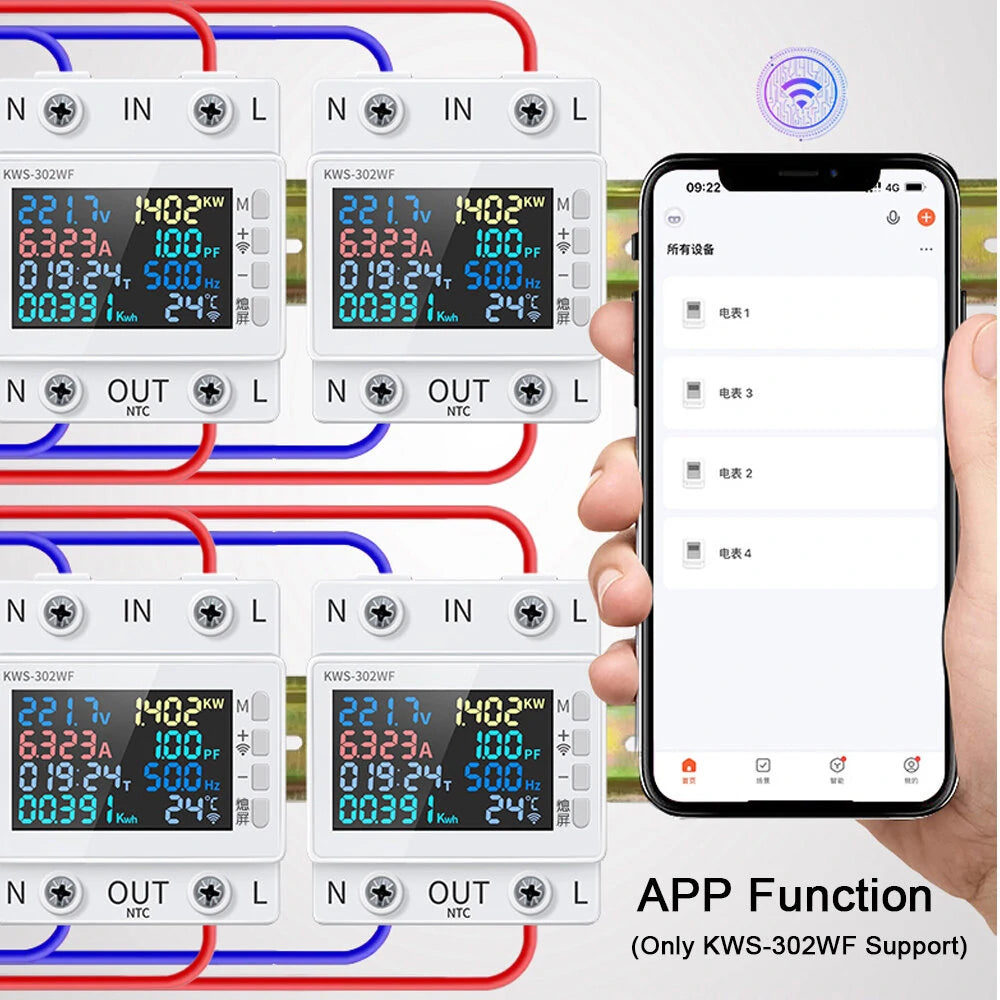

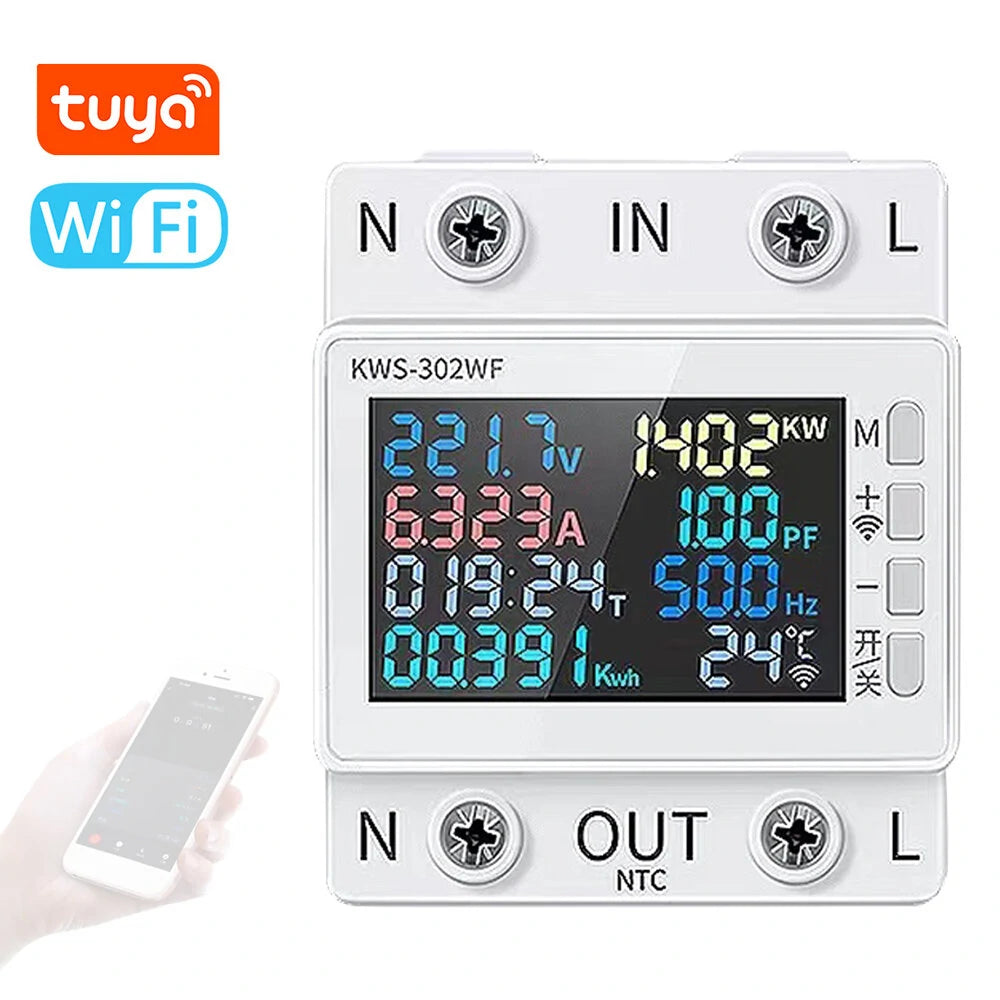

• Smart App Control: Use the SmartLife or Graffiti Intelligent apps to control the device remotely over a WiFi network from anywhere and at any time.
• Timer Functionality: Set multiple timing data for efficient power management with the handy countdown function.
• Device Sharing: Enable multiple users to manage the device simultaneously, ideal for shared spaces and facilities.
• Robust Power Failure Protection: Enjoy several safety features such as over-voltage, under-voltage, over-current, over-power, over-temperature, and timer power failure protection.

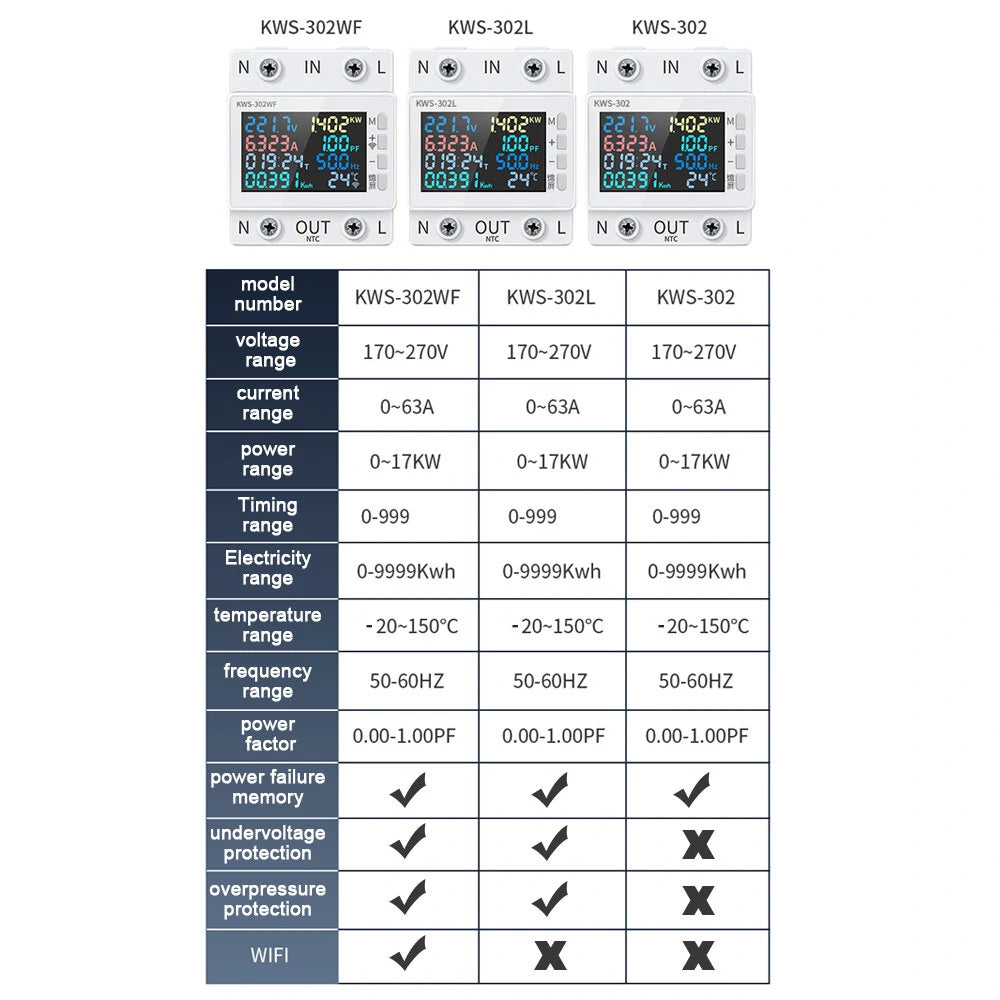

Specifications

• Name: 8in1 Energy Meter
• Material: ABS+PC+VO
• Optional Models: KWS-302WF, KWS-302L, KWS-302
• Voltage Measurement Range: 170-270V
• Current Measurement Range: 0-63A
• Power Measurement Range: 0-17KW
• Timing Measurement Range: 0-999Hrs
• Electricity Measurement Range: 0-9999Kwh
• Temperature Range: -20-150℃
• Frequency Measurement Range: 50-60Hz
• Power Factor: 0.00-1.00PF
• Power Failure Memory: Yes, for all models
• Under-Voltage Protection: Available in KWS-302WF and KWS-302L
• Over-Voltage Protection: Available in KWS-302WF and KWS-302L
• WIFI: Available only in KWS-302WF

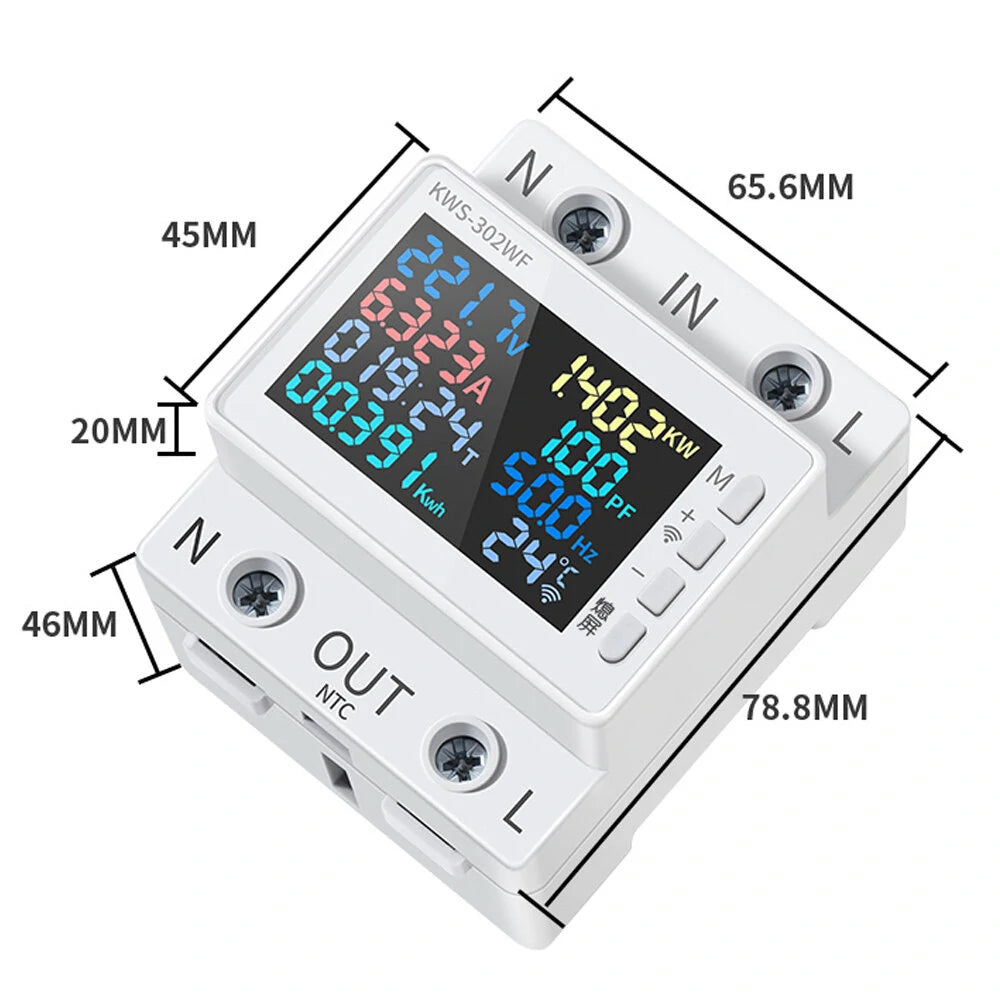

• Item Size: 66 x 66 x 82mm / 2.60 x 2.60 x 3.23in
• Package Size: 89 x 73 x 75mm / 3.50 x 2.87 x 2.95in
• Package Weight: Varies based on model

Package Included

• 1 x 8in1 Energy Meter (Model as per your choice)
