Compact Test Pen Multimeter

Our Test Pen Multimeter combines beautiful design with user-friendly operation to help you tackle all your electrical testing needs. Featuring advanced functionalities, it measures AC/DC voltage, resistance, capacitance, and more. This device is ideal for both professionals and DIY enthusiasts.

Features:

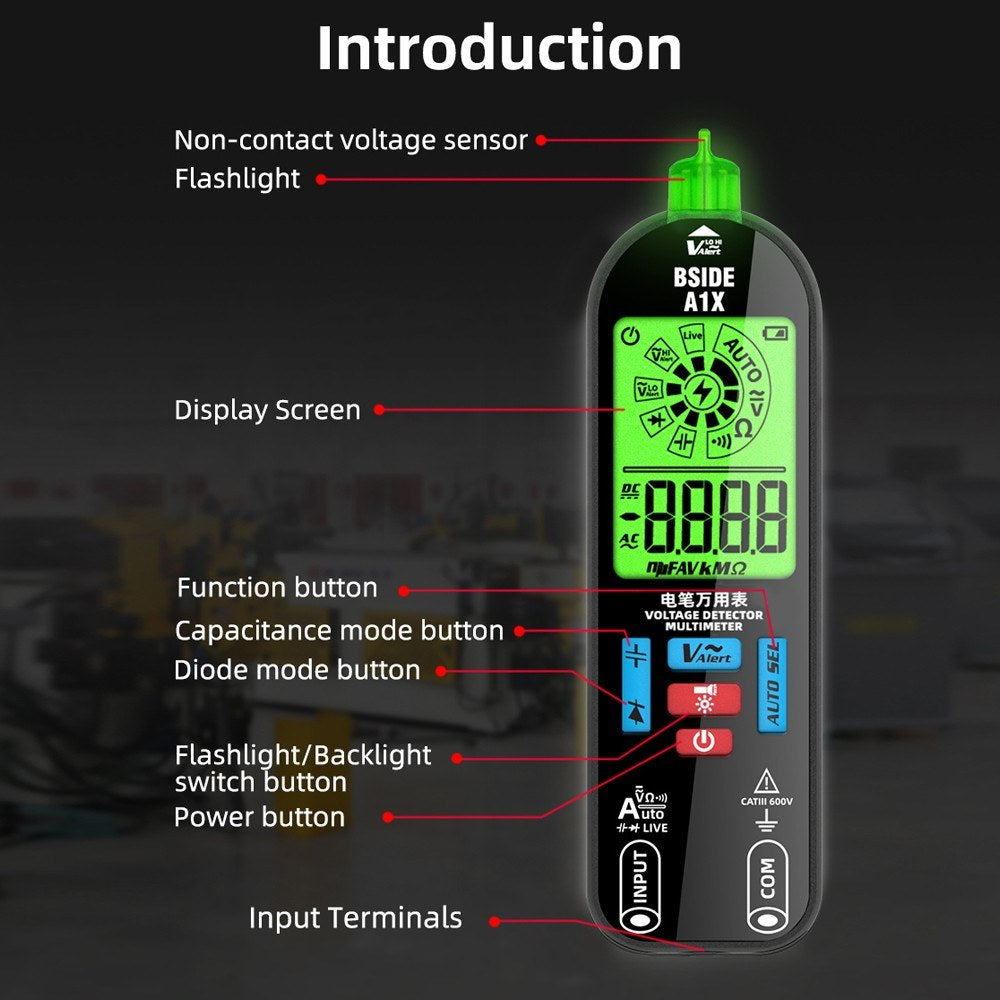

• Concise Appearance: This portable pen-type multimeter is compact and easy to carry, making it convenient for everyday use.

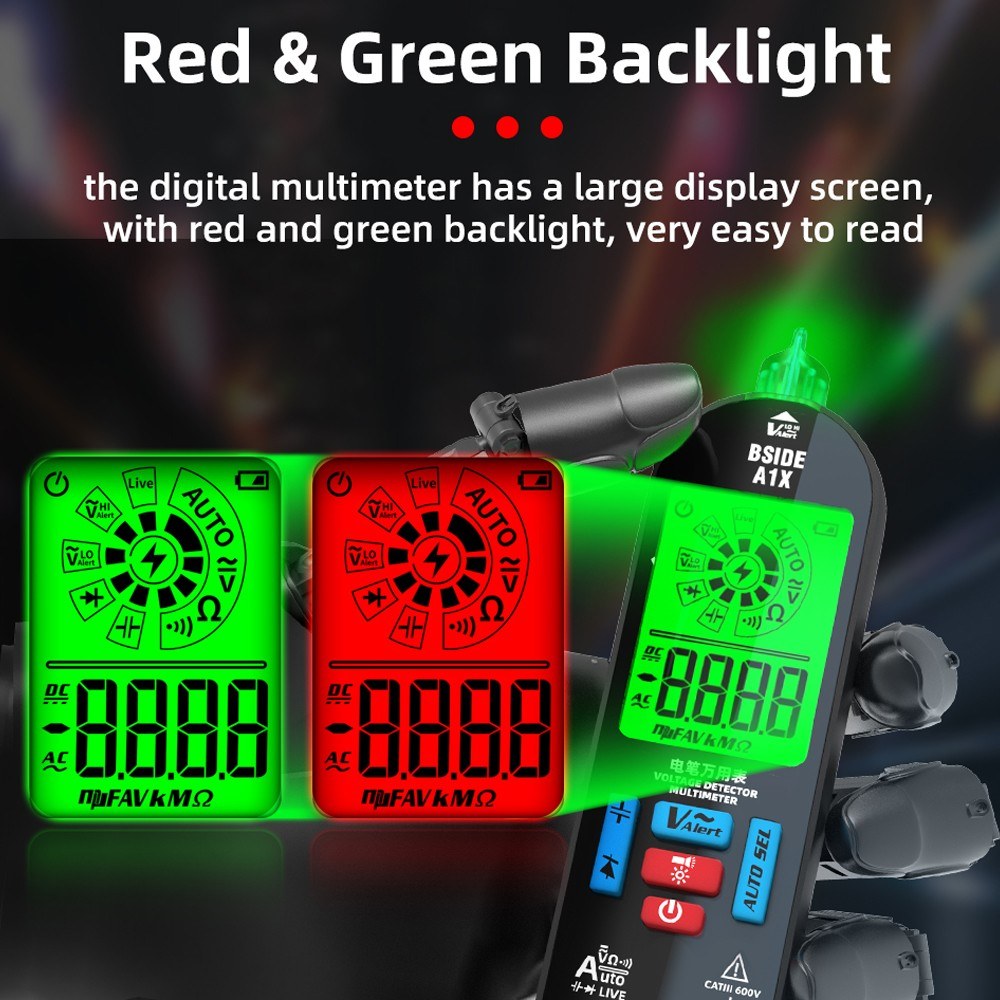

• Large LCD Display: The multimeter boasts a large LCD color display with red and green backlights, providing clear visibility for middle-aged and elderly electricians.

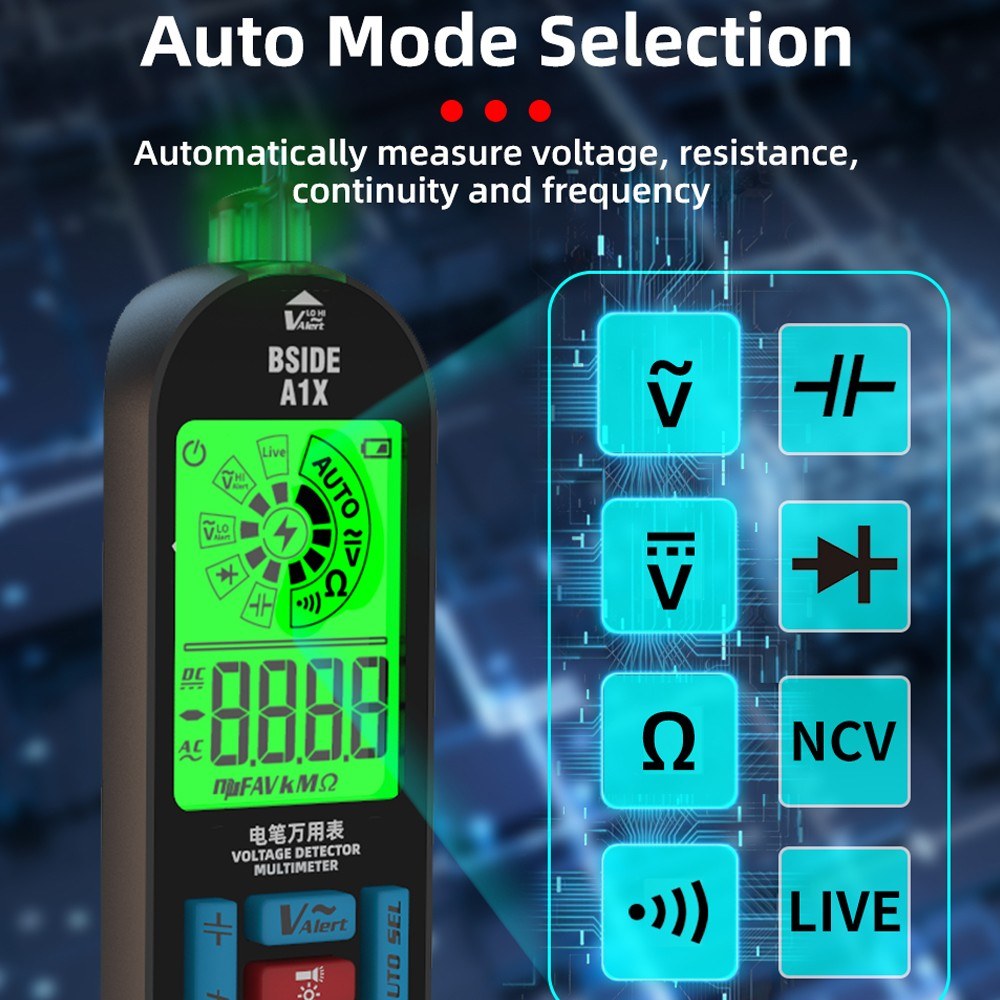

• Intelligent Identification: Automatically detects measurement signals for ease of use without needing to adjust settings, ensuring precision and accuracy.
• Multifunctional Capabilities: Equipped to handle live zero and fireline judgment, line breakpoint detection, and more. Features automatic shutdown after 15 minutes of inactivity.
• Triple Alarm: Sound and light alarms enhance measurement accuracy and provide reliable feedback.

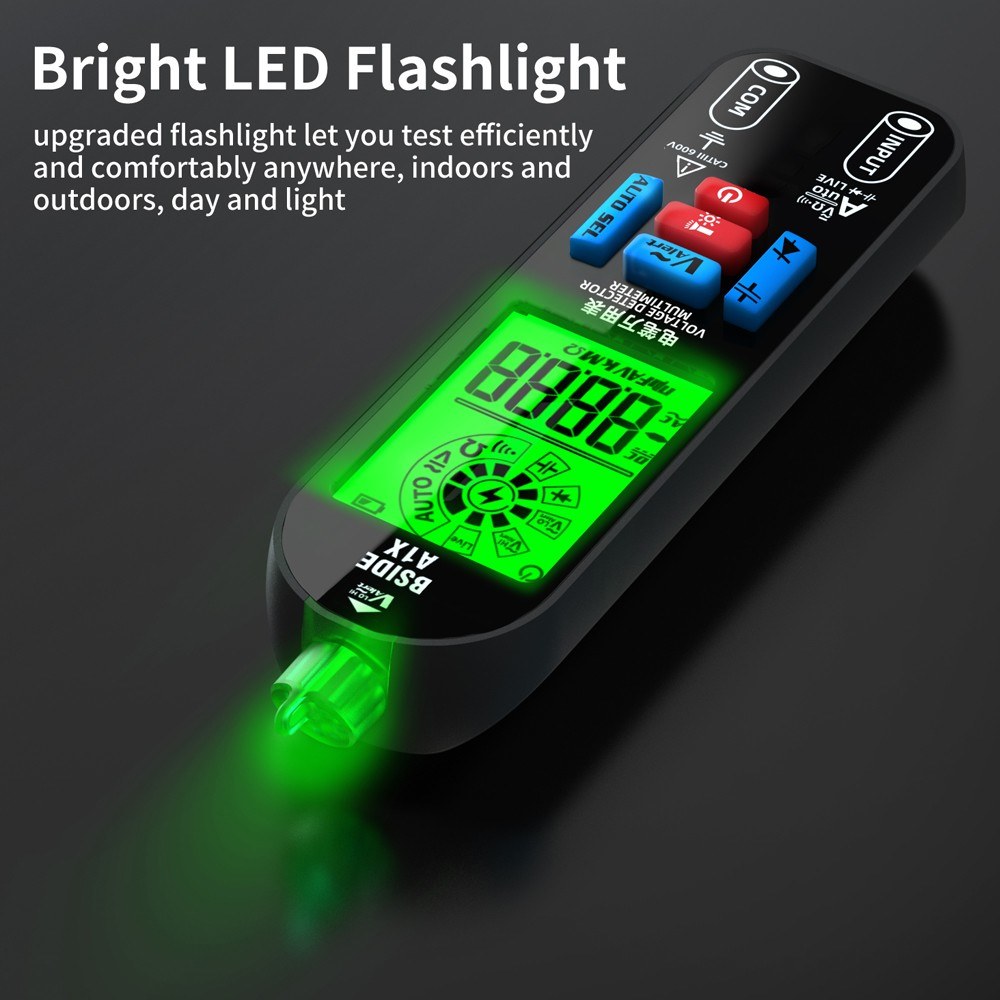

• LED Flashlight: Built-in flashlight helps illuminate your work area in dimly lit environments.

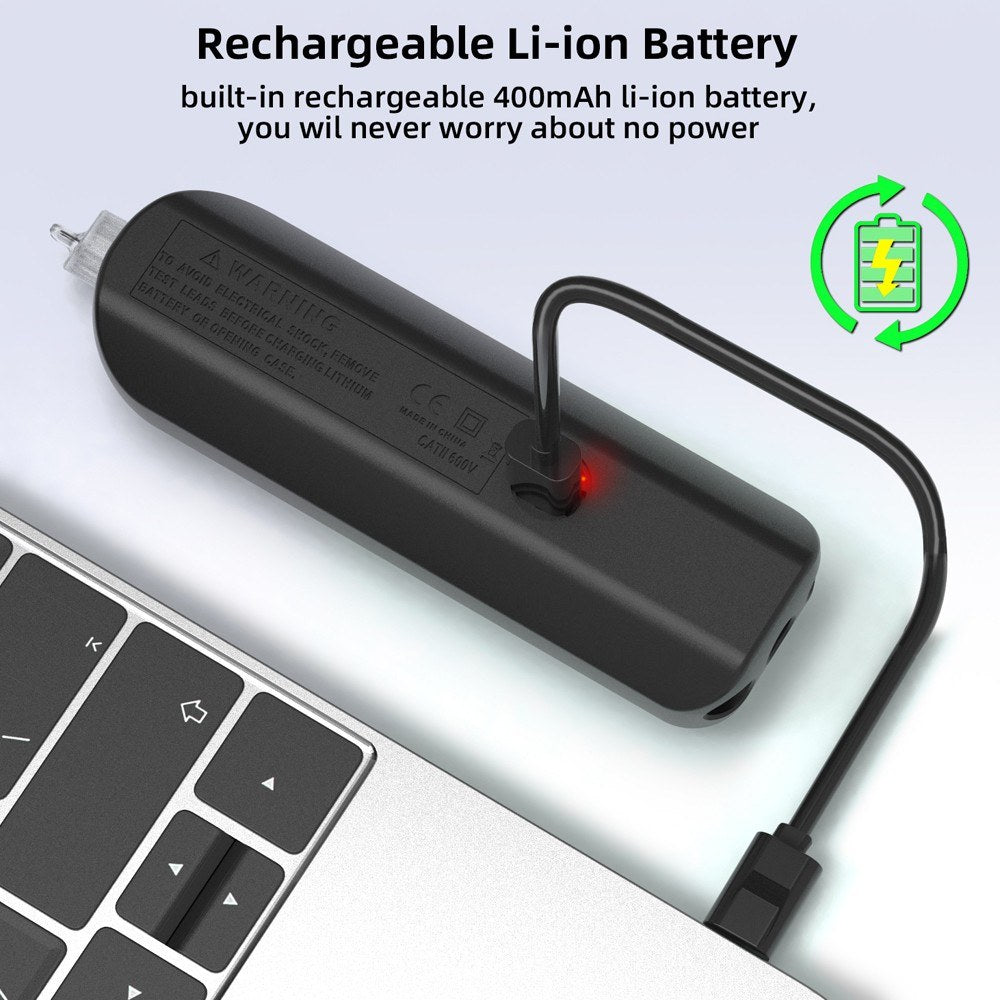

• Lithium Battery: Features a rechargeable 400mAh lithium battery with Type-C cable for long-lasting use.
• Wide Applications: Perfect for electrical testing, automotive repair, household improvements, and industrial electrical maintenance.

Specifications:

• Name: Test Pen Multimeter
• Material: Plastic
• Screen: LCD display with red and green backlight
• Battery: 3.7V, 400mAh lithium battery (included)
• DC Voltage: 0-520V (DC Mode), 0.5-520V (auto mode), ±(0.8% +3)

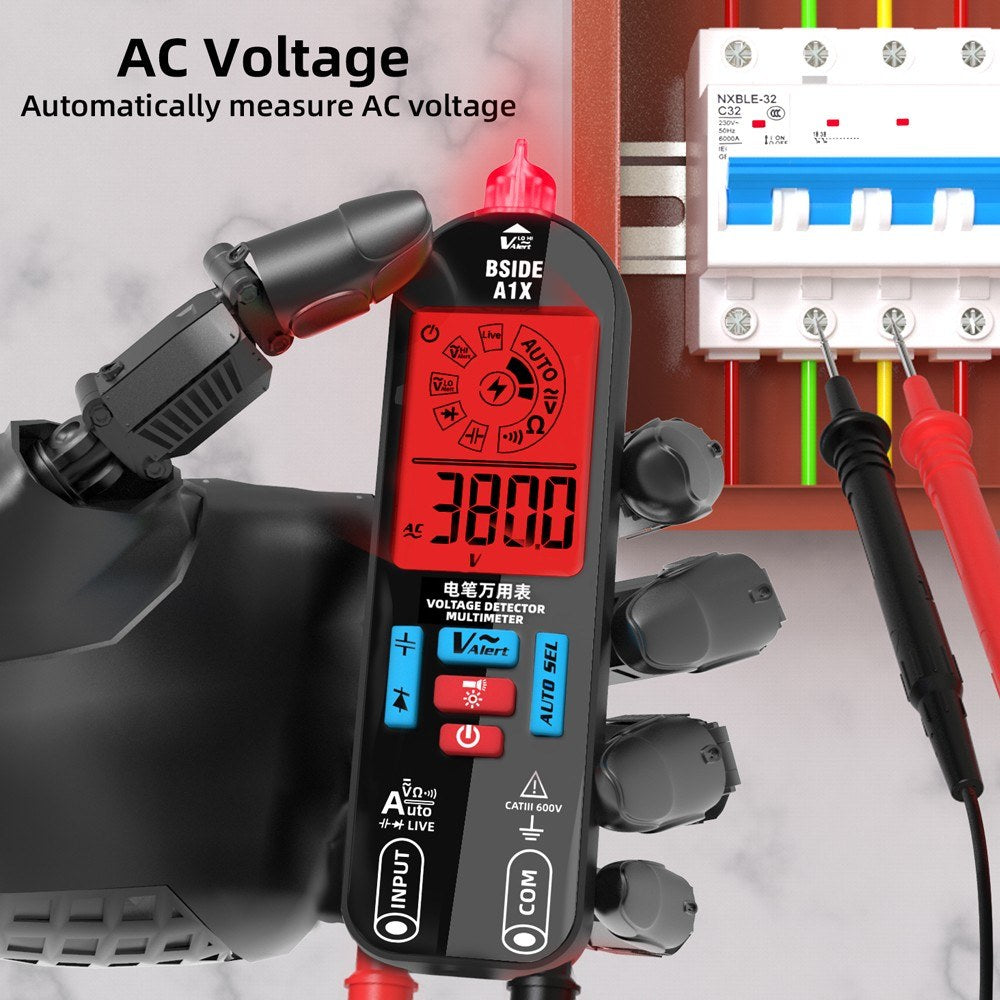

• AC Voltage: 0-520V (AC mode), 0.5-520V (auto mode), ±(1.2% +5)
• Resistance: 0-19.99MΩ, ±(1.2% +5)

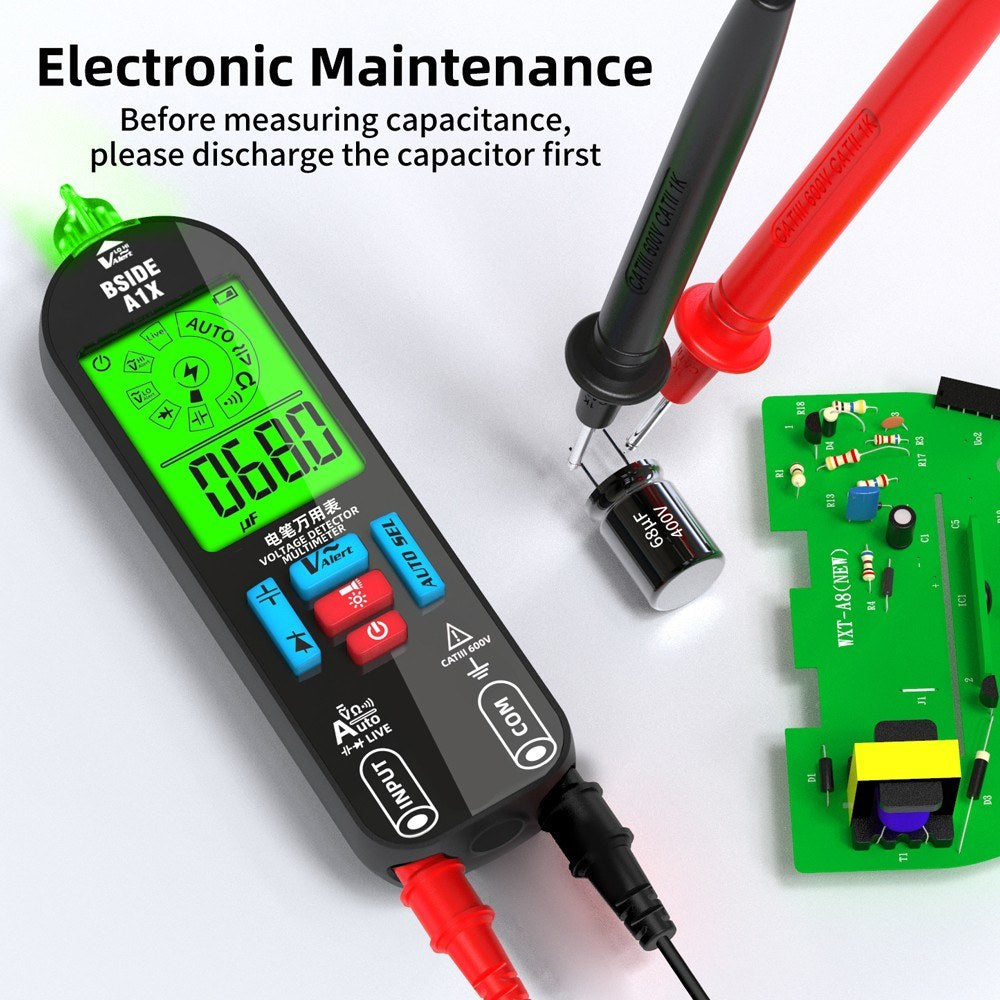

• Capacitance: 1nF-1999μF, ±(3.5% +8)
• Buzzer On/Off: Sounds when measured resistance is less than 50Ω

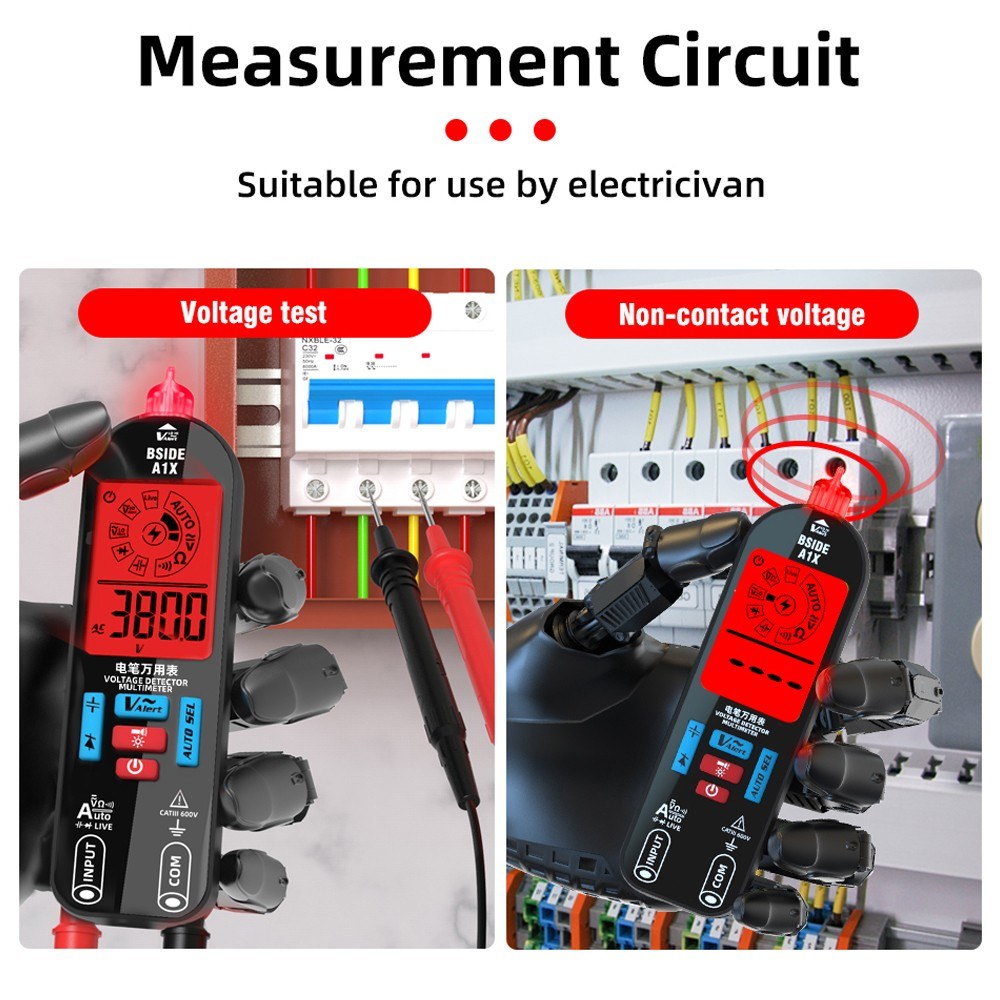

• Non-contact Voltage Detection Alarm: Supported
• Firewire Discrimination: Yes
• Automatic Shutdown: After 15 minutes of inactivity
• Flashlight: Yes
• Diode Measurement: Auto-recognition for diodes less than 3V

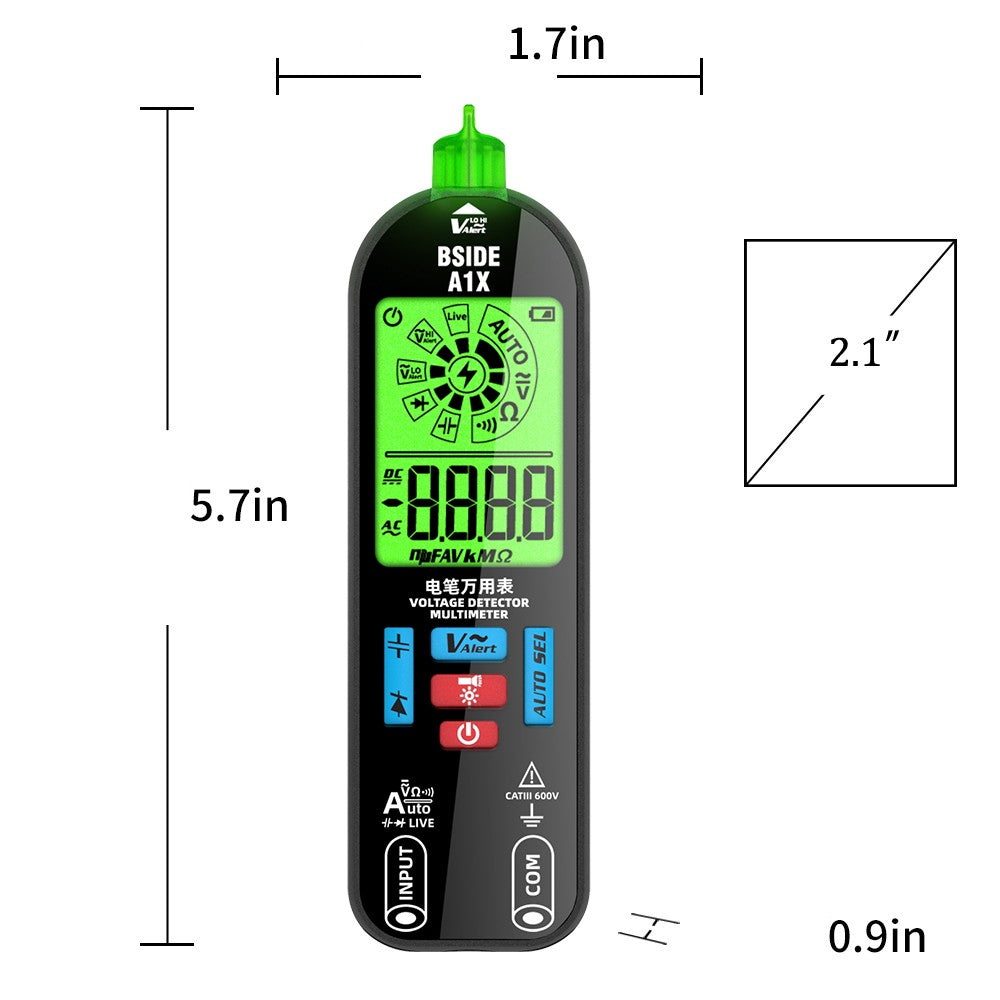

• Item Size: 145 x 44 x 25mm / 5.71 x 1.73 x 0.98 inches
• Item Weight: 73g / 2.57 ounces
• Package Size: 175 x 73 x 38mm / 6.89 x 2.87 x 1.50 inches
• Package Weight: 178g / 6.28 ounces

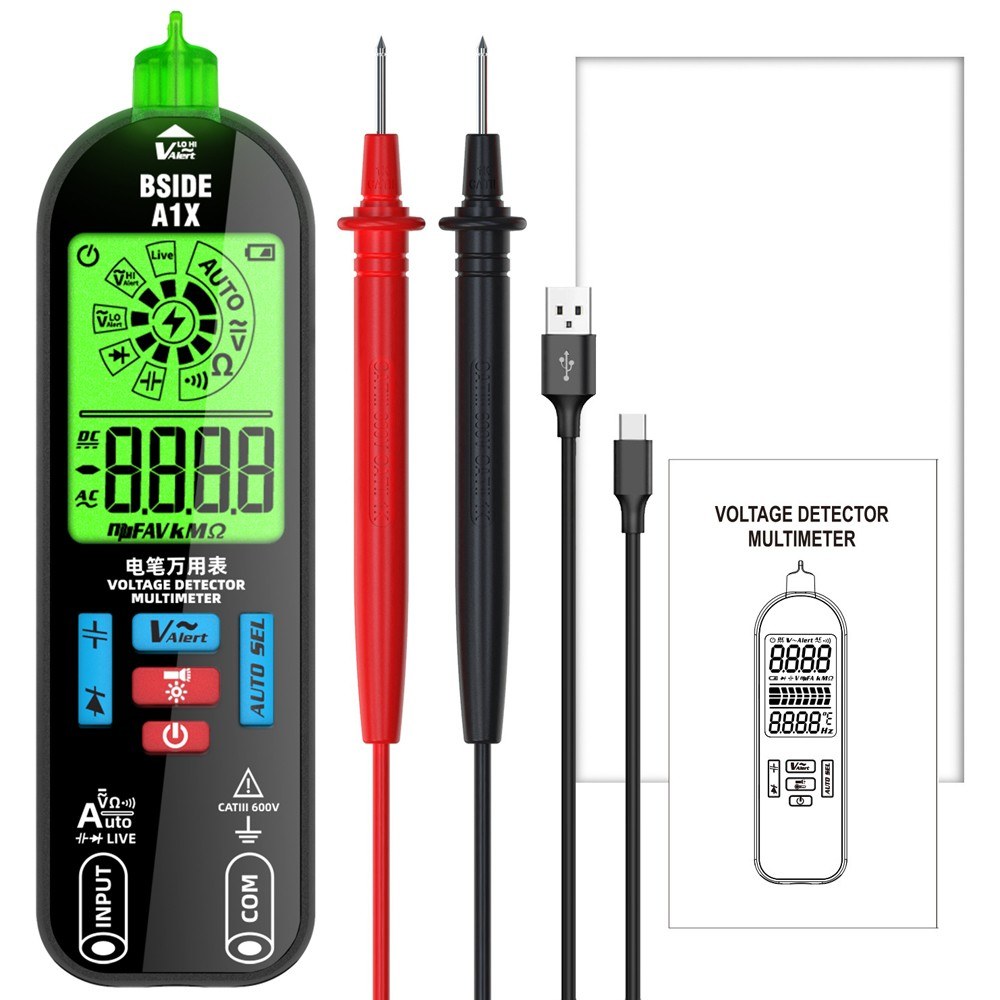

Packing List (without storage bag):

• 1 x Multimeter
• 1 x Type-C Cable
• 1 x User Guideline
