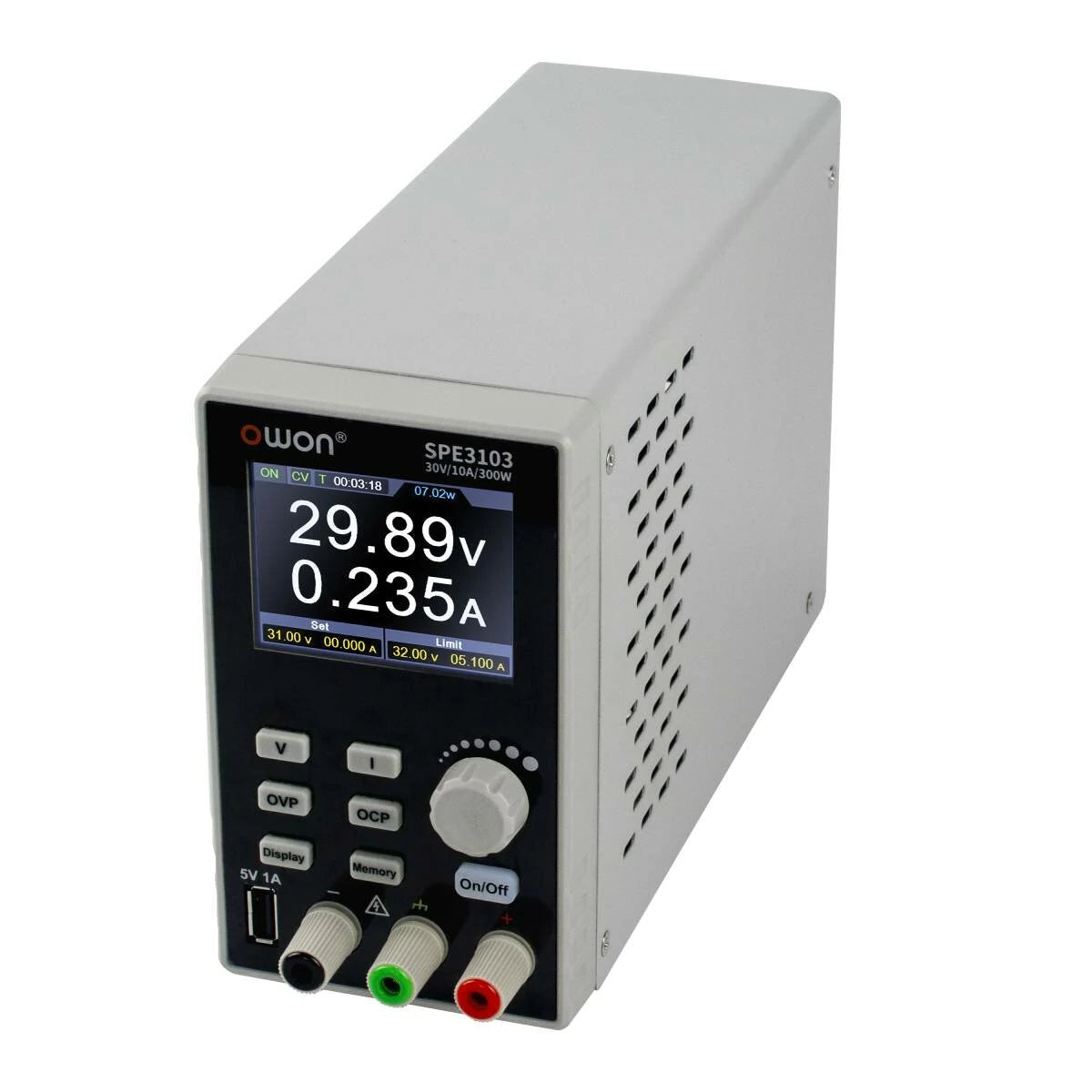

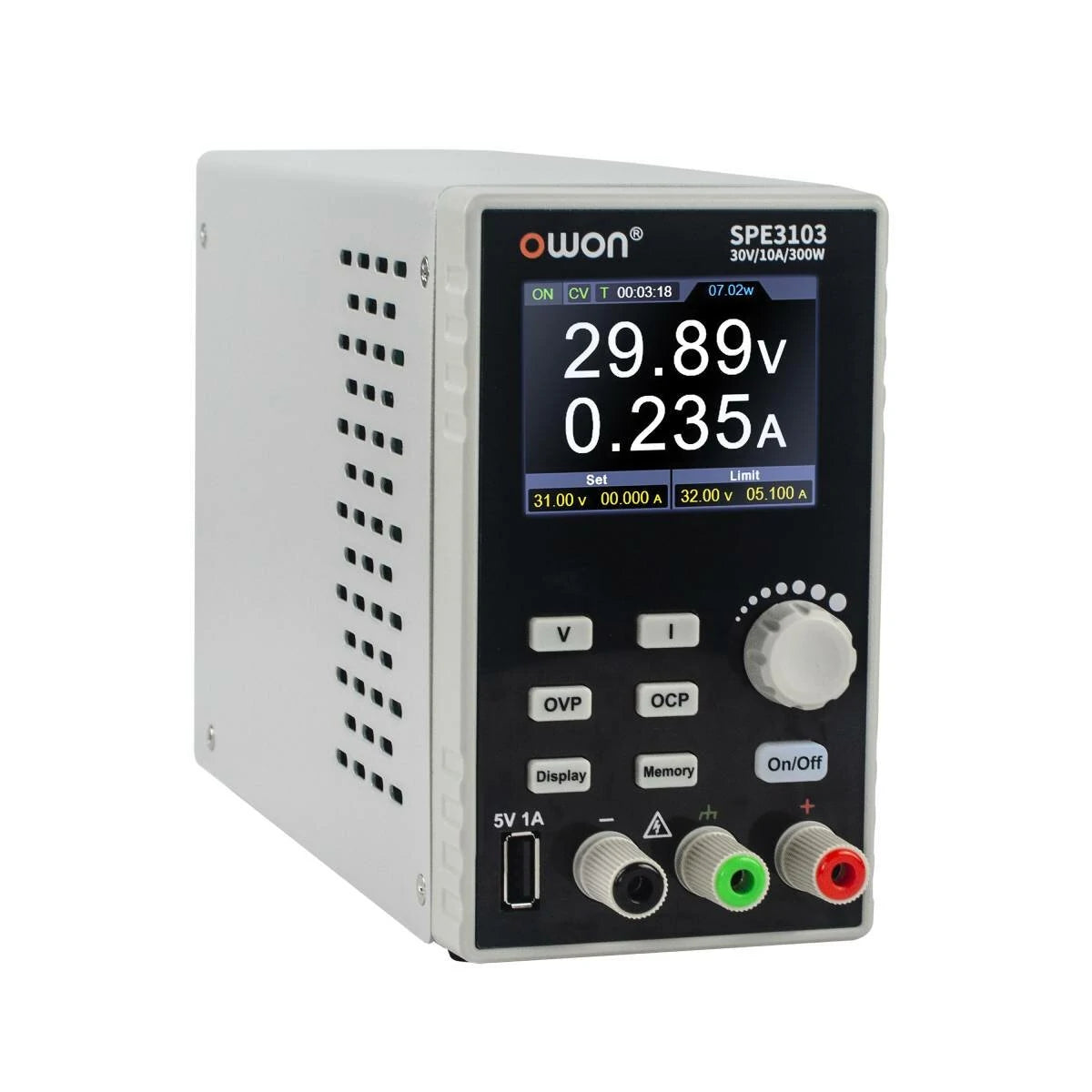

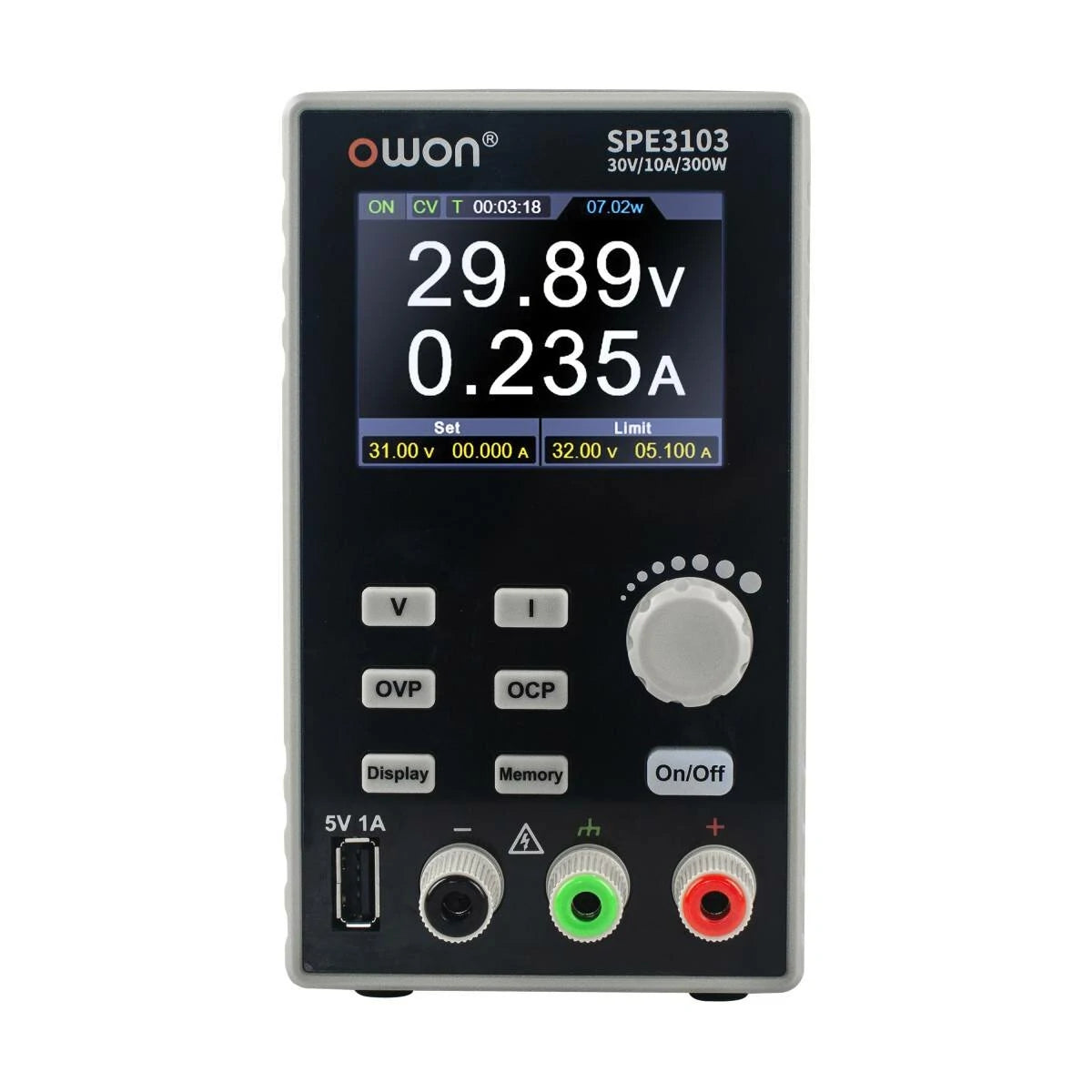

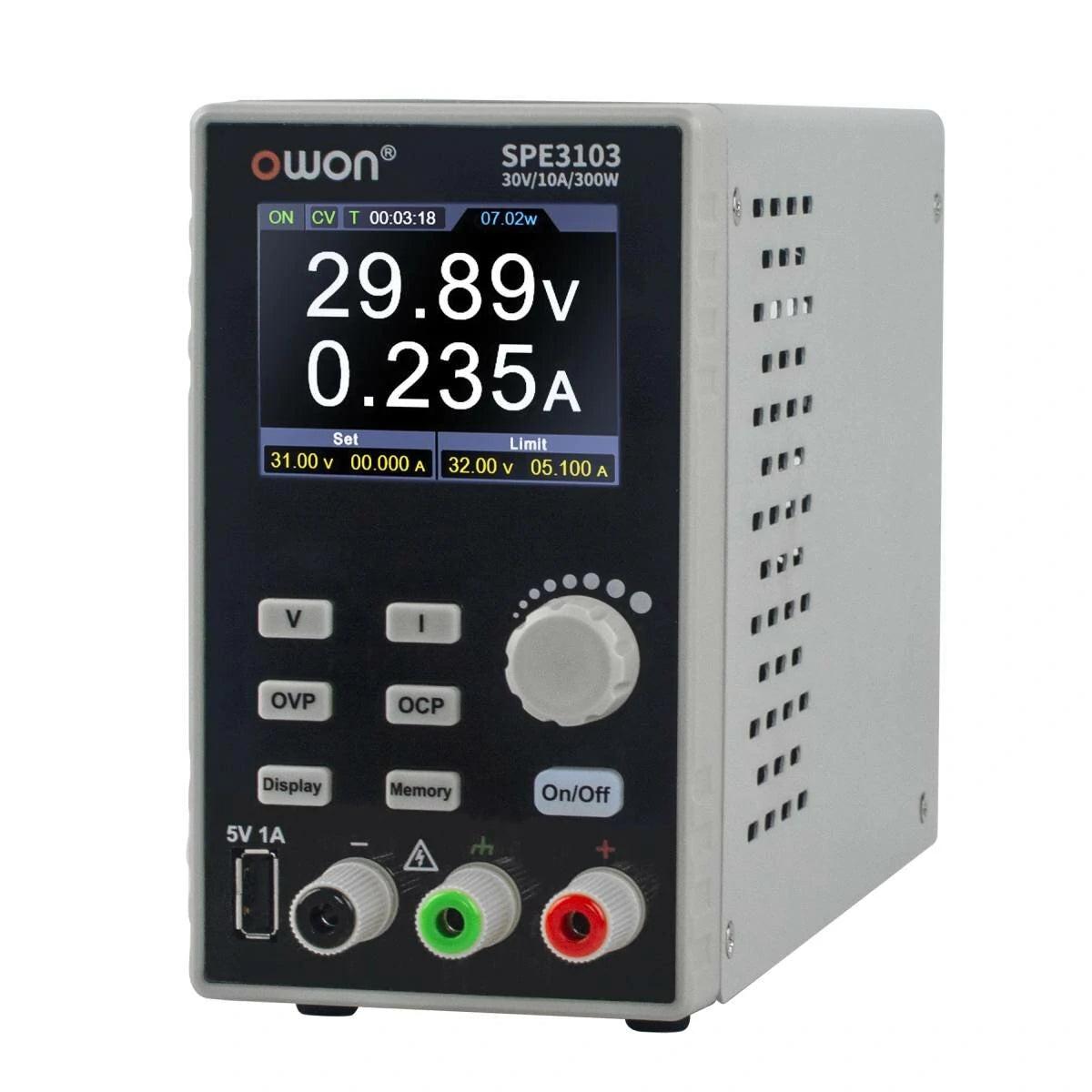

OWON SPE3103/SPE6103 Programmable Single Channel DC Power Supply Voltage Regulator for Lab
OWON SPE3103/SPE6103 Programmable Single Channel DC Power Supply Voltage Regulator for Lab
Regular price
$105.99 USD
Regular price
$0.00 USD
Sale price
$105.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Product Features
- Compact design for easy portability
- High resolution: 10mV / 1mA
- Customizable waveform editing and output with 10 editable timing groups
- Low ripple and noise performance
- Over-voltage and over-current protection
- Real-time monitoring of output voltage and current curves
- Smart temperature-controlled fan cooling system
- 2.8-inch TFT LCD display for clear readings
- USB communication interface with SCPI support
Versatile Applications
- Military R&D and quality inspection
- Circuit functional and automotive circuit testing
- Education and technical training
- Electronic component testing and aging experiments
- Battery charging curve monitoring
Technical Specifications
| Specification | SPE3103 | SPE6103 |
|---|---|---|
| Output Range | 30V/10A | 60V/10A |
| Output Power | 300W | |
| Rated Output (0°C-40°C) | Voltage: 0-30V Current: 10A |
Voltage: 0-60V Current: 10A |
| Load Regulation | Voltage: ≤30mV Current: ≤20mA |
Voltage: ≤30mV Current: ≤20mA |
| Power Regulation | Voltage: ≤30mV Current: ≤20mA |
Voltage: ≤30mV Current: ≤20mA |
| Setting Resolution | Voltage: 10mV Current: 1mA |
Voltage: 10mV Current: 1mA |
| Readback Resolution | Voltage: 10mV Current: 1mA |
Voltage: 10mV Current: 1mA |
| Ripple/Noise(*) | Voltage (Vp-p): ≤30mVp-p Voltage (rms): ≤3mVrms Current (rms): ≤30mAp-p |
Voltage (Vp-p): ≤50mVp-p Voltage (rms): ≤5mVrms Current (rms): ≤30mAp-p |
| Response Time(50%-100% rated load) | ≤1.0ms | |
| Storage | 4 groups of data | |
| Working Temperature | 0~40°C | |
Package Includes
- 1 x Power Supply Main Device
- 1 x Power Cord
- 1 x User Manual
- 1 x Fuse
