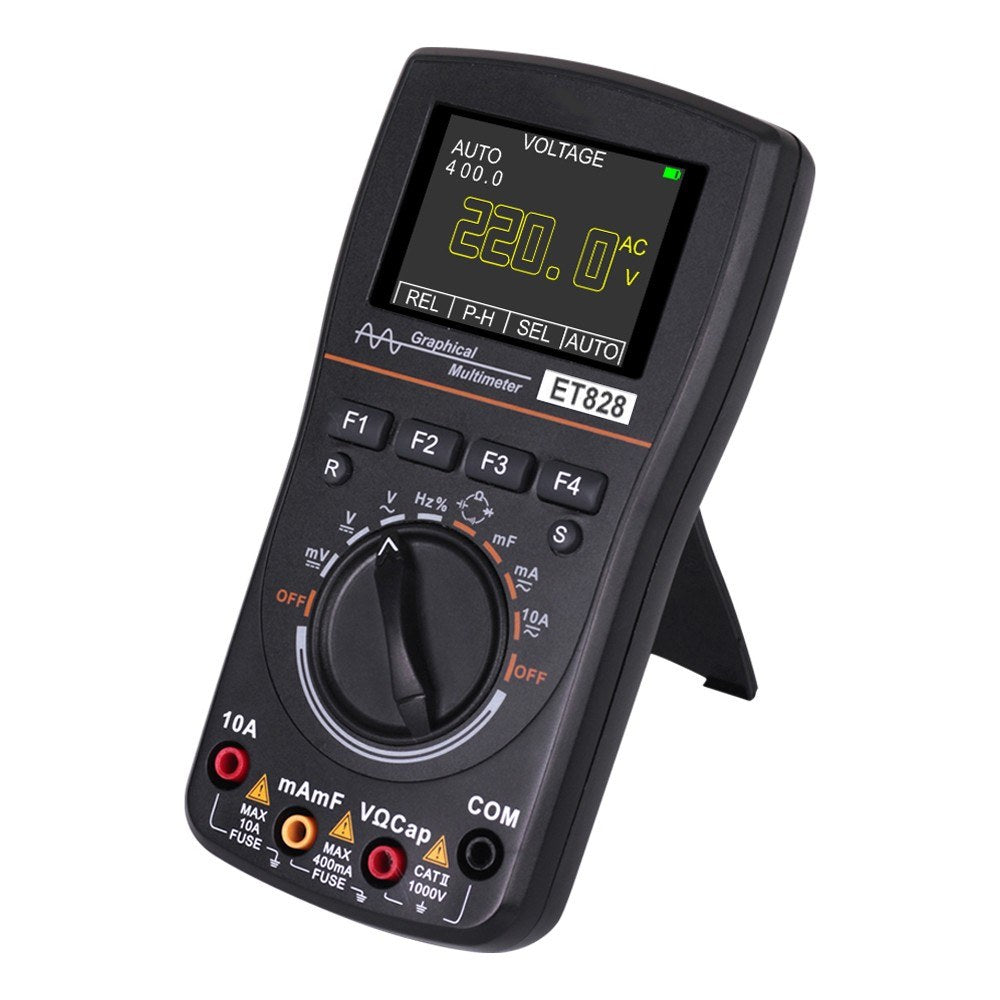

KKmoon 828 2-in-1 High Definition Smart Digital Oscilloscope Multimeter

Introducing our versatile Graphical Multimeter, crafted with high-quality material for durability and efficiency. This user-friendly device is designed for a broad range of applications, ensuring long-lasting performance.

Key Features:

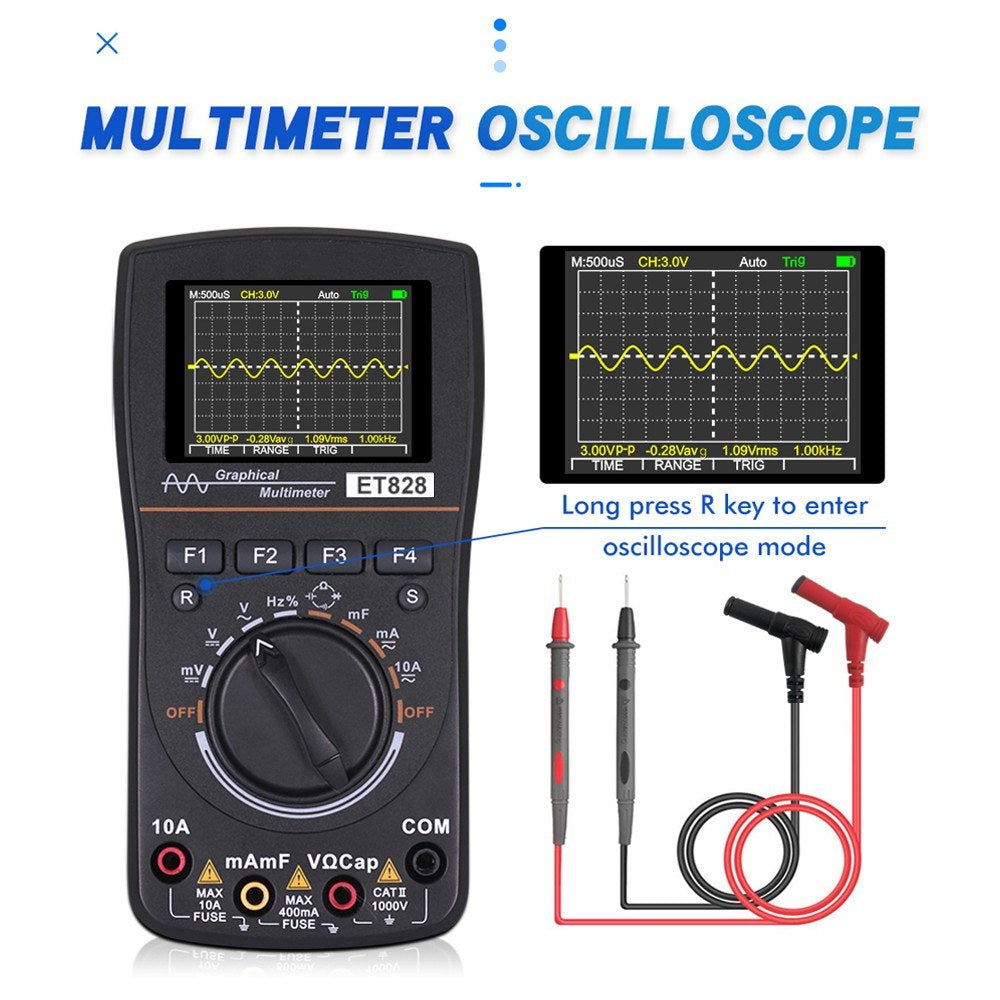

• Oscilloscope Multimeter 2-in-1: Enhance your productivity with integrated functionality.

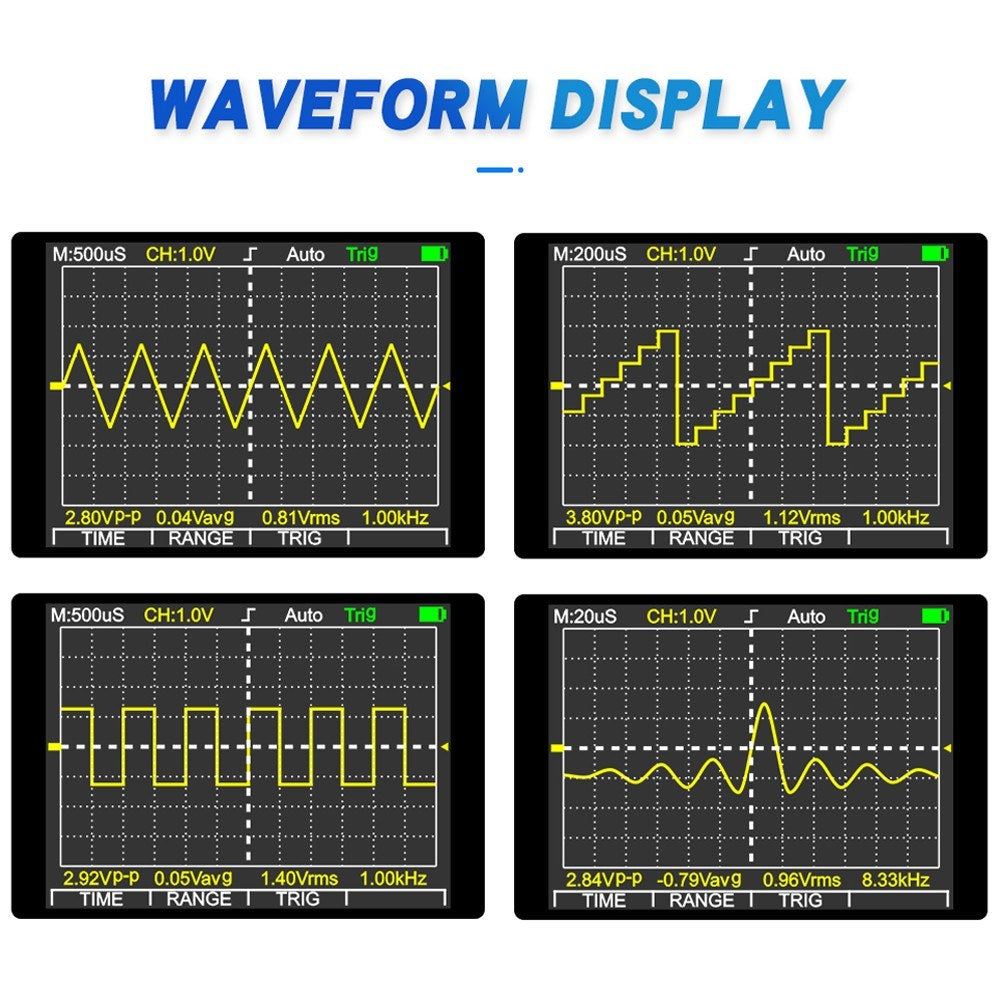

• One-Button Oscilloscope: Directly measure waveforms without probes for fast, accurate results and a crystal-clear display.

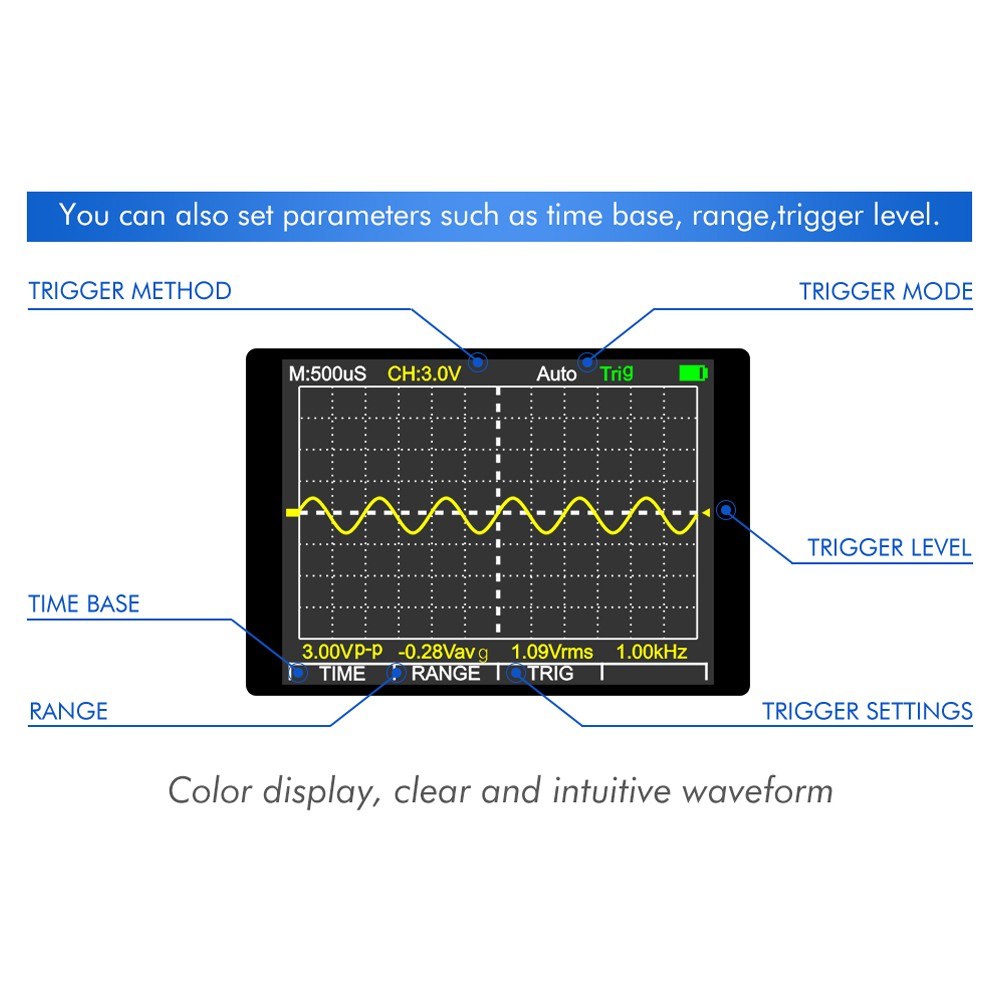

• High-Definition Display: A 240x320 color screen provides a vivid display with additional function menus.

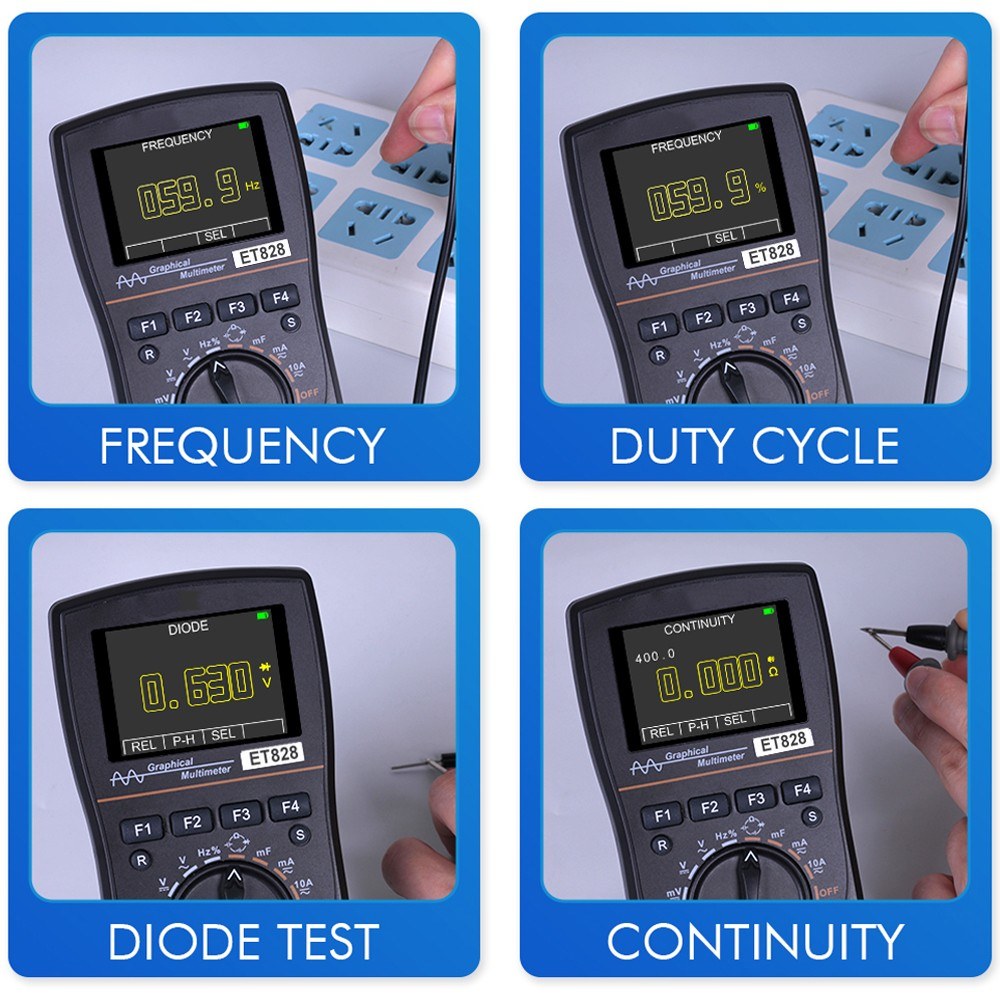

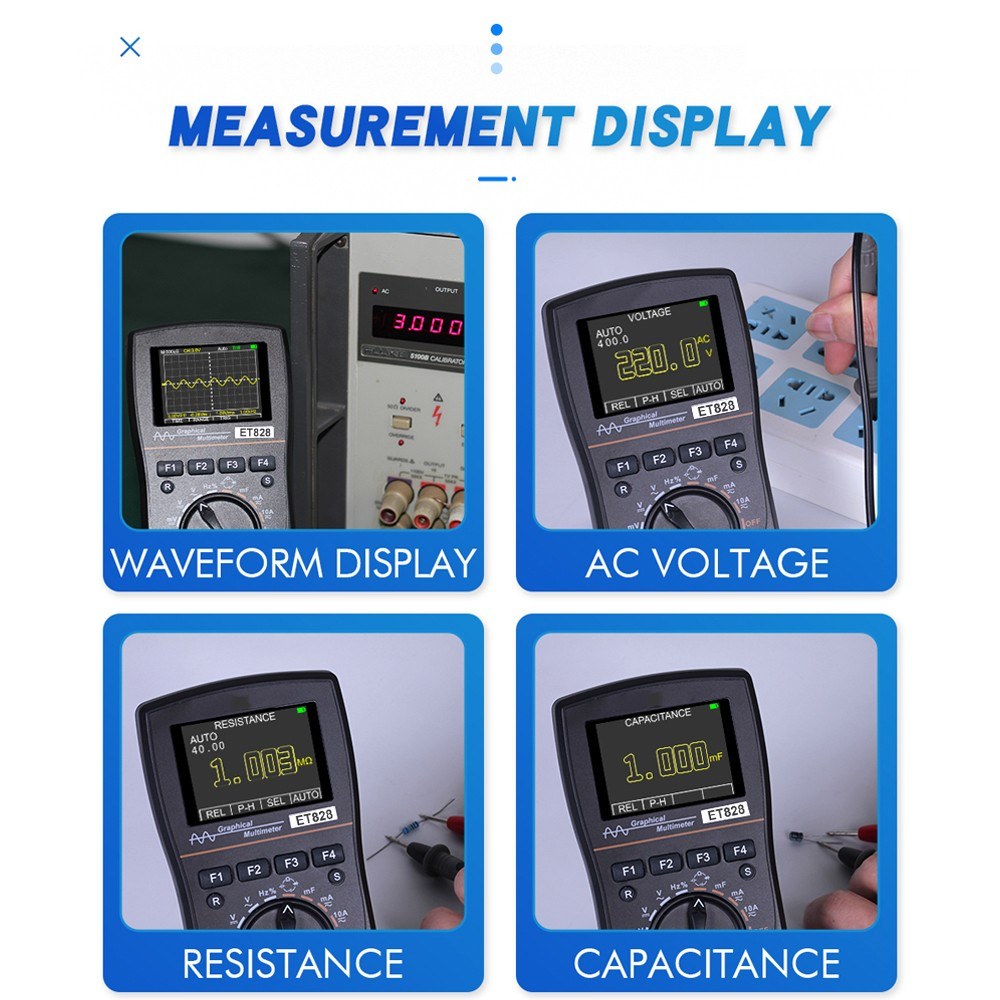

• Comprehensive Measurement Functions: Includes AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity tests.
• Mass Storage: Store up to 100 data entries or 10 waveforms.
• Triple Safety: Features double insurance tubes and beep warnings for high input voltage and overranges.

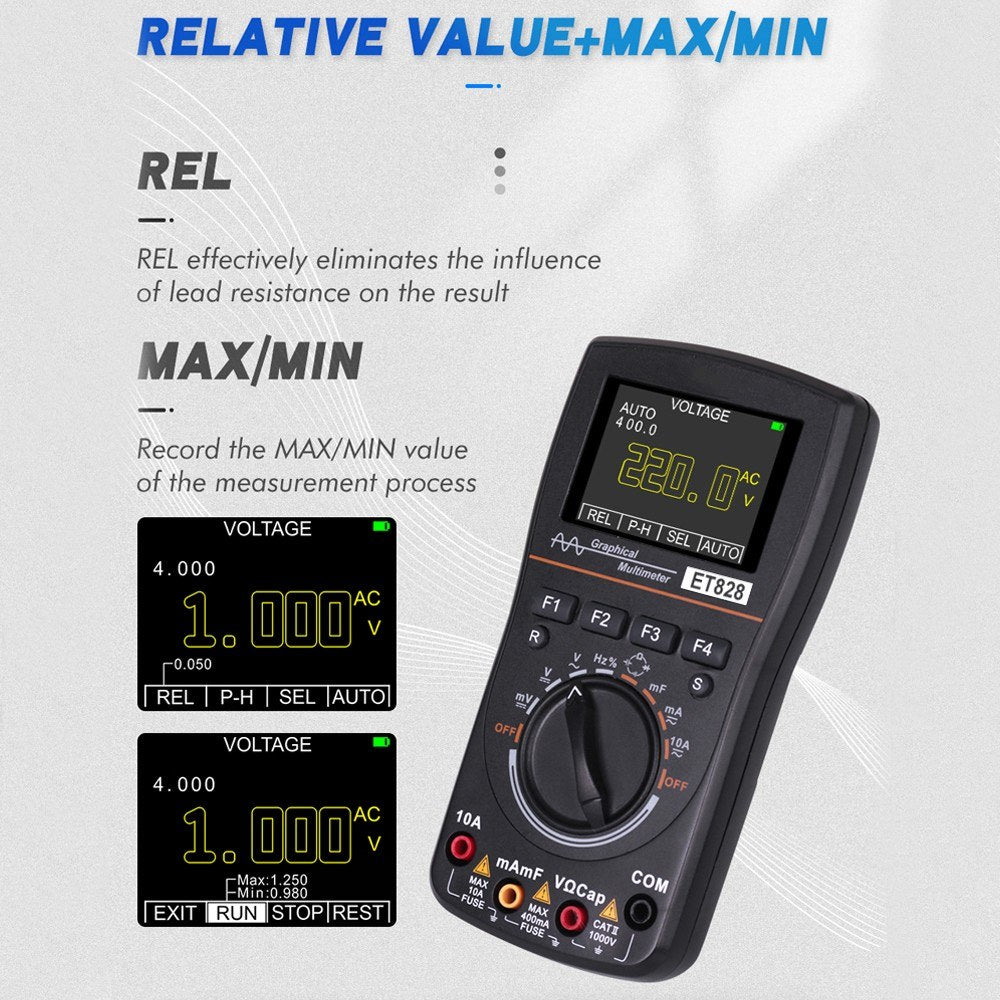

• Simultaneous Display: Compare real-time data with historical records on the same screen.

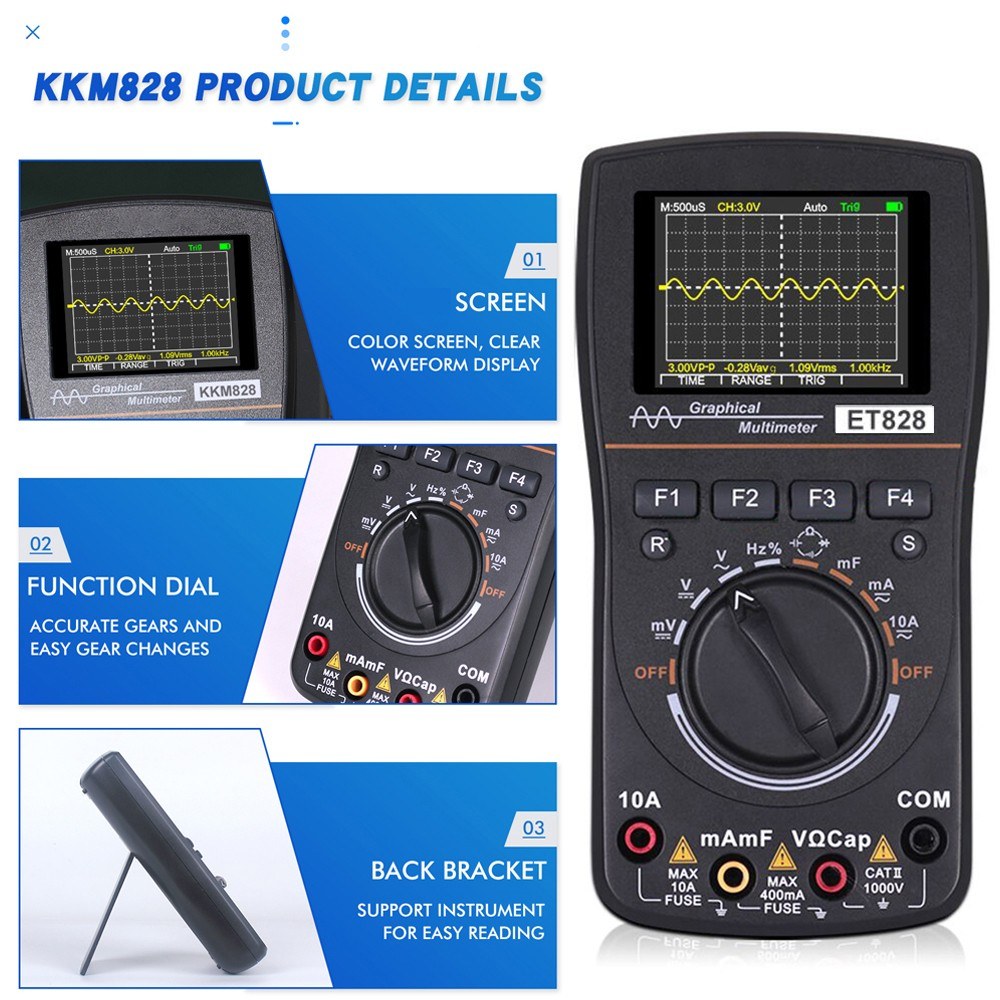

• Ergonomic Design: Enjoy the comfort of silicone buttons and a 60° tilted back bracket for easy viewing.

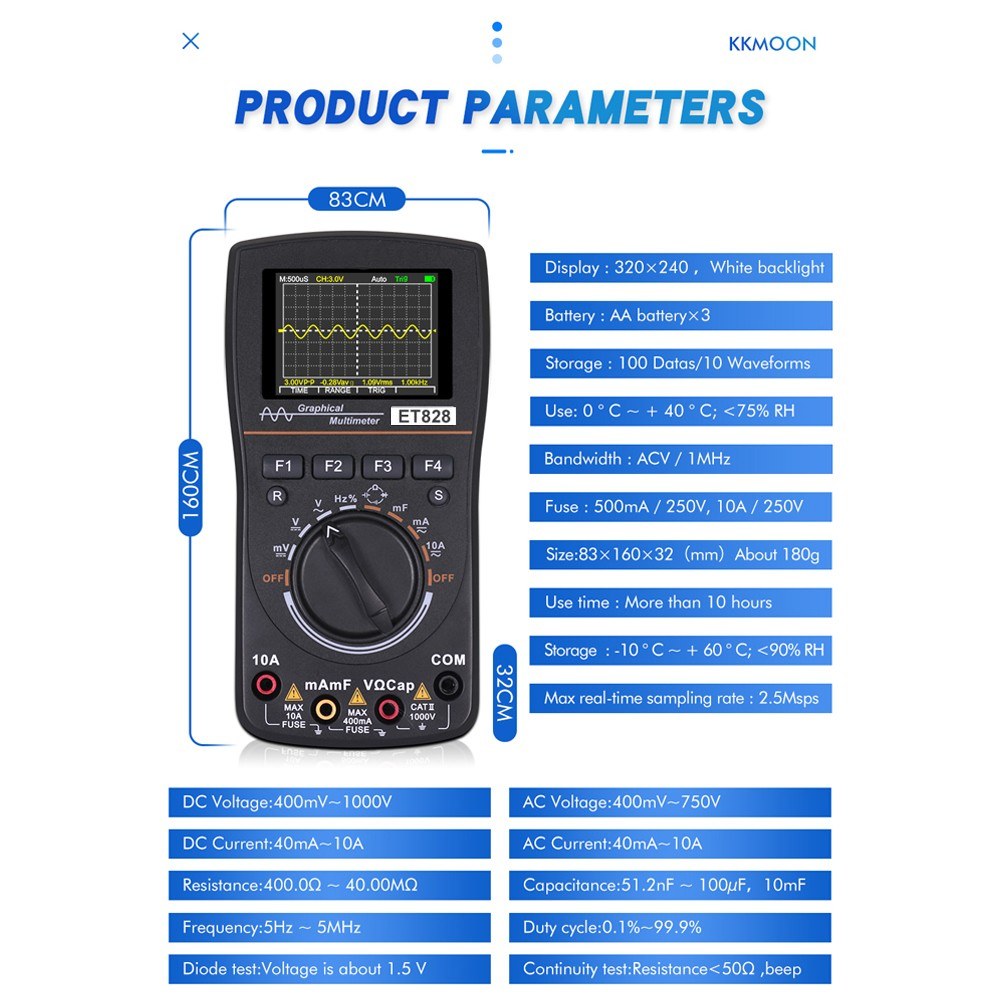

Specifications:

• Material: ABS
• Color: Black
• Display: 320x240 LCM, 2.4 inches
• Backlit: White
• Input Resistance: 10MΩ
• Battery: Requires 3 AA batteries (not included)
• Power Consumption: Approximately 80mA
• Operating Time: Up to 5 hours in low light
• Operating Environment: 0~40°C, ≤75% RH
• Storage Environment: -10~60°C, ≤90% RH
• Bandwidth: ACV/1MHz, ACA/5KHz
• Max. Real-Time Sampling Rate: 2.5Msps
• Measurement Modes: Normal, Automatic
• Dimensions: 160 x 83 x 32mm (6.3 x 3.3 x 1.3in)
• Weight: 195g (6.9 ounces)
• Package Dimensions: 190 x 140 x 45mm (7.5 x 5.5 x 1.8in)
• Package Weight: 370g (13.1 ounces)

Multimeter Specifications:

• DC Voltage Ranges: 400mV to 1000V with 0.75% uncertainty
• AC Voltage Ranges: 400mV to 750V with 1.0% uncertainty
• DC Current Ranges: 40mA to 10A with 1.2% uncertainty
• AC Current Ranges: 40mA to 10A with 1.5% uncertainty
• Resistance Ranges: 400.0Ω to 40.00MΩ with 1.0% uncertainty
• Capacitance Ranges: 0.1nF to 100, 10.00mF with 2.0% uncertainty
• Frequency Ranges: 5Hz to 10MHz with 1.0% uncertainty
• Duty Cycle Ranges: 0.1% to 99.9% with 1.0% uncertainty
• Diode Test Voltage: Approx. 5V (test current approx. 1.5mA)
• Continuity Test: Resistance below 50Ω triggers a beep
• Fuse Specifications: 500mA/250V, 10A/250V

Packing List:

• 1 Graphical Multimeter
• 1 Pair of Test Pens
• 1 Protective Bag
• 1 User Manual
