ANENG 613Pro Smart Multimeter 4000 Counts, 10A/600V Voltage Tester with Alarm Clock & Capacitor Tools
ANENG 613Pro Smart Multimeter 4000 Counts, 10A/600V Voltage Tester with Alarm Clock & Capacitor Tools
Regular price
$16.45 USD
Regular price
$0.00 USD
Sale price
$16.45 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Multifunctional Multimeter
Our multifunctional multimeter is expertly designed and produced in accordance with the international electrical safety standard IEC-61010, ensuring utmost safety and reliability for both electronic measuring instruments and handheld digital multimeters. Adhering to the requirements of 600V CAT IV, 600V CAT III, and Pollution Level 2 of IEC61010, this device is a must-have for professionals and hobbyists alike. Please read the user manual carefully and adhere to the relevant safety guidelines prior to use.

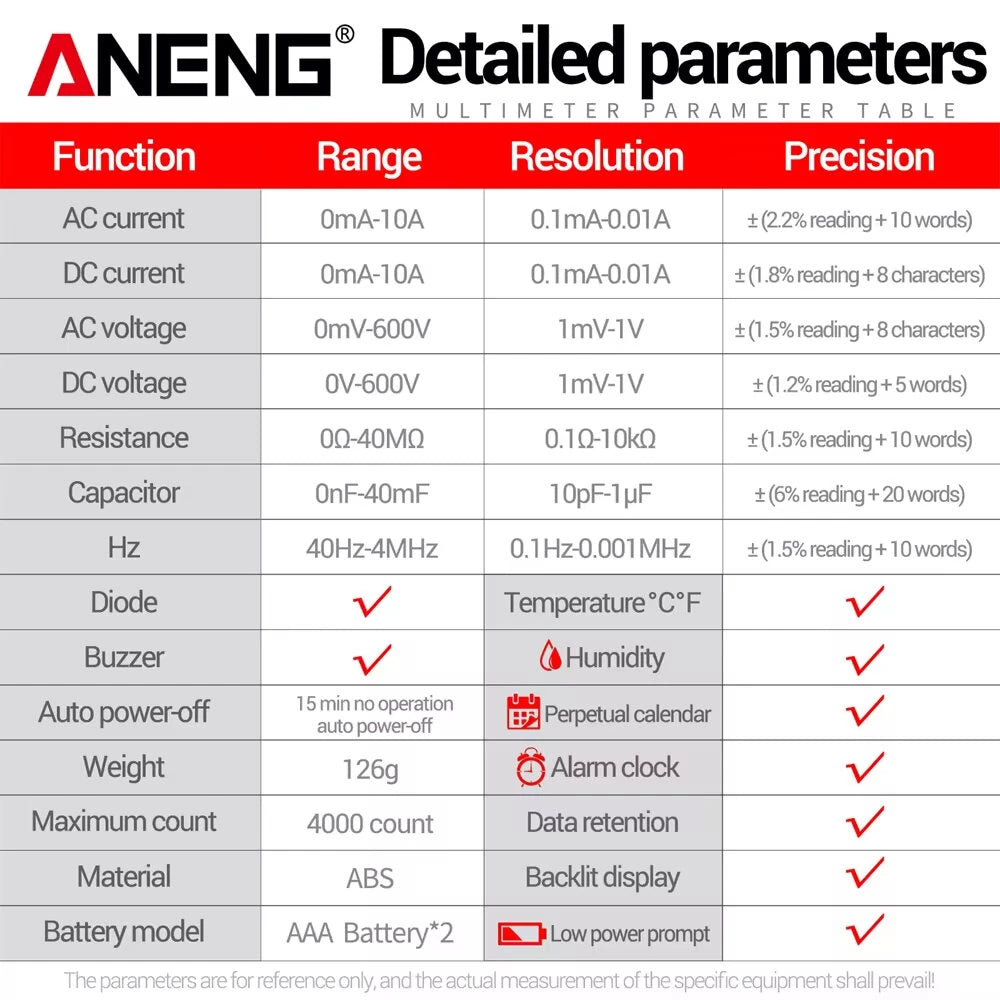

Specifications
| Function | Range | Resolution | Precision |
|---|---|---|---|
| AC Current | 0mA-10A | 0.1mA-0.01A | ±(2.2% reading +10) |
| DC Current | 0mA-10A | 0.1mA-0.01A | ±(1.8% reading +8) |
| AC Voltage | 0mV-600V | 1mV-1V | ±(1.5% reading +8) |
| DC Voltage | 0V-600V | 1mV-1V | ±(1.2% reading +5) |
| Resistance | 0Ω-40MΩ | 0.1Ω-10kΩ | ±(1.5% reading +10) |
| Capacitance | 0nF-40mF | 10pF-1μF | ±(6% reading +20) |
| Frequency (Hz) | 40Hz-4MHz | 0.1Hz-0.001MHz | ±(1.5% reading +10) |
| Diode Test | Available | ||
| Temperature (°C / °F) | Available | ||
| Buzzer | Included | ||

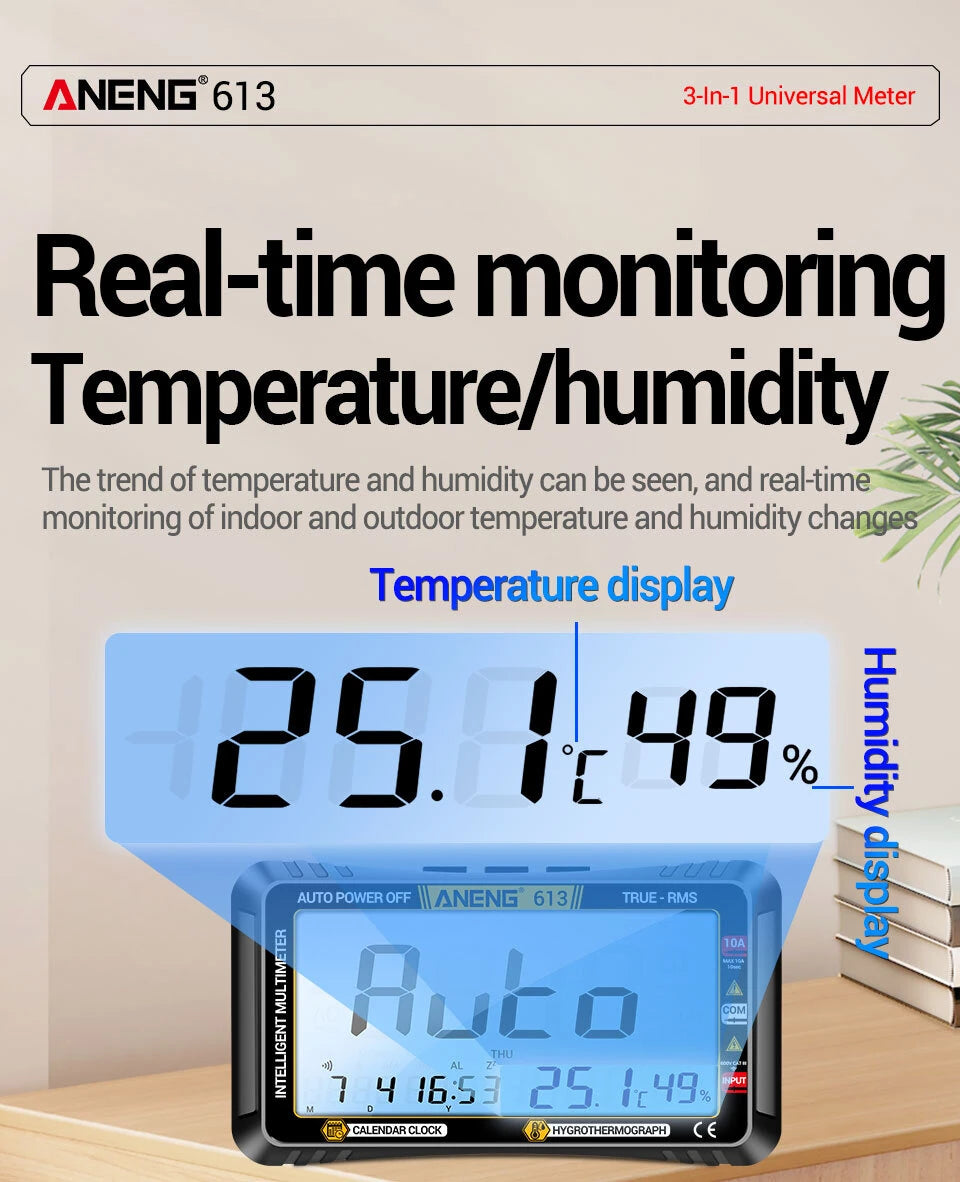

| Humidity | Available | ||
| Auto Power-off | Activated after 15 minutes of inactivity | ||
| Perpetual Calendar | Included | ||
| Weight | 126g | ||
| Alarm Clock | Included | ||
| Maximum Count | 4000 | ||
| Data Retention | Available | ||
| Material | ABS | ||
| Backlit Display | Available | ||
| Battery Model | AAA Battery*2 (Batteries not included) | ||
| Low Power Prompt | Available | ||

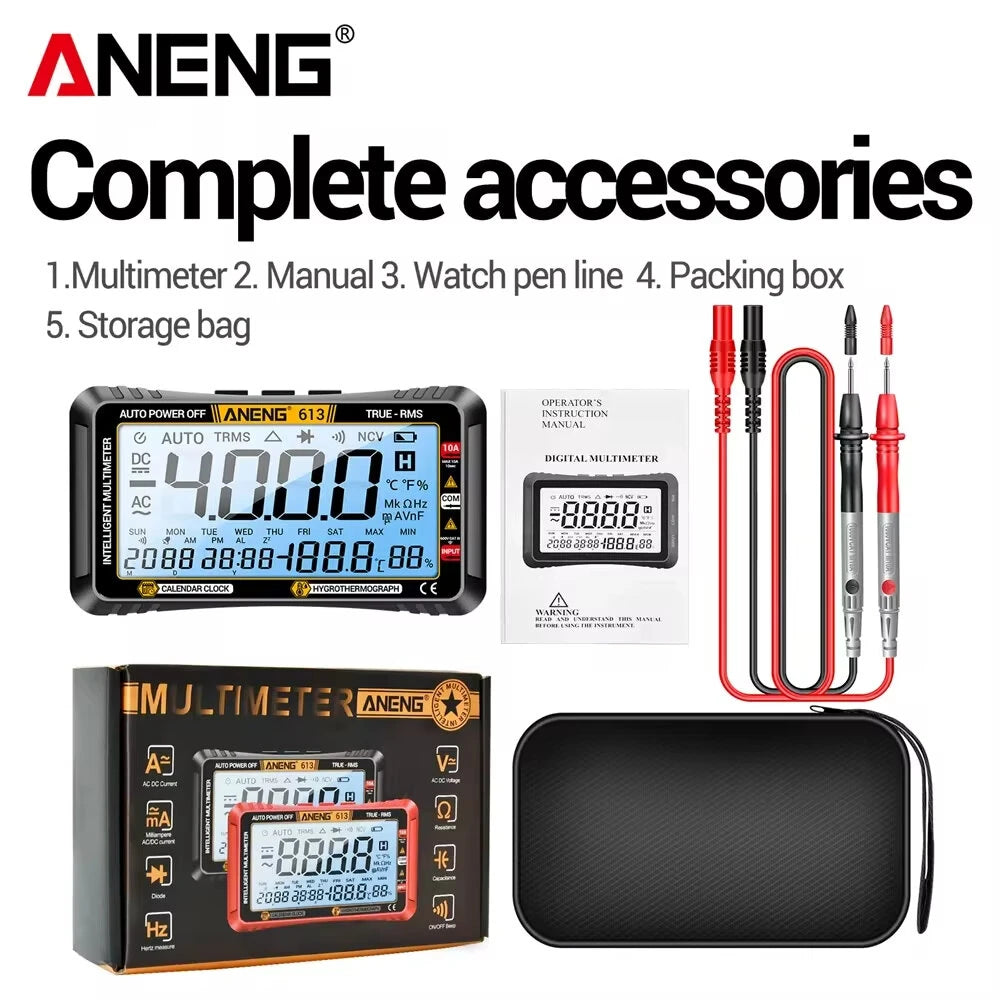

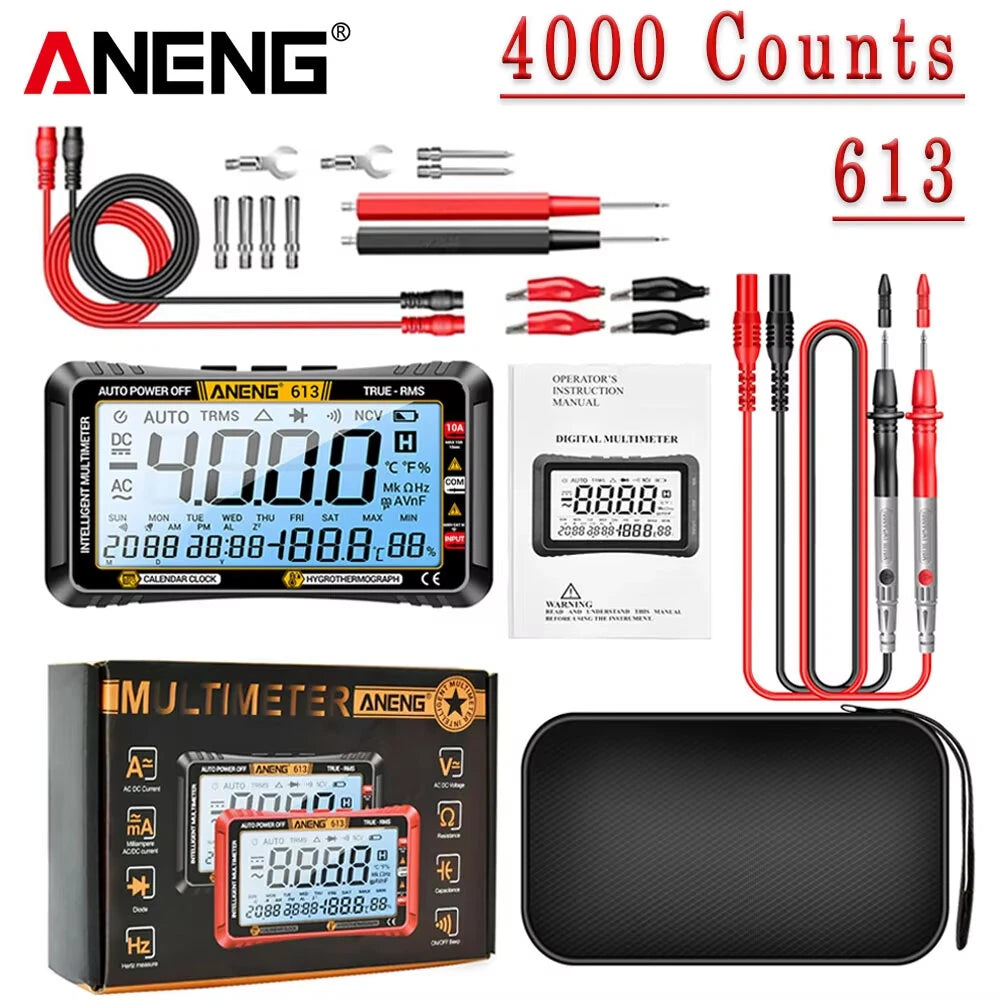

Package Includes
- 1 x Multimeter
- 1 x Manual
- 1 x Watch pen line
- 1 x Packing box
- 1 x Storage bag
- 16 in 1 Combination Line (as per your choice)
Usage Precautions
- Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
- Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
- Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
- It is best to remove the batteries when not in use for a long time to prevent battery corrosion of the instrument's internal components.
- If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
