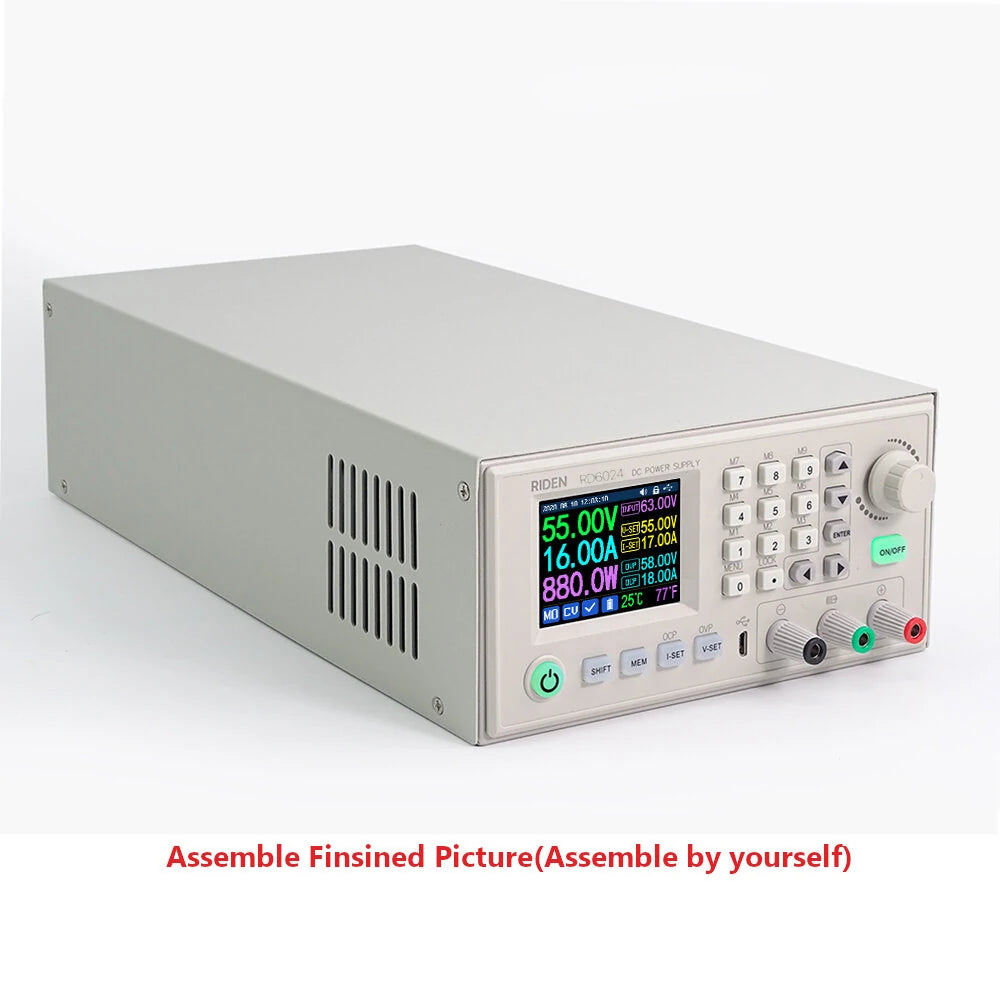

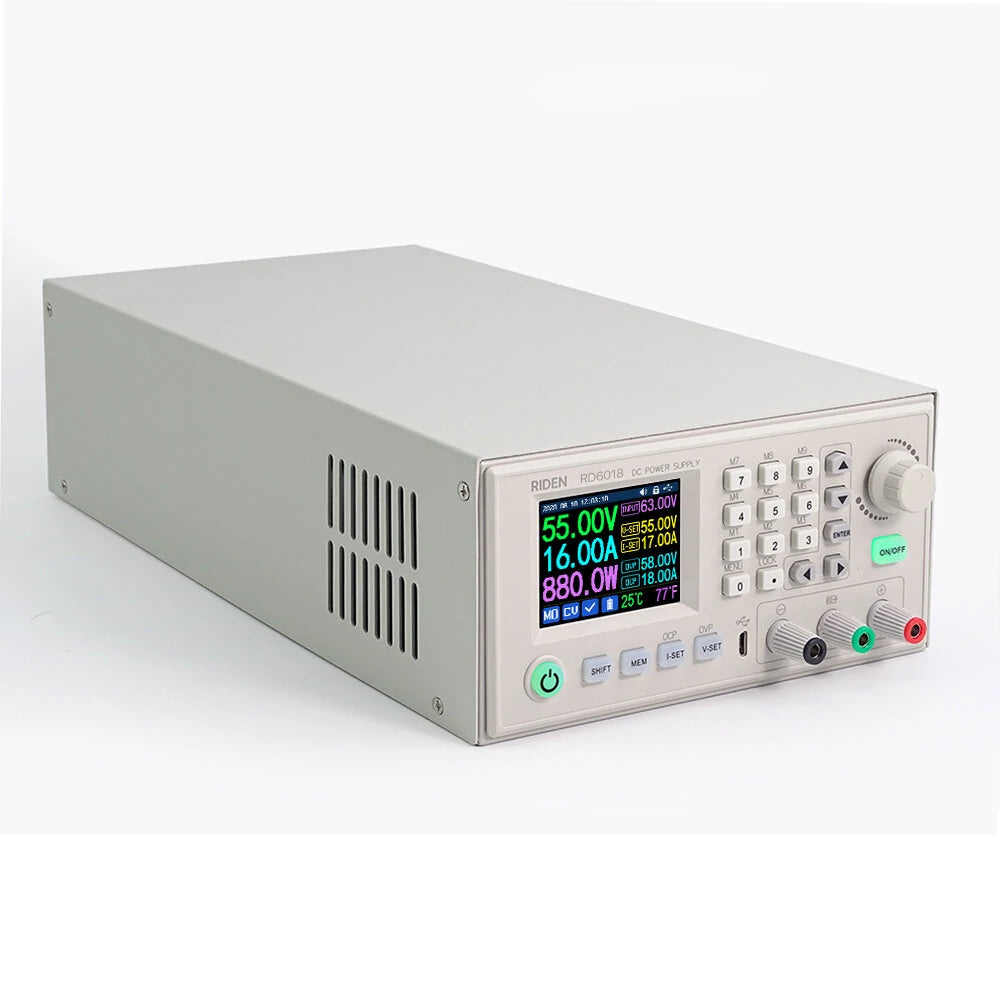

Product Overview

Important Notes Before Purchase

1. WiFi Connection: This is an experimental feature. Some computers may not be compatible, and as a result, we do not guarantee its functionality or provide technical support. Future support depends on customer feedback.
2. PC Software Compatibility: Only supports Windows 7 and above. Android 5.0 and above is required for the app. Test the download and installation before purchasing. Refunds will not be provided if issues arise solely with software compatibility.
3. Inductive Load Connection: When connecting to inductive loads like motors, the maximum working current is one-third of the range. Do not exceed this limit.
4. PSU Inspection: Upon receipt, use a multimeter to ensure the output voltage is stable and matches the rated voltage. If abnormal, contact us before connecting to avoid further loss.
5. Surface Scratches: Minor surface scratches may be present but do not affect performance. If this concerns you, consider not purchasing.
6. Connection Expertise Required: Connections should only be made by someone knowledgeable in electronics and electrical engineering, ensuring reliable grounding.
7. Warranty Labels: Due to shipping, some warranty labels may be damaged but this does not affect the product warranty.
8. Variation in Internal Materials: Different production batches may have variations in materials, as explained here.
9. Backup Fuse: A backup fuse is included with the RD6024W. If the main fuse is burnt, use the backup temporarily and replace the damaged one for full output.

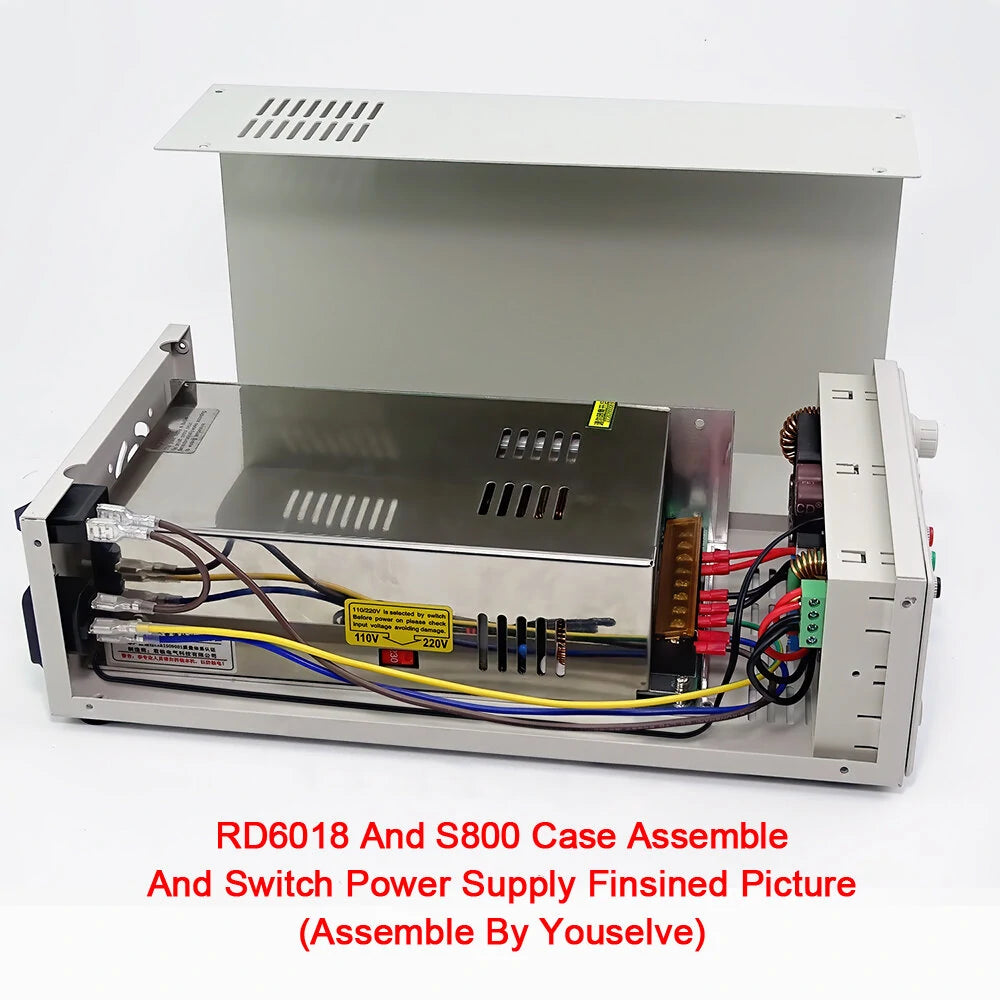

10. Assembly Instruction: Follow provided instructions when installing the switching power supply into a case. Do not remove the PSU shell as it can lead to overheating and void after-sales service.

Instruction Manual

Find the instruction videos for different functionalities:

• Battery Charging Introduction
• Output Voltage and Current Setting
• Data Group Quick Storage and Recall
• Keypad Lock and Unlock
• System Setting
• Main Page Style Setting
• Storage Data Setting
• System Information
• iOS App Installation & Connection
• iOS App Operation
• Android App Installation & Connection
• Android App Operation
• PC Software Installation & Basic Operation
• Firmware Upgrade
• Calibration
• Logo Update
• WiFi Connection Problems & Solutions

Technical Specifications

Model Compatibility: RD6006, RD6006-W, RD6012, RD6012-W, RD6018, RD6018-W, RD6006P, RD6006P-W, RD6012P, RD6012P-W, RD6024, RD6024W

• Input Voltage Range: 6-70V / 7-70V
• Output Voltage Range: 0-60V
• Output Current Range: 0-6A / 0-12A / 0-18A / 0-24A
• Output Power Range: 0-360W / 0-720W / 0-1080W / 0-1440W
• Measurement Resolutions and Accuracies: Varies
• Working and External Sensor Temperature ranges: Operating: -10℃ to 40℃; Sensor: -10℃ to 100℃
• Constant Voltage Mode: Response time: 2ms, Load regulation: ±(0.1%+2 digits)
• Cooling Fan Conditions: Varies by voltage and temperature

Package Contents

• 1 x 1500W Power Supply
• 1 x RD6024W

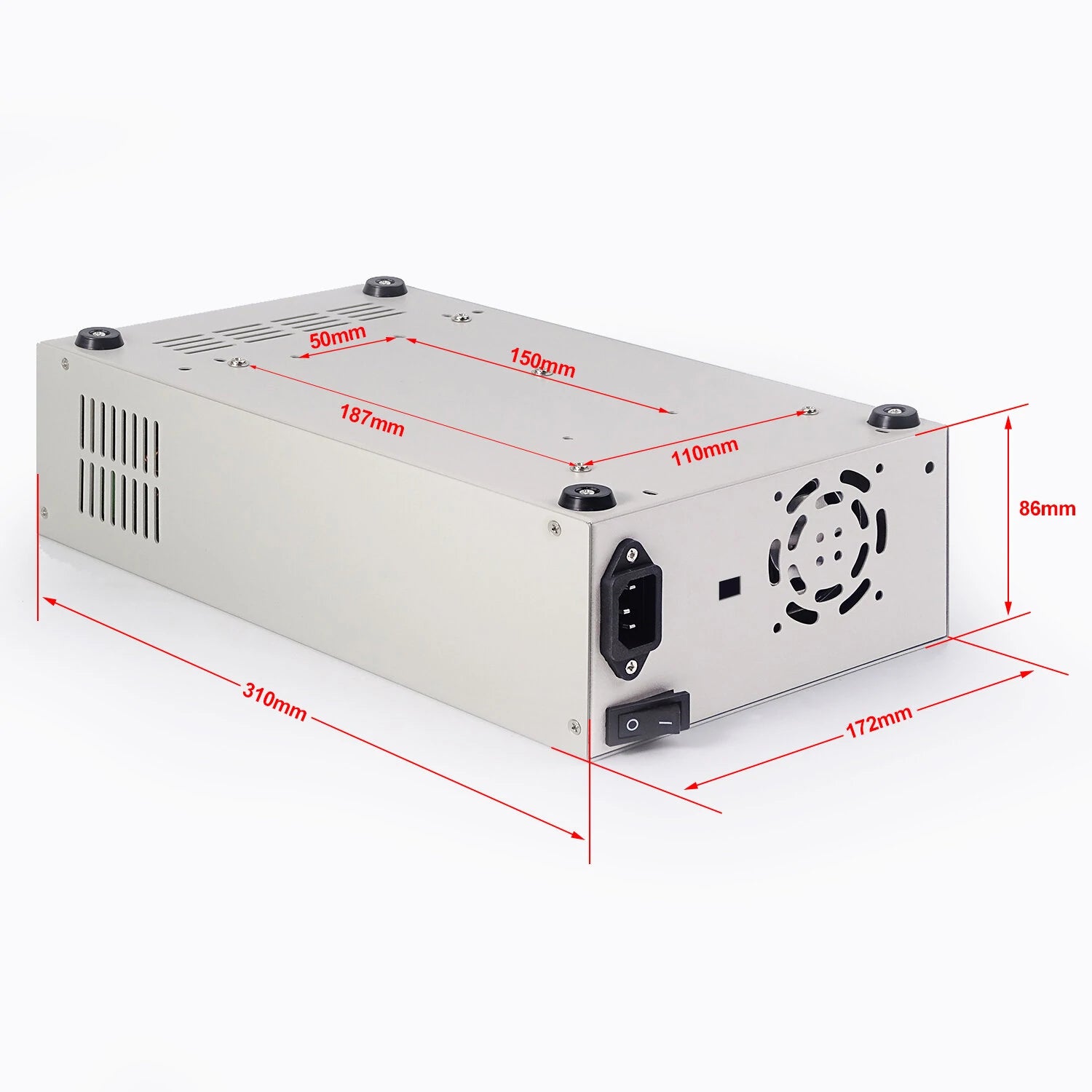

• 1 x S800 Shell
