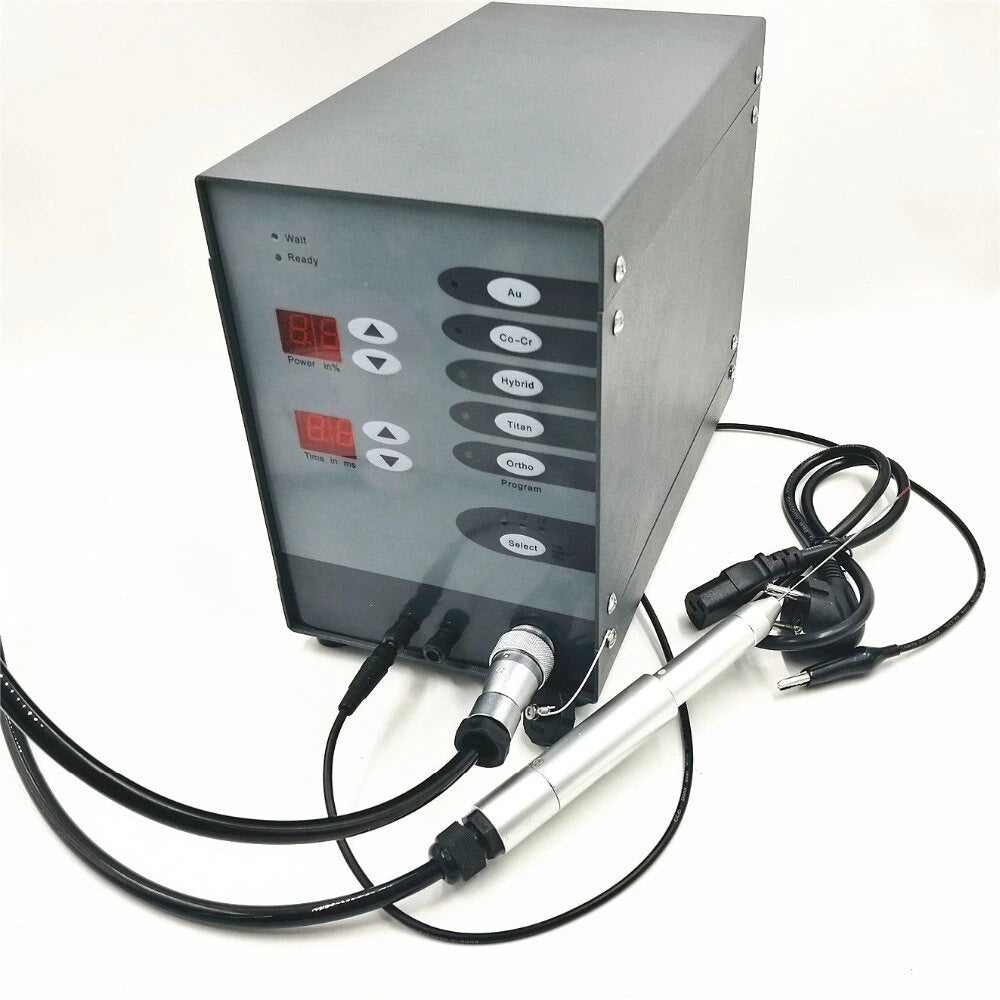

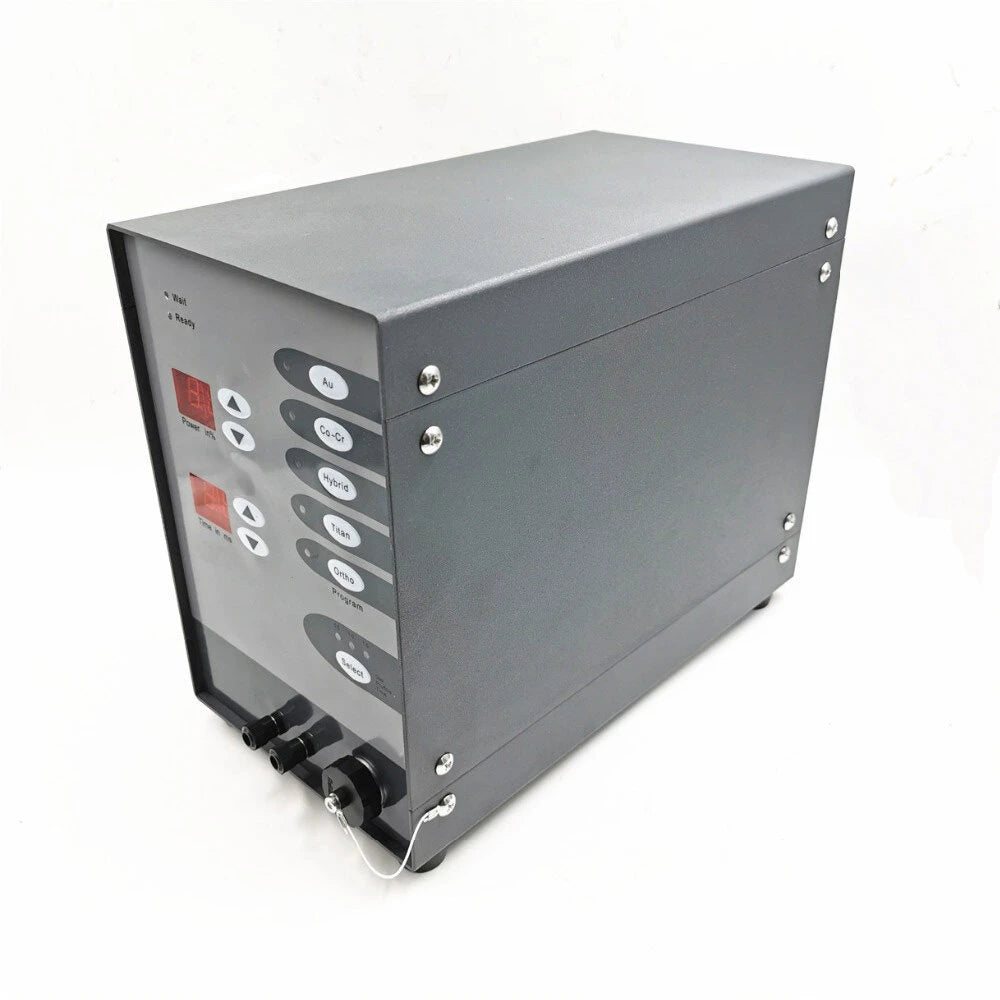

Automatic 110V/220V Stainless Steel Jewelry Spot Welder - Numerical Control, Pulse Argon Arc Welding Machine

Product Description

The Argon Arc Spot Welder is expertly designed for stainless steel hardware accessories, jewelry, and dental applications. Suitable for various dental welding jobs and jewelry welding works, it supports both new restorations and repairs. Its compact design makes it ideal for small spaces, ensuring safety and stability with minimal noise and maintenance.

Key Features

• Five preset basic programs for gold (Au), cobalt chrome (Co-Cr), compound welding, titanium (Ti), and orthodontics.
• Compact size with user-friendly system and easy operations.
• Adjustable power and pulse settings for varying penetration depth and welding spot diameter.
• Automatic switch to Ortho mode after 5 minutes of inactivity to protect the workpiece.

Technical Data

• Power Supply: 220V/110V 50/60Hz
• Power Consumption: 100W
• Degree of Protection: IP21
• Gas Supply Pressure: ≥0.1Mpa
• Welding Voltage: 40V
• Welding Current: 5A-600A
• Welding Time: 3ms - 30ms
• Max. Welding Frequency: 1Hz
• Max. Argon Consumption: 5L/min
• Dimensions: 280mm x 160mm x 230mm
• Weight: 8.5kg

Safety Measures

To prevent electric shock, fire, and other hazards while using this equipment, please follow these basic safety guidelines:

1. Read the manual and precautions before use. Keep the manual accessible.
2. Keep the equipment away from children. Prevent them from playing with the device or its parts.
3. Ensure good ventilation and lighting during operation. Avoid using in humid or dusty environments.
4. Prevent liquids from entering the equipment.
5. Avoid exposure to strong arc light. Keep non-essential personnel away to protect their eyes.
6. Do not pull or drag the equipment by its cables. Keep cables away from heat, oil, and sharp objects.
7. Disconnect power before cleaning or opening the equipment casing.
8. The design requires minimal maintenance. Clean the equipment regularly, especially the microscope for optimal observation.
9. Cover the instrument with a dust cover when not in use.
10. Use correct fittings for your safety.

Note: The machine does not include a microscope, but it can still function without it.

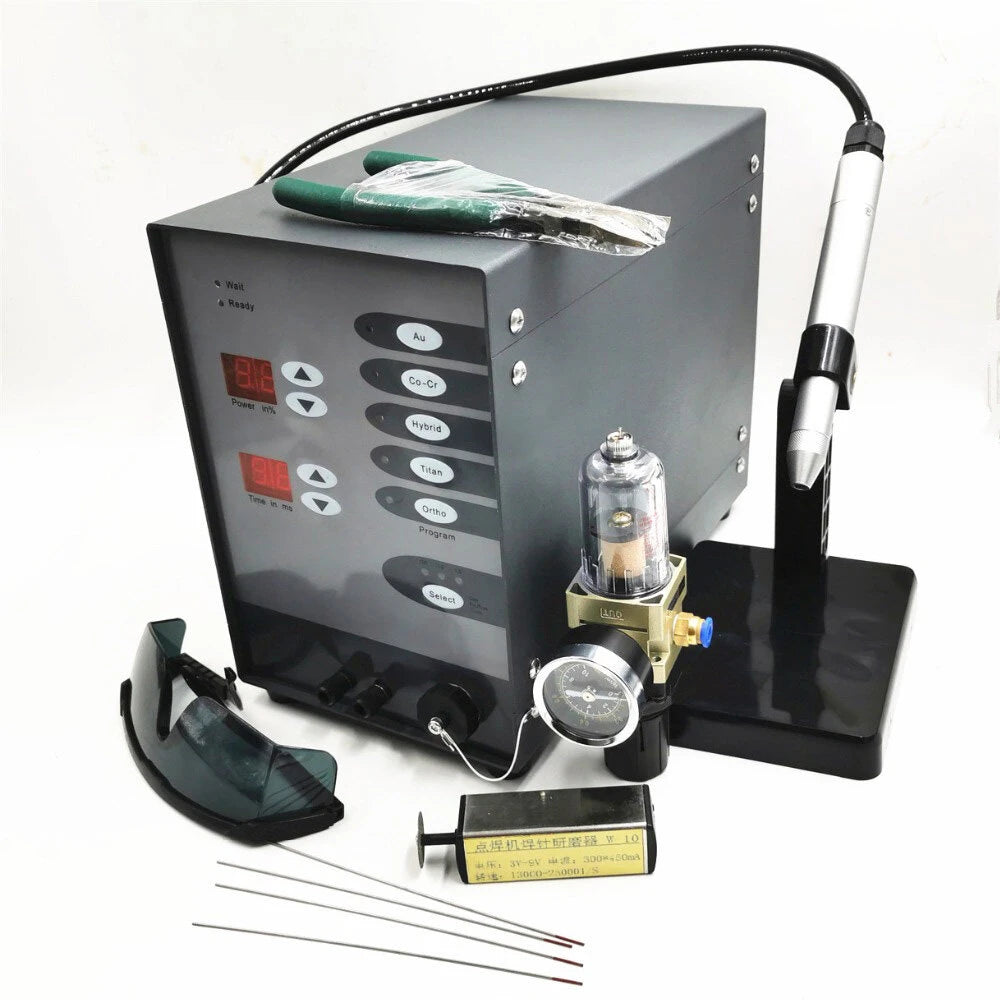

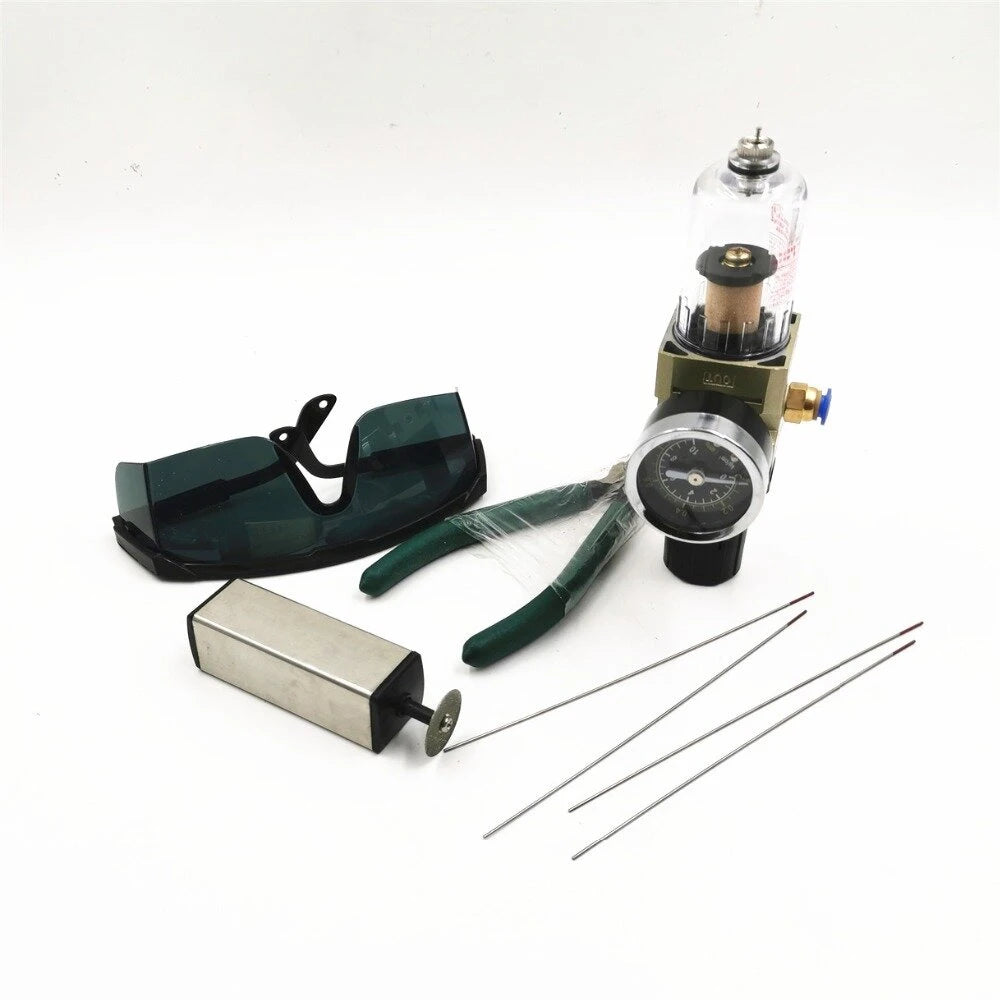

Package Includes

• Spot Welder x 1
• Welding Handle x 1
• Bracket x 1
• USB Needle x 1
• Pressure Gauge x 1
• Spot Welding Pins x 4
• Stainless Steel Pliers x 1
• Glasses x 1

For more information, refer to the manual.
