PTS200 V2 Soldering Iron

Features:

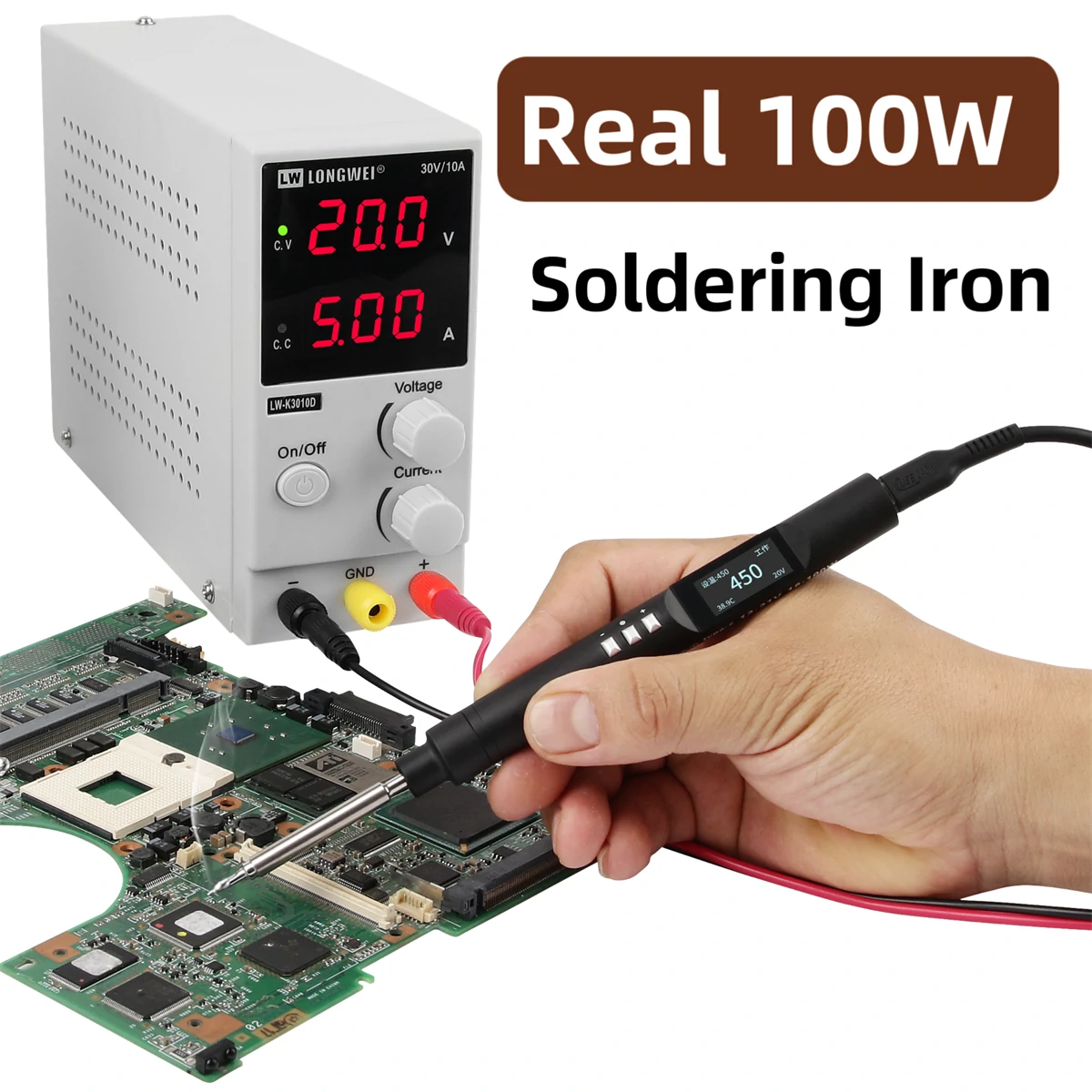

• Powerful and Portable: Experience desktop station-level performance with the PTS200 V2's 100W output in a compact design.
• Quick Heat-up: Reach temperatures up to 450°C in just 8 seconds, ensuring rapid tin melting for efficient soldering.

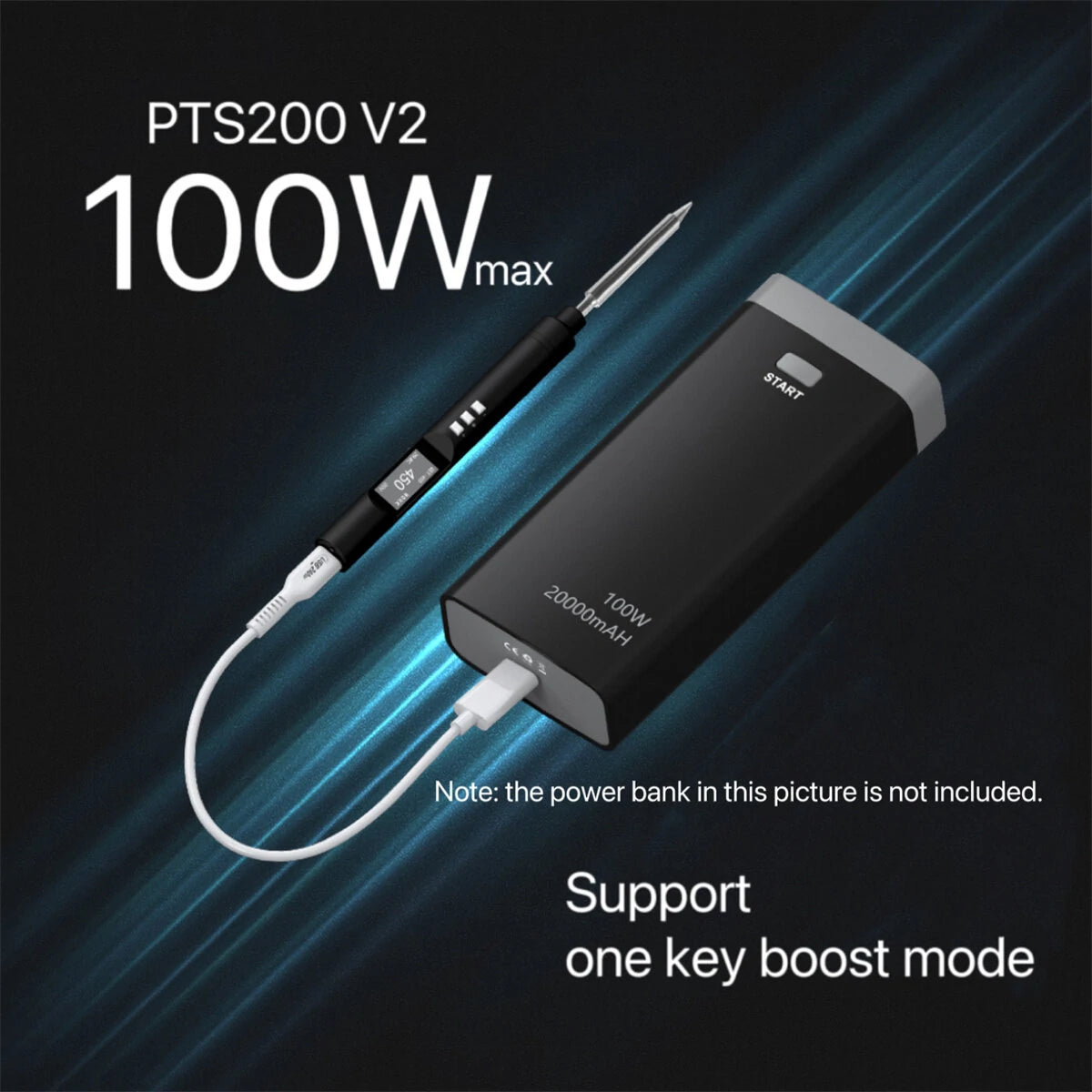

• Wide Compatibility: Compatible with PD3.0 and QC2.0/QC3.0 protocols, use it with fast charging adapters, power banks, and DC power supplies (requires a DC to USB-C cable).
• ESP32 MCU and Open-source Software: Customize firmware with the ESP32 MCU and enjoy the benefits of open-source software with continuous updates.

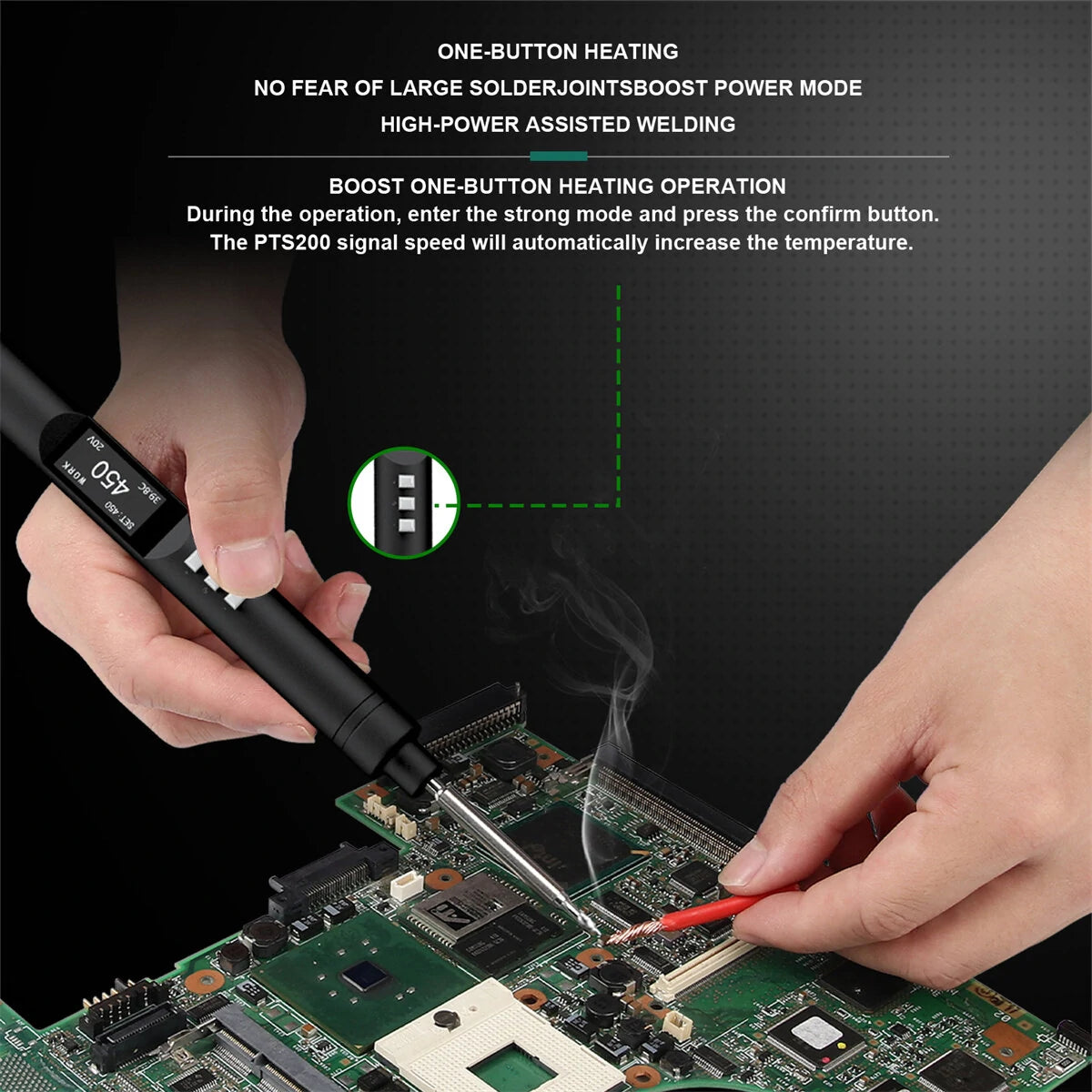

• One-button Heating Mode: Simplifies the soldering process, enhancing ease and efficiency.

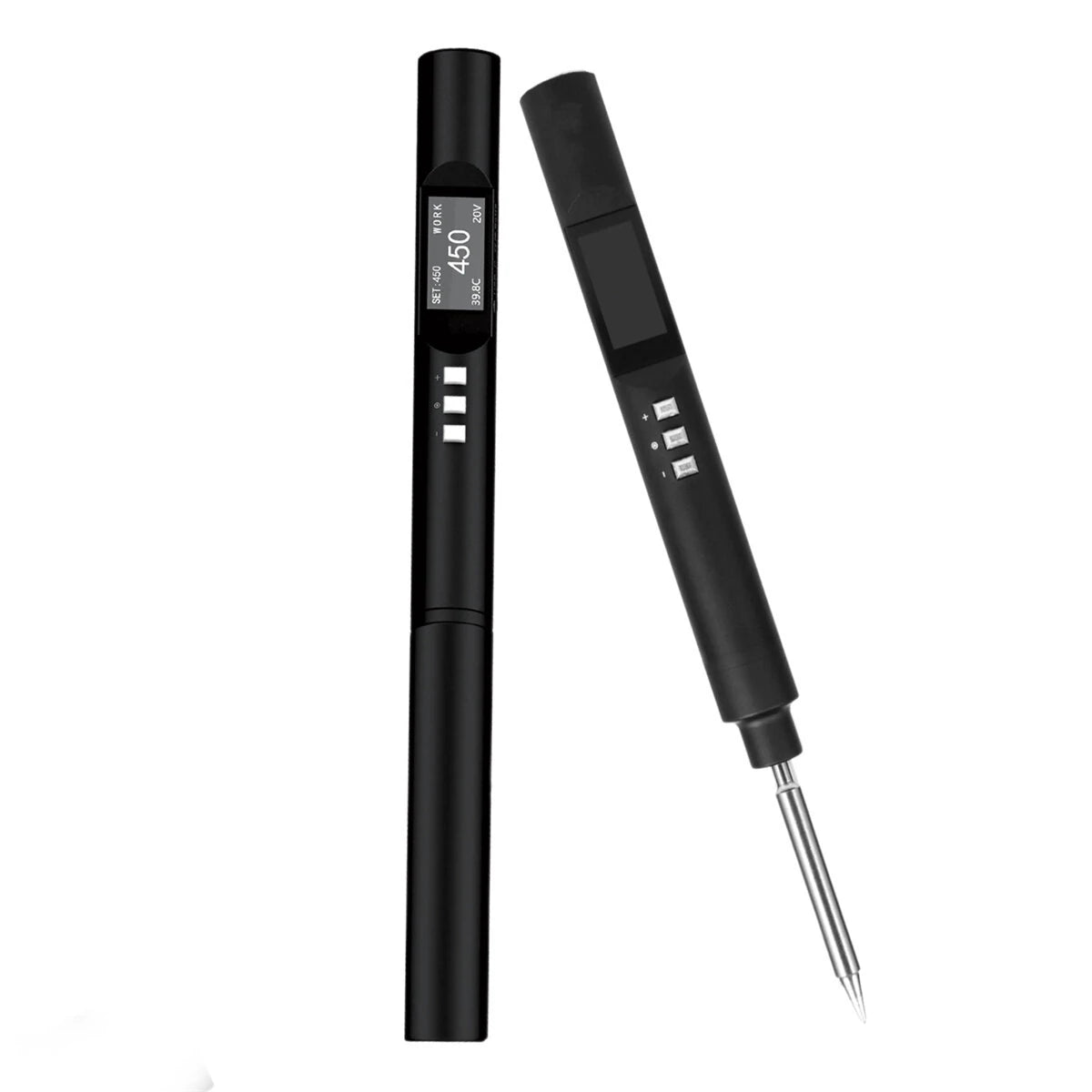

• Durable Design: Featuring a CNC metal body, ergonomic design, and excellent heat dissipation for reliability and durability.
• OLED Display: Stay informed with a 0.96-inch high-definition OLED screen.
• Precision Gyroscope and Sleep Function: Automatic sleep function through a built-in high-sensitivity precision gyroscope for power saving.

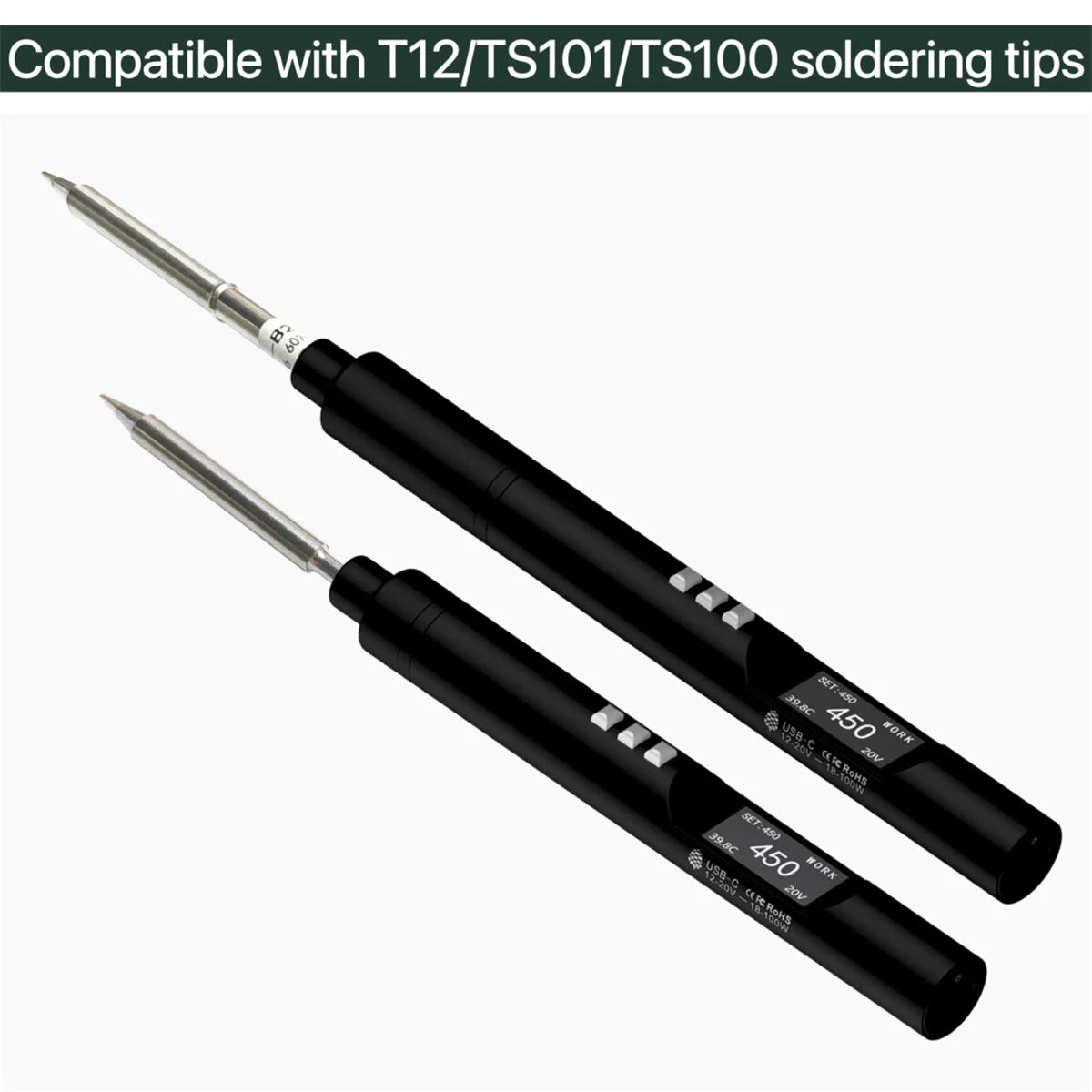

• Versatile Compatibility: Utilize T12, TS100, or TS101 heating cores with different fasteners for ease of use.
• Customizable Settings: Name your soldering head and fine-tune with the multi-segment temperature calibration function.
• Adjustable Features: Set inspiration level for awakening the device and customize sleep time settings.
• Language and Display Support: Switch between Chinese and English and use large font mode for easier readability.

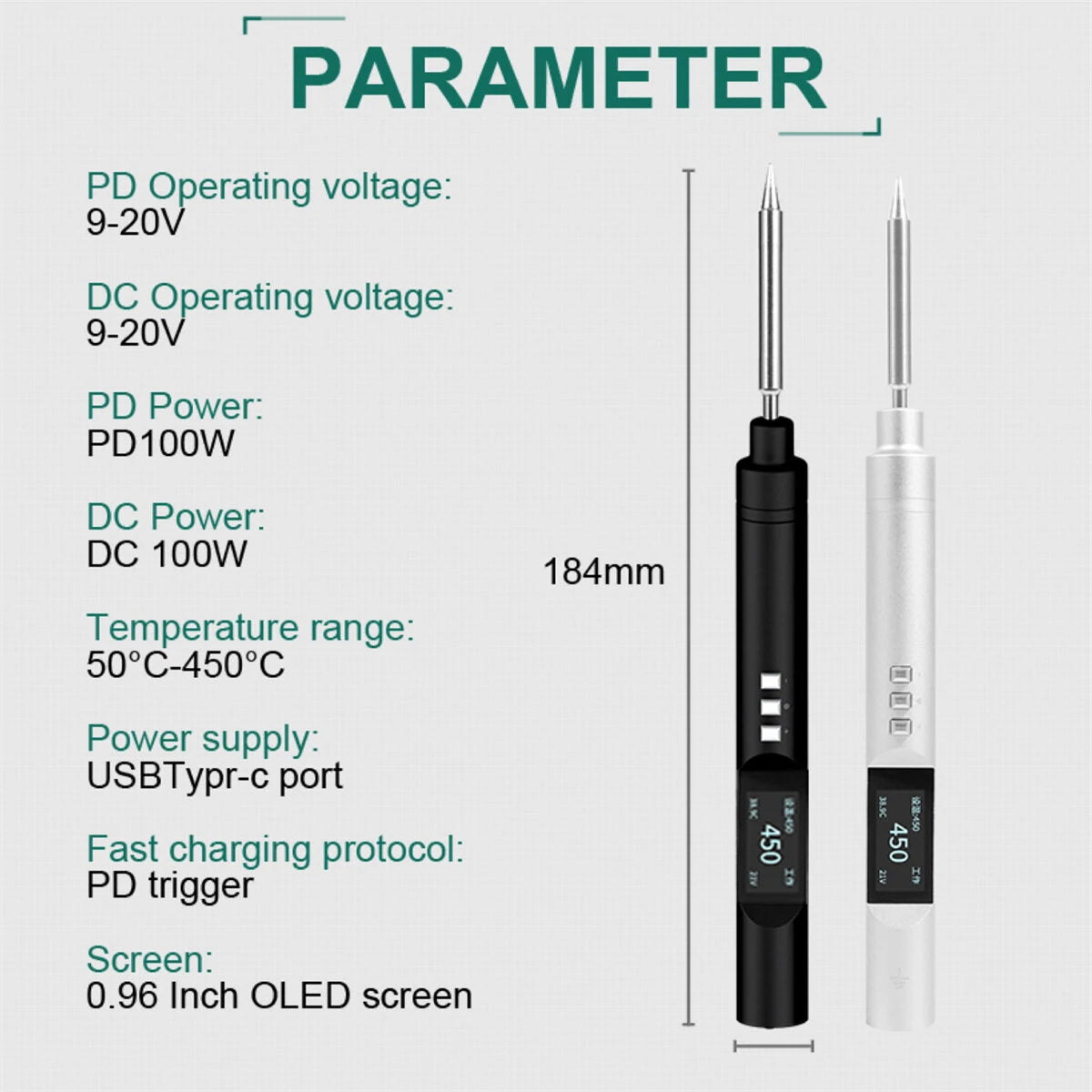

Specifications:

• Screen: 0.96 inch OLED
• Power and Data Interface: TYPE-C
• Total Length (with TS-B2 welding head): 188mm
• Total Length (with T12 welding head): 232mm
• Weight: About 48g
• Maximum Output Power: 100W (depending on power supply)
• Temperature Control Range: 50-450°C
• Temperature Stability: ±5%
• Soldering Iron Head Resistance: 4 Ω (customized heating core)
• PD Input Voltage: 9V 2A/12V 1.5A/15V 3A/20V 5A

Package Included:

• 1 x PTS200 V2 Soldering Iron with Metal Protection Cap
• 1 x Fastener for T12 Heating Core
• 2 x Insulating Sheath
• 1 x 100W TS-B2 Soldering Tip
