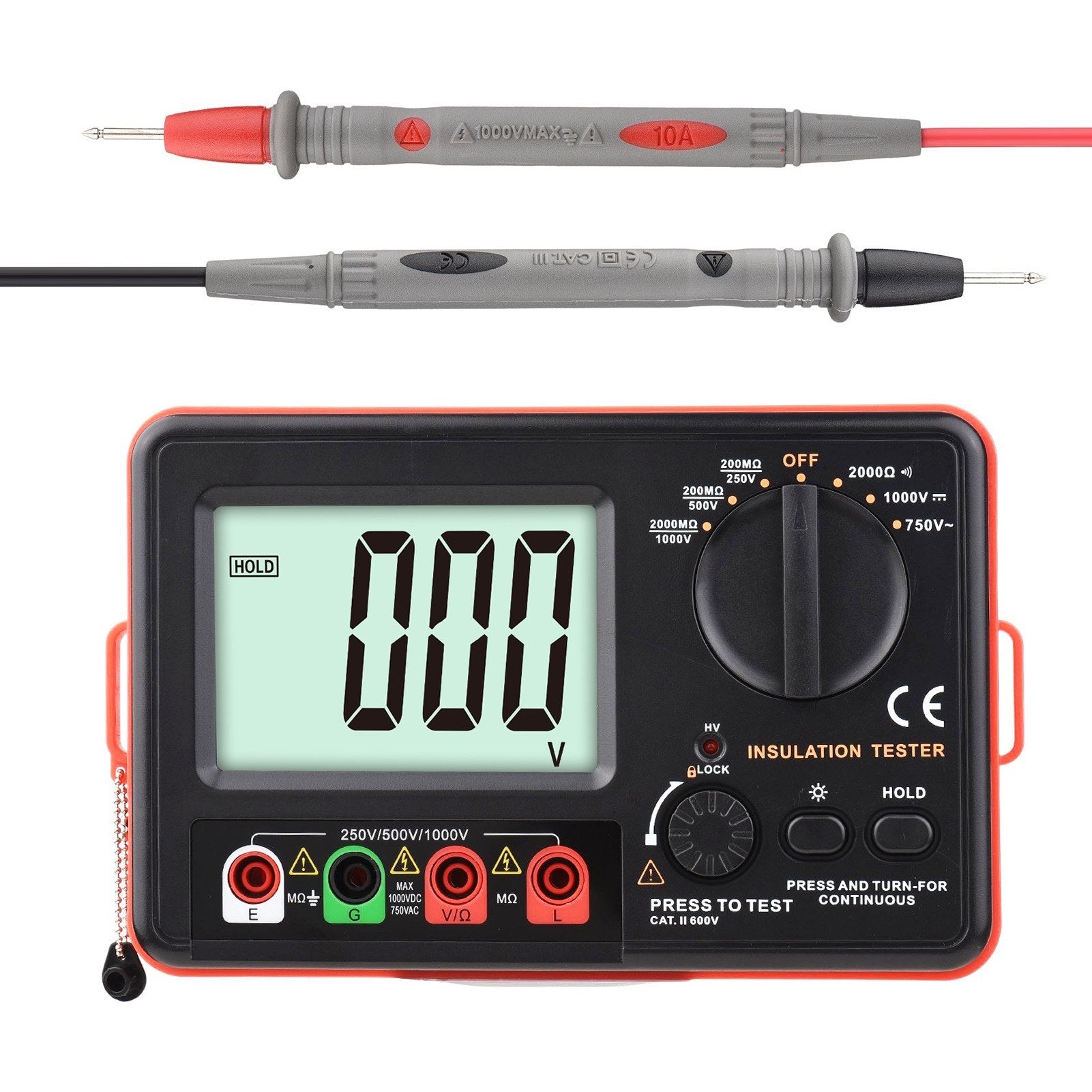

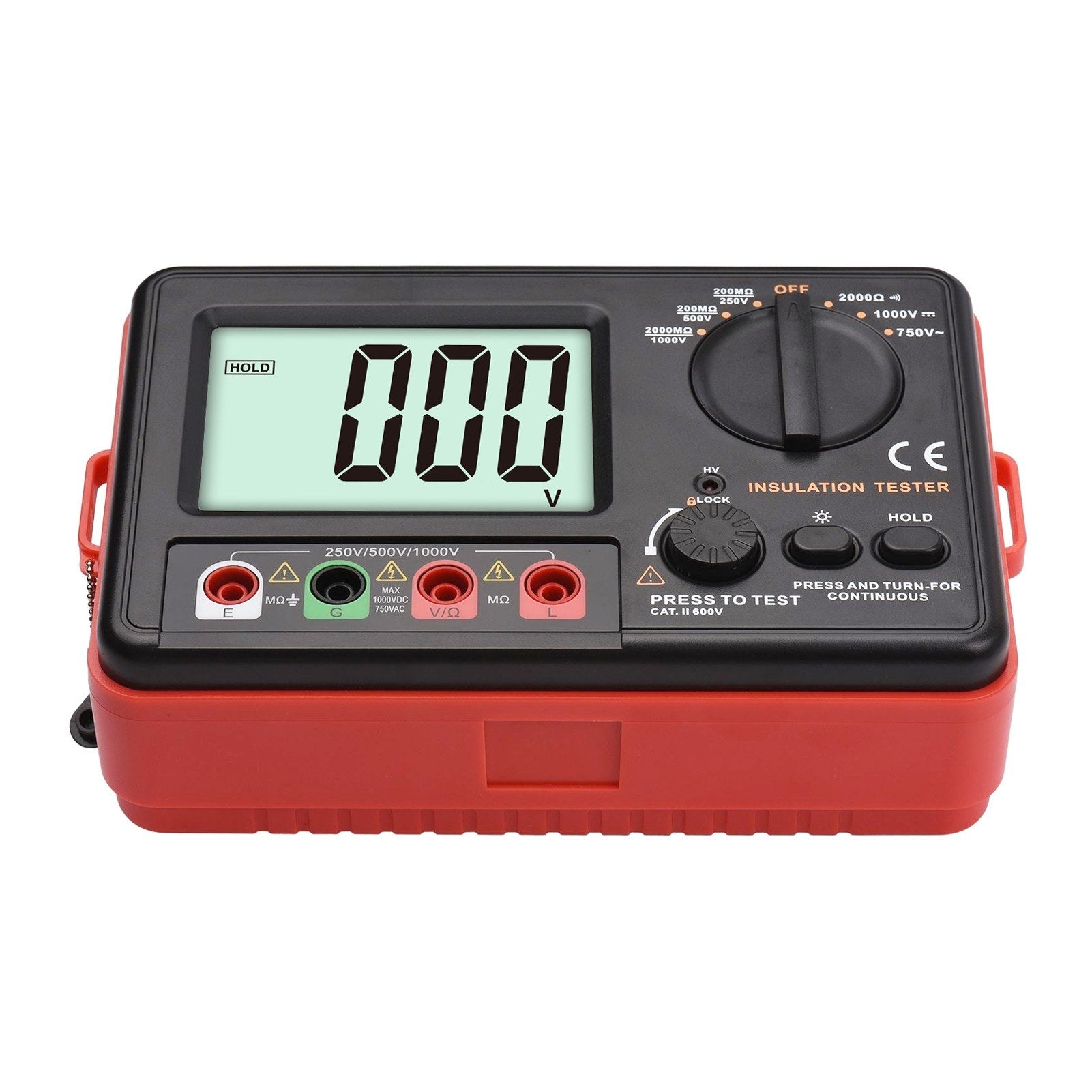

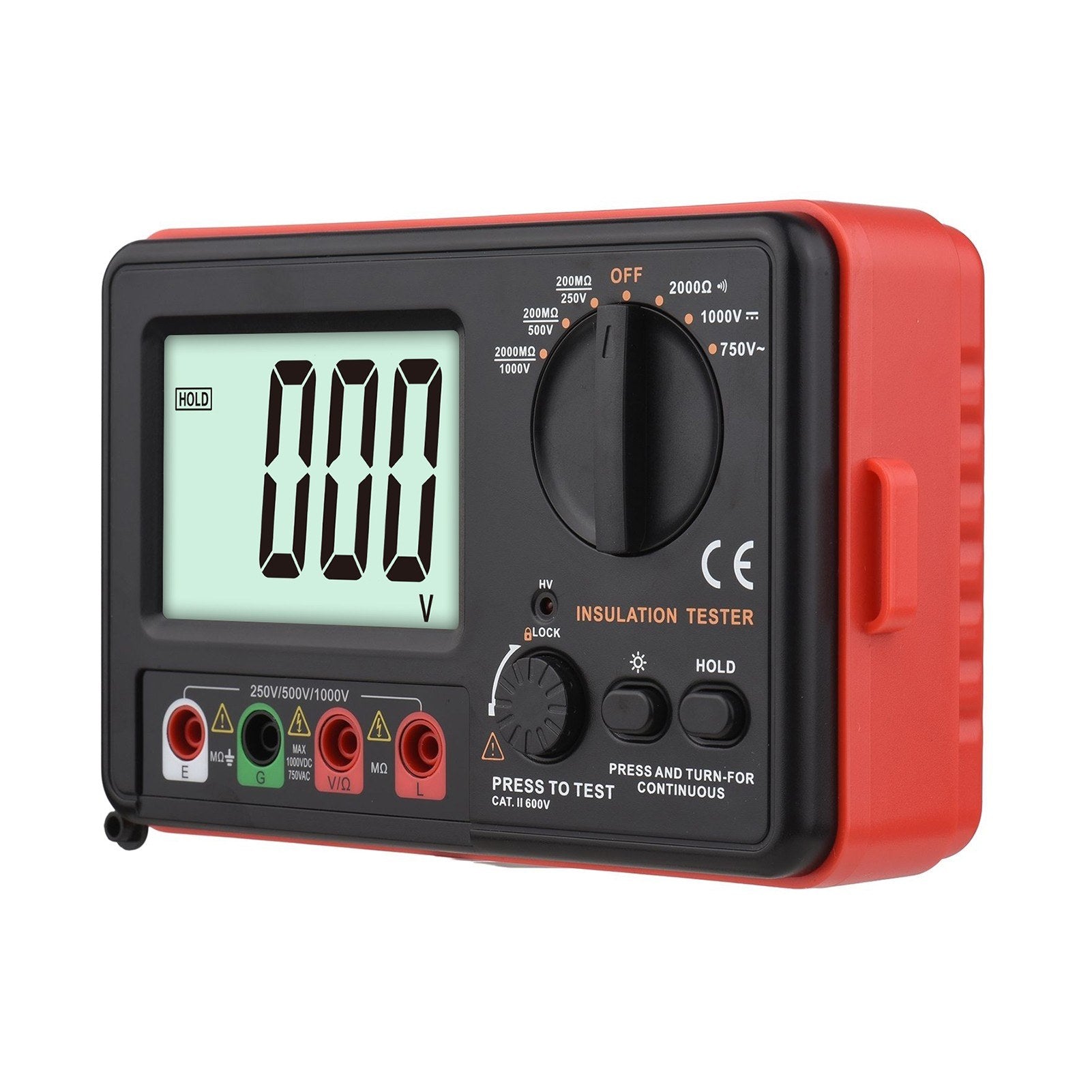

Multifunction Digital Insulation Resistance Tester 250V/500V/1000V with LCD Backlight, Protective Lid & Carry Bag

Enhance your testing capabilities with our multifunction insulation resistance tester, designed to provide superior performance and reliability for a variety of applications.

Key Features

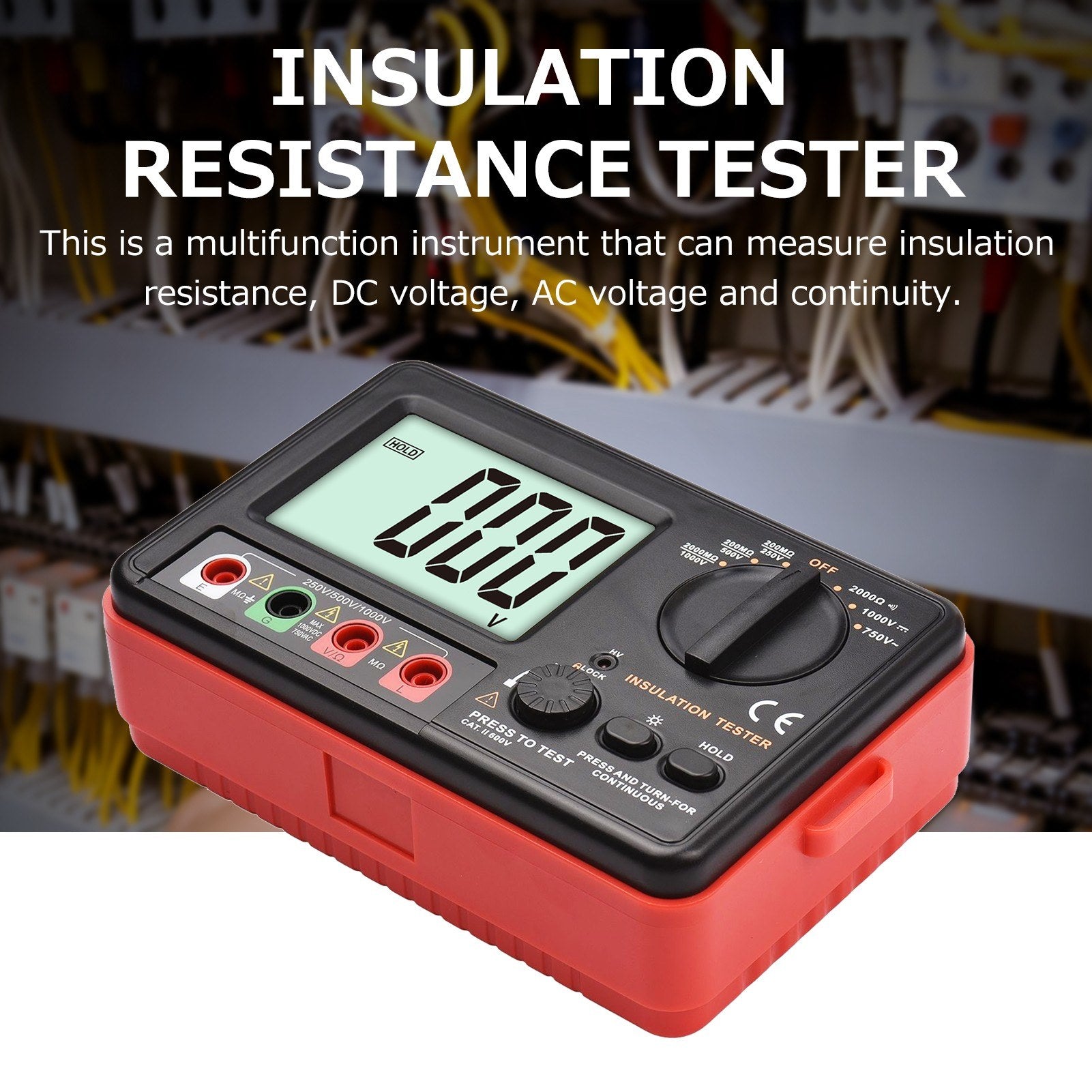

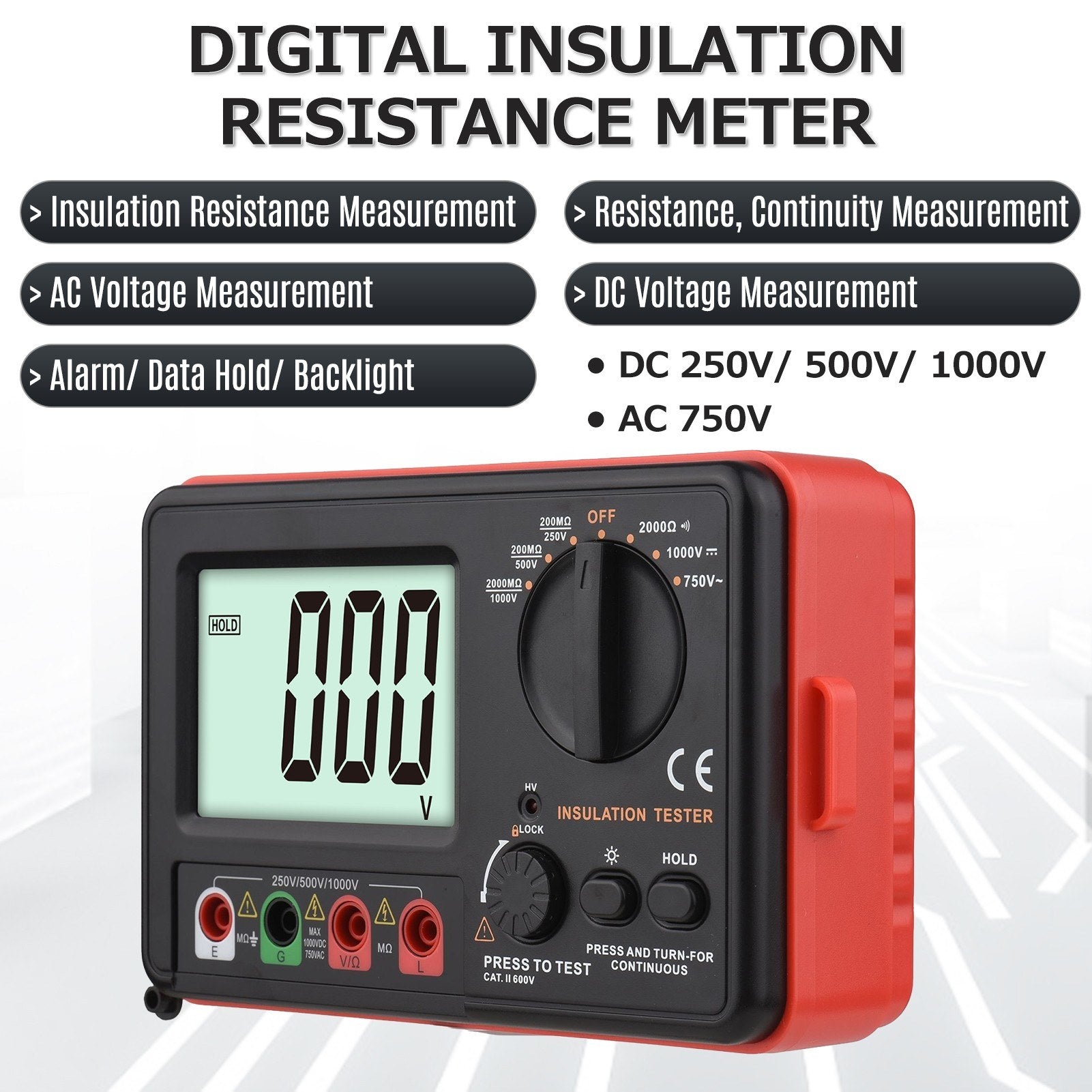

• Multifunctional Testing: Accurately measure insulation resistance, DC voltage, AC voltage, and continuity with one device.
• Advanced DC Voltage Converter: Features a low-loss, high variation ratio converter for output voltages of 250V, 500V, and 1000V DC.
• Digital Precision: Utilizes a digital electric bridge for precise insulation resistance measurement alongside AC and DC voltage capabilities.
• Portability and Usability: Lightweight and easy to carry with a practical backlight display and data hold function for enhanced usability.
• Ergonomic Design: Hands-free operation with the included strap allows easy handling and operation.
• User-Friendly Display: Large, clear LCD digital display ensures measurements are easy to read.
• Safety Features: Includes low battery indication, over-limit alarm, and high-voltage alarm for safer operation.

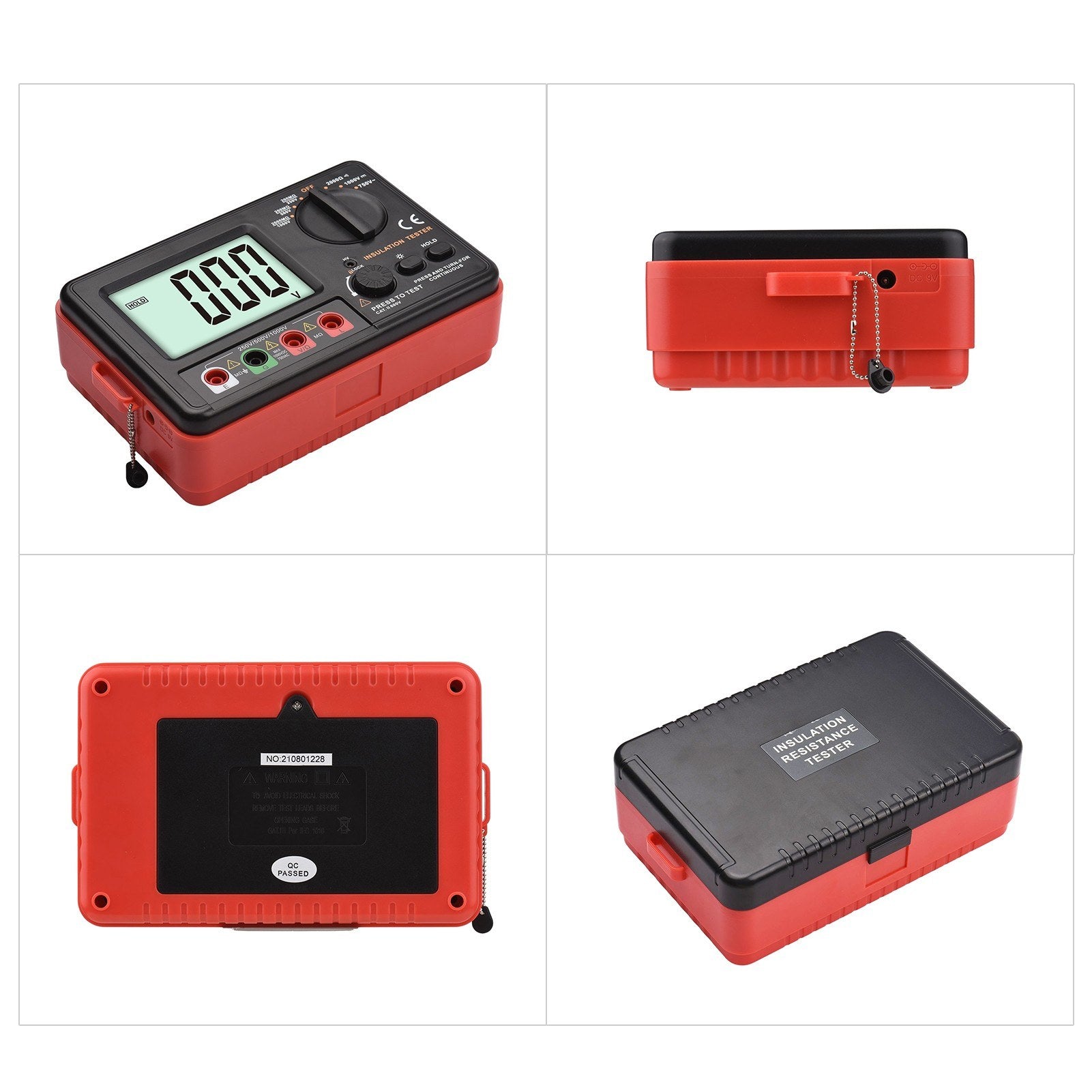

• Durability: Comes with a protective lid and a cloth bag for added protection and convenience in storage and transport.

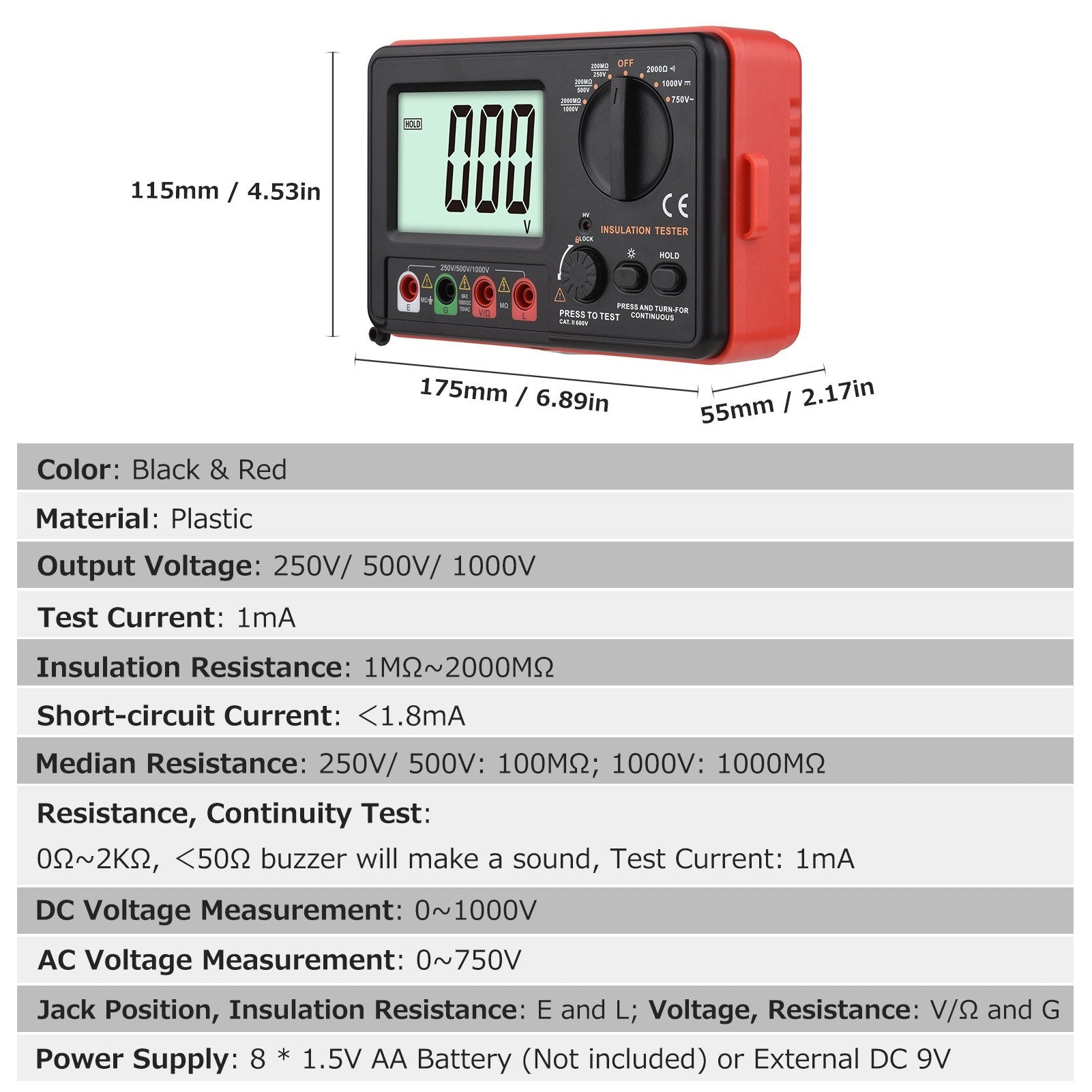

Specifications

• Color: Black & Red
• Material: Plastic
• Output Voltage: 250V/500V/1000V
• Test Current: 1mA
• Insulation Resistance Range: 1MΩ to 2000MΩ
• Short-circuit Current: <1.8mA
• Median Resistance: 250V/500V: 100MΩ; 1000V: 1000MΩ
• Resistance, Continuity Test: 0Ω to 2KΩ, <50Ω buzzer sound, Test Current: 1mA
• DC Voltage Measurement: 0 to 1000V
• AC Voltage Measurement: 0 to 750V
• Jack Position: Insulation Resistance: E and L; Voltage, Resistance: V/Ω and G
• Power Supply: 6 x 1.5V AA Battery (Not included) or External DC 9V
• Item Dimensions (without Lid): 175 x 115 x 55mm / 6.89 x 4.53 x 2.17in
• Item Weight (without Lid): 411g / 14.49oz
• Storage Bag Dimensions: 18.5 x 17.5 x 9cm / 7.28 x 6.89 x 3.54in
• Package Dimensions: 20.5 x 17.5 x 9.5cm / 8.07 x 6.89 x 3.74in
• Package Weight: 900g / 1.98lbs

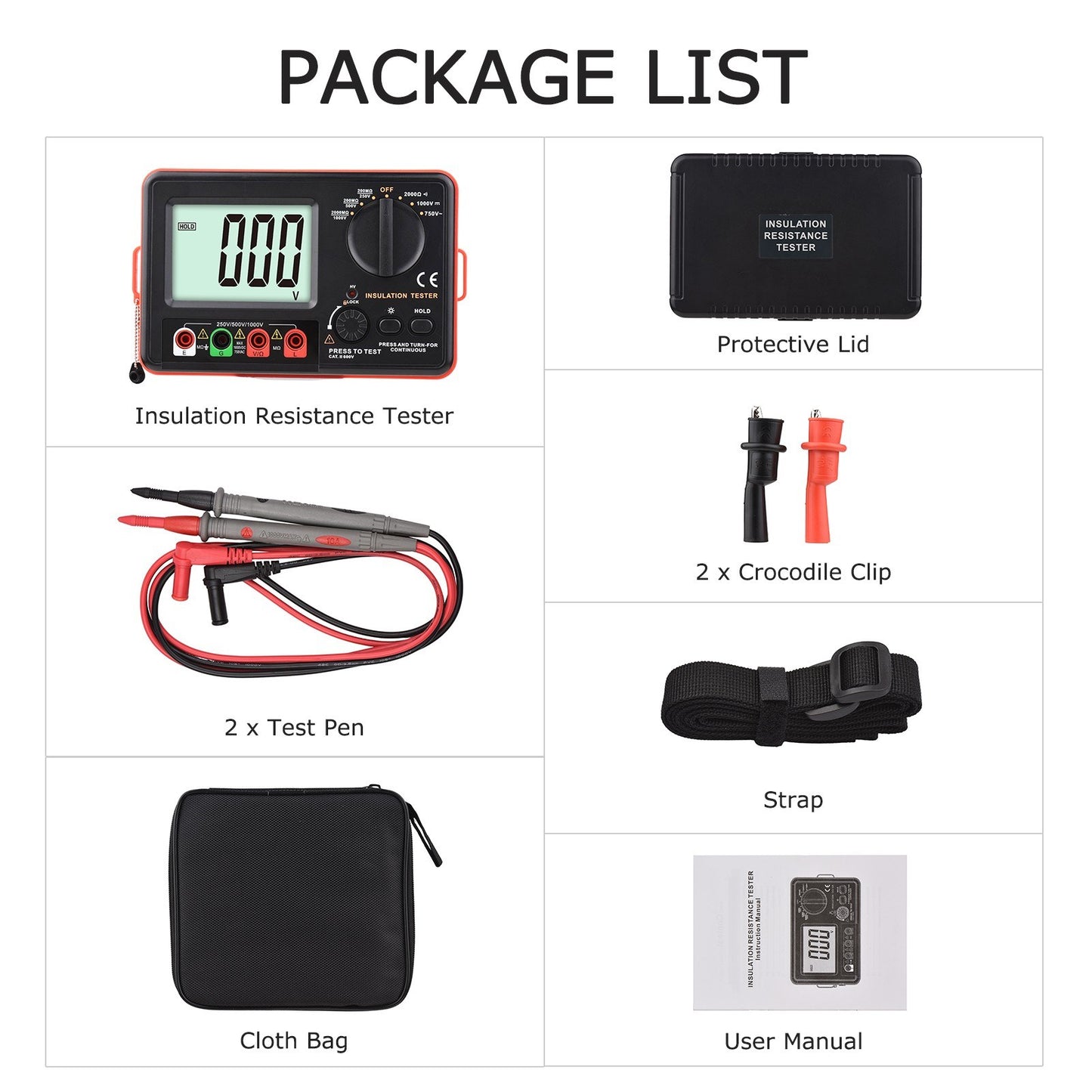

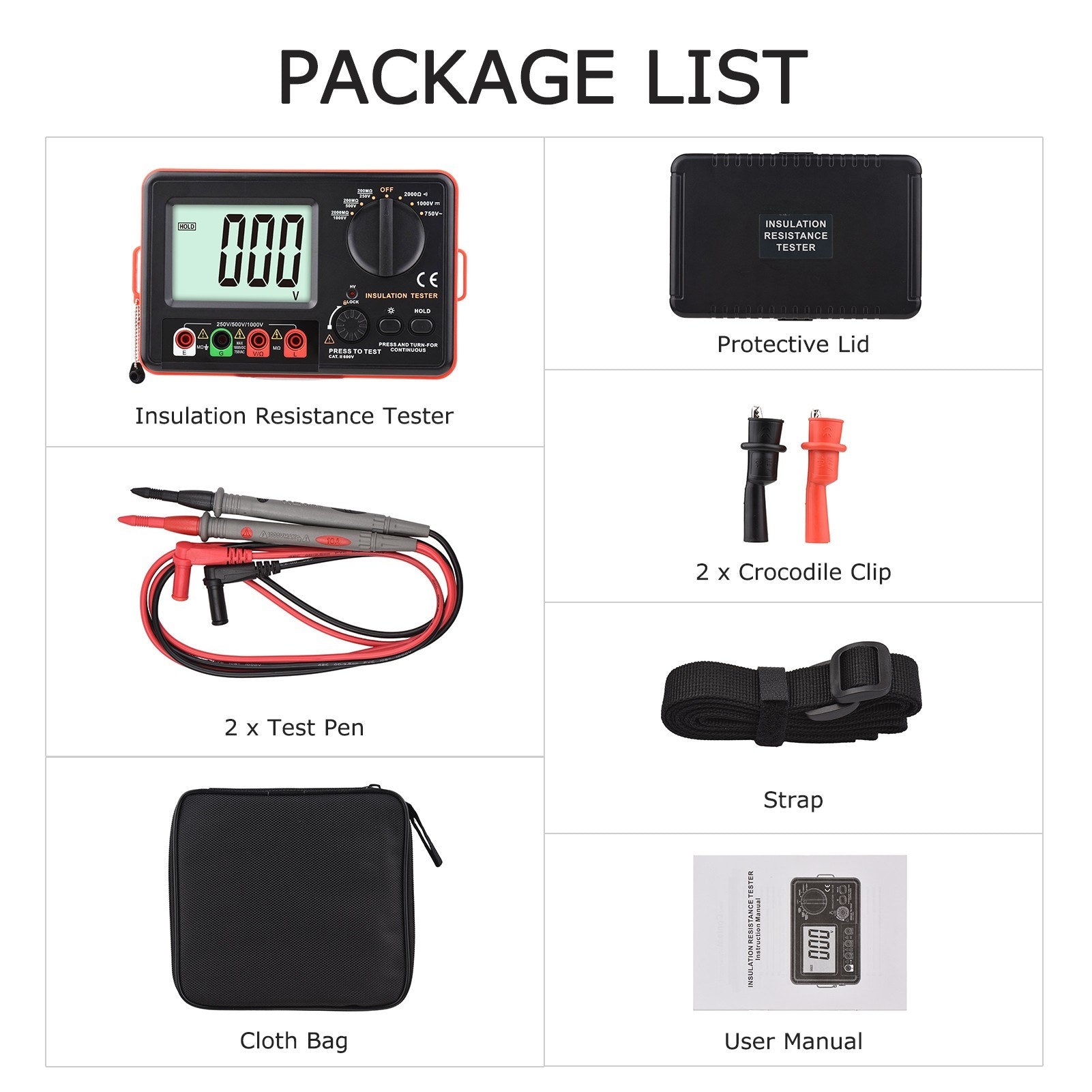

Package Includes

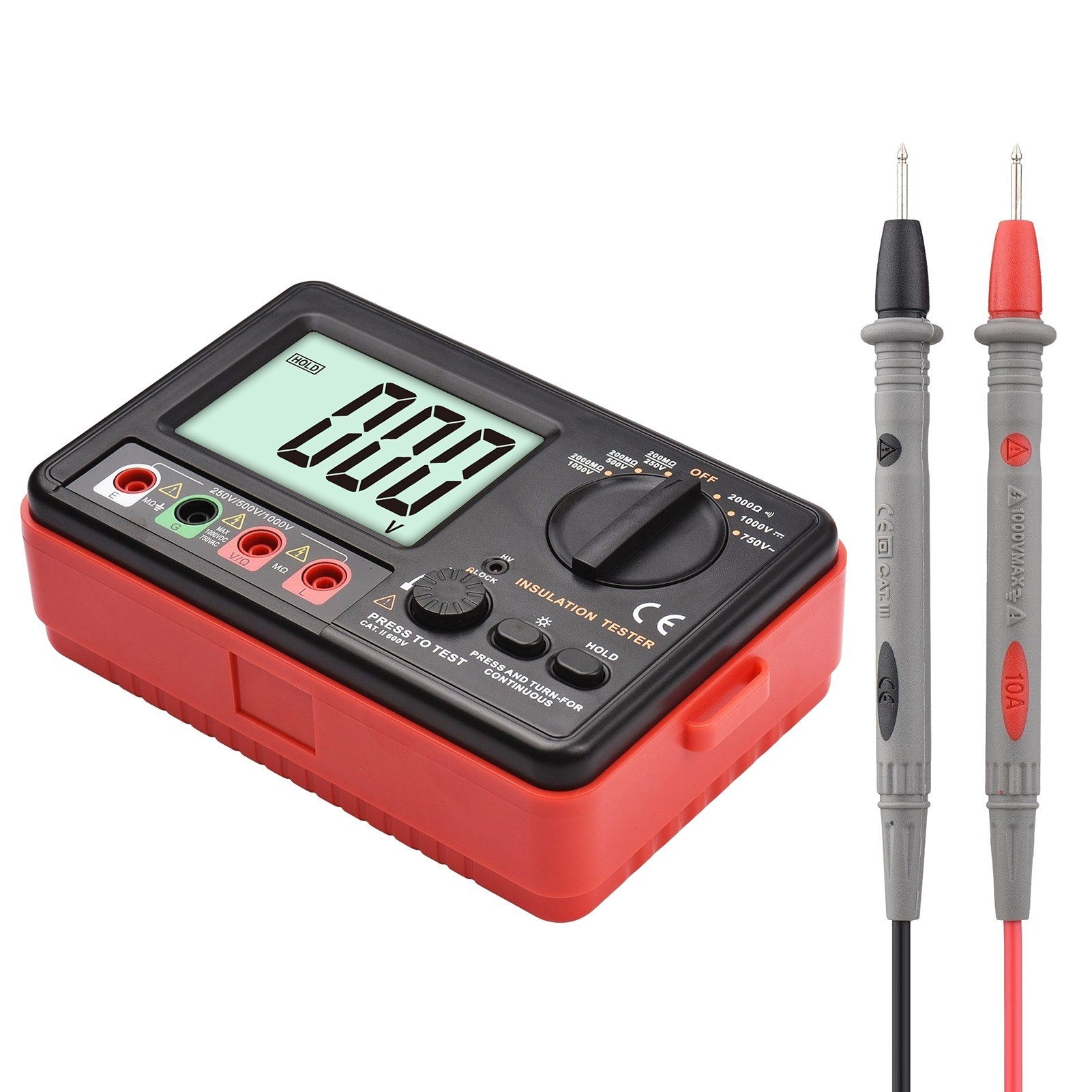

• 1 x Insulation Resistance Tester
• 2 x Test Pens
• 2 x Alligator Clips
• 1 x Strap
• 1 x Storage Bag
• 1 x User Manual (English)

Discover the efficiency and ease of testing with our expertly designed insulation resistance tester, perfect for professional or personal use across various electrical machinery and equipment.
