YIHAOGD YH LCD DRO & KA300 Linear Scale Encoders 5μm TTL 70-970mm for Lathe Tool

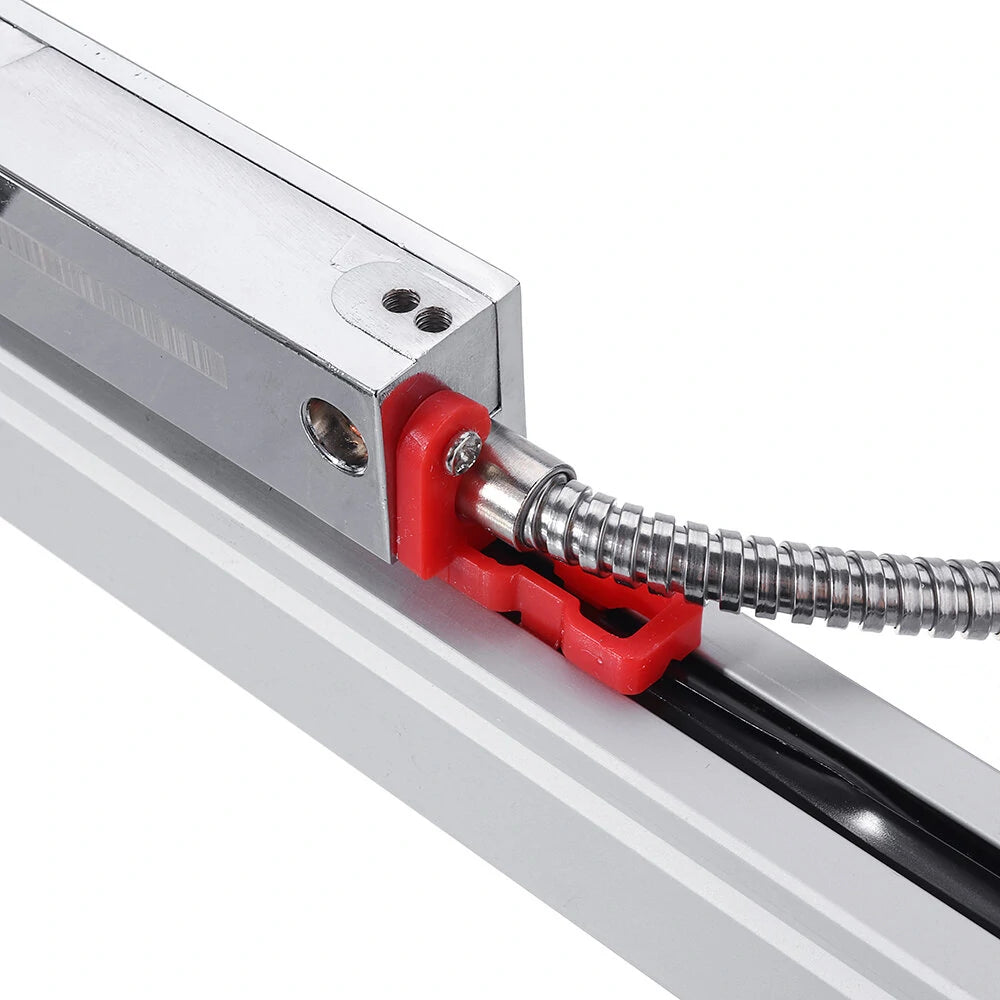

KA300 5U TTL Linear Scale Product Description

Parameters

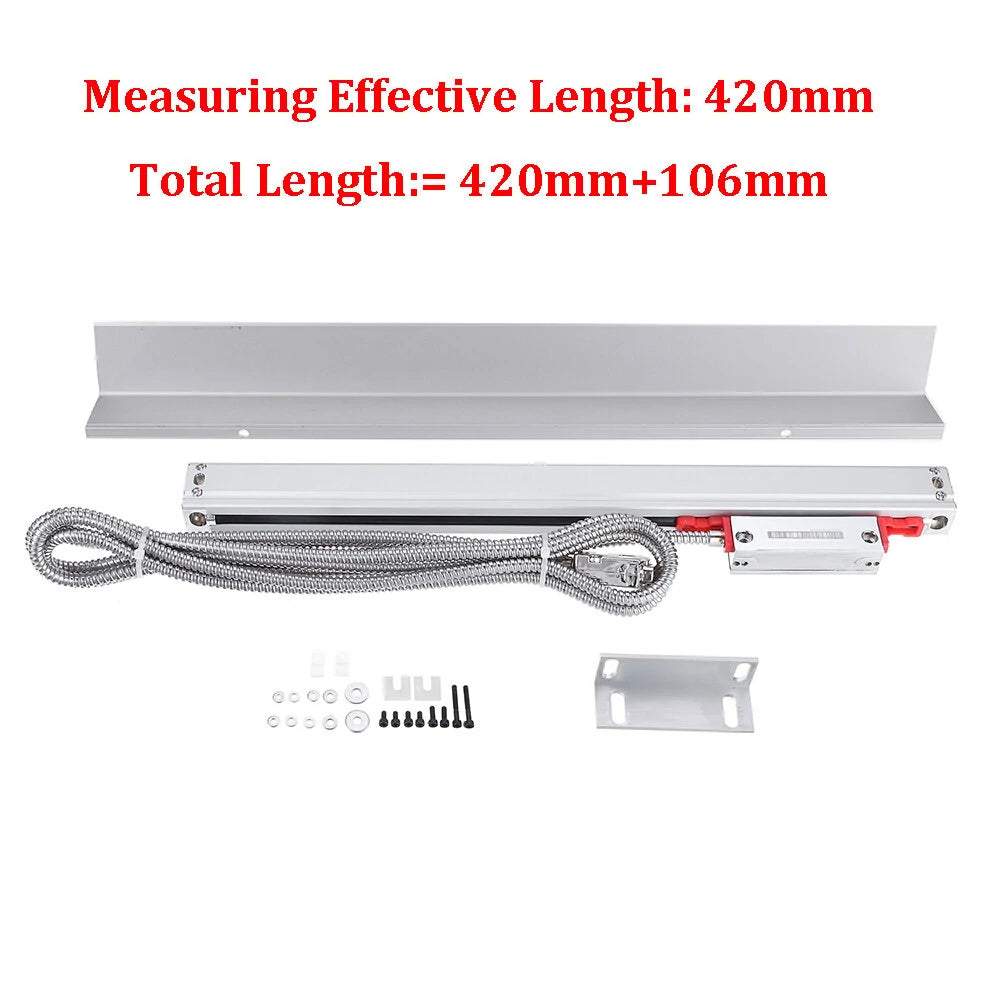

• Travel Length: Available in 420mm, 620mm, or 720mm
• Total Length: Travel length plus 106mm (0-1076mm)

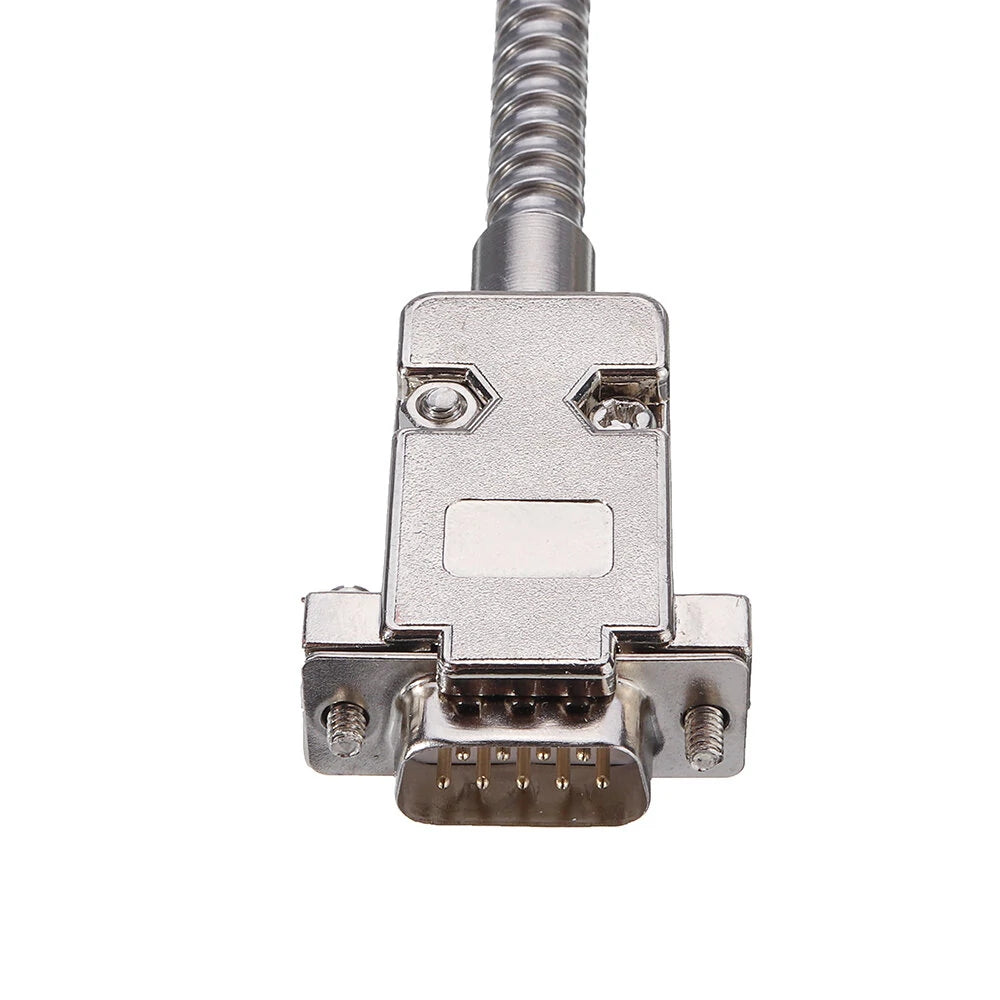

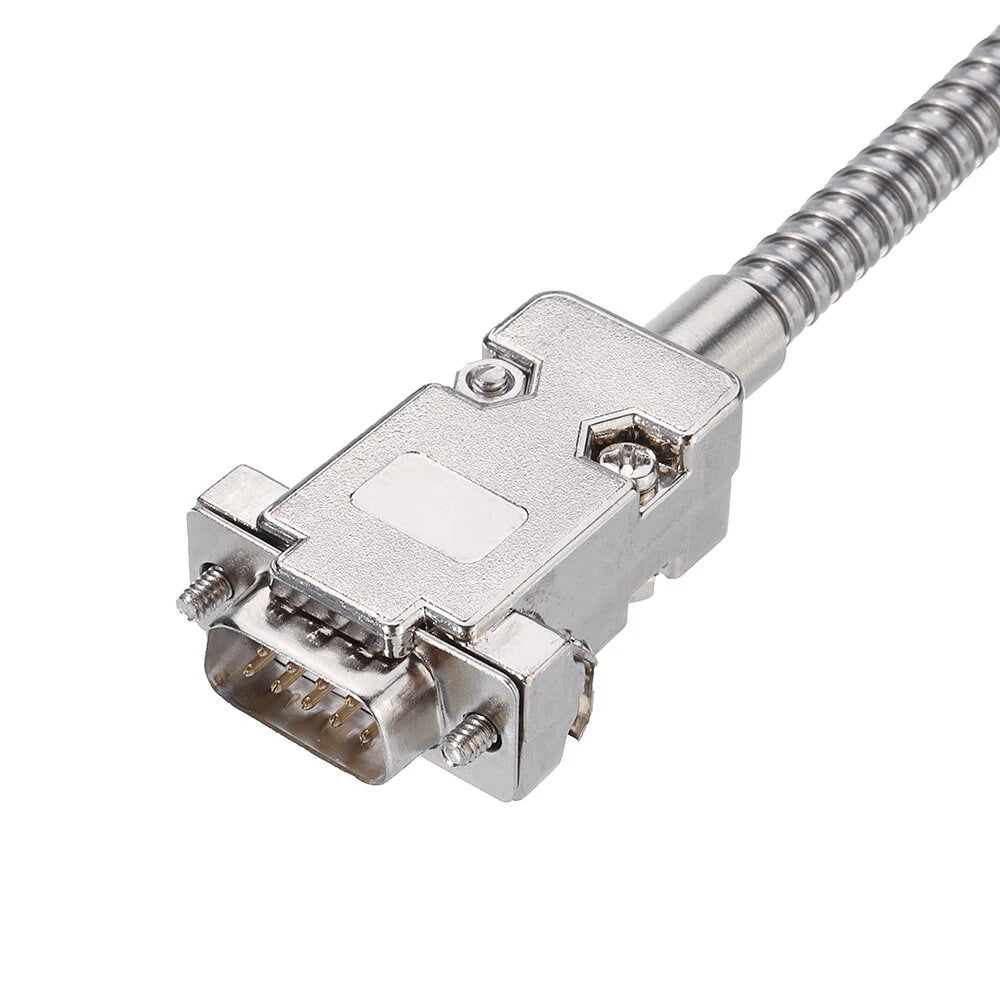

• Plug Type: DB9
• Resolution: 0.005mm (5μ)
• Input Voltage: 5V
• Grating Pitch: 0.02mm (50LP/min)
• Cable Length: 3 meters
• Protection Class: IP54
• Signal: TTL

Signal Distribution

• Pin 2 (Black): 0V
• Pin 6 (Green): A
• Pin 7 (Red): 5V
• Pin 8 (White): B
• Pin 9 (Orange): Z

Features

• Eliminates machine tool position errors related to thermal expansion, mechanical deformation, and pitch issues.
• Ensures high long-term speed stability.
• Sturdy construction with high resistance to vibration.
• Finer signal periods for superior interpolation accuracy.
• Compact and lightweight for easy installation.
• Proven durability and reliability even after years of use.
• Available in sealed or enclosed linear designs.

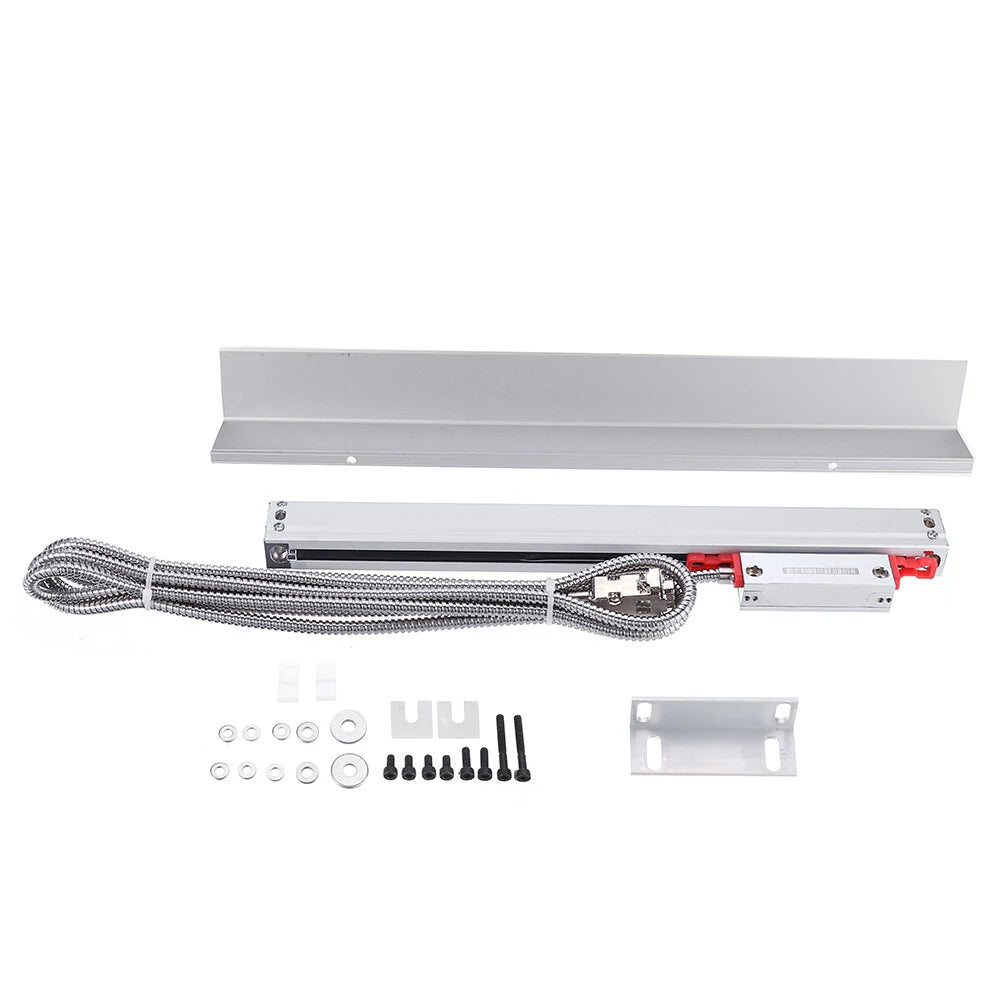

Package Includes

• 1 x Linear Scale
• 1 x L Plate
• 1 x Bracket

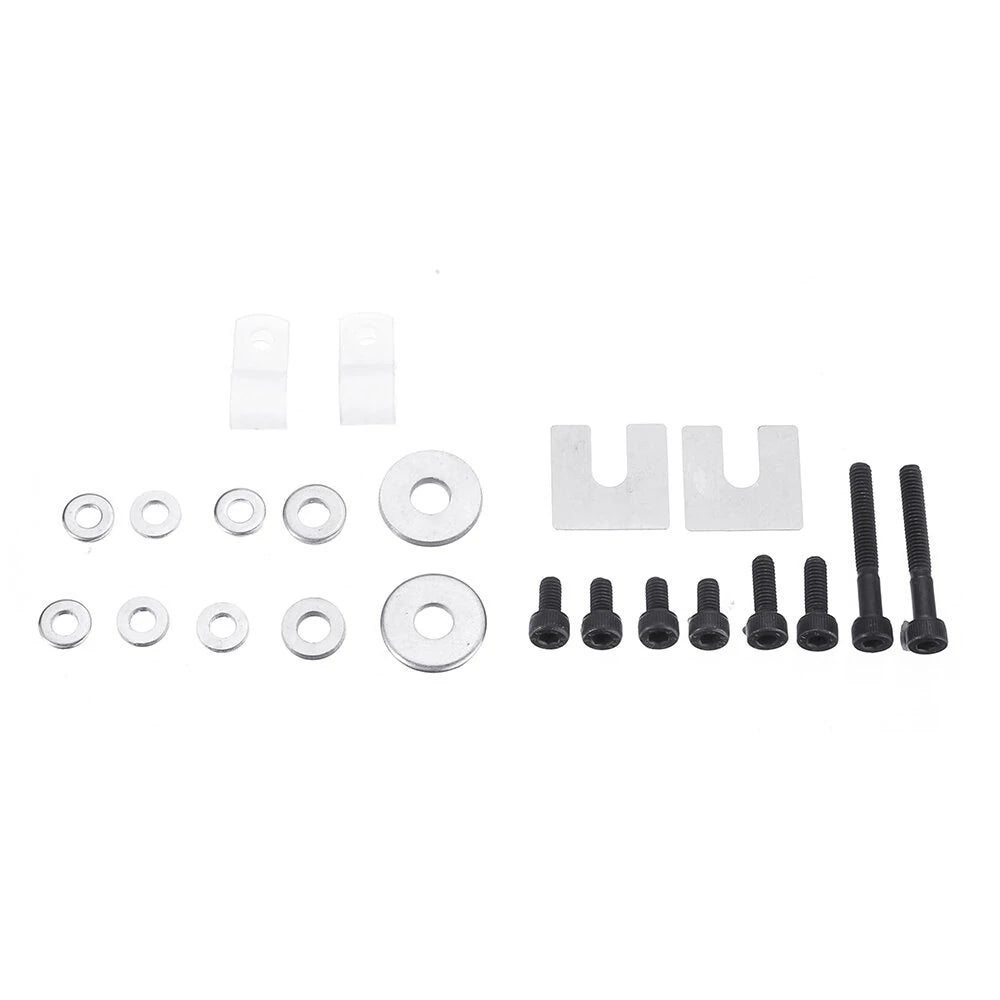

• 1 x Bag of Screws

Note: The linear scale type is optional. Only one type is included in the package.
