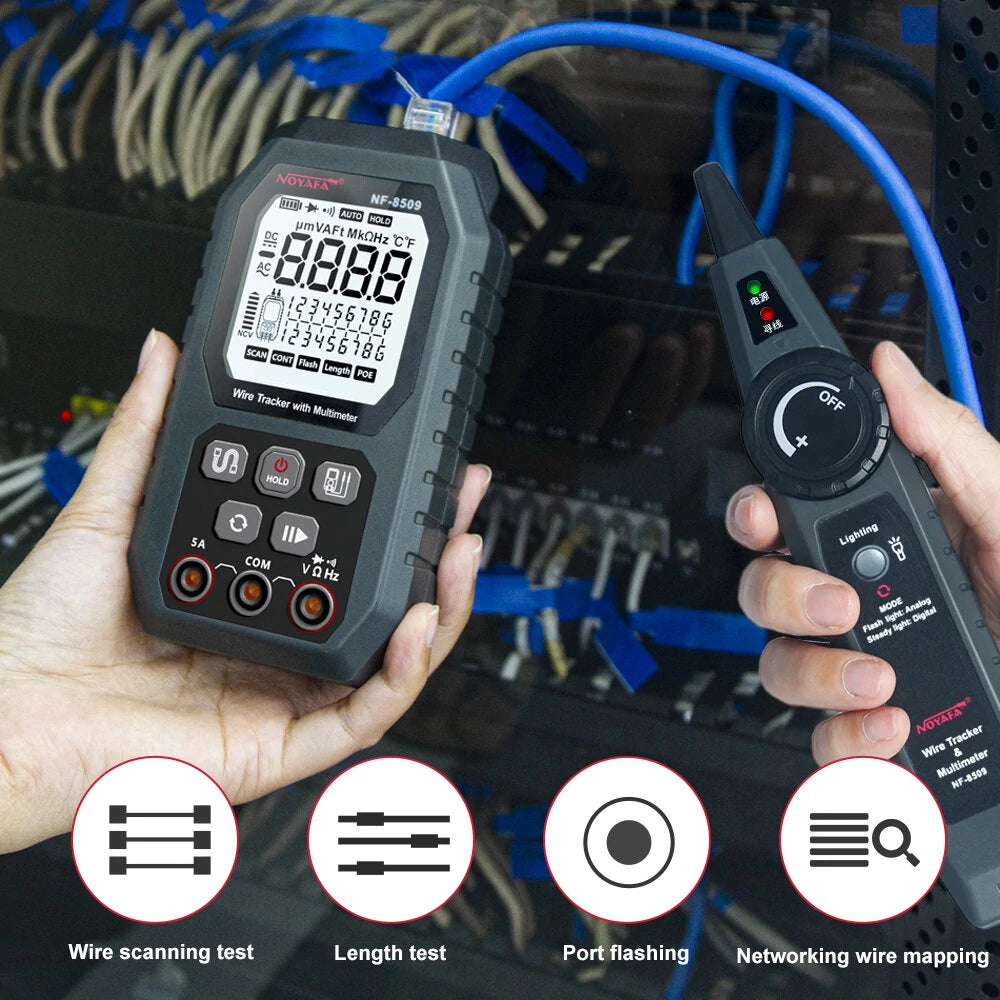

NOYAFA NF-8509 Network Cable Tester & Multimeter: NCV AC/DC, LCD POE, Test Length, Wiremap Tracker Tools

Product Specifications

• Model: NF-8509
• Transmitter Wire Mapping Test: Max distance of 2,000m
• Wire Scanning RJ45: 600m
• Wire Length Test: 5-200m (±3m)
• Port Flashing Test: 10M/100M/1,000M
• POE 4-core/8-core Power Supply Detection
• POE Voltage Detection
• Continuity Test: Detects the connectivity performance of wires and various conductors. The buzzer will sound when resistance is below 50Ω
• Identify Polarity and Forward Voltage Drop of Diodes: 0-3.3V
• NCV Function: Inductive voltage detector with 0-4 levels
• Resistance Measurement: 600Ω-60MΩ (accuracy: ±1.0% +5)
• AC/DC Voltage Measurement: 600mV-610V (DC accuracy: ±0.5% +3, AC accuracy: ±0.5% +3)
• Current Measurement: 1mA-3A DC (accuracy: ±0.8% +3)
• Frequency: 0-10MHz (accuracy: ±1.0% +3)
• Power: 3.7V/1,500mA lithium battery
• Ambient Temperature Display: Yes

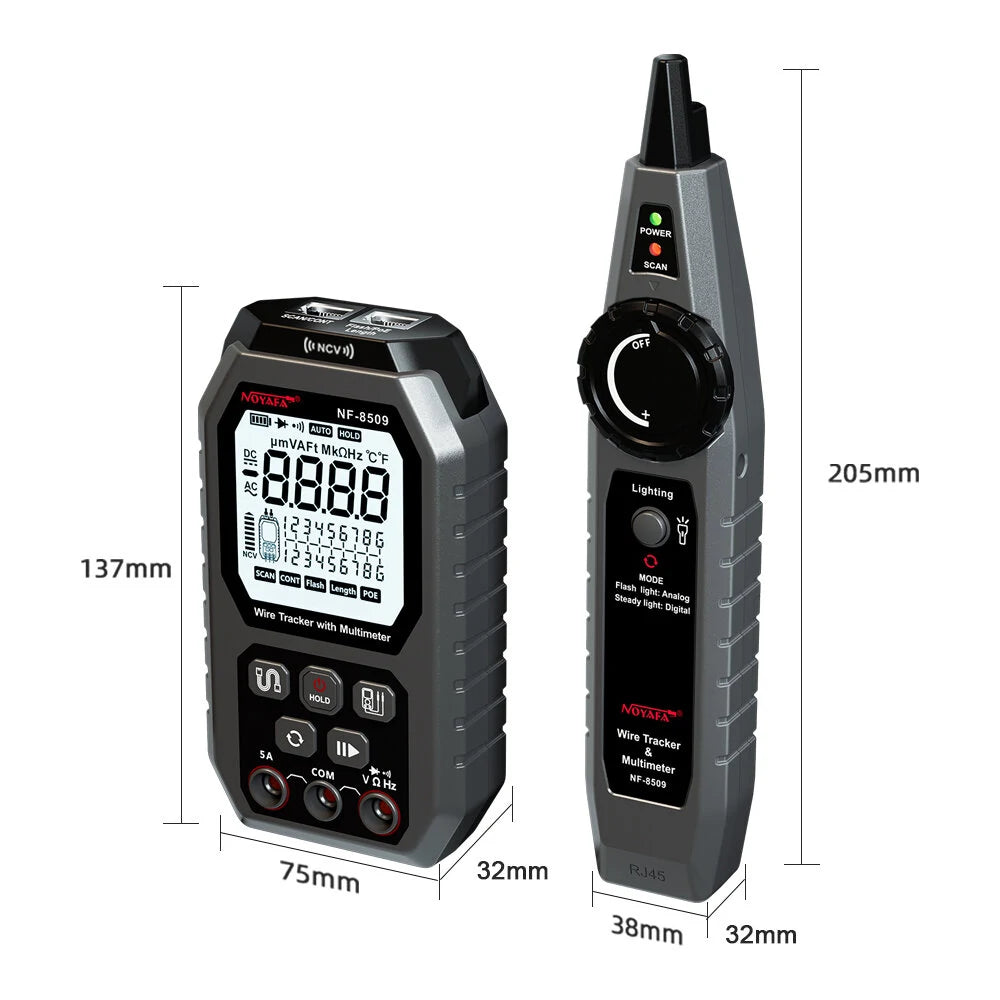

• Dimensions: 137.5 x 76 x 34mm
• Receiver LED Light: Yes
• Telephone Function: Yes
• Power: DC 9V (exclusive)
• Maximum Working Current: ≤150mA
• Receiver Dimensions: 204.9 x 38 x 29mm

Functions

Network Cable Testing Functions:

• Cable Length Test
• Wire Continuity Test
• Wire Scan Test
• POE Test
• Port Flash Test

Digital Multimeter Functions:

• AC/DC Voltage Test
• Continuity Test
• Diode Test
• Temperature Test
• NCV Test
• Resistance Test
• AC/DC Current Test

Note: Wire scan is enabled by default after turning on the device.

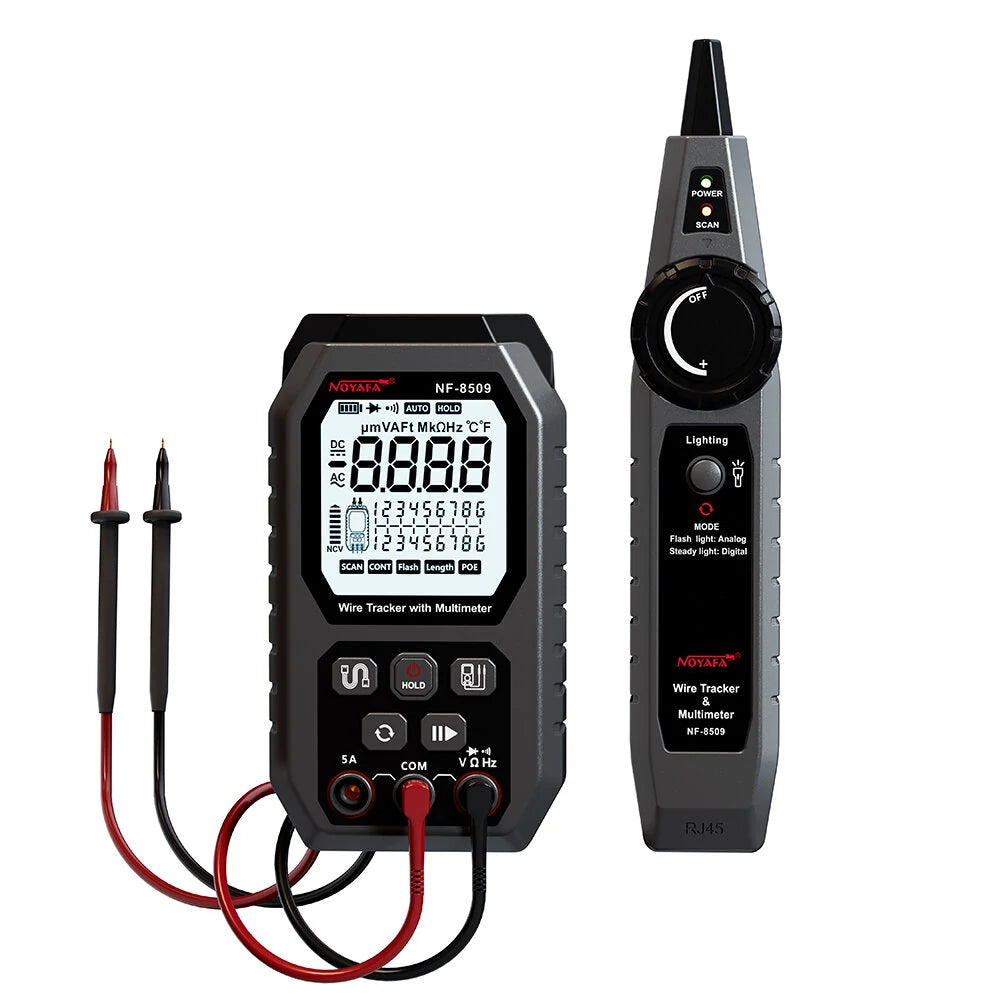

Package Includes

• 1 x Emitter
• 1 x Receiver
• 2 x Multimeter Pen
• 1 x Carry Bag
• 1 x Type-C USB
• 1 x Earphone
• 1 x Cable Adapters
• 1 x User Manual
