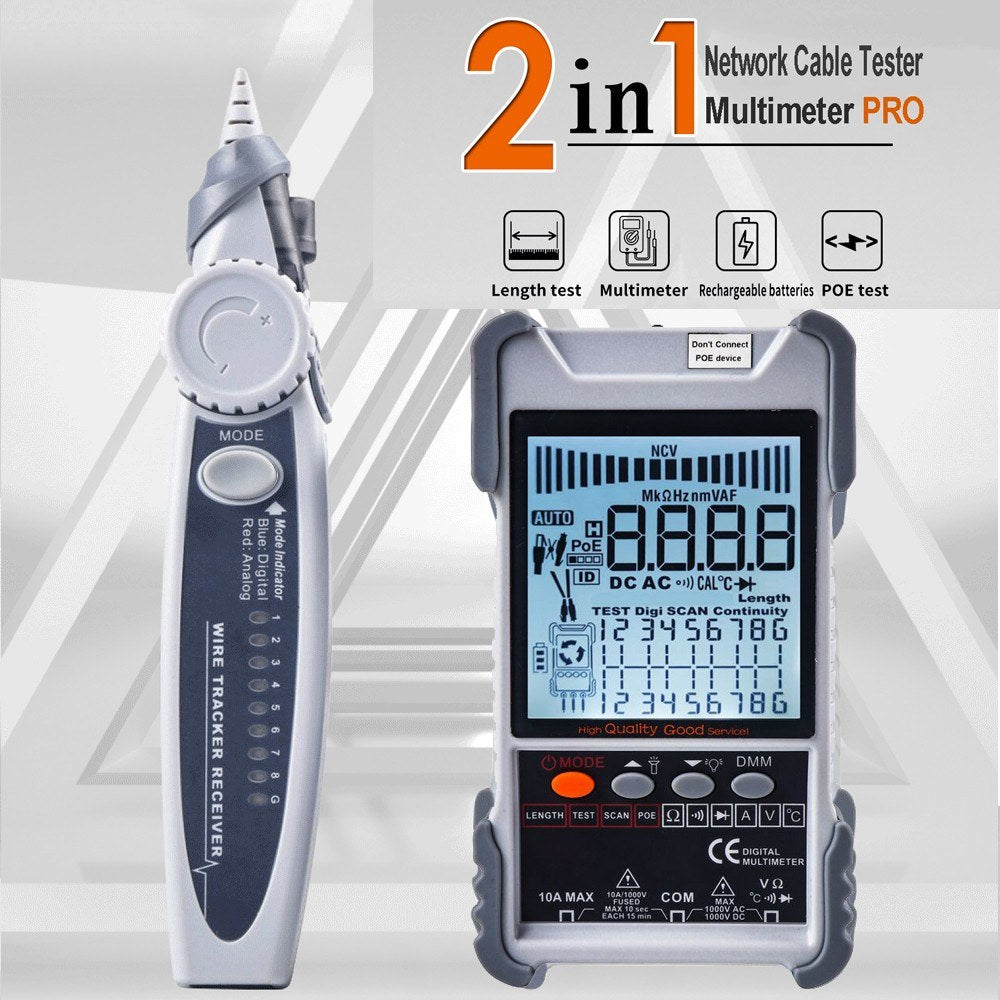

Cable Tracing and Length Measuring Meter

Experience precision and efficiency with our cutting-edge meter, designed to streamline your cable tracing and length measuring tasks. Perfect for laboratories, factories, radio enthusiasts, network installers, and technicians. This versatile tool offers real-time network cable length measurement, short circuit identification, and circuit break detection.

Features:

• Cable Tracing Function: Quickly and efficiently locate the target cable among a multitude of cables. Versatile usage in telephone systems, computer networks, BNC cables, and other metal network cables.
• Cable Length Test: Applicable to various metal cables with at least 2 cores, including network cables, telephone lines, and BNC cables. Measures network cable lengths up to 600 meters.
• POE Test: Verify cable mapping polarity and voltage of POE network switches.
• Multifunctional Cable Tester: Features analogue tracing, cable mapping, PoE voltage measuring, and adjustable digital tracing sensitivity.

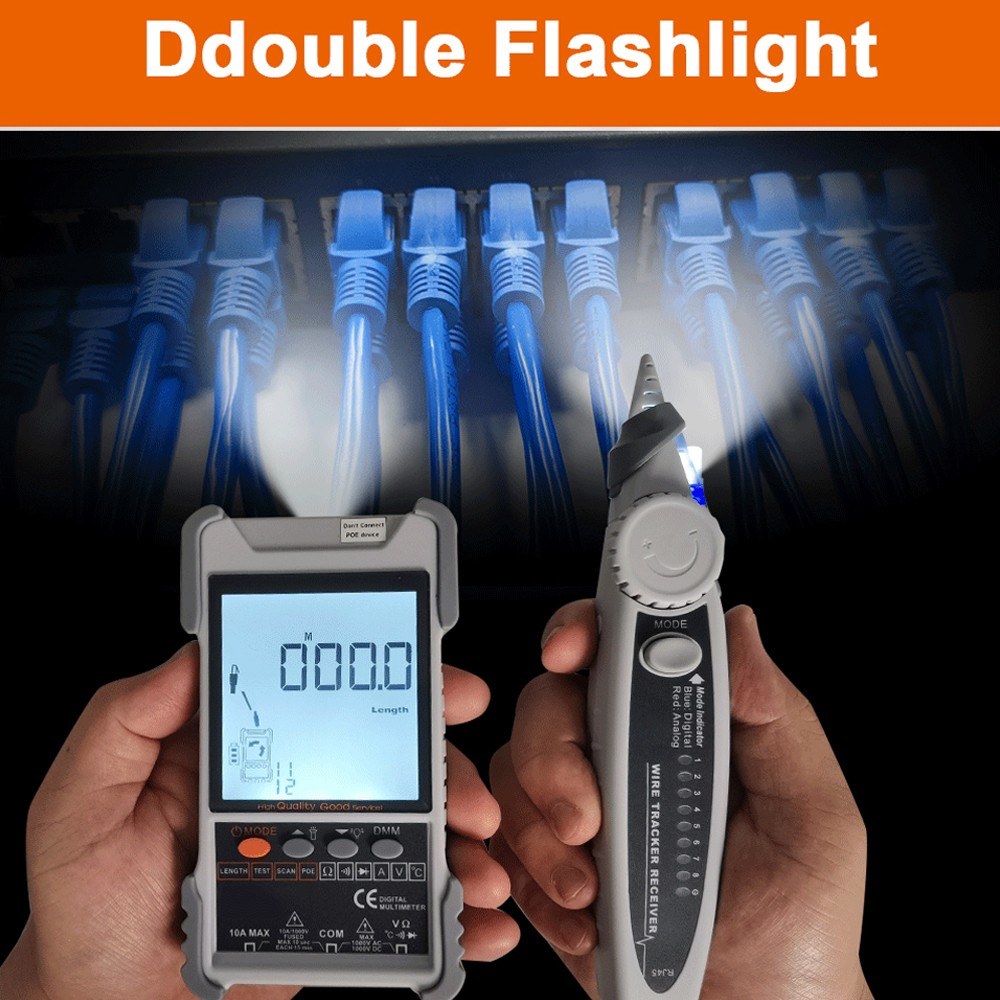

• LCD Display with Flashlight: Enhanced user experience with a large LCD screen and a built-in flashlight for low light environments.

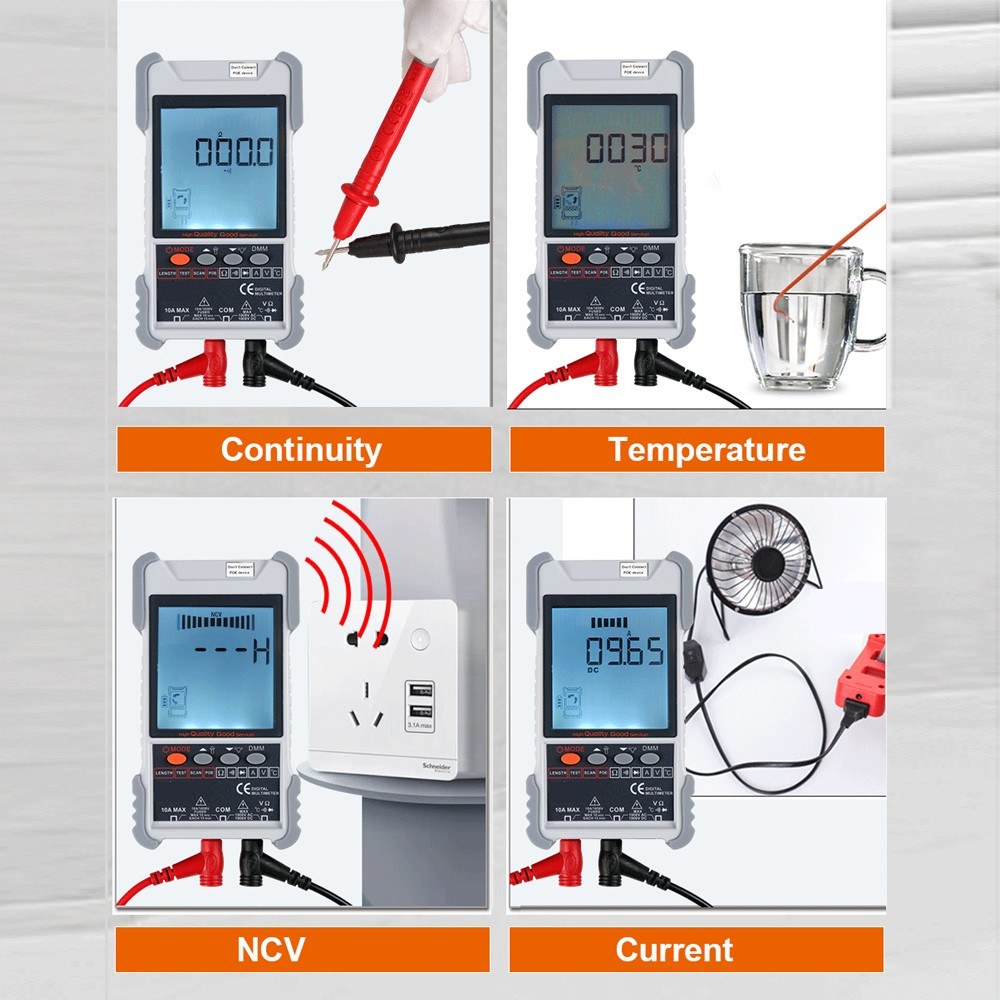

• Multimeter Function: Includes DC and AC voltage and current measurement, resistance, continuity, diode, and temperature measurement.

Specifications:

• Material: ABS

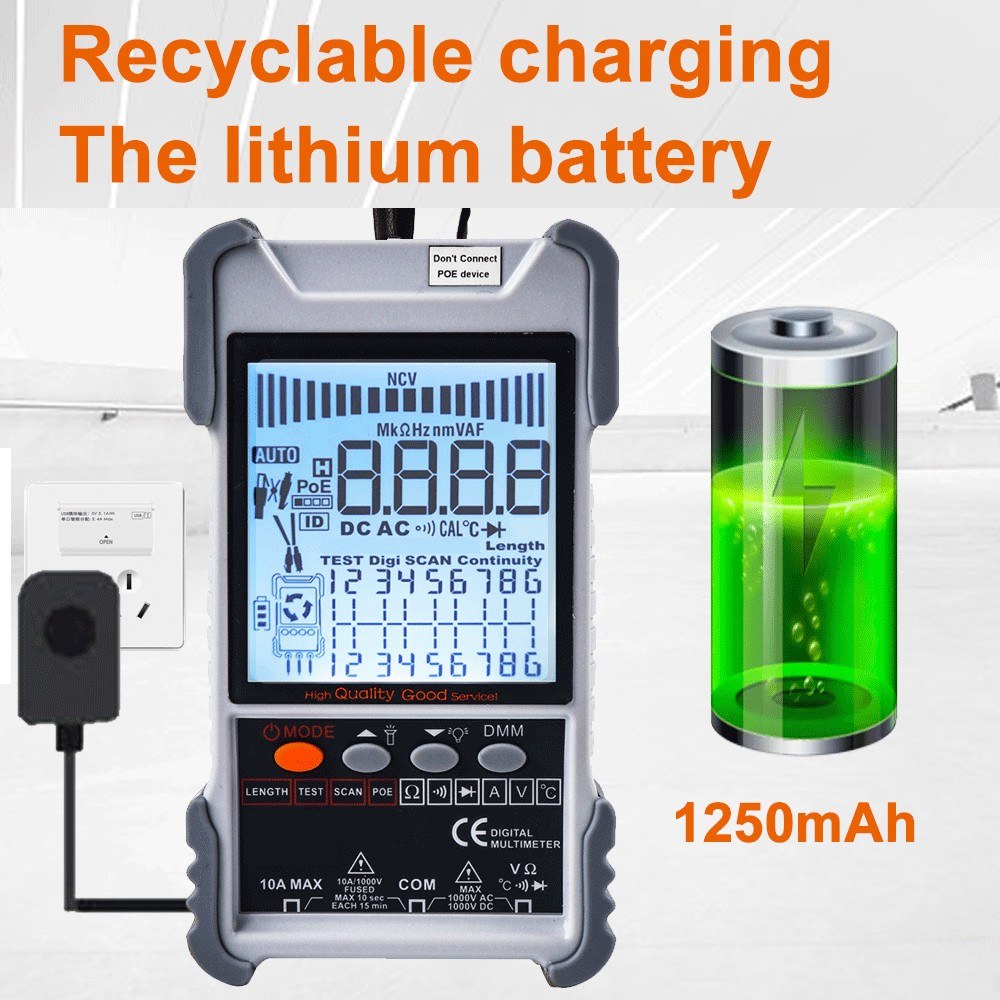

• Host Power: Built-in lithium battery, 1250mAh (included)
• Receiver Power: 1 x 9V battery (not included)

Additional Features:

• Analogue tracing
• Continuity via Multimeter function
• Switch tracing with PoE
• Cable mapping
• Switch indicators flashing
• Noiseless digital tracing
• PoE voltage measuring with voltage/polarity

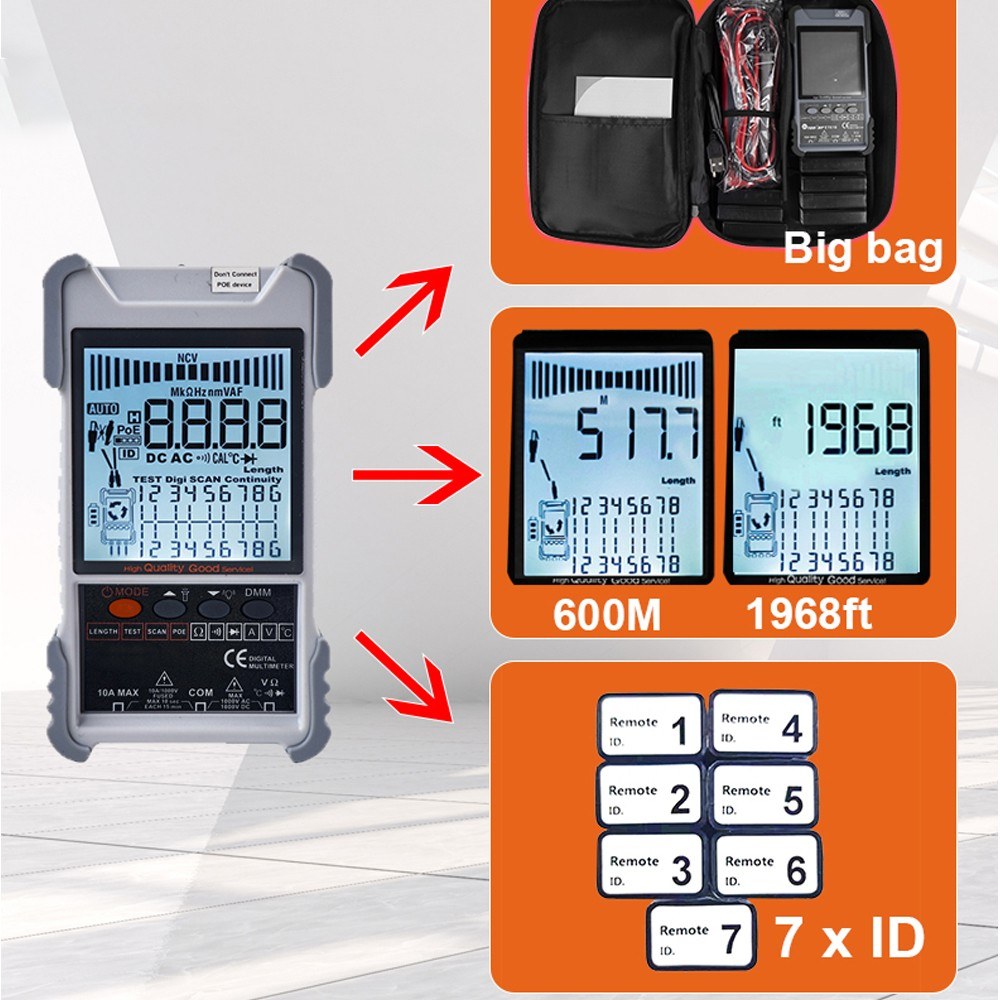

• Remote identity mapping up to 7XID
• Analogue bargraph
• NCV detection
• Network Cable Length Measure: Up to 600 meters

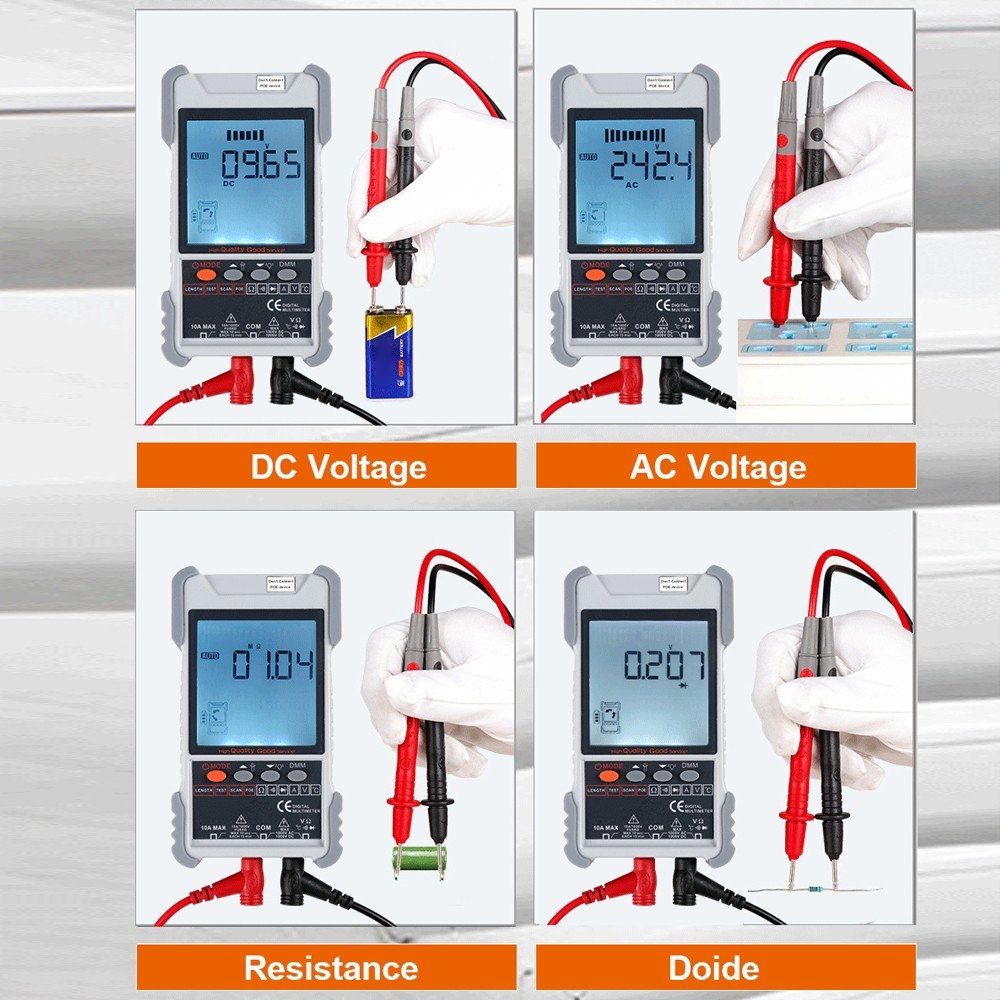

Multimeter Specifications:

• DC Voltage: 400mV - 1000V ±(0.8%+3)
• AC Voltage: 4V - 400V ±(1.5%+5)
• DC Current: 1.0A - 10.0A ±(1.2%+4)
• AC Current: 1.0A - 10.0A ±(2.0%+5)
• Resistance: 200Ω - 20MΩ ±(2%+6)
• Continuity: < 50Ω (buzzer beeps)
• Diode: Available
• Temperature (k type): -20~1000°C ±(2.0%+15)

Package Details:

• Package Size: 255 x 163.8 x 60.7 mm / 10.04 x 6.45 x 2.39 inches
• Package Weight: 770g / 1.70lb

Note:

The ID pairing function requires a remote ID mapping accessory, which must be purchased separately as it's not included in this set.

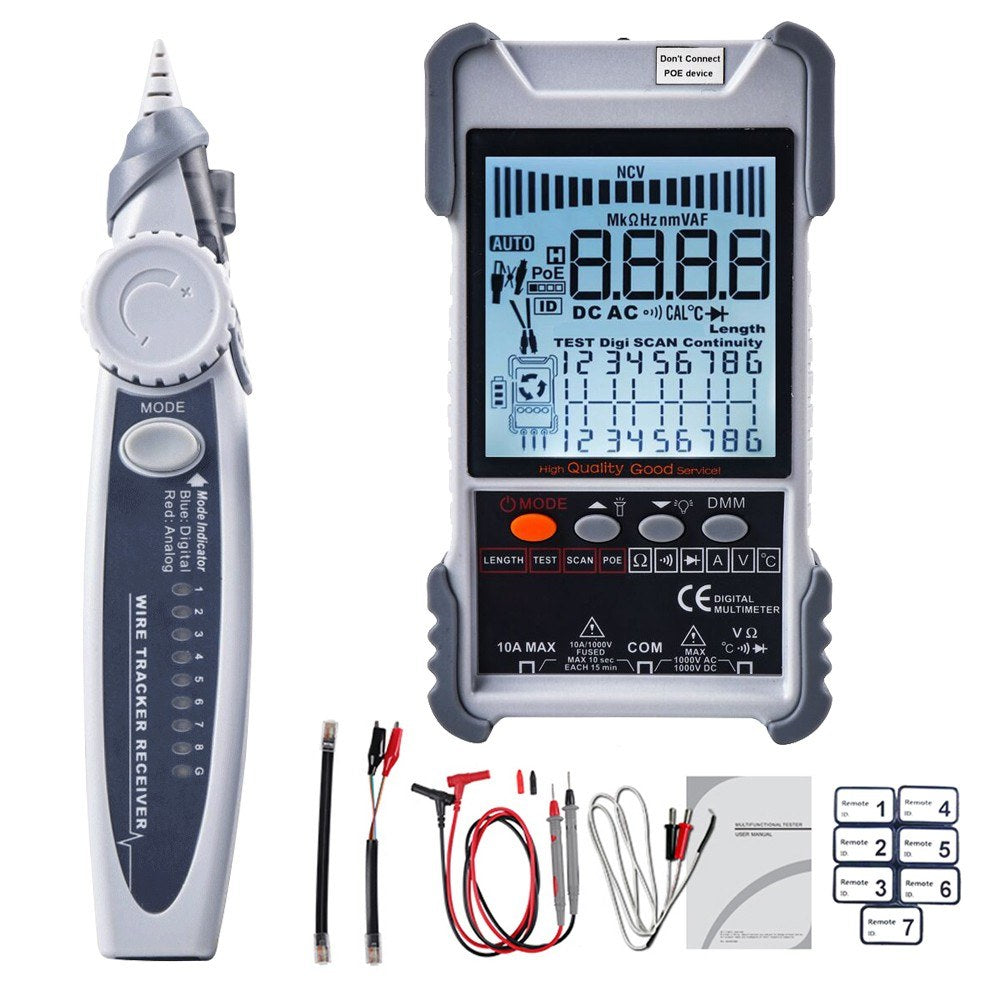

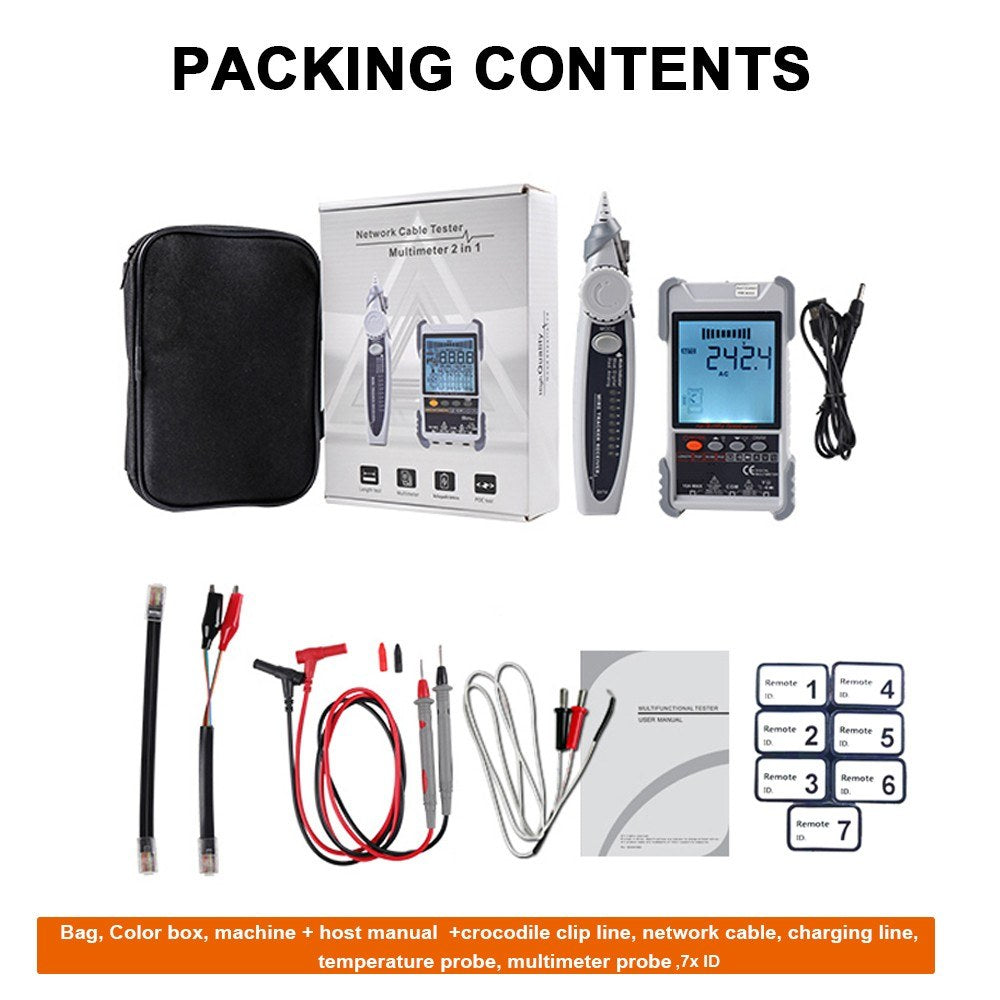

Packing List:

• 1 x Host
• 1 x Receiver
• 1 x User Manual
• 1 x Testing Clip Line
• 1 x Network Cable
• 1 x Recharging Line
• 1 x Temperature Probes
• 1 x Multimeter Probes
• 1 x Storage Bag
