Handheld Digital Anemometer ST6816: Wind Speed Meter with LCD Backlight (0.40-30.00m/s), Maximum/Minimum/Average Value, Storage Bag Included (Batteries Not Included)
Handheld Digital Anemometer ST6816: Wind Speed Meter with LCD Backlight (0.40-30.00m/s), Maximum/Minimum/Average Value, Storage Bag Included (Batteries Not Included)
Estimated Delivery: -
Couldn't load pickup availability
Professional Digital Anemometer
Experience stable performance, safety, and reliability with our top-notch digital anemometer. Perfect for professionals across multiple fields.

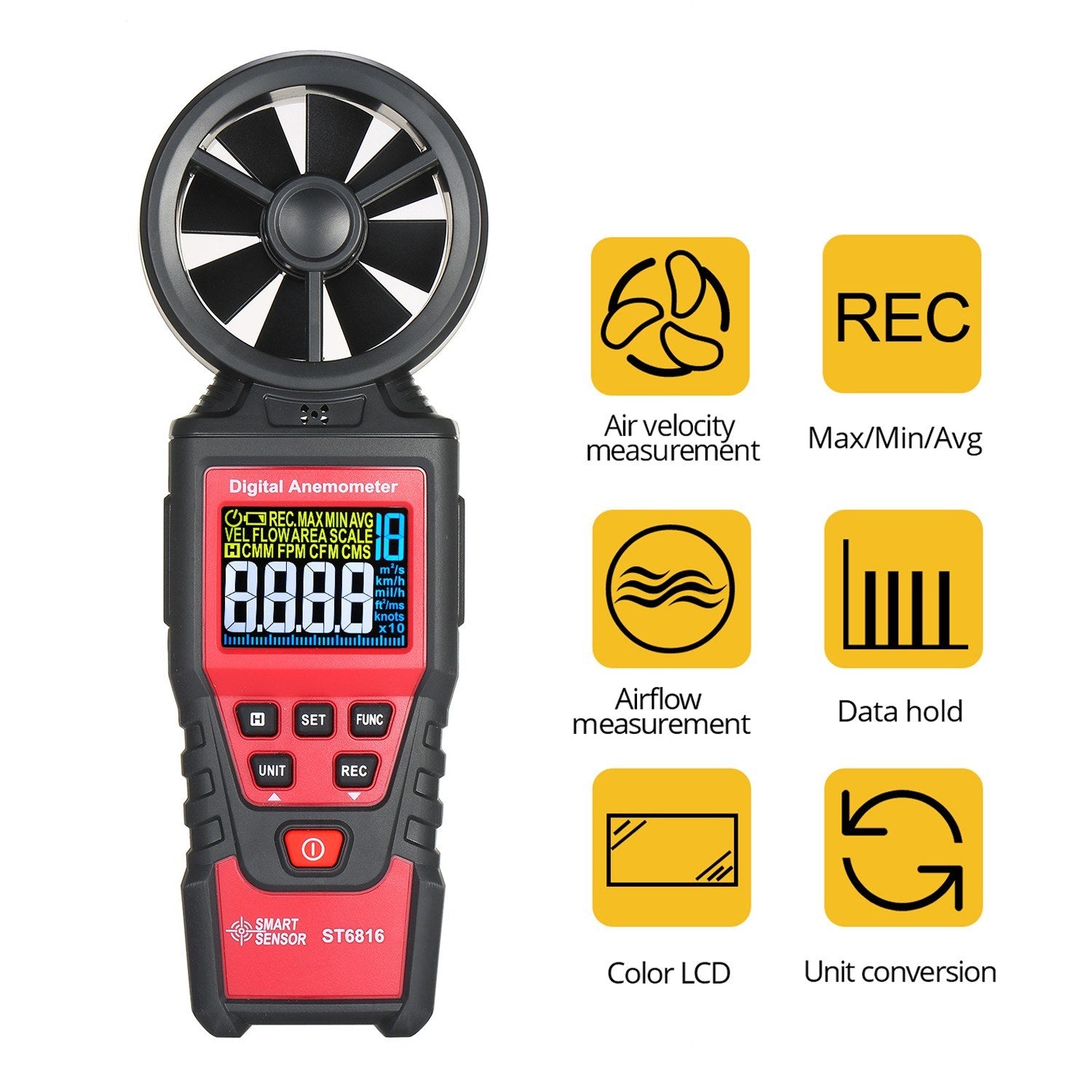

Features:
- Wide Application: Suitable for measuring air velocity and volume in various sectors, including wind energy, meteorology, industry, agriculture, and more.
- Versatile Units of Measure: Easily switch between different measurement units for air velocity (m/s, km/h, mil/h, ft/m, ft/s, knots) and airflow (CMS, CMM, CFM).

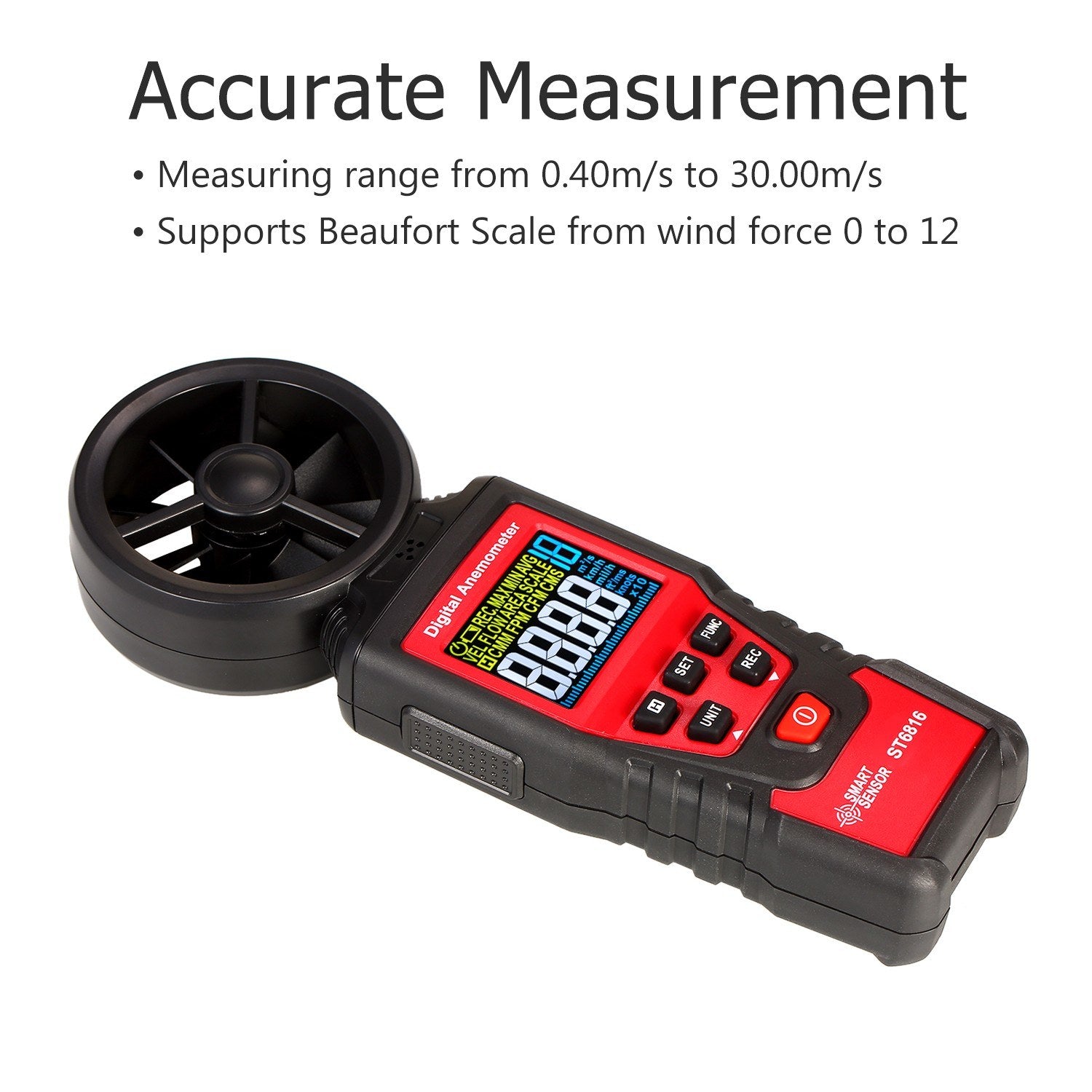

- Accurate Measurement: Measure air velocity ranging from 0.40 m/s to 30.00 m/s with support for the Beaufort scale (wind force 0 to 12).

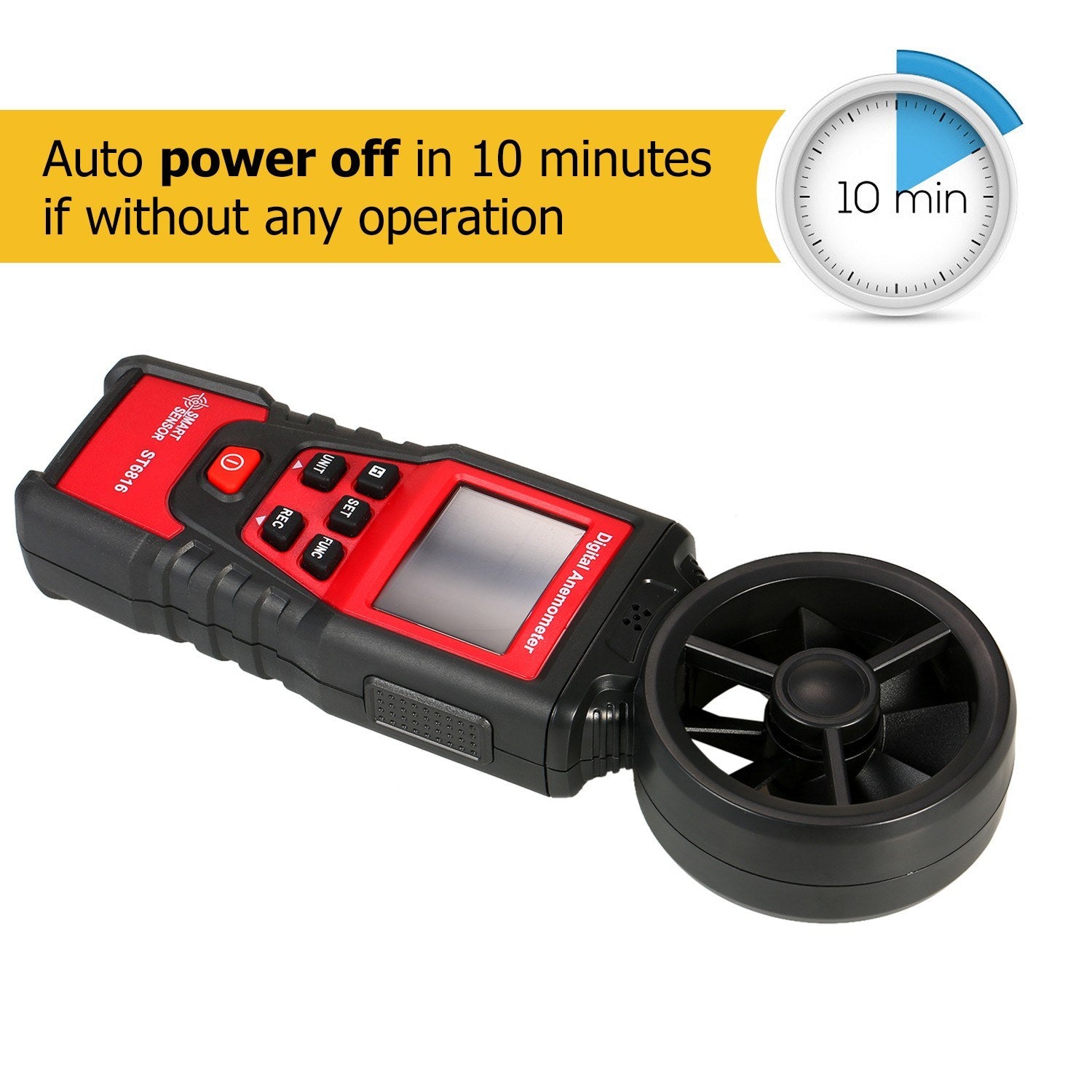

- Practical Functionality: Features a data hold function, automatic shutdown after 10 minutes of inactivity, and modes to display maximum, minimum, or average values.
- User-Friendly Design: Lightweight and compact (7.75 x 2.67 x 1.1 in, 4.79 oz) with a clear LCD backlight for visibility in low-light conditions.
Important Notes:
- Batteries are not included.
- Avoid touching the fan blade forcefully.
- Do not store or use in areas with high temperature or humidity.
- Avoid direct exposure to strong light to prevent measurement errors.
- Handle with care to prevent violent vibrations.
- Remove the battery if storing the device for extended periods.
- Prior input of the cross-sectional area of the air duct is required for airflow measurement.
Technical Parameters:
Display: LCD
Max. Counts: 9999
Air Velocity: 0.40-30.00 m/s
Sampling Rate: Approx. one reading per second
Sensor: Air velocity/flow sensor with angled vane arms
Beaufort Wind Scale: 0-12
Max/Min/Avg: Records minimum, maximum, and average values

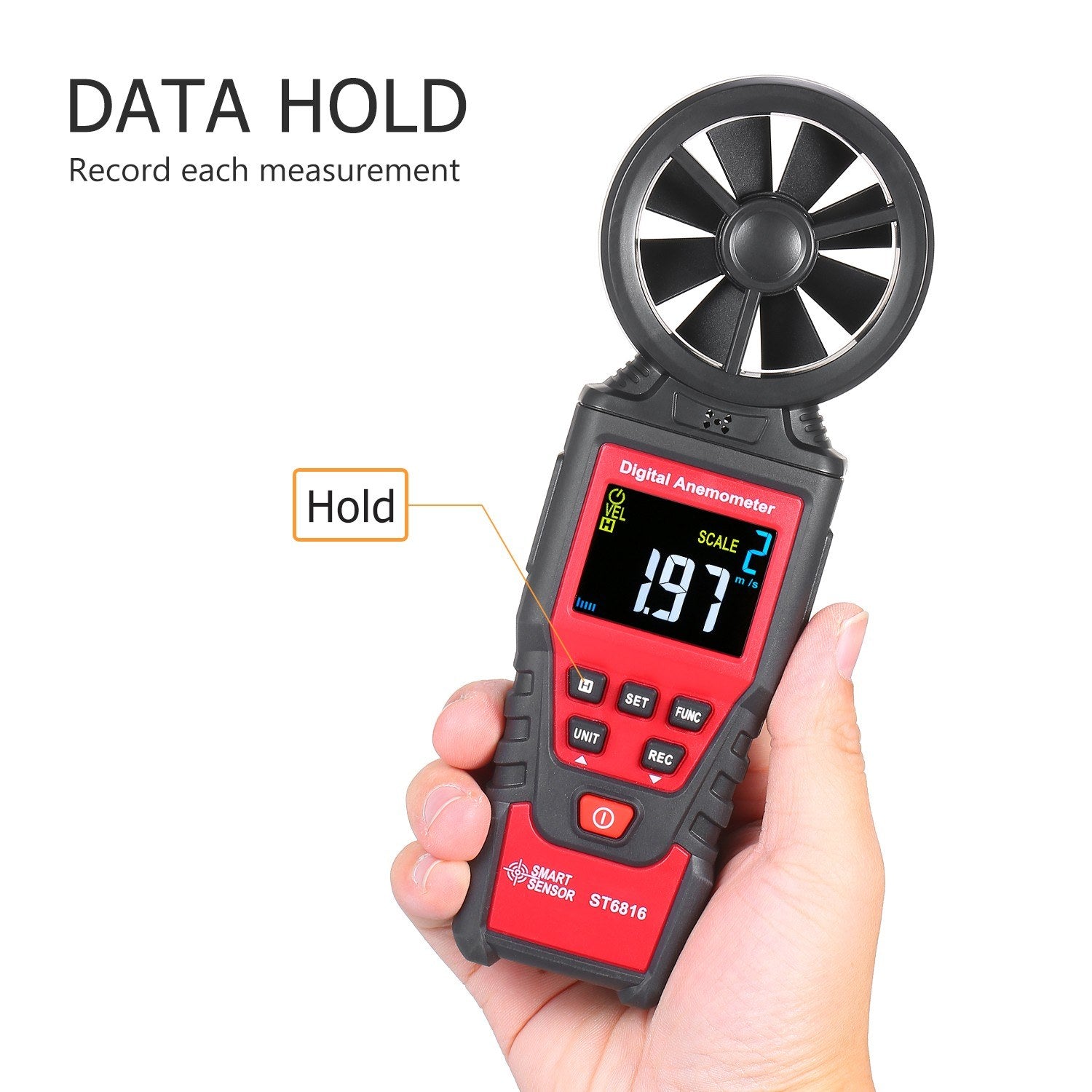

Data Hold: Freezes the reading
Operating Conditions: 0-40°C Temperature, ≤80% RH Humidity, ≤2000 m Altitude
Auto Power Off: 10 minutes
Power Supply: 3 x 1.5V AAA batteries (not included)
Accuracy Specifications:
Air Velocity Measurements
| Unit | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s (meters per second) | 0.40-30.00 | 0.01 | ±(2.0% + 0.5 m/s) |
| km/h (kilometers per hour) | 1.40-108.0 | 0.01-0.1 | ±(2.0% + 1.8 km/h) |
| ft/s (feet per second) | 1.30-98.50 | 0.01 | ±(2.0% + 1.6 ft/s) |
| ft/m (feet per minute) | 78.00-5900 | 0.01-1 | ±(2.0% + 10 ft/m) |
| knots (nautical miles per hour) | 0.80-58.30 | 0.01 | ±(2.0% + 1.0 knots) |
| mile/h (miles per hour) | 0.90-67.10 | 0.01 | ±(2.0% + 1.1 mile/h) |
Air Flow Measurements
| Unit | Range | Resolution | Area |
|---|---|---|---|
| CFM (cubic feet per minute) | 0-9999 | 0.01 to 1 | 0-9.999 |
| CMM (cubic meter per minute) | 0-9999 | 0.01 to 1 | 0-9.999 |
| CMS (cubic meters per second) | 0-9999 | 0.01 to 1 | 0-9.999 |
Accuracy is valid within one year after calibration. Reference conditions: temperature 18°C to 28°C, relative humidity ≤80%.
Product Specifications:
- Brand: SMART SENSOR
- Model: ST6816
- Color: Red
- Material: ABS
- Item Size: 19.7 x 6.8 x 2.8 cm / 7.75 x 2.67 x 1.1 in
- Package Size: 24.3 x 9 x 5 cm / 9.56 x 3.54 x 1.96 in
- Item Weight: 136 g / 4.79 oz
- Package Weight: 298 g / 10.51 oz

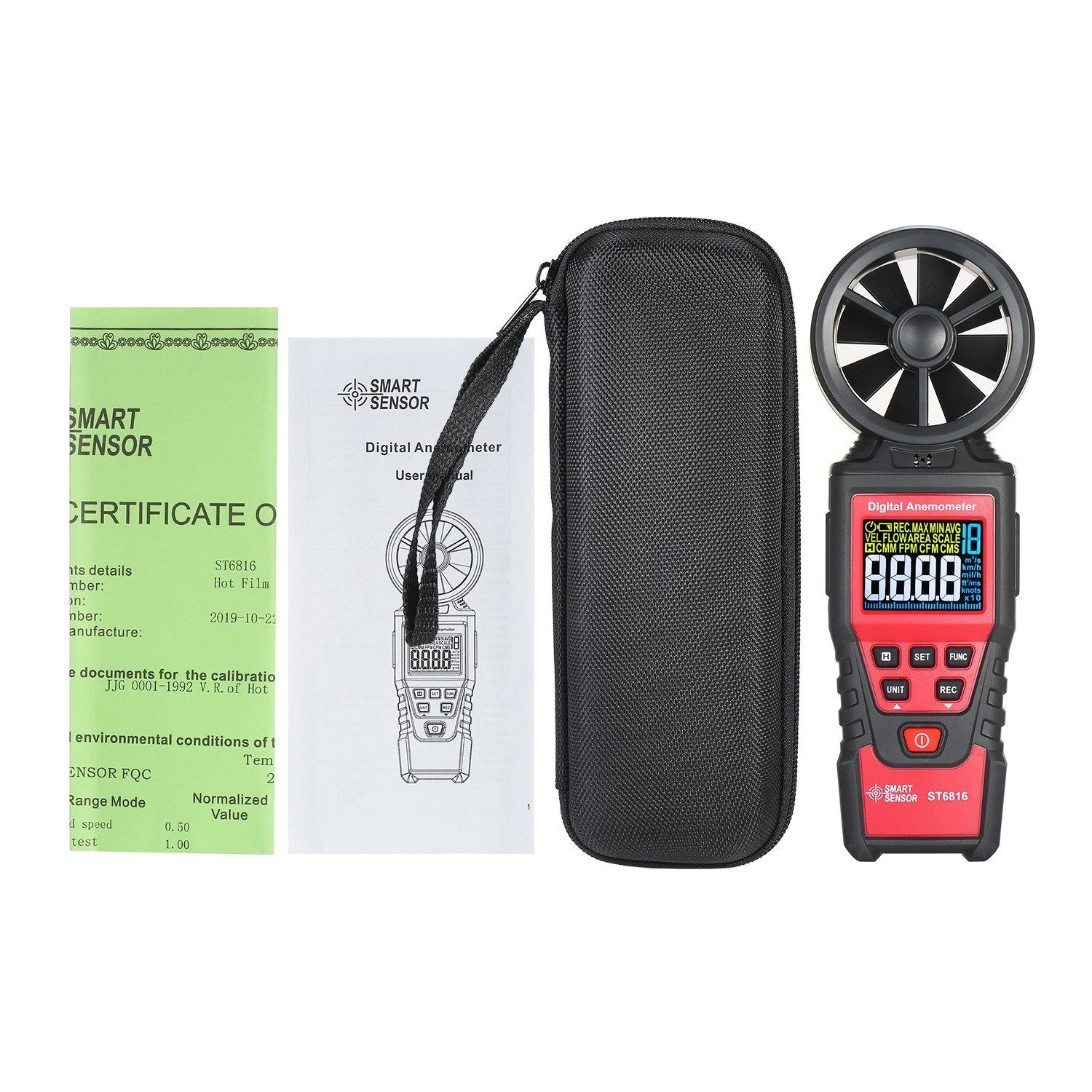

Packing List:
- 1 x Hot Film Anemometer
- 1 x Storage Bag
- 1 x Certificate of Calibration
- 1 x User Manual (English)
