6000W Solar Power Inverter Kit: DC 12V to AC 110V/220V, Intelligent Screen, 18V 18W Solar Panel, 30A 12V/24V Solar Converter

Product Description

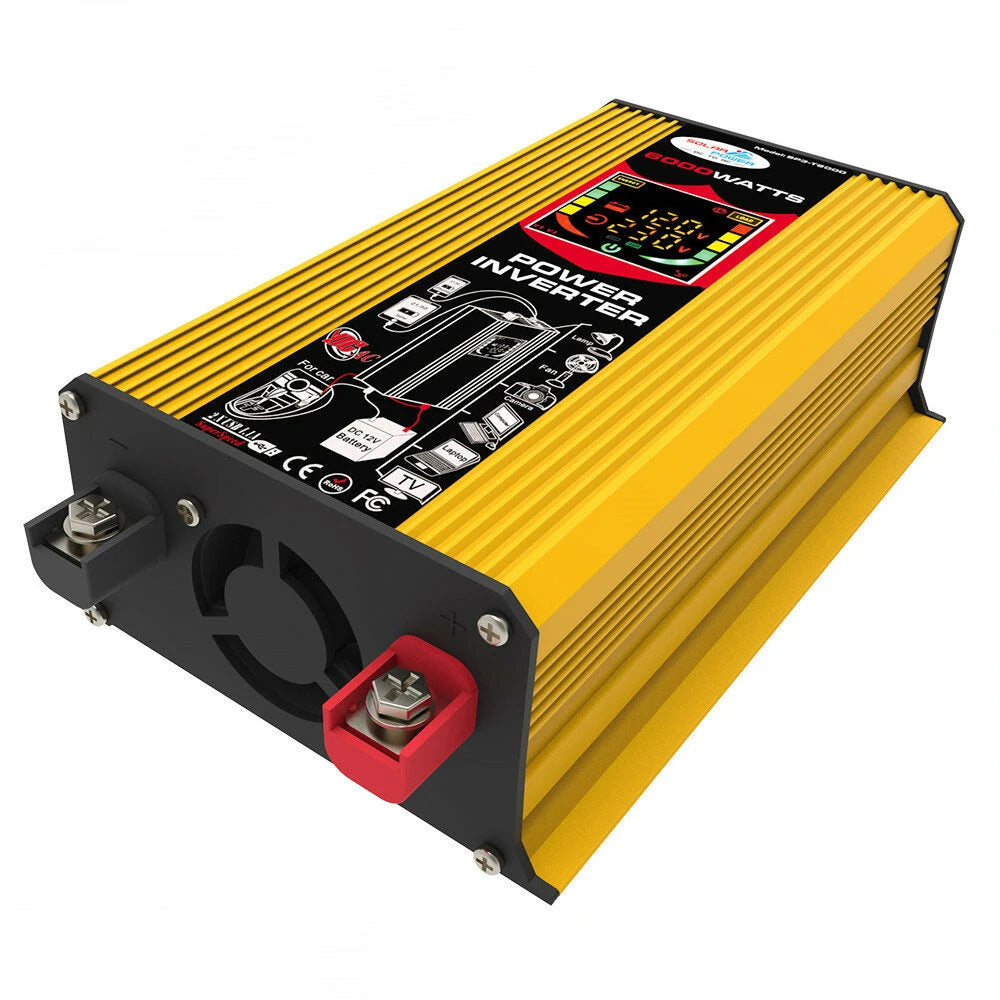

Power Inverter Specifications

• Name: Power Inverter
• Color: Yellow
• Output Voltage: AC 110V / 220V
• Output Frequency: 50Hz for 220V model / 60Hz for 110V model
• Peak Power: 6000W
• Rated Power: 500W
• Output Waveform: Modified sine wave
• Size: 20 x 11.2 x 5.6 cm
• Weight: 0.8 kg

Power Inverter Features

• 6000W Power Inverter: Includes 2 USB ports and an AC outlet, providing 500W continuous power and 6000W peak power. Ensure total rated power of connected devices is ≤ 500W.

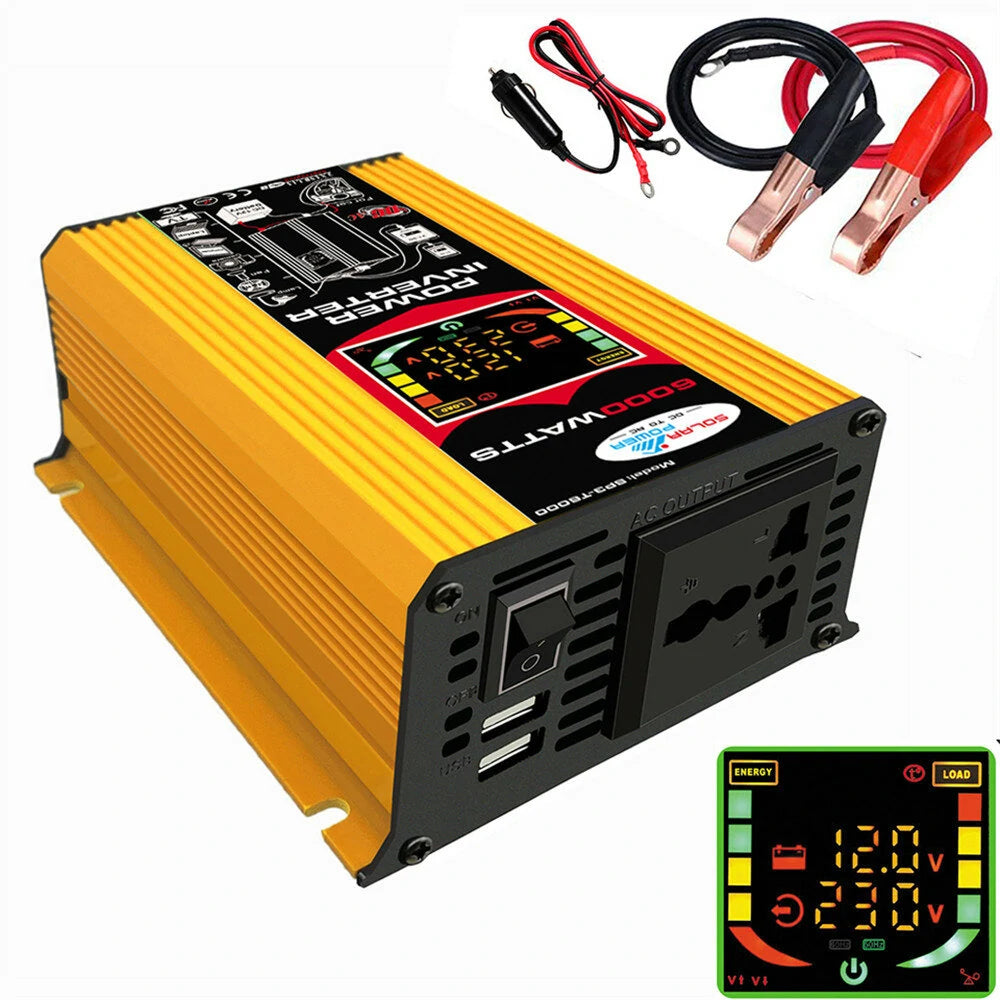

• MCU LCD Display: Displays input voltage, output voltage, output frequency, battery power, load, and more in real-time.
• High-Temperature Warning: Indicator in LCD lights up when temperature exceeds 45°C, plus an audible alarm and shutdown.
• Battery Power Indicator: LCD display shows battery level with green (full), yellow (half), and red (low) indicators.
• Voltage Warnings: (1) High voltage warning when input voltage exceeds 15V, with audible alarm and shutdown. (2) Low voltage warning when input voltage is 10.5V or less, plus alarm, then shutdown.
• Operation Indicators: Green means normal operation; red indicates faults.
• Overload & Short Circuit: Alerts with red indicator and audible alarm for both conditions.

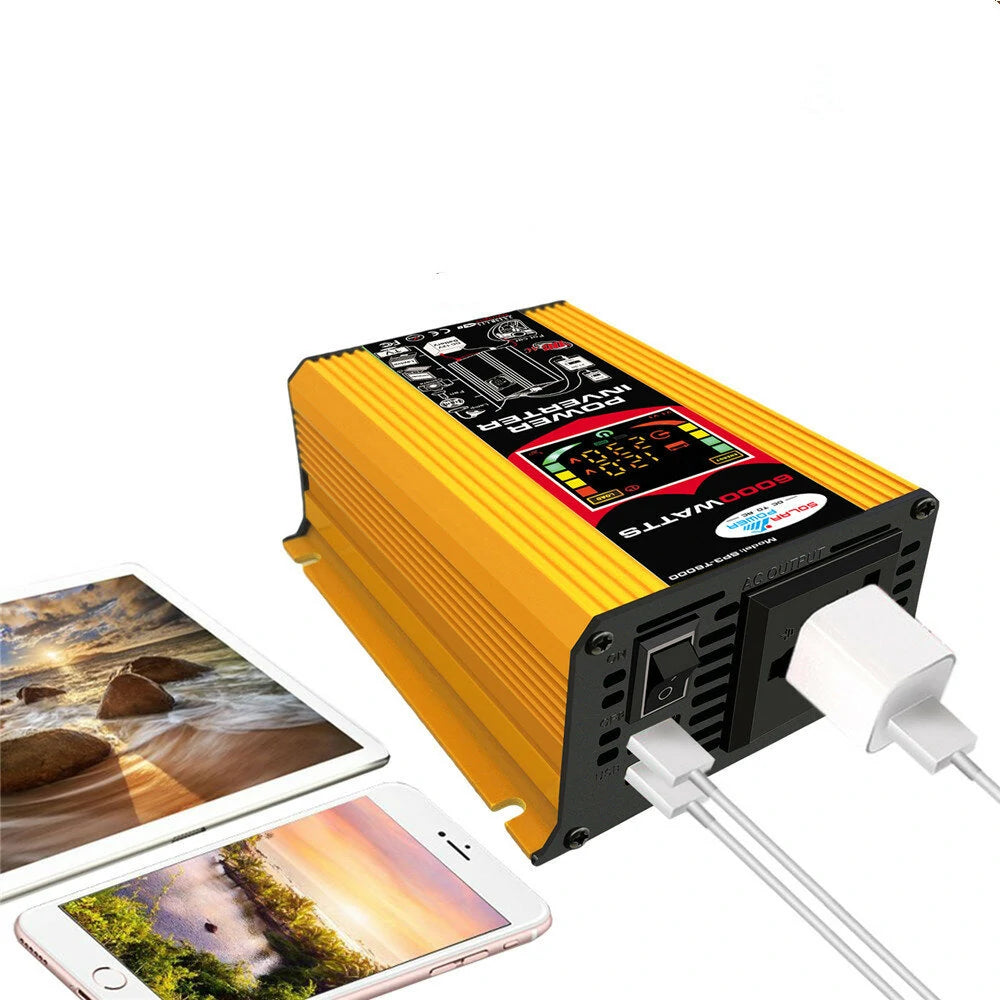

• Fast Charging USB Ports: Dual USB ports for fast charging of devices, alongside versatile AC outlet.
• Multi-Protection: Features include built-in fuses, safe design, and a cooling fan for protection against various electrical issues.
• Compact Design: Lightweight and portable, suitable for use in vehicles, ideal for vacations, camping, and work trips.

Solar Charge Controller Specifications

• Name: Solar Charge Controller
• Color: Blue+Black
• Material: ABS
• Voltage: DC 12V/24V
• Rated Charge Current: 10A / 20A / 30A
• Floating Charge Voltage: 13.7V (adjustable)
• End-off Voltage: 10.7V (adjustable)
• Discharge Recover Voltage: 12.6V (adjustable)
• USB Output: 5V/3A
• Operating Temperature: -35℃ to 60℃
• Size: 150 x 78 x 35 mm
• Weight: 4 kg

Solar Charge Controller Features

• Dual USB Port: Supplies power to mobile devices with a 5V/3A max output.
• Solar Battery Compatibility: For lead-acid batteries only; not suitable for nickel hydride, lithium, or others.
• Multiple Protection: Short-circuit, open-circuit, overcurrent, and overload protection for safe usage.
• Versatile Use: Suitable for residential, industrial, and commercial applications.
• Easy Installation: Intuitive status indicators and adjustable parameters for user-friendly operation.
• LCD Display: Clearly readable data on a large display.
• Functionality: Helps prolong battery life and maintain load efficiency.
• Application: Designed for small solar energy systems.

Solar Panel Specifications

• Name: Solar Panel
• Color: White
• Material: Aluminum Substrate
• Voltage: 18V
• Power: 18W
• DC Output: 12V/1.5A
• USB Output: 5V/1.7A
• Size: 420 x 280 x 2.5 mm
• Weight: 0.45 kg

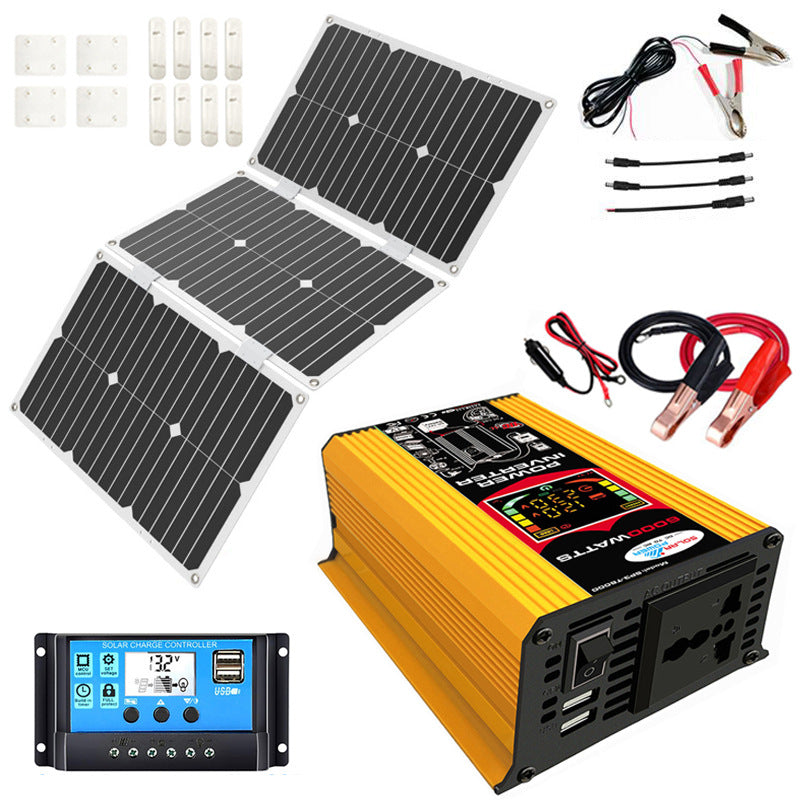

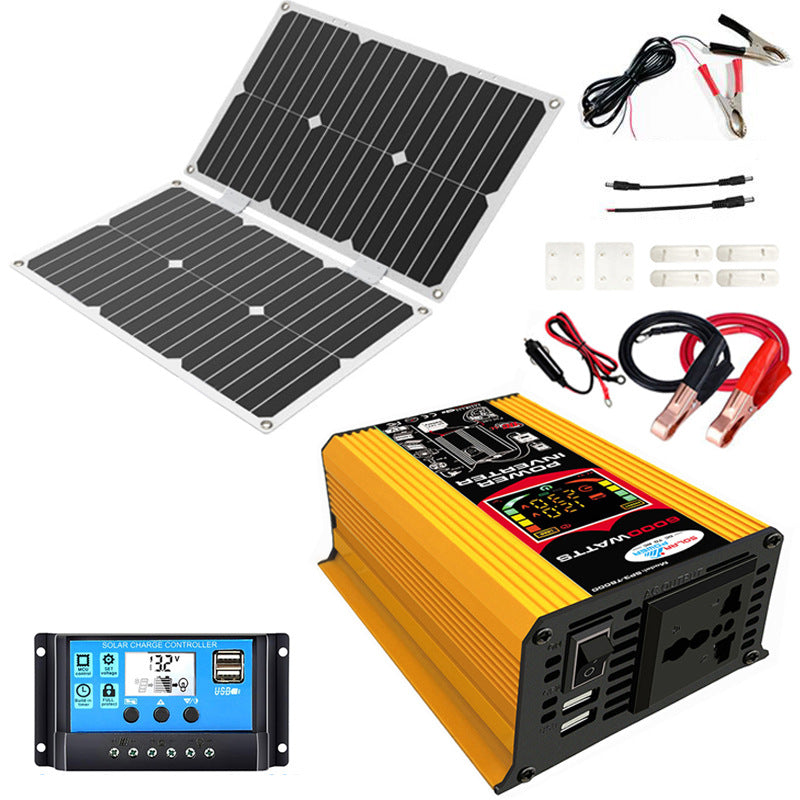

Package Includes

• 1x Power Inverter (12V/24V Optional)
• 1x Solar Charge Controller
• 1x Solar Panel
• 2x Battery Clip
• 1x Lighter Plug
• 1x English Manual
• 1x Package Box
