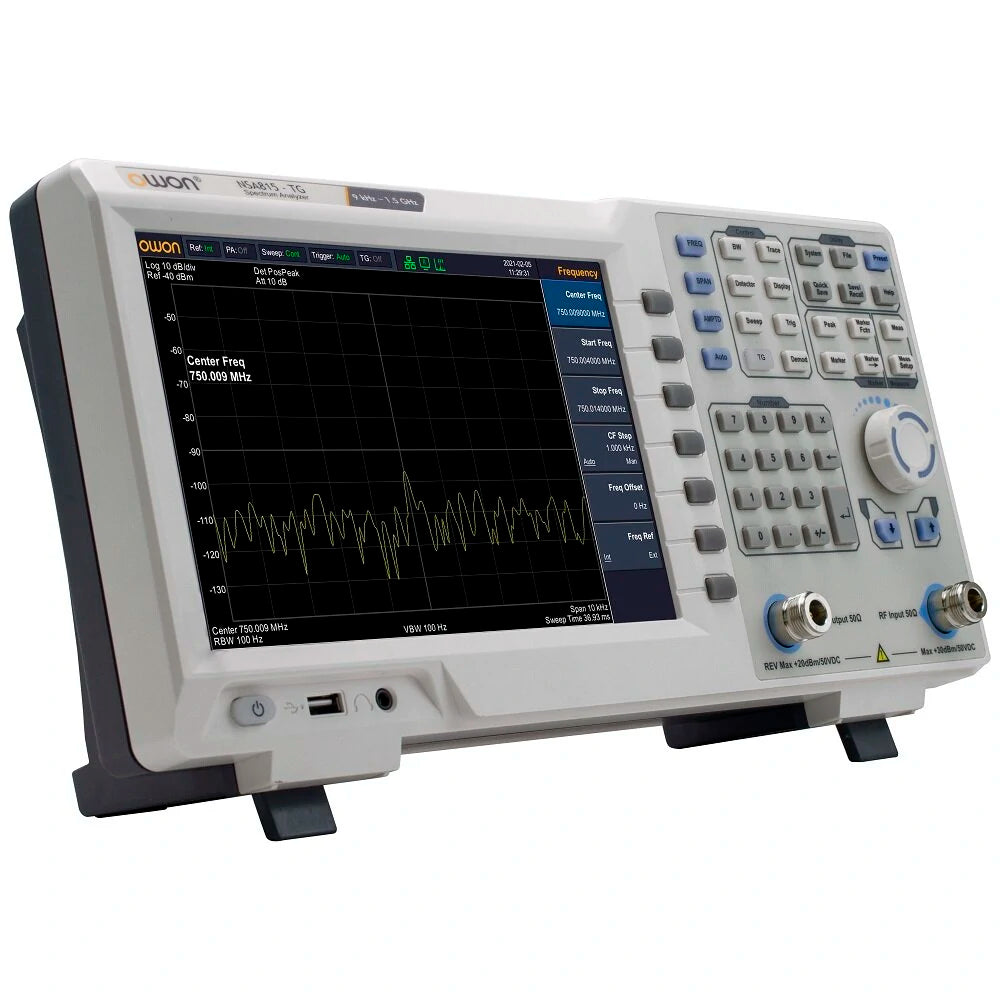

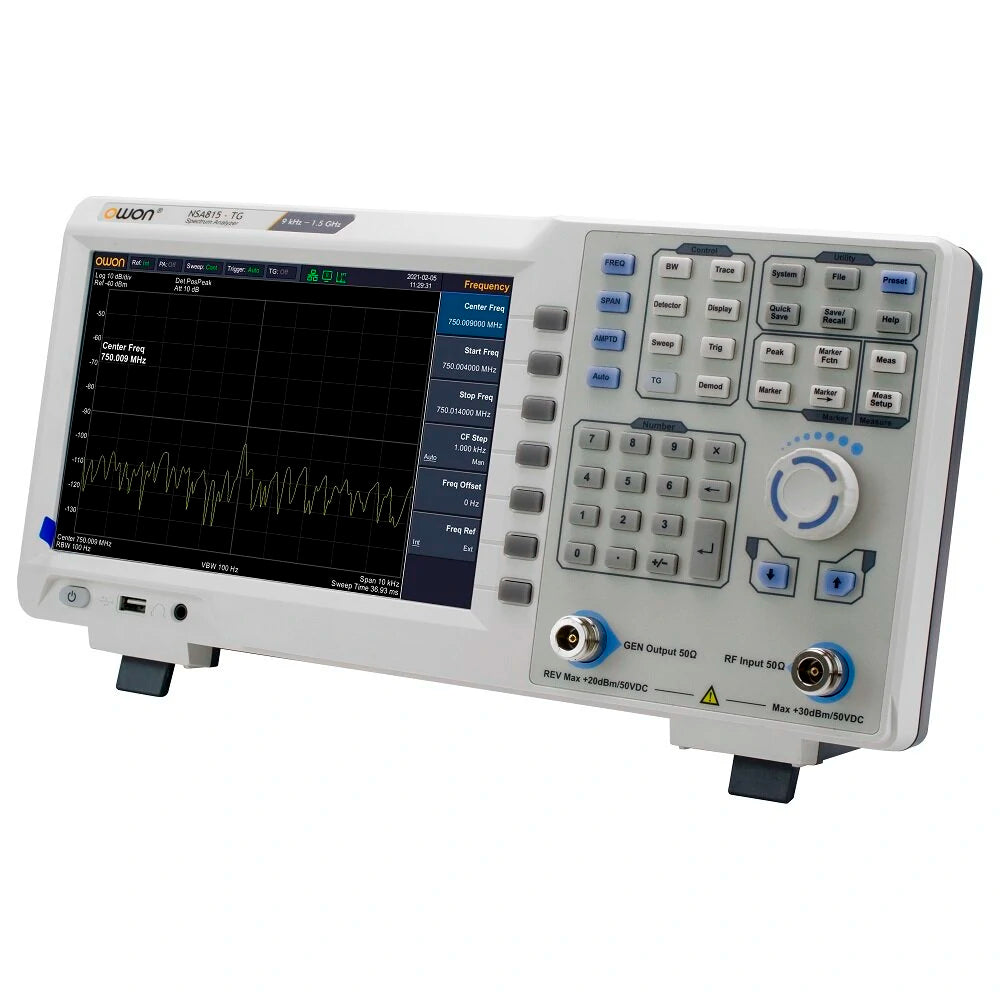

OWON XSA815-TG 1.5GHz Spectrum Analyzer with 9-Inch TFT LCD & Tracking Generator - USB, LAN, HDMI

$759.99 USD

~~$0.00 USD~~ $759.99 USD

Sale Sold out

Shipping calculated at checkout.

Plug EU Plug US Plug

Estimated Delivery: -

Quantity

Spectrum Analyzer XSA815-TG

Experience advanced signal analysis with our XSA815-TG Spectrum Analyzer, designed for precision and versatility. Ideal for a wide range of testing environments, it offers robust features to enhance your analytical capabilities.

Key Features

Frequency Range: 9kHz - 1.5GHz
Displayed Average Noise Level (DANL): -160 dBm
Phase Noise: -80 dBc/Hz @ 1GHz and offset at 10 kHz
Total Amplitude Accuracy
Resolution Bandwidth (RBW): 1 Hz minimum
EMI Pre-Compliance Test Kit: Optional EMC test software
Tracking Generator: Standard hardware, remotely upgradable
Waterfall plot graphic, modulation signal quality analysis, audio demodulation, and multiple extended test functions
Standard Pass/Fail on-site test and alert function
All-digital intermediate frequency technology
Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
9-inch LCD, high resolution 1280 x 800 pixels

Specifications

Model No.	XSA805(-TG), XSA810(-TG), XSA815(-TG)
Frequency Range	9kHz-500MHz (XSA805), 9kHz-1GHz (XSA810), 9kHz-1.5GHz (XSA815)
Frequency Resolution	1Hz
Frequency Span Range	0 Hz, 100 Hz to the max. frequency range
Resolution Bandwidth (-3 dB)	1 Hz to 1 MHz @ 1 - 10 step, 1 MHz, 3 MHz
Video Bandwidth (-3 dB)	1 Hz to 1 MHz
Phase Noise	20 ℃ to 30 ℃, c = 1 GHz
Level Units	dBm, dBuW, dBpW, dBmV, dBuV, W, V
Trace Detectors	Positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak
Trace Functions	Clear write, max hold, min hold, view, blank, average, trace math
VSWR	300 kHz to 1.5 GHz when input > 10 dB, nominal when input < 10 dB
Tracking Generator Frequency Range	100kHz to 1.5GHz
Power Level Range	-40dBm to 0 dBm
Power Level Resolution	1dB
Display	9" 1280x800 pixels TFT LCD

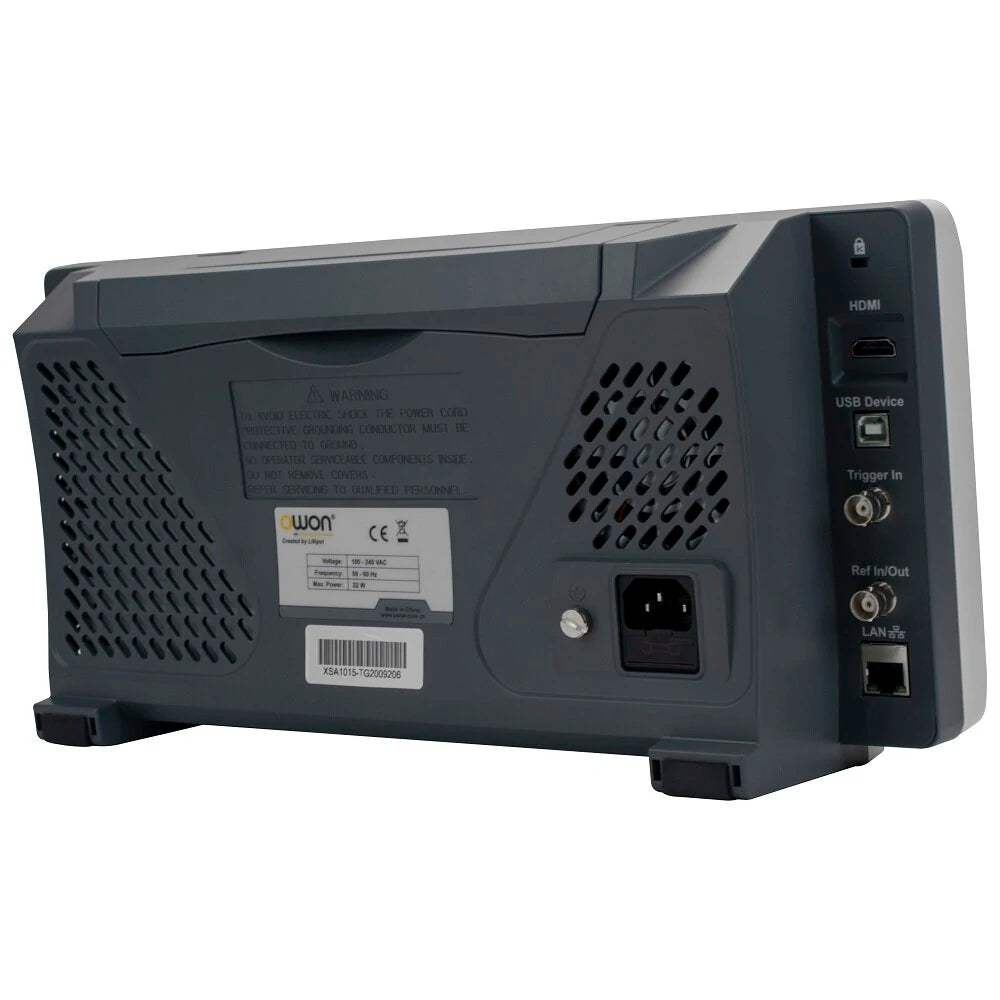

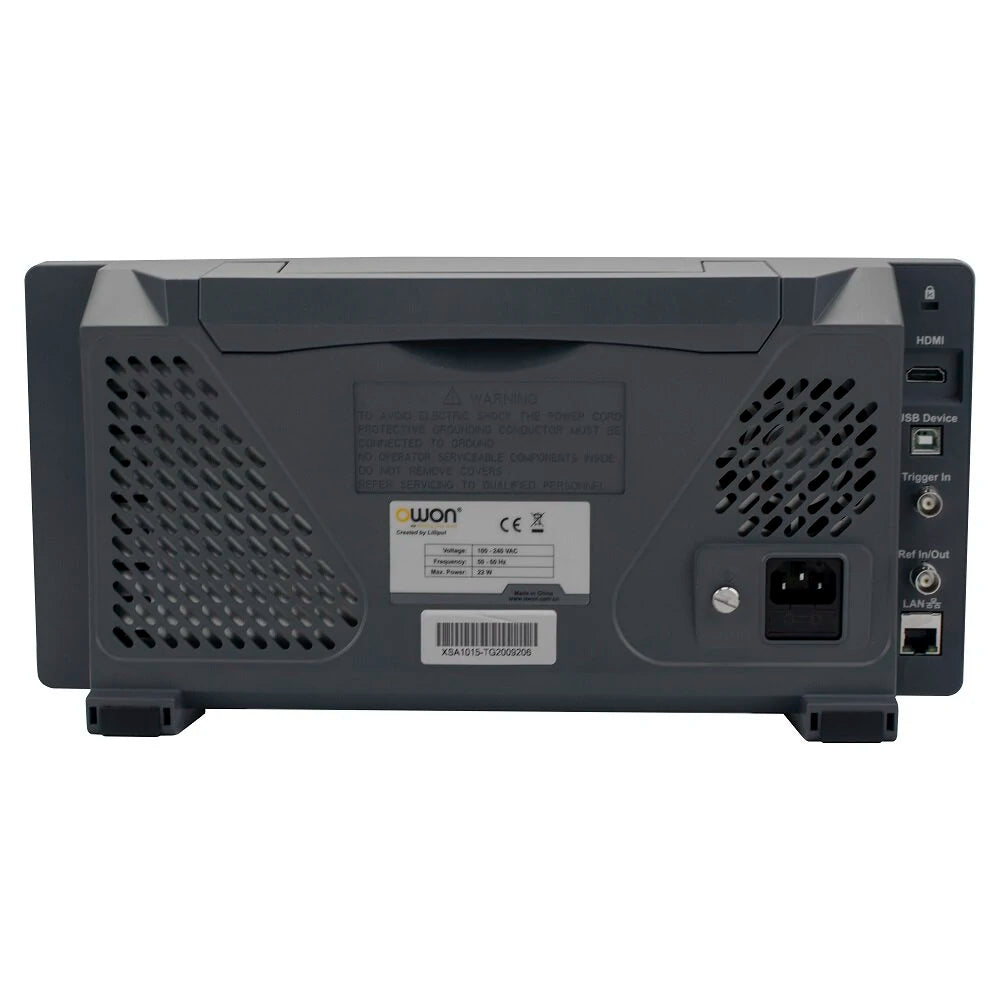

Communication Interfaces	USB host, USB device, LAN, earphone port, HDMI
