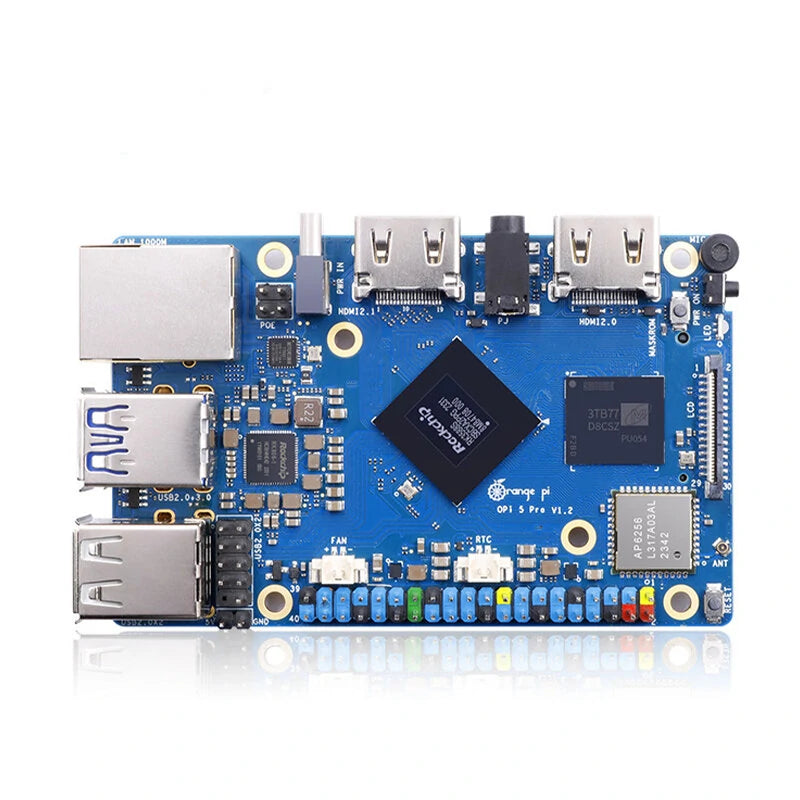

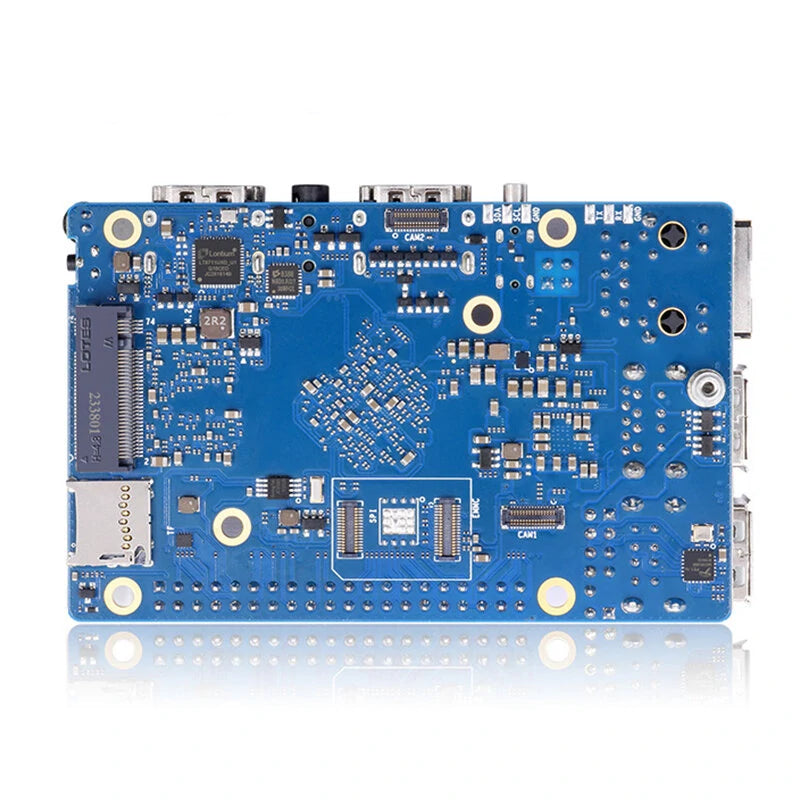

16GB Orange Pi 5 Pro Single Board Computer, RK3588S LPDDR5, WiFi 5.0, BT 5.0, M.2 SSD Support

Product Specifications

• Master Chip: Rockchip RK3588S (8nm LP process)
• CPU:
  • 8-core 64-bit processor
  • big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55
  • Big core cluster: 2.4GHz, Little core cluster: 1.8GHz
• GPU:
  • Arm Mali-G610 with built-in 3D GPU
  • Supports OpenGL ES1.1/2.0/3.2, OpenCL2.2, Vulkan 1.2
• NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, up to 6TOPS computing power
• PMU: RK806-1
• RAM: LPDDR5 496PIN: 16GB
• Memory:
  • eMMC socket (optional)
  • SPI Flash (default empty)
  • MicroSD (TF) slot
  • M.2 M-KEY slot: NVMe SSD or SATA SSD
  • Note: Either eMMC socket or on-board SPI Flash is preferred.
• USB Ports:
  • USB3.1 Gen1 x1; USB2.0 x1
  • USB HUB: USB2.0 x2 (Type A)
  • USB2.0 x2 via pins expansion interface
• Video Output:
  • HDMI2.1 up to 8K @60Hz
  • HDMI2.0, up to 4K @60Hz
  • MIPI DSI 4 Lane, up to 4K @60Hz
• Camera: 2 x MIPI CSI 4 Lane
• Audio:
  • CODEC: ES8388
  • 3.5mm headphone jack, audio input/output
  • Onboard MIC
  • HDMI 2.1 eARC
• Ethernet: 10/100/1000Mbps with PoE+ support (PoE HAT required)
• Wi-Fi + Bluetooth: Onboard Wi-Fi5 + BT 5.0/BLE module: AP6256
• M.2 Slot: M.2 M-Key socket supports NVMe SSD or SATA SSD
• Expansion Port:
  • Dual-row pin: 2.54mm 40Pin
  • Supports DC 5V and 3.3V power outputs
  • Configurable interfaces: UART, PWM, I2C, SPI, CAN, GPIO, etc.
• Buttons: 1 x MaskROM, 1 x RESET, 1 x POWER
• Power Source: Supports Type-C power supply, 5V @ 5A
• LED: RGB LED tri-color indicator
• Fan: 5V 2PIN 1.25mm socket
• RTC: 3V 2PIN 1.25mm socket
• Debugging: Debug serial port UART included in 40PIN expansion port
• Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu, Debian, Android12

Key Features

• Equipped with an 8-core 64-bit processor for powerful performance.
• Comes with 16GB LPDDR5 RAM for smooth, efficient operation.
• Integrated Wi-Fi 5 and Bluetooth 5.0 with BLE support for seamless wireless connectivity.
• Features an M.2 M-KEY slot for NVMe SSD or SATA SSD, ensuring enhanced storage options.
• Offers an extensive range of video outputs: HDMI2.1 up to 8K @60Hz and HDMI2.0 up to 4K @60Hz.

Package Includes

• 1 x Module Board
