JK-B2A8S20P Smart BMS 4S-8S 12V/24V Battery with 2A Active Balancing & Heat Function

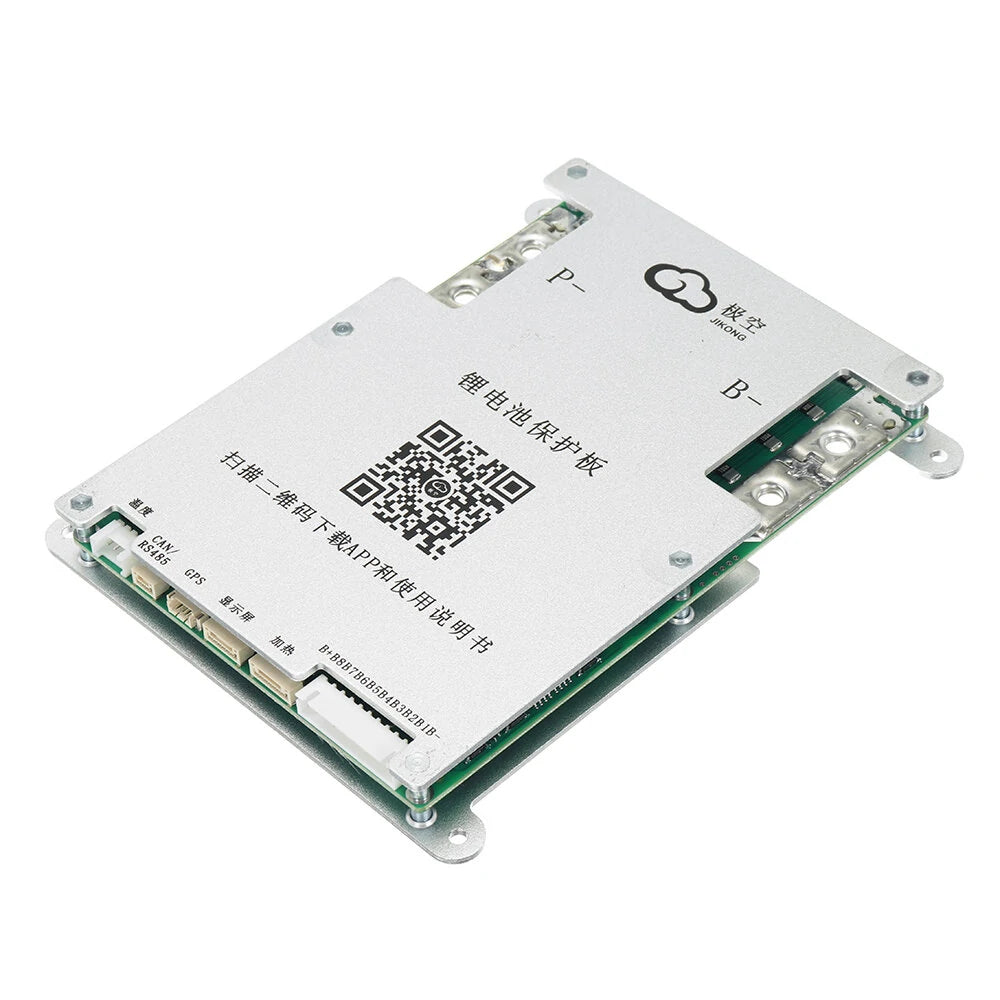

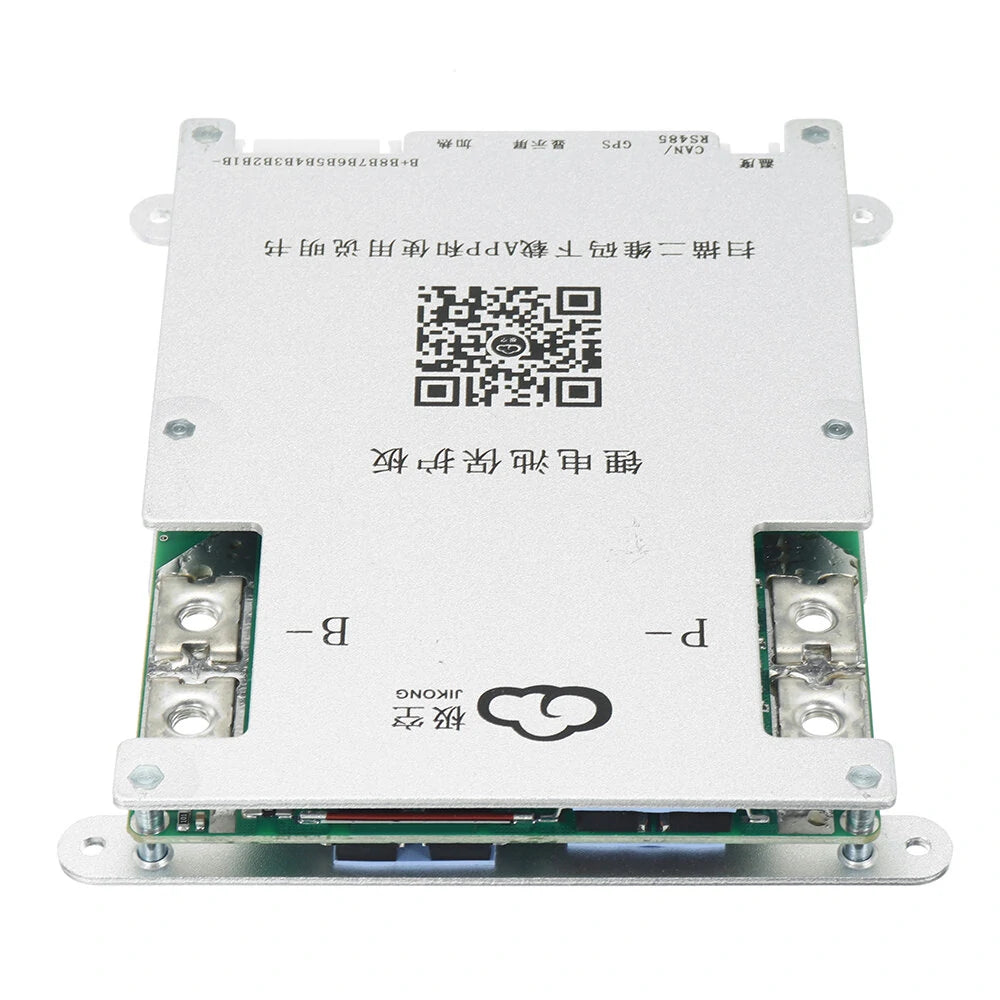

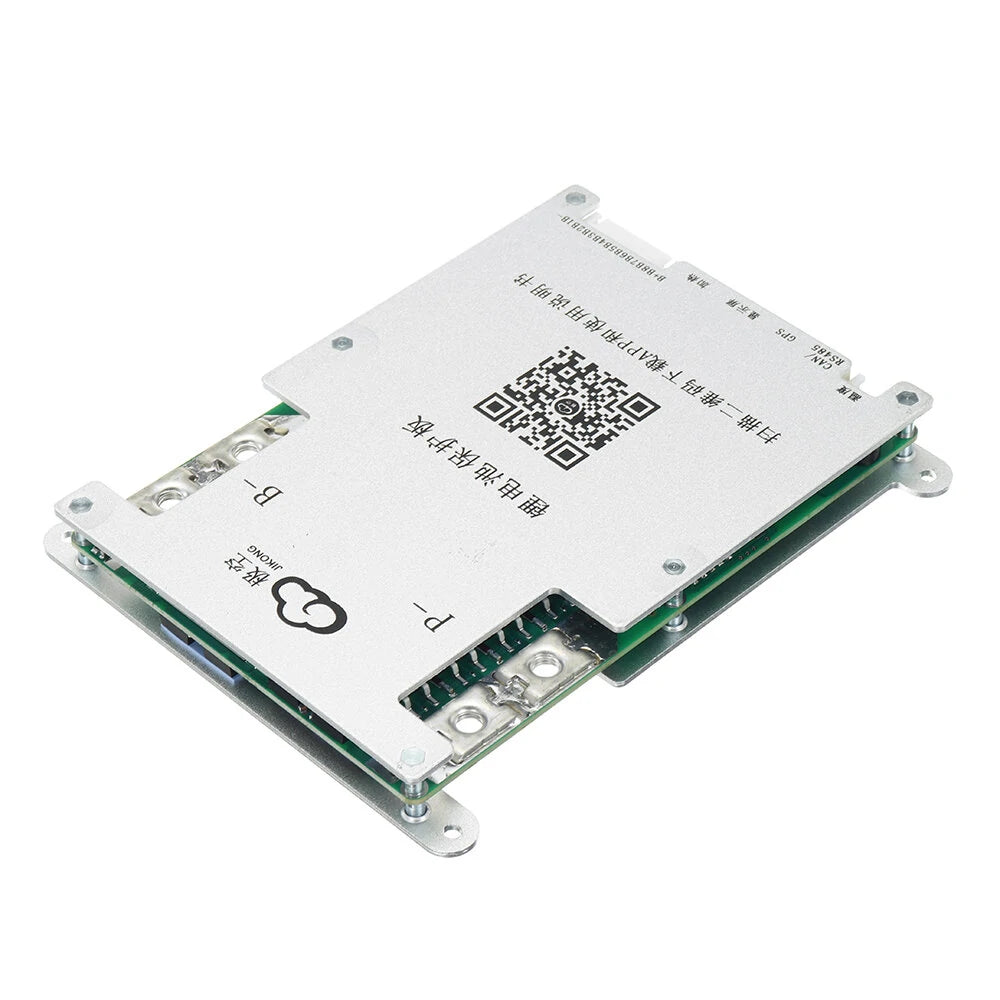

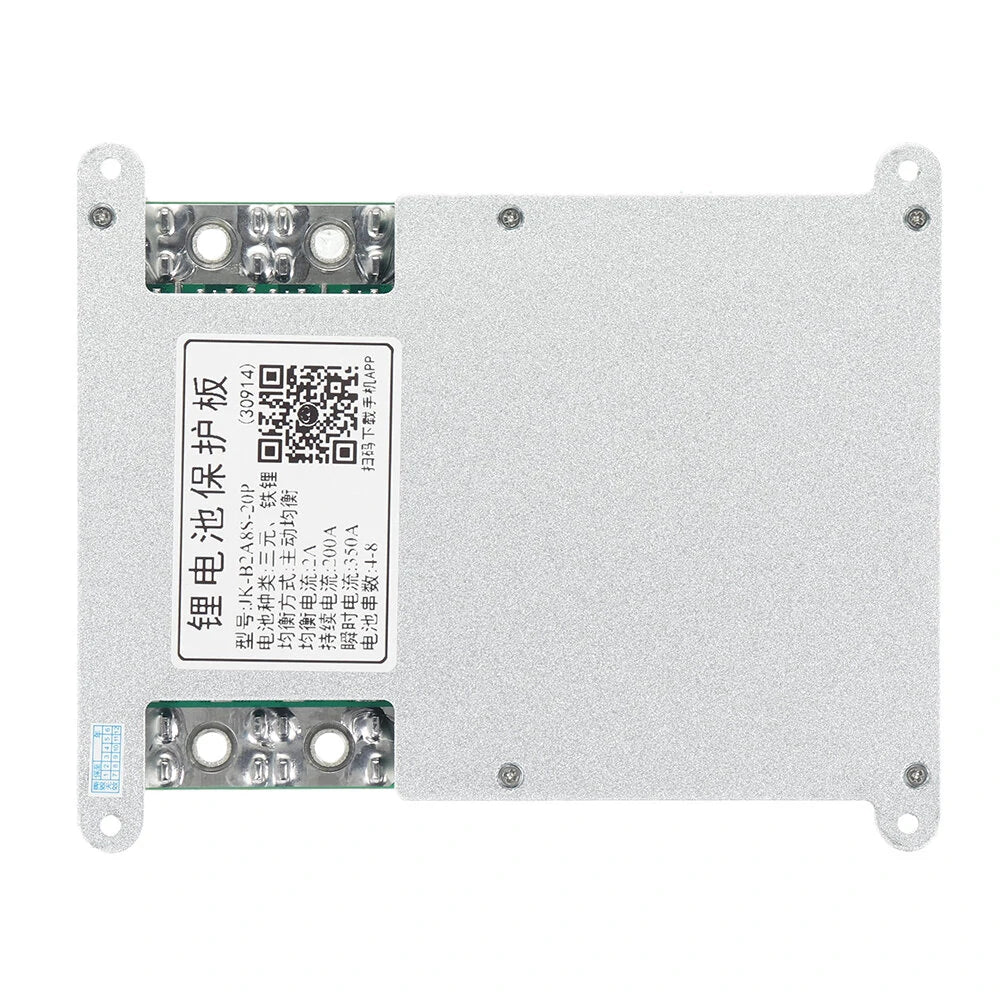

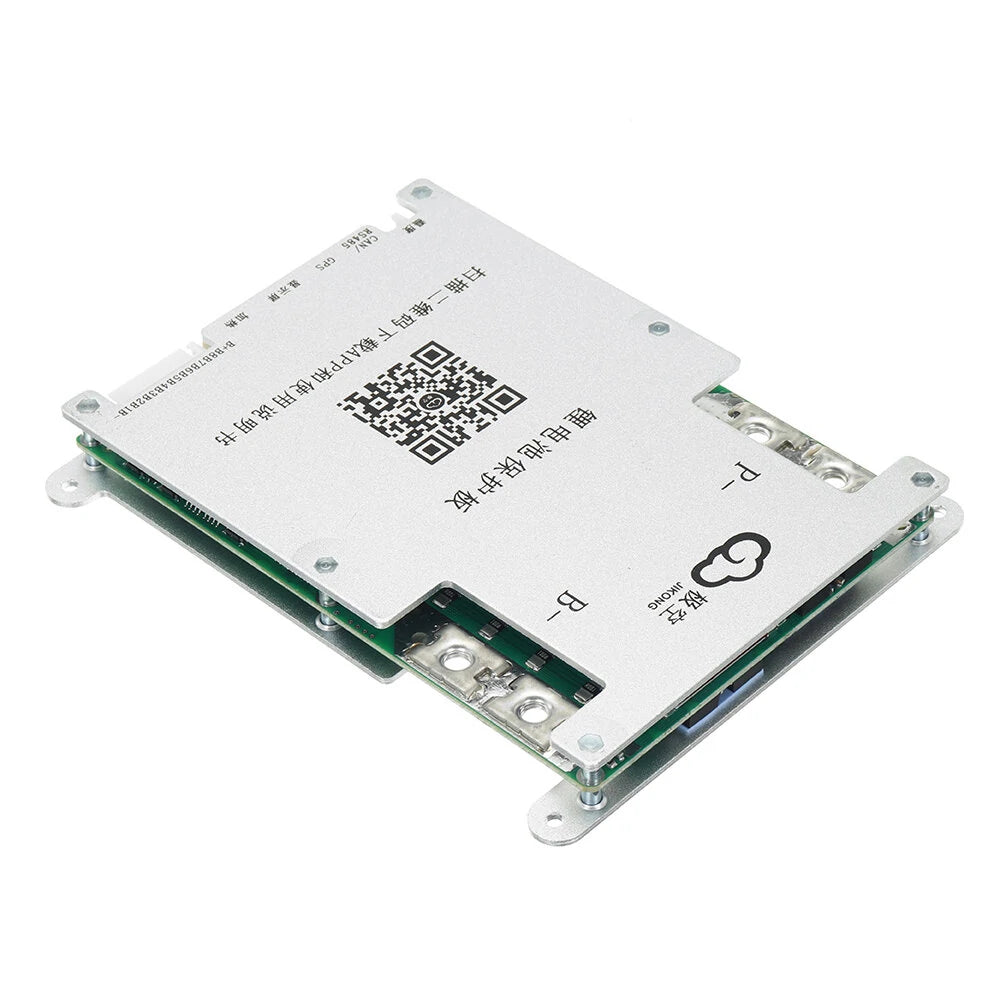

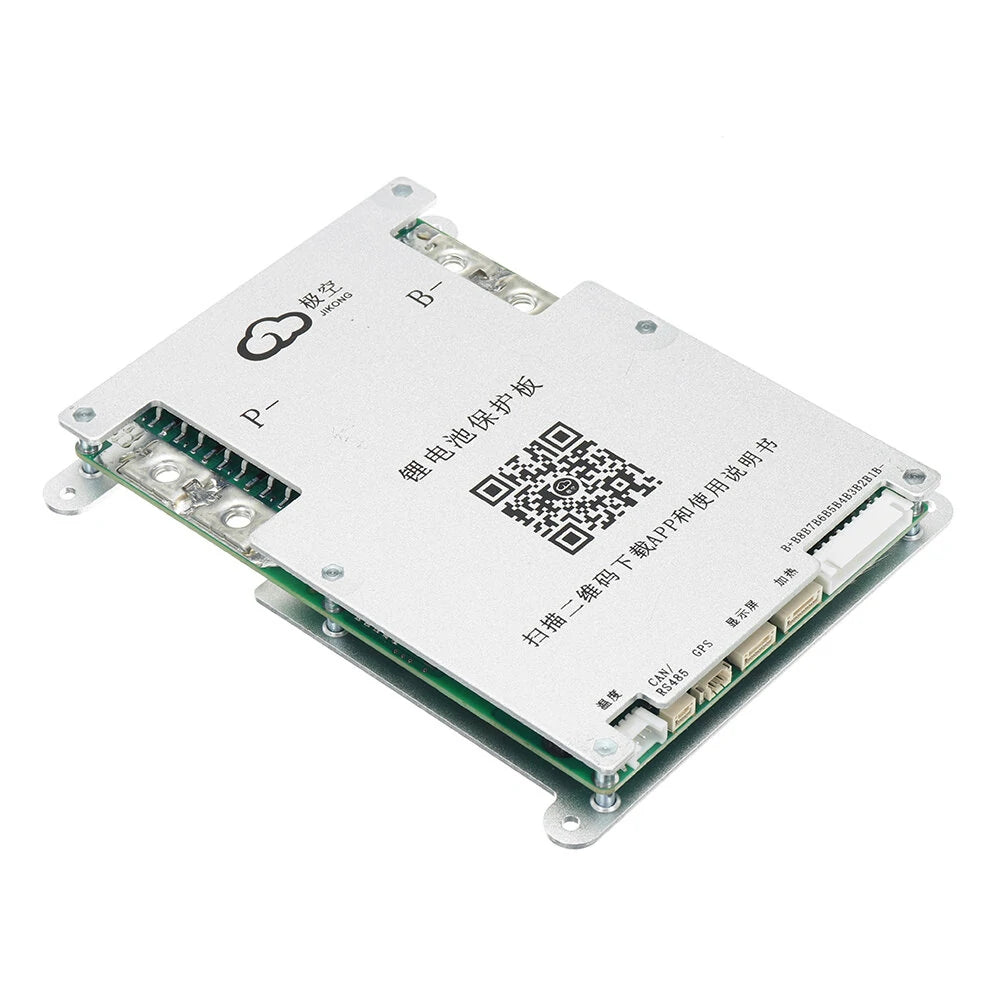

JK-B2A8S20P Smart BMS

Product Details

Battery Compatibility: 4S, 5S, 6S, 7S, 8S

Maximum Continuous Current: 200A

Voltage Compatibility: 12V, 24V

Active Balancing Current: 2A

Model Type: JK-B2A8S20P / B2A8S20P-Heat-CAN (optional)

Battery Type Compatibility: Li-ion and LiFePO4

Balance Method: Active Balance

Balance Current: 2A

Peak Current: 350A

Battery Strings Supported: 4S-8S

Bluetooth Compatibility: Connect with JIKONG BMS app

App Download:
iOS: Search "JIKONG BMS" in the App Store
Android: Search "JK BMS" in Google Play Store

Features

• Smart Battery Management: Delivers advanced management and protection for 4S-8S Li-ion and LiFePO4 batteries, ensuring safety and optimal performance.
• High Continuous Current Capacity: Supports robust applications with a continuous current rating of 200A, ideal for industrial and DIY projects.
• Active Balancing: Ensures uniform voltage across battery cells with a 2A balancing current, extending battery lifespan and maximizing capacity.
• Heat Function: Monitors and manages battery temperature for enhanced safety during operation.
• Versatile Compatibility: Supports both Li-ion and LiFePO4 batteries with 12V and 24V configurations, offering flexibility and adaptability for various applications.

Notice

Protection (Current Sensor Anomaly):
This issue occurs when using inverters due to uncertain current direction, resulting in an alarm. It does not impact the normal BMS functioning.
Inverters can cause fluctuations between charging and discharging in variable sunlight conditions, producing this anomaly.

Sine Wave Inverter Behavior:
Inverter current follows a sine wave, varying from zero to peak in each cycle. A pure sine wave inverter does not draw a constant current, affecting current readings.
Average current meters provide near RMS current, but readings may fluctuate due to waveform shape.
Over extended periods, the BMS accurately calculates amp-hours based on averaged readings.

Package Includes

• 1x JK-B2A8S20P Smart Active Balance BMS (CAN optional)
• Note: Switch not included

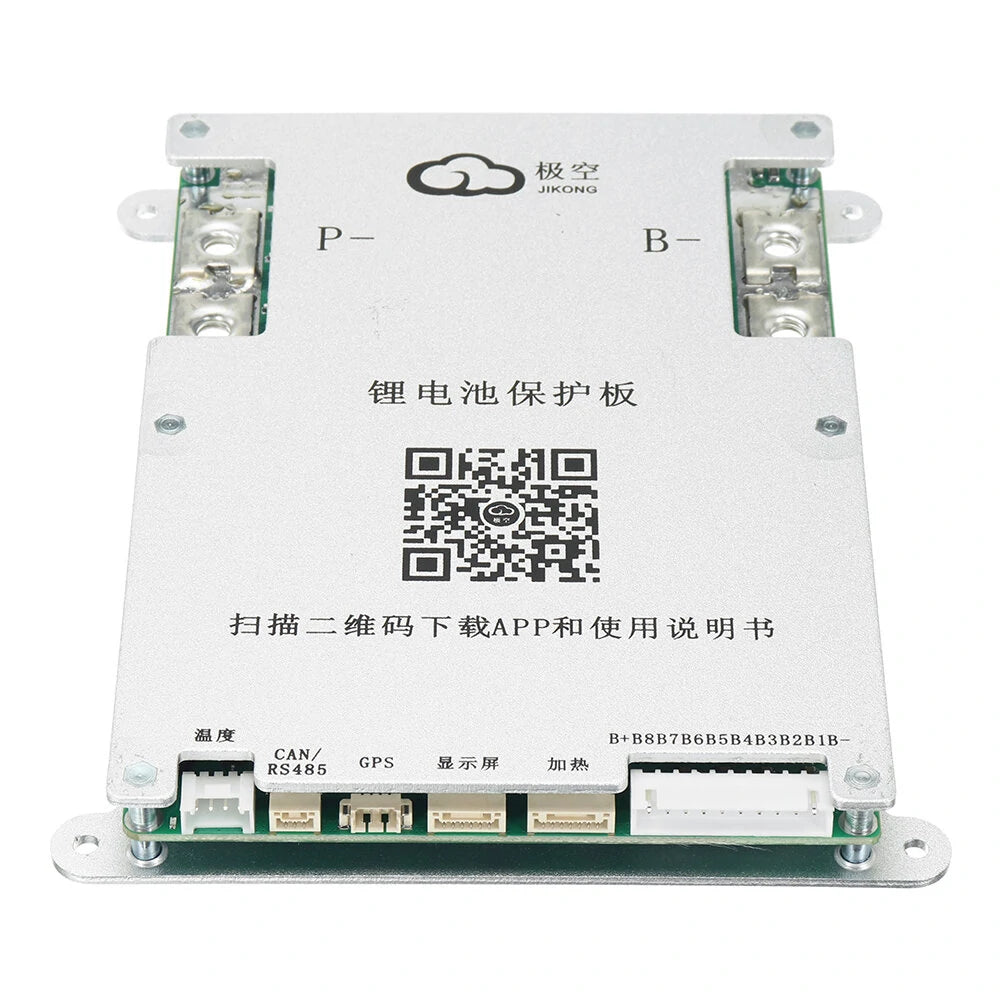

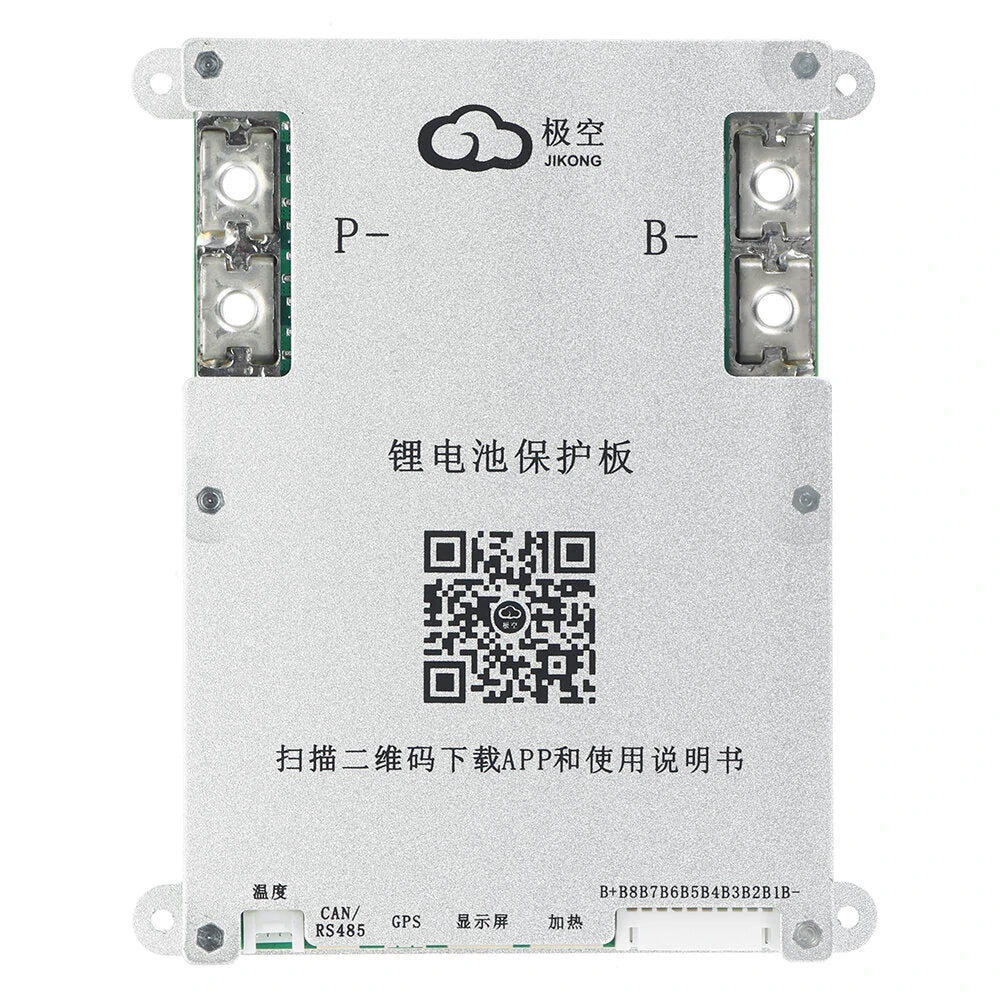

Interface

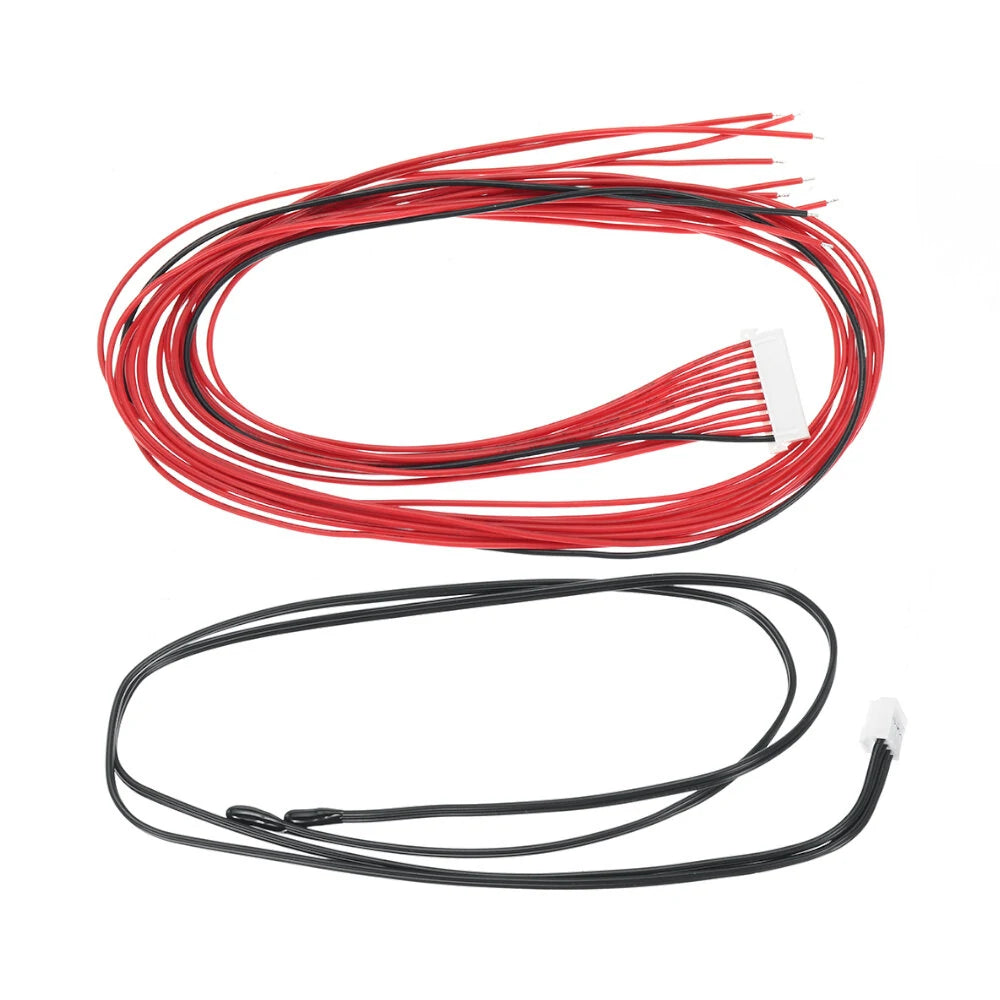

• Temperature Sensor
• RS485 Interface (Standard on all JK BMS)
• LCD Interface (Standard on all JK BMS)
• Heat Function Interface (Customizable)
• CANBUS Interface (Optional)
