2.4G/5G WiFi Signal Analyzer with 2.4-inch TFT Display - Router Management Assistant

Product Description

In environments where there are numerous WiFi signals, overlapping signals can interfere with each other, leading to poor signal quality. This assistant tool allows you to easily identify congested frequency points and adjust your WiFi to optimize communication quality by selecting less crowded channels.

Key Features:

• Displays battery level conveniently in the upper right corner of the screen.
• Powered by a built-in 600mAh lithium battery. Offers approximately 160mA working current and around 4 hours of standby time.
• Integrated lithium battery charging management circuit with around 2 hours charging time.

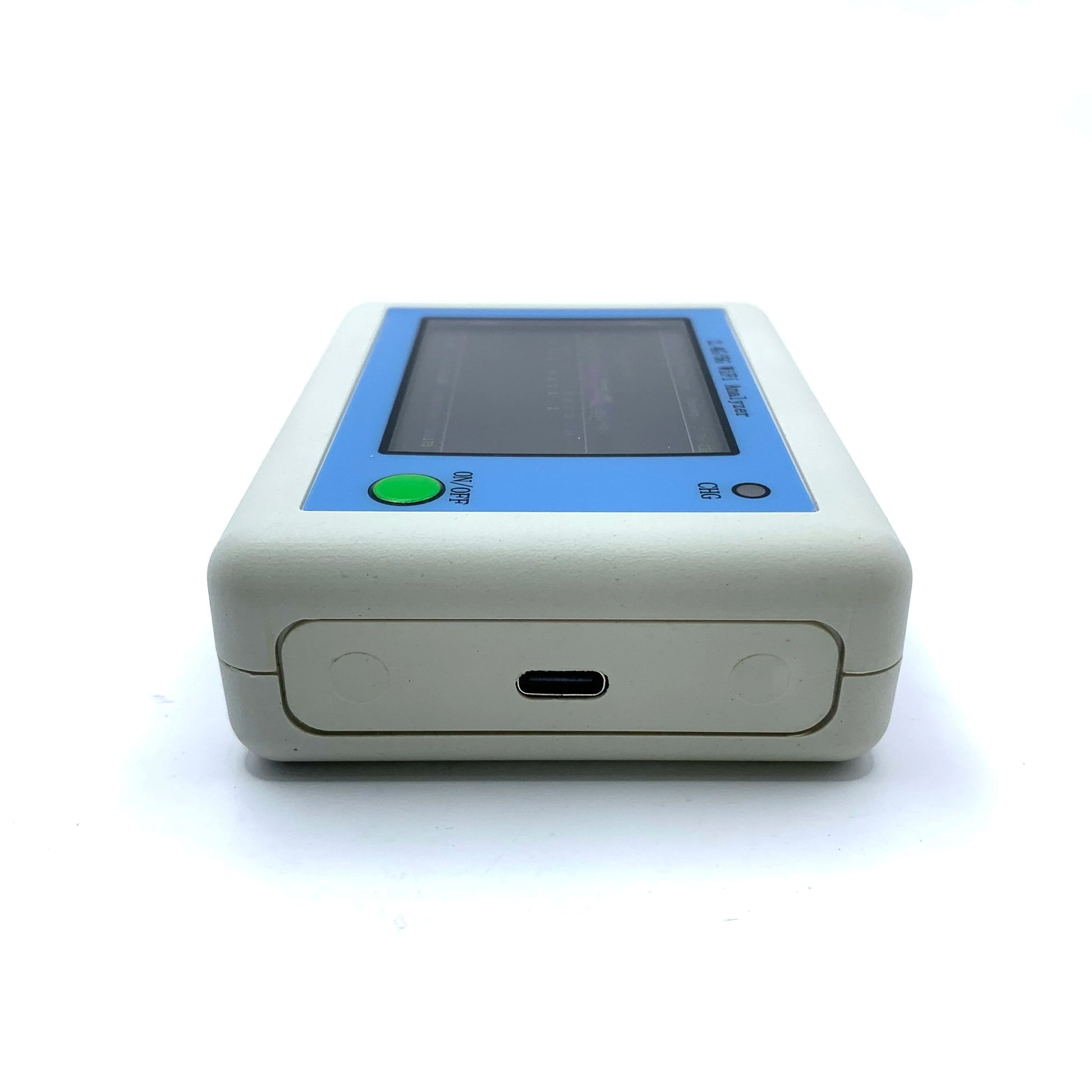

• Convenient charging via TYPE-C interface, requiring a 5V charging voltage. Indicator lights show red during charging and green when fully charged.
• 2.4-inch TFT color display for a clear visual experience.

Instructions for Use:

1. Long press the button to power on, and long press again to power off.
2. Press the button once to begin scanning for WiFi signals; press again to pause the scan.

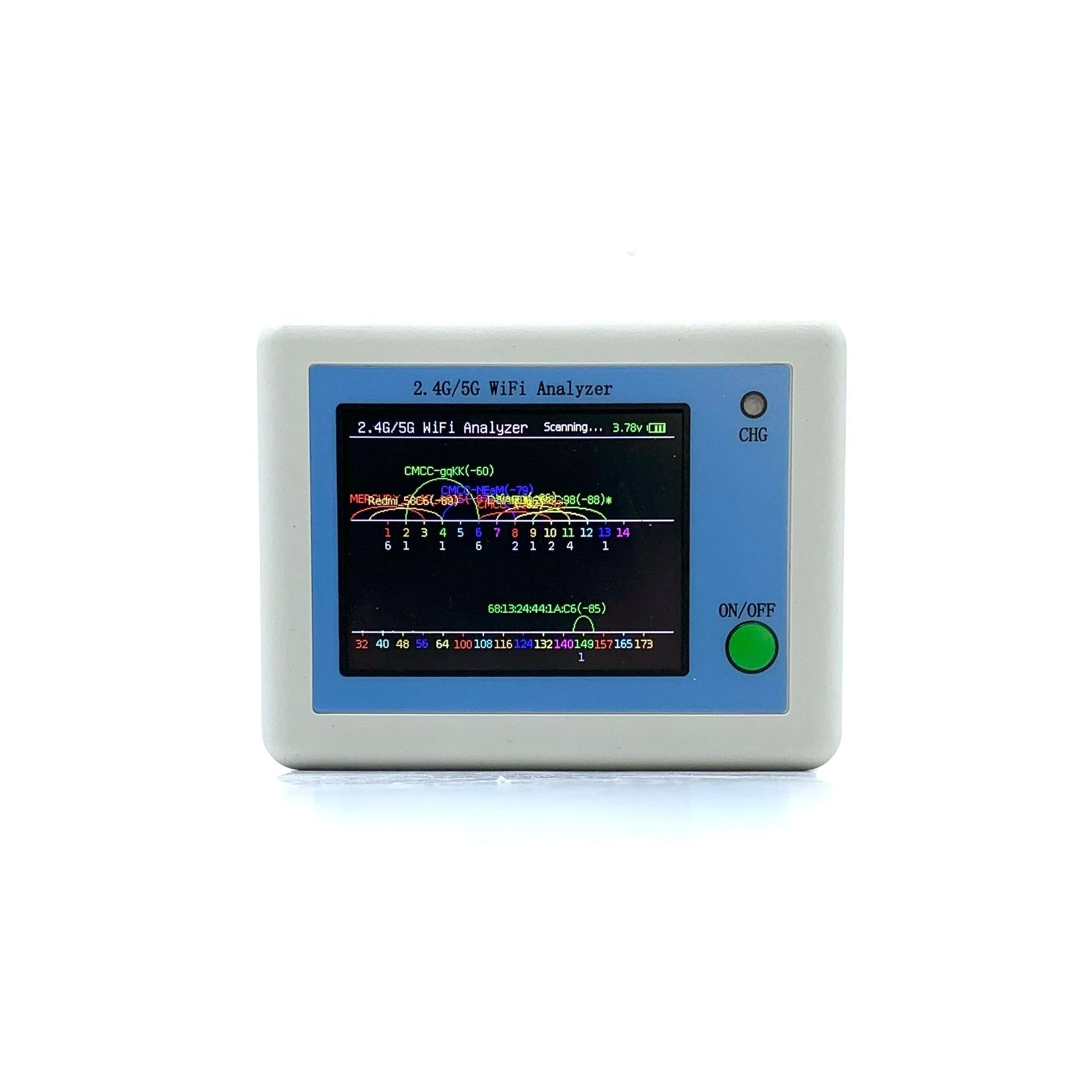

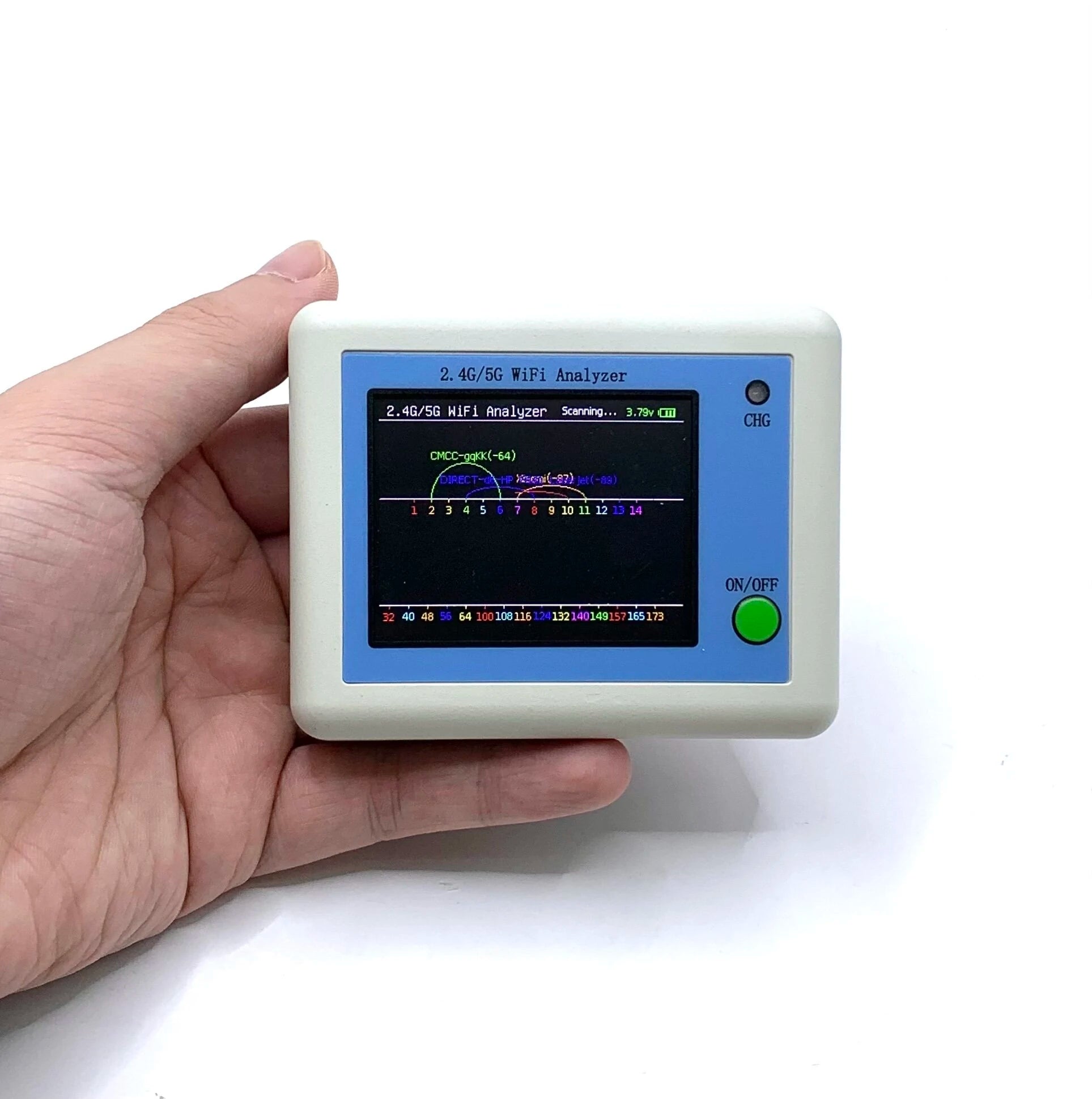

3. The display's top waveform shows all WiFi signals in the 2.4 GHz band, emphasizing the strongest signal. Should multiple signals occupy the same frequency, the display indicates this below the corresponding scale. For instance, if the number 5 appears, it means five signals share that frequency point. The lower waveform corresponds to 5 GHz signals, following the same display method. Due to the greater number of 5 GHz frequencies, not all can be marked on the scale.

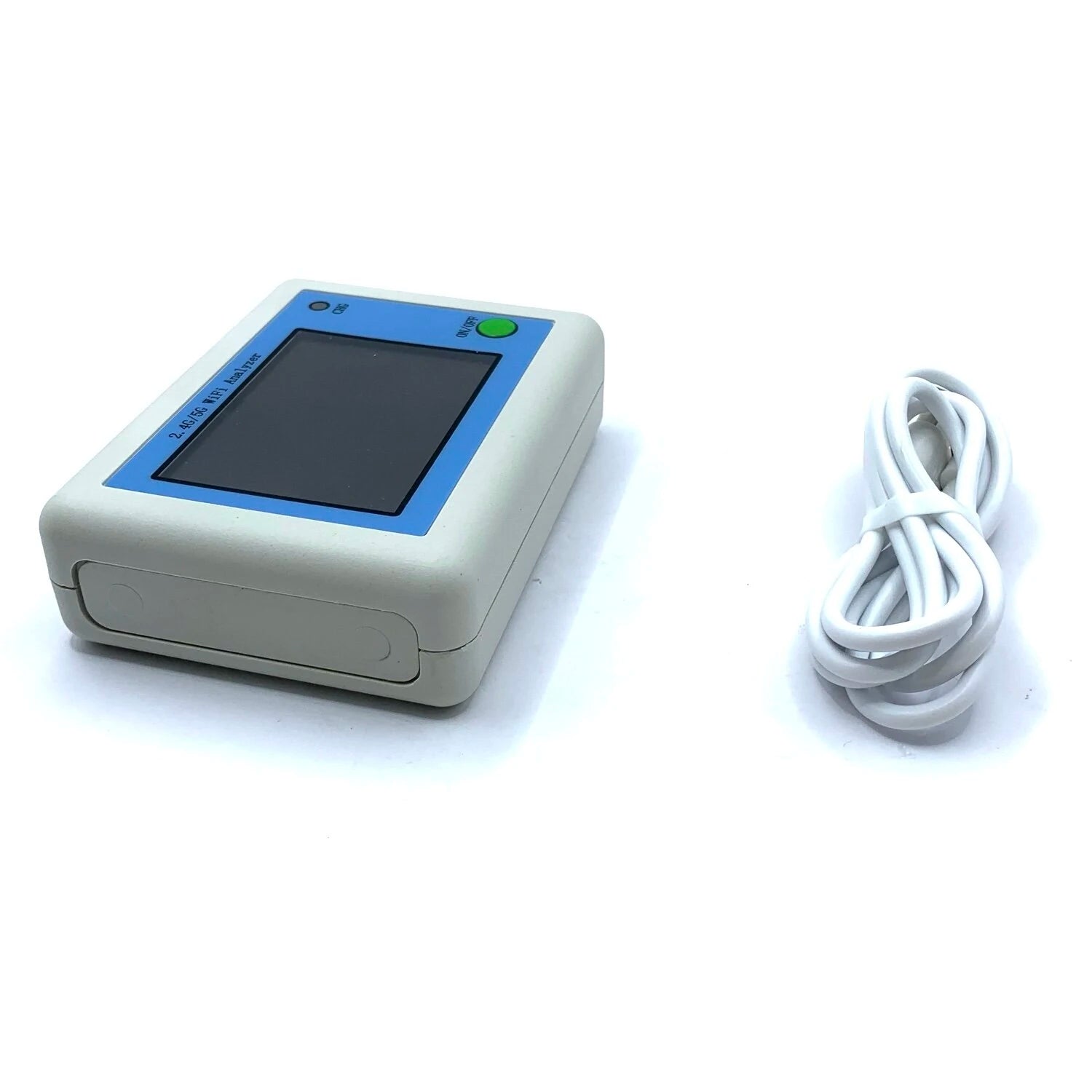

Package Includes:

• 1 x Main device
• 1 x TYPE-C charging cable
