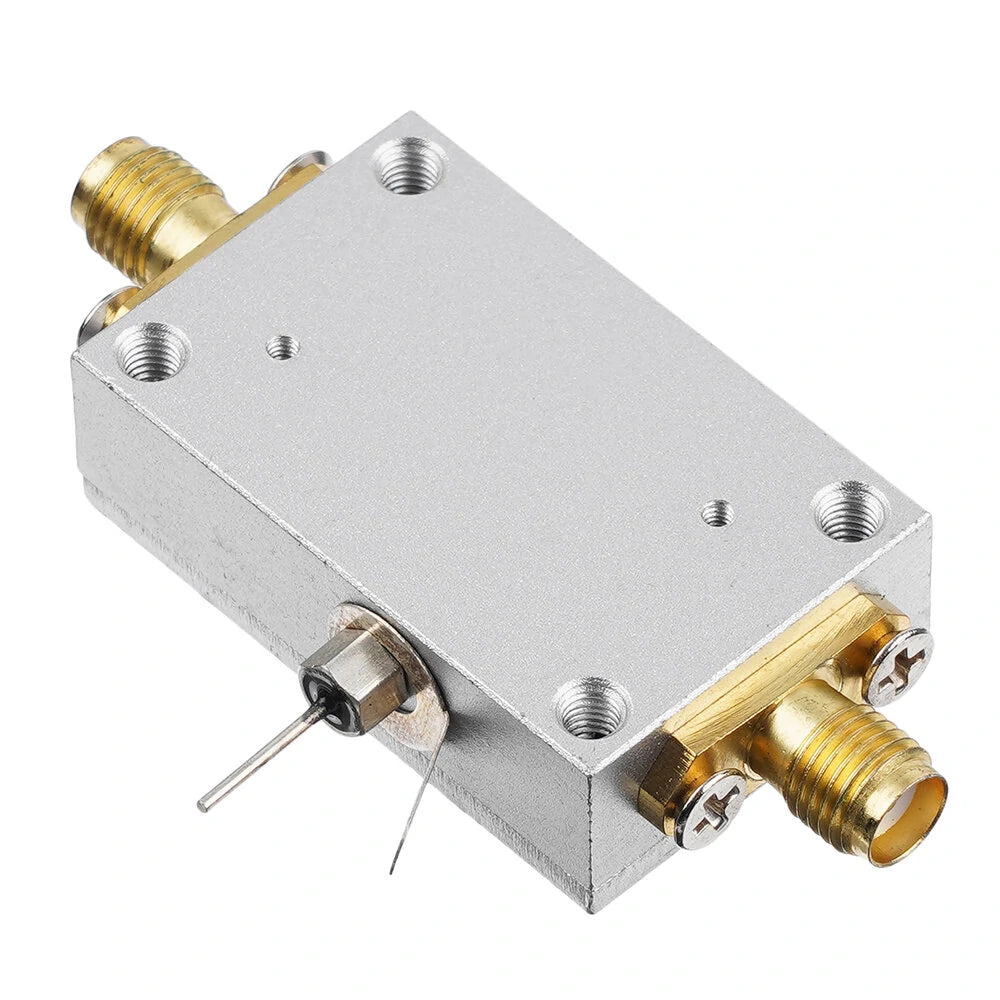

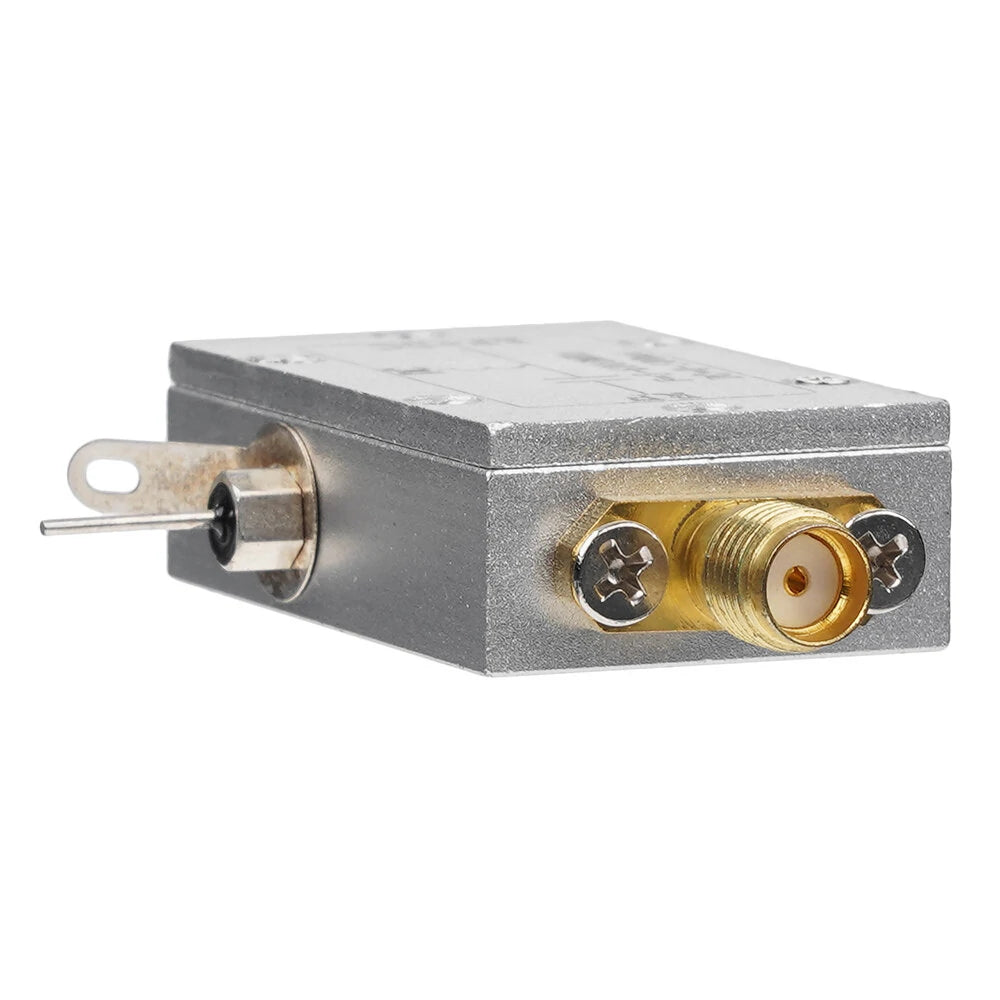

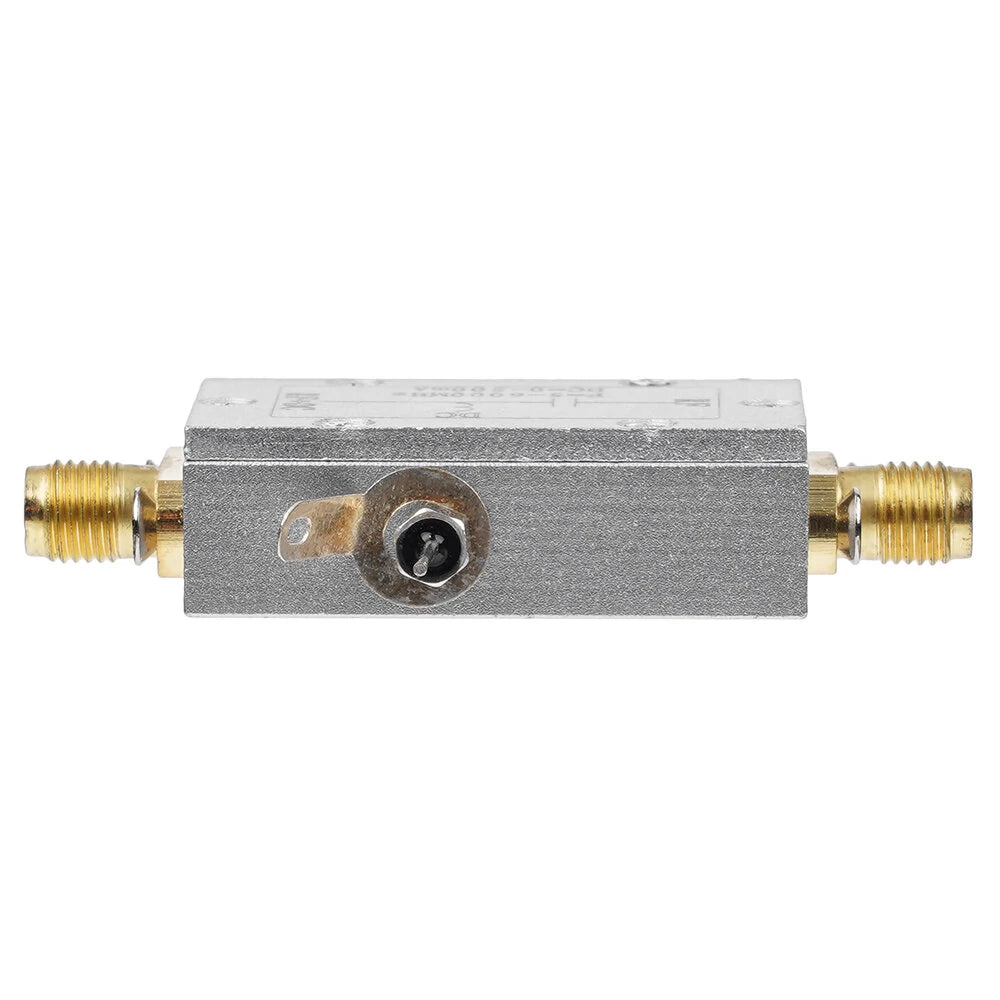

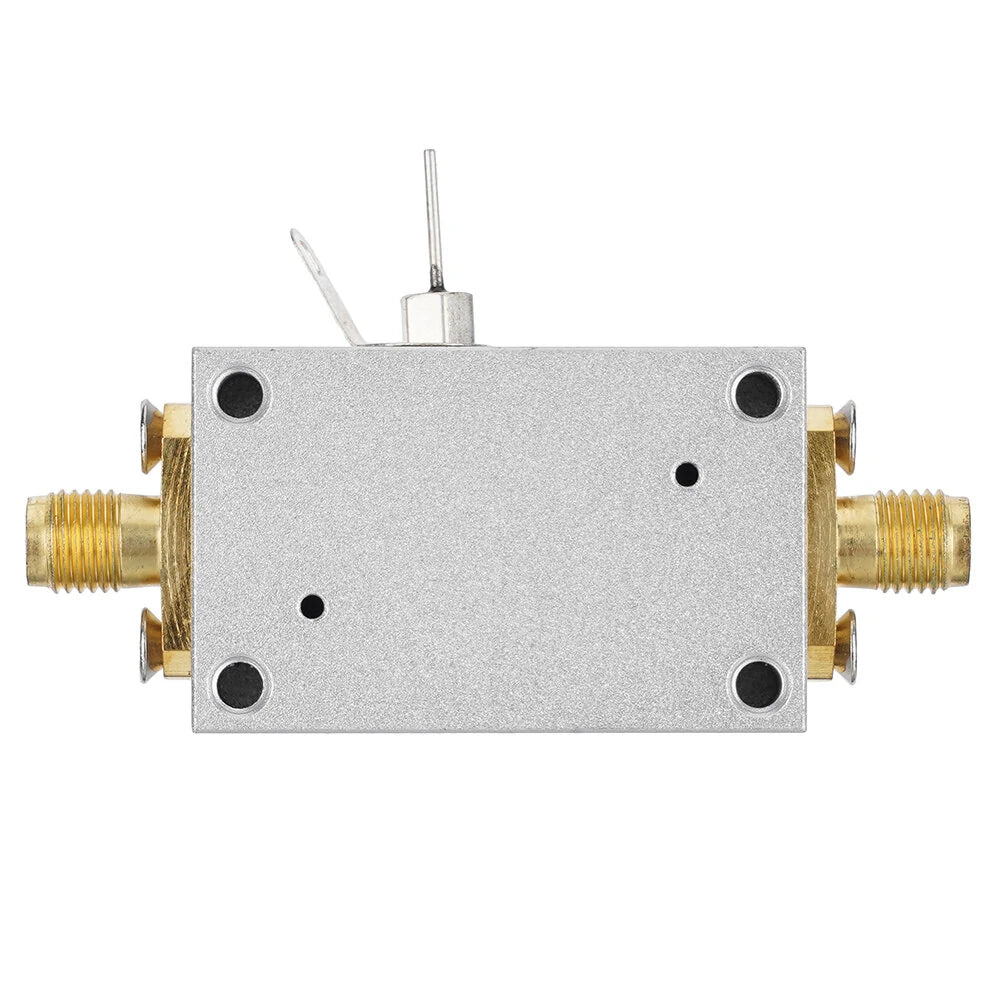

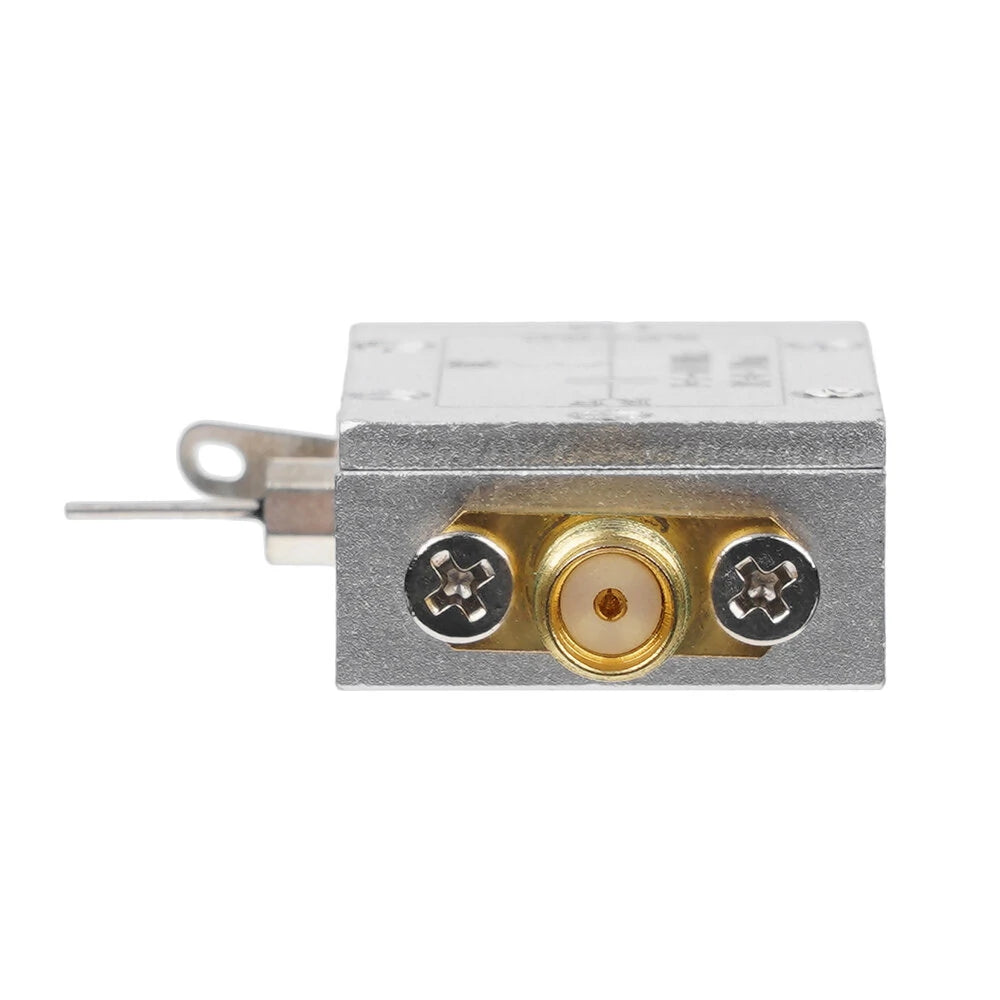

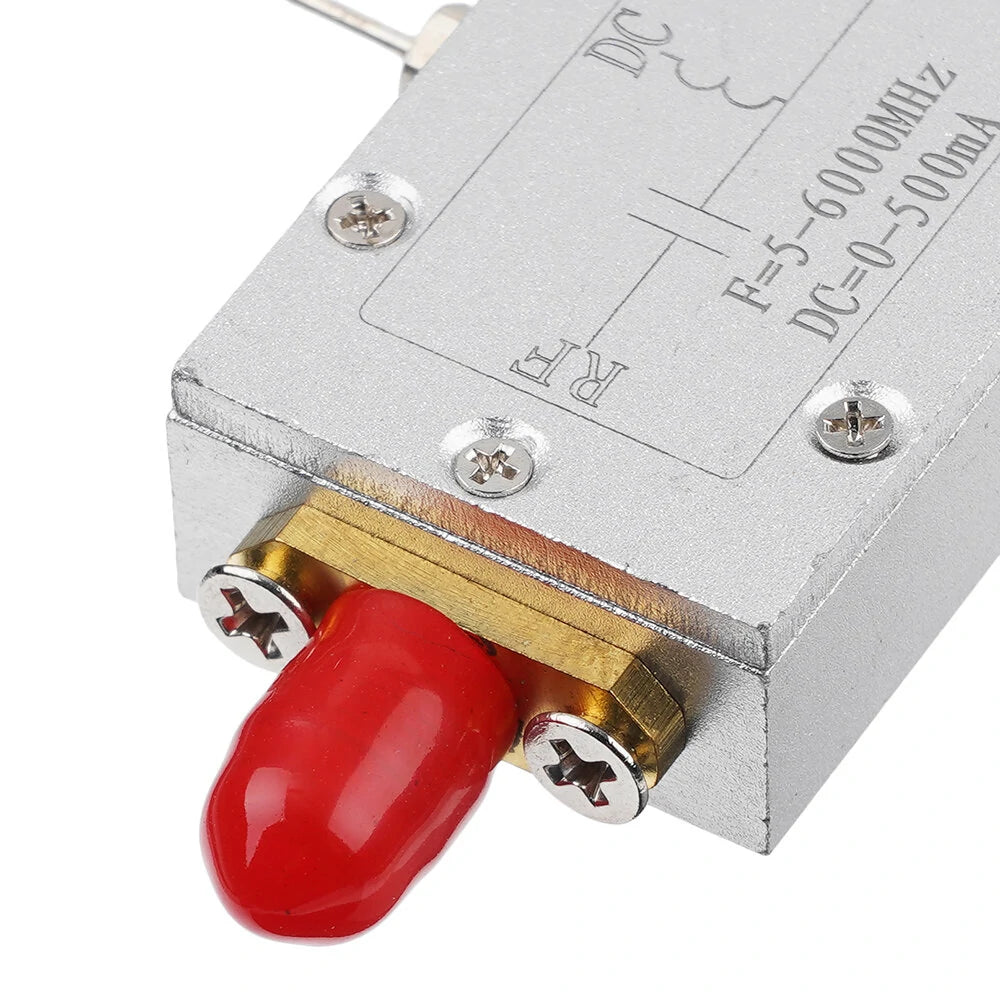

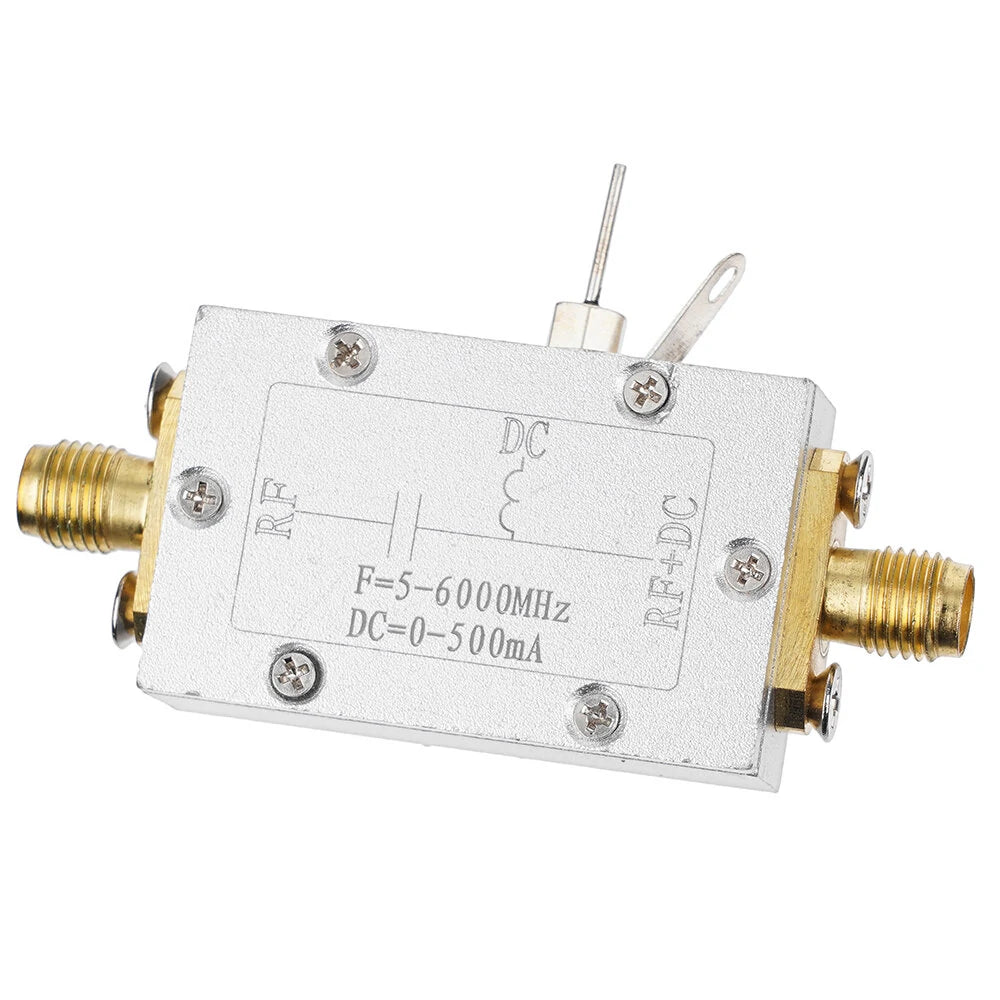

RF Wide-Band Amplifier Module 20dB Gain, 5-6000MHz

RF Wide-band Amplifier

Experience high-fidelity signal amplification with our RF Wide-band Amplifier, a versatile solution for various RF applications.

Description

The amplifier operates within a broad frequency range of 5-6000MHz, ensuring consistent performance with a power gain of 20dB. It offers notable features such as gain stability, a low noise figure, and an extensive dynamic range up to +20dBm at 1dB compression point, making it ideal for fixed gain amplification across diverse RF signals.

Specifications

• Working Frequency: 5-6000MHz
• Amplification Gain: 20dB
• Output Power: +21dBm (100mW) at 1dB Compression Point
• Working Current: 85mA at 5V
• Supply Voltage: 5V DC
• System Impedance: 50Ω
• Product Weight: 5g

Package Includes

1 x RF Wide-band Amplifier
