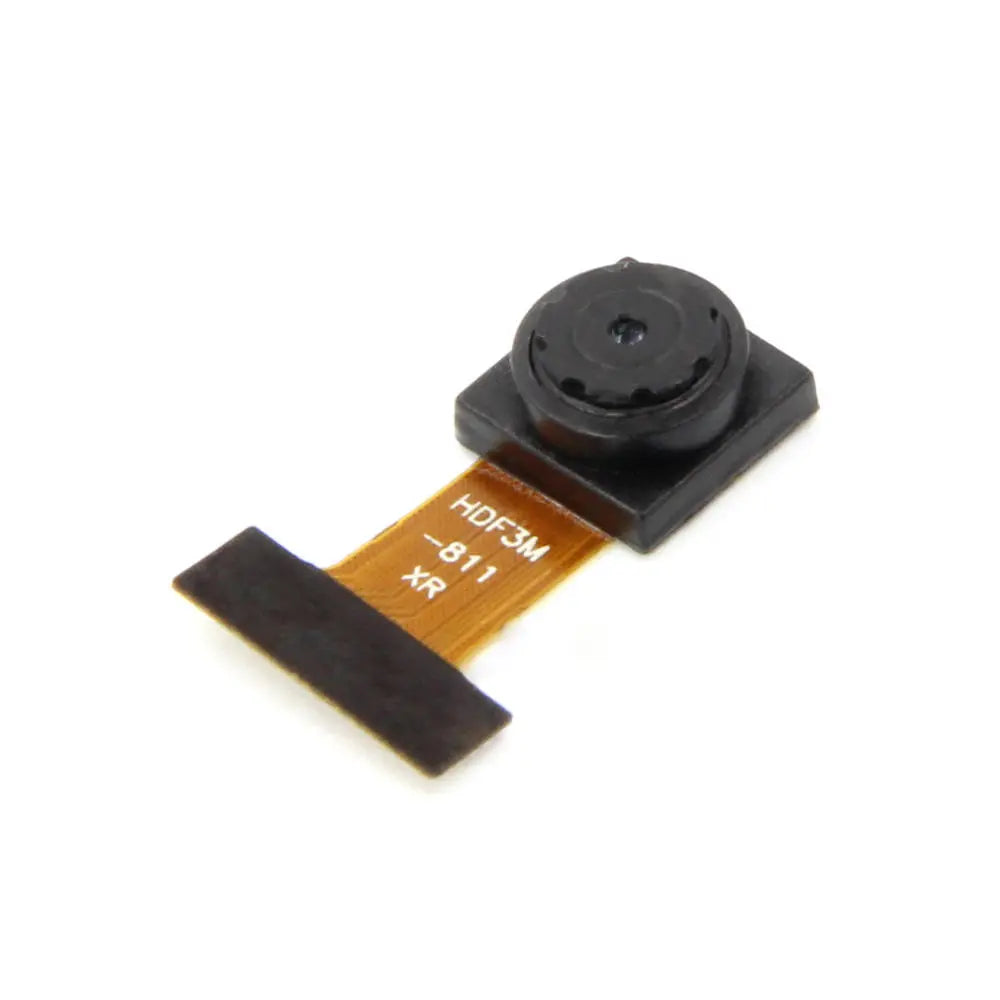

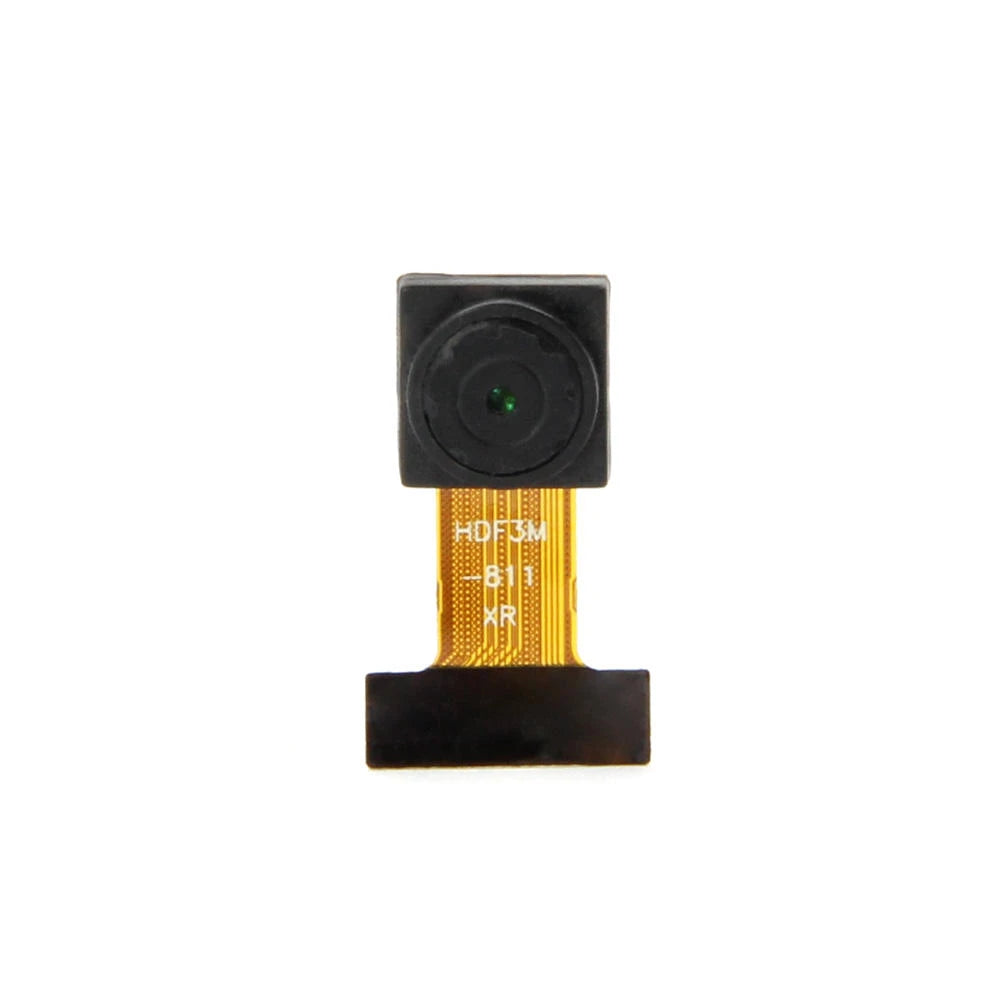

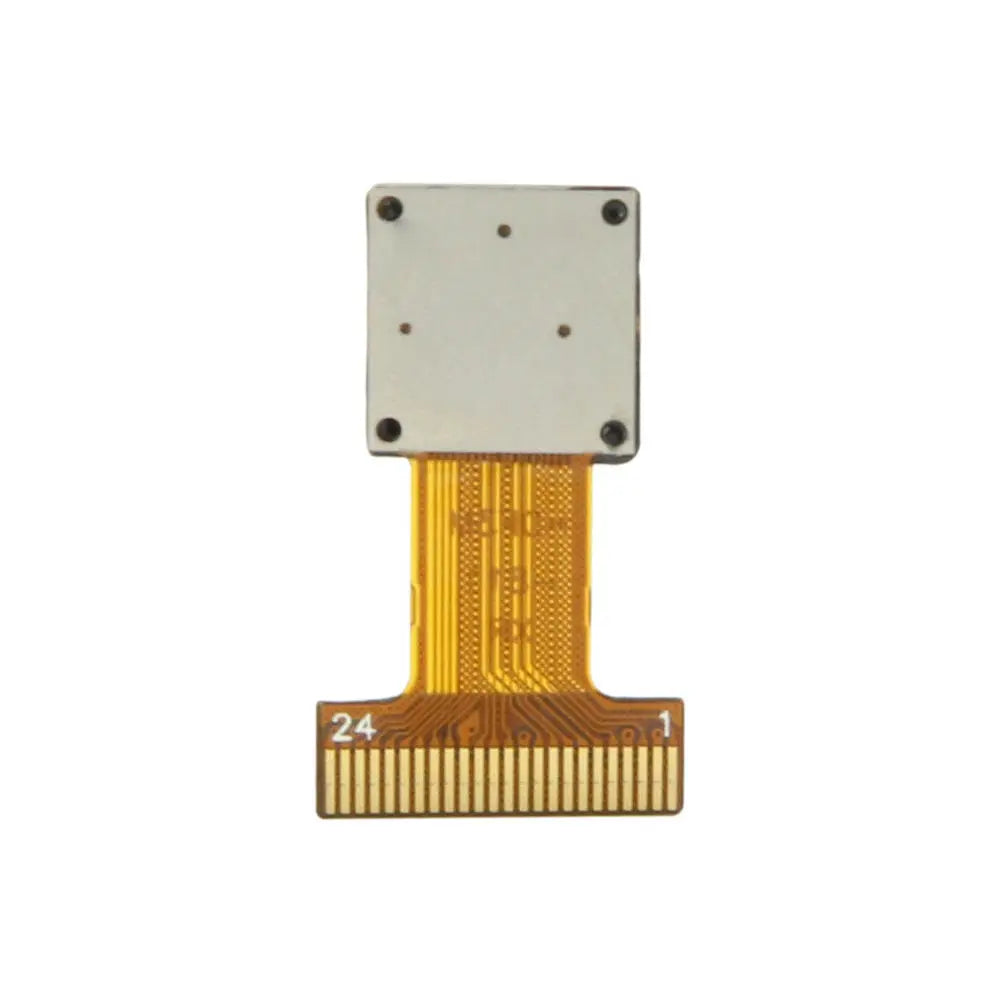

3-Pack Lens Module OV2640 2MP for TTGO T-Camera Plus ESP32-DOWDQ6 8MB SPRAM (YUV/RGB/JPEG Support)

Compatibility

To ensure this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching

This part is not compatible with your recent searches.

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Feature

• Camera: OV2640
• Camera Resolution: 2 Megapixel
• Type: Normal lens

Array Size

• UXGA
• 1600 x 1200

Power Supply

• Core: 1.2VDC ±5%
• Analog: 2.5 ~ 3.0VDC
• I/O: 1.7V to 3.3V

Power Requirements

• Active: 125 mW (for 15 fps, UXGA YUV mode)
• 140 mW (for 15 fps, UXGA compressed mode)
• Standby: 600 µA

Temperature Range

• Operation: -30°C to 70°C
• Stable Image: 0°C to 50°C

Output Formats (8-bit)

• YUV(422/420)/YCbCr422
• RGB565/555
• 8-bit compressed data
• 8-/10-bit Raw RGB data

Lens Details

• Lens Size: 1/4"
• Chief Ray Angle: 25° non-linear

Performance

• Maximum: UXGA/SXGA 15 fps
• Image: SVGA 30 fps
• Transfer Rate: CIF 60 fps

Sensitivity & Dynamic Range

• Sensitivity: 0.6 V/Lux-sec
• S/N Ratio: 40 dB
• Dynamic Range: 50 dB
• Scan Mode: Progressive
• Maximum Exposure Interval: 1247 x tROW
• Gamma Correction: Programmable

Technical Specifications

• Pixel Size: 2.2 µm x 2.2 µm
• Dark Current: 15 mV/s at 60°C
• Well Capacity: 12 Ke
• Fixed Pattern Noise: Minimal
• Image Area: 3590 µm x 2684 µm
• Package Dimensions: 5725 µm x 6285 µm

Package Includes

3 x Camera
