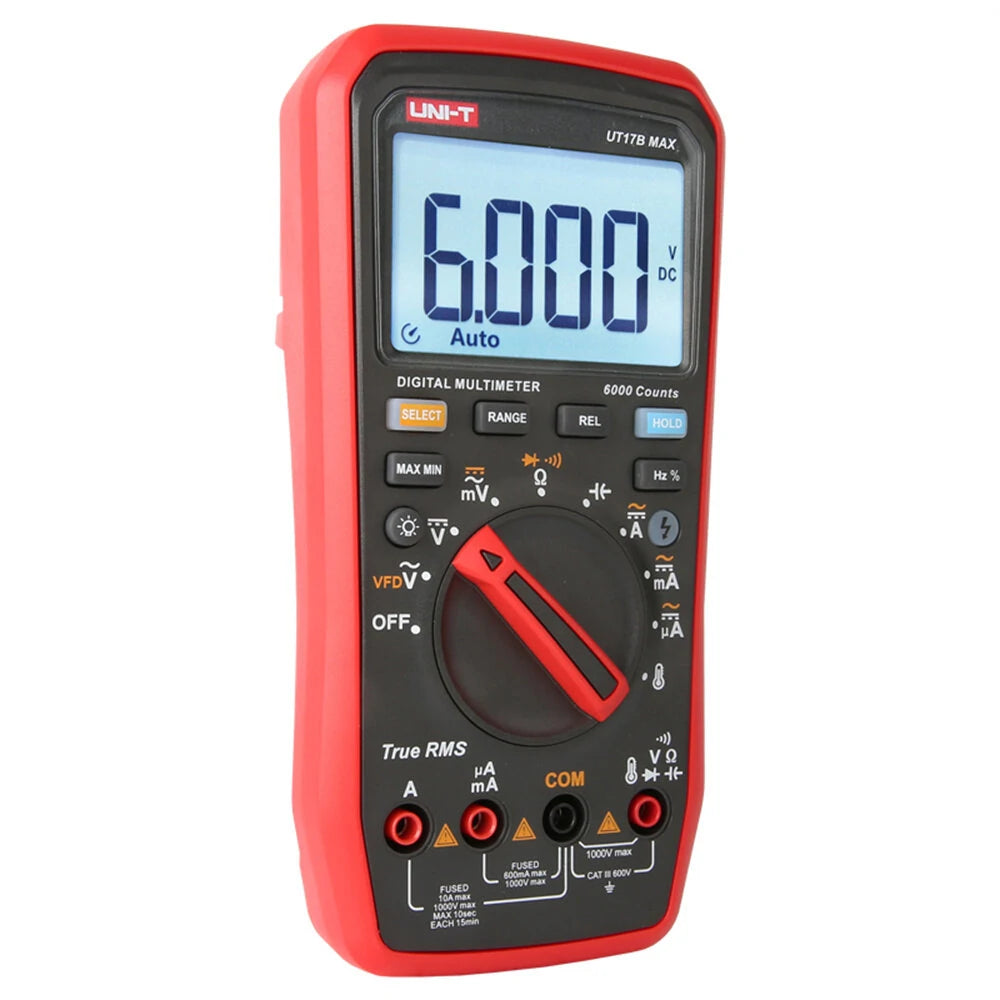

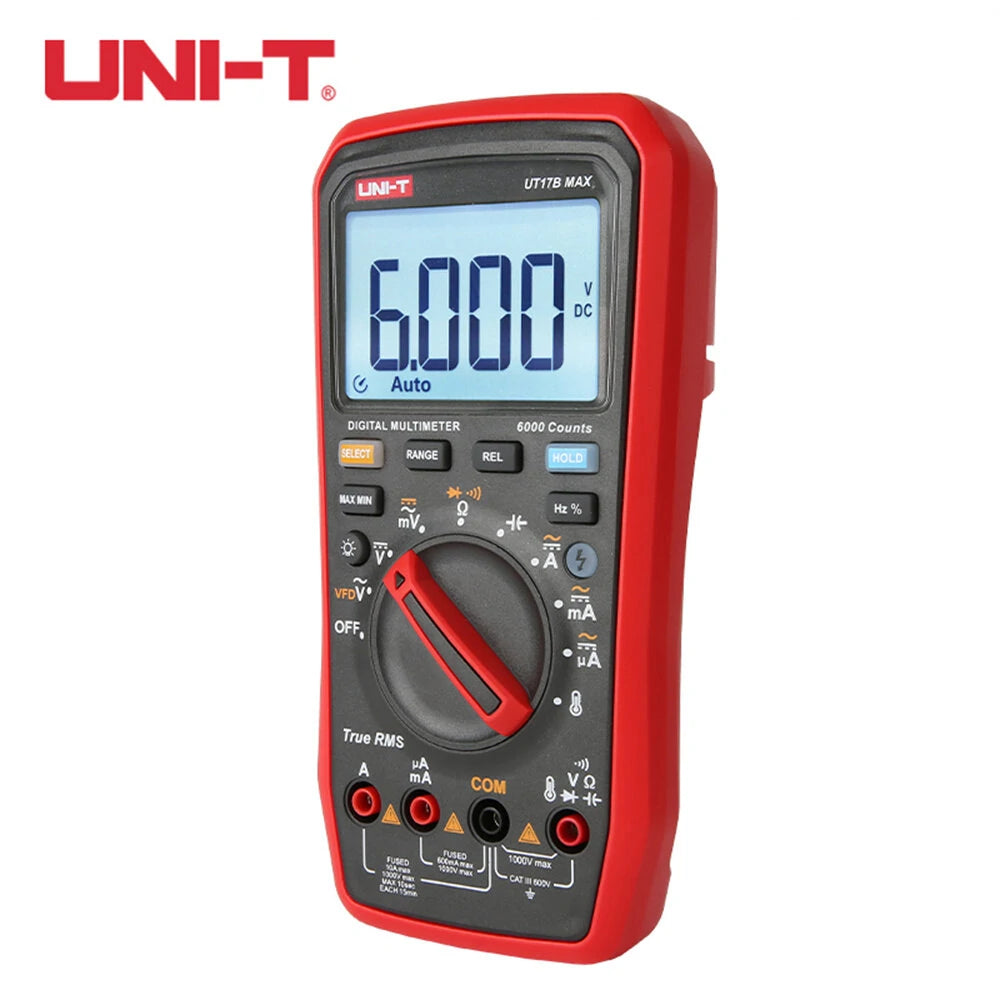

True RMS Digital Multimeter UNI-T UT17B MAX - Auto Range Voltmeter Ammeter with Frequency and Capacitance Tester for VFD

Product Highlights:

Exceptional Measurement Ranges

The UT17B MAX provides versatile measurement capabilities, with voltage ranges in both DC (600.0mV to 1000V) and AC (600.0mV to 1000V) for precise readings. It also includes VFD voltage at 600.0V, ensuring comprehensive voltage measurement coverage.

Accurate Current Detection

Identify even minimal currents accurately. The multimeter measures AC currents ranging from 600.0μA to 10.00A and DC currents within the same limits. This detailed current detection ensures safety and precision in diagnostics.

In-depth Resistance & Capacitance Measurements

Measure resistance from 600.0Ω to 60.00MΩ and capacitance from 6.000nF to 6000μF for thorough insights. These specifications are crucial for handling complex electronics, ensuring optimal device performance.

Frequency and Duty Cycle

Whether engaging in simple electrical projects or advanced device work, the UT17B MAX offers frequency ranges from 10Hz to 10MHz and a duty cycle from 1% to 99.9% for a wide scope of frequency diagnostics.

Temperature Readings Included

The UT17B MAX reliably conducts temperature diagnostics from -55℃ to 500℃, covering all temperature-related aspects in your electrical tasks.

Specifications:

• Voltage (DC): 600.0mV to 1000V
• Voltage (AC): 600.0mV to 1000V
• VFD Voltage: 600.0V
• Current (AC & DC): 600.0μA to 10.00A
• Resistance: 600.0Ω to 60.00MΩ
• Capacitance: 6.000nF to 6000μF
• Frequency (Hz): 10Hz to 10MHz
• Duty Cycle: 1% to 99.9%
• Temperature: -55℃ to 500℃
• Power Supply: 2 x 1.5V AA
• Product Weight: 455g
• Dimensions: 182mm x 91mm x 45mm

Package Includes:

• 1 x Digital Multimeter
• 1 x User Manual
• 4 x Test Leads (normal gold plated probe & fine-tipped probe)
• 1 x K-type Thermocouple
