Wireless RF Remote Light Switch 433MHz - Smart Home AC110V/220V Single Channel Controller

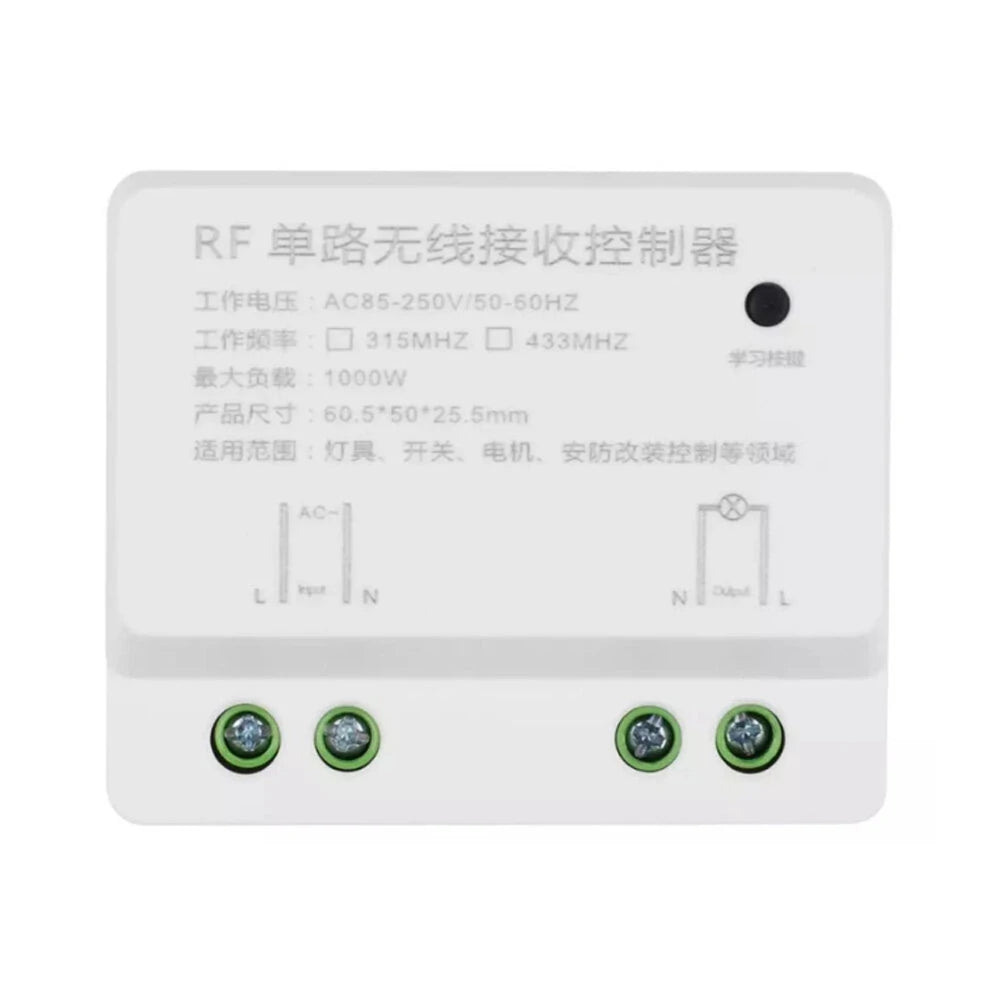

Features

• Work Voltage: AC 85-250V
• Static Conditions: Less than 8mA
• Work Temperature: -40°C to +80°C
• Receive Sensitivity: Greater than -105dBm
• Working Frequency: 433MHz
• Output Voltage: Input = Output
• Maximum Load Current: 10A
• Size: 60.5 x 50 x 25.5 mm

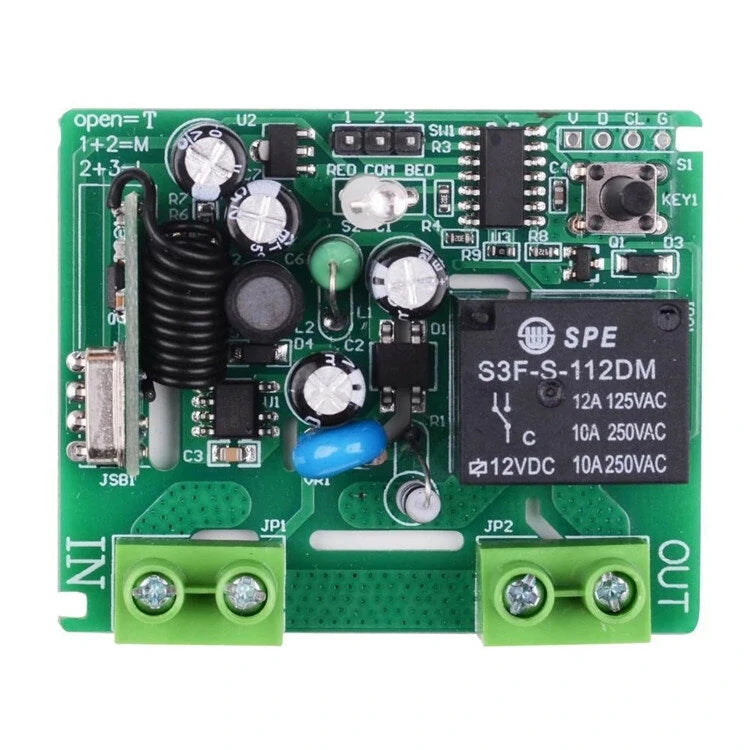

Working Methods

The jump line on the needle alters the working mode:

• Switch: No jumper connecting the pins.
• Click: Press to open; release to turn off.
• Self-locking: Jumper connecting pin 1 and 2.
  Method: Press to open; press the same button again to close.
• Mutual Lock: Jumper connecting pin 2 and 3.
  Relay: Press to open; press another button to close.

Learning and Clearing Methods

Learn

Press the learning button for 4-6 seconds until the indicator light turns off. Release and press any button on the remote control. The indicator will blink 5 times, indicating successful learning.

Clear

Press the learning button for about 8 seconds. As the indicator light transitions from OFF to ON, press the remote control. If the relay does not respond, the code has been successfully cleared.

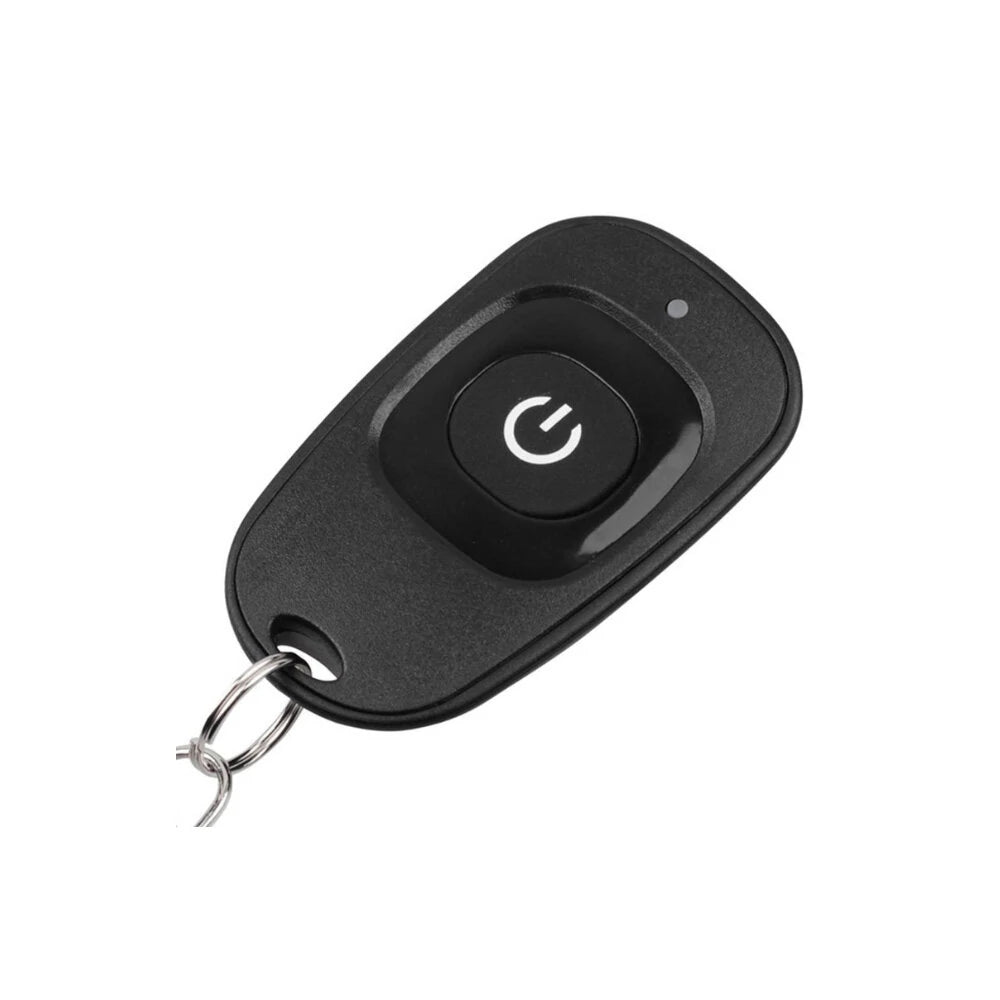

Remote Control Specifications

• Buttons: 1
• Work Voltage: DC 6V (requires 2 PCS CR2016, not included)
• Work Frequency: 433MHz
• Remote Distance: 20-50 meters
• Work Current: 13mAh
• Code: EV1527 code
• Size: 5.7 x 3.2 x 1.1 cm

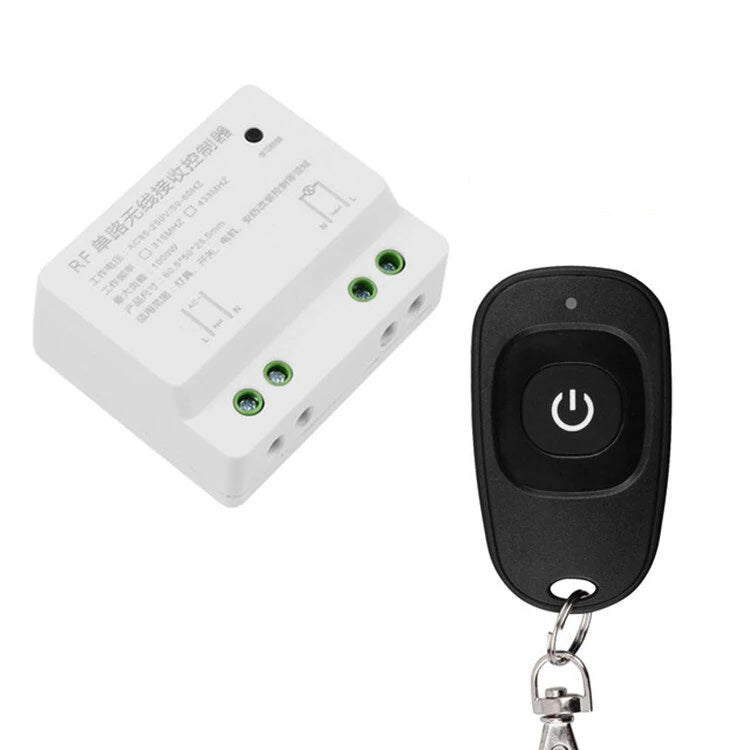

Package Includes

• 1 x Remote
• 1 x Receiver
