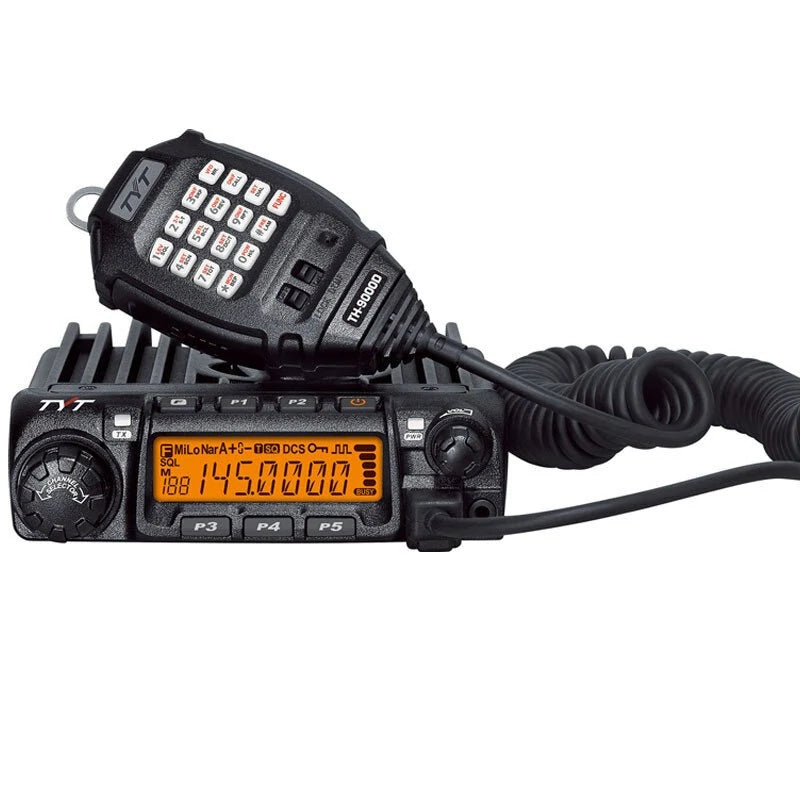

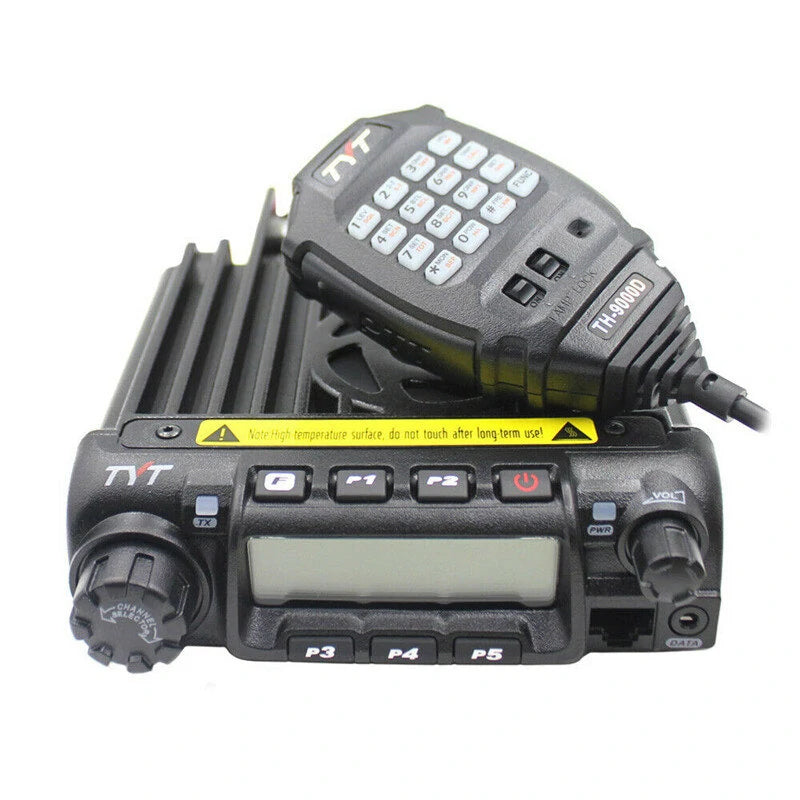

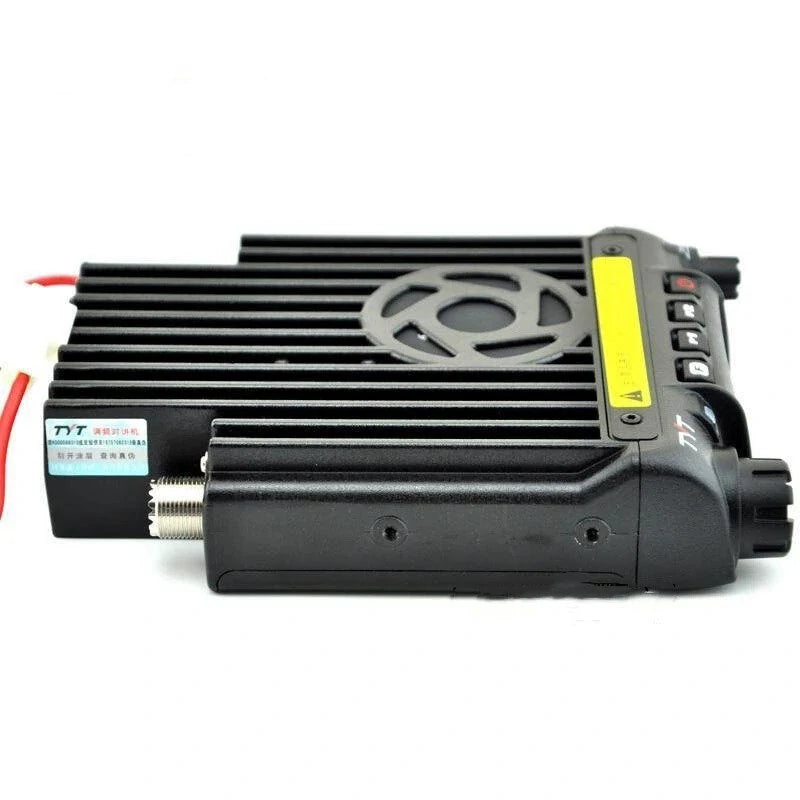

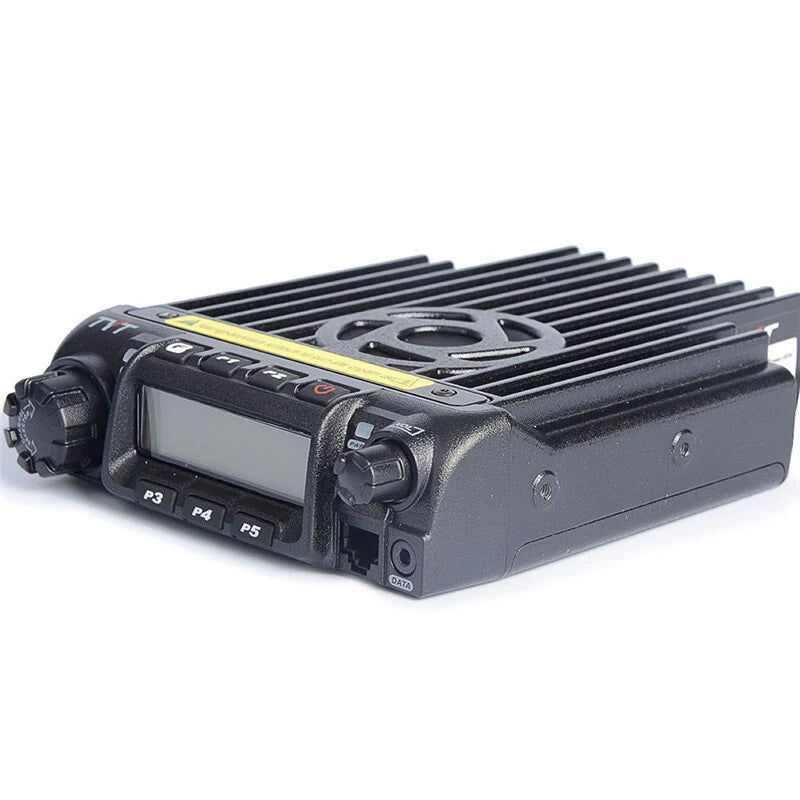

TYT TH-9000D 60W UHF 400-490MHz Long Range Walkie Talkie - 200 Channel Mobile Ham Radio for Car & Truck

Specifications

General Parameters

• Frequency Range:
  • VHF: 136 - 174MHz
  • 245 - 245.9875MHz (220 - 260MHz)
  • UHF: 400 - 490MHz
• Channel Quantity: 200 channels
• Channel Interval:
  • 25K (Wide Band)
  • 20K (Middle Band)
  • 12.5K (Narrow Band)
• Step Value: ±2.5ppm
• Operating Temperature: -20°C ~ +60°C
• Working Voltage: 13.8V DC ±15%
• Dimensions: 145(W) x 47(H) x 190(D) mm
• Weight: About 1.2kg

Receiver Specifications

Broadband

• Sensitivity: ≤0.25uV
• Adjacent Channel Selectivity: ≥70dB
• Intermodulation: ≥65dB
• Spurious Response: ≥70dB
• Audio Response: +1 ~ -3dB (0.3 ~ 3KHz)
• Signal to Noise Ratio: ≥45dB
• Audio Distortion: ≤5%
• Audio Power: >2W @ 10%

Narrowband

• Sensitivity: ≤0.35uV
• Adjacent Channel Selectivity: ≥60dB
• Intermodulation: ≥60dB
• Spurious Response: ≥70dB
• Audio Response: +1 ~ -3dB (0.3 - 2.55KHz)
• Signal to Noise Ratio: ≥40dB
• Audio Distortion: ≤5%
• Audio Power: >2W @ 10%

Transmitter Specifications

Broadband

• Output Power: 60W/25W/10W (VHF)
• Modulation Mode: 16K F3E
• Adjacent Channel Power: ≥70dB
• Signal to Noise Ratio: ≥40dB
• Spurious: ≥60dB
• Audio Response: +1 ~ -3dB (0.3-3KHz)
• Audio Distortion: ≤5%

Narrowband

• Output Power: 45W/25W/10W (UHF)
• Modulation Mode: 11K F3E
• Adjacent Channel Power: ≥60dB
• Signal to Noise Ratio: ≥36dB
• Spurious: ≥60dB
• Audio Response: +1 ~ -3dB (0.3-2.55KHz)
• Audio Distortion: ≤5%

Features

• Long-distance communication capability
• Wide and narrowband optional functions
• Channel name editing
• CTCSS/DCS
• Selectable power levels: high, medium, low
• Voice companding function
• Frequency difference setting
• DTMF/2T/5T signaling
• Voice prompt
• Automatic shutdown
• Emergency call feature
• Anti-theft alarm
• Scan function
• 1750Hz tone burst
• Caller ID function & PTT-ID feature

Package Includes

• 1x TYT TH-9000D Mobile Radio
• 1x Handheld Microphone
• 1x Power Cable
• 1x Screws Pack
• 1x Manual
• 1x Fixed Bracket
• Note: Frequency line not included
