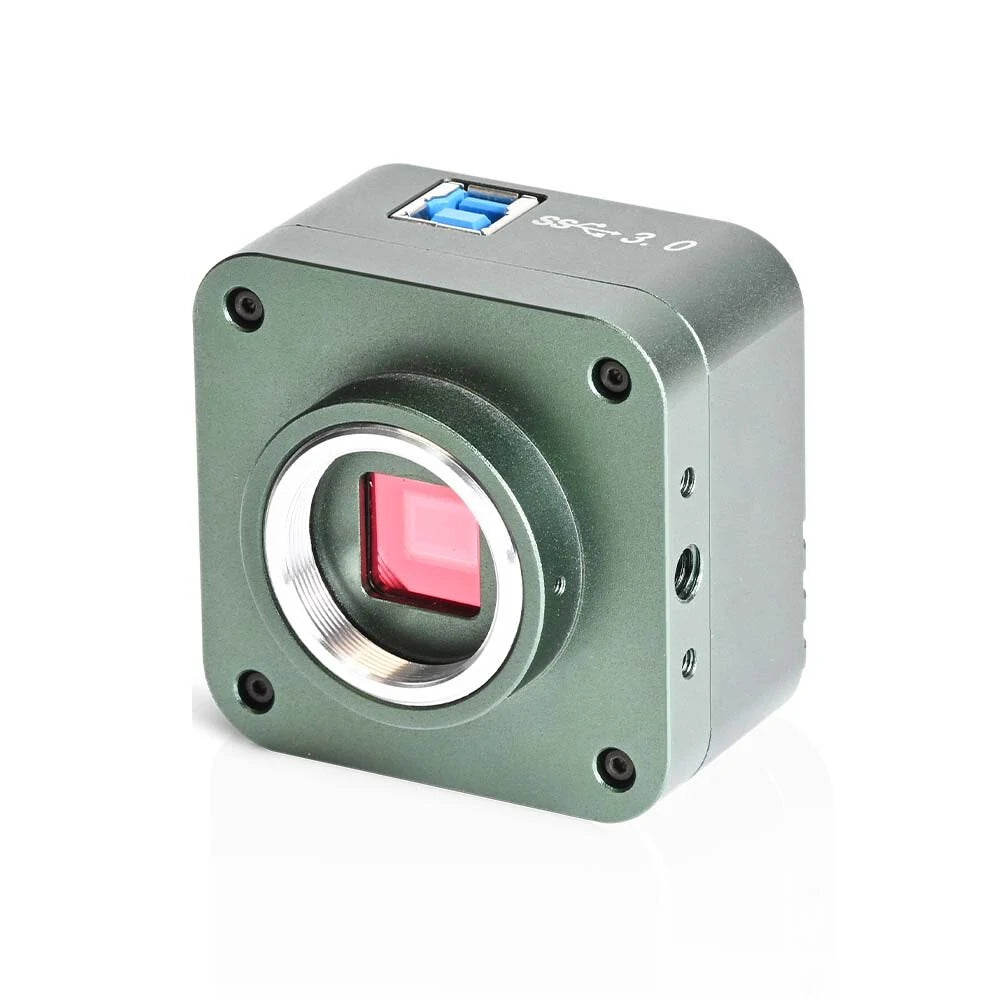

4K Industrial Microscope Camera with USB 3.0

Enhance your biological and stereo microscopy experience with our state-of-the-art 4K Industrial Microscope Camera. This electronic eyepiece features a USB 3.0 interface for quick and reliable data transfer, making it an essential tool for professionals in various fields.

0.5x Adapter Specifications

• This 0.5x reducing lens broadens the camera's field of view, suitable for use with any C-Mount or CS-Mount camera, regardless of pixel configuration.

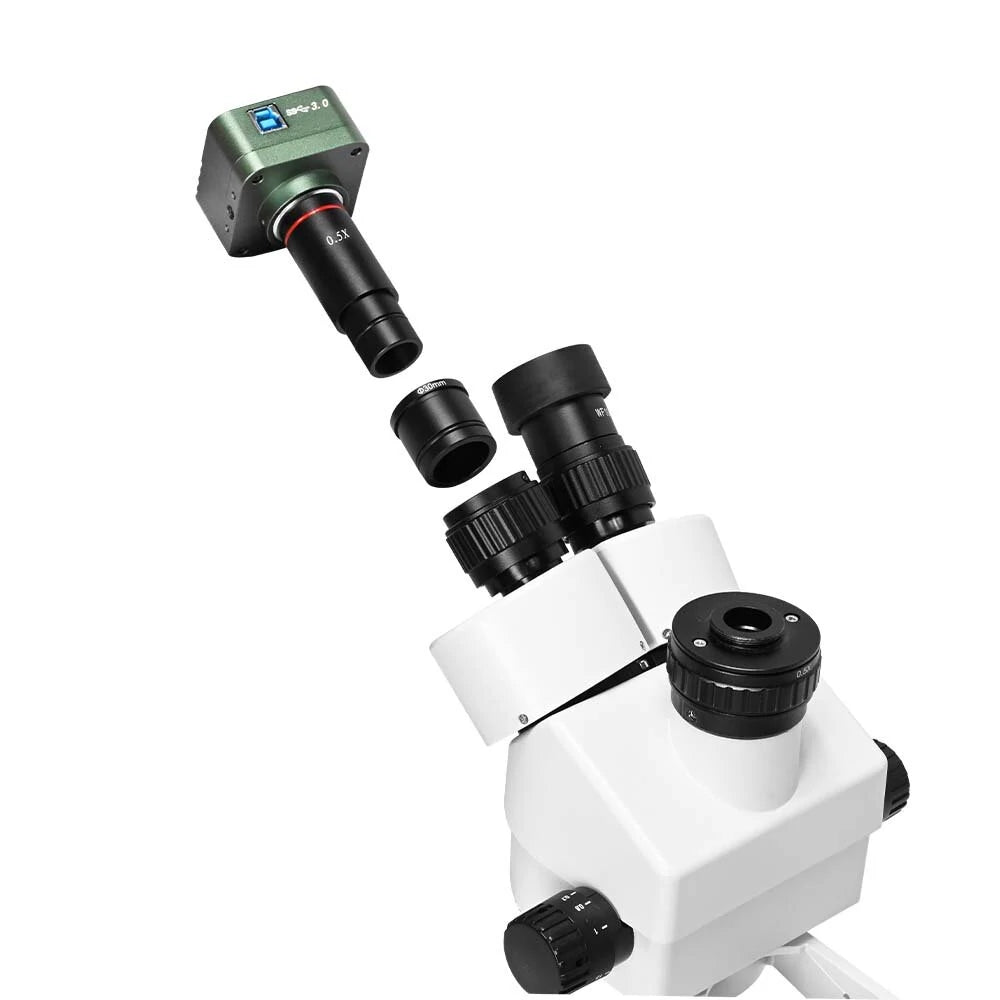

• Easily integrates with binocular or trinocular microscopes to extend the field of view.
• Compatible for direct installation in both biological and stereo eyepiece cameras.

Magnification Options: 0.5X or 1X (Note: 1X does not expand the field of view)

Mounting Sizes Available: 23.2mm, 30mm, 30.5mm

Compatible Microscope Types: Biological and Stereo Microscopes

4K USB 3.0 Camera Specifications

• Image Sensor: 1/2.5" color 317 CMOS image sensor with pixel size of 1.62μm × 1.62μm
• Camera Interface Size: 25mm (C-mount)
• Spectral Response: 400~700nm
• Scan Mode: Progressive scan
• Features a pure hardware 8 megapixel image sensor for true imaging without compression or interpolation.
• Resolutions:
  • 3840x2160 @ 30fps
  • 2592x1944 @ 30fps
  • 2048x1536 @ 30fps
  • 1920x1080 @ 60fps
  • 1600x1200 @ 60fps
  • 1280x1024 @ 60fps
  • 640x480 @ 60fps
• White Balance: Auto / Manual
• Support for USB Video Class (UVC)
• R.G.B Value Setting: Independent
• Auto Exposure Control: Auto / Manual
• Image Output: USB 3.0 (5Gbit/s)
• Operating Temperature Range: -30°C to 75°C
• Working Current: ≈200mA
• Compatible Systems: Windows XP/7/10/11, Linux, Android (UVC protocol compliant devices)
• Preservable Parameters: Brightness, Contrast, Color Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Application Scope

This camera is perfect for applications including but not limited to industrial vision, visual inspection, microscopy, astronomical telescopes, intelligent terminals, face recognition, advertising machines, dish recognition, smart vending cameras, and electronic weighing object recognition.

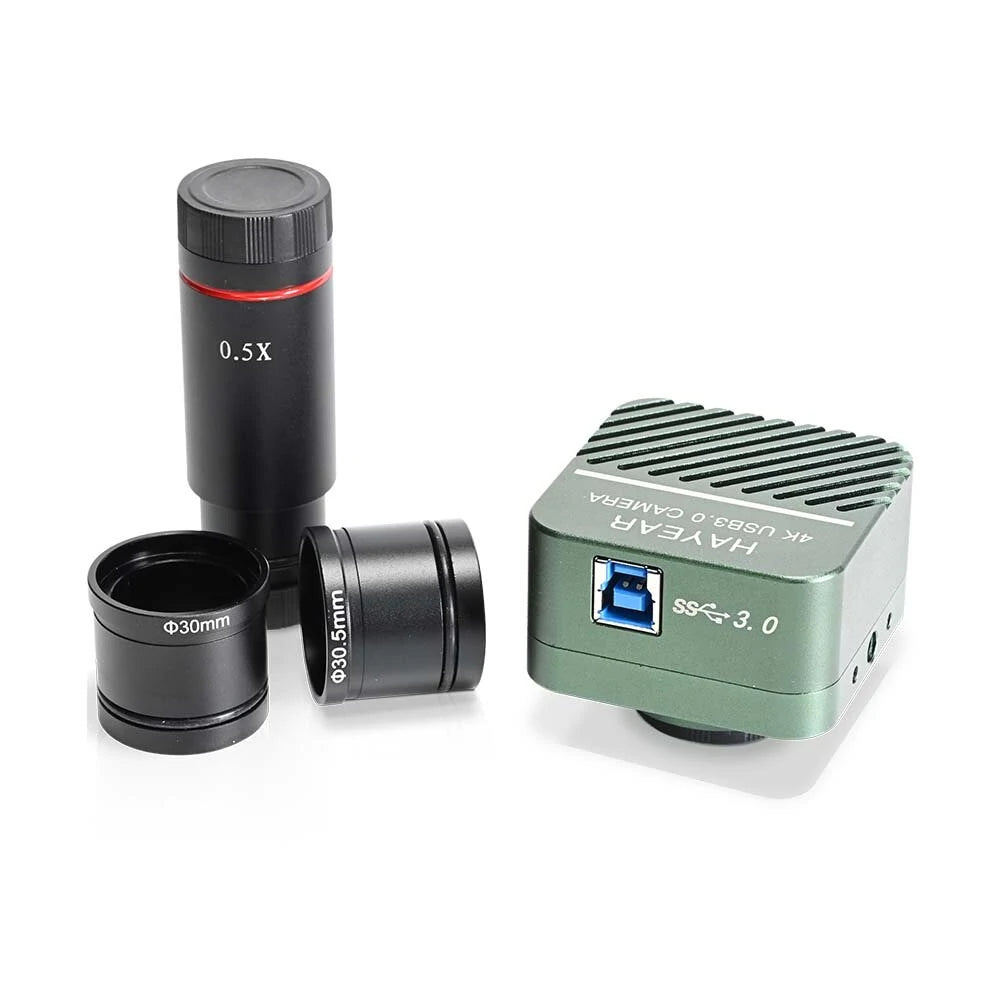

Package Includes

• 1 x 4K Microscope Camera (USB 3.0)
• 1 x USB Cable
• 1 x 0.5X C-MOUNT Adapter
• 1 x 23.2mm to 30mm Adapter Ring
• 1 x 23.2mm to 30.5mm Adapter Ring
• 1 x Measurement Software (Available for Online Download)
