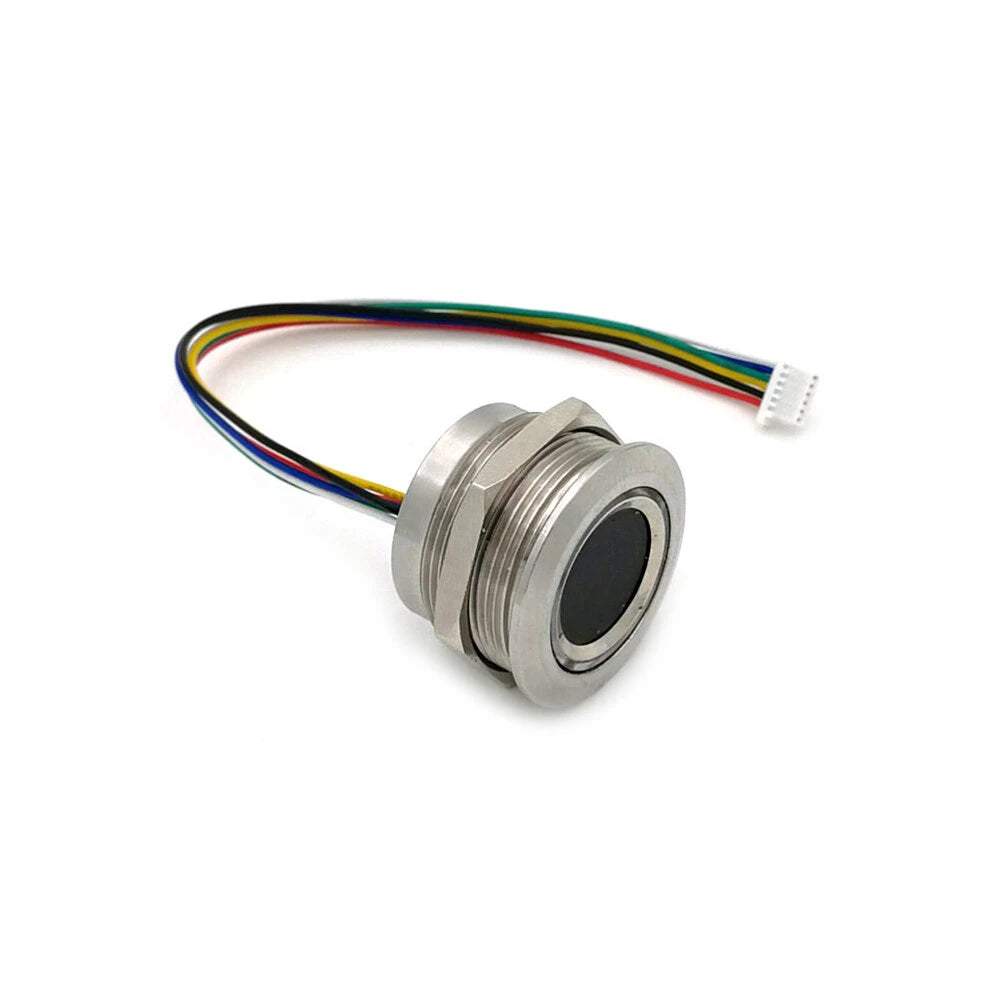

R503 Capacitive Fingerprint Sensor with Two-Color LED Indicator, Circular MX1.0-6pin, DC3.3V

$21.99 USD

~~$0.00 USD~~ $21.99 USD

Sale Sold out

Shipping calculated at checkout.

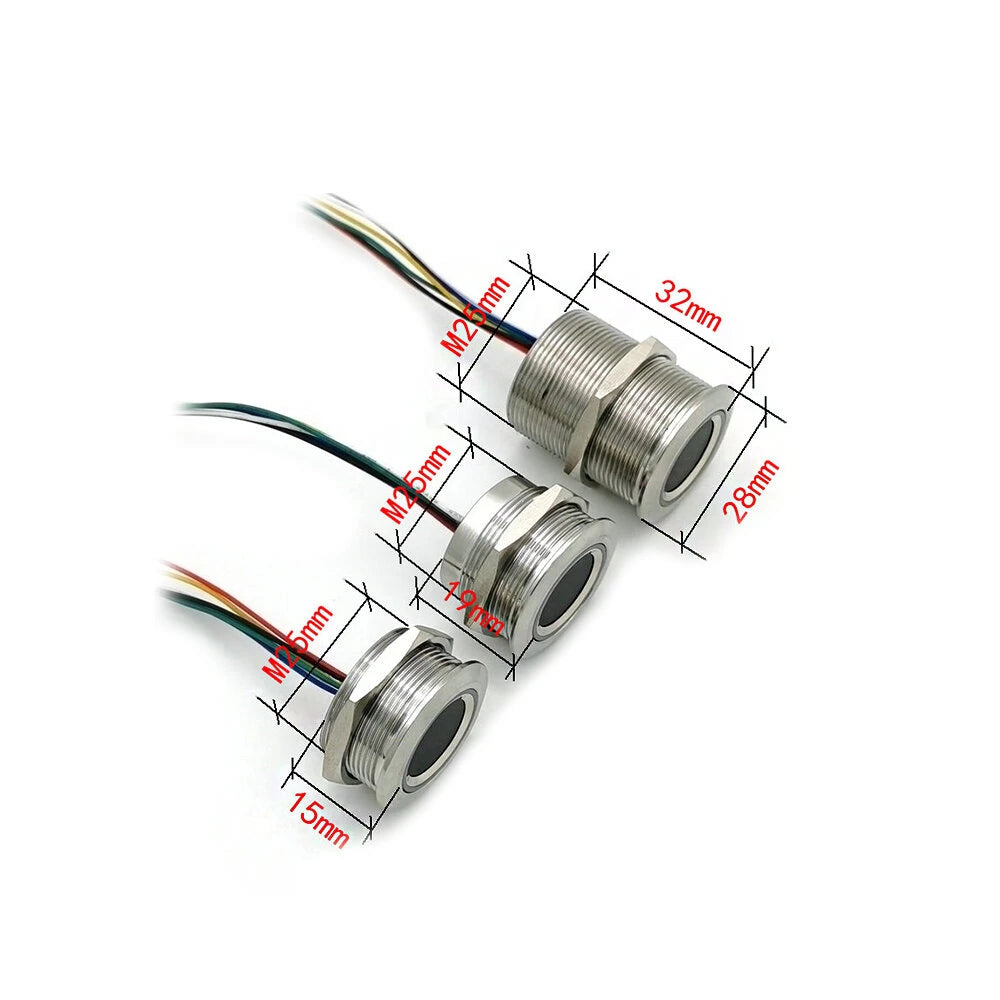

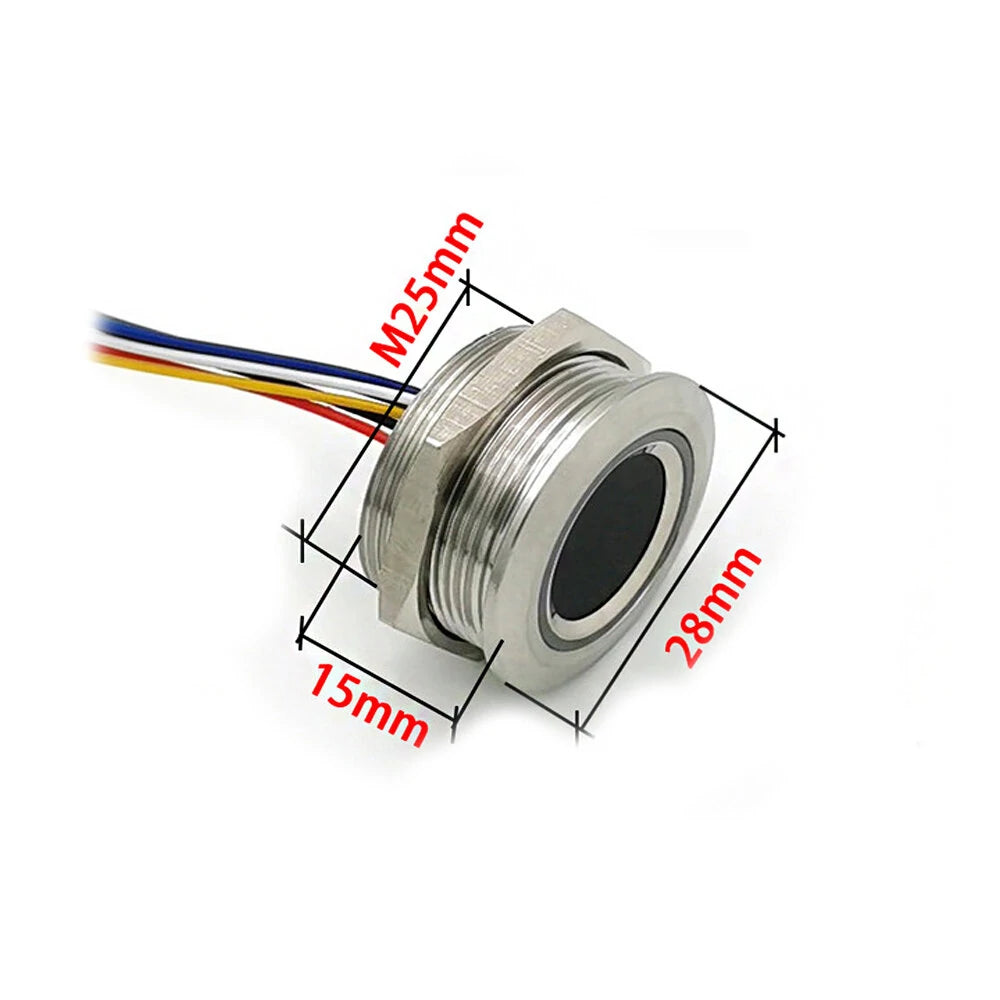

Size 15mm 19mm

Estimated Delivery: -

R503 Capacitive Fingerprint Module Sensor Scanner

Integrated image collecting and algorithm chip, all-in-one design.
High recognition rate for various types of fingerprints, including dry, wet, light texture, and aged fingers.
Ideal for embedding in access control systems, attendance systems, and safety deposit boxes.

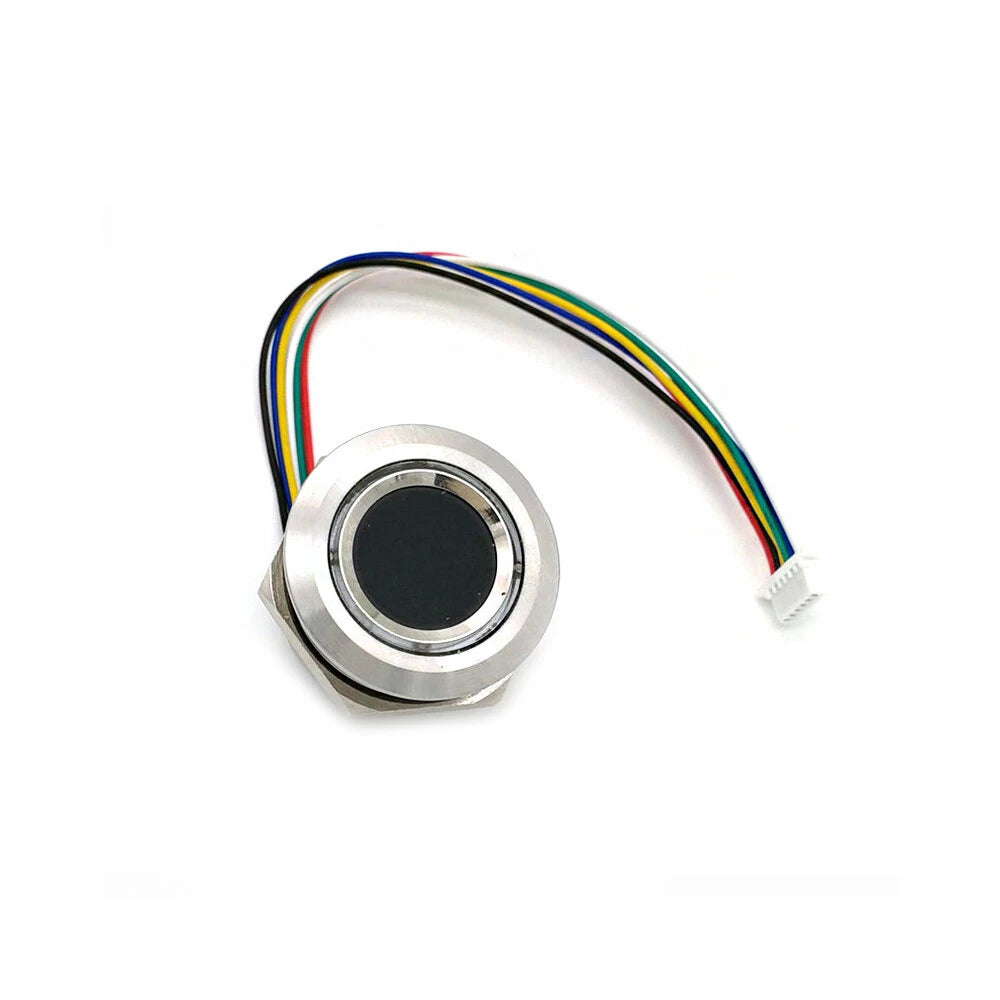

Circular indicator light, controllable by command, with 25mm diameter threads for easy installation.

Model	R503
Type	Capacitive Fingerprint Module
Interface	UART (TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing Array	192×192 pixels
Working Current	20mA
Standby Current	Typical touch standby voltage: 3.3V, Average current: 2μA

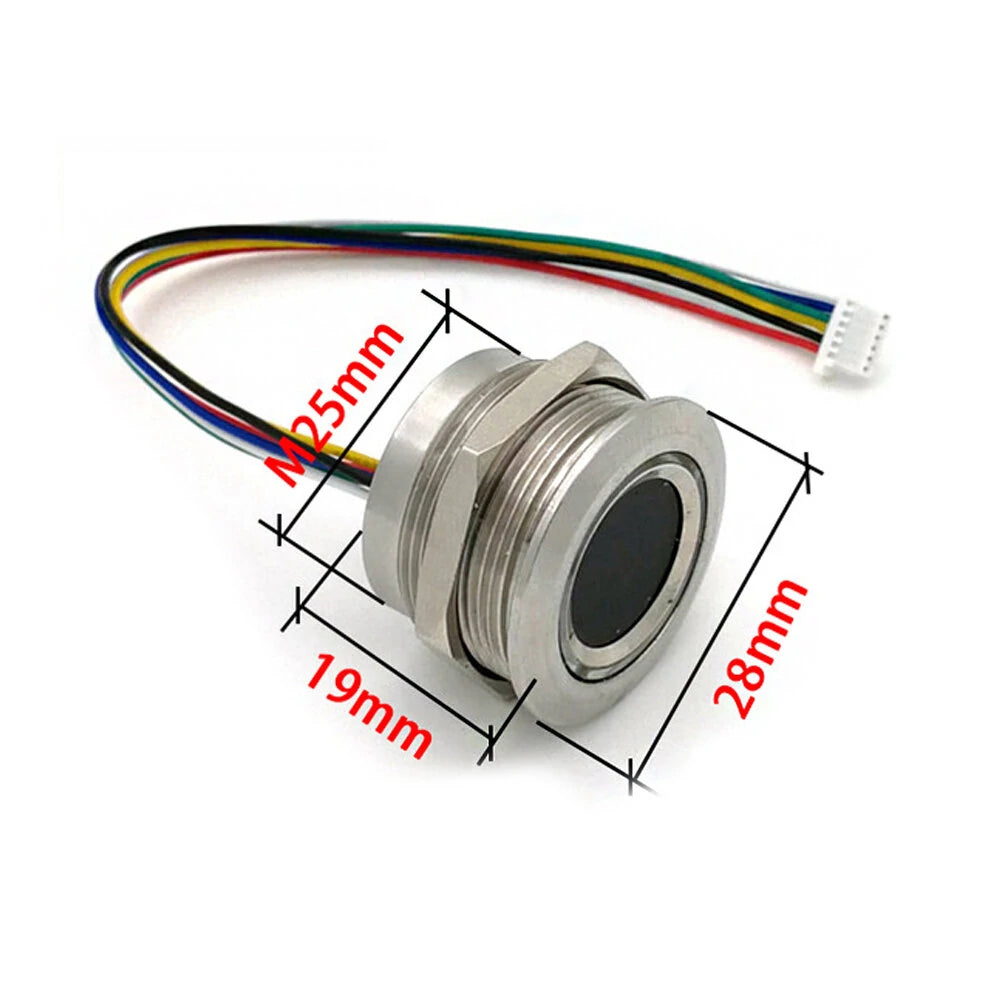

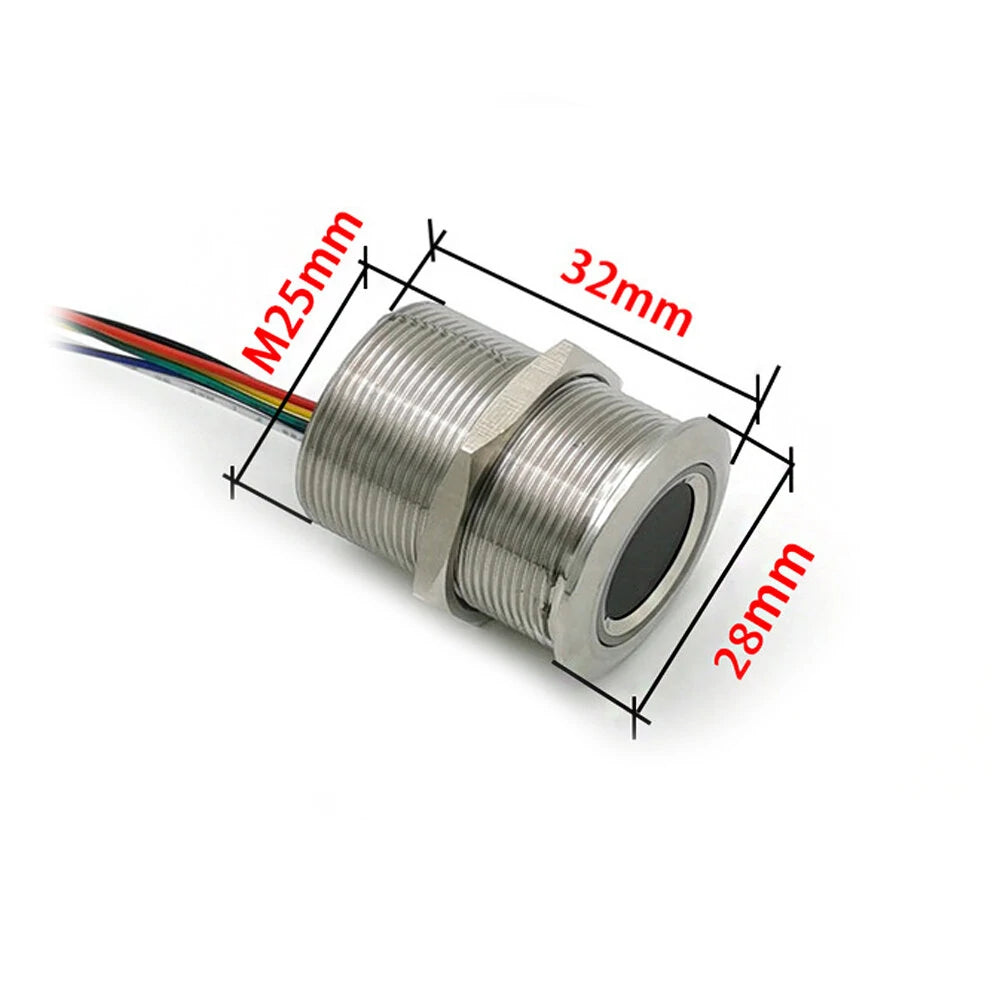

External Size	Diameter 28mm
Inner Size	Diameter 23.5mm
Height	19mm
Effective Collection Area	Diameter 15.5mm

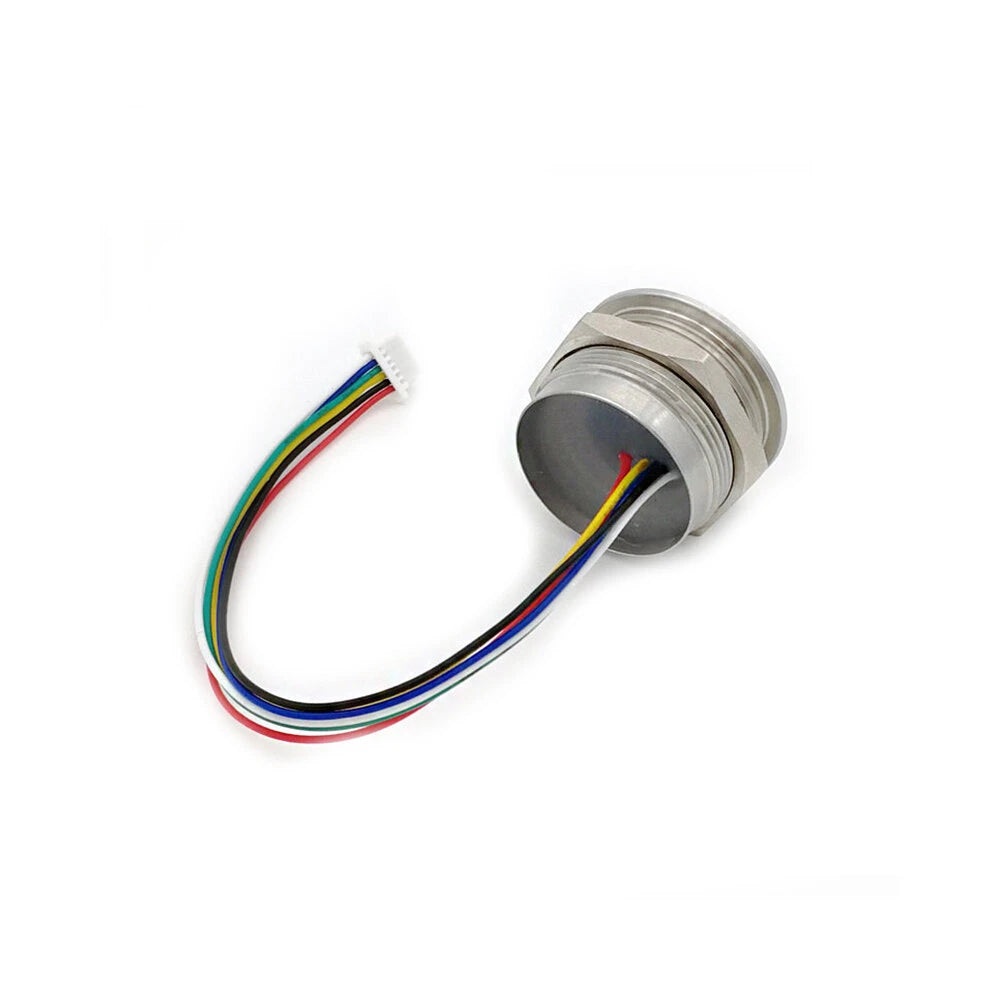

Connector	MX1.0-6Pin
LED Control	Yes
LED Color	Blue and Red
Scanning & Verification Speed	Optimized for high performance
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work Environment	-20°C to 60°C
Work Humidity	10-85%
Anti-static Capacity	15KV
Abrasive Resistance Intensity	1 million times
Communications Baud Rate (UART)	(9600 × N) bps (N = 1 ~ 12, default N = 6, i.e., 57600bps)
