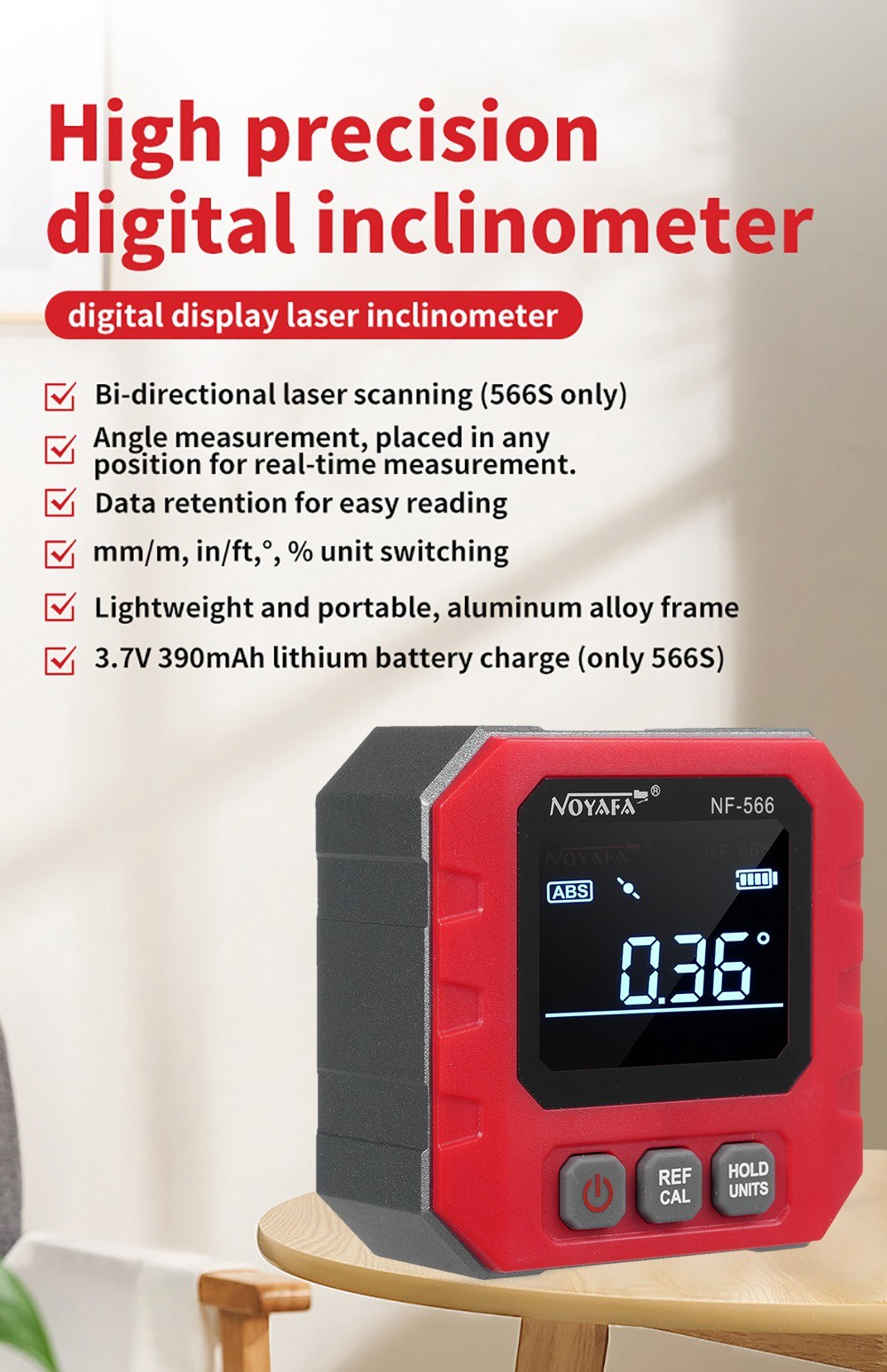

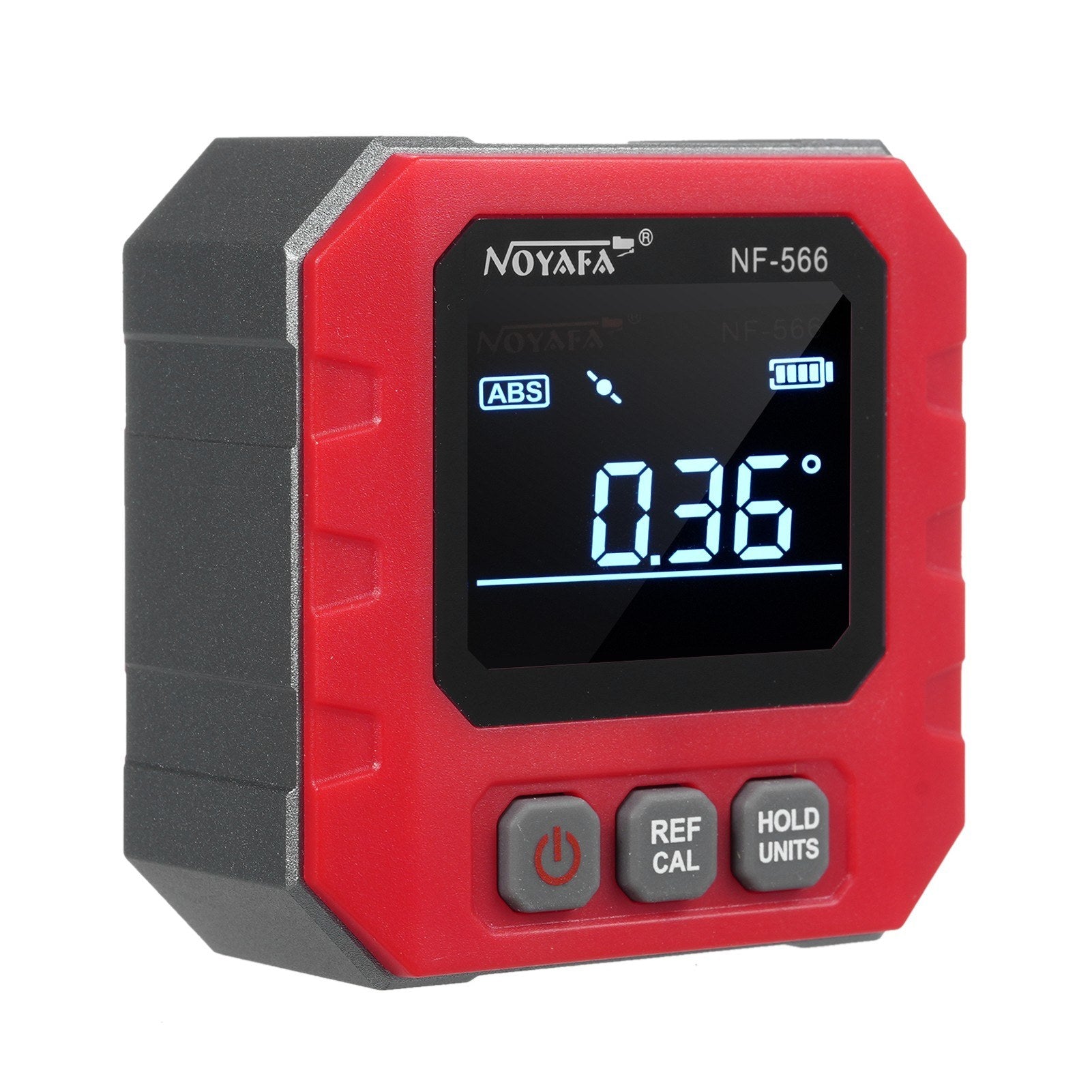

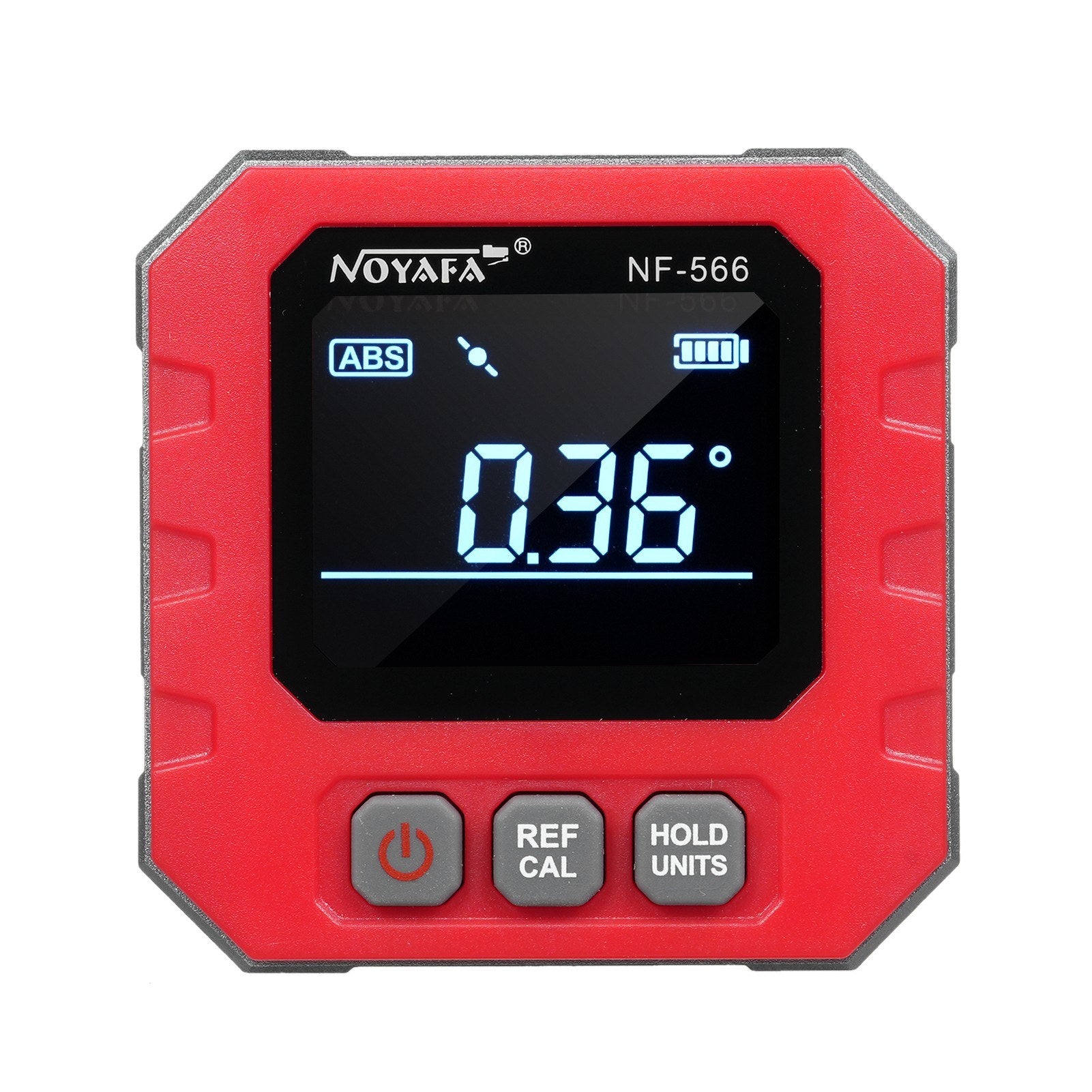

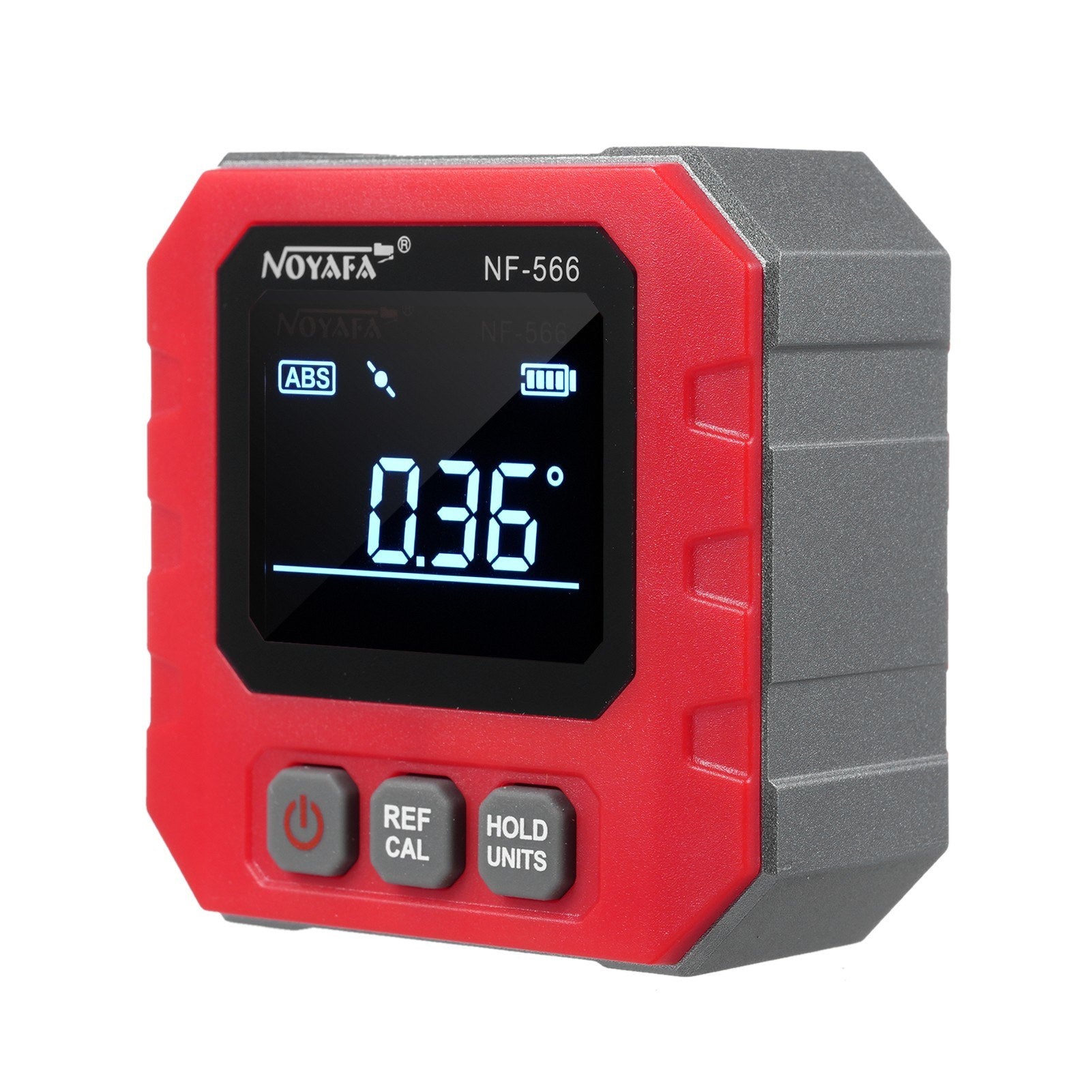

NF-566 / NF-566S Inclinometer

The NF-566 / NF-566S inclinometer features a backlit digital display screen for clear visibility of measurements. With a data hold function, it has become an invaluable tool across multiple sectors including bridge construction, railway paving, civil engineering, industrial automation, and more.

Features

• Premium Design: Elegant and integrated design with standout colors.
• Enhanced Display: VA screen with backlight ensures readability in dark environments.

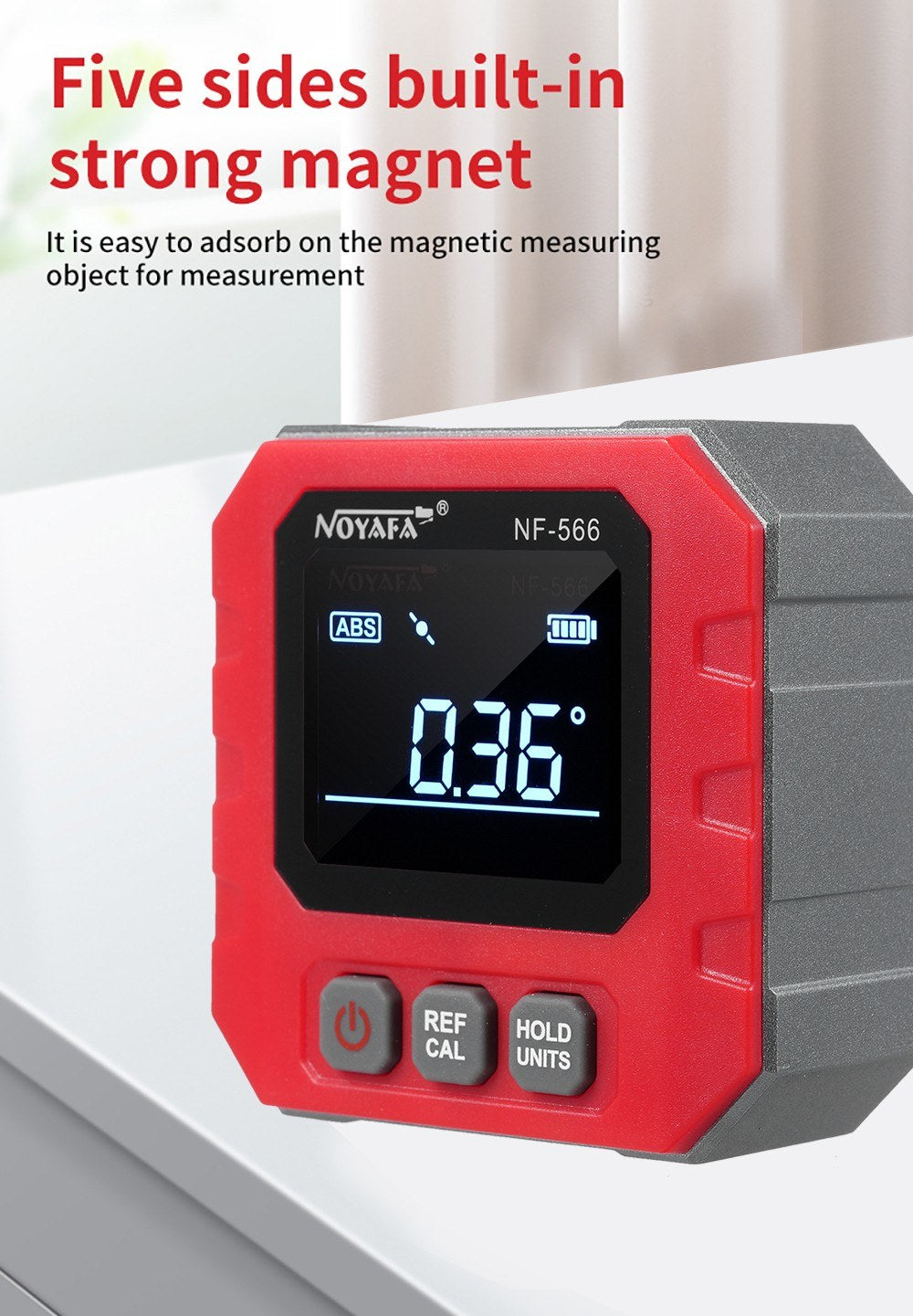

• Magnetic Capability: Built-in strong magnets on five sides allow easy attachment to magnetic surfaces for precise measurement.

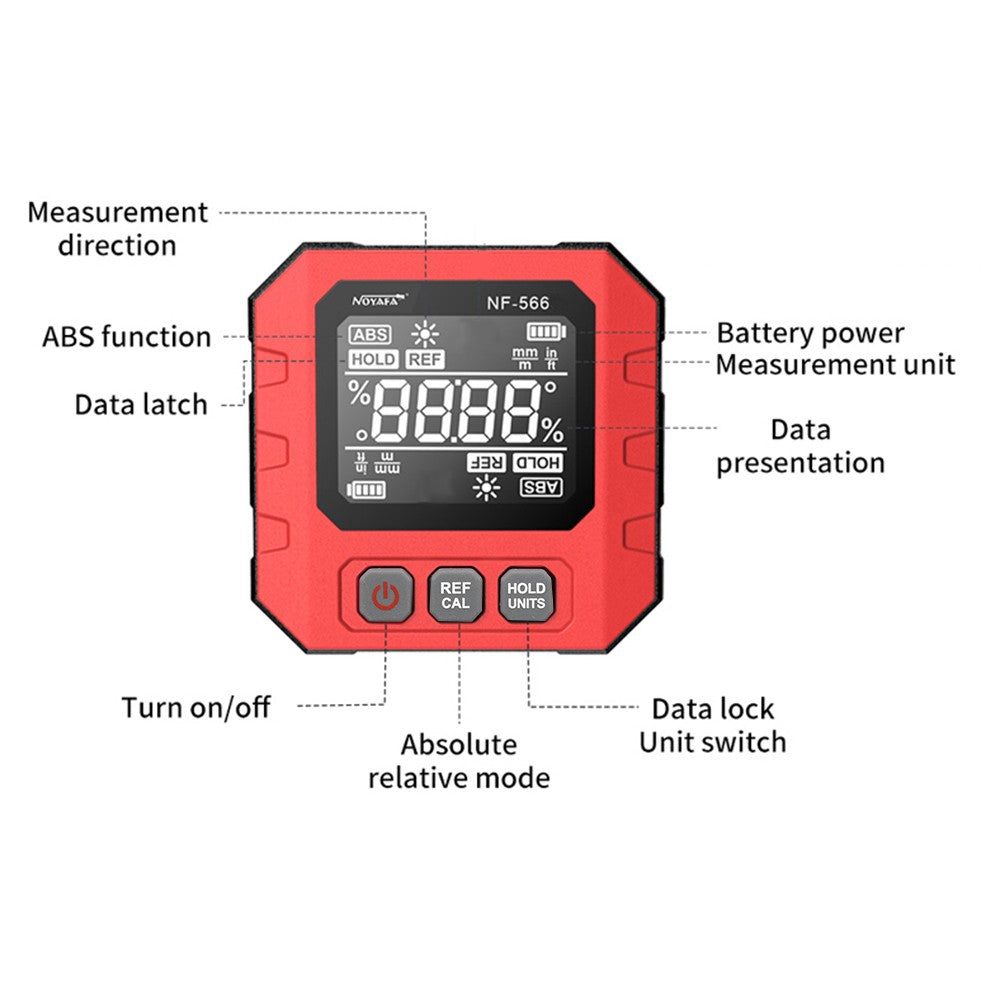

• User-Friendly Operation: Three buttons with clearly defined functions, offering up to six combinations of long and short press functions.
• Data Hold Function: Facilitates ease of use, enhancing user experience.
• Compact Size: Fits conveniently in your tool bag, making it ideal for daily use without occupying much space.

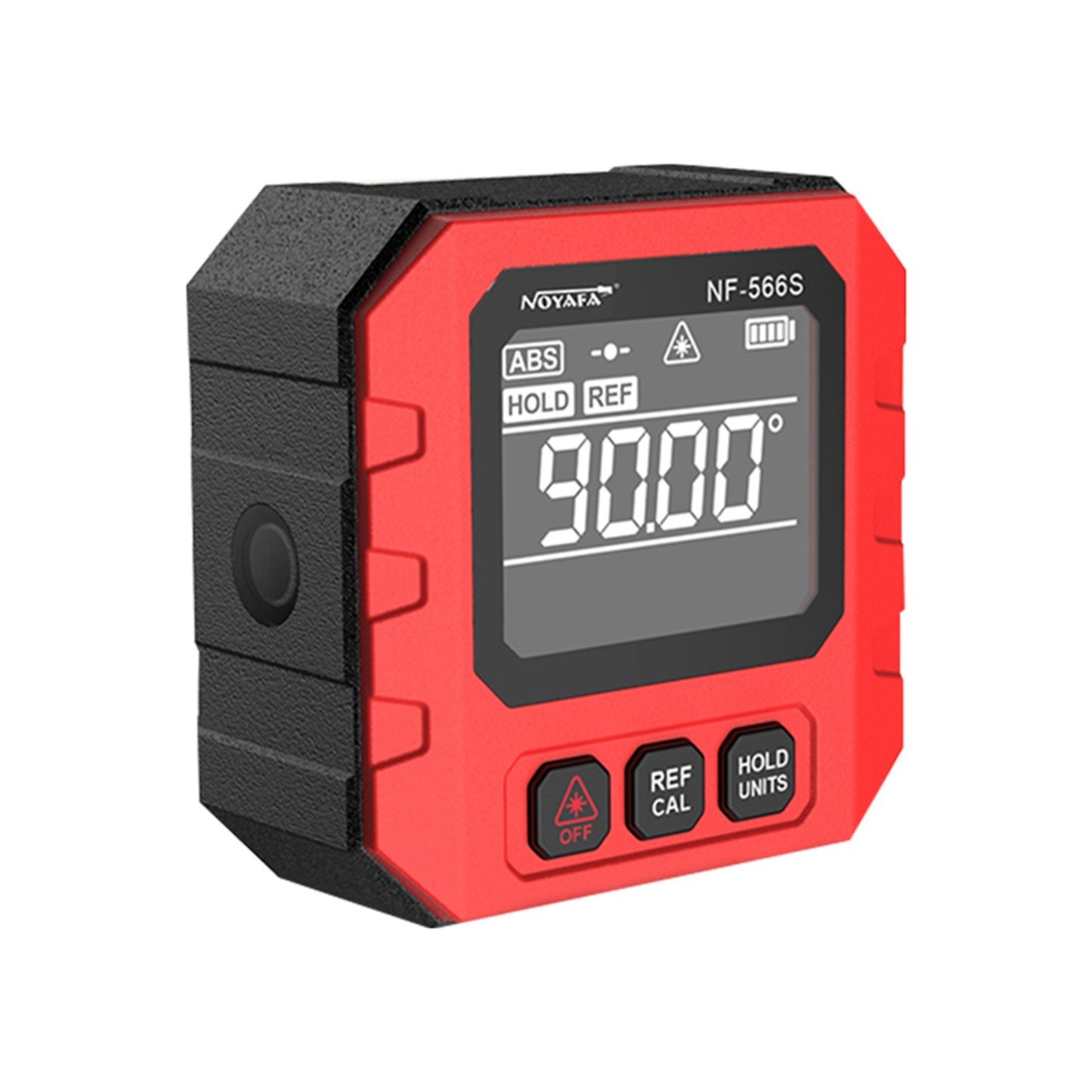

Additional Features - NF-566S Model

• Laser Guidance: Equipped with a laser horizontal line to highlight references clearly.
• Rechargeable Power: Convenient and straightforward USB Type-C charging.

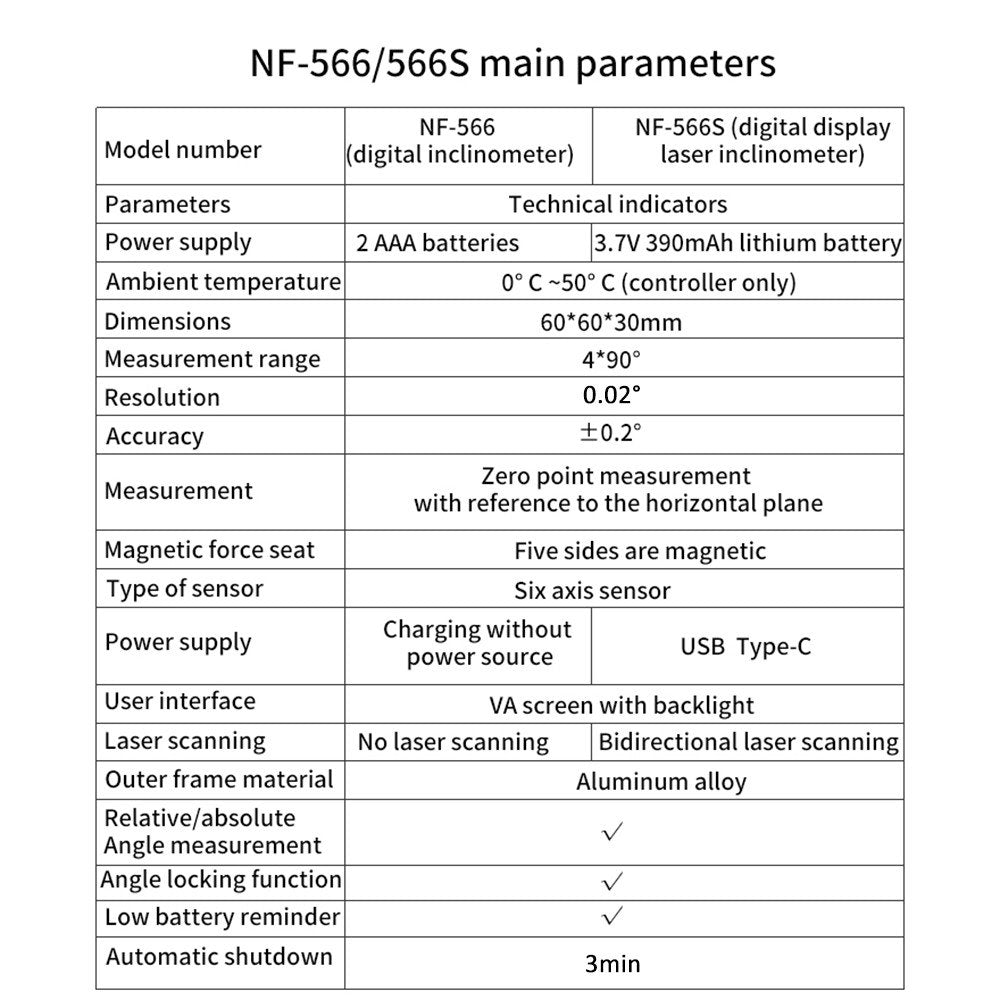

Specifications

• Models: NF-566 / NF-566S (Optional)
• Laser Scanning: NF-566: No laser scanning, NF-566S: Bidirectional laser scanning

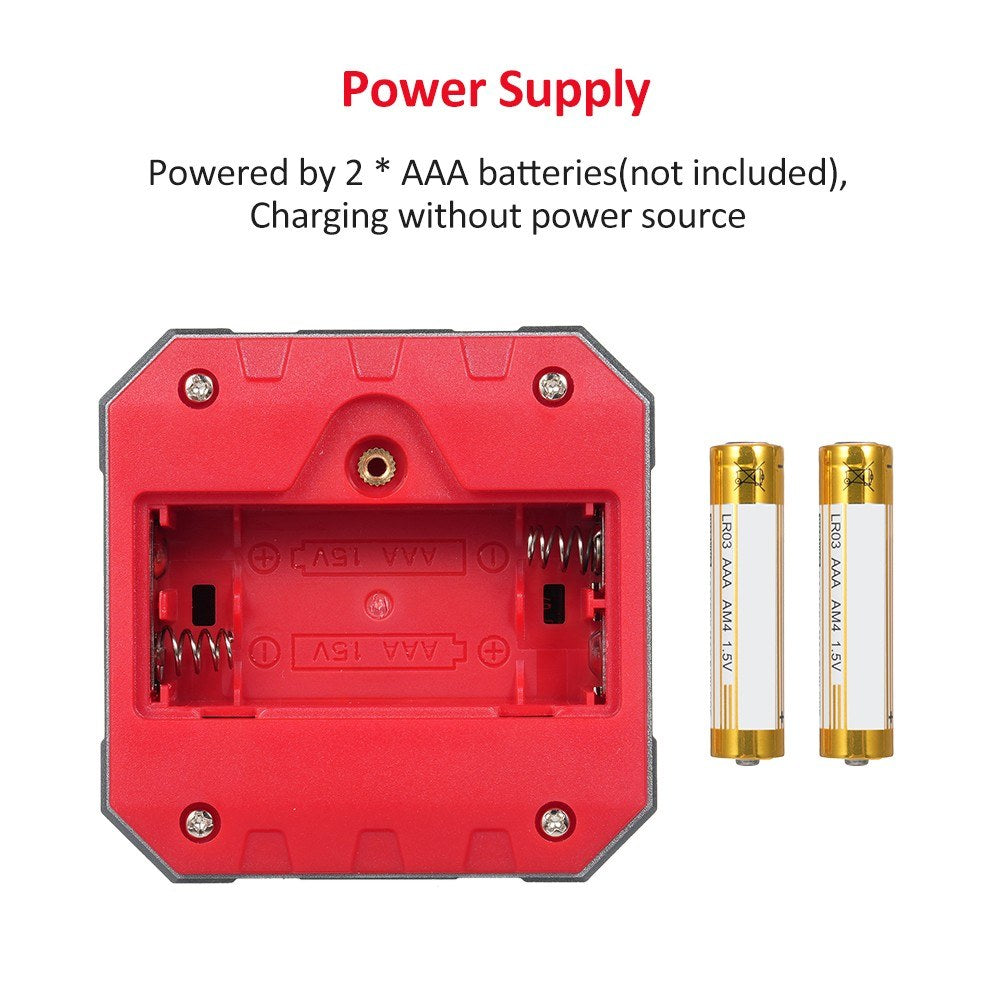

• Power Supply: NF-566: 2 AAA batteries, NF-566S: 3.7V 390mAh lithium battery, USB Type-C

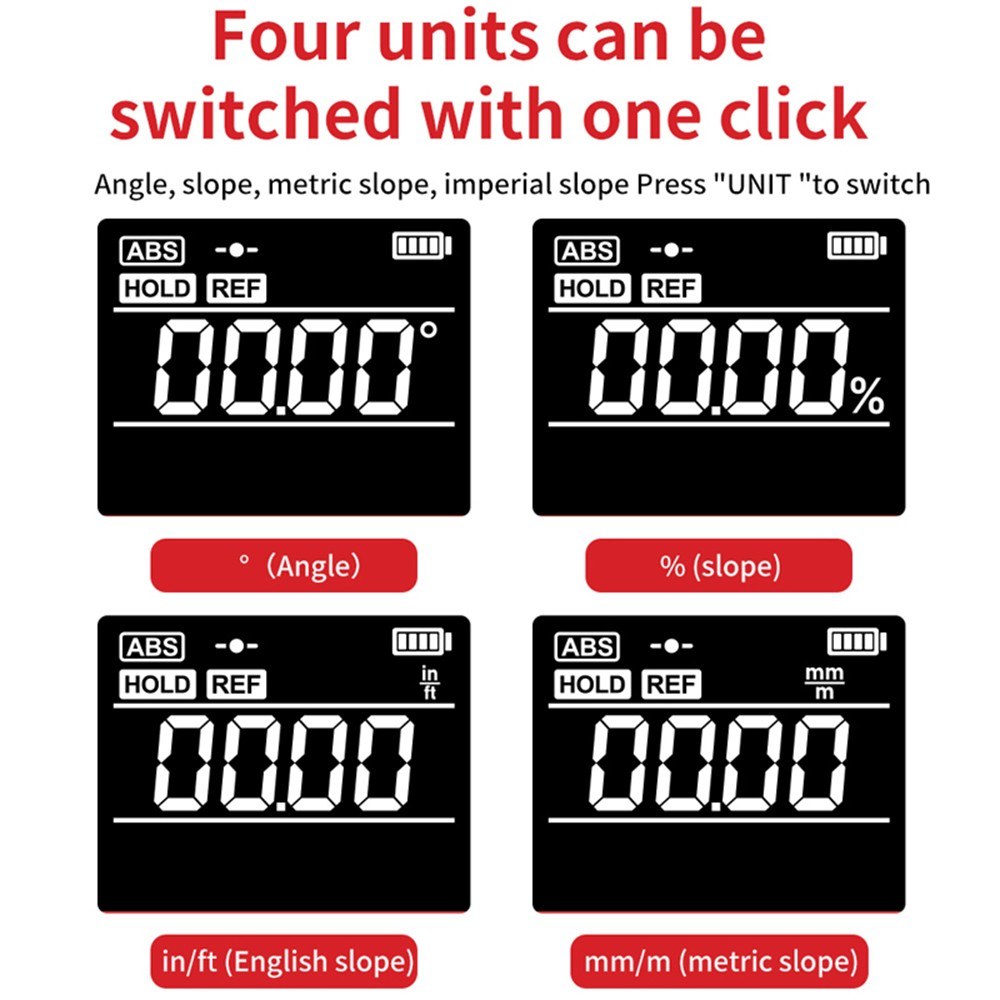

• User Interface: VA screen with backlight
• Sensor Type: Six axis sensor
• Magnetic Force: Magnetic on five sides

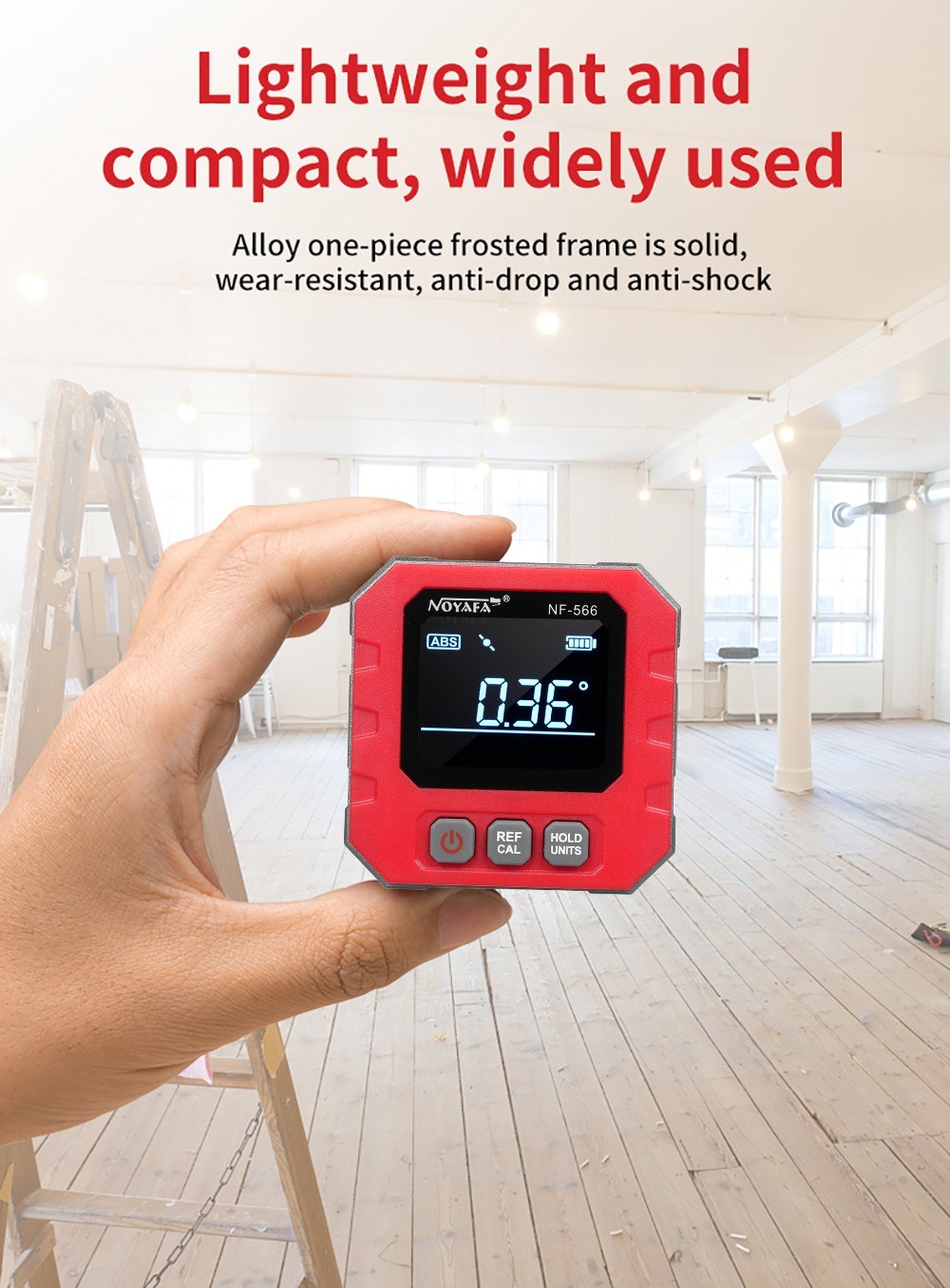

• Material: Aluminum alloy for outer frame

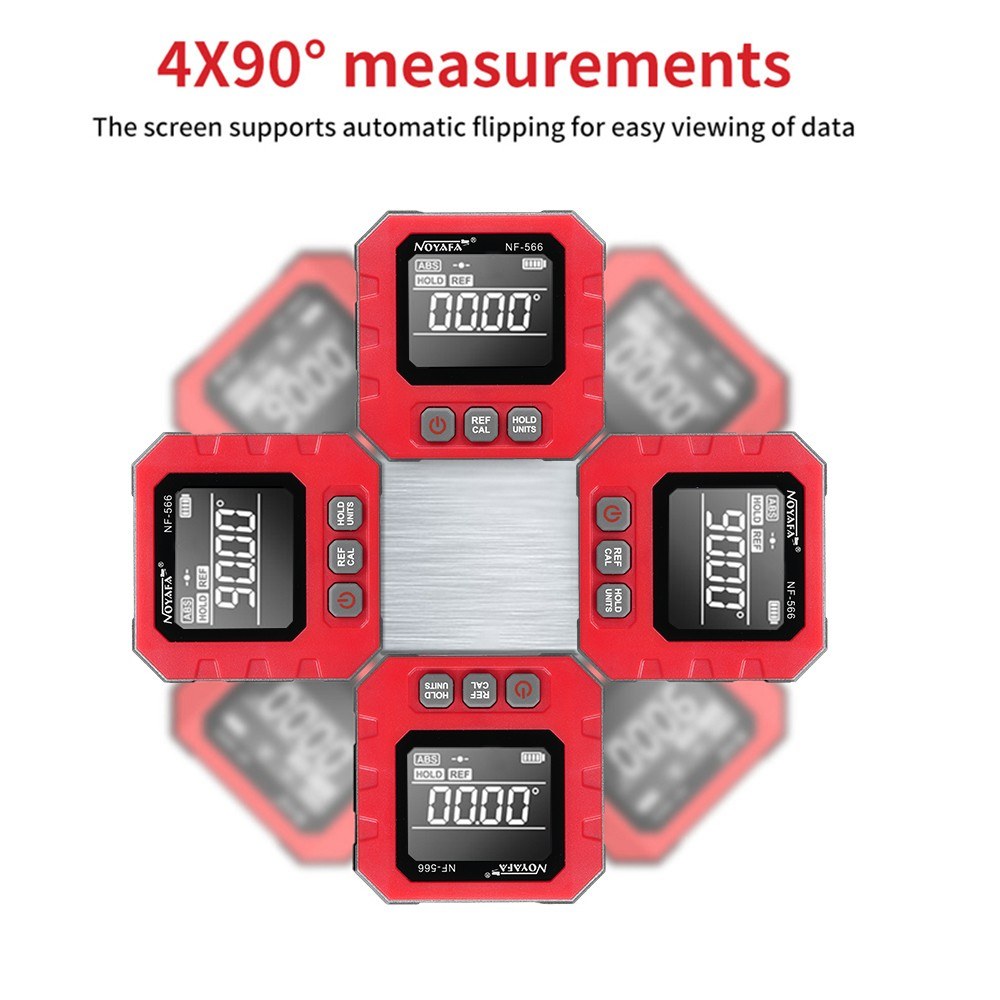

• Measurement Range: 4 × 90°

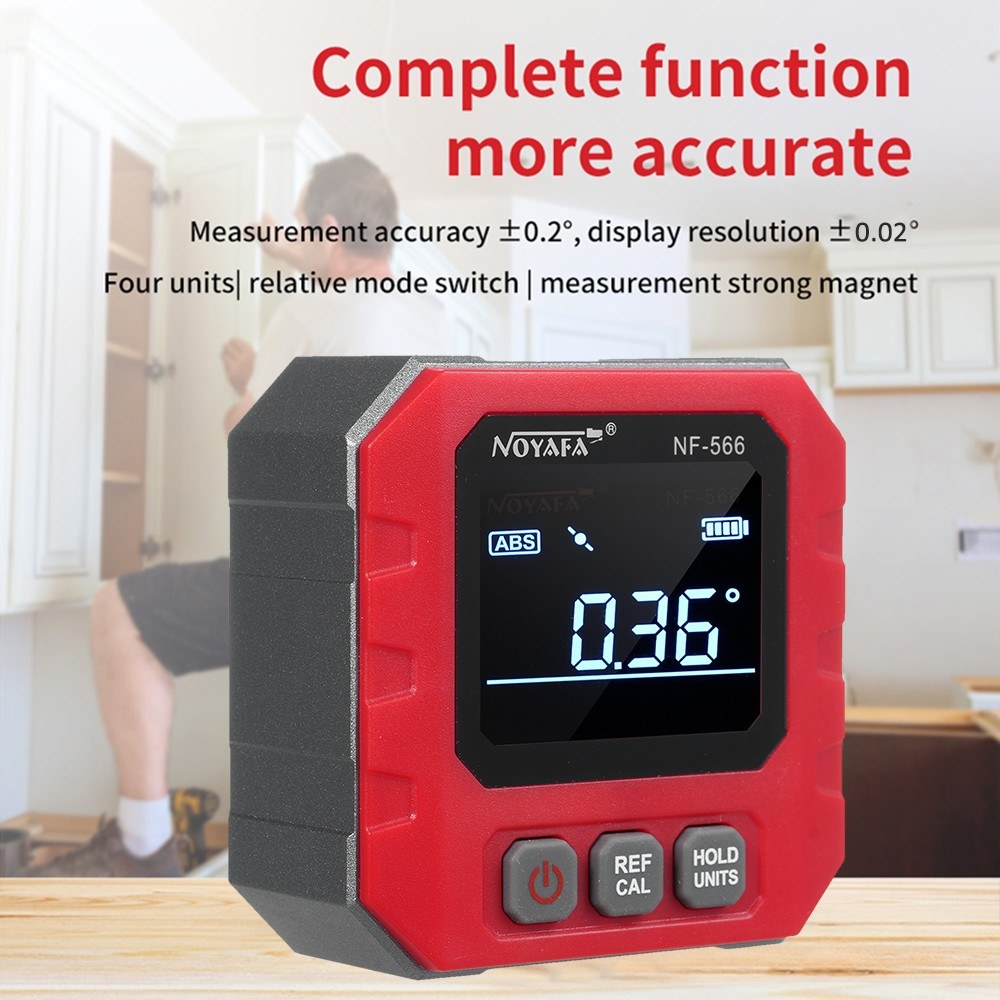

• Accuracy: ±0.2°
• Resolution: 0.02
• Operating Temperature: 0℃-50℃ (Controller only)

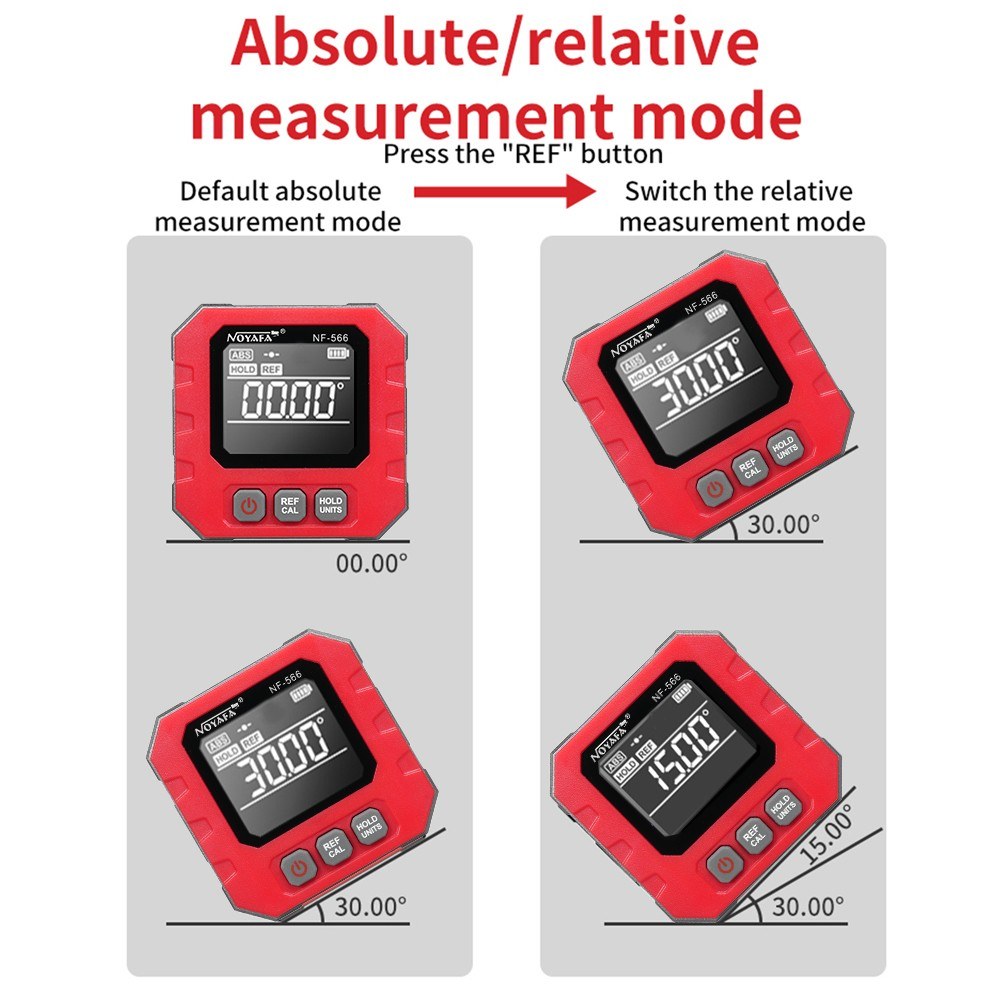

• Functions: Zero point measurement, Relative/Absolute angle measurement, Angle locking, Low battery reminder, Automatic shutdown after 3 minutes

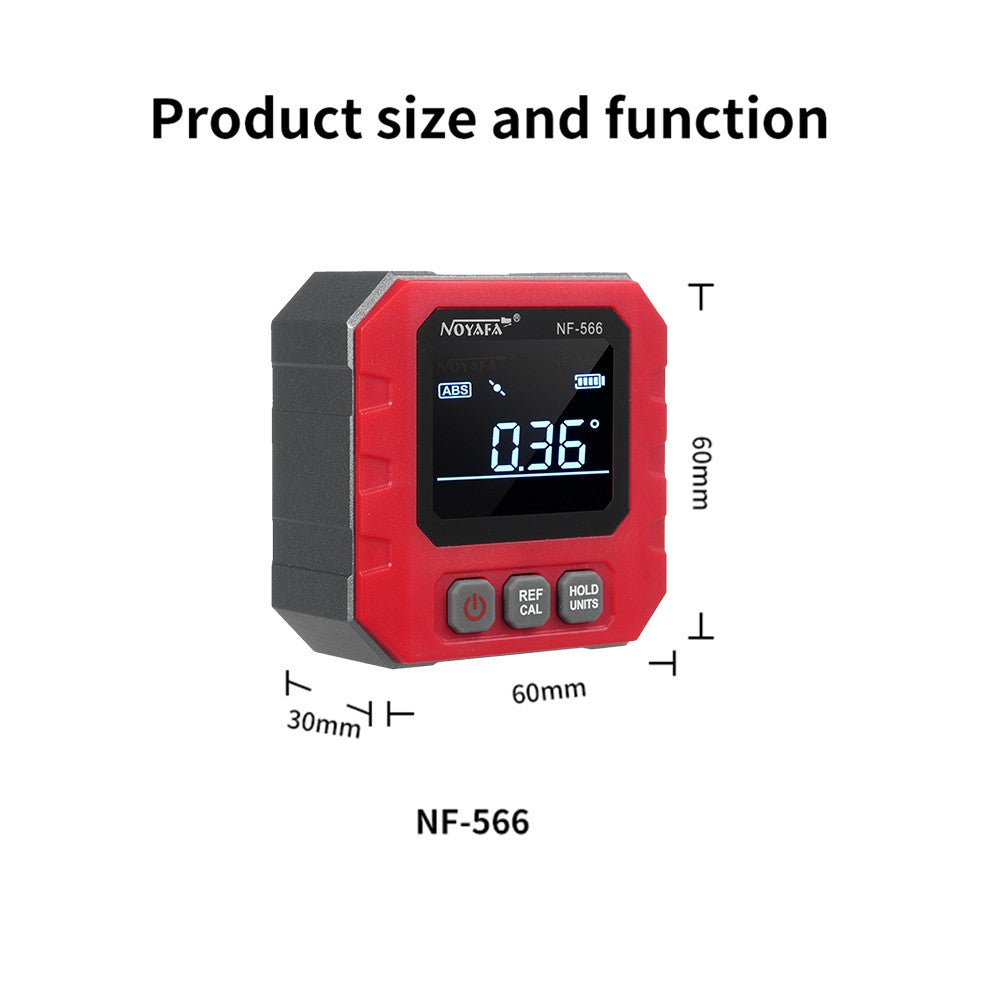

• Dimensions: 60 × 60 × 30 mm (2.36 × 2.36 × 1.18 inch)
• Weight: Item: 122g (4.3oz), Package: 189g (6.67oz)

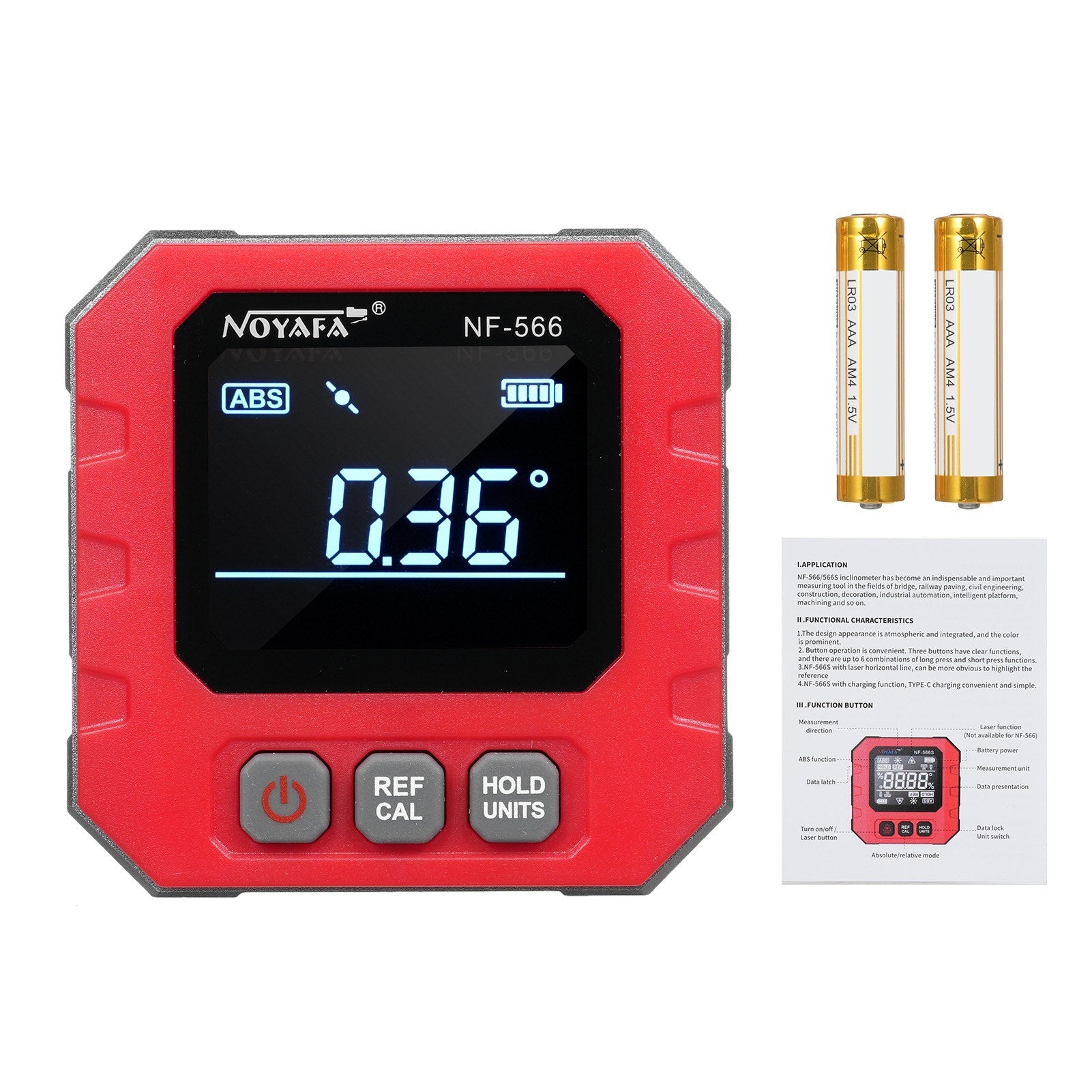

Included in Package

• 1 x Digital Inclinometer
• 1 x User Manual (English)
