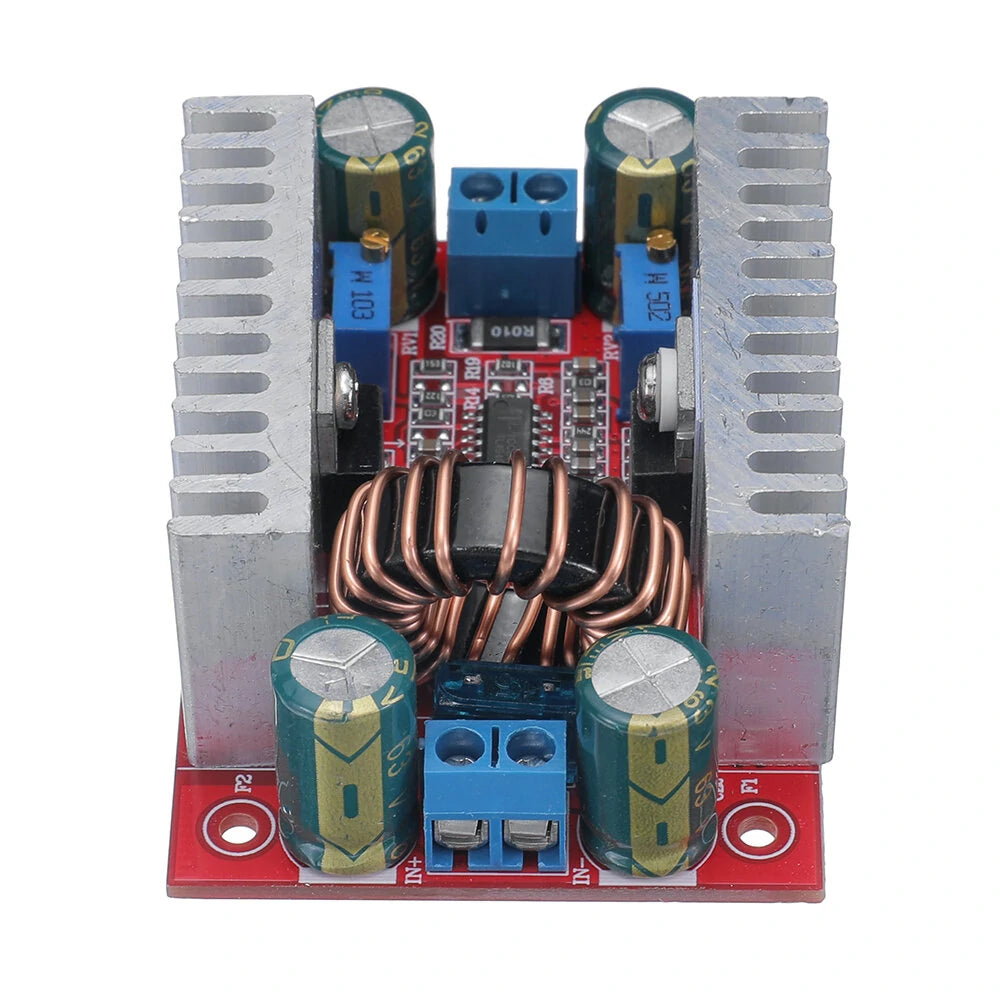

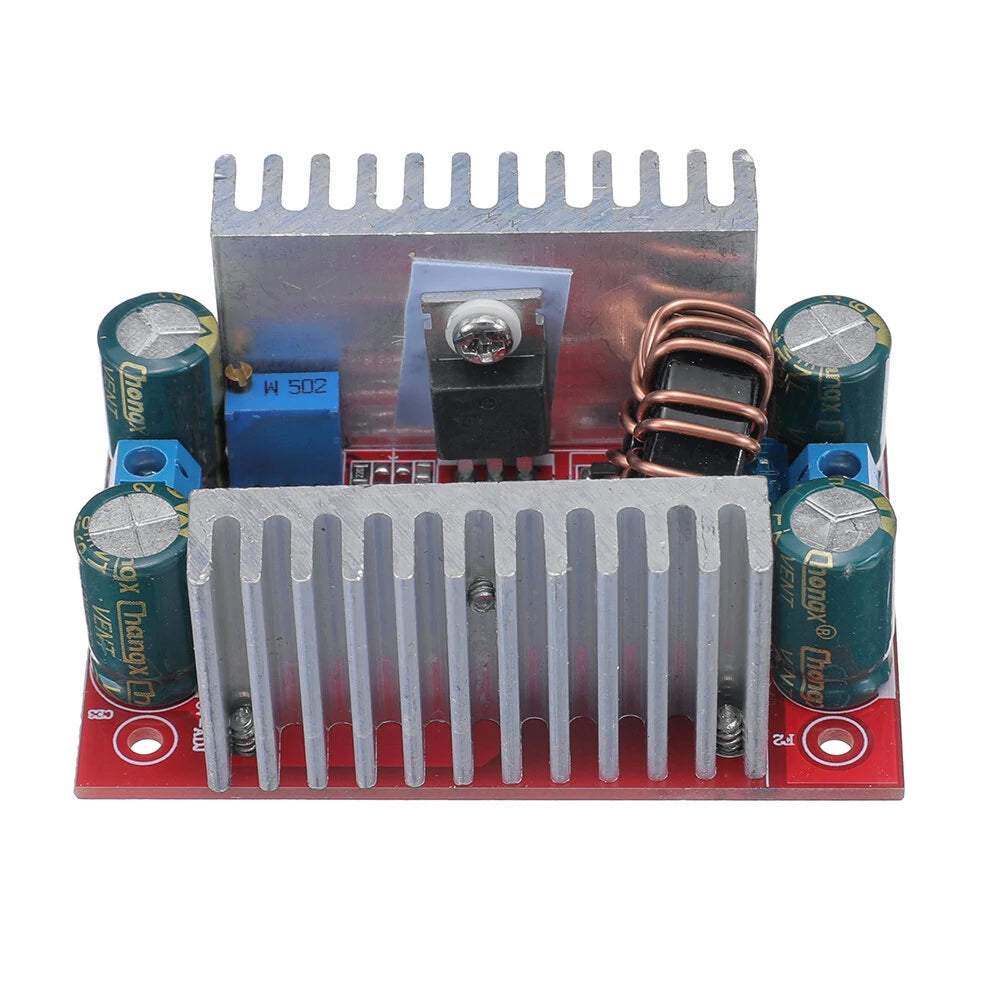

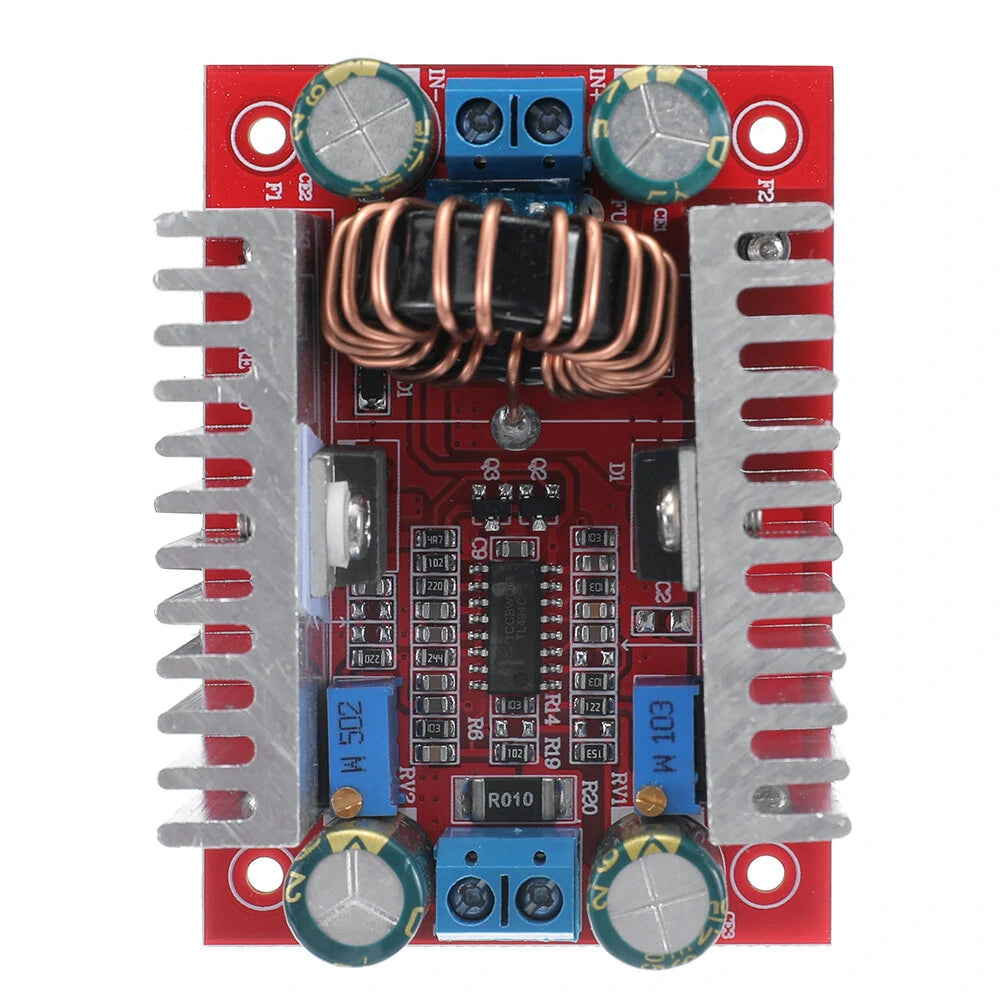

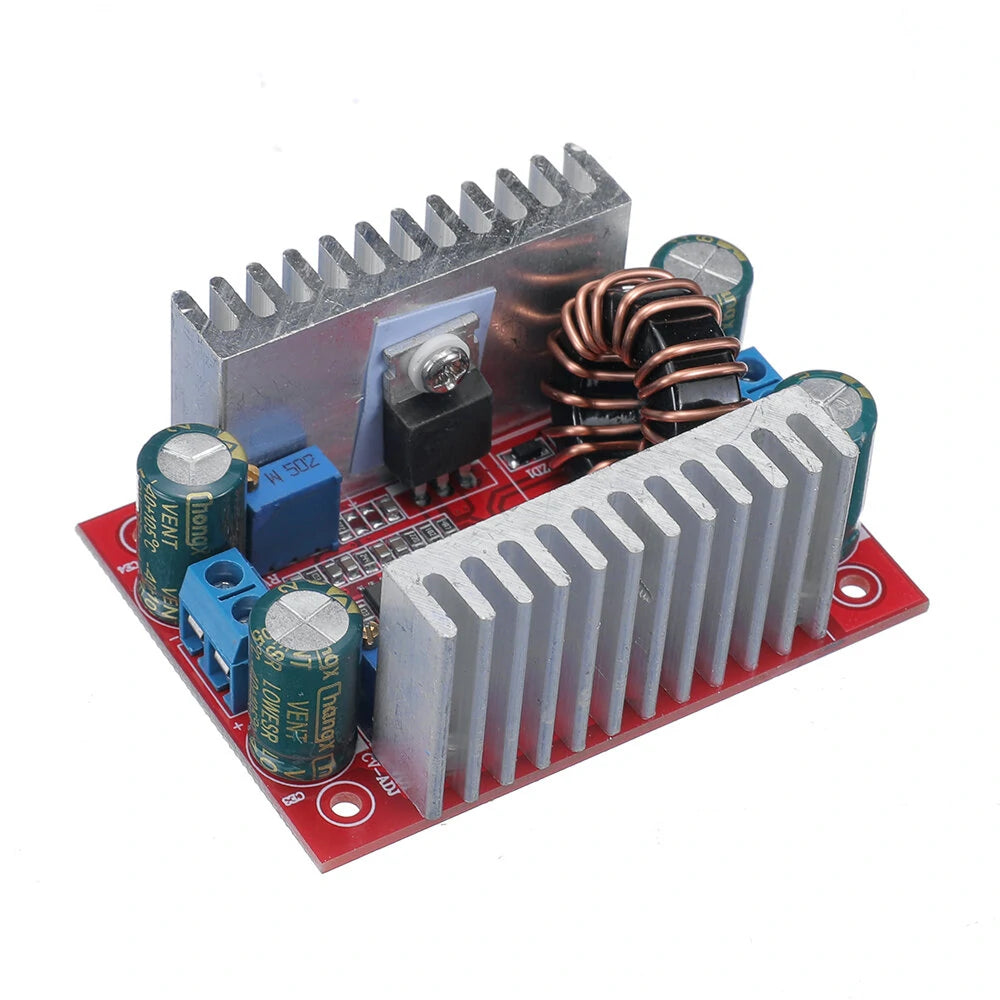

400W DC 15A Boost Converter LED Driver, 8.5-50V to 10-60V Step-Up Power Supply Module

Product Details:

Specification:

• Module Name: 400W Boost Constant Current Module
• Module Type: Non-isolated Step-up Module (BOOST)
• Input Voltage: DC 8.5V - 50V
• Input Current: Up to 15A (Note: Enhance heat dissipation for currents exceeding 8A)
• Quiescent Current: 10mA (Increases with higher output voltage)
• Output Voltage: 10V - 60V (Continuously Adjustable)
• Constant Current Range: 0.2A - 12A
• Temperature Range: -40°C to +85°C (Enhance heat dissipation for high ambient temperatures)
• Operating Frequency: 150KHz
• Conversion Efficiency: Up to 96%
• Overcurrent Protection: Yes
• Input Reverse Polarity Protection: No
• Installation: 4 mounting screw holes (2.55mm)
• Connection Method: Output Connection
• Module Size: 67mm x 48mm x 28mm (L x W x H)
• Weight: 60g (Single Module)

Features:

• Versatile Power Solution: This boost converter module allows you to create DIY power supplies or adapt existing systems with input voltages from 8.5V to 50V and adjustable output voltages from 10V to 60V.
• Constant Current Output: The module features a wide constant current range of 0.2A to 12A, making it suitable for applications requiring steady and controlled current flow.
• High Conversion Efficiency: With an impressive conversion efficiency of up to 96%, this module minimizes energy loss and maximizes power output, making it suitable for energy-sensitive projects.
• Overcurrent Protection: Built-in overcurrent protection ensures the safety of your connected devices by preventing excessive current from damaging the module or connected components.
• Robust Design: Designed for durability, this module operates within a temperature range of -40°C to +85°C. Its compact size and mounting screw holes simplify installation in various setups.

Package Includes:

• 1x Power Supply Module
