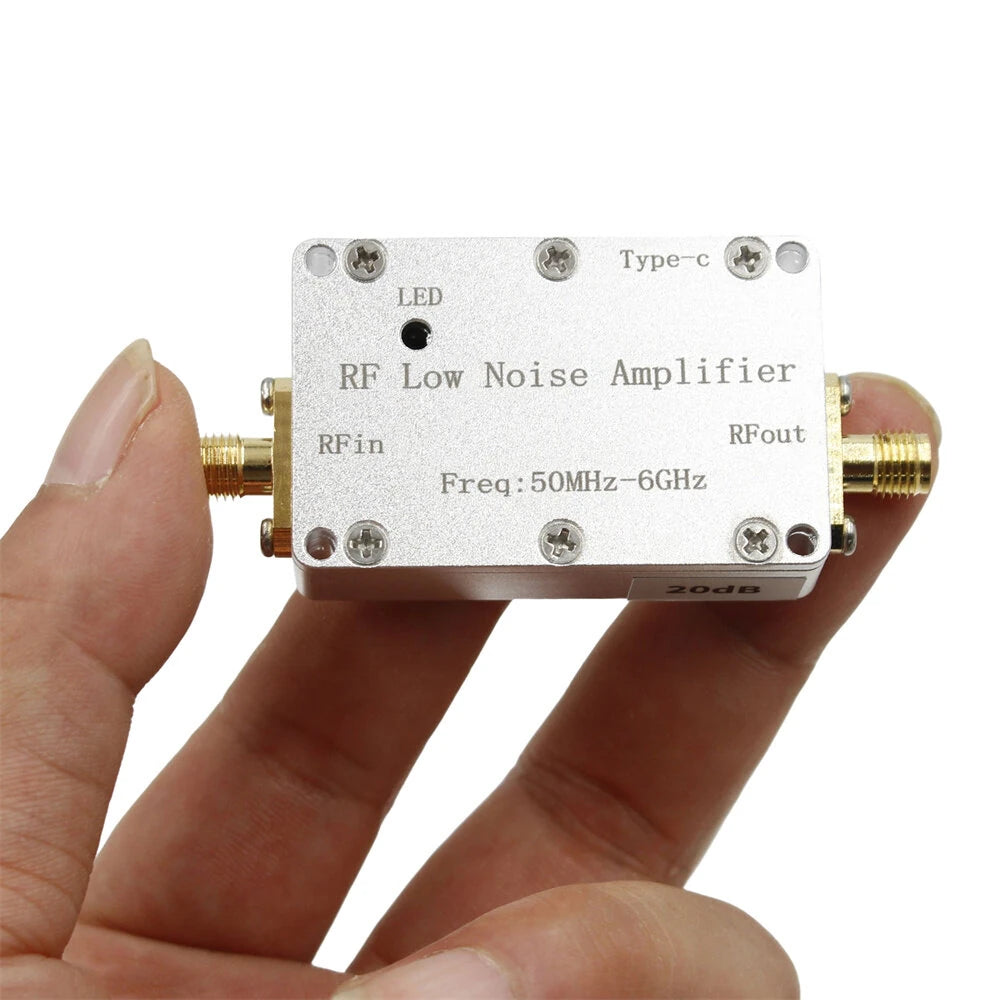

RF Low Noise Amplifier 50M-6GHz 20DB/30DB High Gain for Drone GPS Radio FM HackRF One Signal Reception

Specifications:

• Power Supply: TYPE-C line
• Frequency Range: 50MHz-6GHz
• Noise Coefficient: NF=4-5dB (refer to measured curve for specific frequencies)
• Gain: 20dB-30dB (refer to measured curve for different frequencies)
• Dimensions: 4.5 x 3 x 1.4 cm (excluding protruding SMA)
• Weight: 66g (including host and TYPE-C cable)
• Current Consumption: P1dB: 18dBm@2GHz

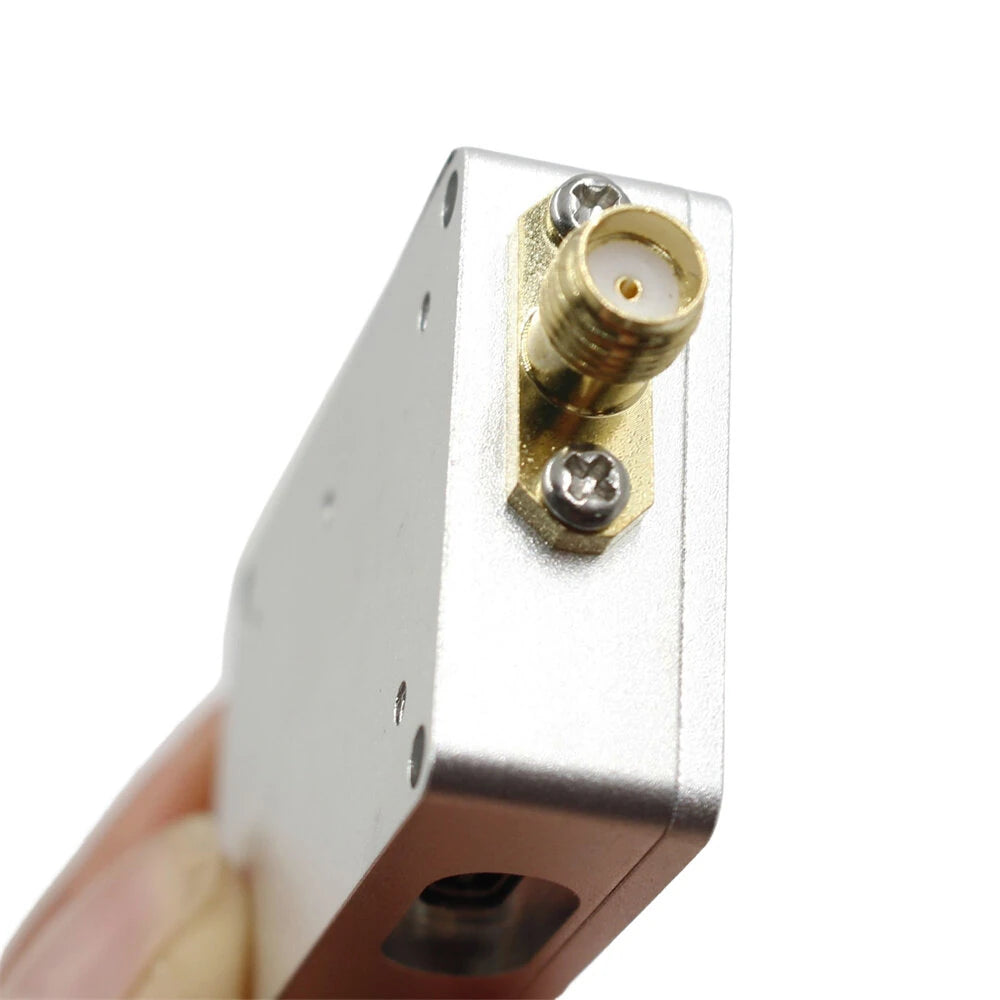

• Output Interface: SMA female
• Input-Output Impedance: 50 ohms

Features:

• Wide Frequency Range: Operating within a 50MHz to 6GHz range, this receiver amplifier is ideal for various applications, including Beidou/GPS receivers, FM radio reception, radar reception, and electromagnetic compatibility systems. It provides robust coverage suitable for multiple uses.
• High Gain Levels: With selectable gain levels of 20dB and 30dB, this amplifier allows fine-tuning to achieve the desired signal strength. Adjust the gain according to specific needs to ensure superior performance in diverse applications like software radio receivers and intermediate frequency signal amplification.
• Enhanced Signal Clarity: A low noise figure of 4-5dB guarantees excellent signal amplification with minimal interference. This feature is essential for maintaining high-quality signal reception, making it perfect for sensitive applications requiring precise signal clarity.
• Compact and Lightweight: The module's compact dimensions of 4.5 x 3 x 1.4 cm and a lightweight design of 66g, including the host and TYPE-C cable, make it highly portable and easy to integrate. Its small size ensures ease of installation without compromising on performance.
• Robust and Reliable Construction: Encased in an aluminum alloy shell, this amplifier is designed to withstand challenging environments. The SMA female connectors and 50-ohm input-output impedance guarantee secure and stable connections, providing consistent and reliable performance.

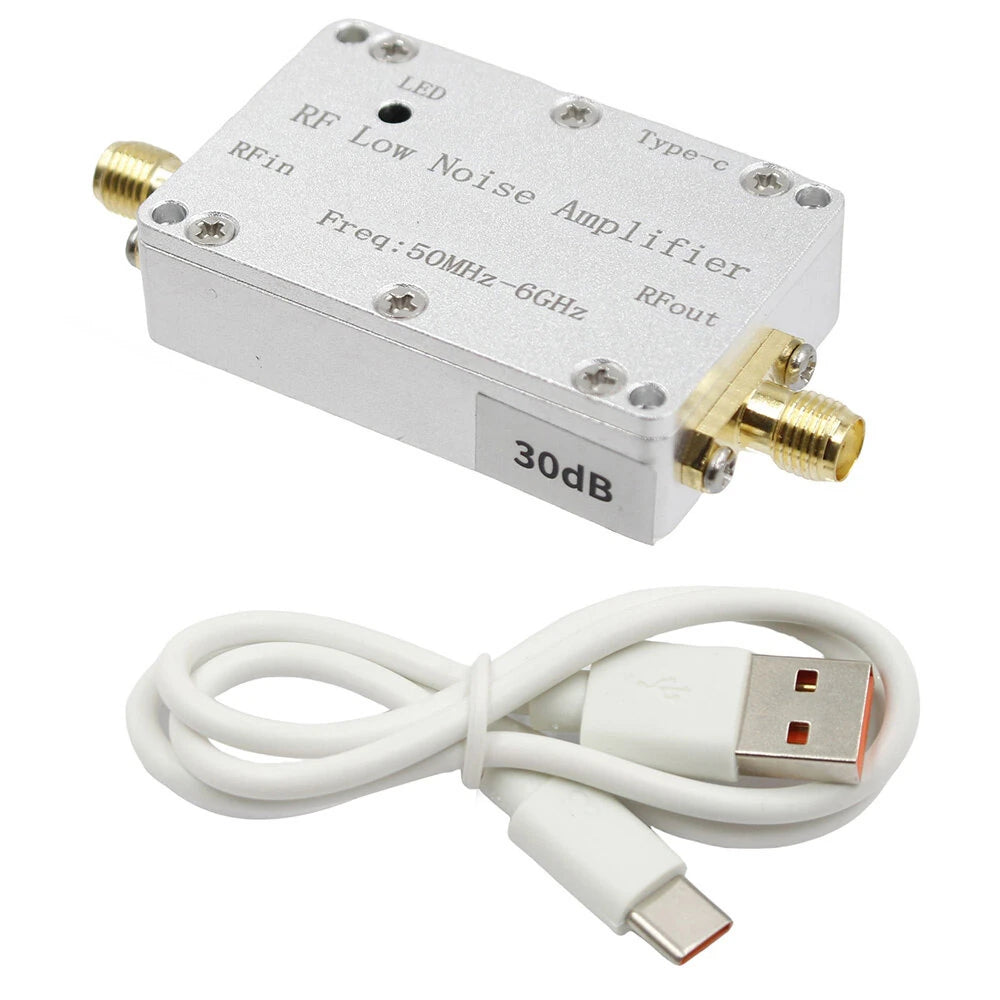

Package Included:

• 1 x Host with Aluminum Alloy Shell
• 1 x TYPE-C Cable
